Product Details

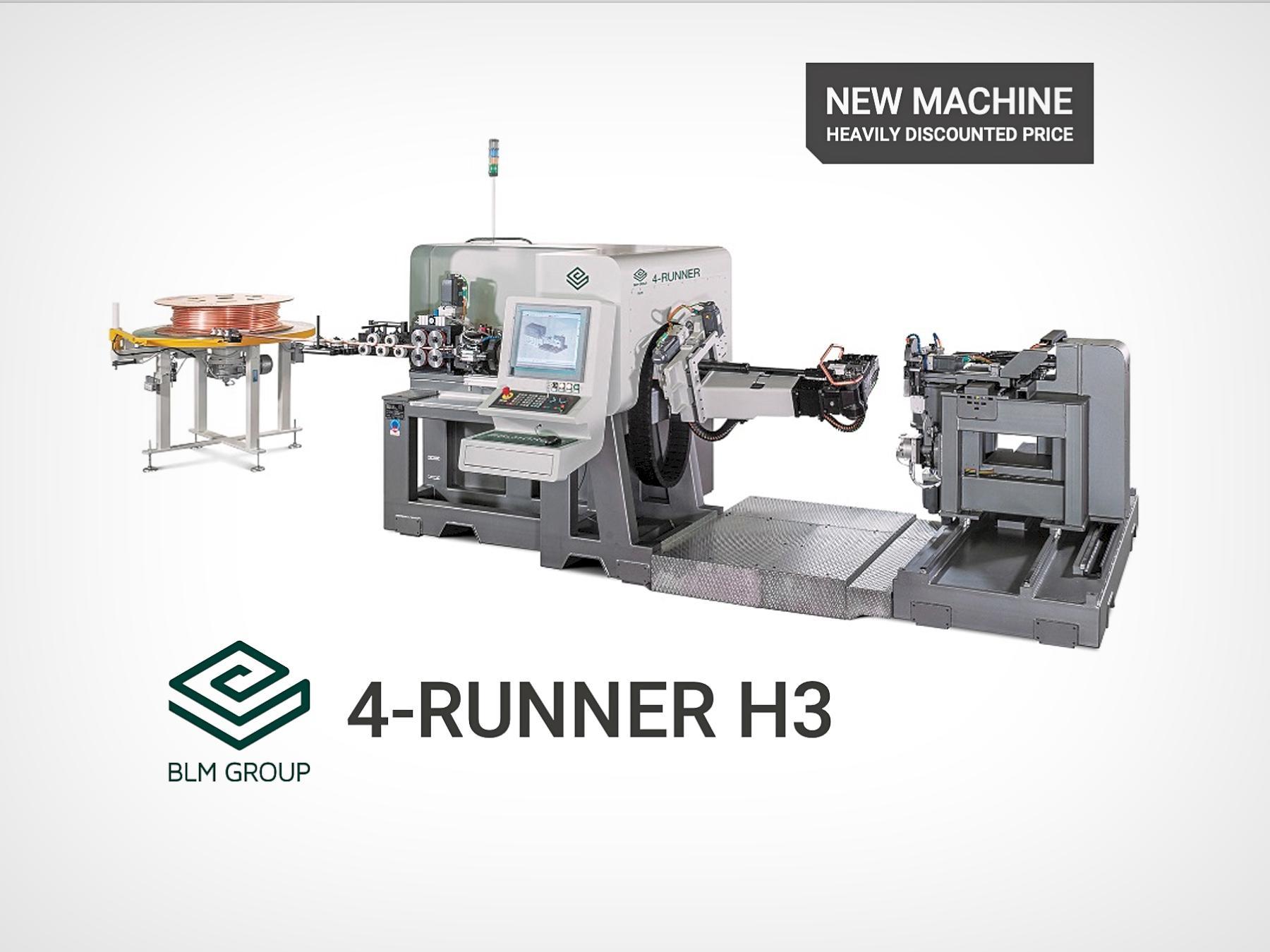

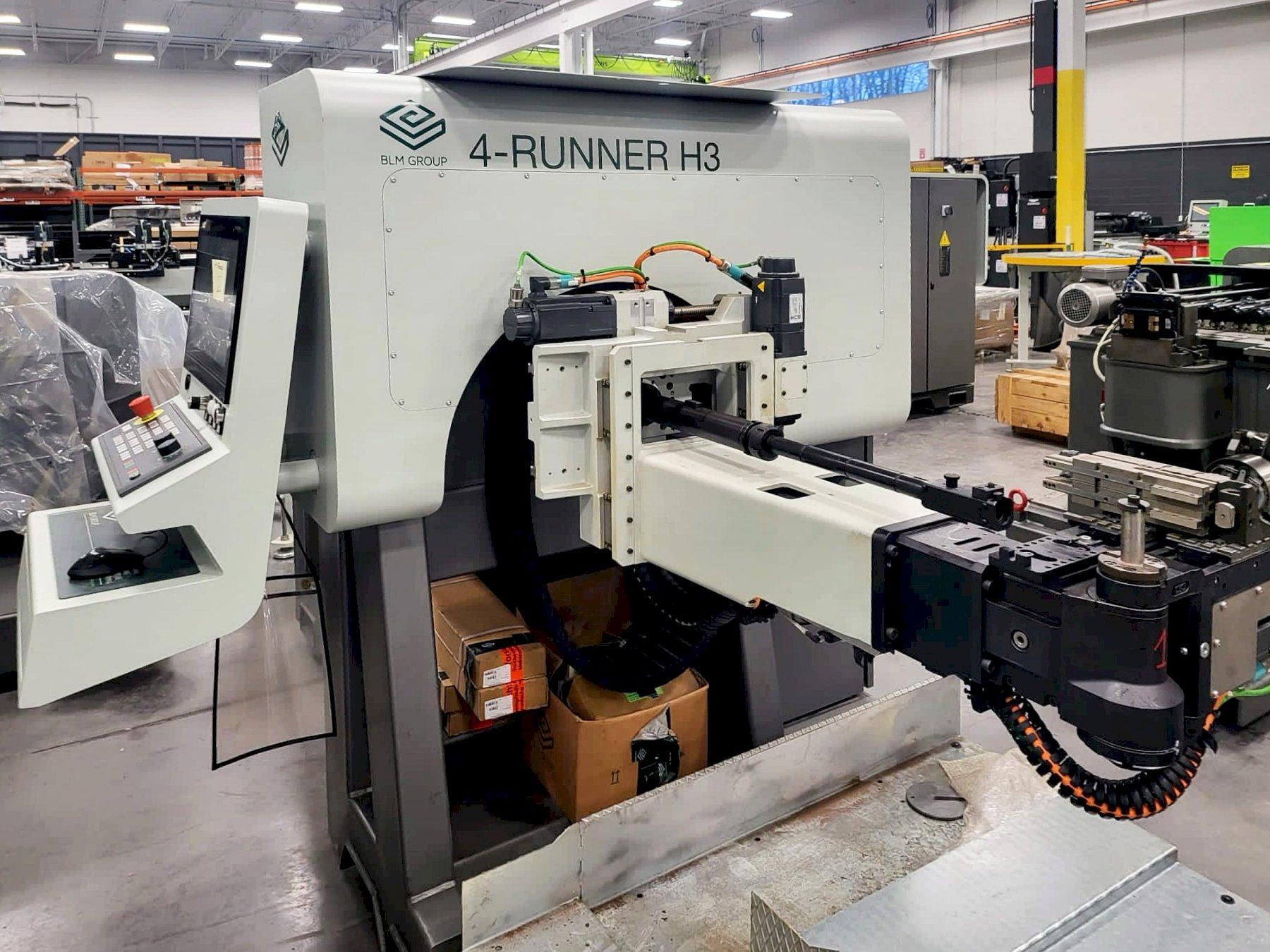

BLM 4-RUNNER H3 - All Electric CNC Tube Forming System

Make : BLM

Model: 4-Runner H3

Year: 2017

Reference #: 100482

New Machine - Heavily Discounted Price

Control: Siemens Simotion CNC
Max. Workable Diam. Aluminum: .87" x .06"
Max. Workable Diam. Copper: .87" x .05"
Max. Workable Diam. Mild Steel: .55" x .04"
Max. Workable Diam. S. Steel: .47" x .04"
Axes: Up to 15
X-Axis Accuracy: ± 0.002”
Y-Axis Accuracy: ± 0.002°
Z-Axis Accuracy: ± 0.002°
Max. Bending Radius: 2.76”
Min. Bending Radius: 0.63”
Max. Installed Power: 10.5 kW
Max. Installed Power With End-Forming Module: 14.5 kW
Noise Level: 65 DB(A)
Machine Weight Without End-Forming Module: 5,512 Lbs.
End Forming Module Weight: 2,976 Lbs.
Machine Dimensions Without End-Forming Module: 157” X 78” X 75”
End-Forming Module Dimensions: 85” X 49” X 55”

Equipped With:
Siemens Simotion CNC Control

TFT Touchscreen Flat Panel Display

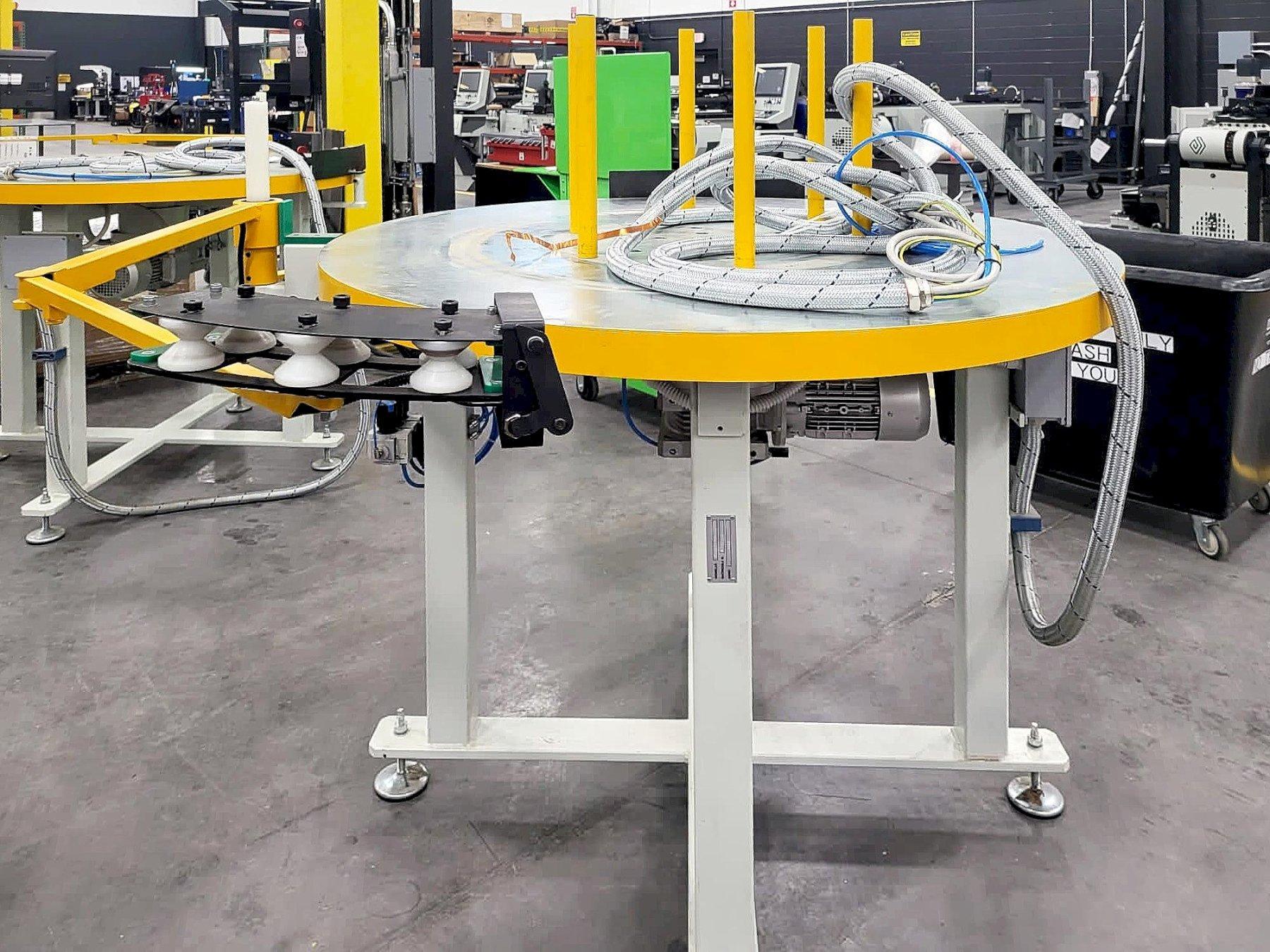

Coil Feeder

Horizontal and Vertical Straightening Units

Feeding Device

Measuring Unit

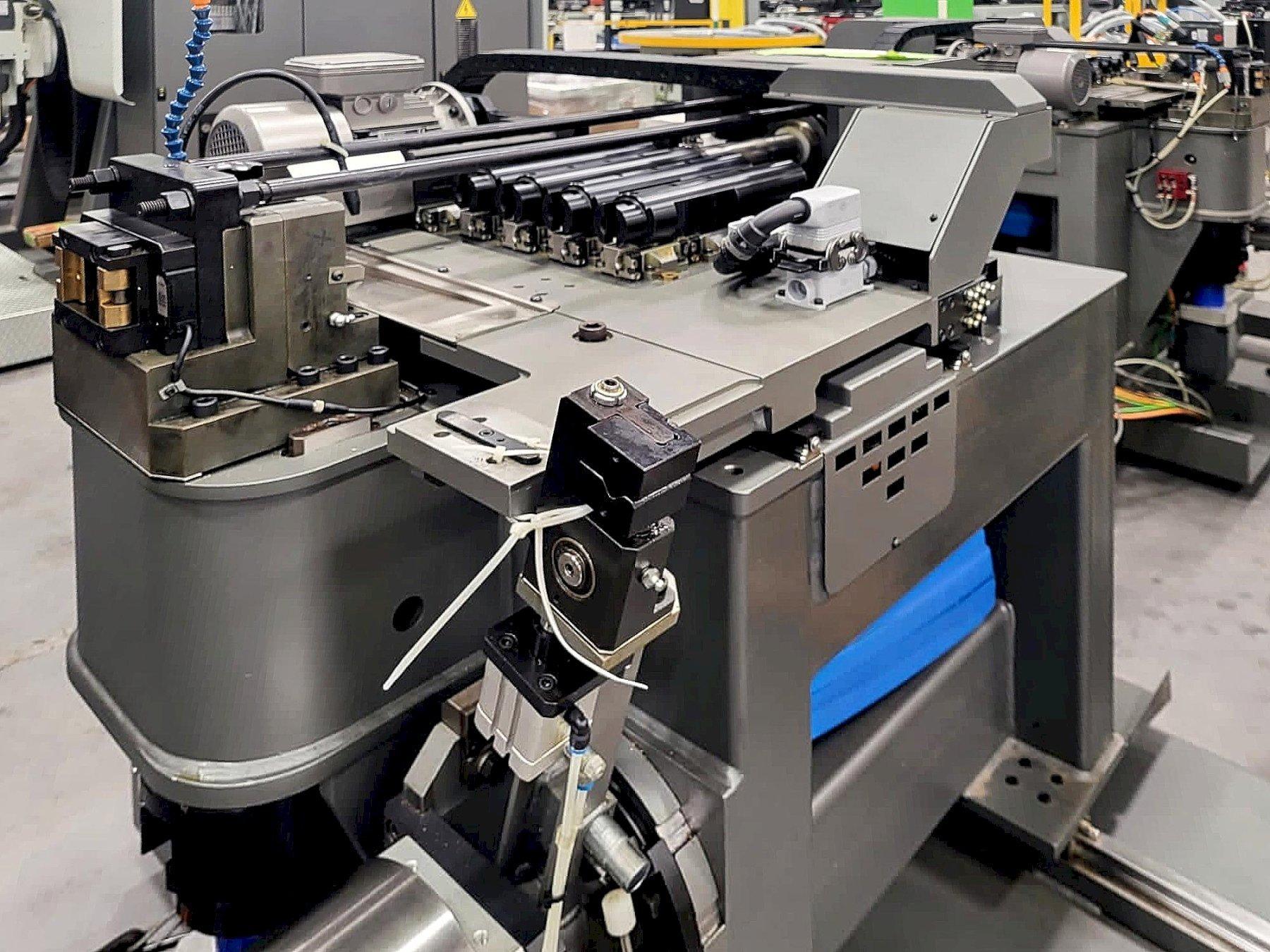

End-Forming Unit

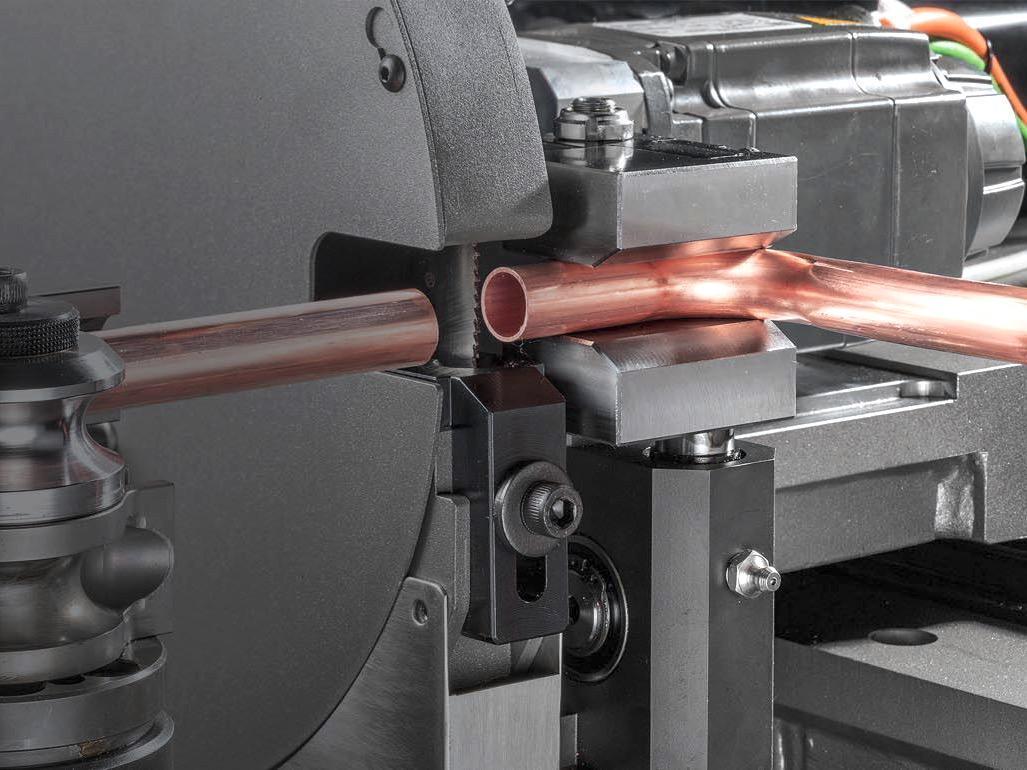

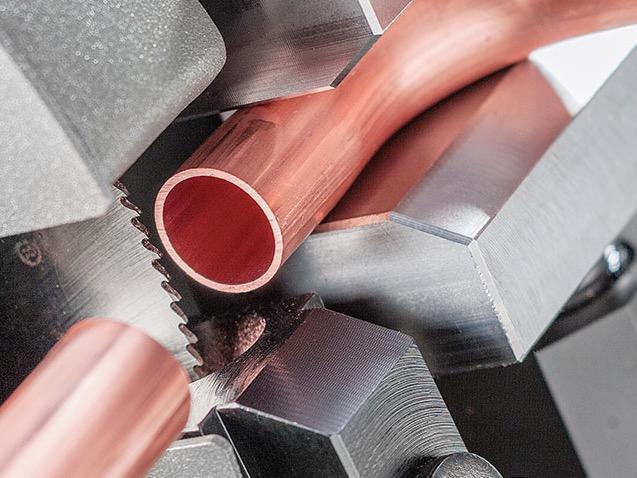

Internal Orbital Cutting

External Orbital Cutter

Automatic Diagnostics

B-TOOLS - Spring Back Compensation Software

All Manuals and Operational Documents
