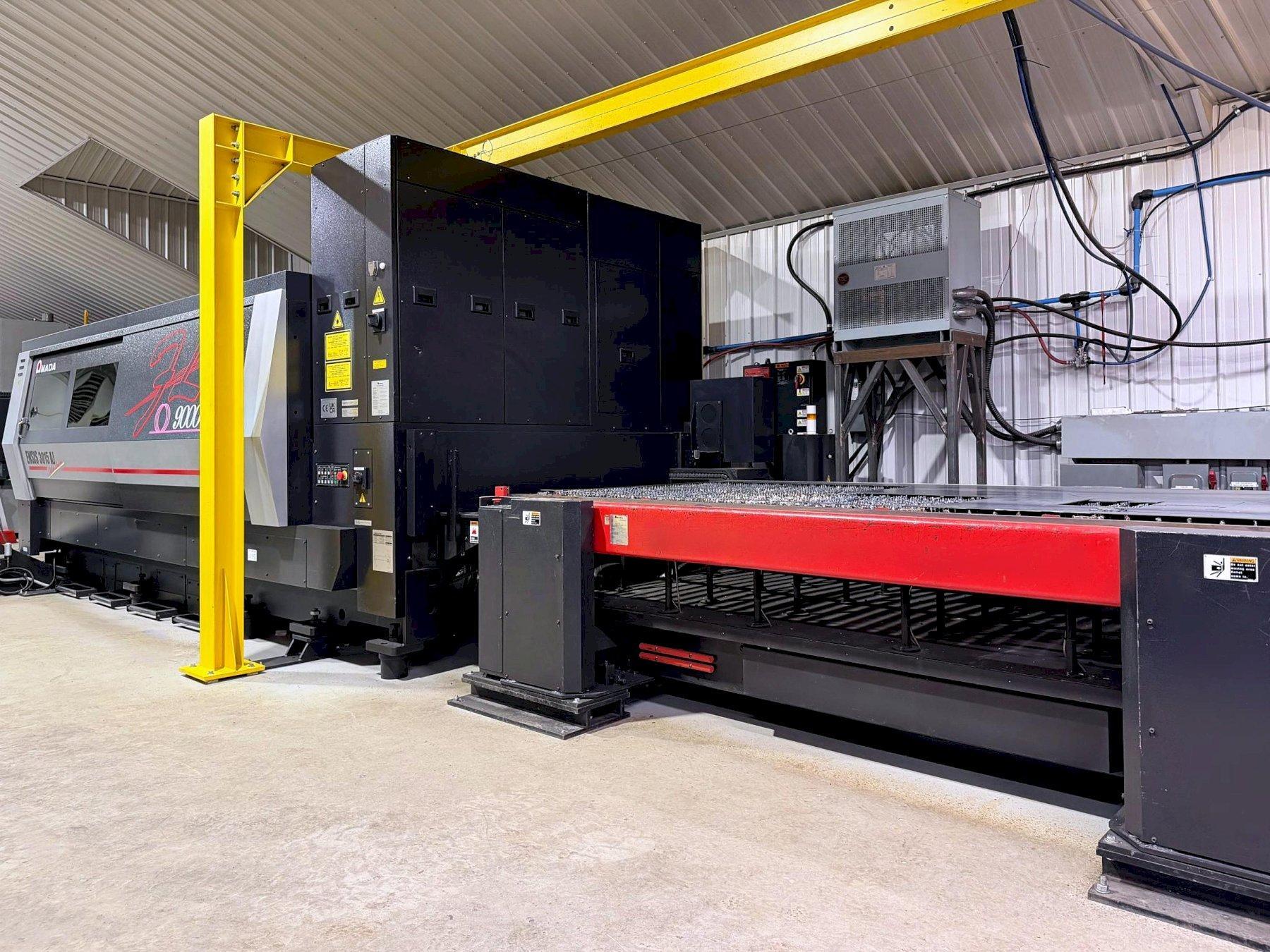

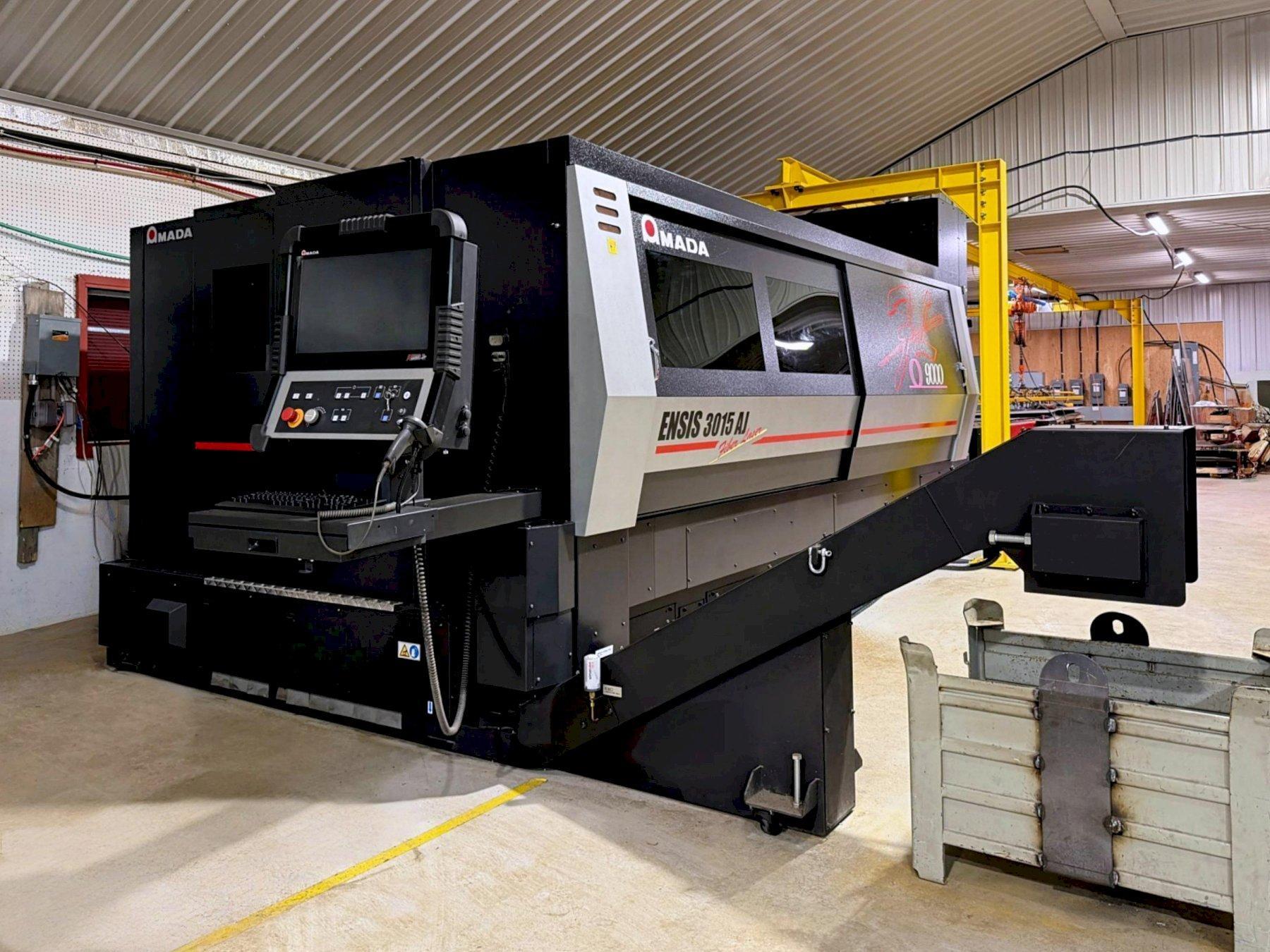

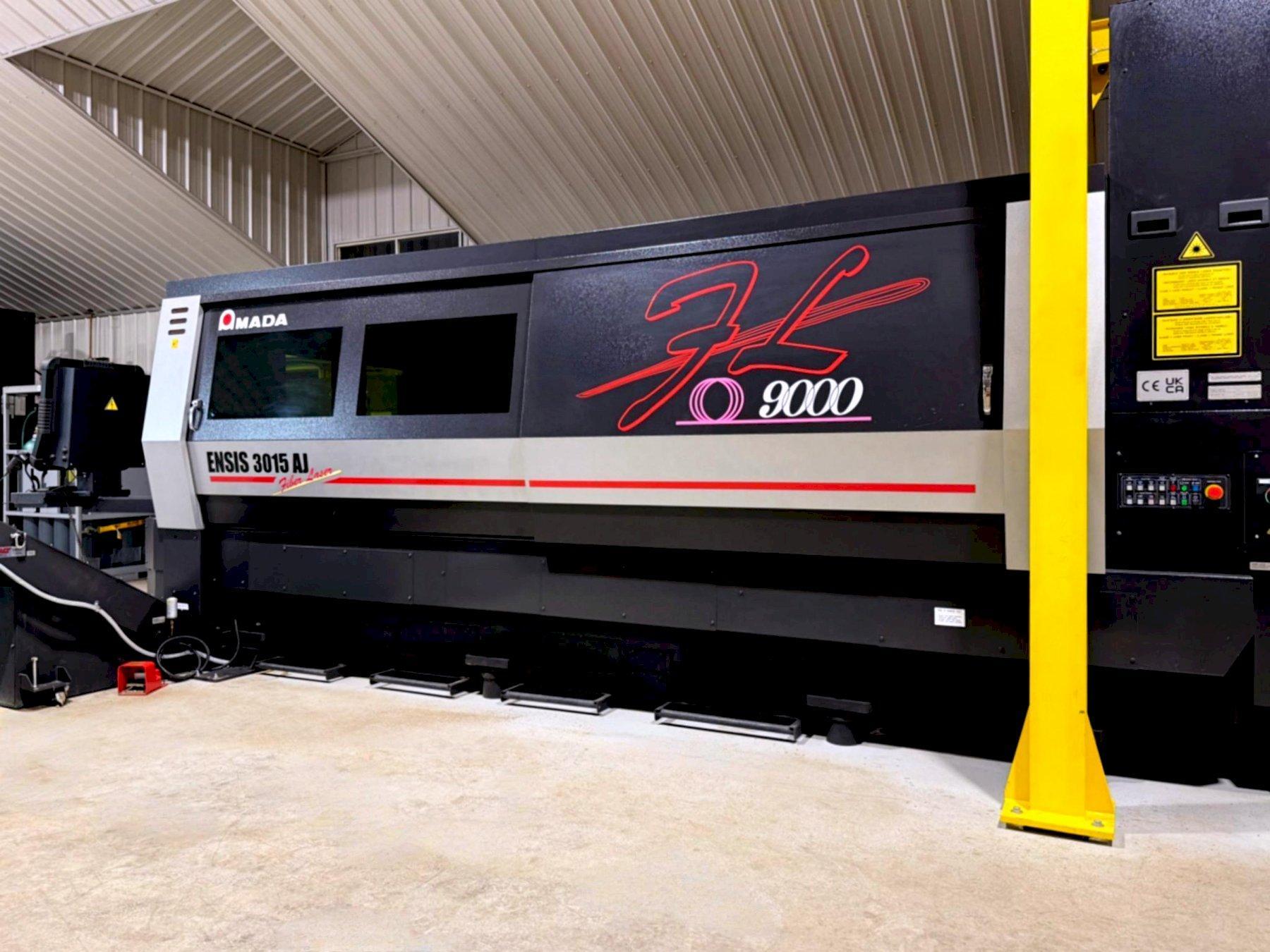

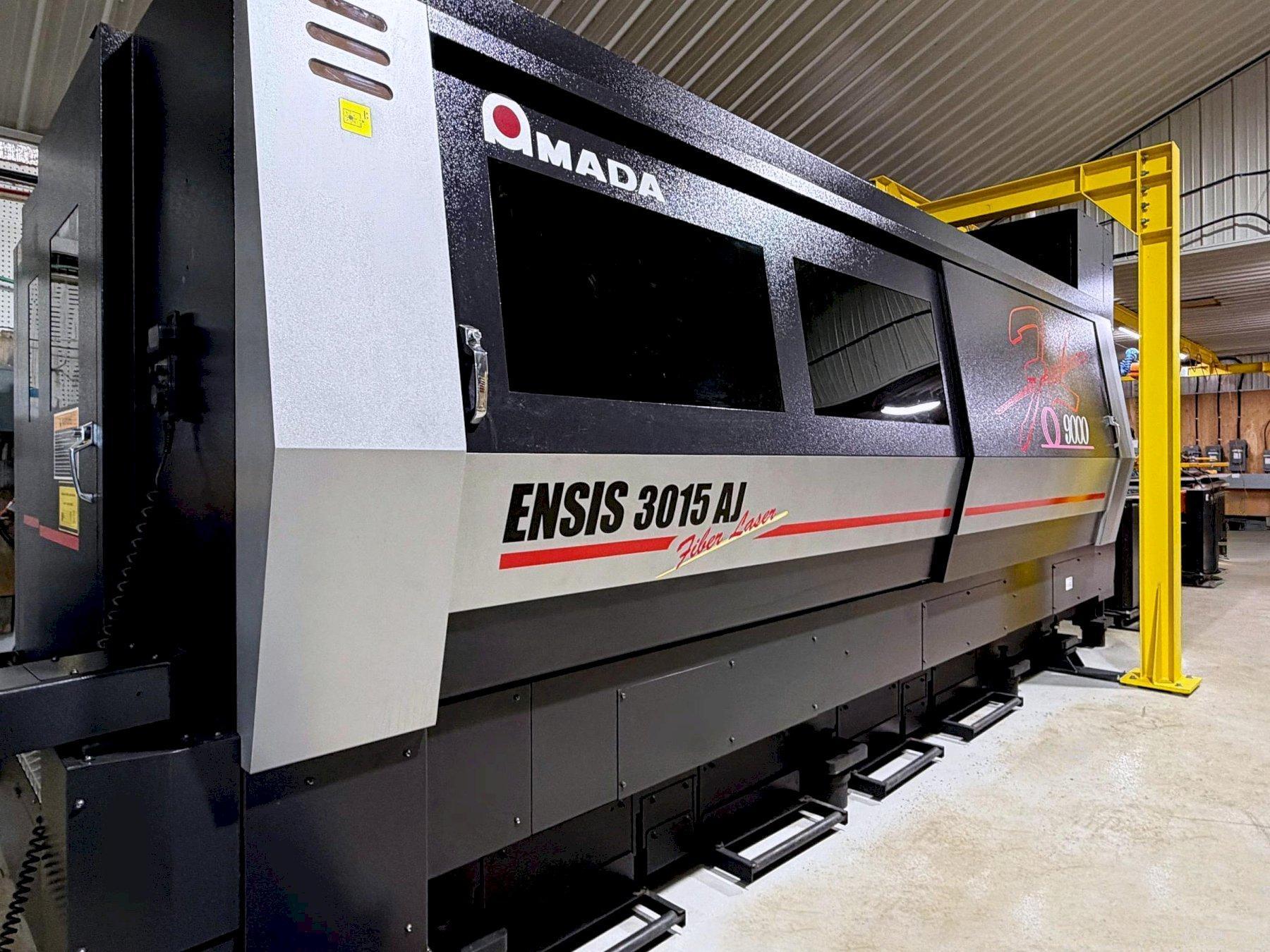

Make : AMADA

Model: Ensis 3015 AJ Fiber

Year: 2023

Type: Laser Cutters

Reference #: 100647

Highlights:
Installed in 2024. Extremely low hours. Only 380 cutting / 375 beam on hours.

Request a Quote Sell Your Machine

Specifications Equipped With

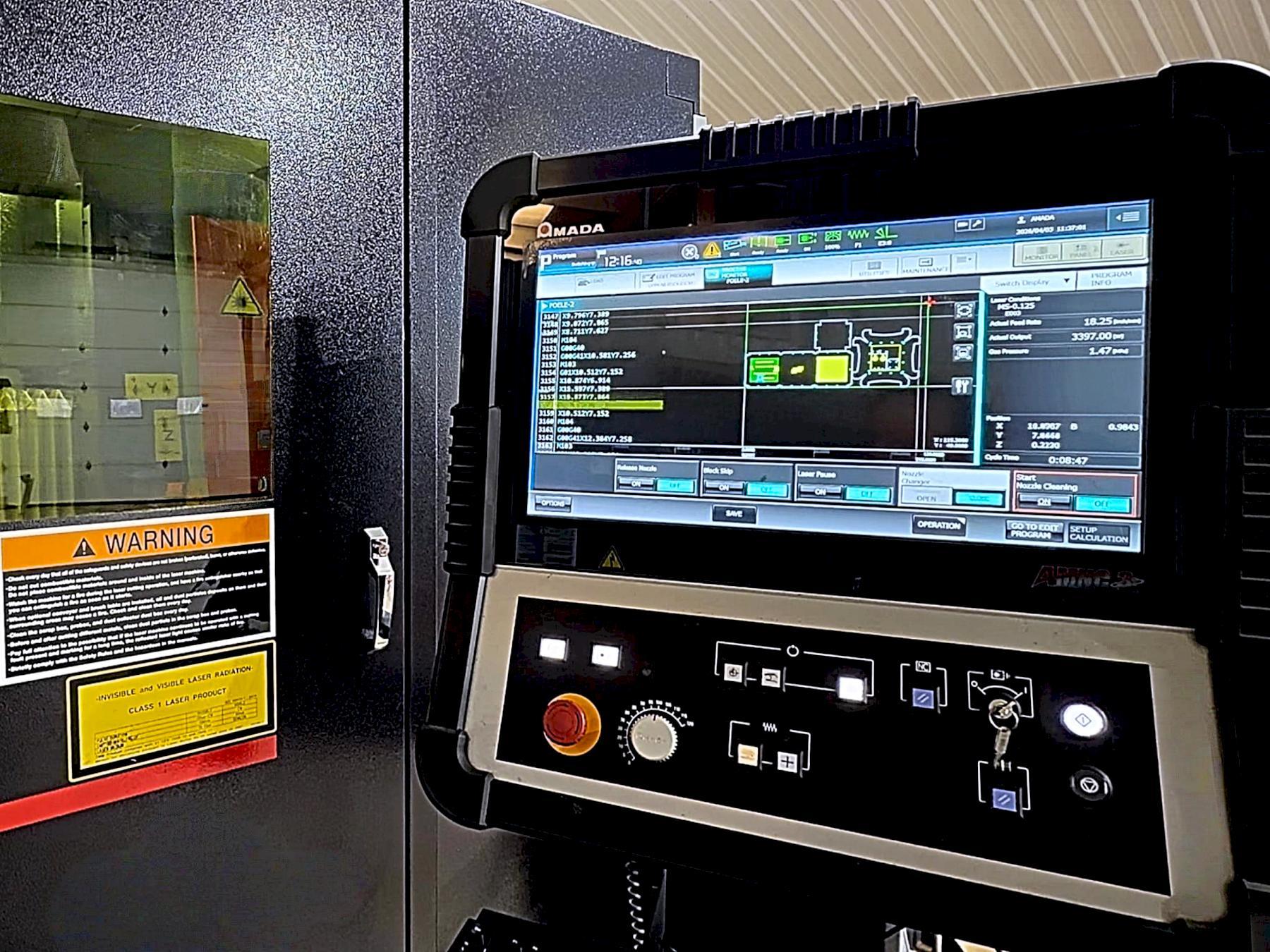

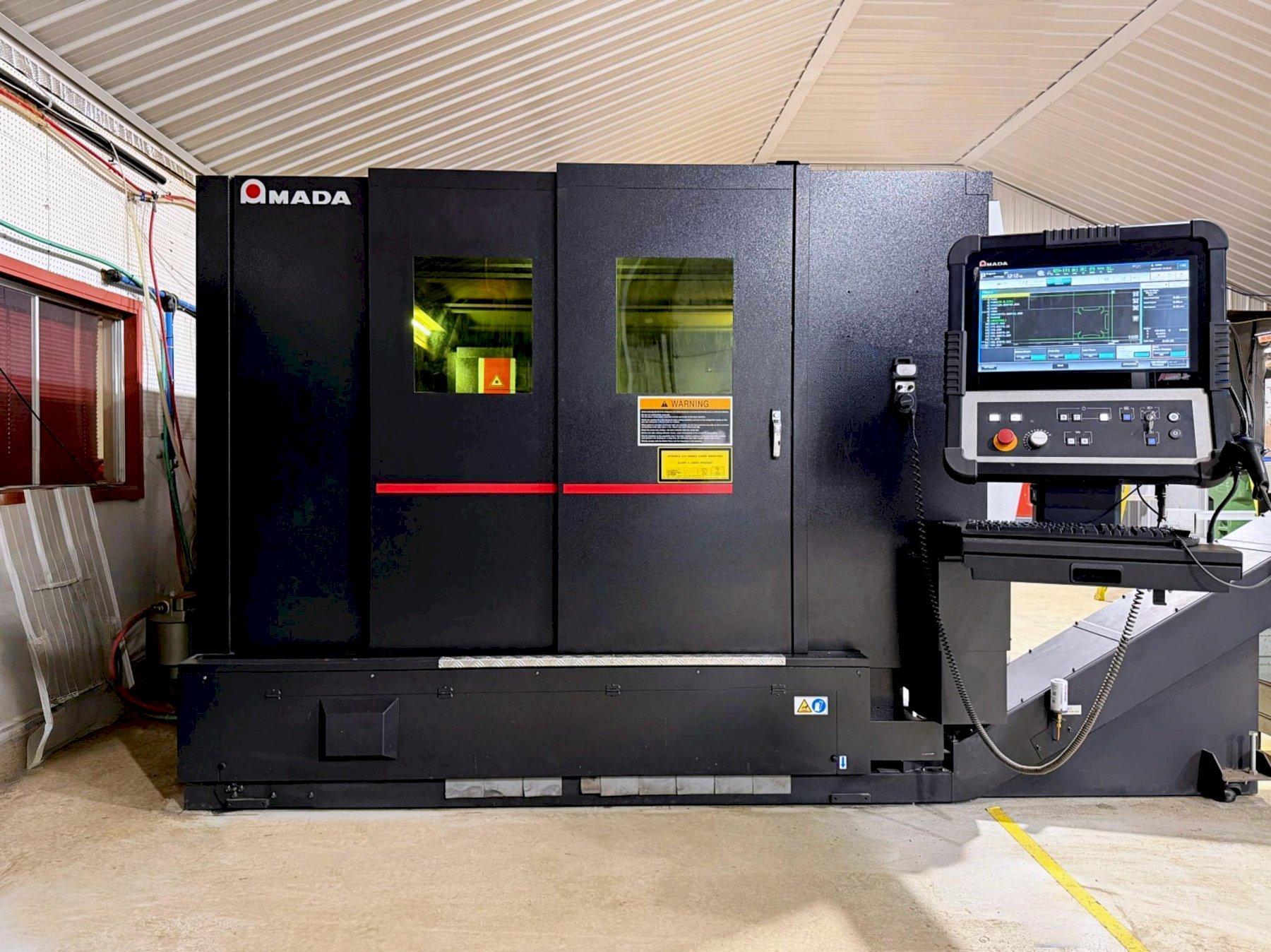

Control: AMNC 3i CNC

Display: Touchscreen Color LCD

Control Function X,Y,Z: Sim. Focus Lens B-Axis

Max. Sheet Size X,Y: 120" x 60"

Max. Axis Travel X,Y,Z: 121" x 61" x 3.93"

Travel Method: X,Y-Axis Stationary Table

Travel Method: Z-Axis Movement Cutting Head

Control Method X,Y,Z: Sim. 3-Axis Control

Drive Motors: Fanuc AC Servo Motors

Max. Axis Pos. Speed X,Y: 4,724"/min. Per Axis

Max. Axis Pos. Speed X,Y: 6,693"/min. 45° Vector

Max. Z-Axis Speed: 4,724"/min.

Repeatability: 0.00039"

Max. Material Weight: 2,028 lbs.

Data Storage: Compact Flash Drive

Resonator Type: Fiber

Resonator: LD Excited YB Fiber

Power Output: 9KW (9,000 Watts)

Laser Wavelength: 1.08 m

Power Stability: ±2%

Beam Divergence: < 3mm-mrad

Pulse Frequency: 1–10000Hz

Pulse Duty: 0–100%

Max Cut Mild Steel: .98”

Max Cut Stainless Steel: .98”

Max Cut Aluminum: .98”

Max Cut Brass: .70”

Max Cut Copper: .46”

Assist Gas: 4 Ports w/ NC Pressure Control

Electrical Req.: 200V, 3-Phase, 60Hz, 65kVA Max

Equipped With:

AMNC 3i CNC Control
LD Excited YB 9kW Fiber Power Source

Interlocked Enclosure

NC Assist Gas

B-Axis NC Focus

Integrated Beam Purge

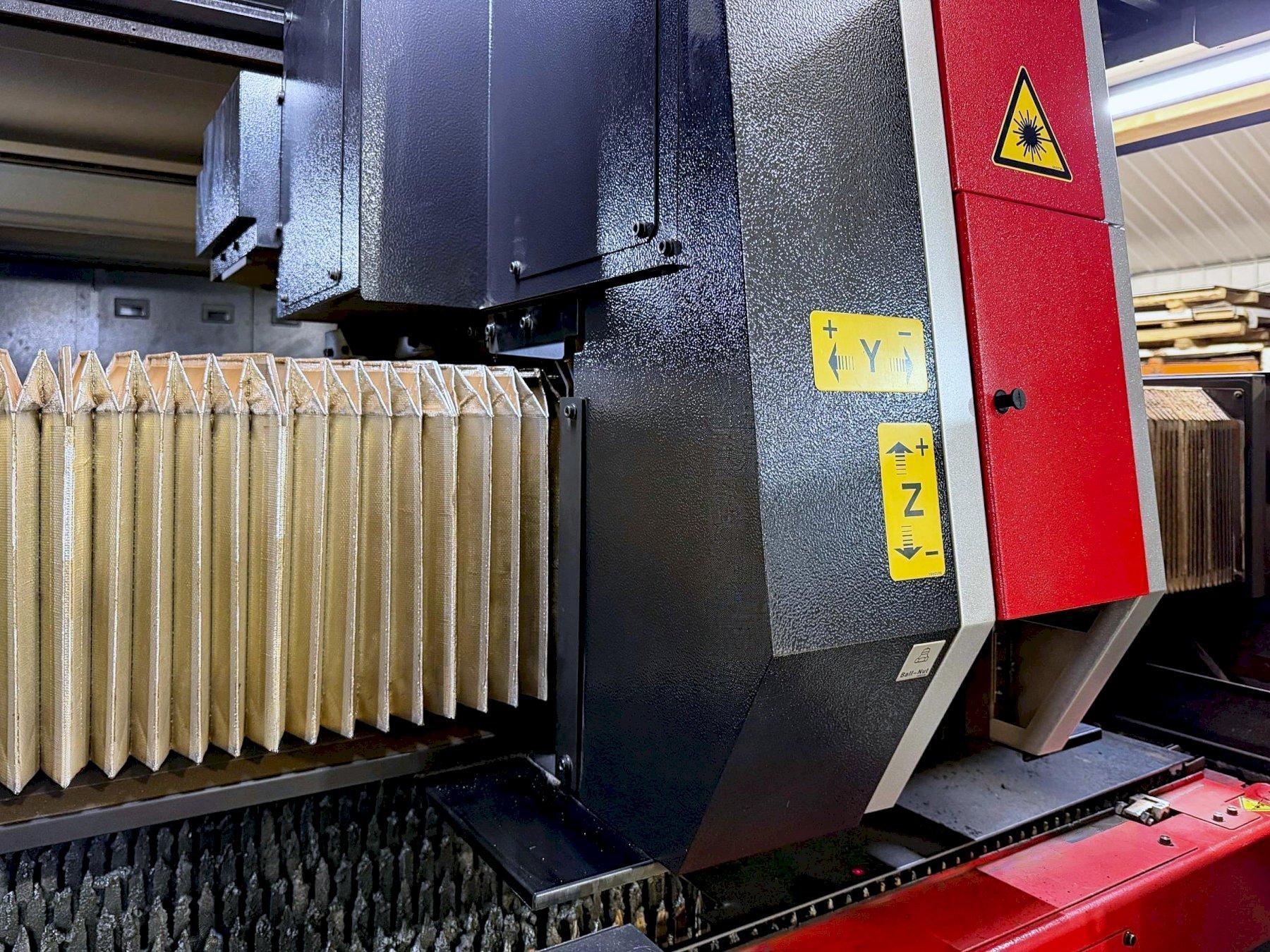

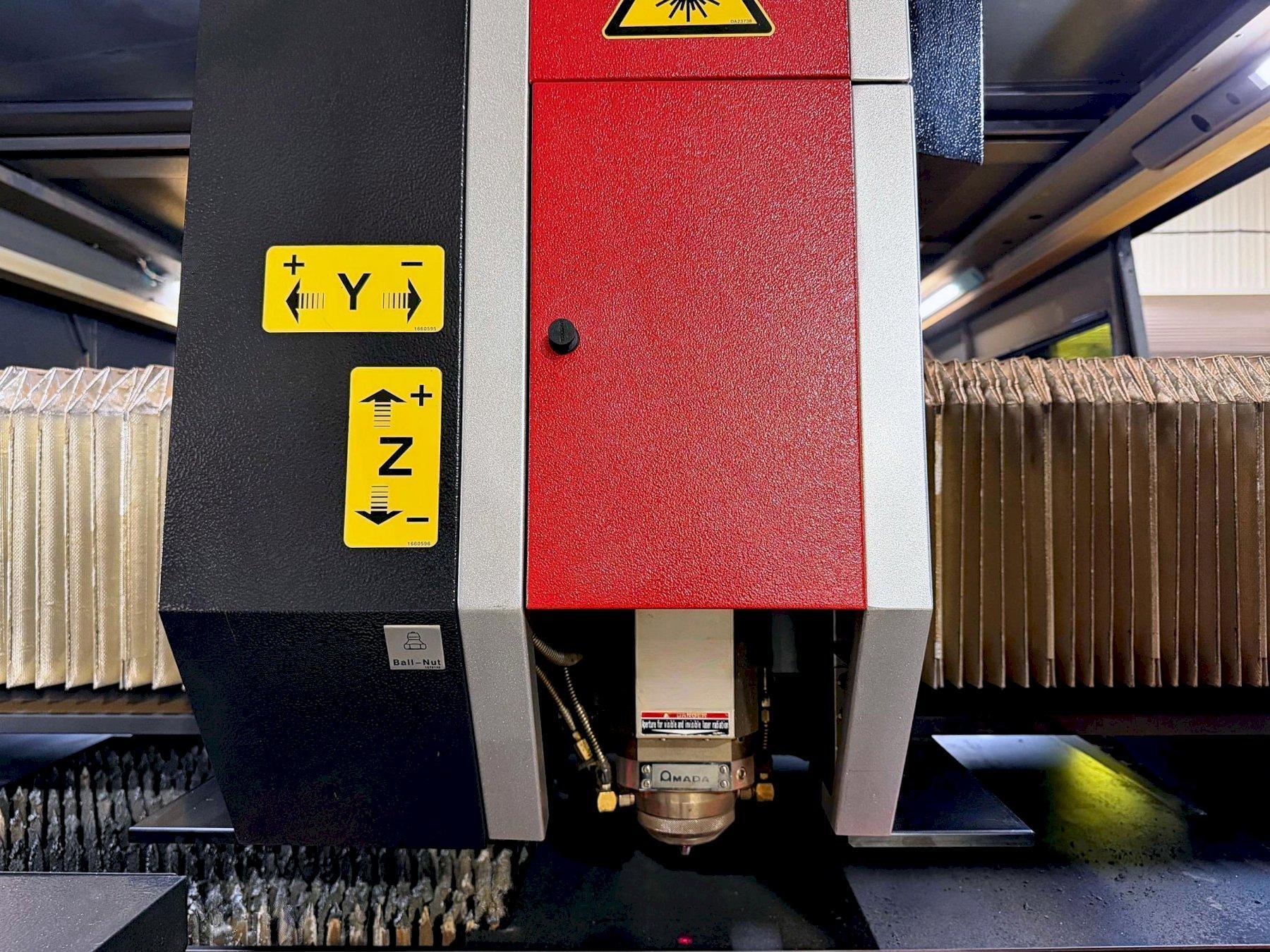

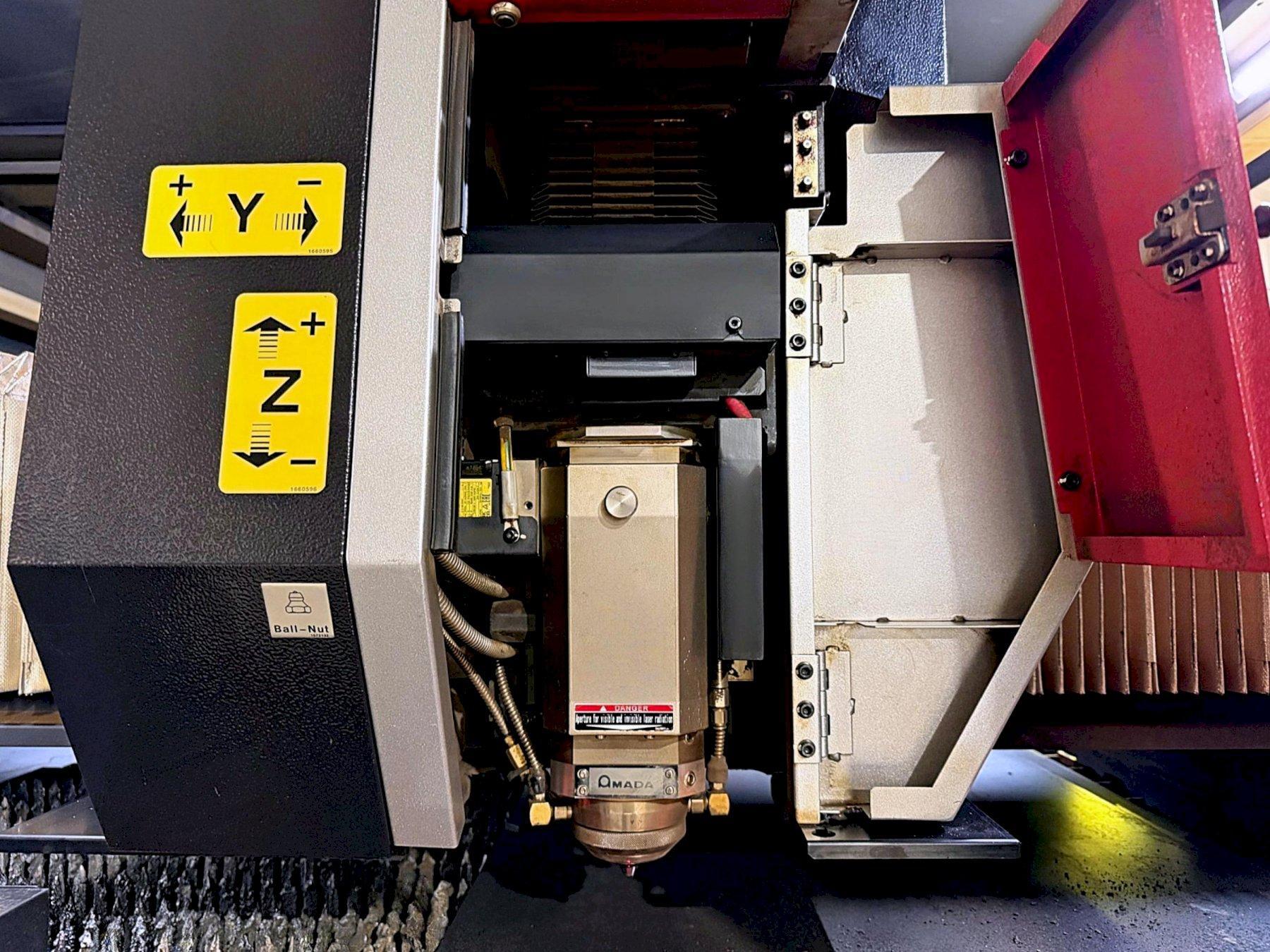

High-Speed Cutting Head

Active Cut™
Clean Cut™
Auto Nozzle Changer

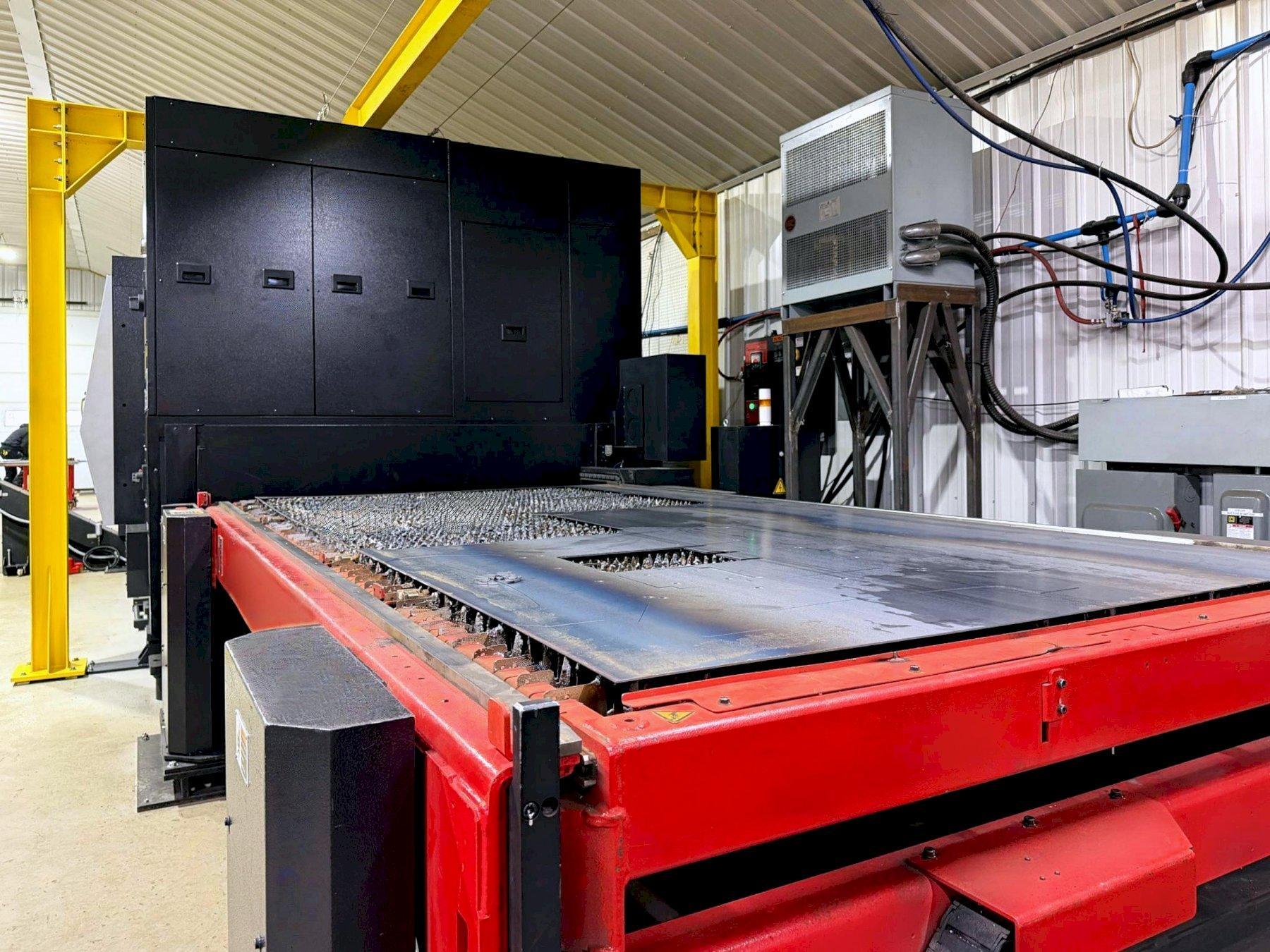

Duel Pallet Table System

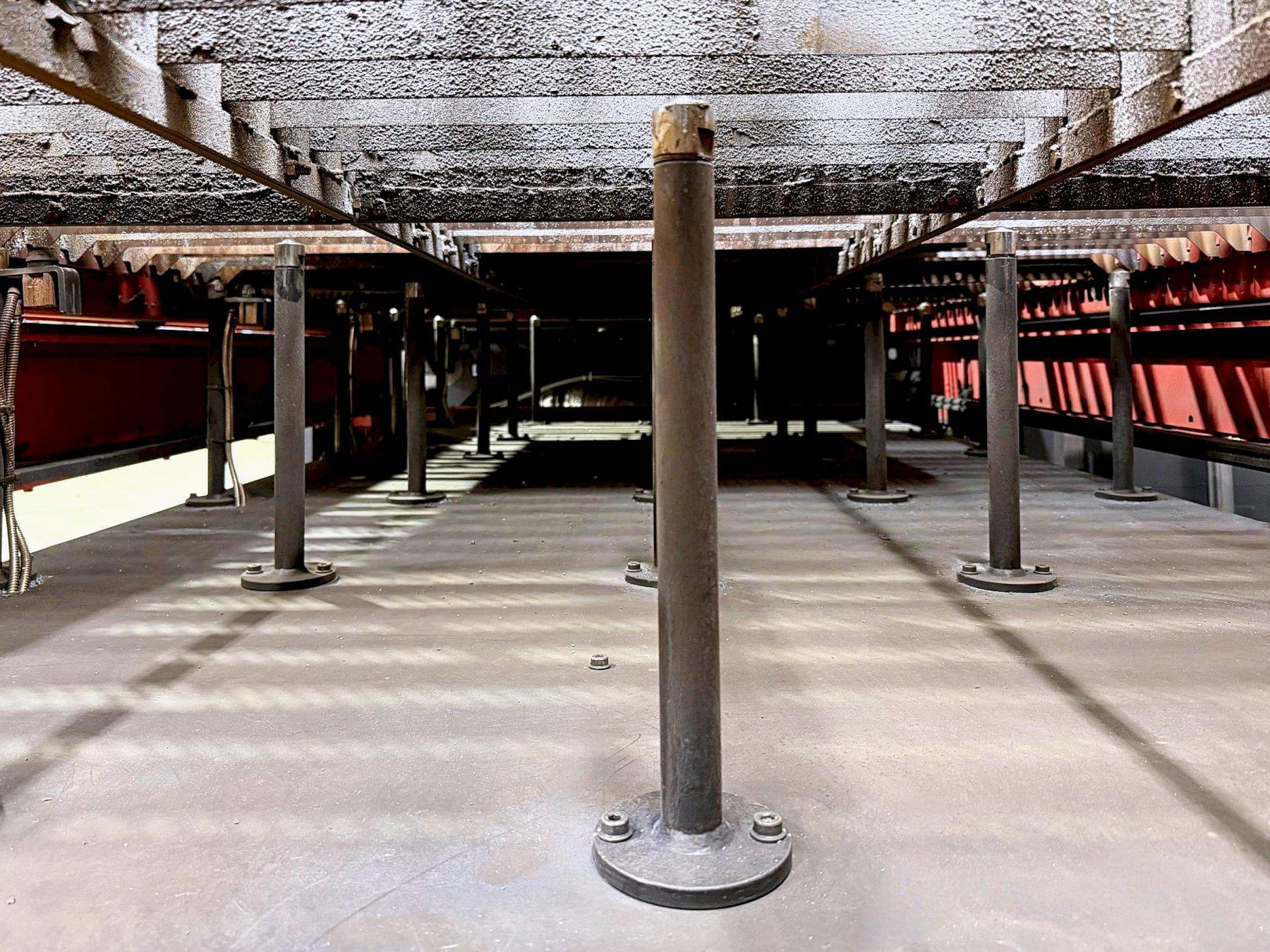

Sheet Lifters

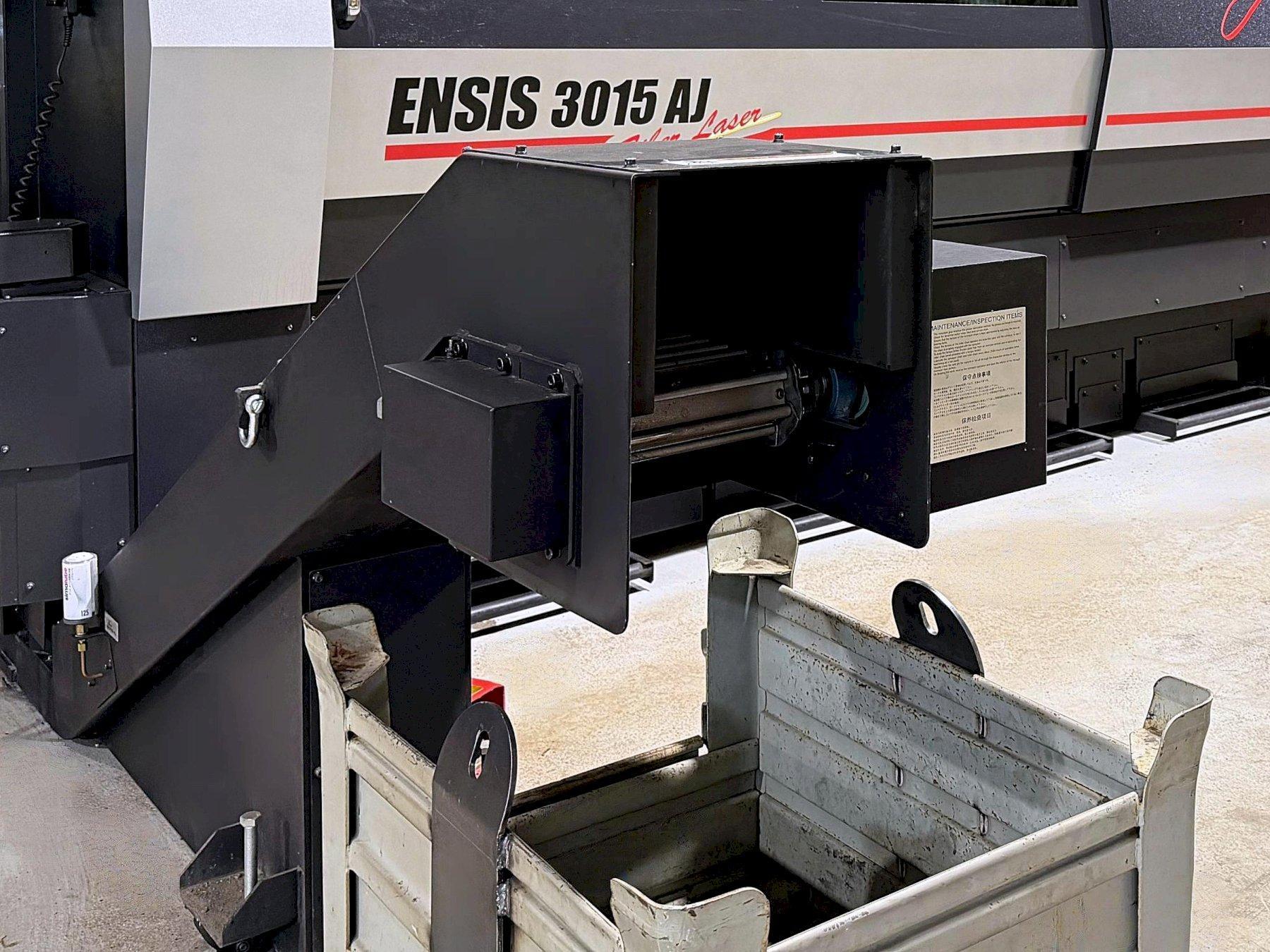

Scrap Conveyor

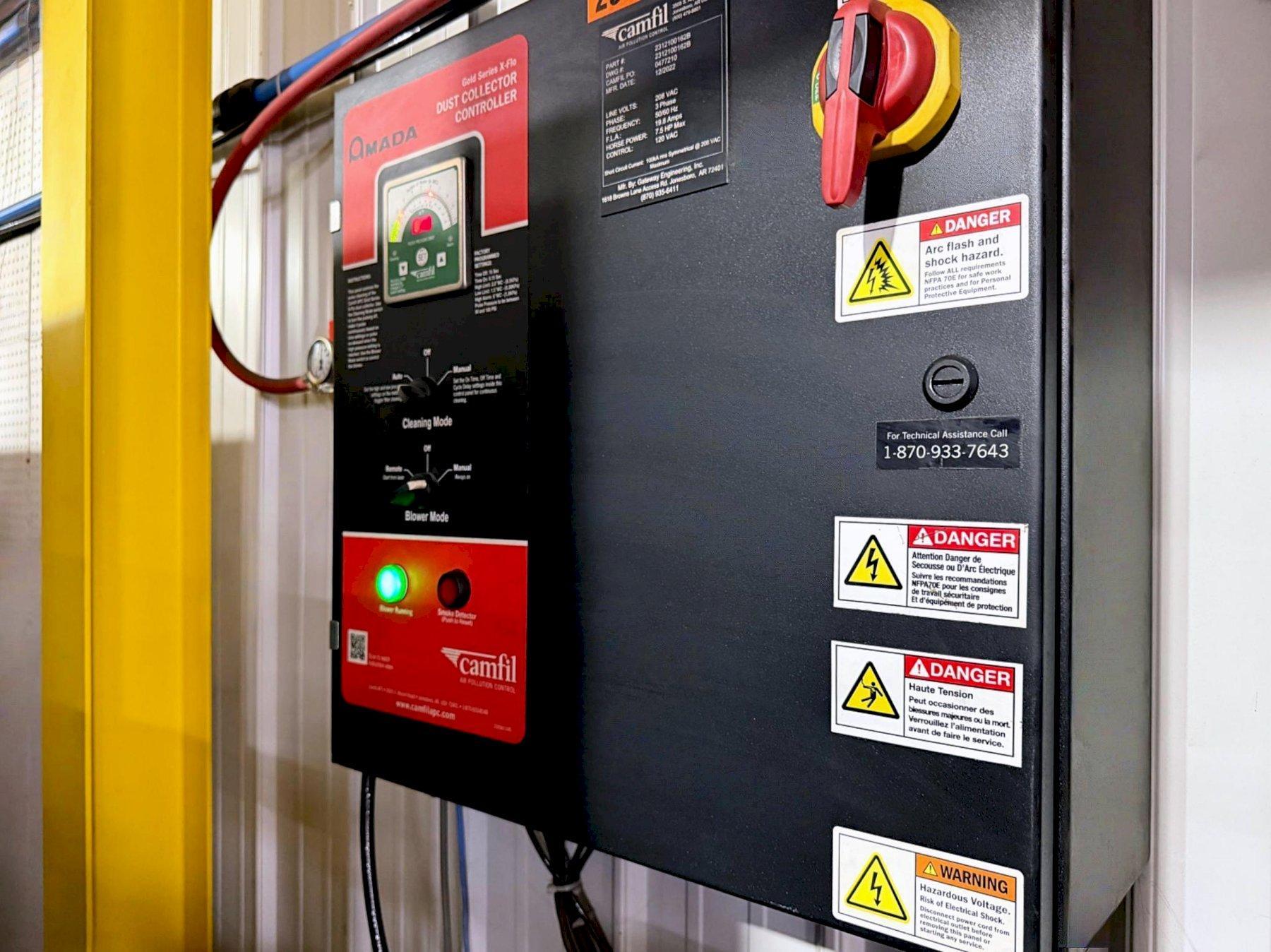

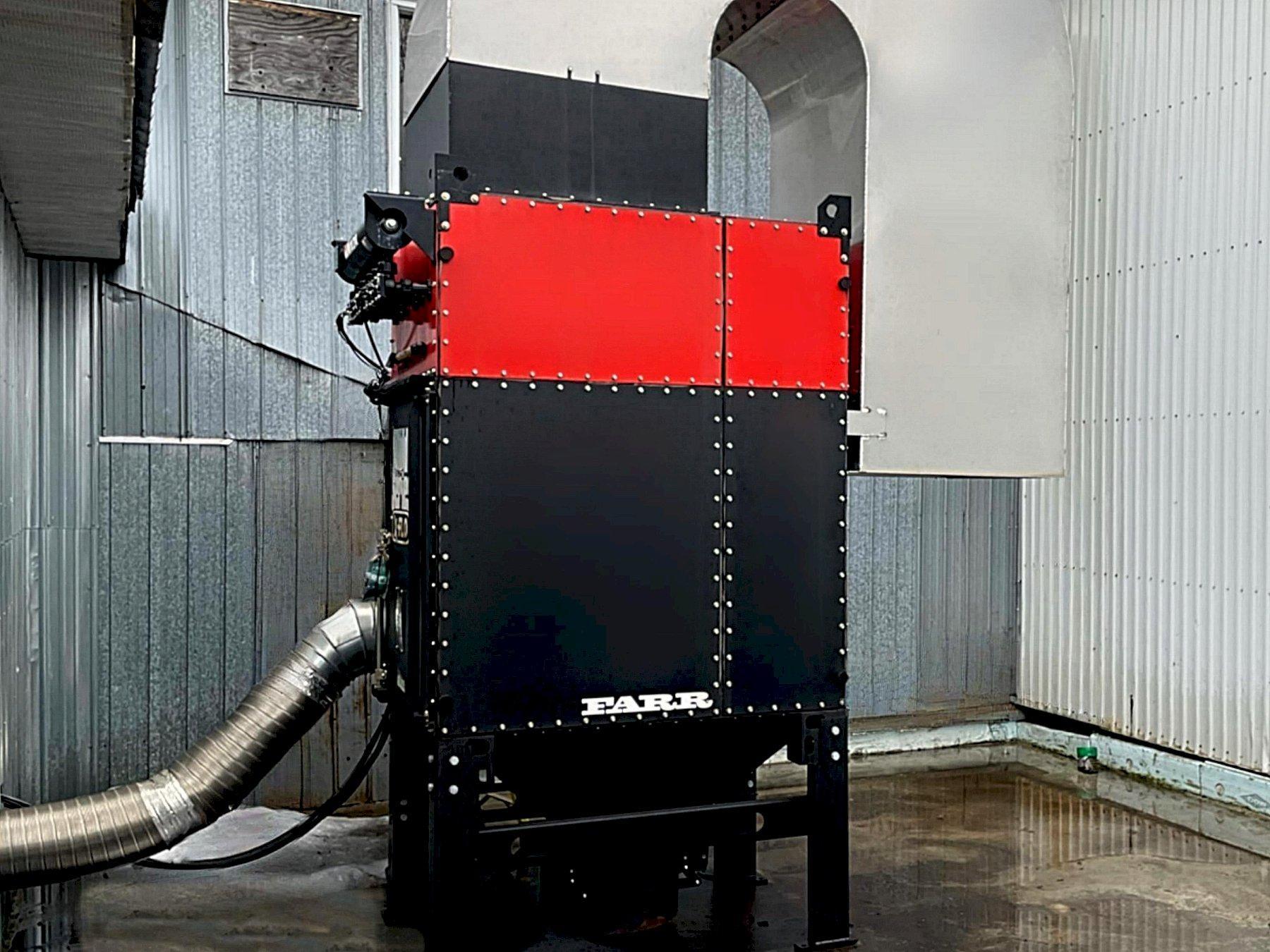

Camfil Dust Collector

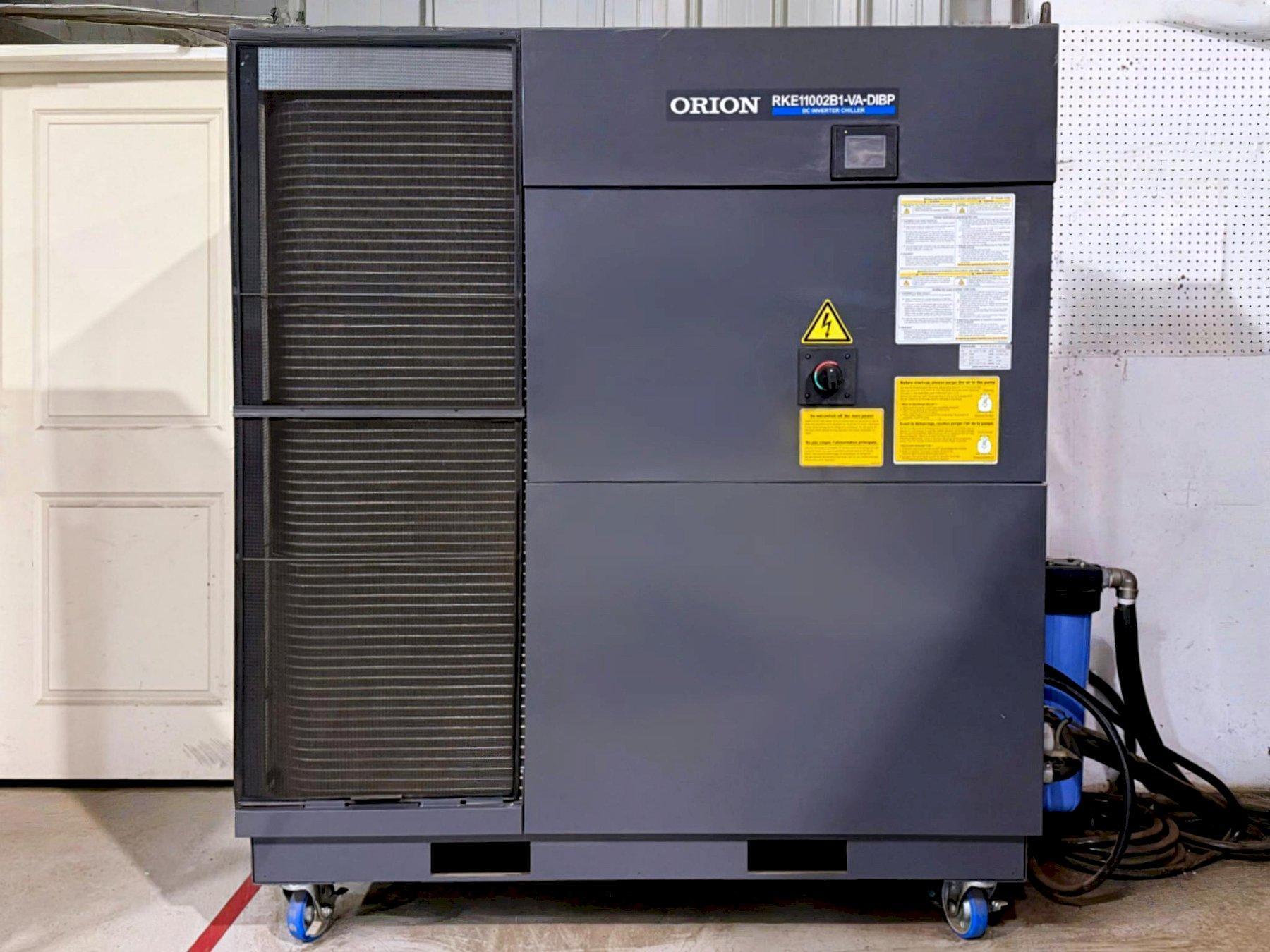

Orion Chiller Unit
