Product Details

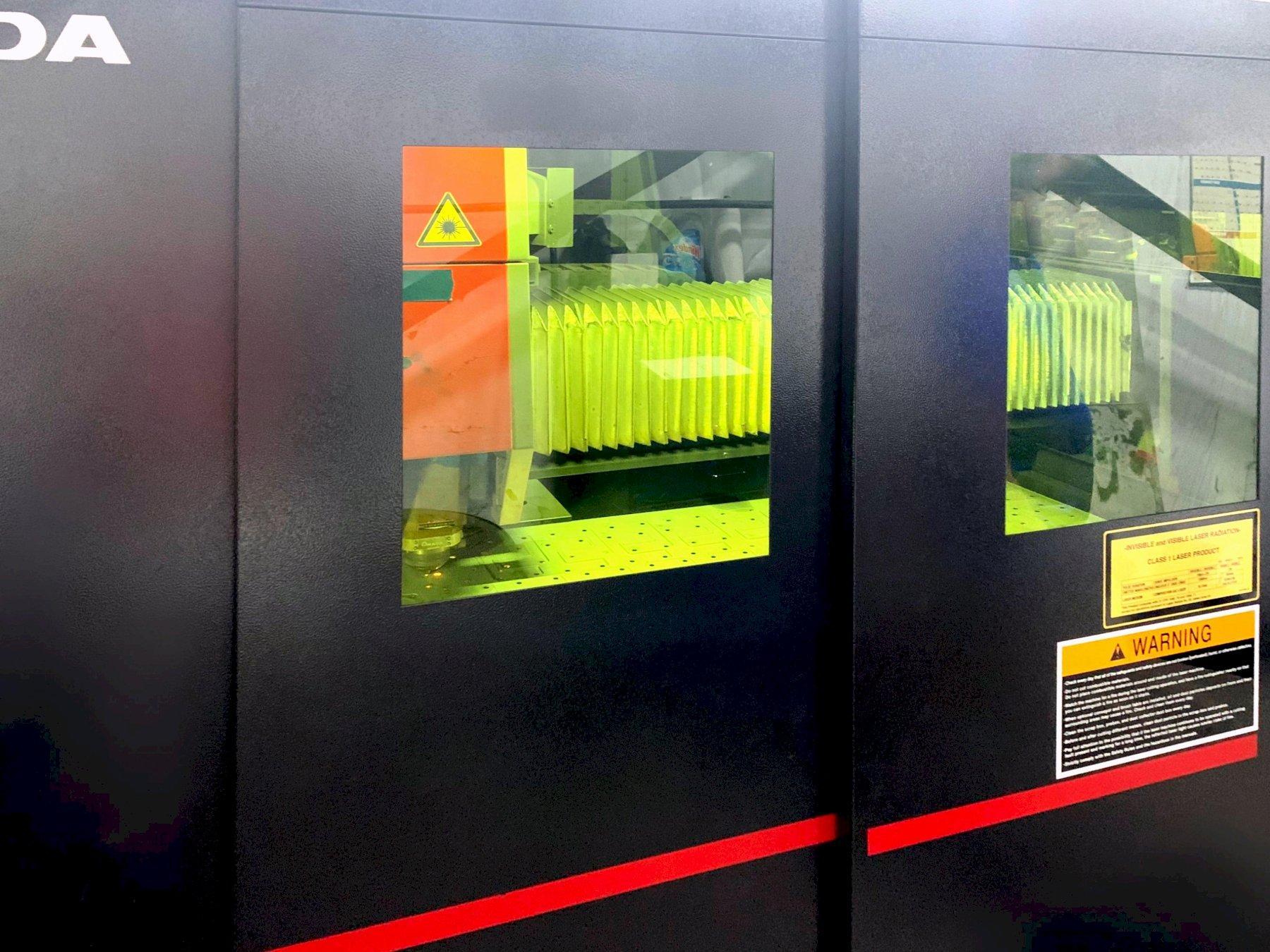

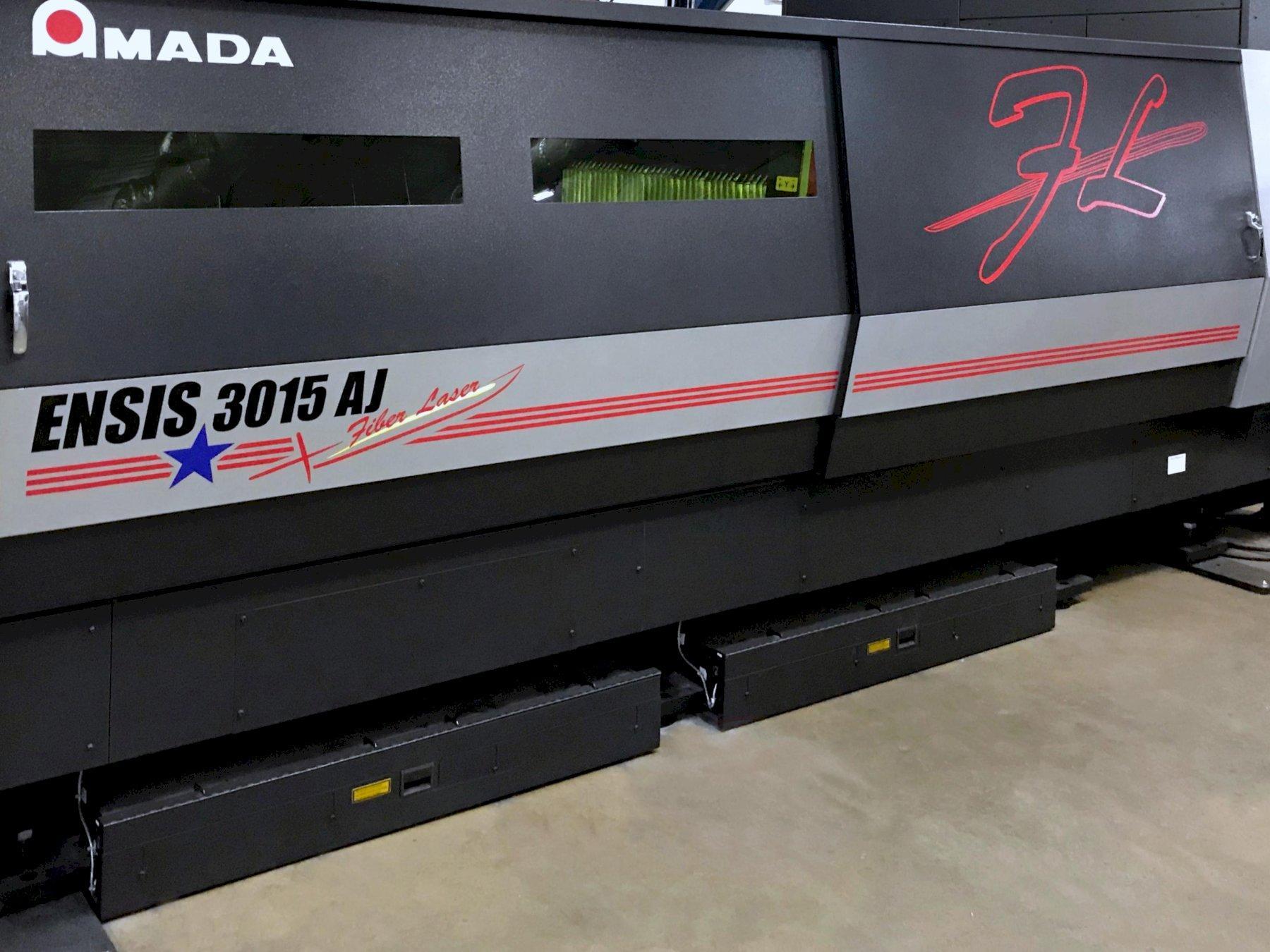

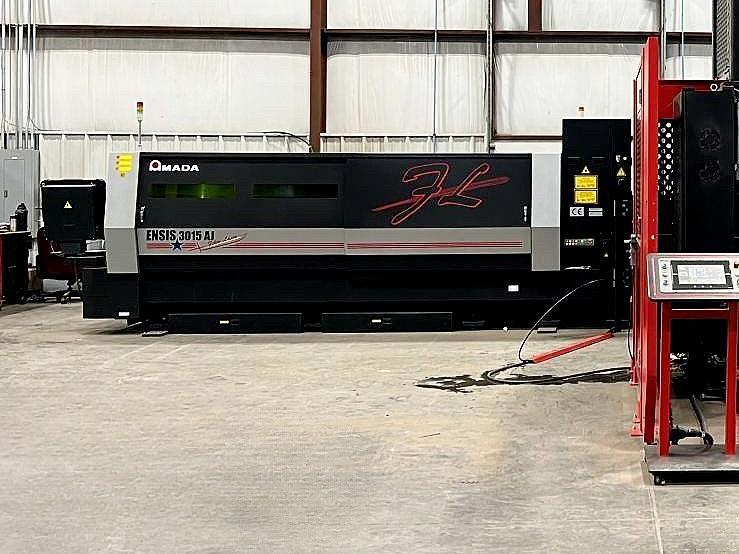

Amada ENSIS-3015AJ 3kW Fiber w/ Automation

Make : AMADA

Model: ENSIS-3015AJ

Year: 2018

Reference #: 100539

Highlights:
Excellent condition with only 4,289 cutting hours.

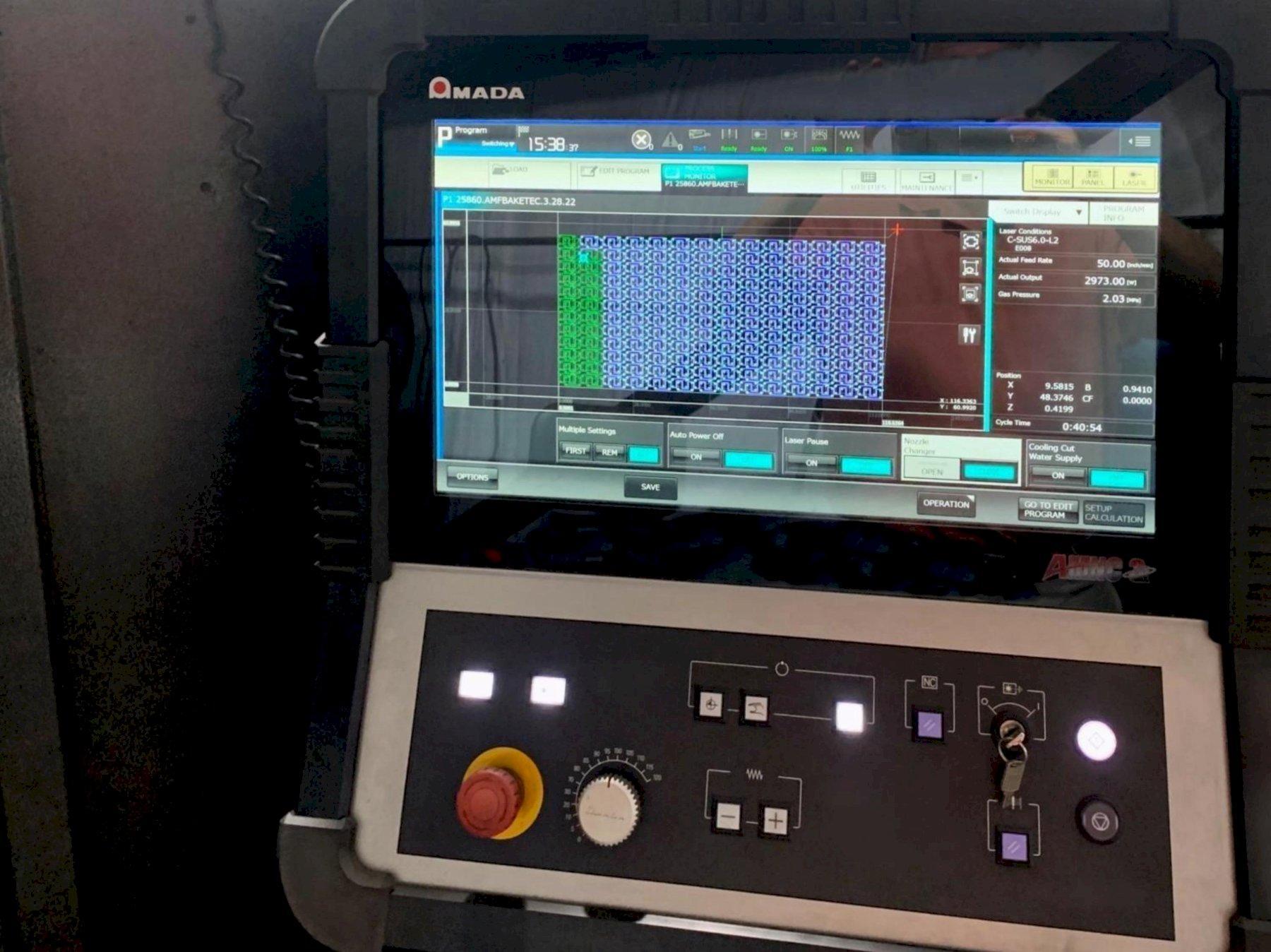

Control: AMNC 3i CNC Control
Sheet Size: 60" x 120"
X-Travel: 121 inches
Y-Travel: 61 inches
Z-Travel: 3.93 inches
Drive Motors: Fanuc AC Servo Motors
Max Positioning Speed (X,Y): 4,724 IPM
Repeatability: +/- 0.0002”
Max Positioning Speed (X,Y) 45 Deg. Vector: 6,693 IPM
Max Speed Z-axis: 4,724 IPM
Max Material Weight: 2,000 lbs.
Resonator Type: Fiber
Resonator Model: AJ3000 w/ Ensis Technology
Resonator Style: LD Excited YB Fiber
Laser Output: 3,000 Watts
Assist Gas: 4 Ports w/ NC Pressure Control
Laser Wavelength: 1.08 Microns
Max Material Cut - Mild Steel: 1.0”
Max Material Cut - Stainless steel: 0.500”
Max Material Cut - Aluminum: 0.500”
Electrical Requirements: 200V / 3 Phase / 60 Hz
Electrical Power Consumption: 9kW

Equipped With

Laser:
AMNC 3i Control

Interlock Enclosure

NC Assist Gas

B-Axis NC Focus

Integrated Beam Purge

High Speed Cutting Head

Active Cut

Clean Cut

Chiller Unit

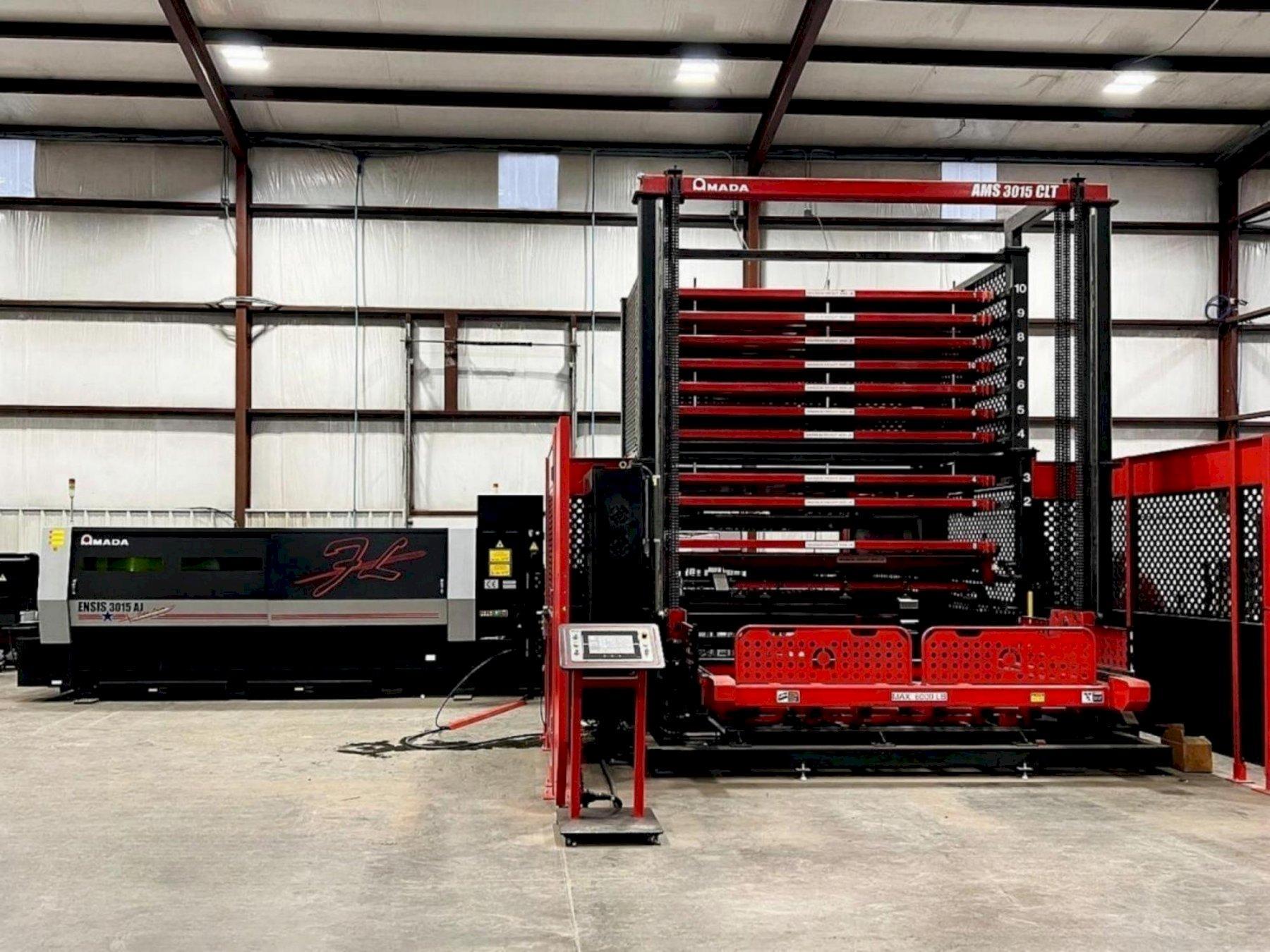

Automation:

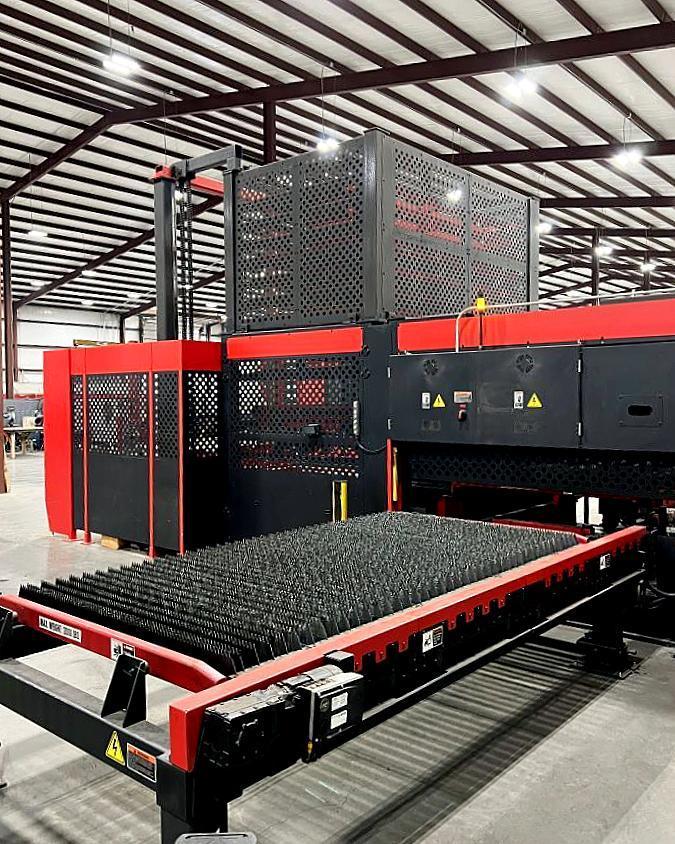

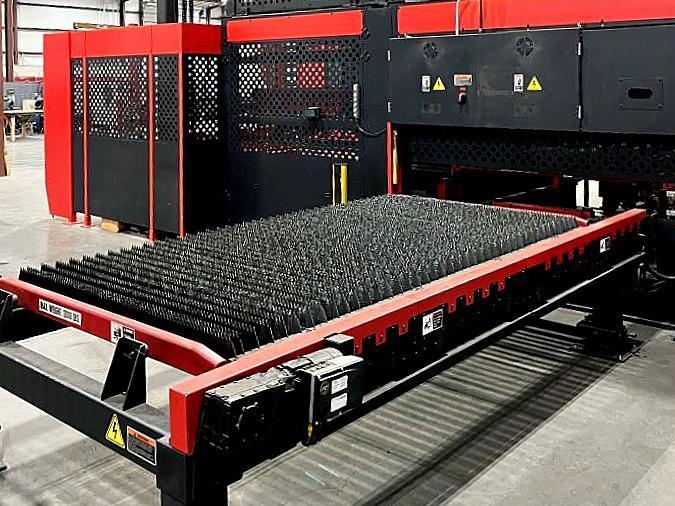

AMS 3015CL Cycle Loader

AMS 3015+ROS-10P
Rear Output Station

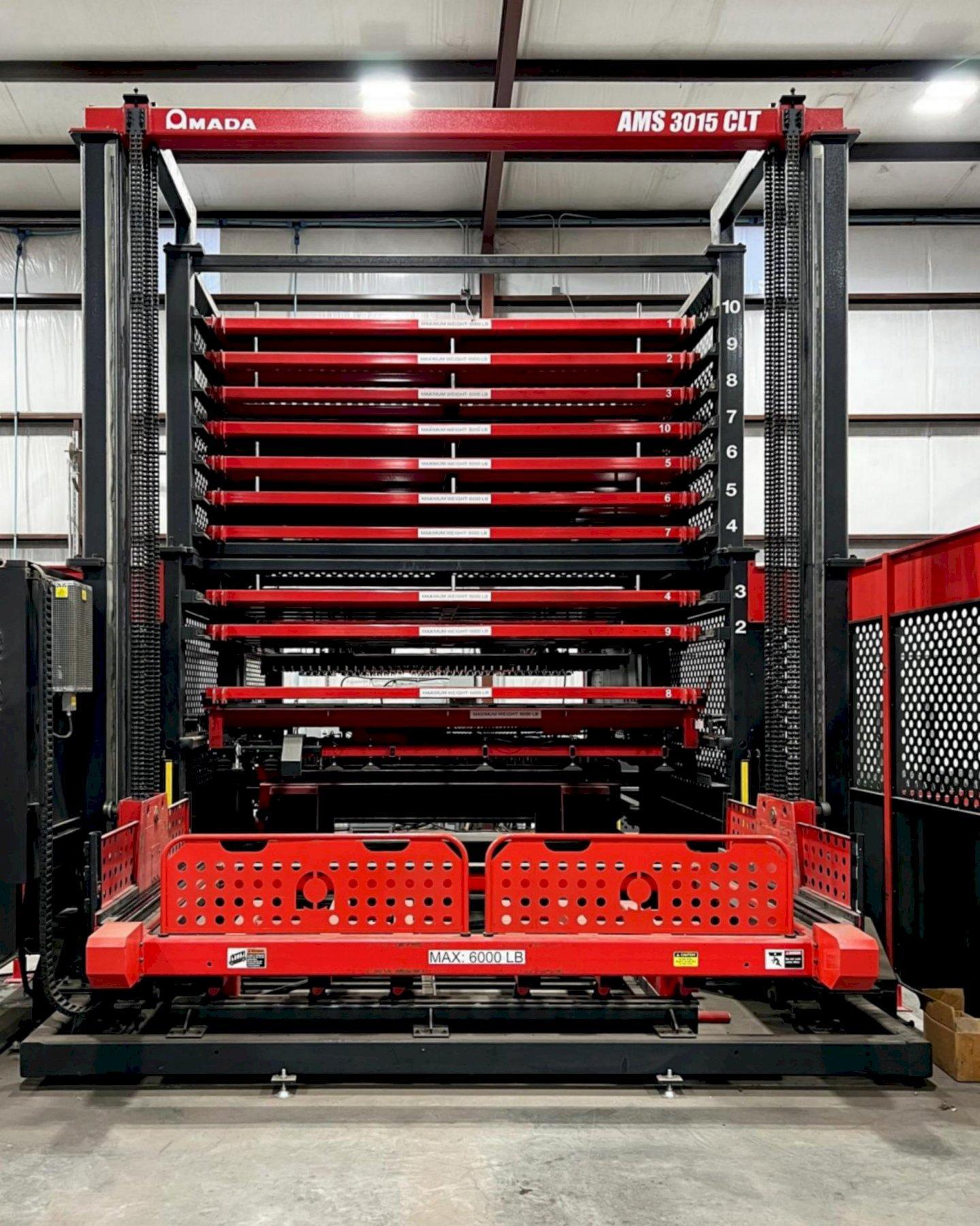

10 Shelf Automated Tower
