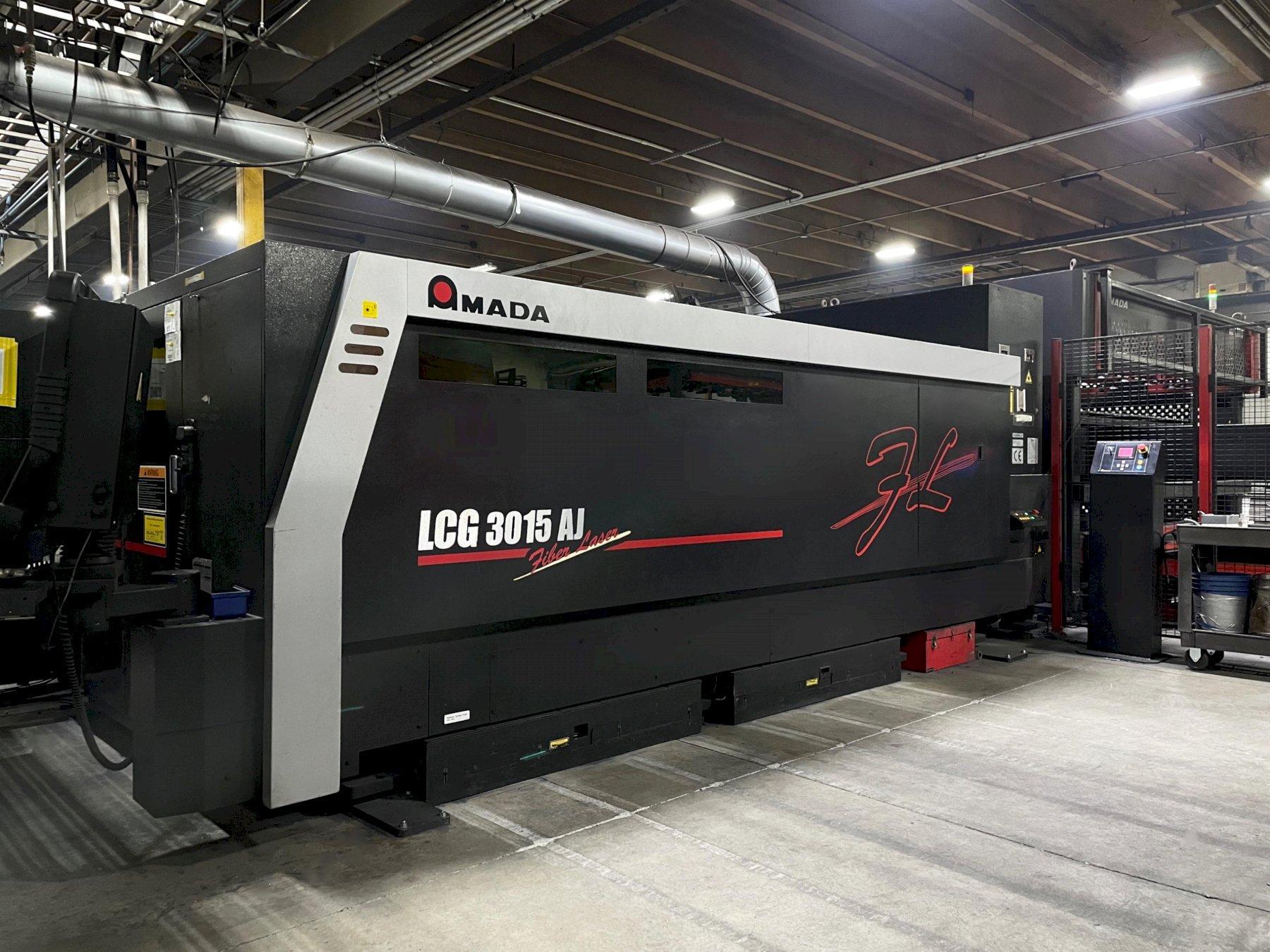

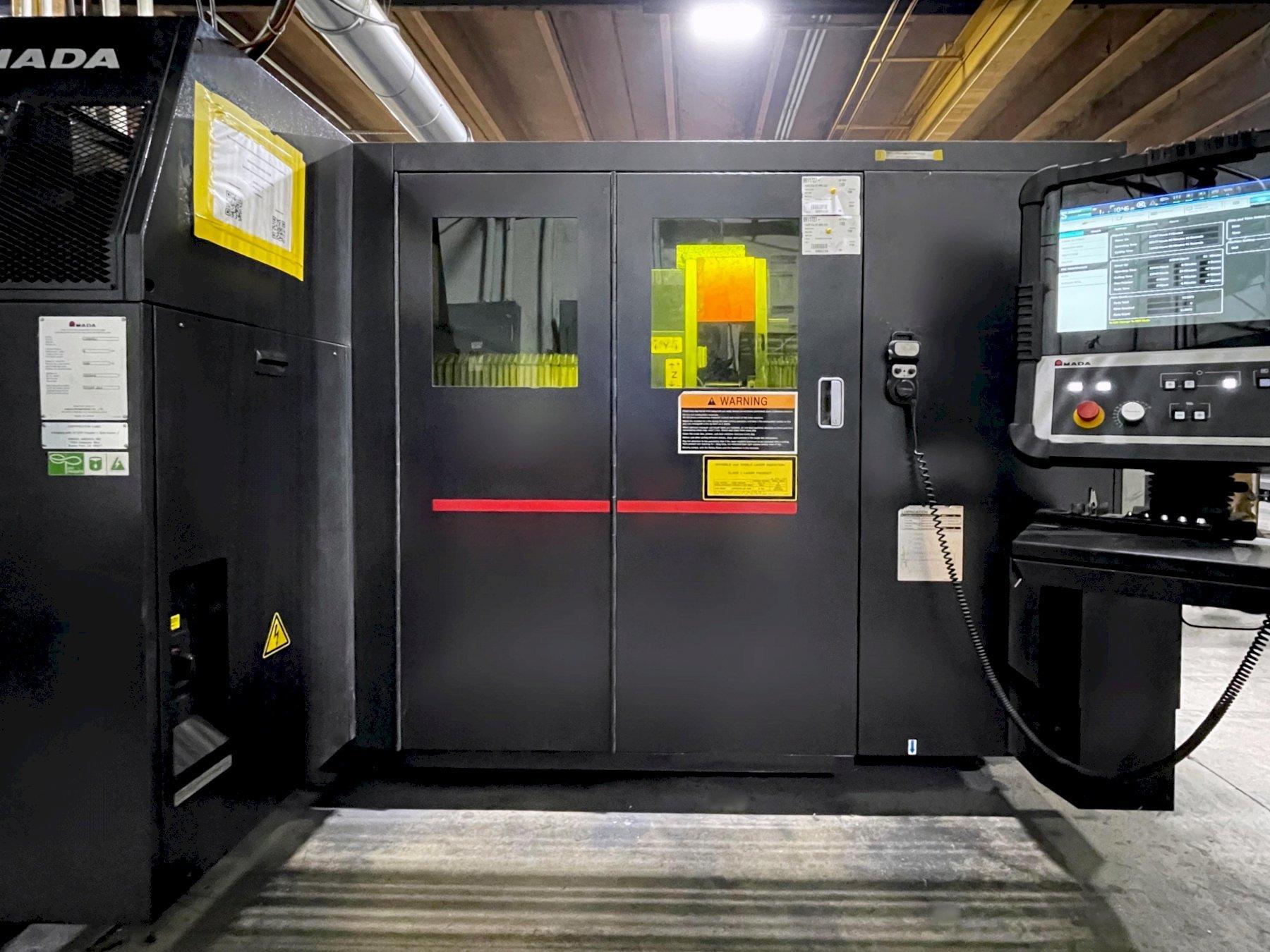

Make : AMADA

Model: LCG-3015 AJ Fiber

Year: 2015

Type: Laser Cutters

Reference #: 100324

Highlights:
Includes Amada MPL 3015 Automated load/unload

Request a Quote Sell Your Machine

Specifications Equipped With

Control: AMNC 3i CNC

Display: Touchscreen Color LCD

Control Function X,Y,Z: Sim. Focus Lens B-Axis

Max. Sheet Size X,Y: 120" x 60"

Max. Axis Travel X,Y,Z: 121" x 61" x 3.93"

Travel Method: X,Y-Axis Stationary Table

Travel Method: Z-Axis Movement Cutting Head

Control Method X,Y,Z: Sim. 3-Axis Control

Drive Motors: Fanuc AC Servo Motors

Max. Axis Pos. Speed X,Y: 4,724"/min. Per Axis

Max. Axis Pos. Speed X,Y: 6,693"/min. 45° Vector

Max. Z-Axis Speed: 4,724"/min.

Repeatability: 0.0002"

Max. Material Weight: 2,000 lbs.

Data Storage: Compact Flash Drive

Resonator Type: Fiber

Resonator: LD Excited YB Fiber

Power Output: 6KW

Laser Wavelength: 1.08 m

Power Stability: ±2%

Beam Divergence: < 3mm-mrad

Pulse Frequency: 1–10000Hz

Pulse Duty: 0–100%

Assist Gas: 4 Ports w/ NC Pressure Control

Electrical Req.: 200V, 3-Phase, 60Hz

Equipped With:

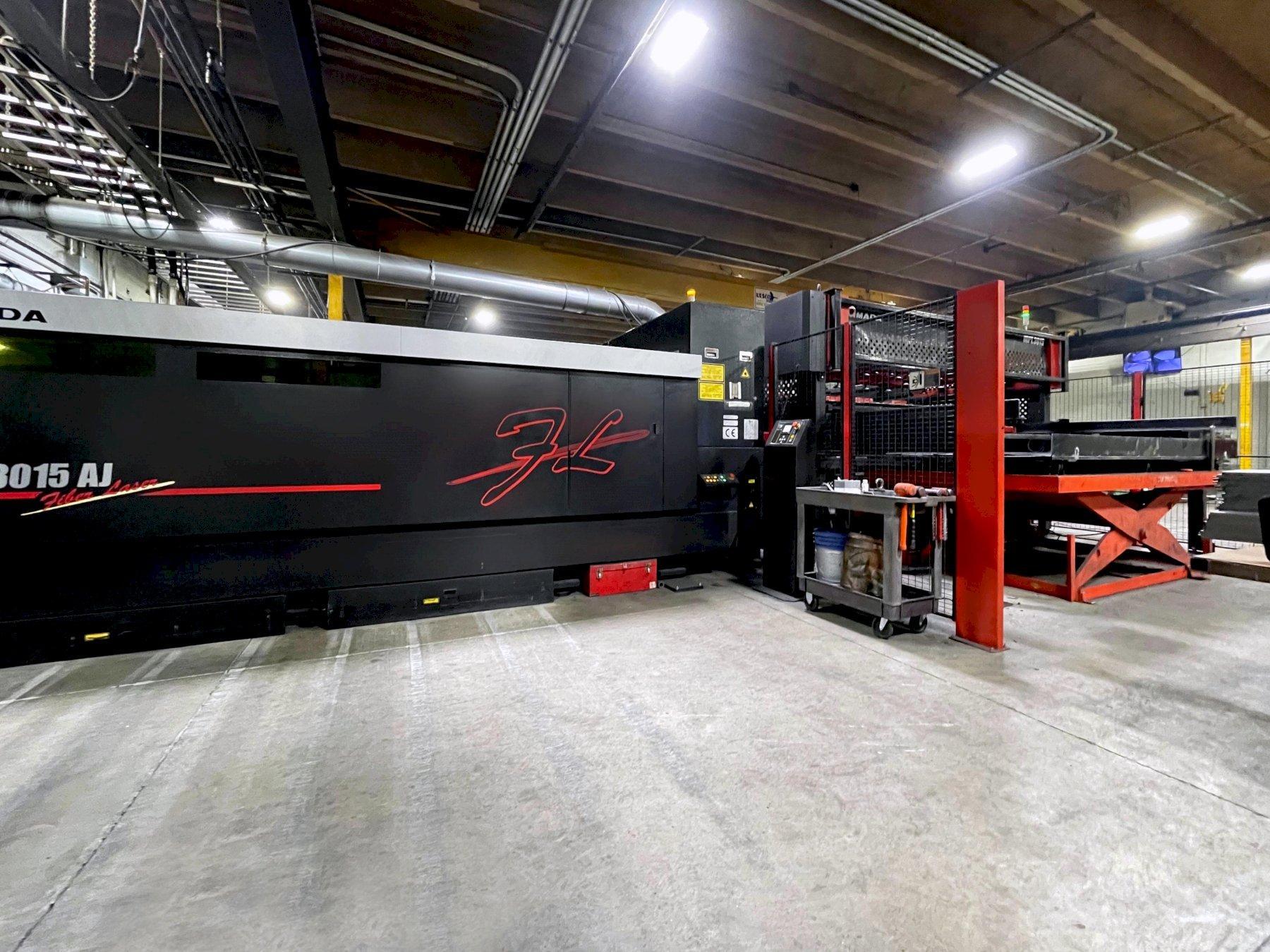

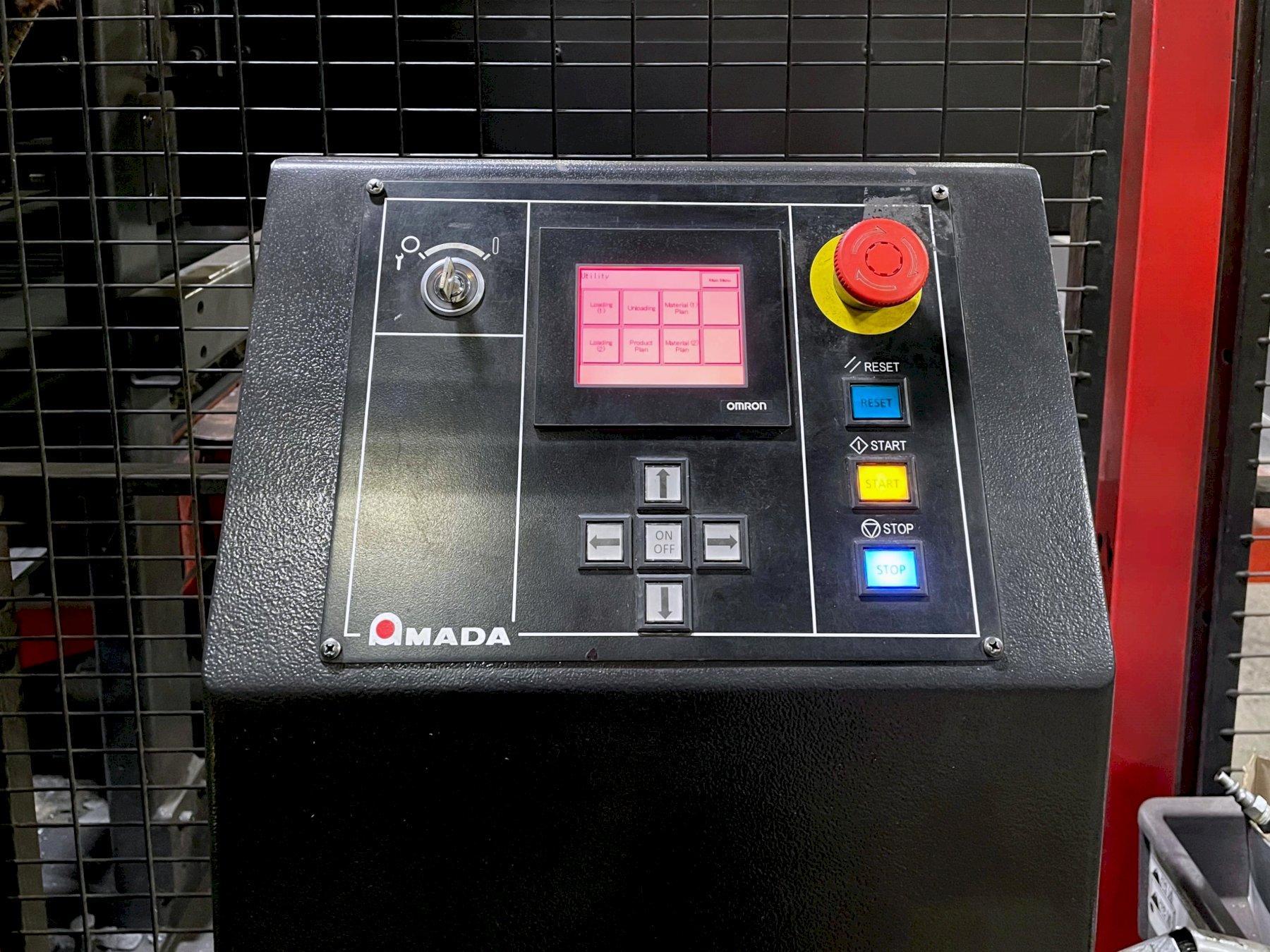

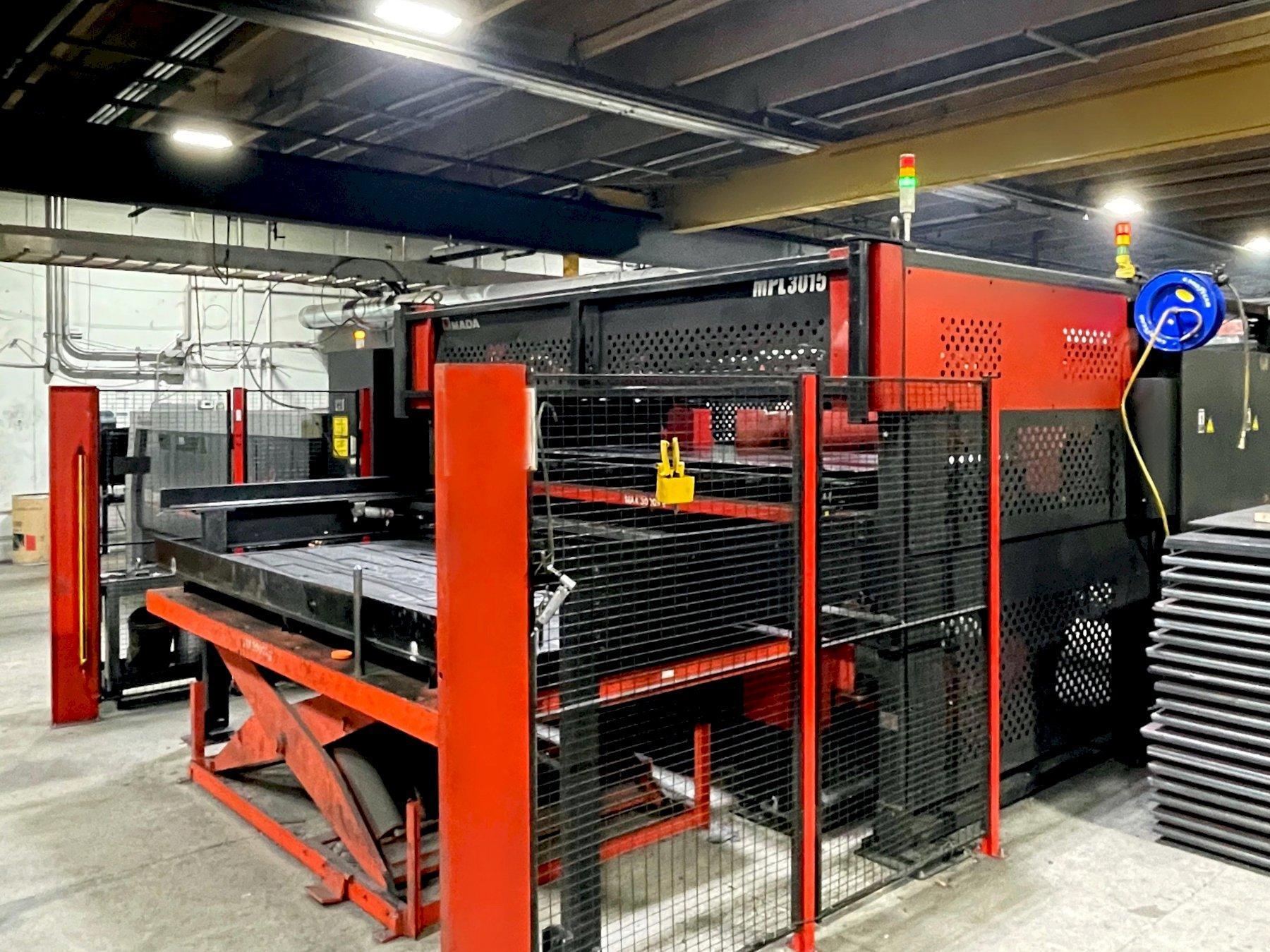

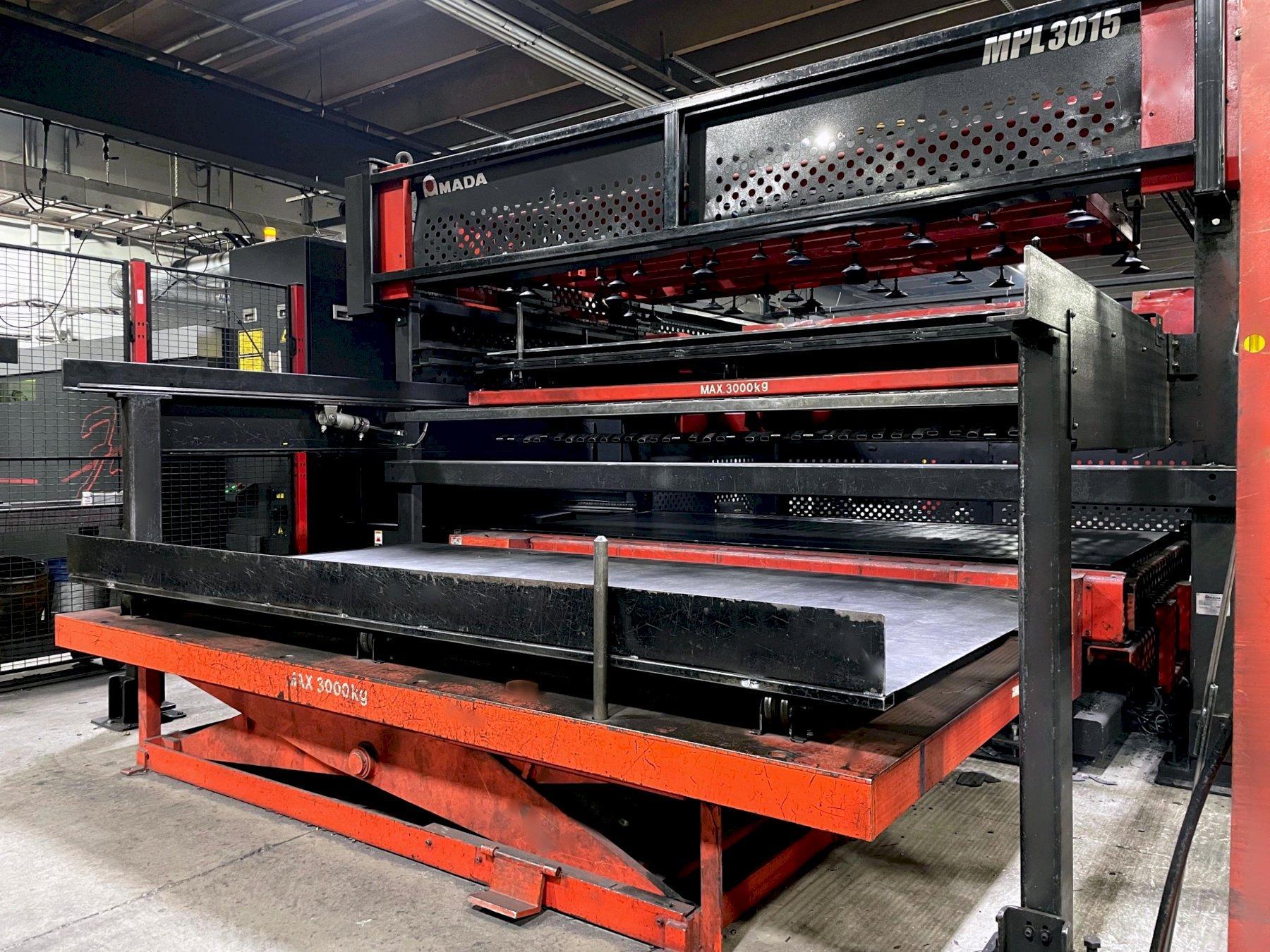

MPL 3015 Auto Load/Unload

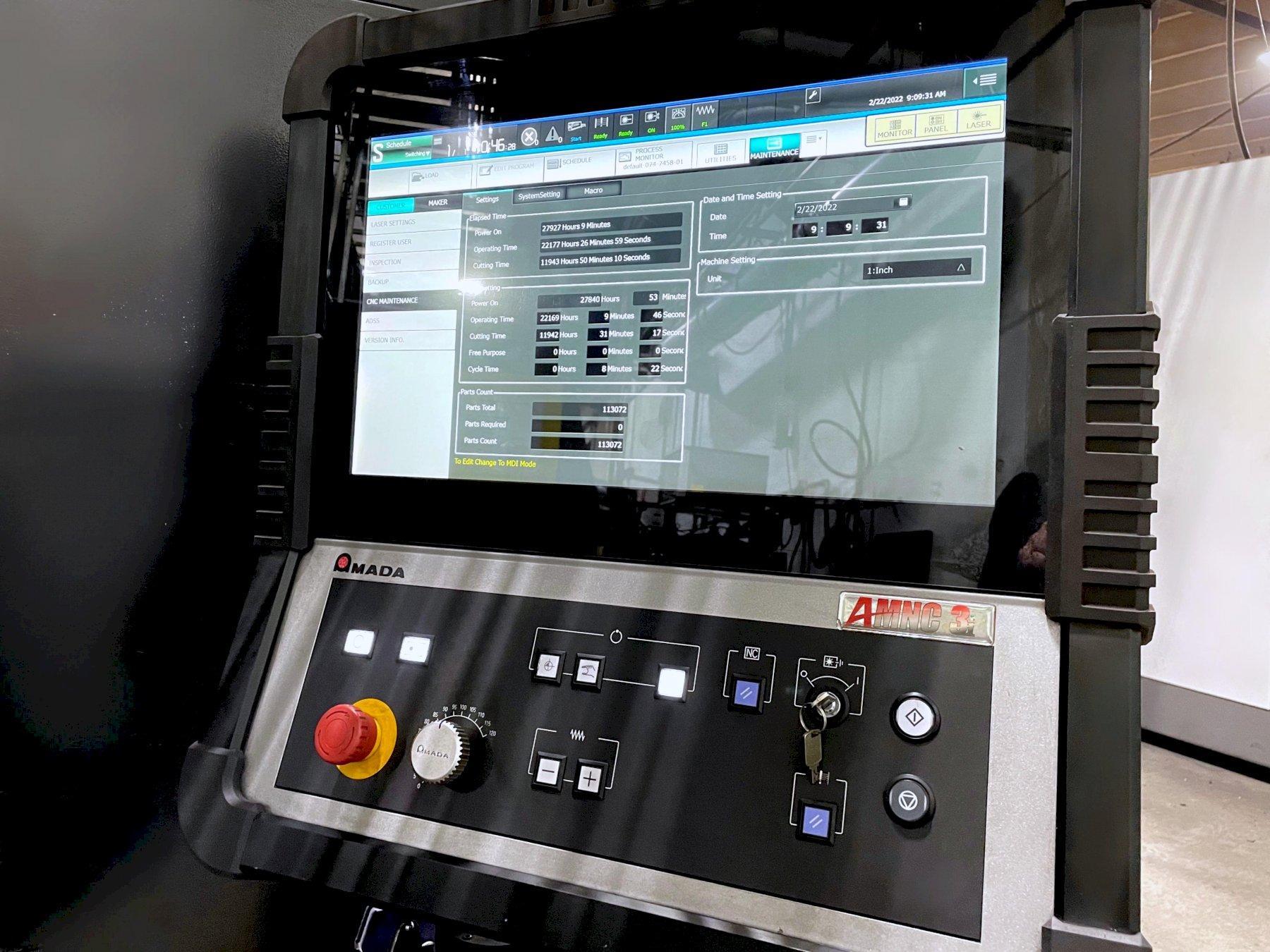

AMNC 3i CNC Control

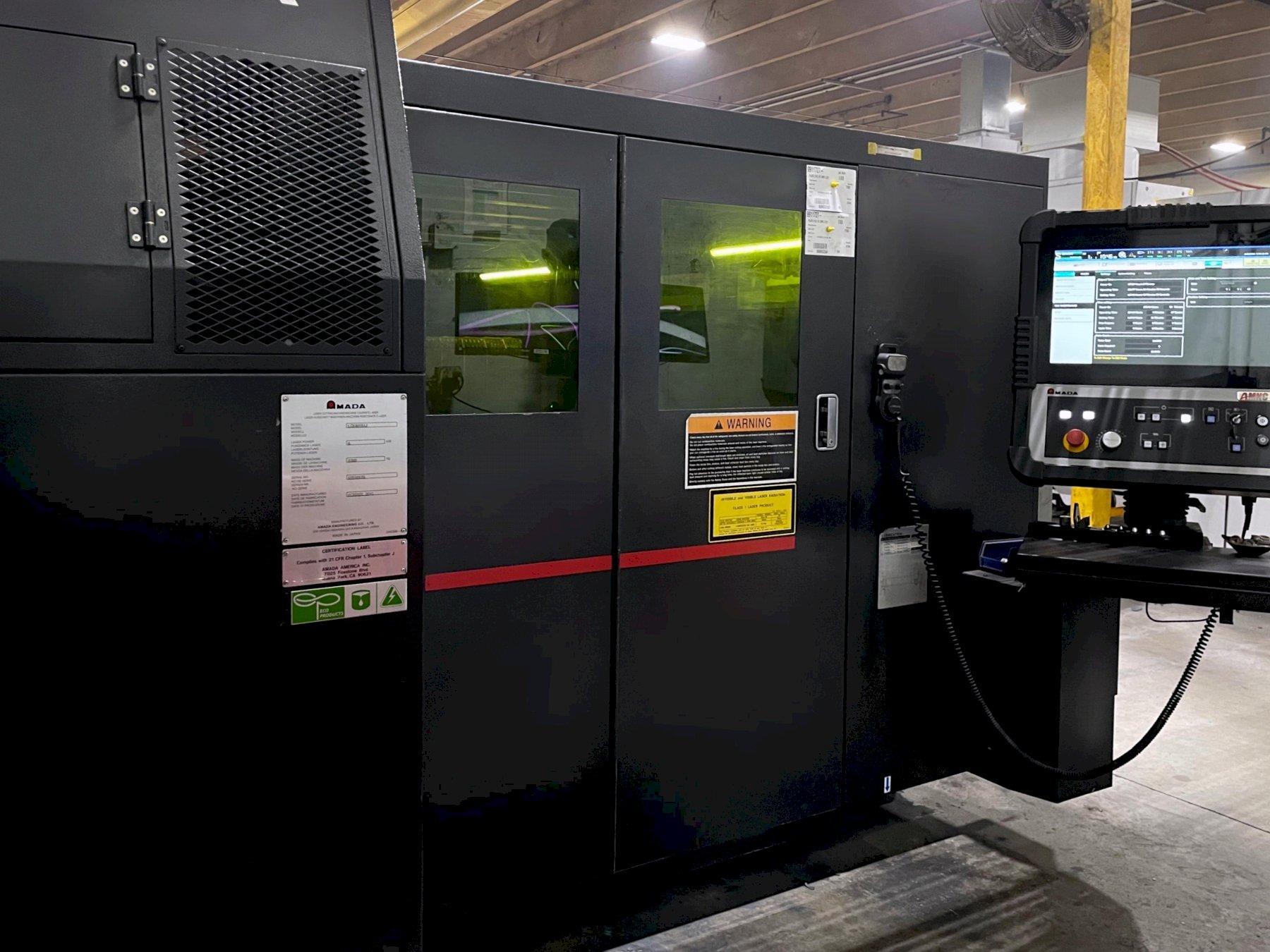

Interlocked Enclosure

NC Assist Gas

B-Axis NC Focus

Integrated Beam Purge

150 MM Lens, 190 MM Lens

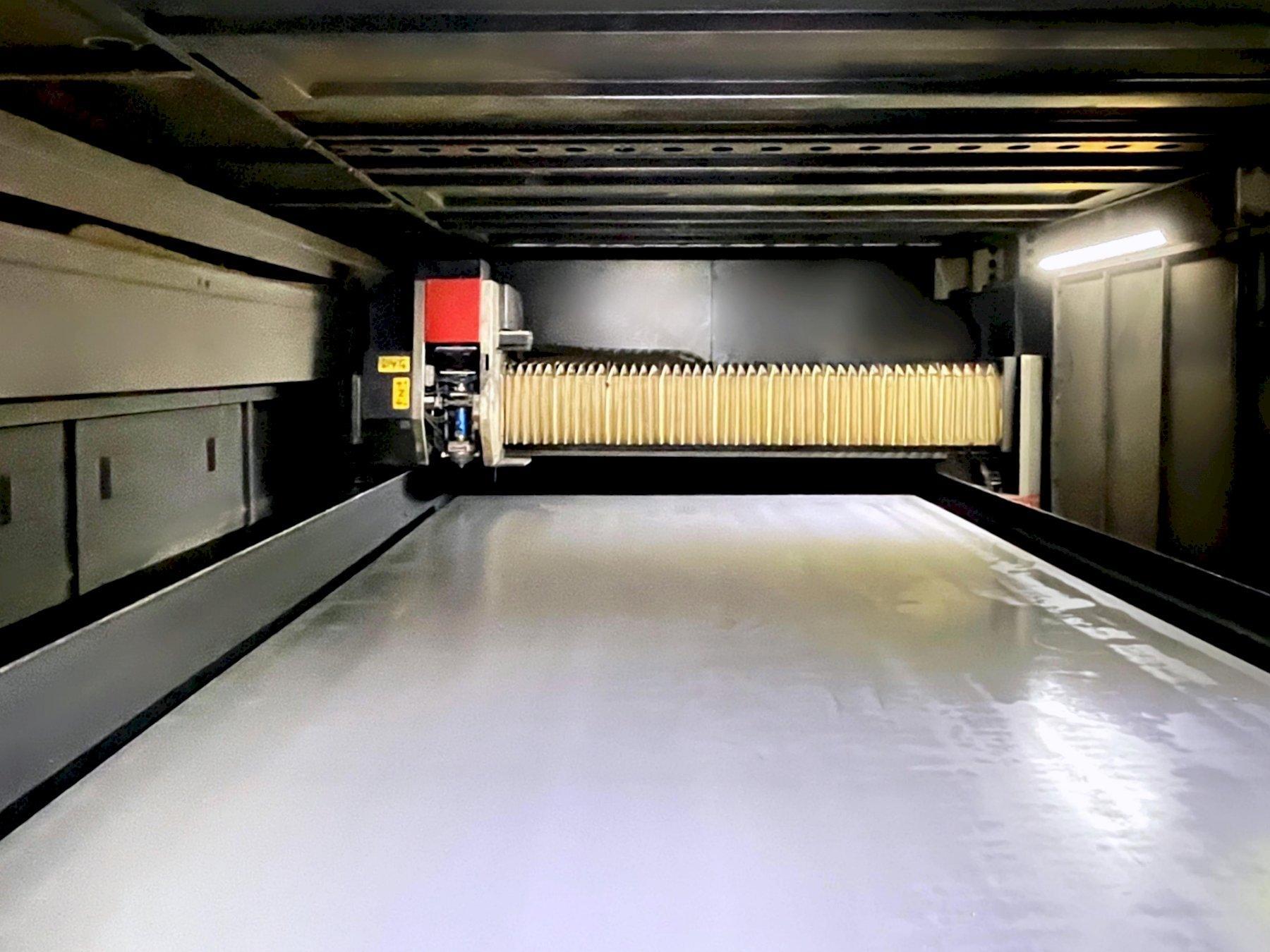

High-Speed Cutting Head

Active Cut™
Clean Cut™

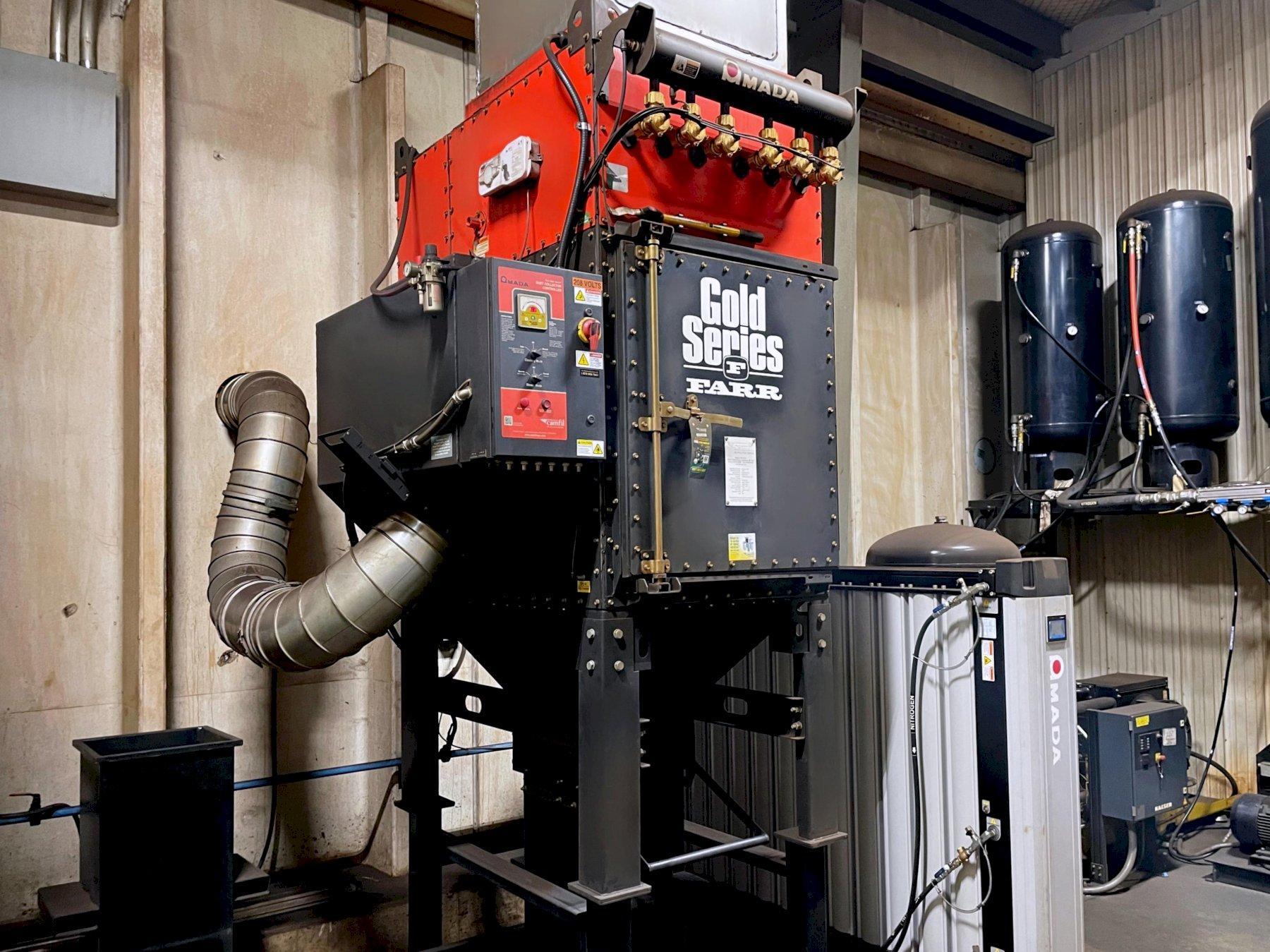

Camfil Dust collector

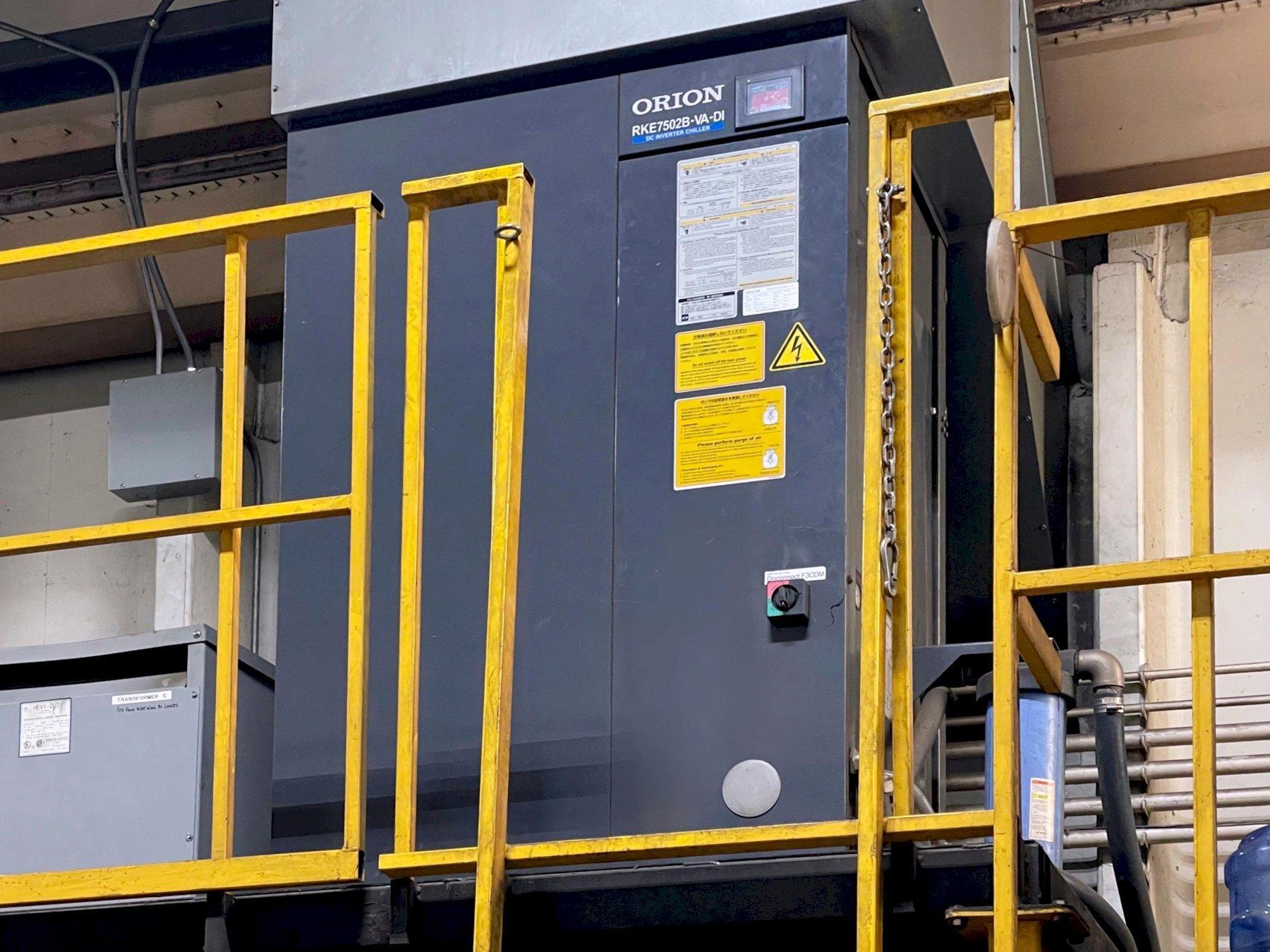

Orion Chiller Unit
