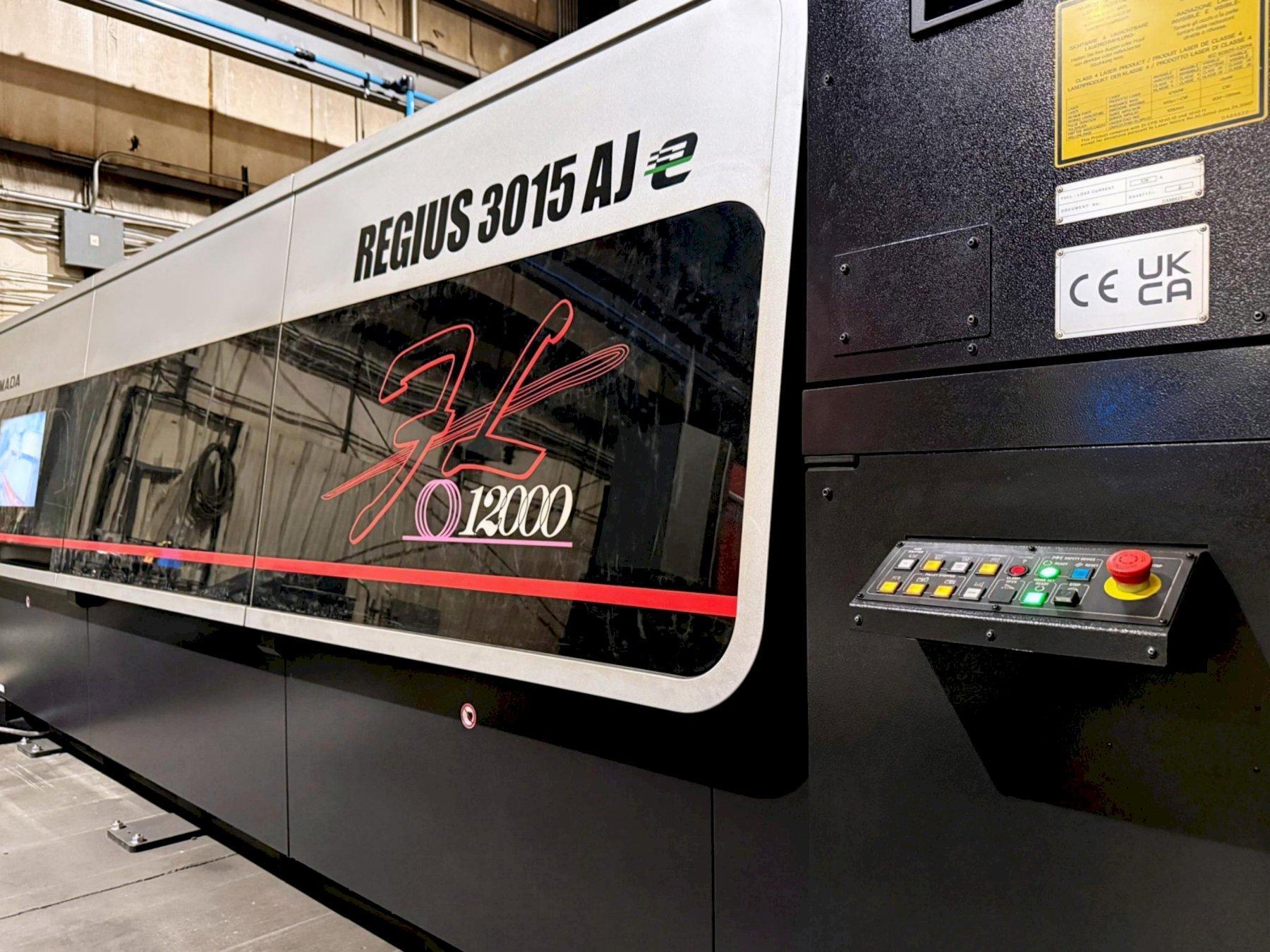

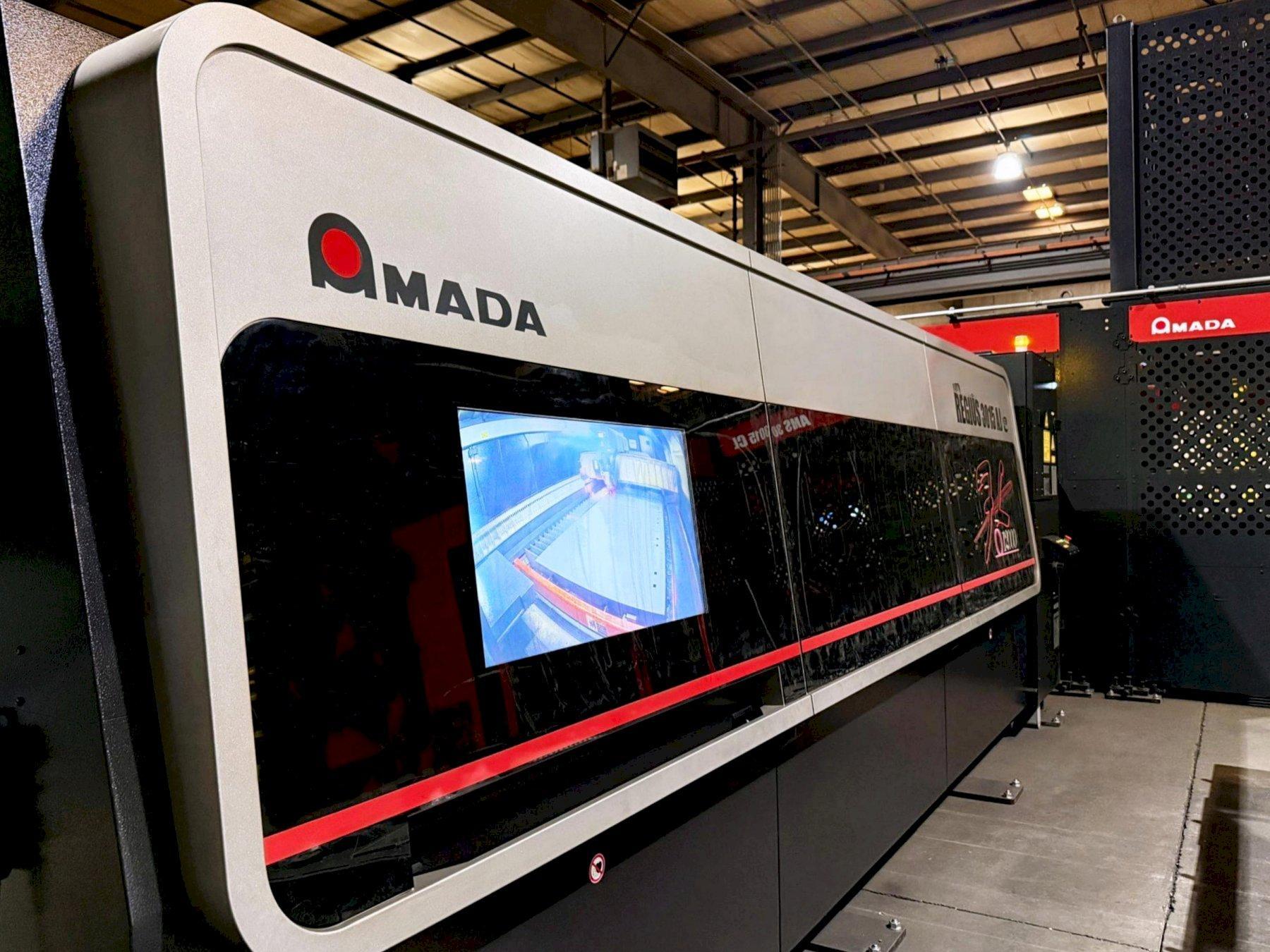

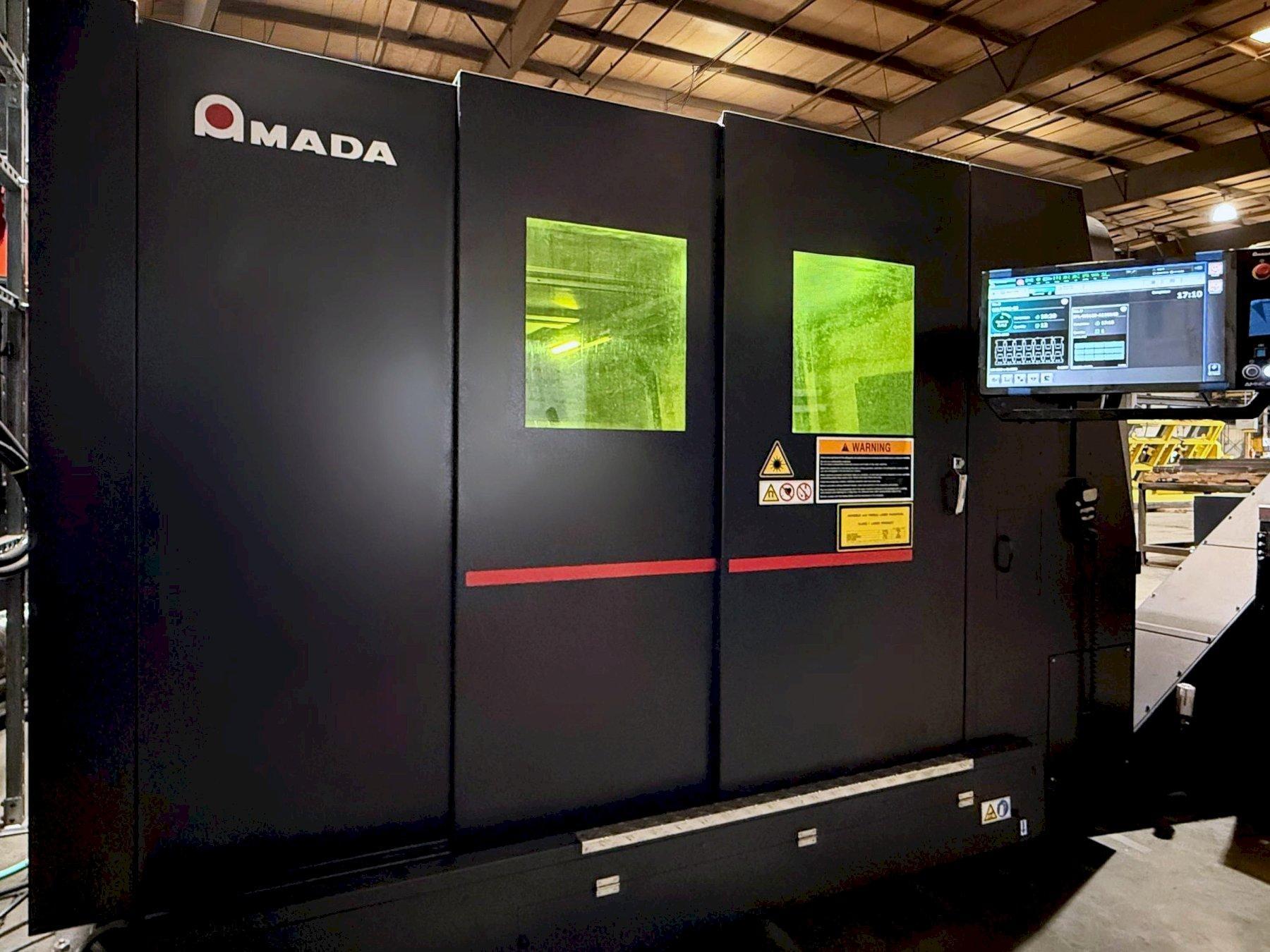

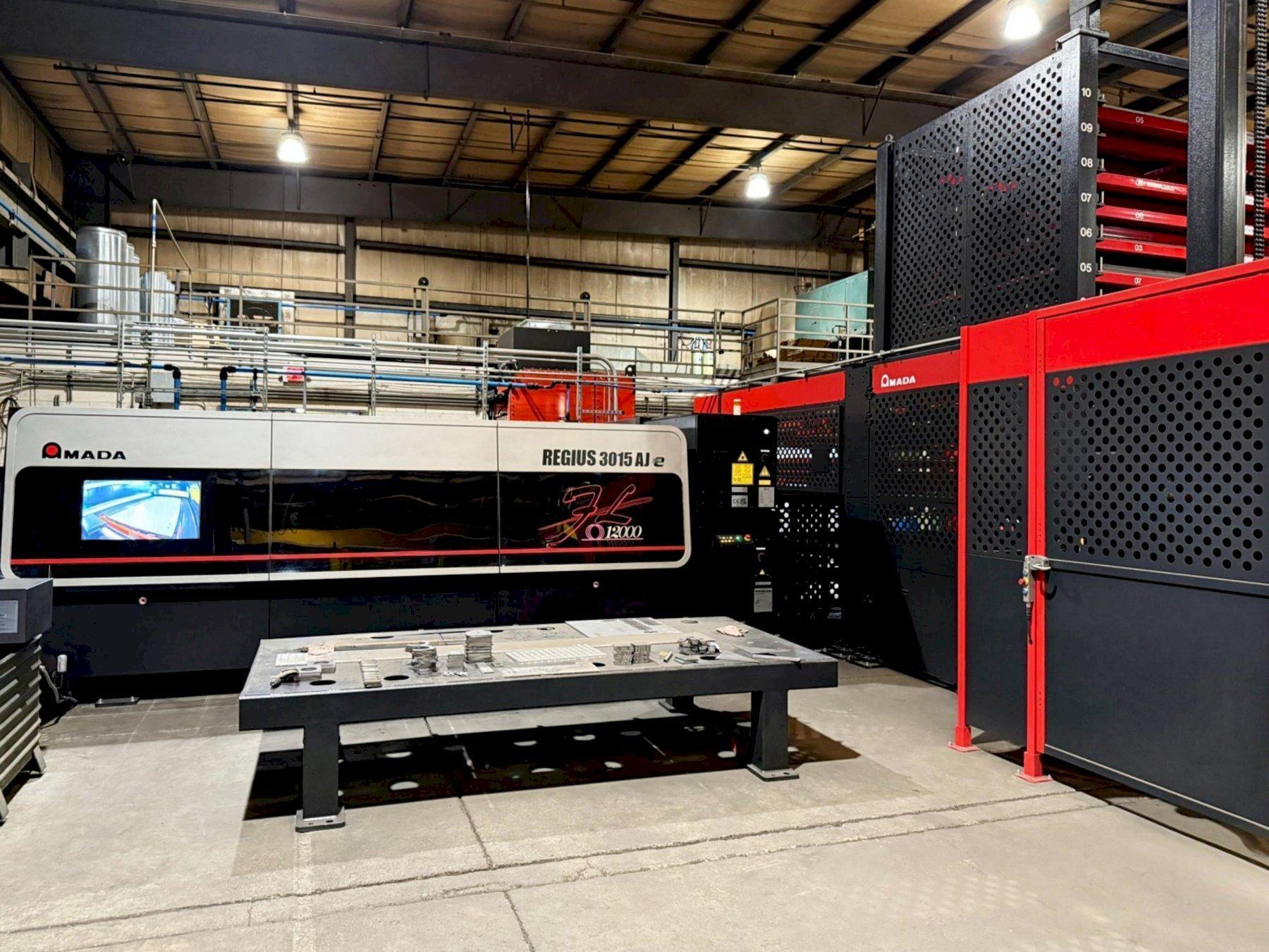

Make : AMADA

Model: Regius 3015 AJe Fiber

Year: 2023

Type: Laser Cutters

Reference #: 100572

Highlights:
Like New Condition - Includes L/UL and Sheet Storage Tower.

Request a Quote Sell Your Machine

Specifications Equipped With

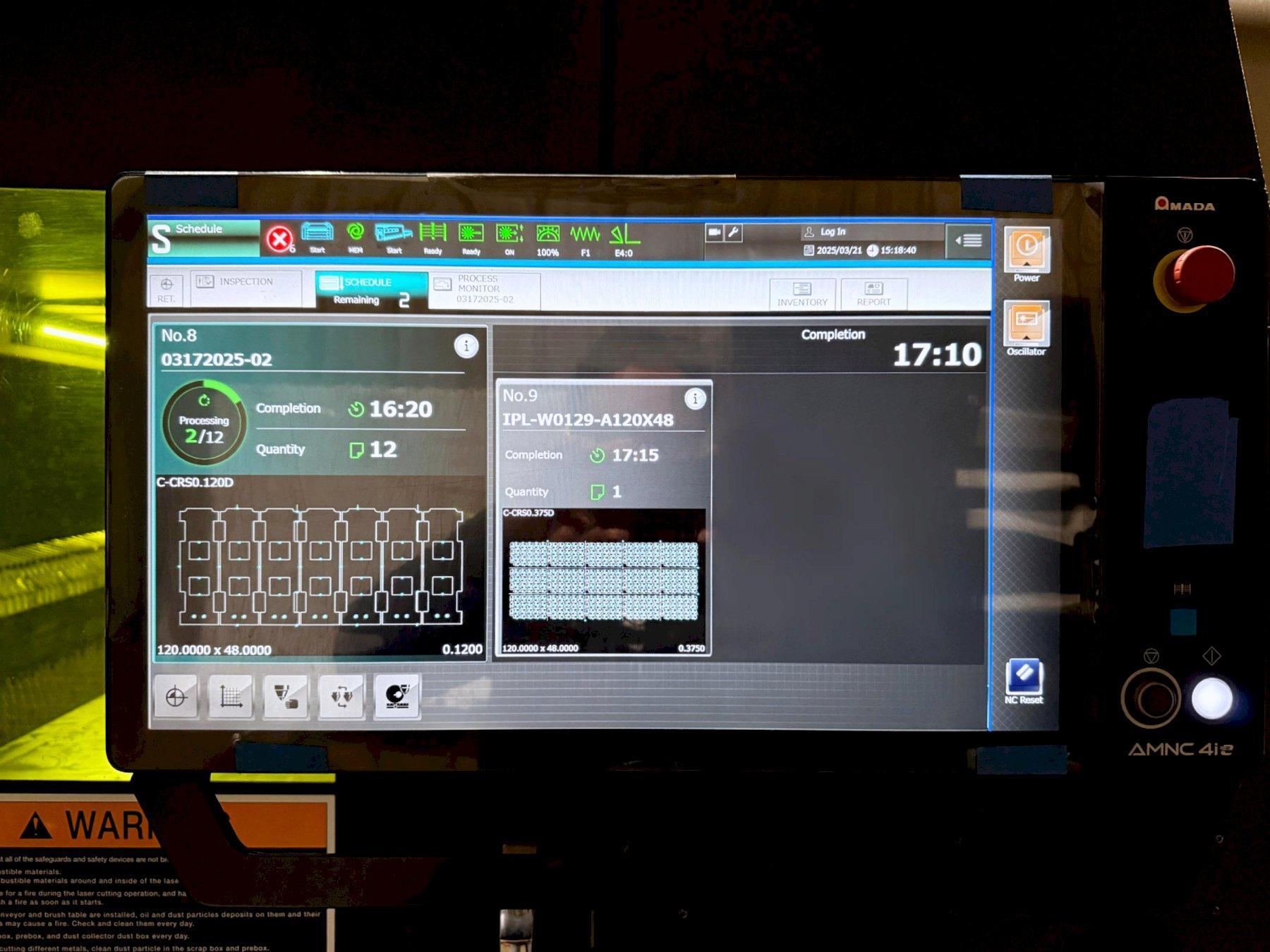

Control: AMNC 4ie CNC

Display: Touchscreen Color LCD

Control Function X,Y,Z: Sim. Focus Lens B-Axis

Max. Sheet Size X,Y: 120" x 60"

Max. Axis Travel X,Y,Z: 121" x 61" x 3.93"

Travel Method: X,Y-Axis Stationary Table

Travel Method: Z-Axis Movement Cutting Head

Control Method X,Y,Z: Sim. 3-Axis Control

Drive Motors: Fanuc AC Servo Motors

Max. Axis Pos. Speed X,Y: 9,448"/min. Per Axis

Max. Axis Pos. Speed X,Y (45° 5G Acceleration): 13,380"/min.

Max. Z-Axis Speed: 4,724"/min.

Repeatability: 0.00002"

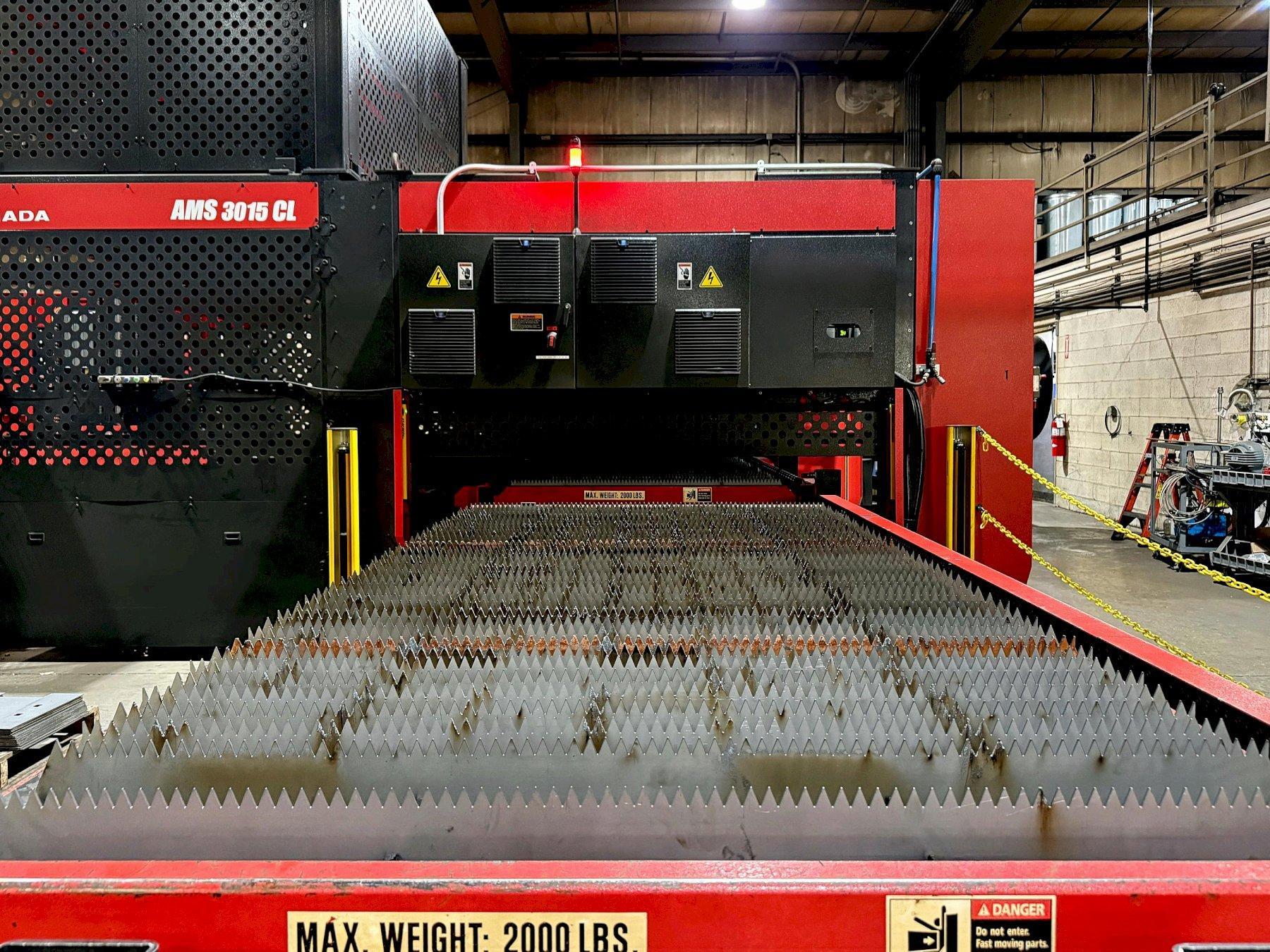

Max. Material Weight: 2,000 lbs.

Data Storage: Compact Flash Drive

Resonator Type: Fiber

Resonator: LD Excited YB Fiber

Power Output: 12KW (12,000 Watts)

Laser Wavelength: 1.08 m

Power Stability: ±2%

Beam Divergence: < 3mm-mrad

Pulse Frequency: 1–10000Hz

Pulse Duty: 0–100%

Assist Gas: 3 Ports w/ NC Pressure Control

Laser Beam Mode Output: Multimode

Max Thickness Mild Steel: 1.00"

Max Thickness Aluminum: 1.00"

Max Thickness Stainless Steel: 1.00"

Electrical Req.: 208V, 3-Phase, 60Hz / 79kVA Max.

Equipped With:

LD Excited YB 12kW Fiber Power Source
AMNC 4ie CNC Control

Interlocked Enclosure

i-Nozzle Checker

i-Process Monitor

i-Optic Sensor

Automatic Collision Recovery

i-Camera System

Dual Gas System

Automatic Nozzle Changer

WACS II™ - (Water Assist Cutting System)

Smart Edge

NC Assist Gas

B-Axis NC Focus

Integrated Beam Purge

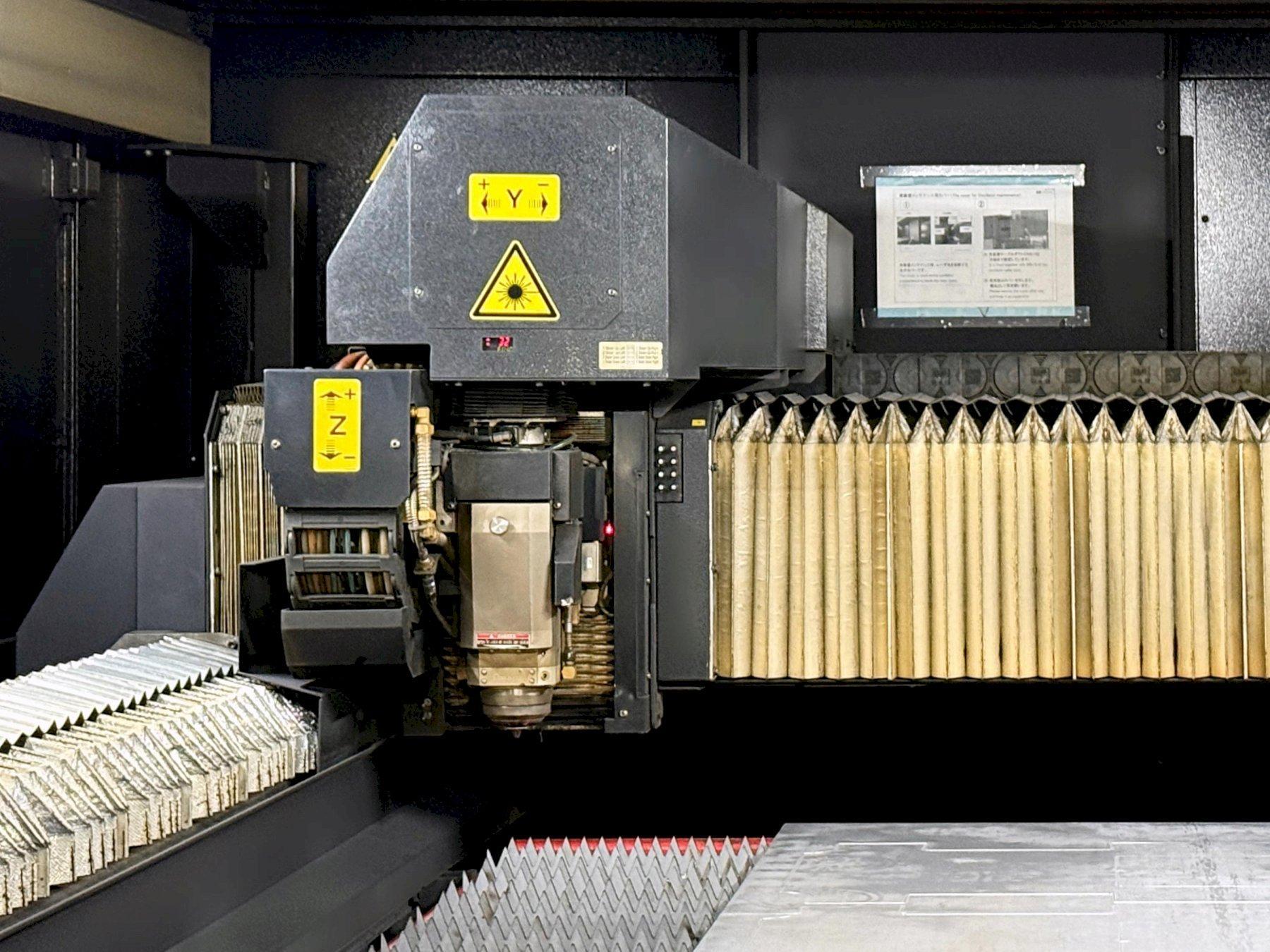

High-Speed Cutting Head

X and Y Scrao Conveyor

Clean Cut™

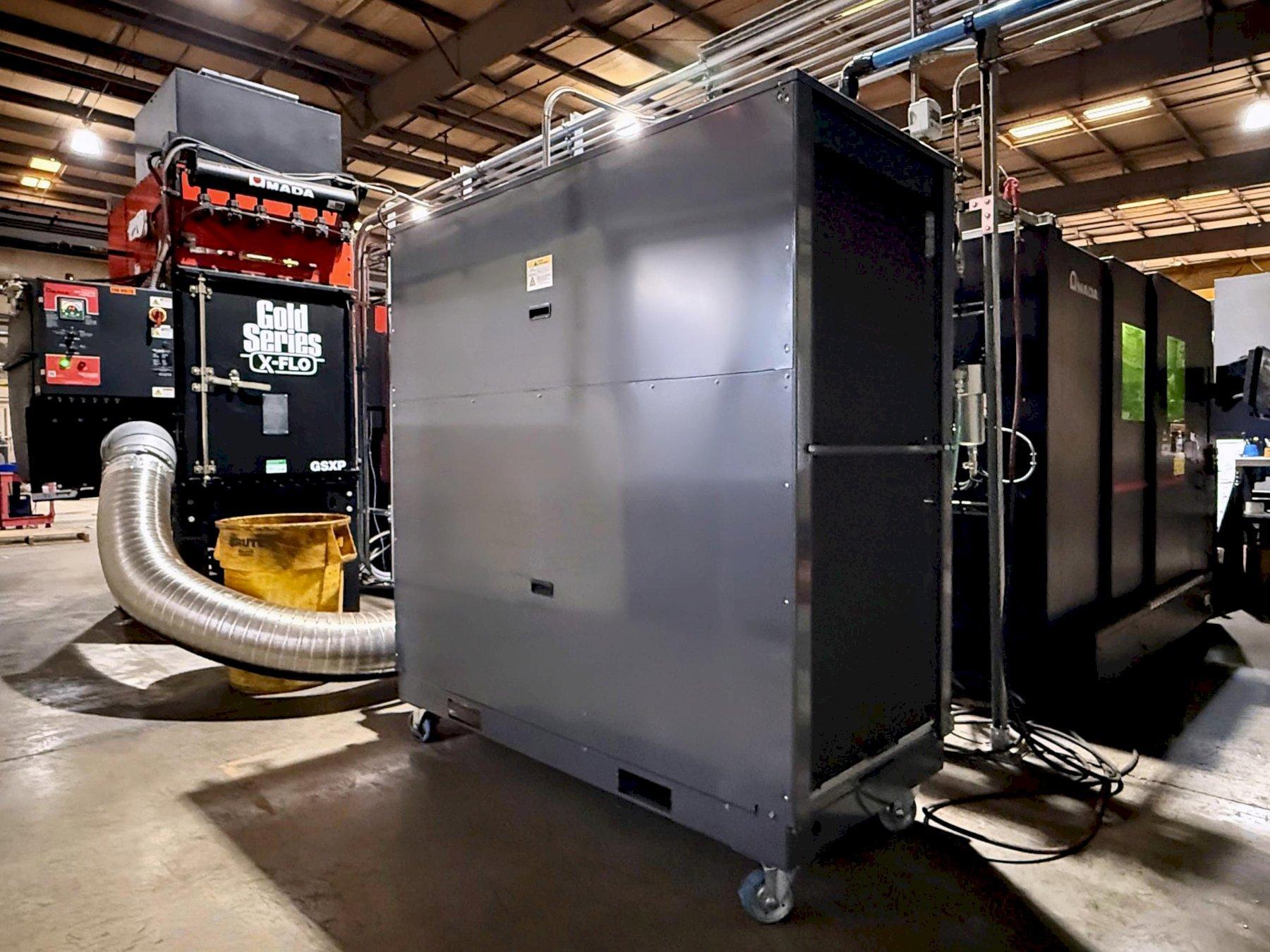

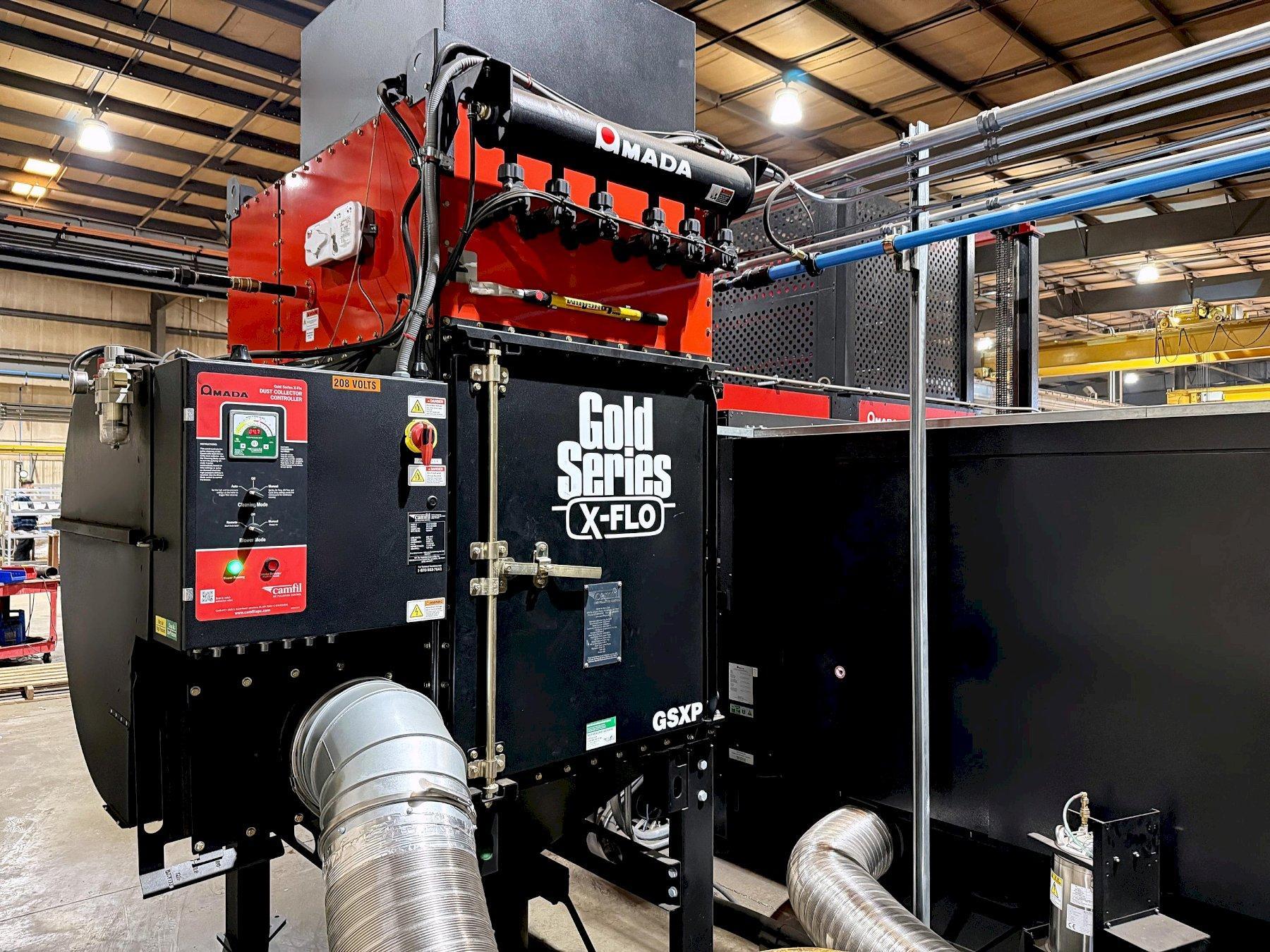

Camfil Dust Collector

Orion Chiller Unit

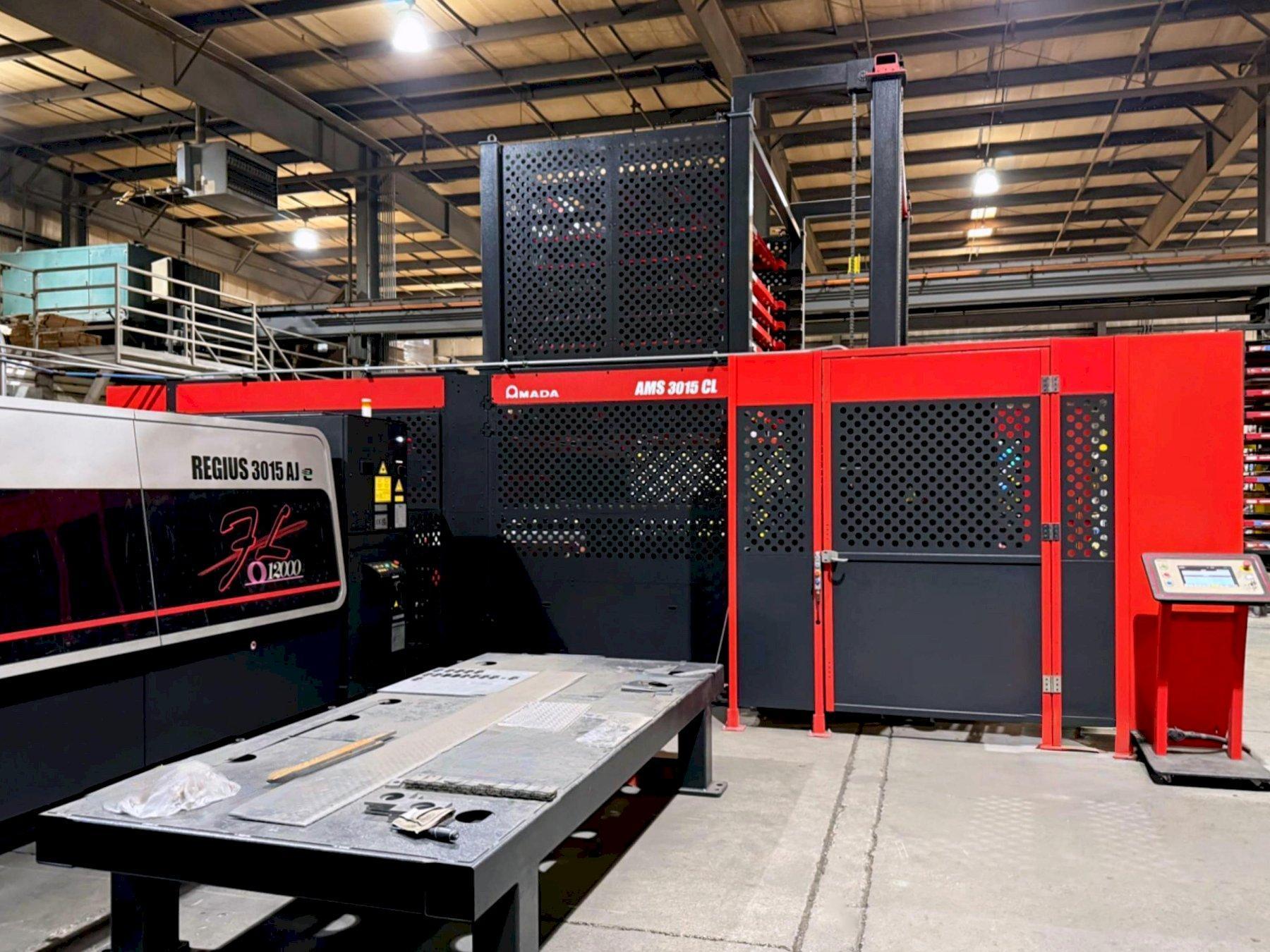

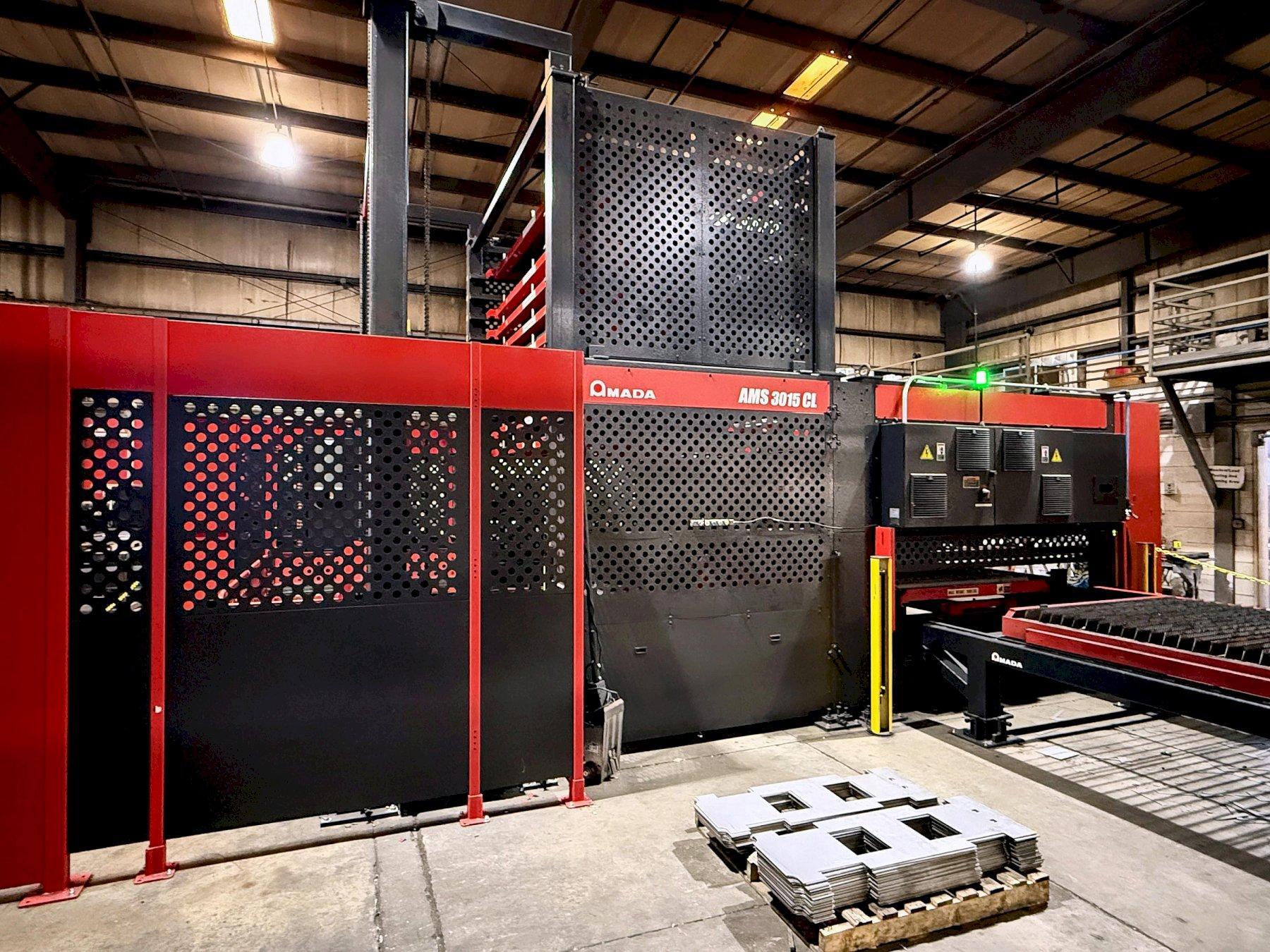

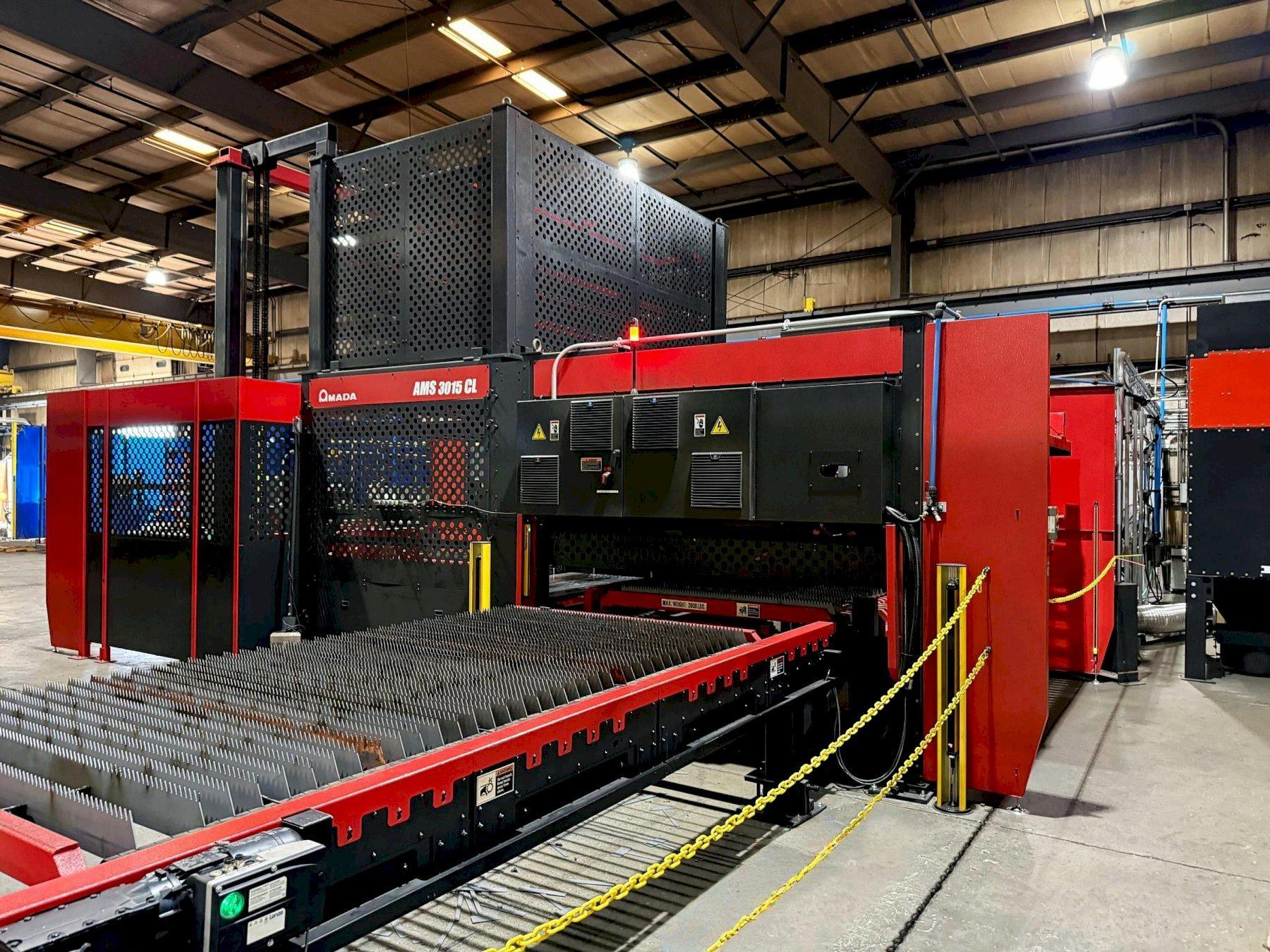

AMS 3015 CL Sheet Load/Unload

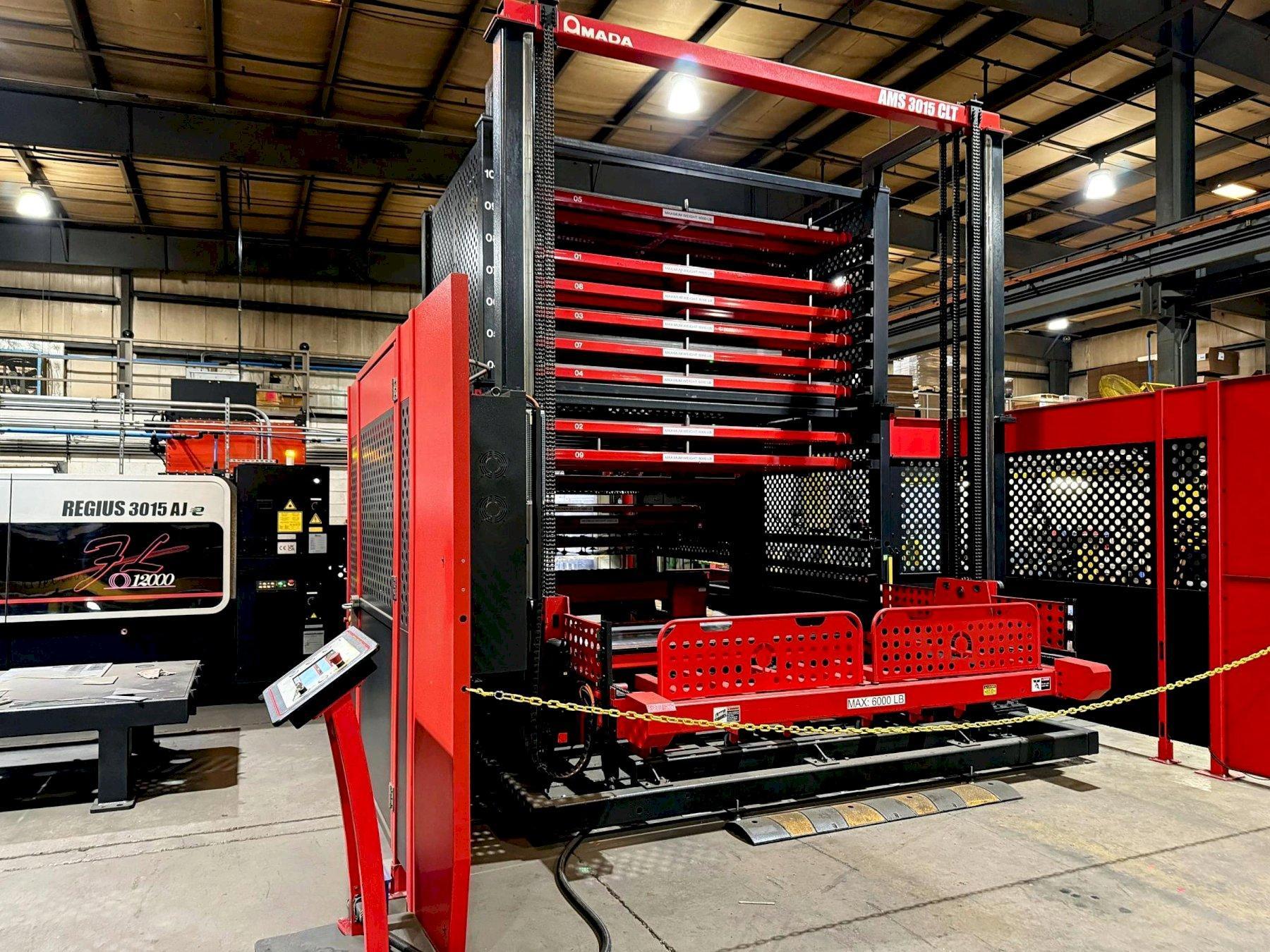

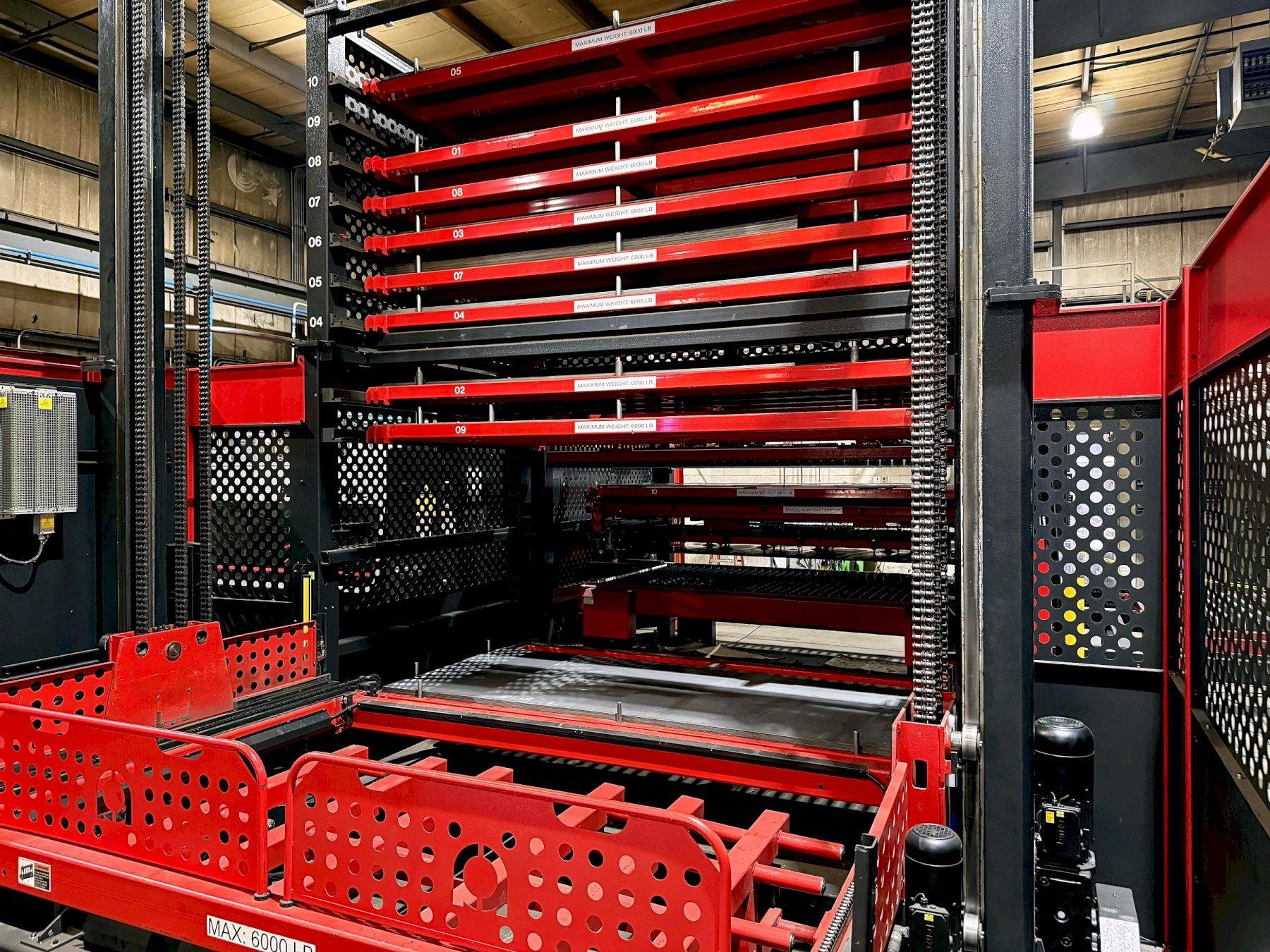

AMS CLT - Multi 10 Shelf Tower
