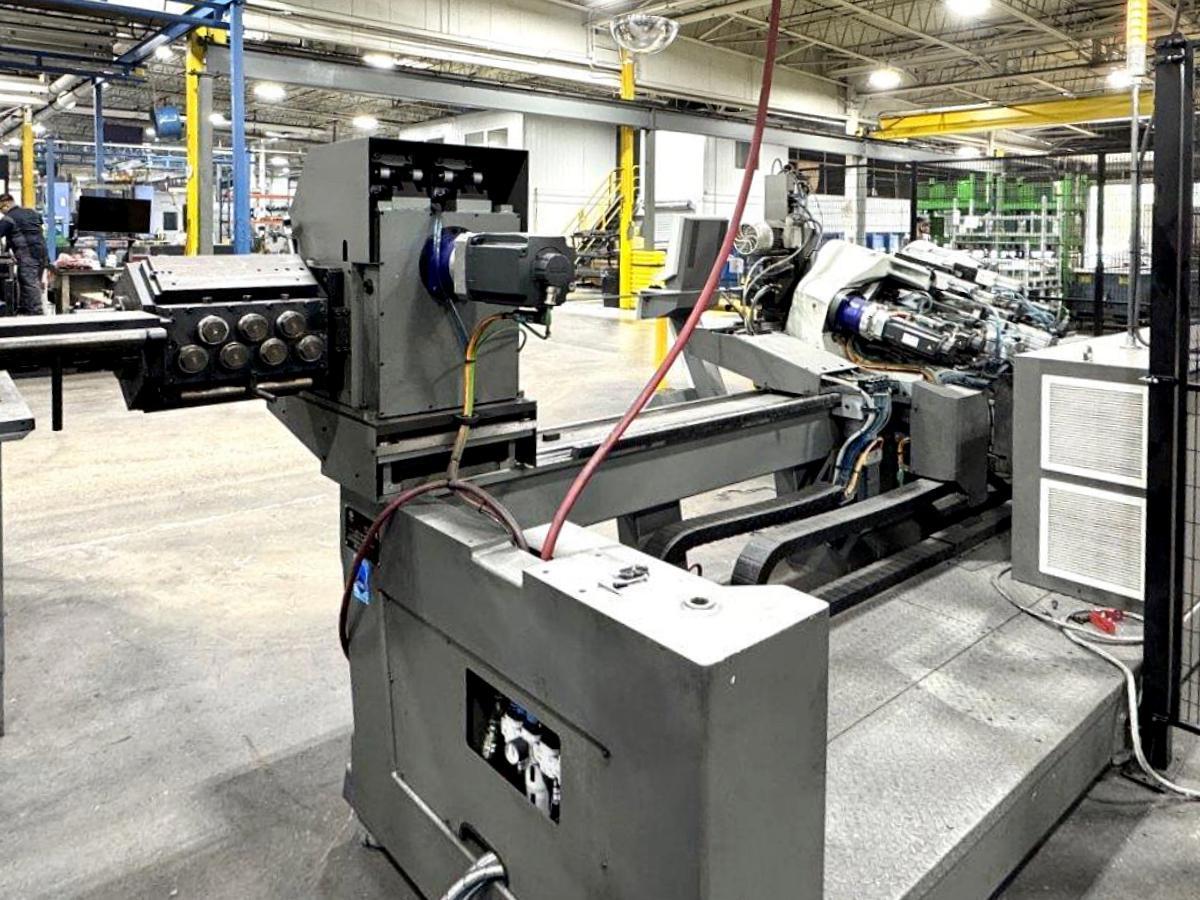

BLM DH4010-P Wire Bender
BLM DH4010-P Wire Bender
BLM DH4010-P Wire Bender
BLM DH4010-P Wire Bender
BLM DH4010-P Wire Bender
BLM DH4010-P Wire Bender
BLM DH4010-P Wire Bender
BLM DH4010-P Wire Bender
BLM DH4010-P Wire Bender
BLM DH4010-P Wire Bender
BLM DH4010-P Wire Bender
  • BLM DH4010-P Wire Bender
  • BLM DH4010-P Wire Bender
  • BLM DH4010-P Wire Bender
  • BLM DH4010-P Wire Bender
  • BLM DH4010-P Wire Bender
  • BLM DH4010-P Wire Bender
  • BLM DH4010-P Wire Bender
  • BLM DH4010-P Wire Bender
  • BLM DH4010-P Wire Bender
  • BLM DH4010-P Wire Bender
  • BLM DH4010-P Wire Bender

BLM DH4010-P Wire Bender

Make : BLM

Model: DH4010-P

Year: 2021

Type: Wire Benders

Reference #: 100553

Highlights:
Machine is in excellent condition with low use.

Request a Quote Sell Your Machine
Machine Type: Electric
Bending Capacity Wire R = 145000 psi (1000 N/mm2): Up to Ø .31"
Bending Capacity Wire R = 87000 psi (600 N/mm2): Up to Ø .39"
Min Wire Diameter: 0.078"
Wire Coil Capacity: 3,306 Lbs.
Bending Possibility: Flat Rod, Tubes, Wire-Wound Resistances
Capabilities: Folding on Central Bush, Corner Fold, Double Die Bending, Variable Radius Bending, Stroke Folding, Interpolated Bending
CNC Axes: 9
Min/Max Bending Angle: 0.1° - 240°
Bending Radius: .02"- Infinite
Working Stroke: Up To 173"
Max Distance Between Head Centers: 60.43" (LH) + 60.63" (RH)
Max. Installed Power Bar Version: 18 Kw
Max. Installed Power Coil Version: 22 Kw
Ave. Drawn Power Bar Version: 6 Kw
Ave. Drawn Power Coil Version: 8 Kw
Electrical Requirements: 480/3/60
Machine Weight: 8,818 Lbs

Equipped With:

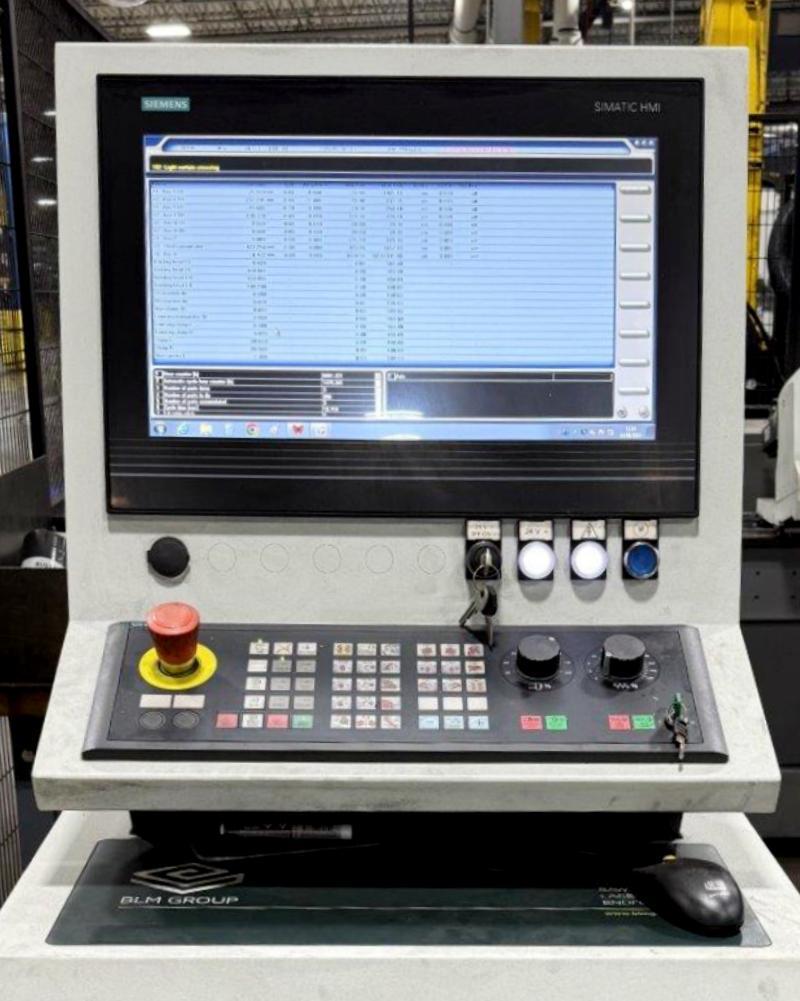

Siemens Simotion CNC Control
19" Touch Panel w/ Visual Graphics Programming (VGP3D)

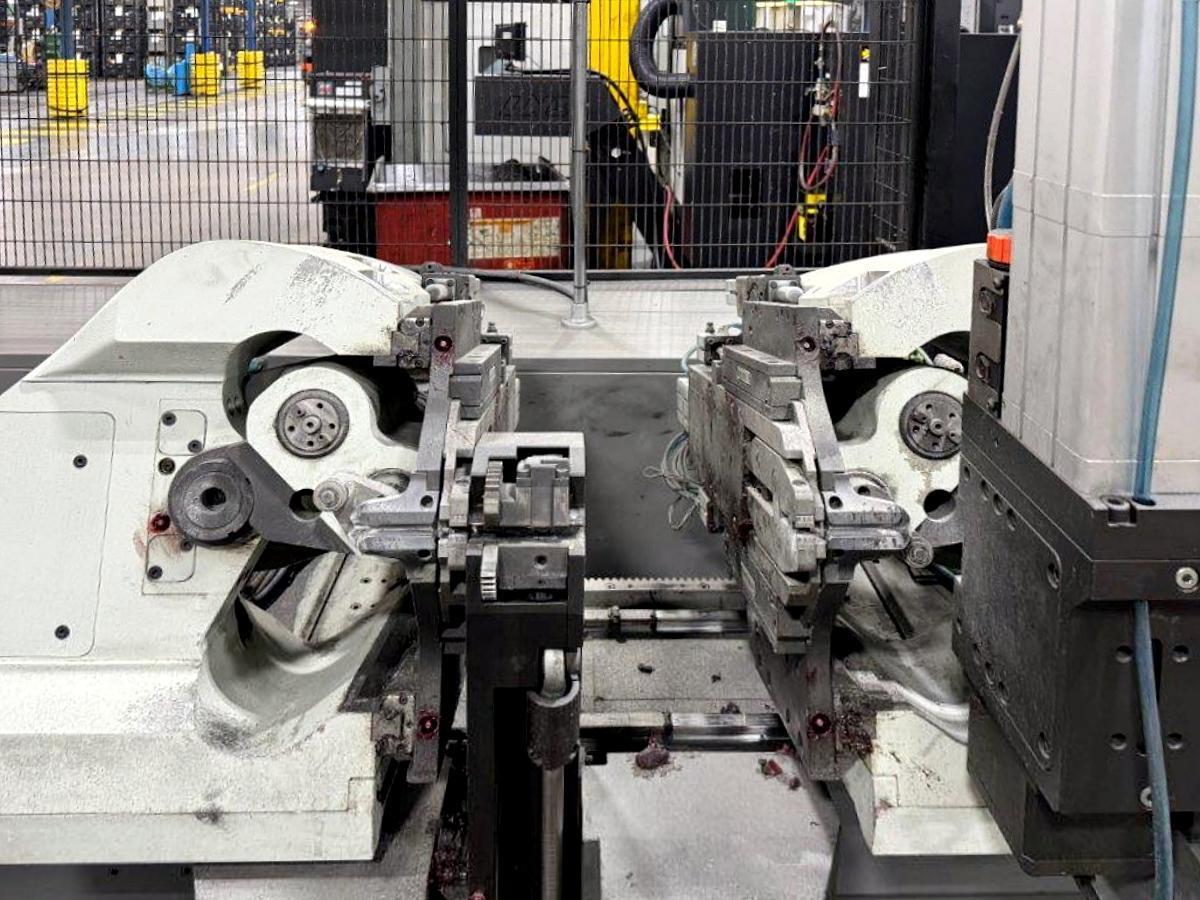

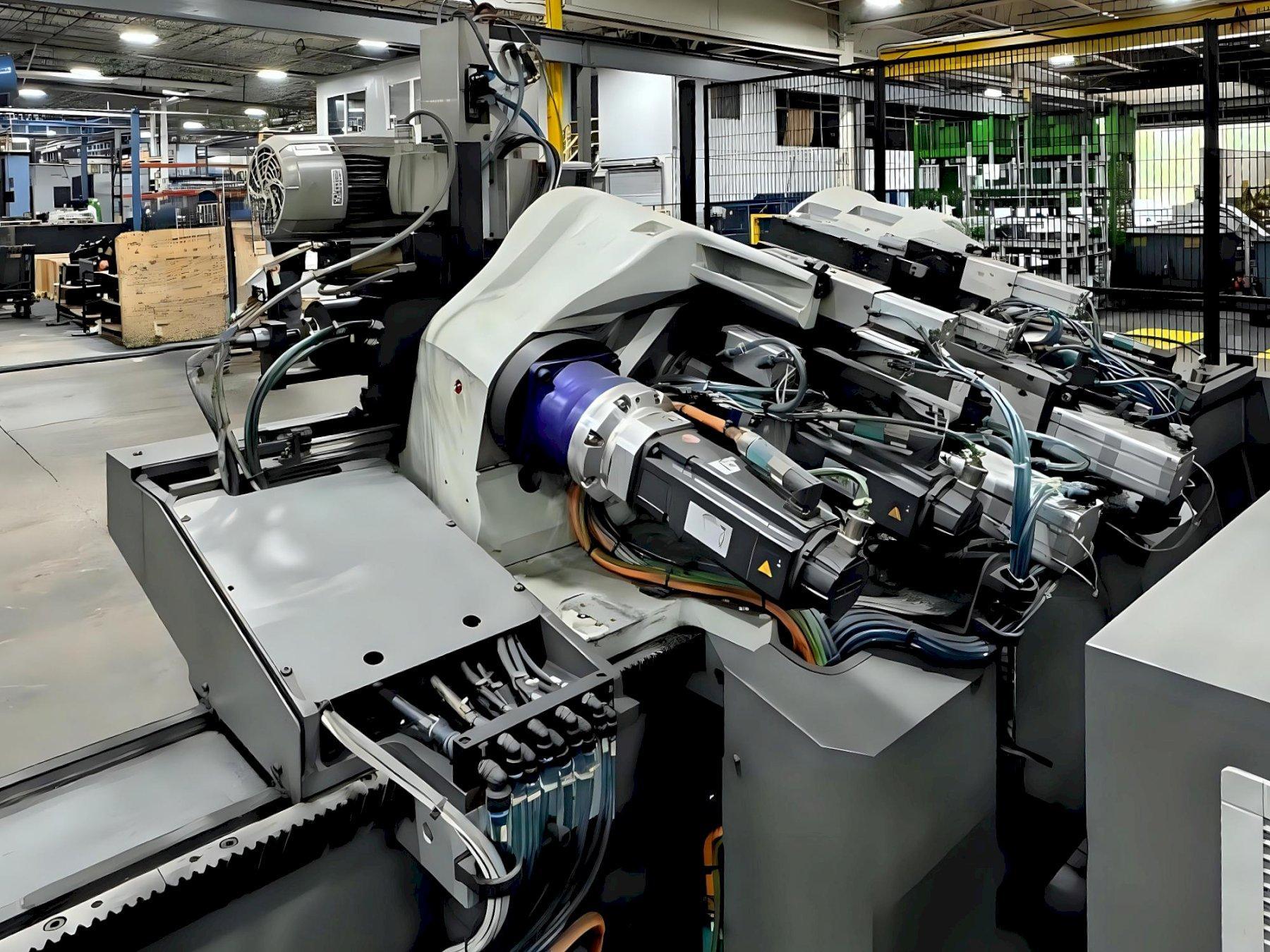

Twin Bending Head w/ Independent Twin Turret

Retractable 3D Central Handling Unit (Clamp, Rotate & Eject Part)

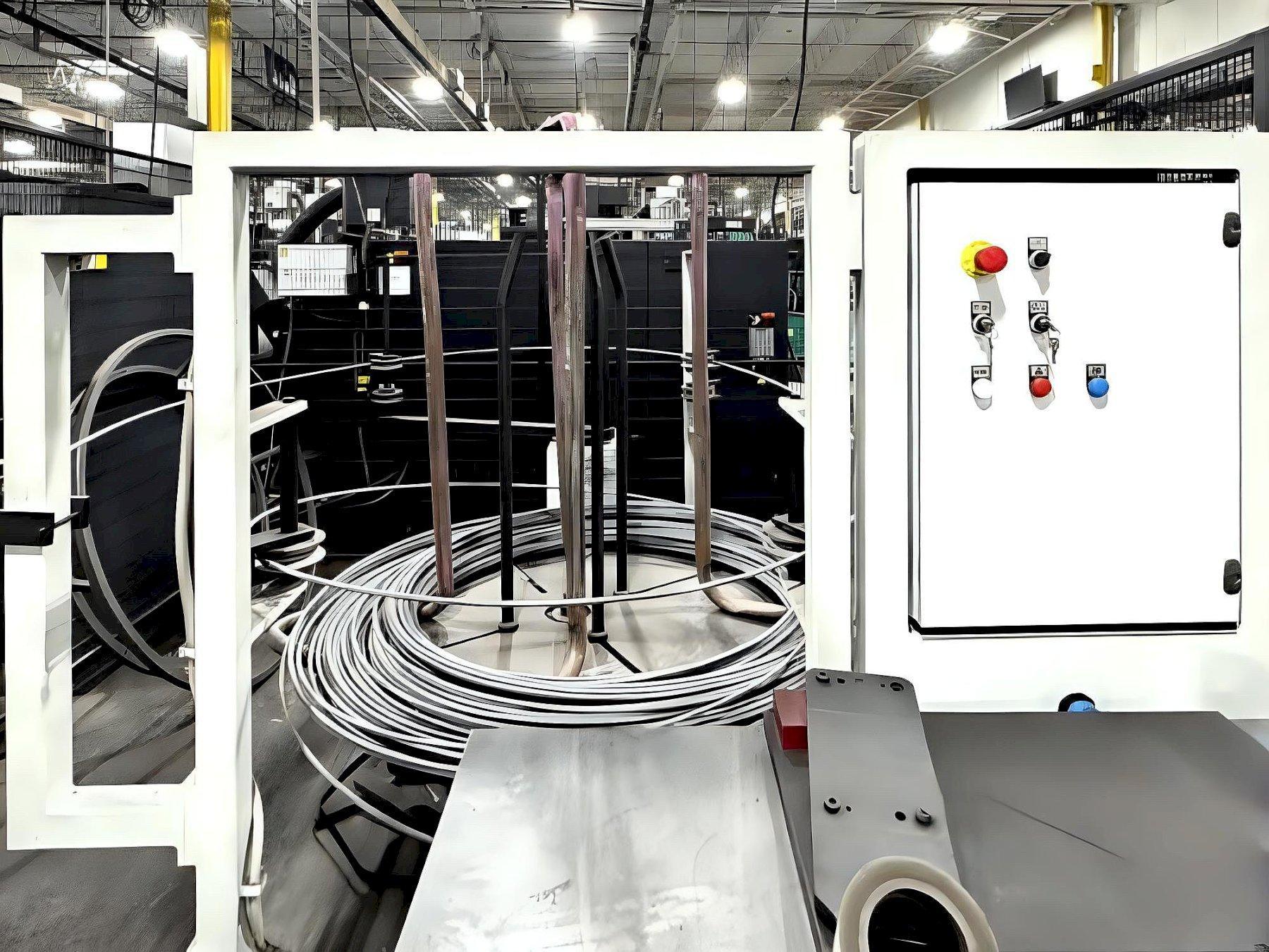

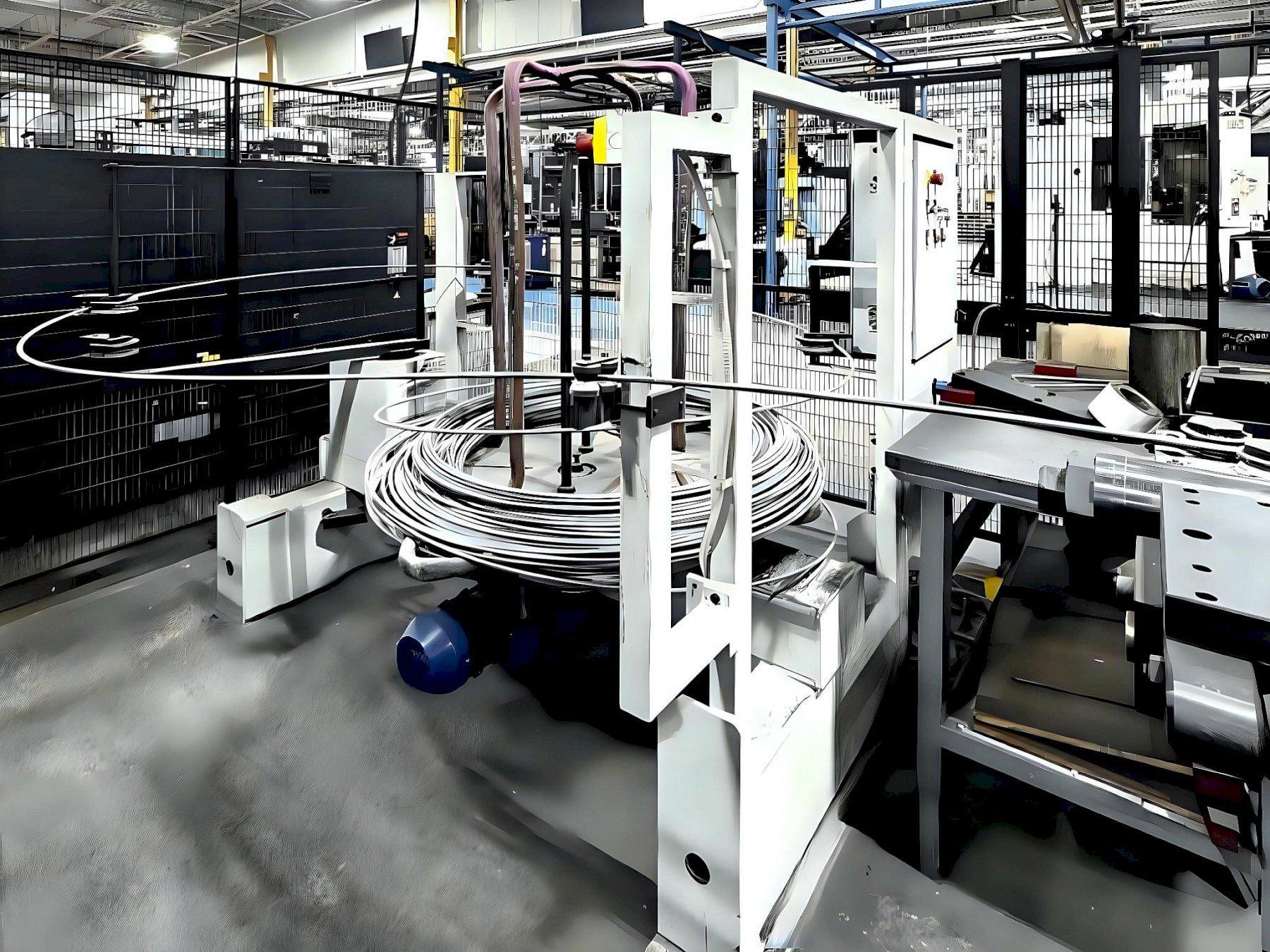

Motorized De-coiler

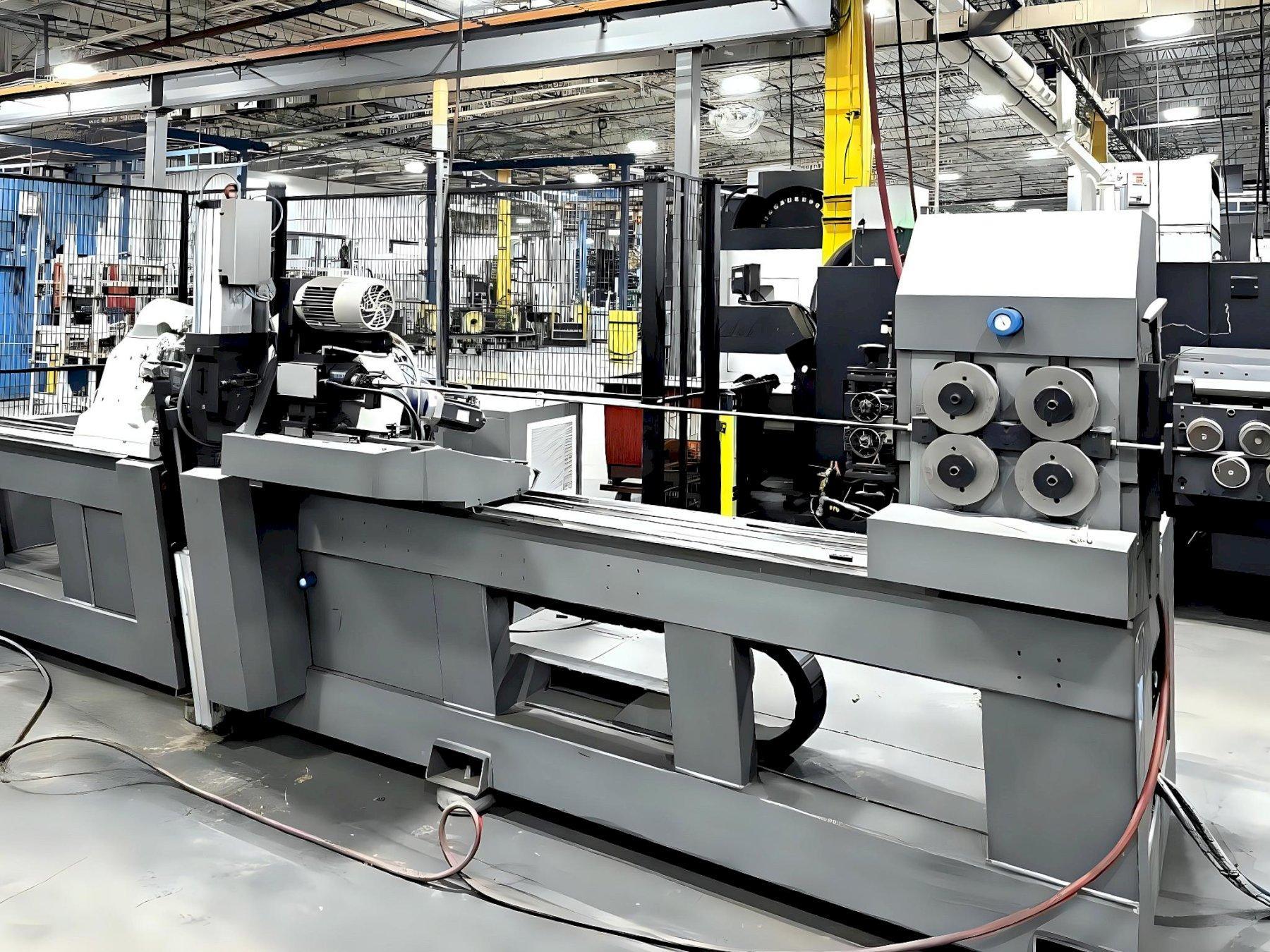

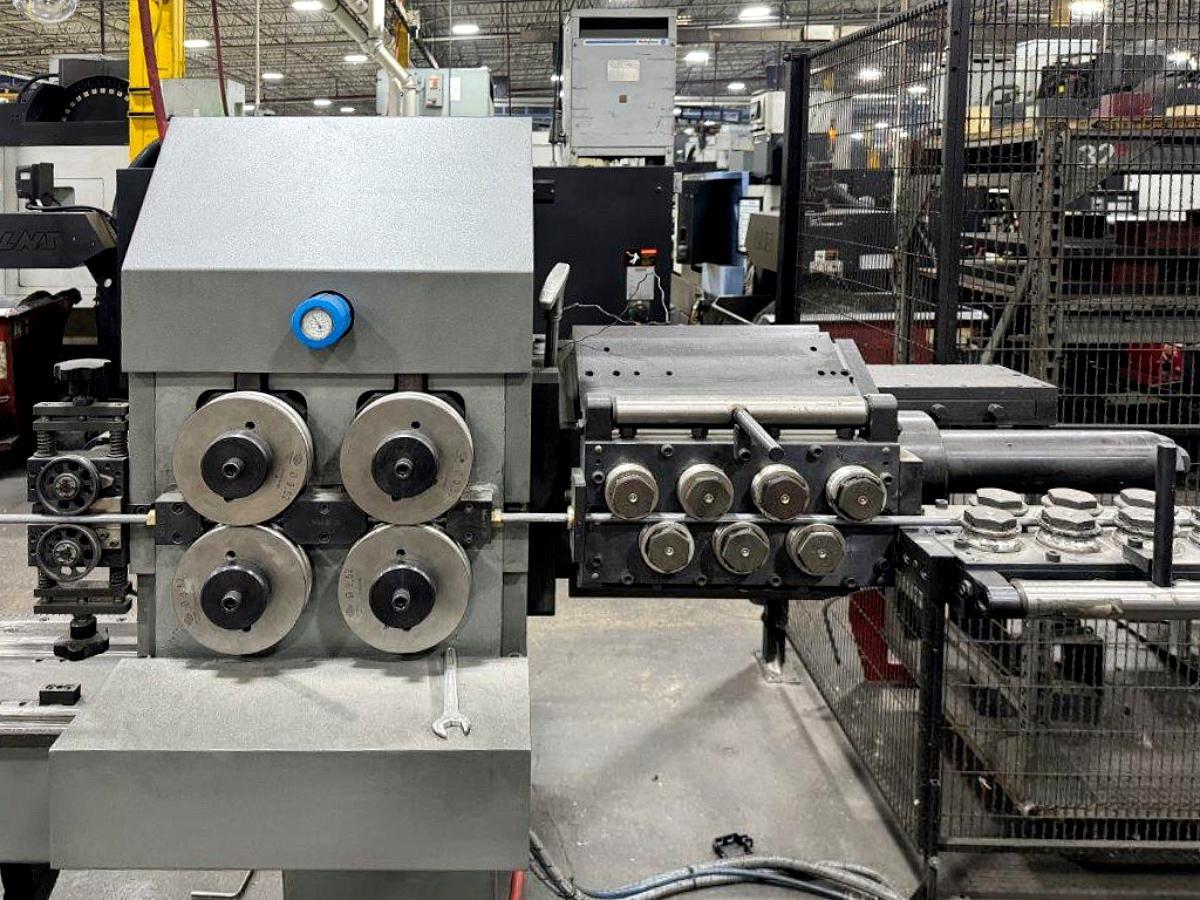

(6) Position Revolving Straightening System

(4) Roll Feeding System With Position Encoder (Feed Coil To Bending Heads)

Handler With Adjustable Clamping ForceChamfer End Finishing

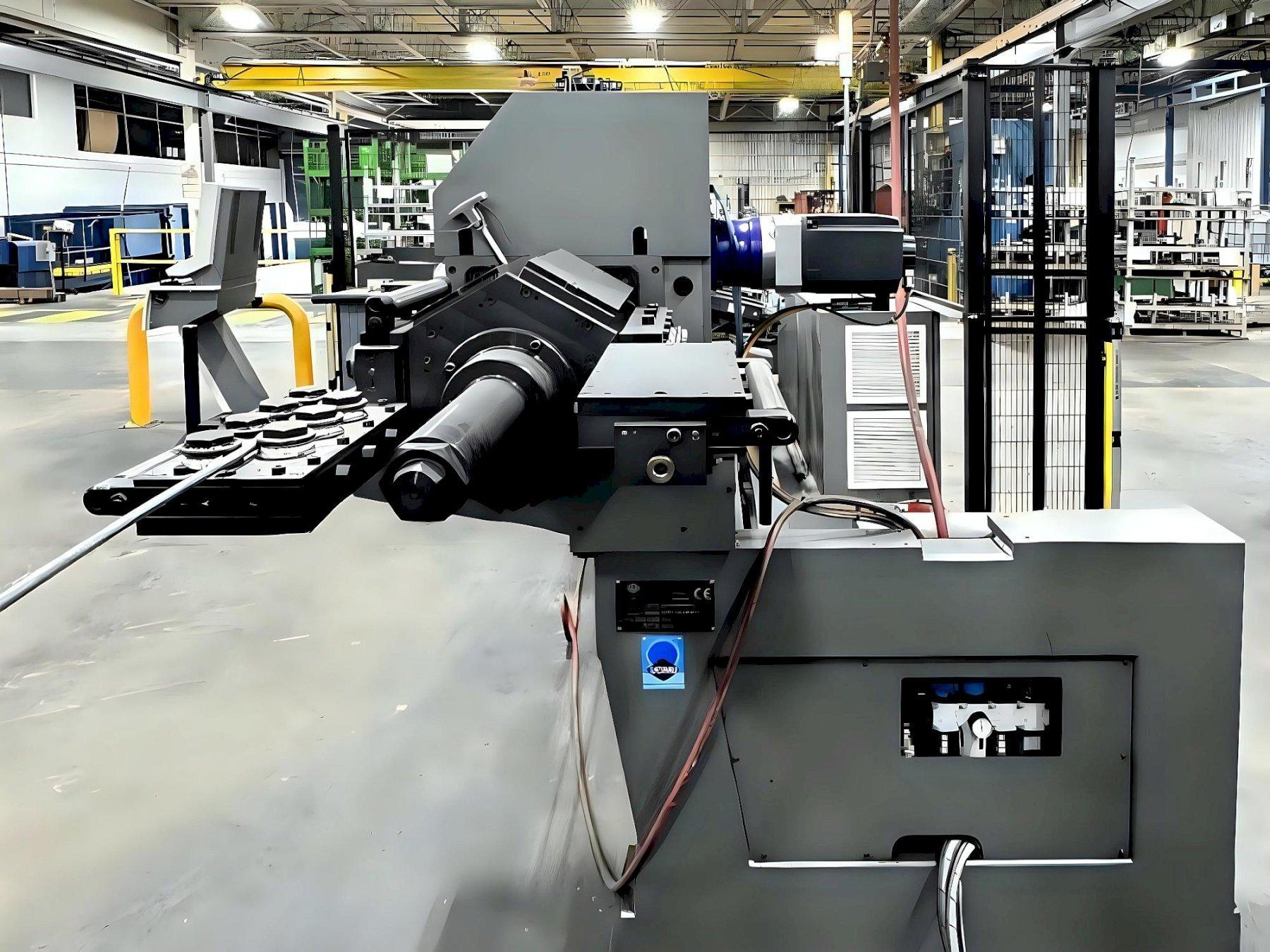

Independent End-Machining Carriage

Safety Fence
CE Certified
All Available Manuals
