BLM LT7 Fiber 3D Tube Laser

Make : BLM

Model: LT7 Fiber

Year: 2022

Type: Lasers, Tube Cutting

Reference #: 100585

Highlights:
Excellent Condition - Installed in 2023

Request a Quote Sell Your Machine

Specifications Equipped With

Fiber Source: IPG YLS-Type U 4 kW Fiber Resonator

Fiber Output: 4 kW

Cutting Head Type: 2D

Cutting Head: BLM ADIGE Tubecutter 2D

Max Cut Round Tube Diameter: 6.0"

Max Cut Square Tube Diameter: 6.0"

Orientation: Inverted

Loading Type: Fully Automatic

Loading Capabilities: Bundle & Single Bar

Minimum Loadable Length: 74.80”

Maximum Loadable Length: 27'

Bundle Loading Capacity: 11,023 Lbs

Unloading Length: 14.75'

Number of Unloading Pos.: 3

Shape Type: Round, Square, Rectangle, Open Profiles, Special Sections

Materials: Mild Steel, Stainless, Aluminum, Copper, Brass

Bar Weight Max.: 15.5 lb/ft

Max. Material Wall Thickness: .47"

Average Drawn Power: 20 kW (N2 cutting gas)

Average Drawn Power: 15 kW (O2 cutting gas)

Machine Weight: 52,960 Lbs.

Equipped With:

Inverted Orientation (Operator & Bundle Loader Same Side)

2D Cutting Head

IPG YLS 4 kW Fiber Resonator

IPG Closed Loop Chiller

27' Bundle Loader

Automatic Pusher Integration For Bundle Loader

14.75' Part Unloader

Three (2) Front Conveyor Offload Tables

Rear Scrap Conveyor

Active Scan – Laser/Camera Measurement System

Active Weld - Camera Weld System (Internal/External)

Active Focus - Automatic Adjust of Focal Position
Active Marking - Quickly Mark Parts With Production Data
Active Speed - Real-Time Adjustment of Cutting Parameters
Active Piercing – Faster Piercing With Breakthrough Detection

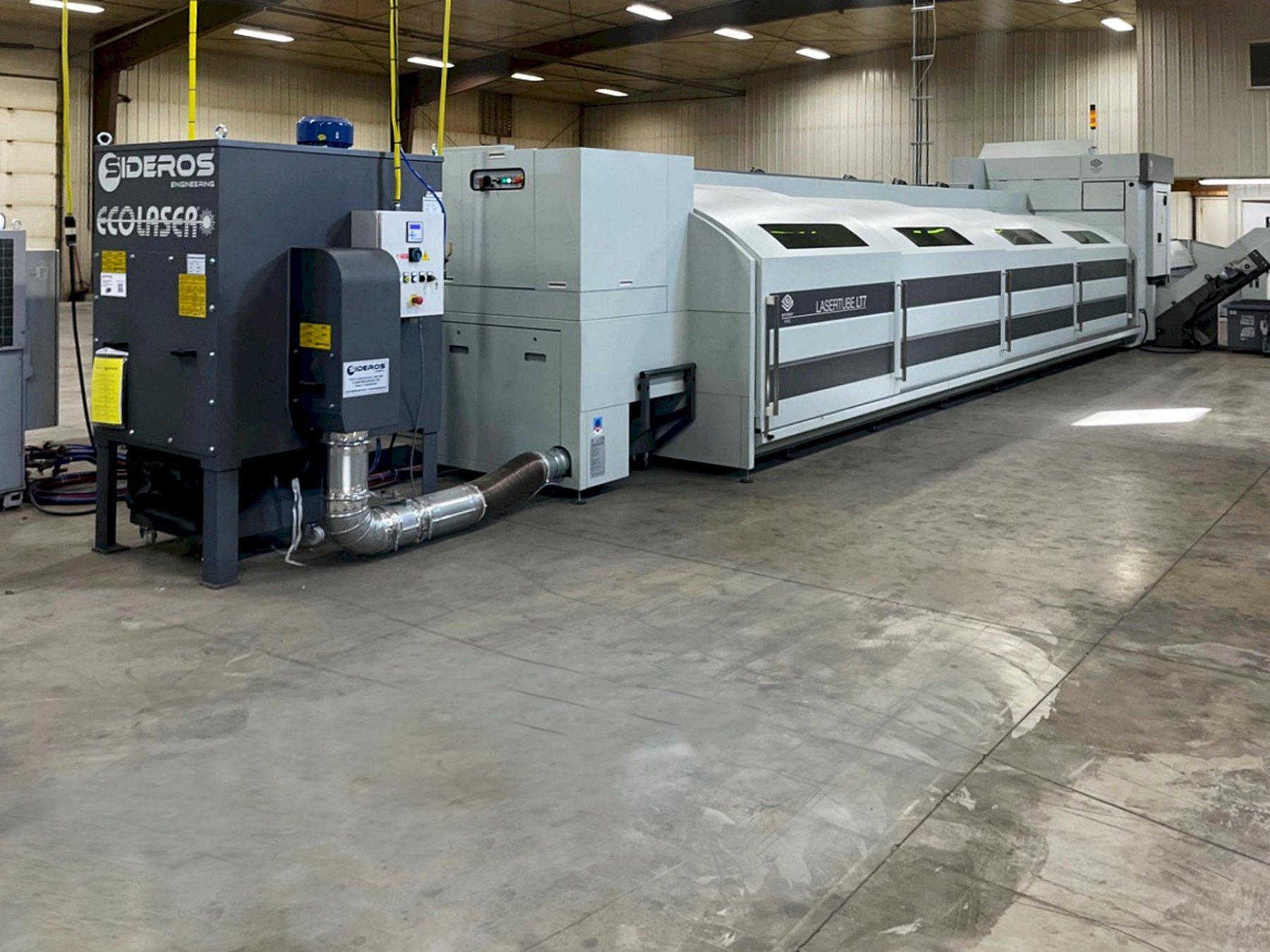

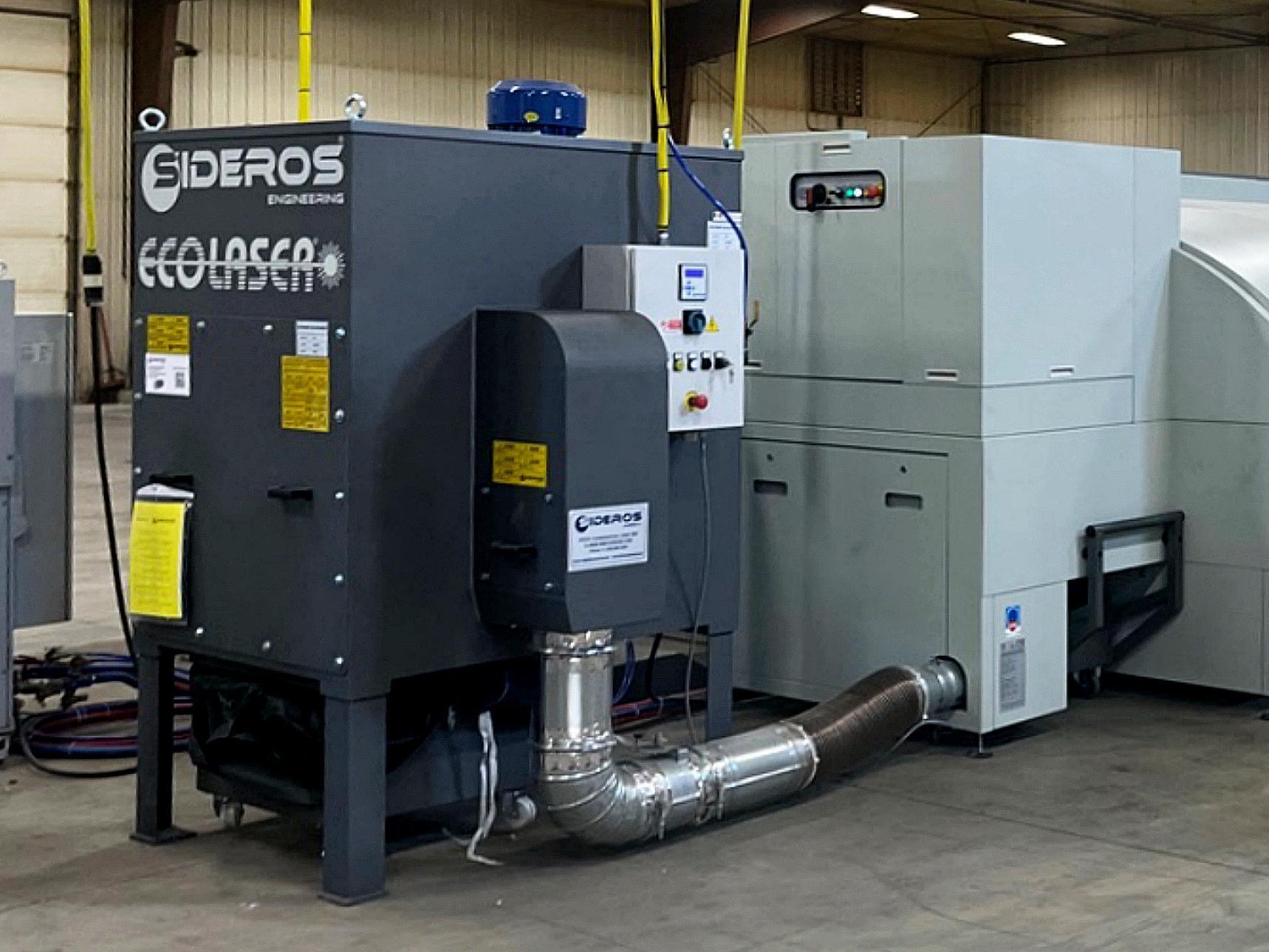

Sideros Dust Collector EC04 HC/S
