Product Details

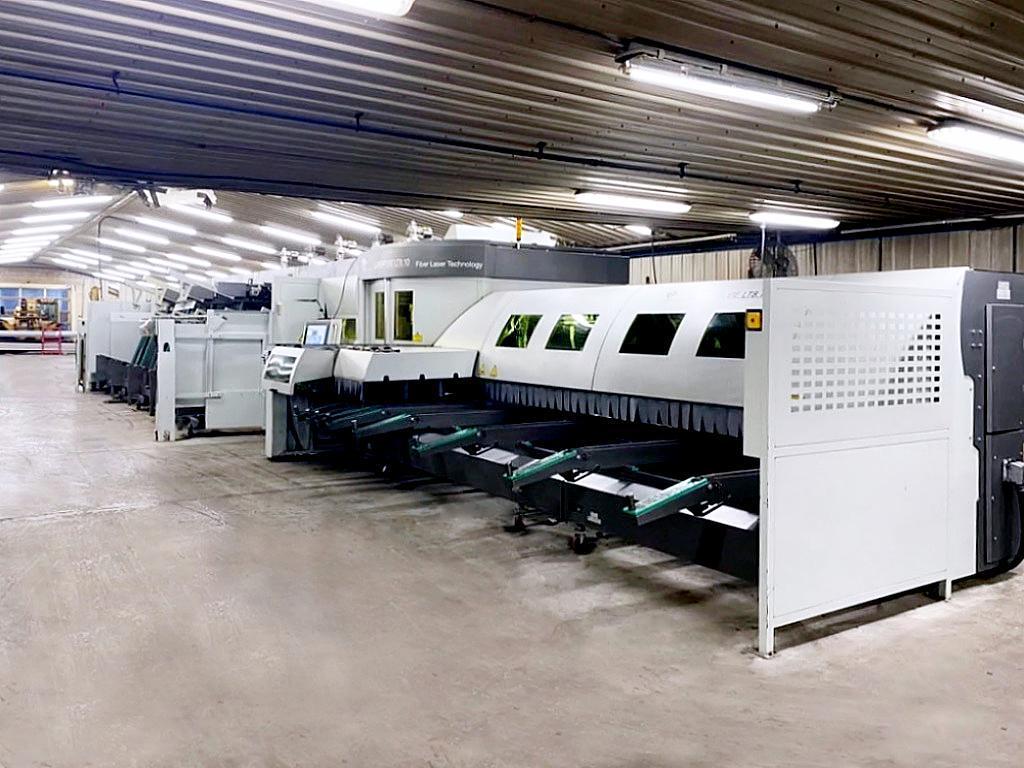

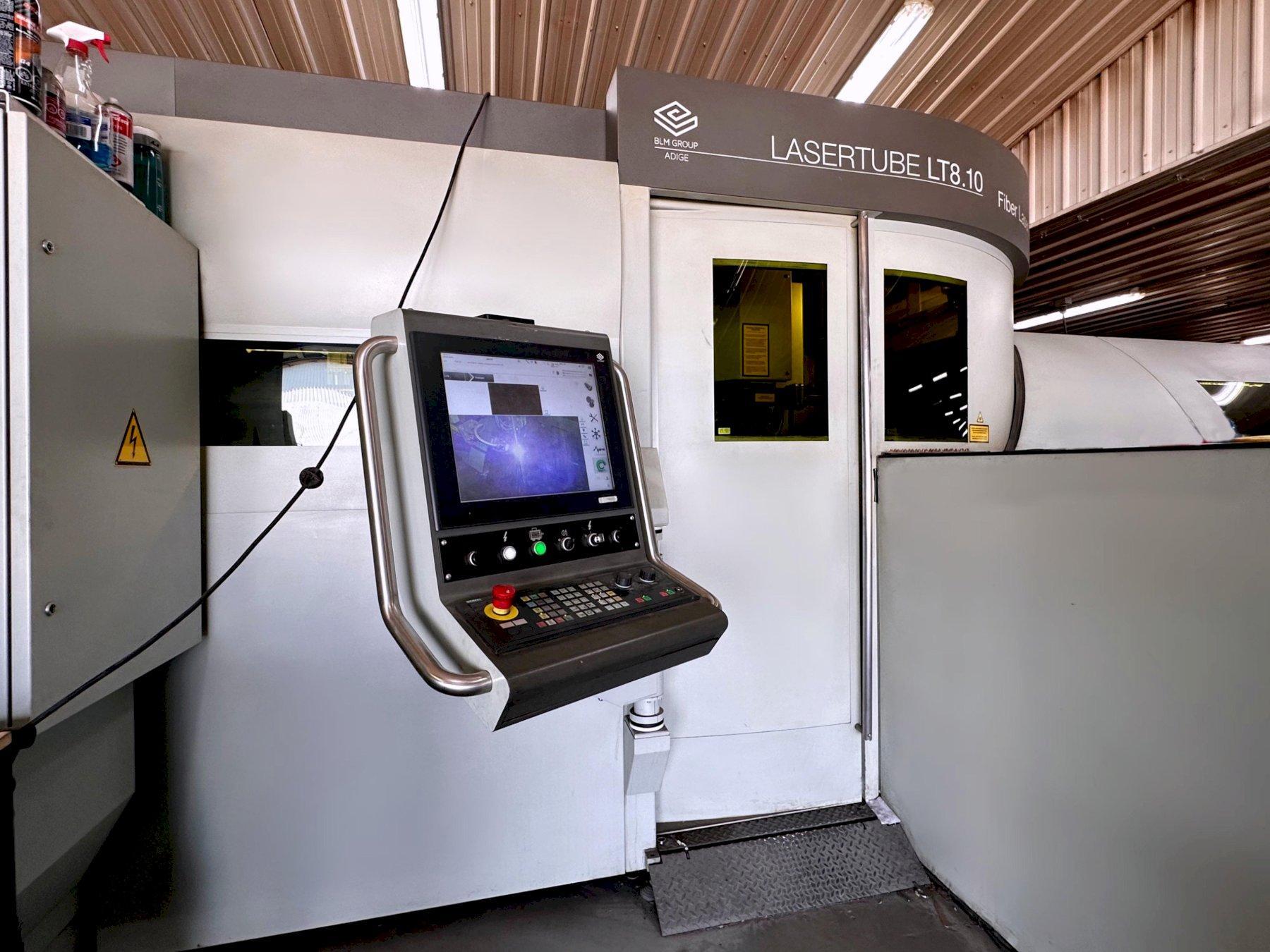

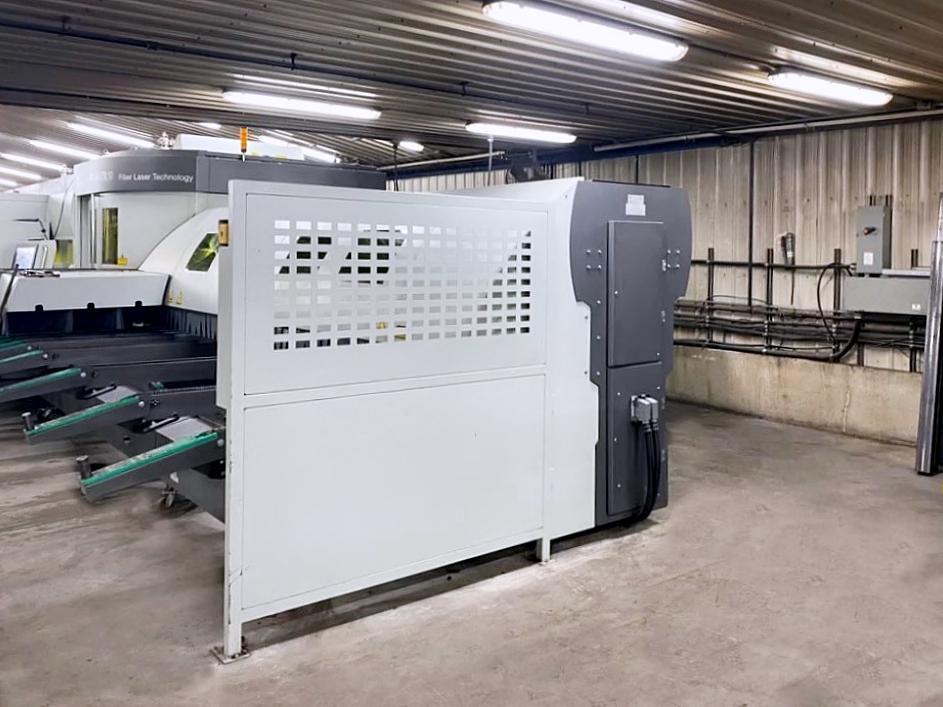

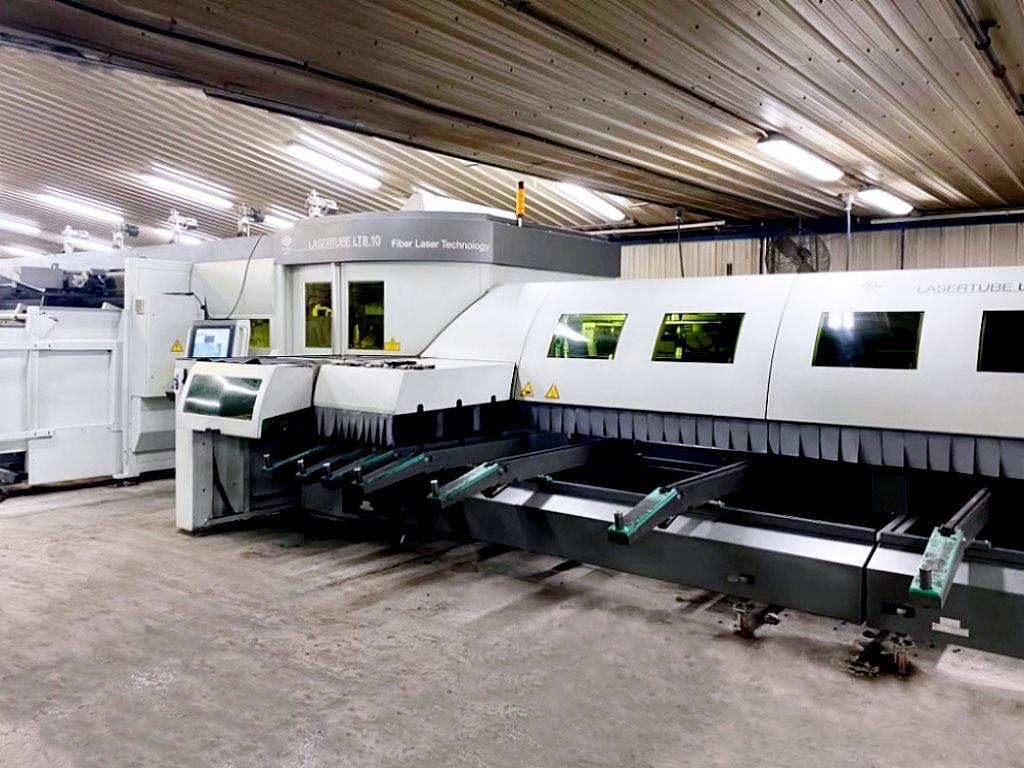

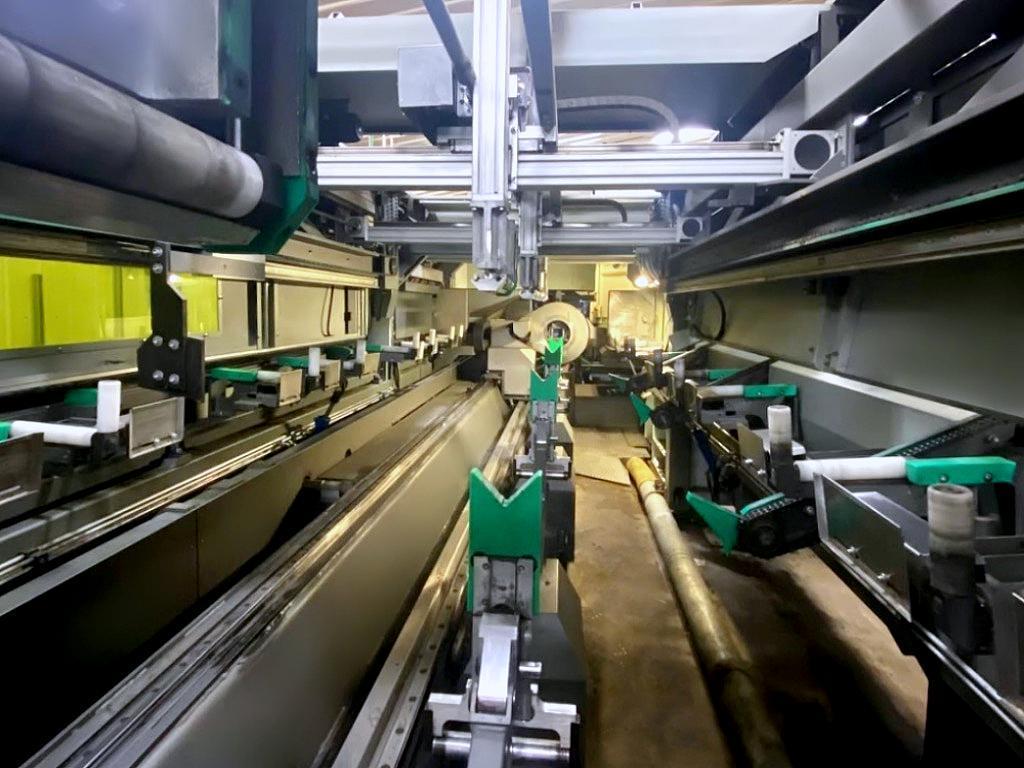

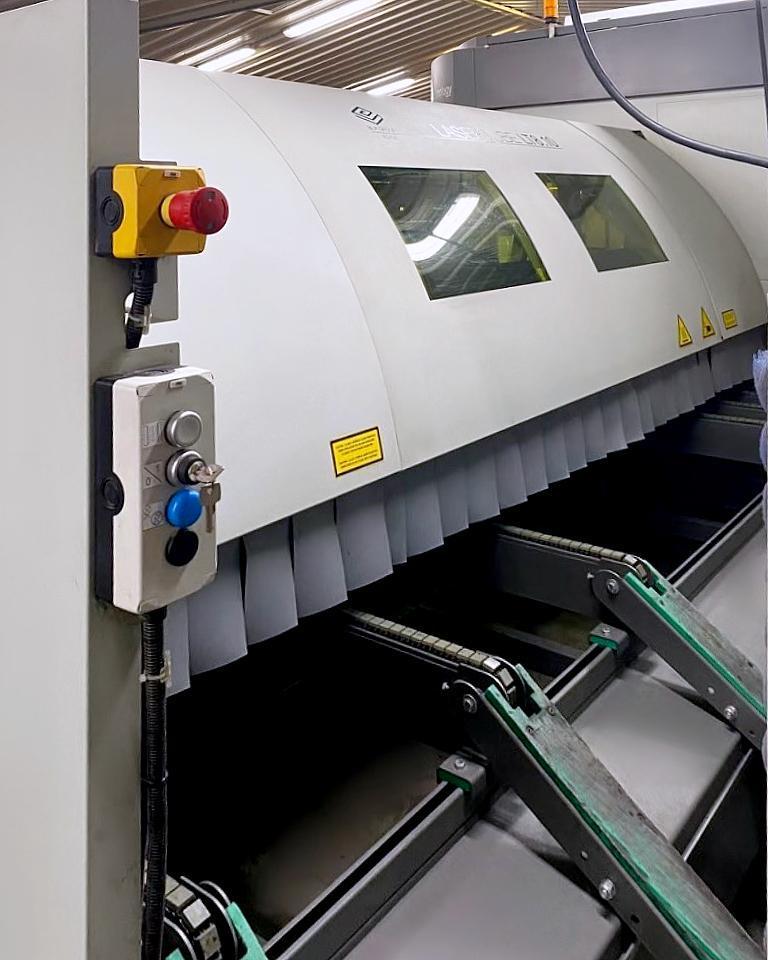

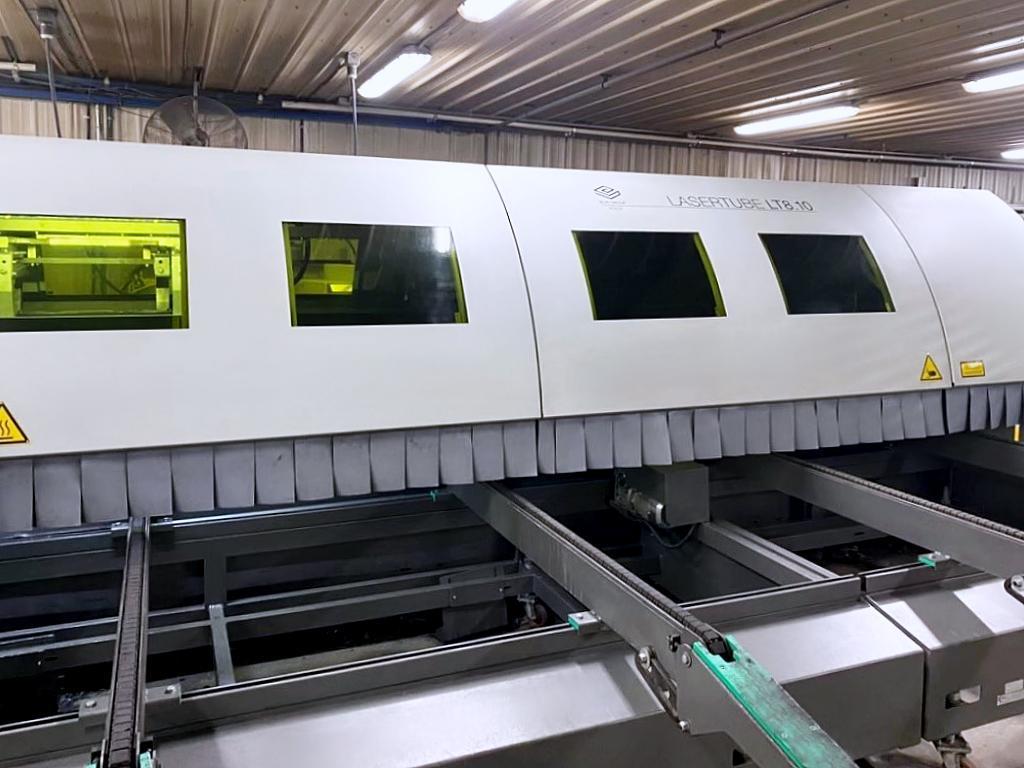

BLM LT8.10 3D Fiber Tube Laser

Make : BLM

Model: LT8.10 Fiber

Year: 2019

Reference #: 100405

Highlights:
Excellent condition with low hours. Serviced by OEM since installed.

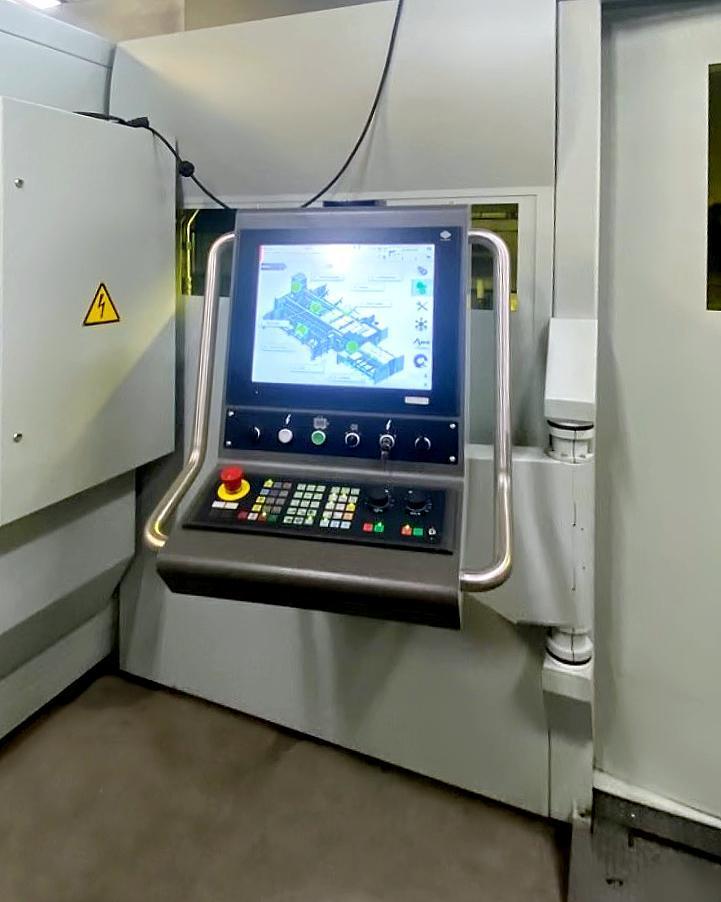

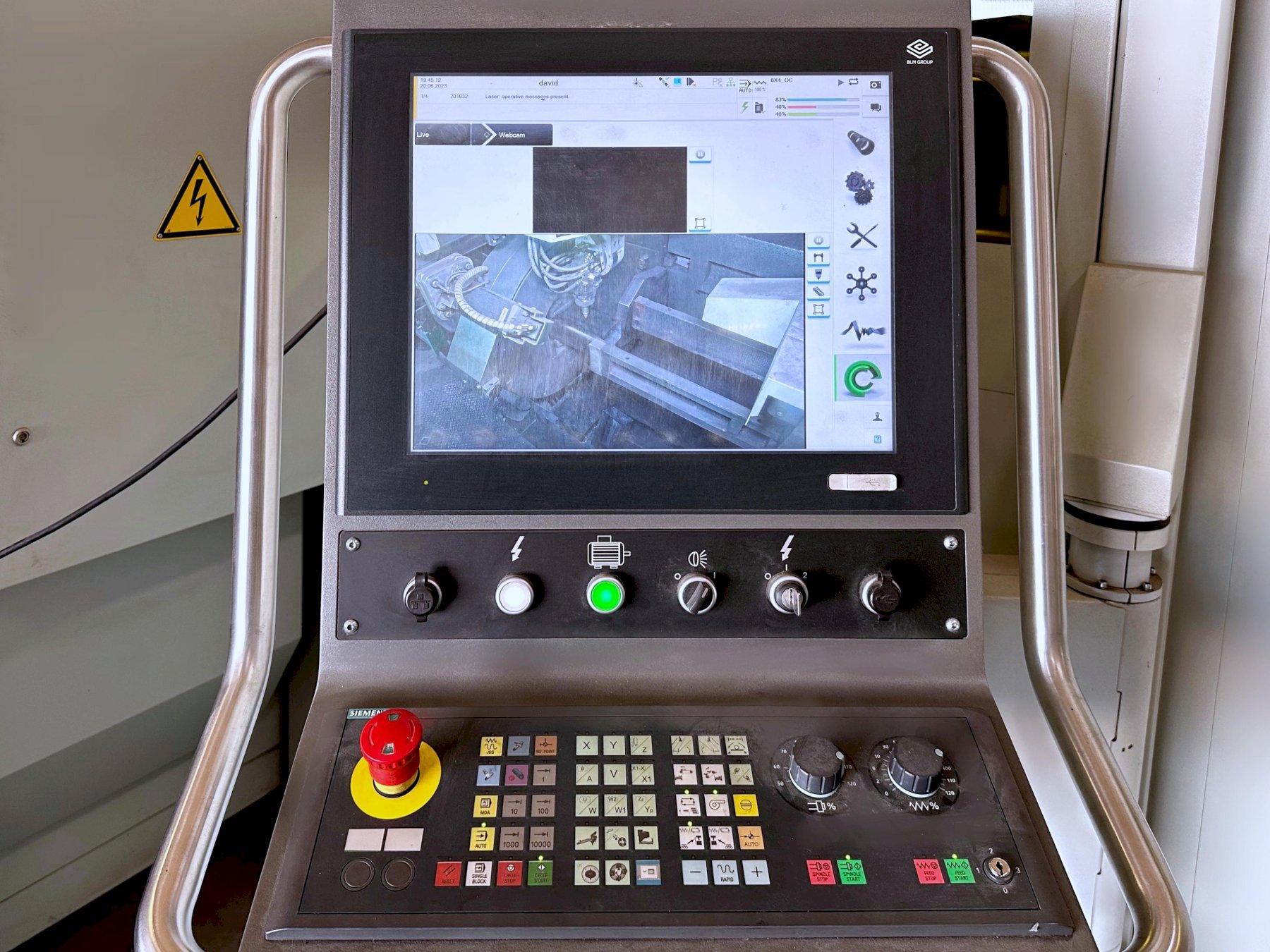

Controller: Siemens Simatic
Laser Power: IPG YLS 4000 Watt Fiber Resonator
Round Tube Diameter: .50” - 8.625”
Square Tubes: .50” - 8.0”
Rectangular Tube (Width): .50” – 8.0”
Bar Load Size: 28’
Min. Bar Load Length (Auto Bundle Loader): 8.2'
Bar Unload Size: 28”
Max. Bundle Weight: 8,800 lbs.
Max. Bar Weight (At full duty cycle): 25 lbs. / Foot
Unloading Lengths: 21'
Tilt Head Cutting: Standard (+/- 45 Degrees)
Open Shapes Capability: Standard - Processing Angle Iron, Channel, Flat Bar
Booster Pierce / Breakthrough Detector: Standard
Weld Seam Detection: Standard
Tube Twist & Bow Correction: Standard
Max. Cut Thickness (Mild Steel): .394”
Max. Cut Thickness (Stainless Steel): .236”
Max. Cut Thickness (Aluminum): .236”
Max. Cut Thickness (Brass): .236”
Max. Cut Thickness (Copper): .157”

Equipped With:

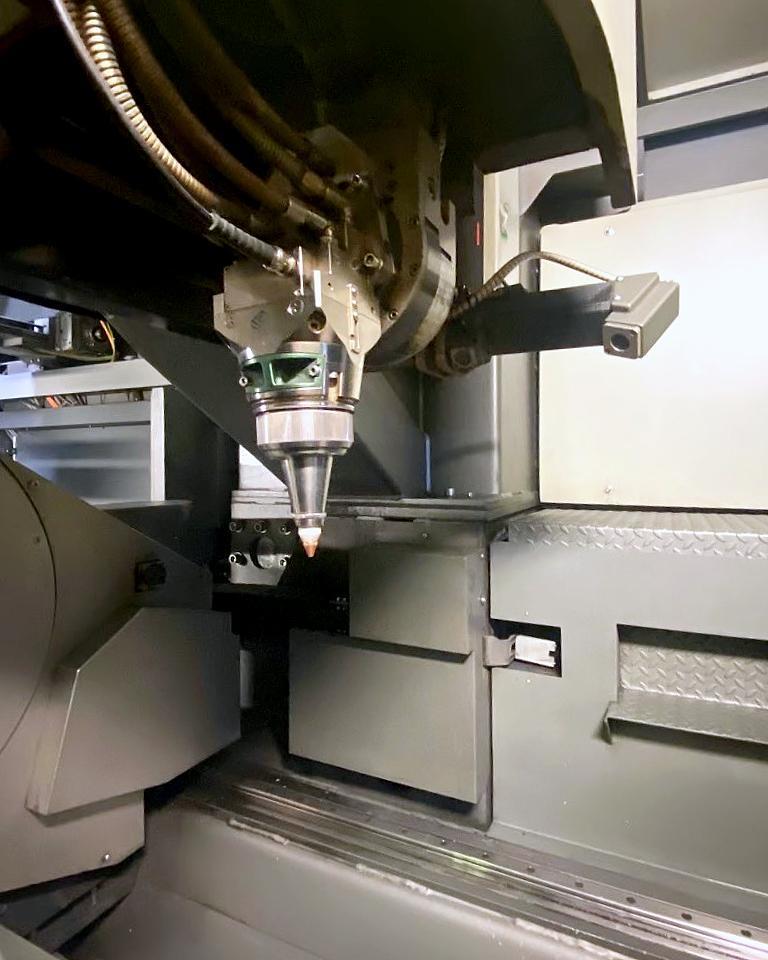

Updated Tilting 3-D Laser Head +/- 45° (Bevels/Miters)

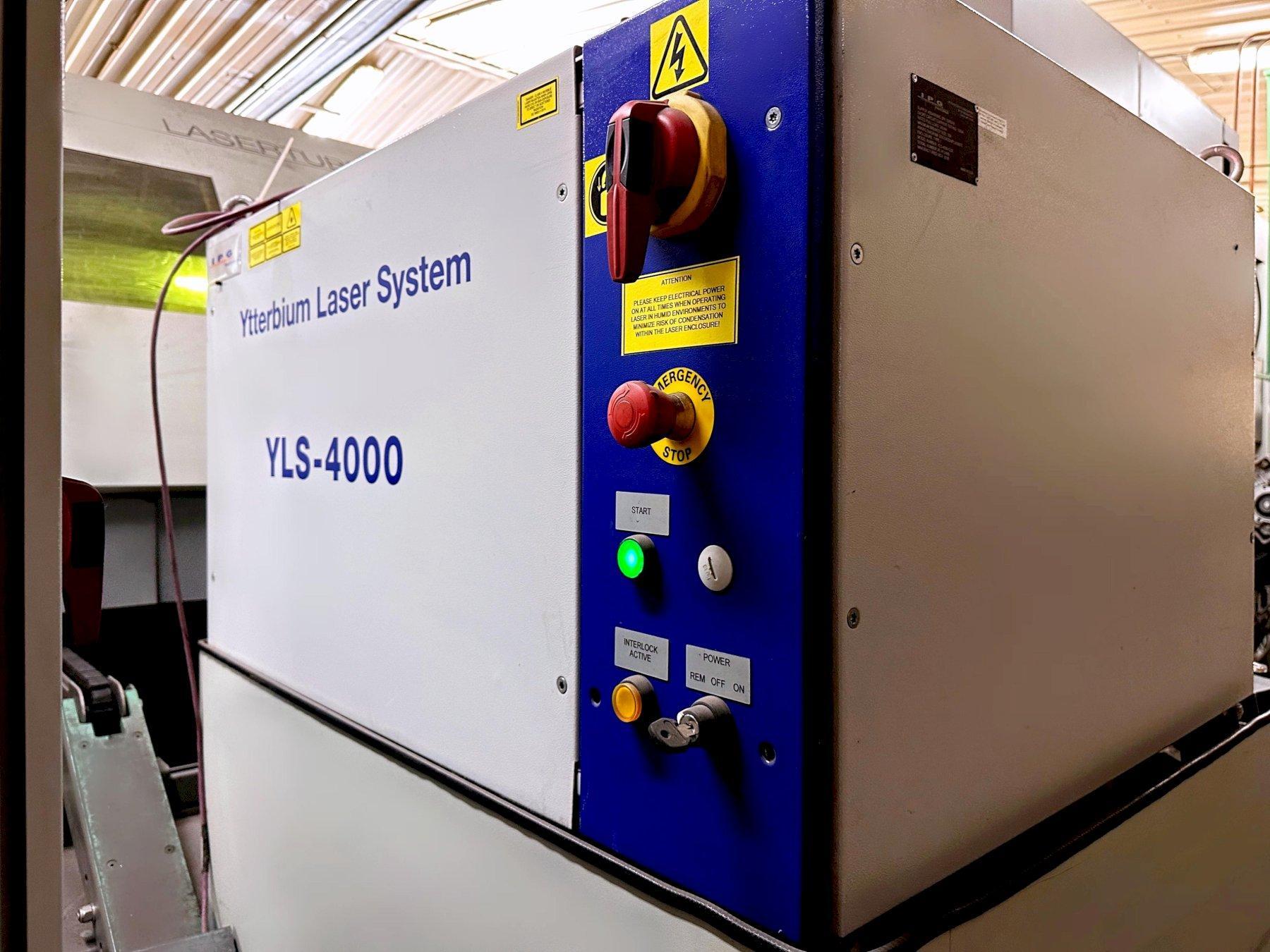

4kW IPG YLS Fiber Laser

Active Focus

Active Piercing

Active Marking

Active Scan

Active Speed

Optical Weld Seam Sensor

(2) On-board cameras (Internal & Rear of Machine)

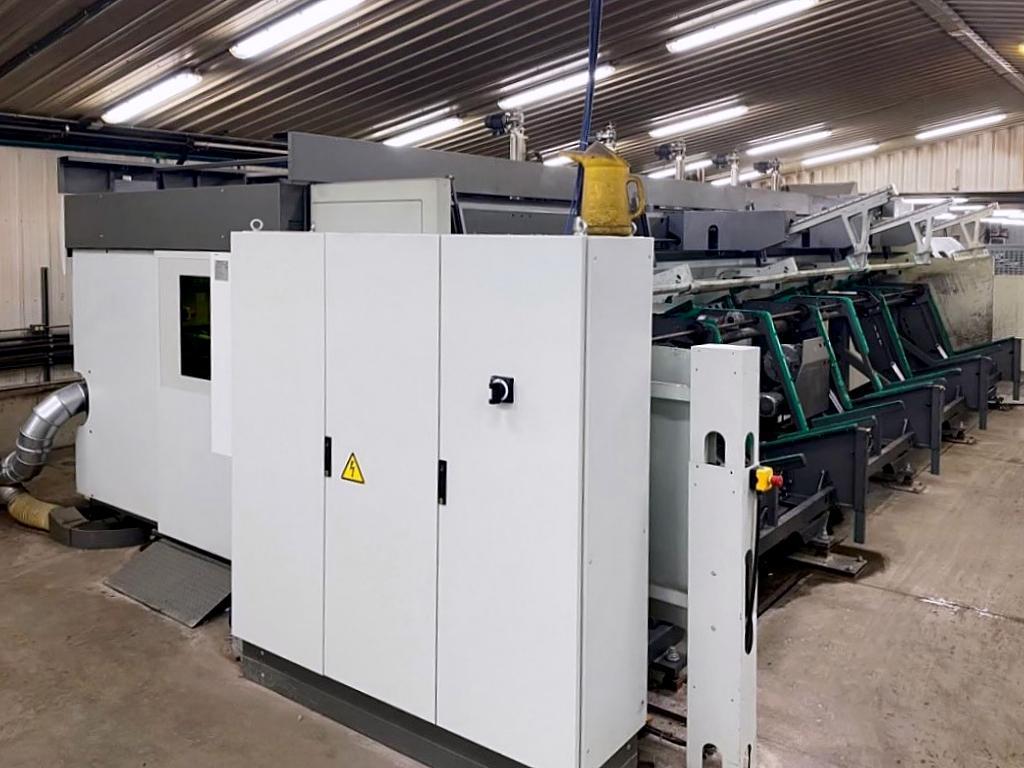

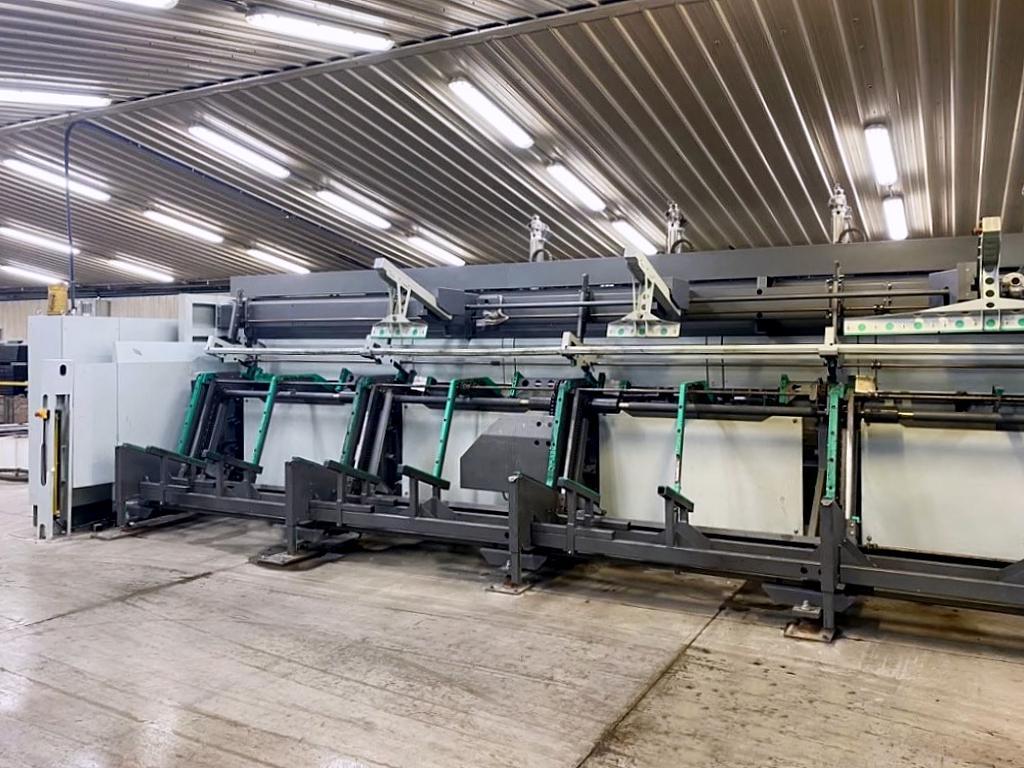

Fully Automated Tube Bundle Loader (Rear)
Single Bar Loader (Front)
Open Shapes Capabilities

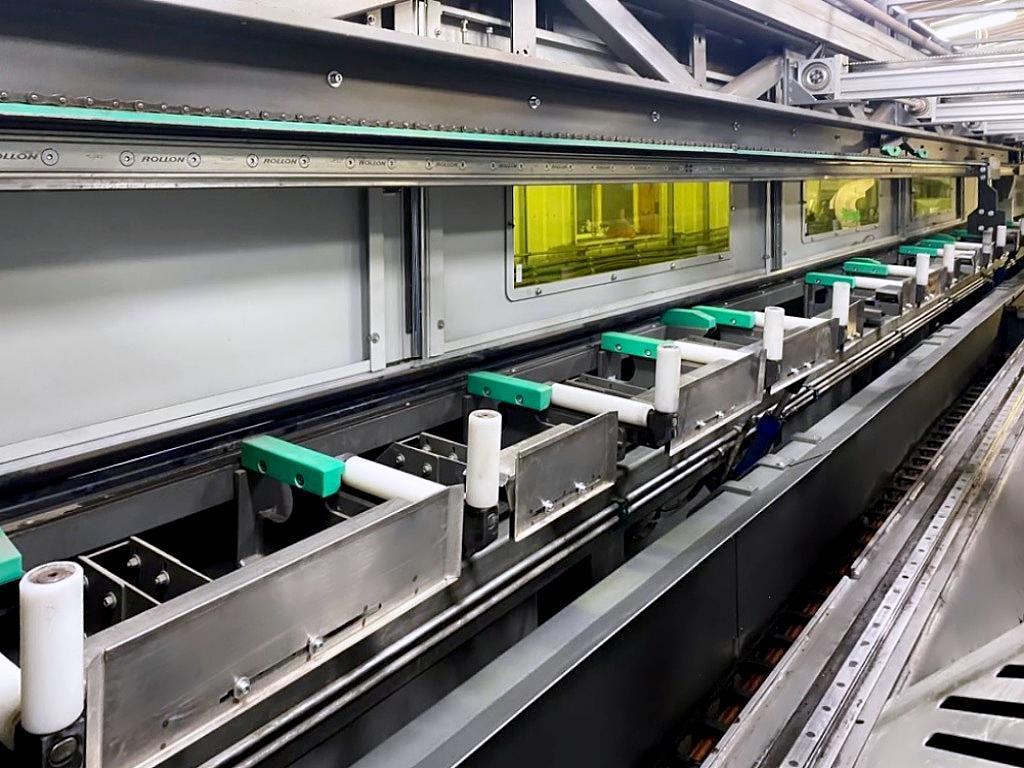

Motorized Unloading Table

Short Parts Belt

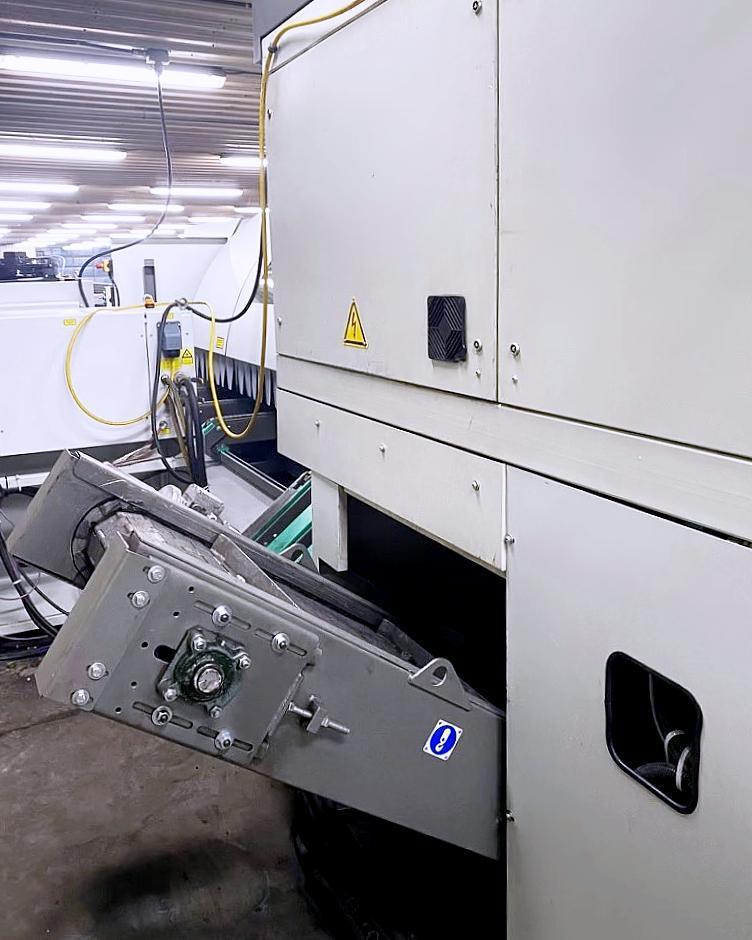

Rear Scrap Conveyor

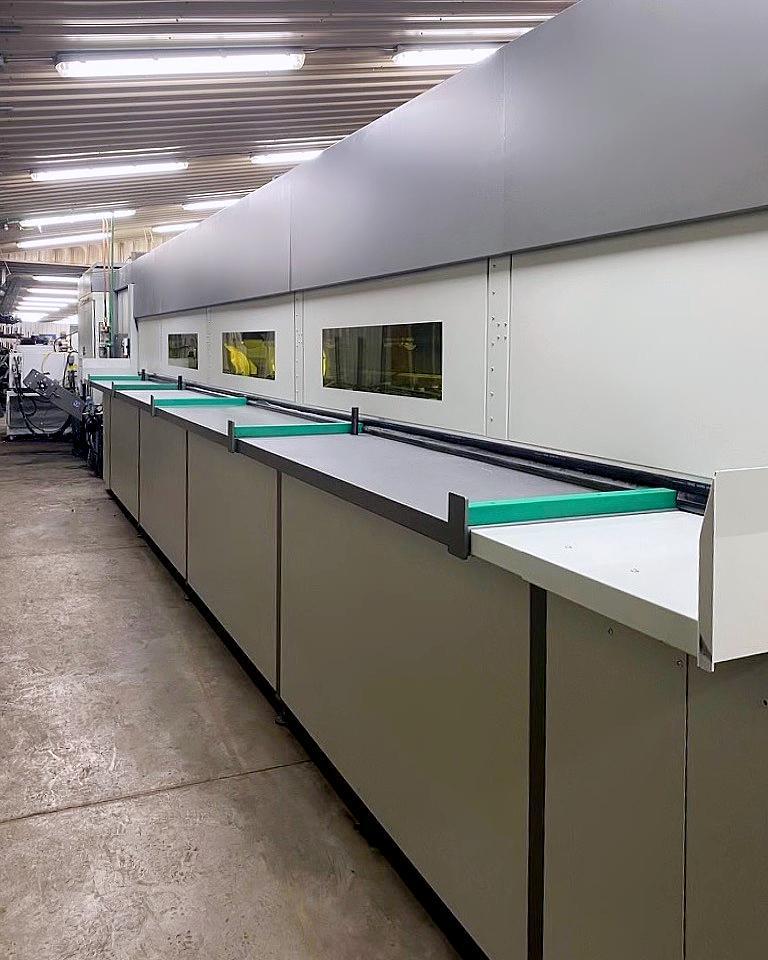

Front and Rear unload Collection Tables

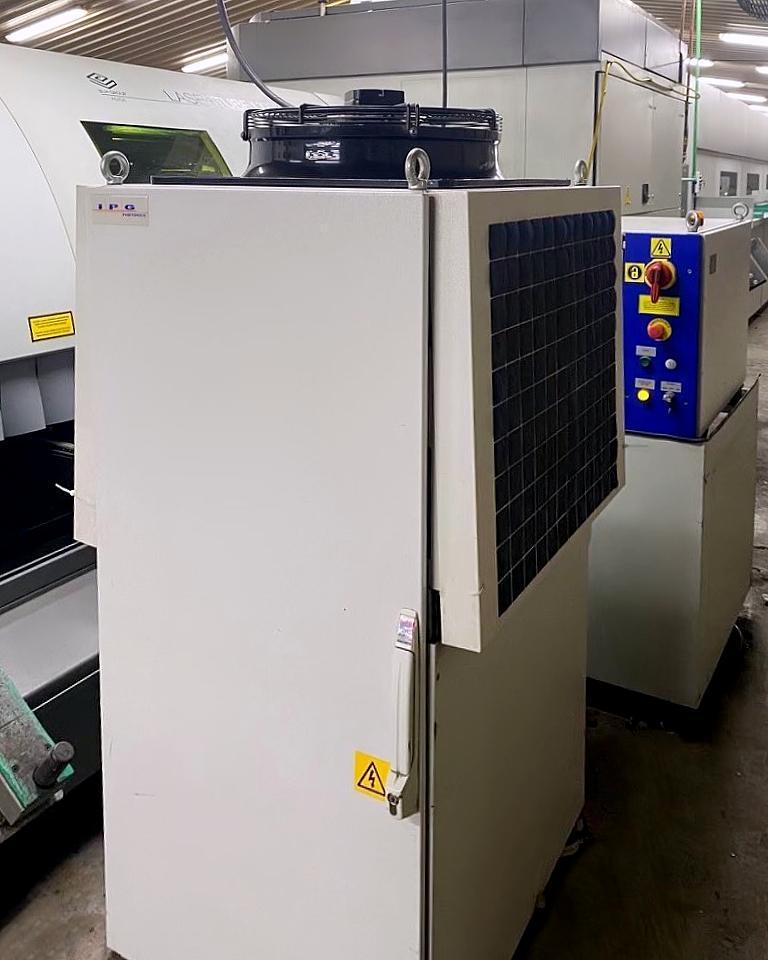

IPG Chiller

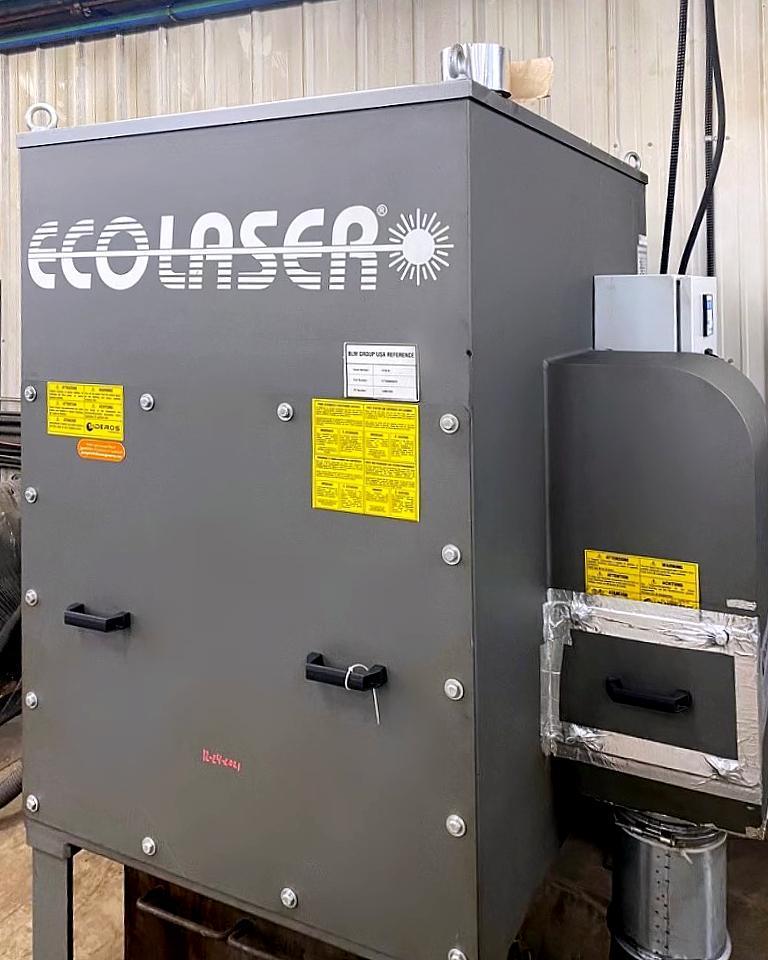

Sideros Dust Collector
