Product Details

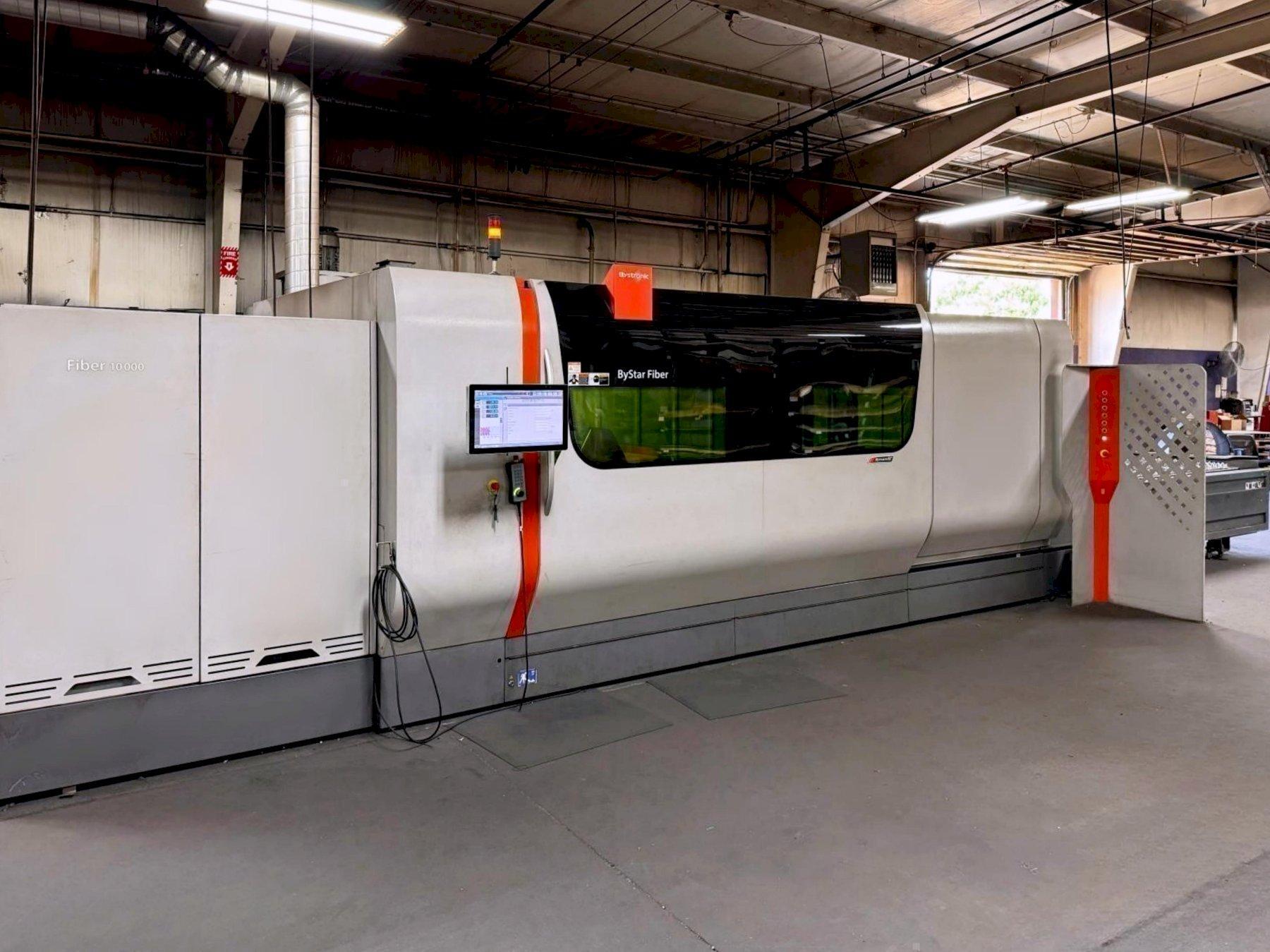

Bystronic Bystar Fiber 3015 w/ Bytrans Extended

Make : BYSTRONIC

Model: Bystar Fiber 3015

Year: 2018

Reference #: 100545

Highlights:
Well maintained with 4,750 hours.


Control: ByVision CNC
Nominal Sheet Size (X): 118.11”
Nominal Sheet Size (Y): 59.05”
Cutting Area (X): 122.04”
Cutting Area (Y): 62.20”
Cutting Area (Z): 3.93
Max. Pos. Speed Parallel Axis X/Y: 4,724 IPM
Max. Simultaneous Pos. Speed: 6,692 IPM
Edge Detection Accuracy: (±) .01968”
Max. Workpiece Weight: 1,985 Lbs.
Shuttle Table Changeover Time: 25 Sec.
Wavelength: Fiber
Power Source: Fiber 10,000
Power Output: 10,000 Watts
Range of Adjustment: 1,000 W to 10,000 W
Max. Cut Mild Steel: .98”/1.18"
Max. Cut Stainless Steel: 1.18”
Max. Cut Aluminum: 1.18”
Max. Cut Brass: .59”
Max. Cut Copper: .47”
Total Electric Consumption: 22kw
Dimensions: L 468” x W 224” x H 126”
Machine Weight: 24,250 Lbs.

Equipped With:

Byvision Touchscreen CNC Control

Manual Control Unit

Bystronic IPG Fiber 10,000 Power Source

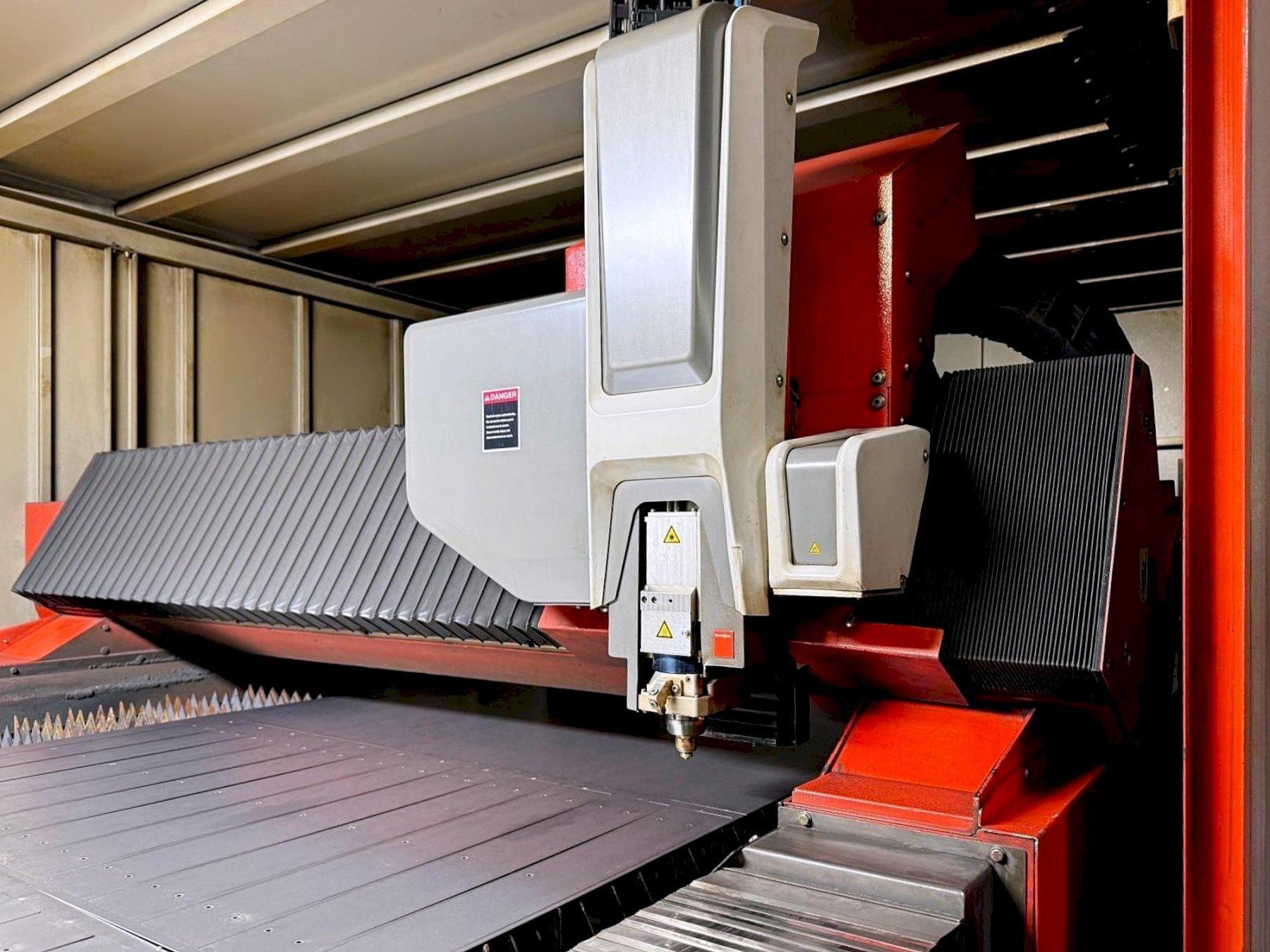

Bystronic High-Speed Cutting Head SSC V2.02
Auto Nozzle Cleaner
Auto Nozzle Changer
(1) High Pressure Ports
(2) Low Pressure Ports

Assist Gas Filter Kit
5' X 10' Duel Pallet Shuttle Table
Chiller Unit
Teka Dust Collector
Bytrans Extended 3015 L/UL
