Product Details

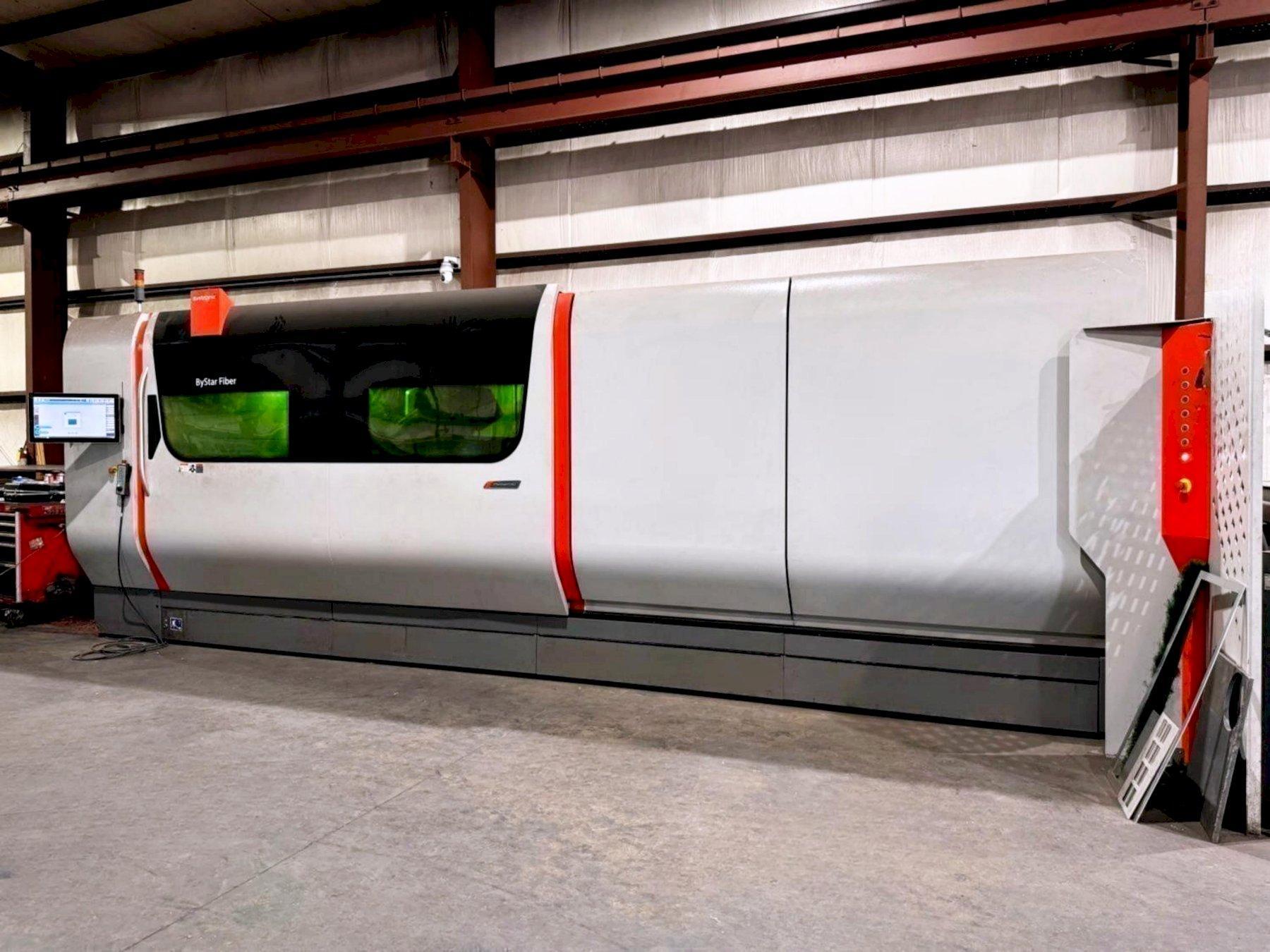

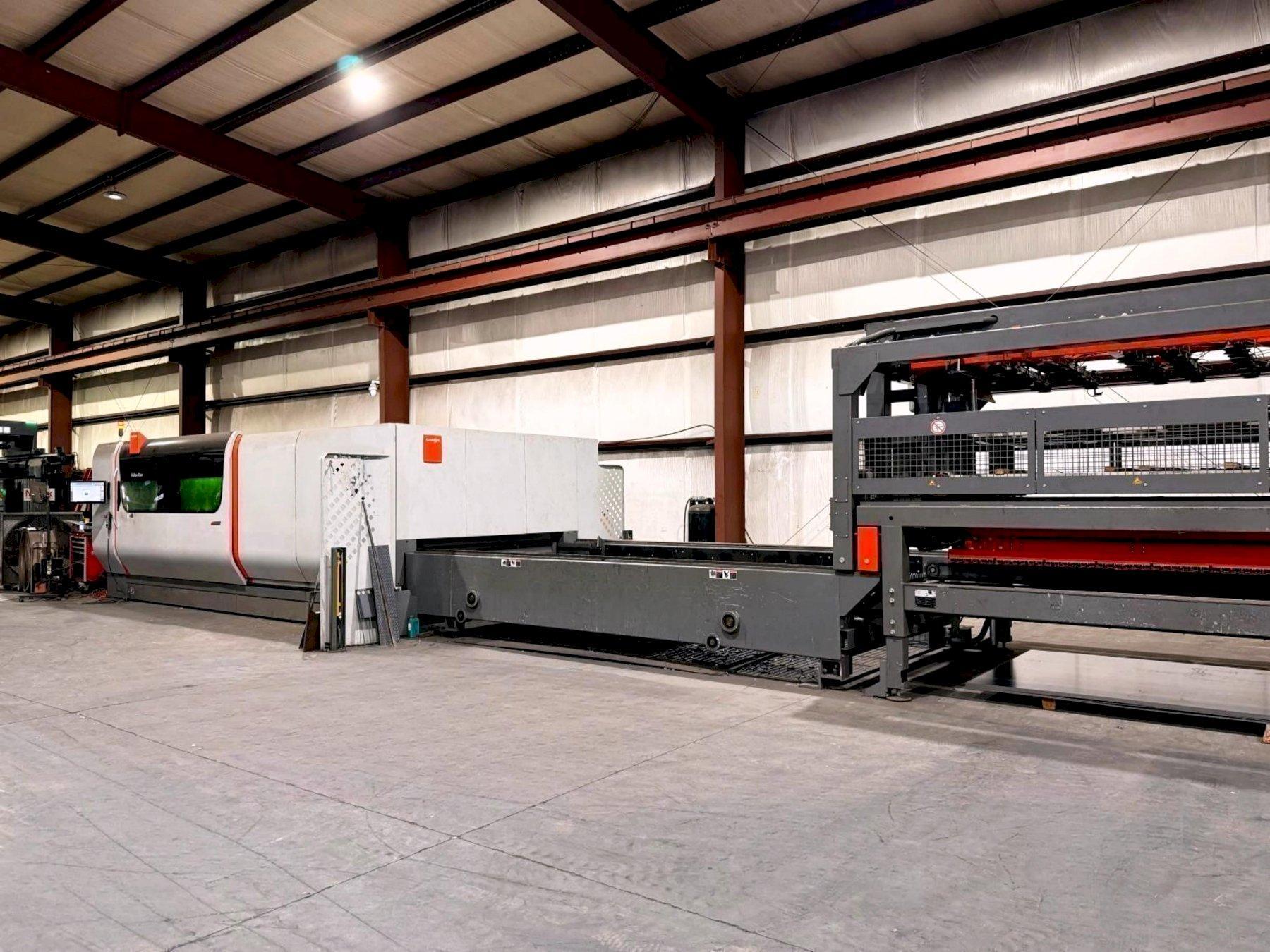

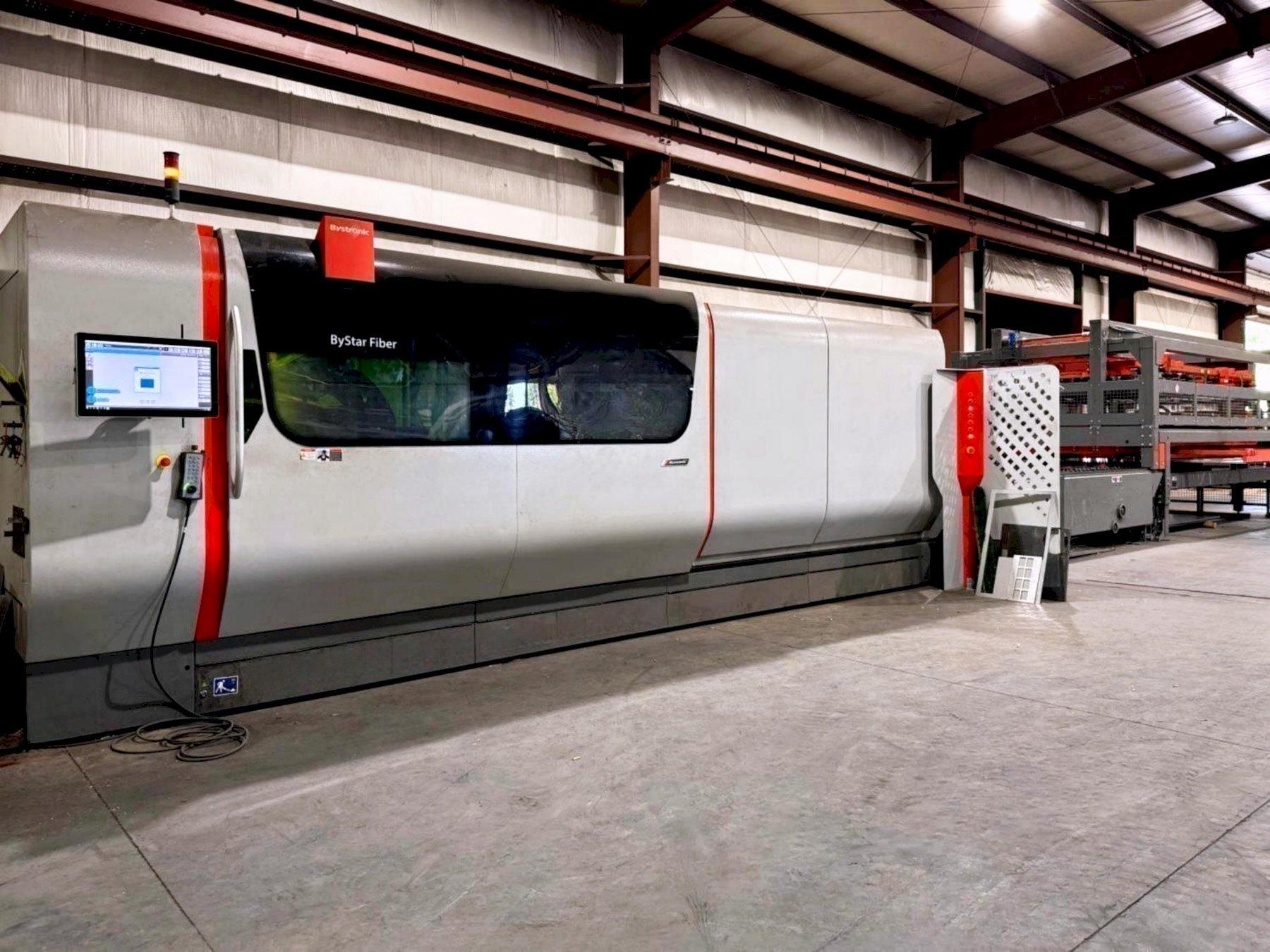

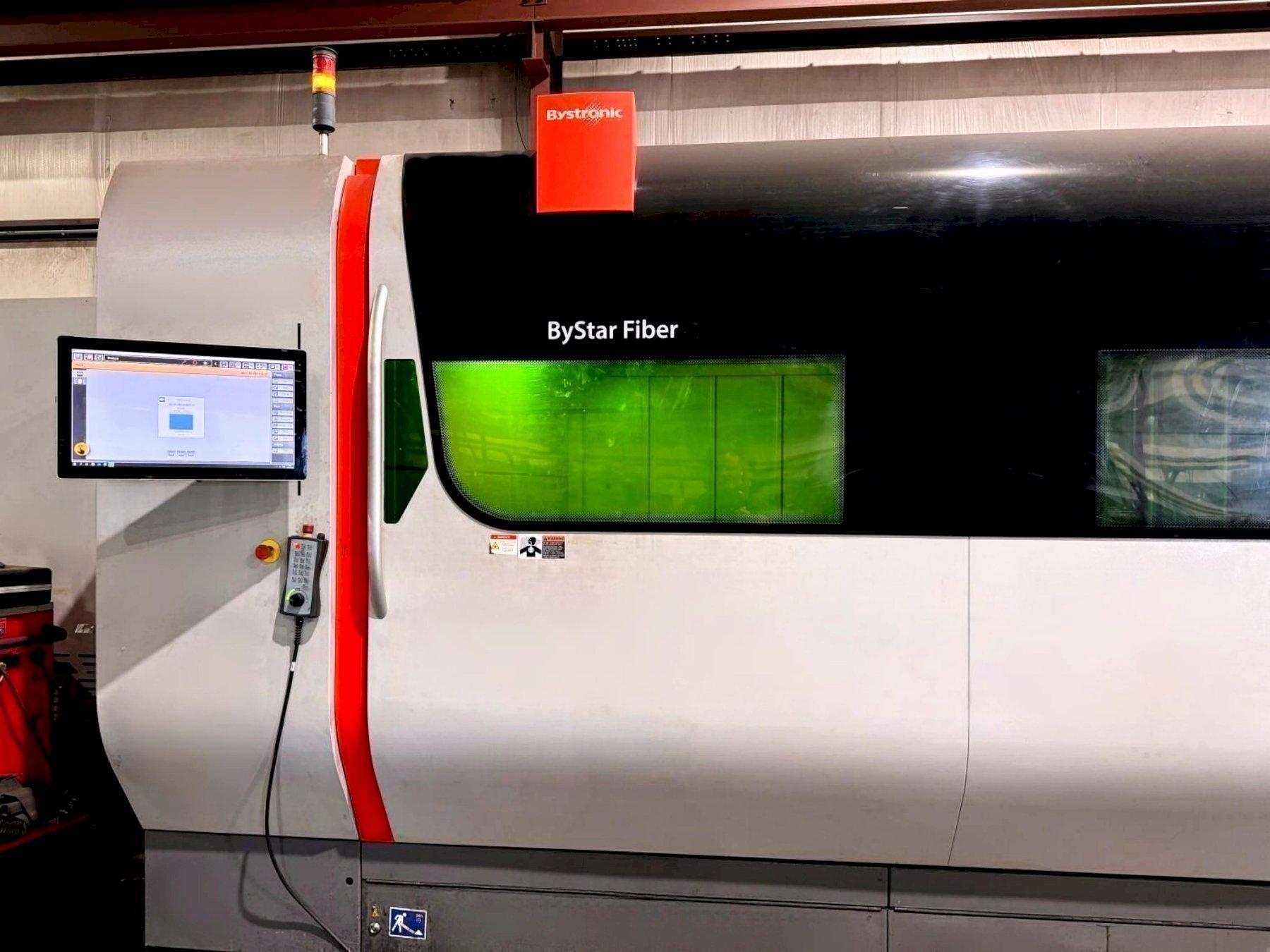

Bystronic Bystar Fiber 4020 (12kW)

Make : BYSTRONIC

Model: Bystar Fiber 4020

Year: 2019

Reference #: 100528

Highlights:
Includes Bytrans Extended 4020 Load/Unload.


Control: ByVision CNC
Nominal Sheet Size (X): 160"
Nominal Sheet Size (Y): 80"
Cutting Area (X): 161.61”
Cutting Area (Y): 82.67”
Cutting Area (Z): 3.93
Max. Pos. Speed Parallel Axis X/Y: 4,724 IPM
Max. Simultaneous Pos. Speed: 6,692 IPM
Edge Detection Accuracy: (±) .01968”
Max. Workpiece Weight: 4,188 Lbs.
Shuttle Table Changeover Time: 25 Sec.
Wavelength: Fiber
Power Source: Fiber 12,000
Power Output: 12,000 Watts
Range of Adjustment: 1,000 W to 12,000 W
Max. Cut Mild Steel: .98”/1.18"
Max. Cut Stainless Steel: 1.18”
Max. Cut Aluminum: 1.18”
Max. Cut Brass: .59”
Max. Cut Copper: .47”
Total Electric Consumption: 22kw
Machine Weight: 31,397 Lbs.

Equipped With:

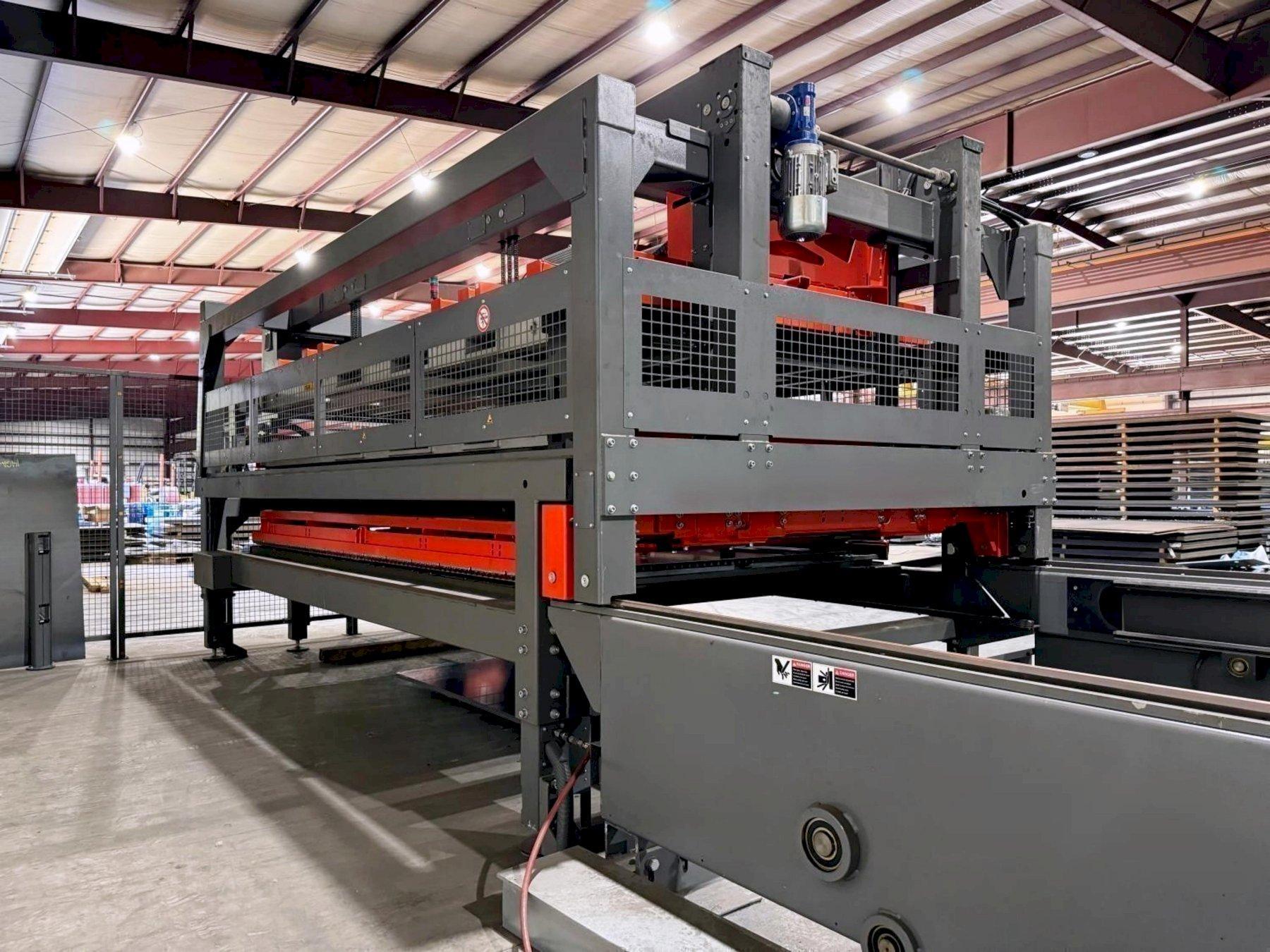

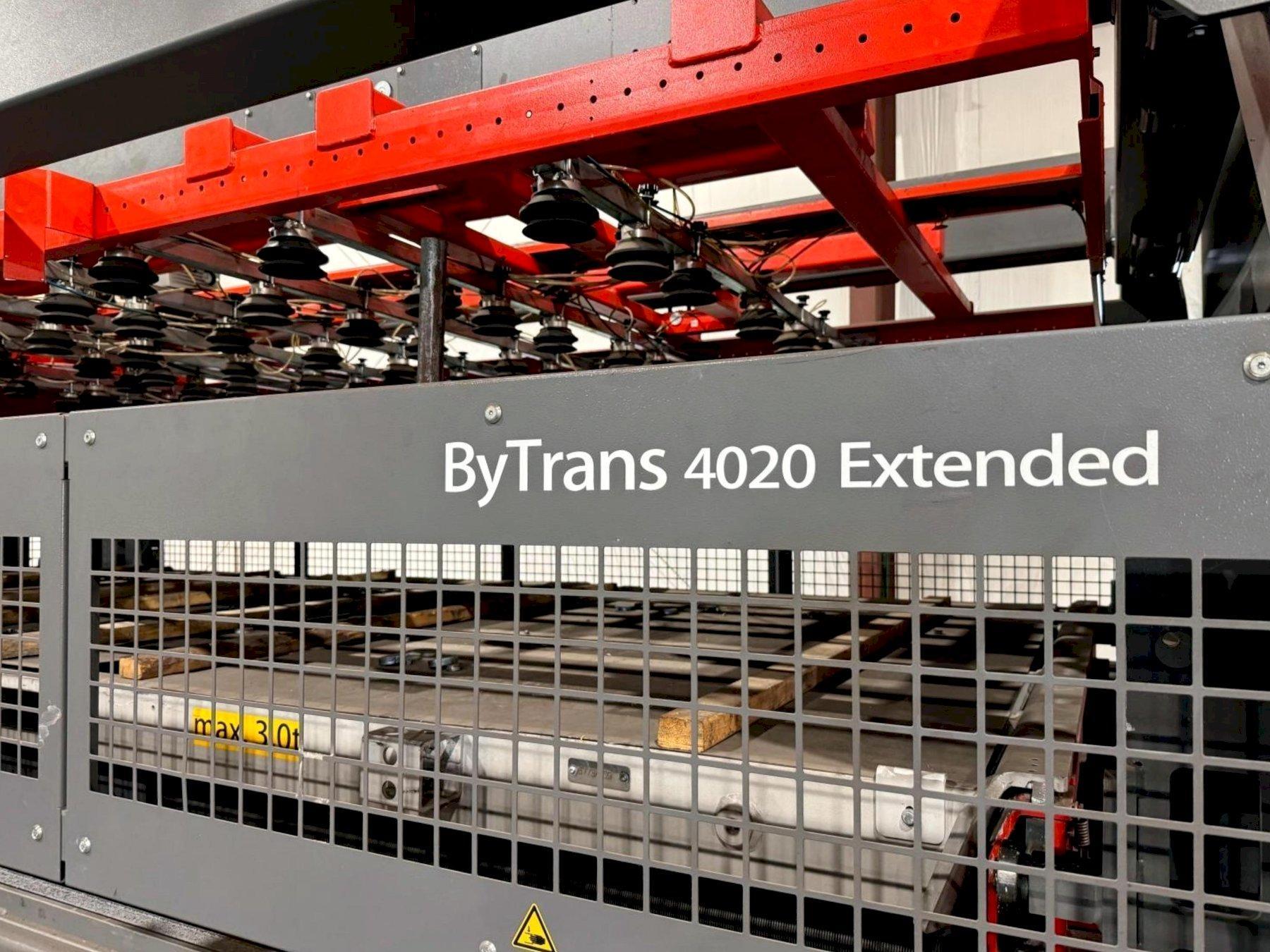

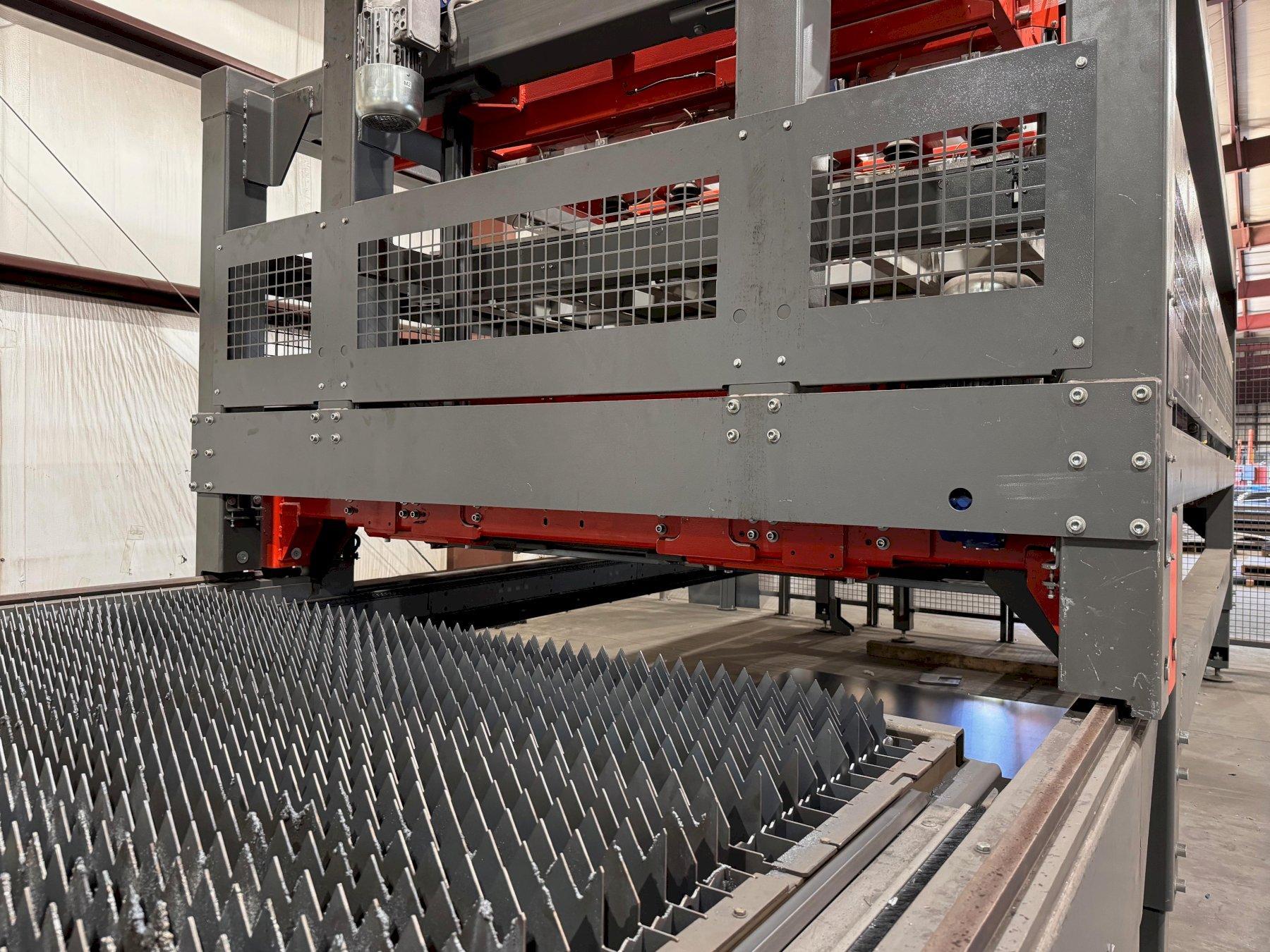

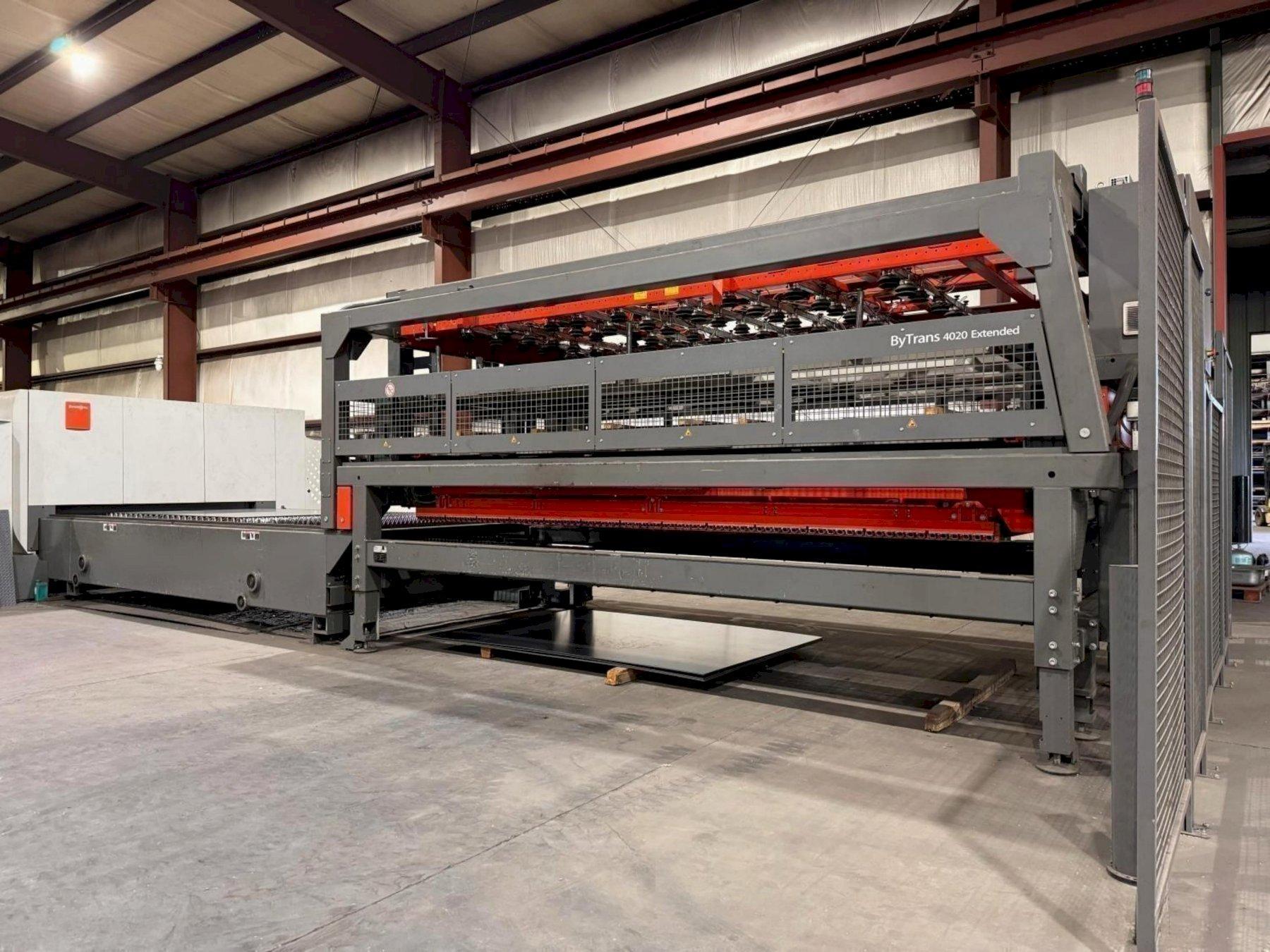

Bytrans Extended 4020 (2) Shelf L/UL

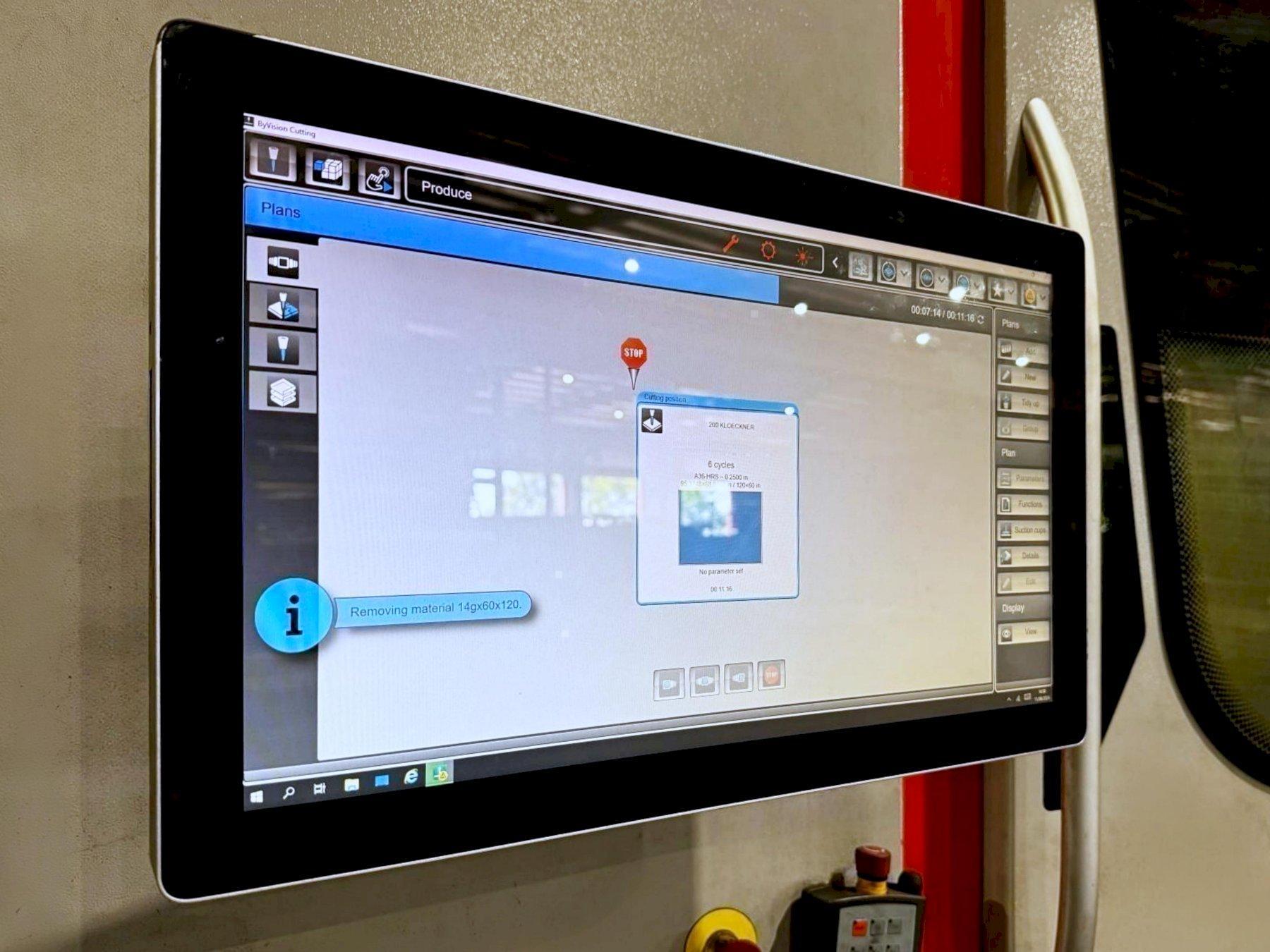

Byvision Touchscreen CNC Control

Manual Control Unit

Bystronic IPG Fiber 12,000 Power Source

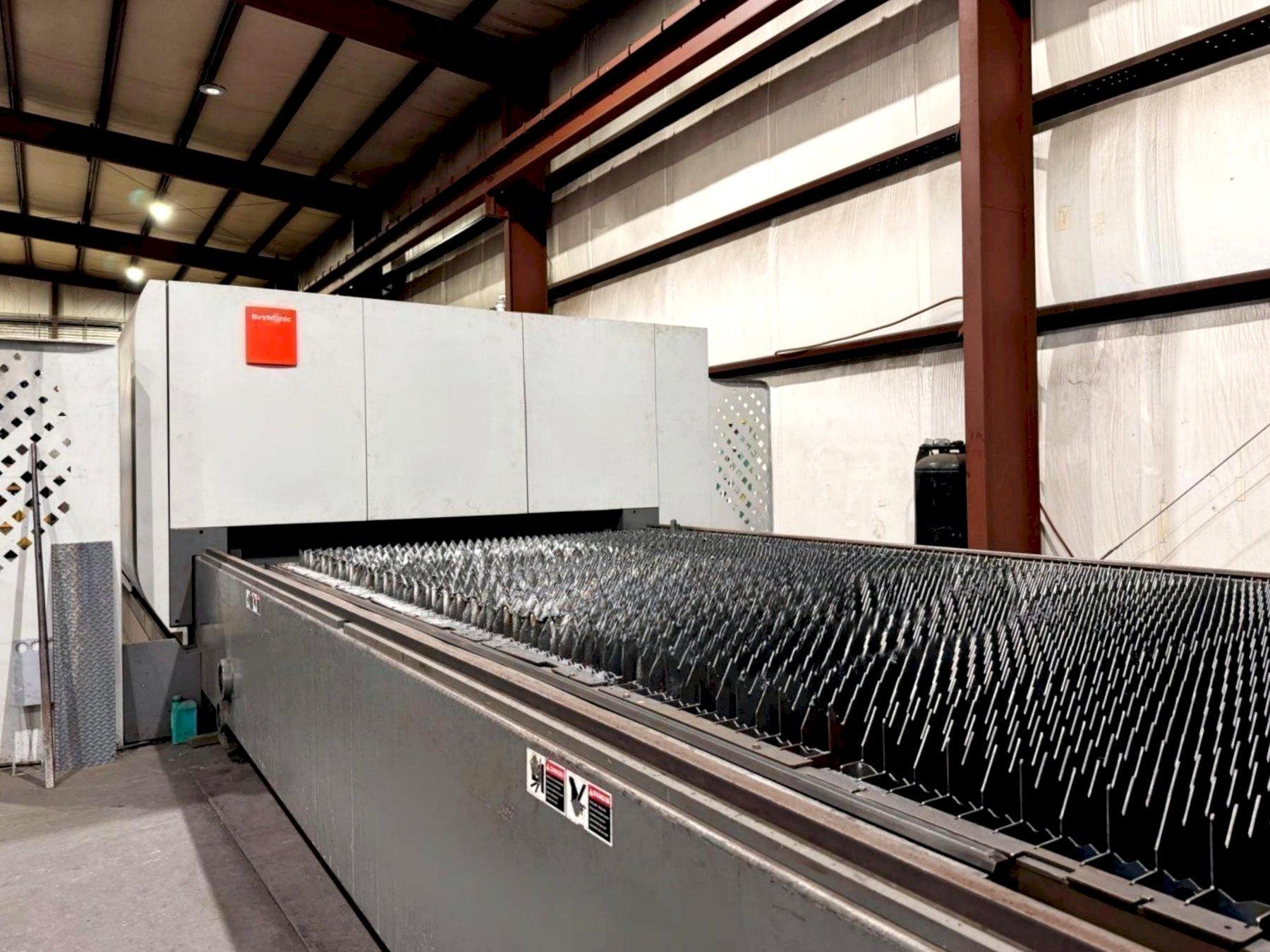

6' X 12' Duel Pallet Shuttle Table

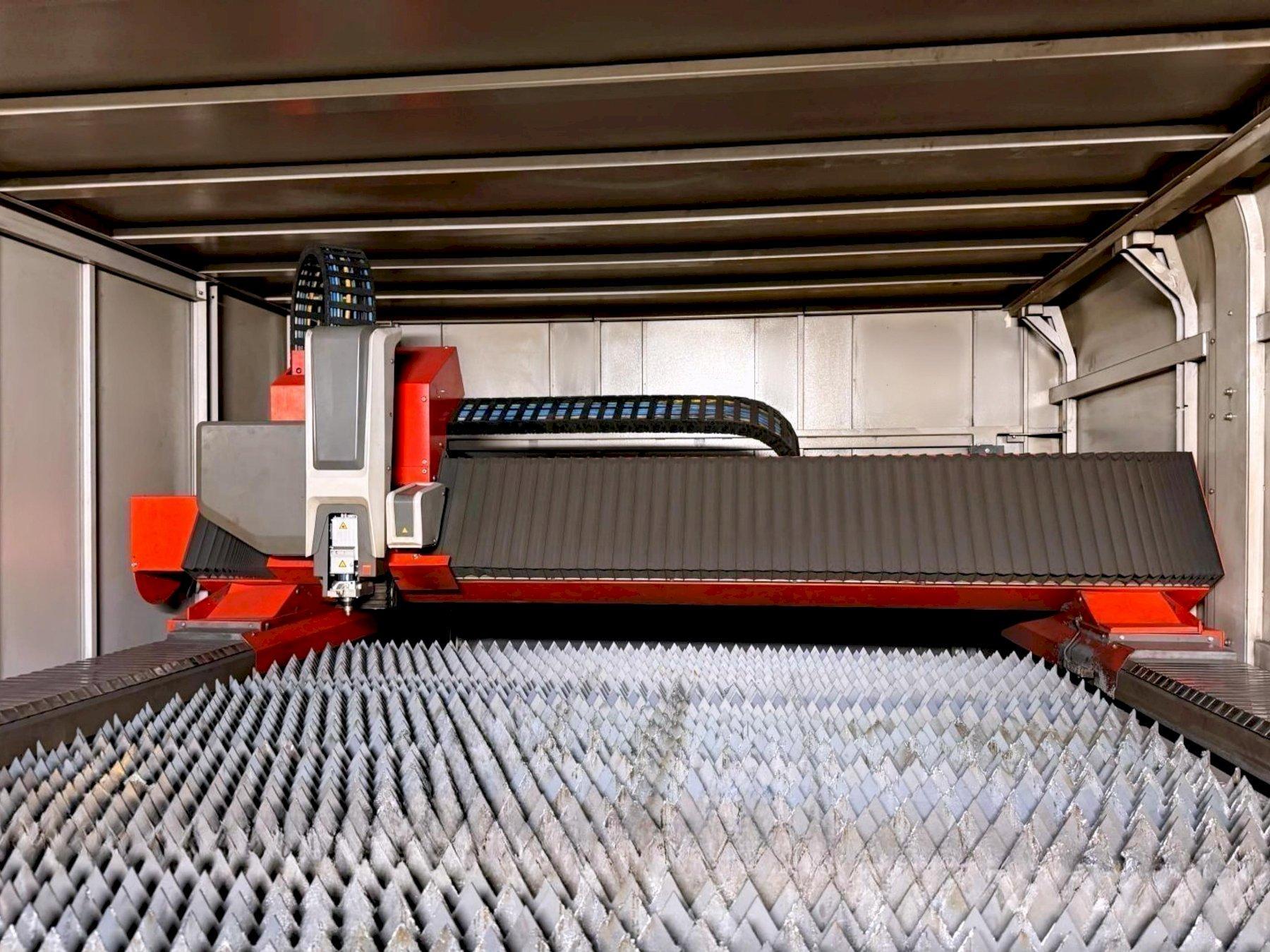

High Speed Cutting Head
Auto Nozzle Cleaner

Chiller Unit
