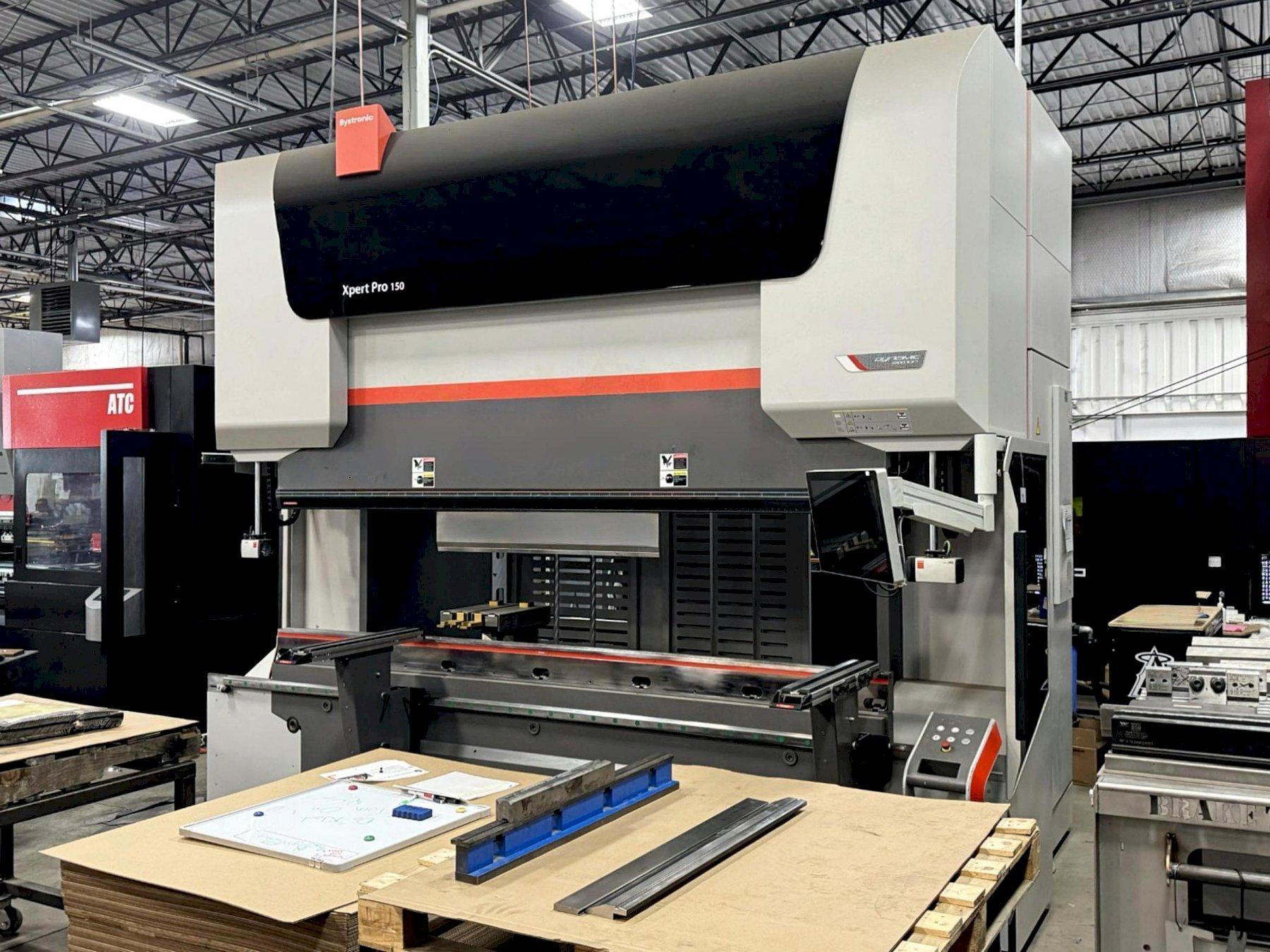

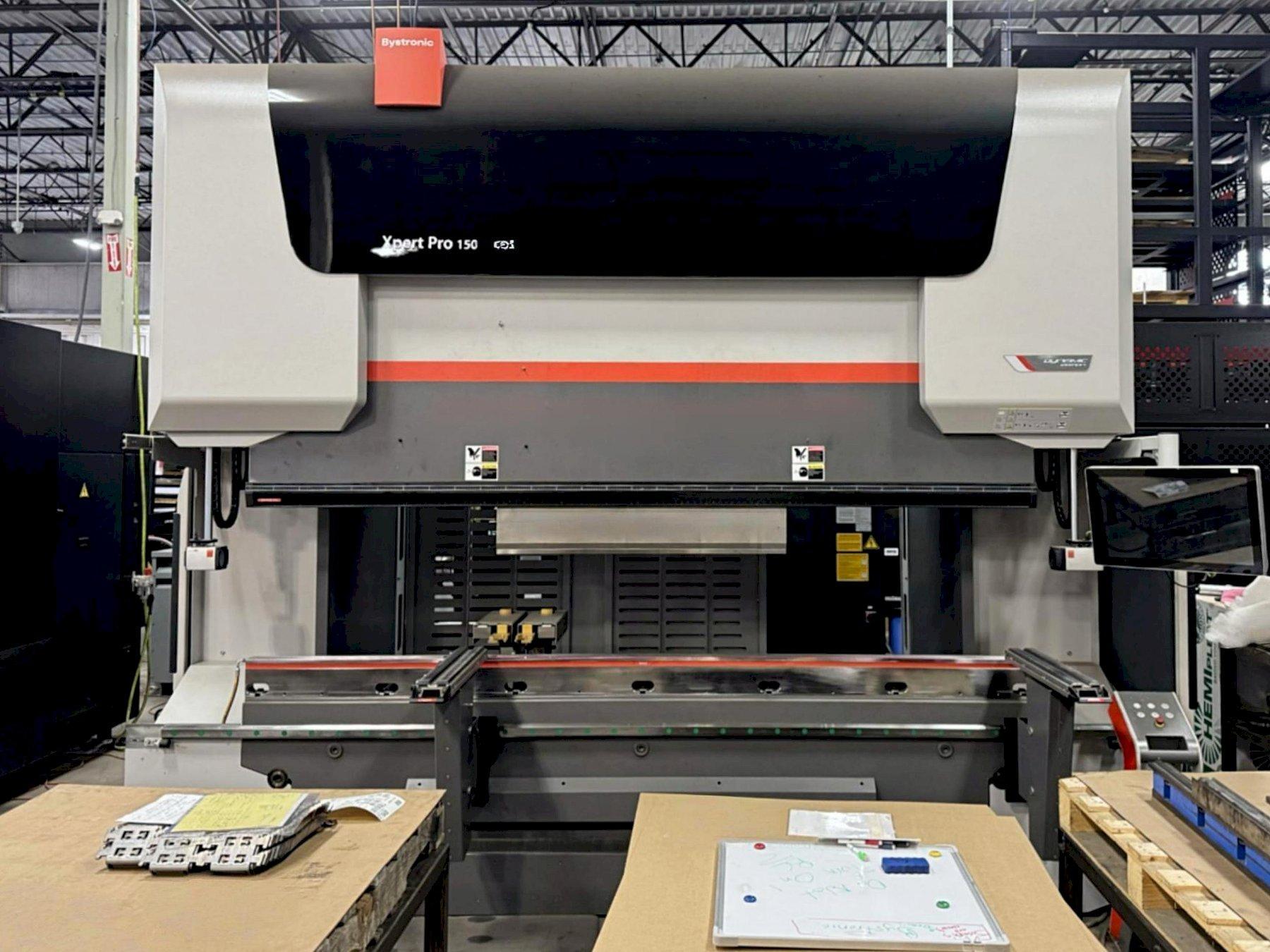

Bystronic Xpert Pro 150/3100 (2023)

Make : BYSTRONIC

Model: Xpert Pro 150/3100

Year: 2023

Type: Brakes, Press

Reference #: 100582

Highlights:
Like New Condition with very little use.

Request a Quote Sell Your Machine

Specifications Equipped With

Control: Bystronic CNC

Tonnage: 150

Bending Length: 122.05”

Standard Stroke: 9.8”

Open Height: 25.20”

Distance Between Side Frames: 108.26”

Throat: 15.74”

Table Width: 2.36”

Backgauge: 6-Axis

Max. Back Gauge Range X-Axis: 41.33”

X-Axis Travel: 23.62”

X-Axis Speed (Up To): 1536 IPS

X-Axis Accuracy: .0016”

R-Axis Travel: 9.84”

R-Axis Speed (Up To): 473 IPS

R-Axis Accuracy: .004”

Z-Axis Travel: 74.80”

Z-Axis Speed For (Up To): 3544 IPS

Z-Axis Accuracy: .004”

Y-Axis Accuracy: .00016”

Oil Capacity: 300 L

Operating Voltage V AC: 3 PH 480

Frequency Hz: 60

Control Voltage V DC: 24

Weight: 27,238 Lbs.

Dimensions: L 236” x W 177” x H 133”

Equipped With:

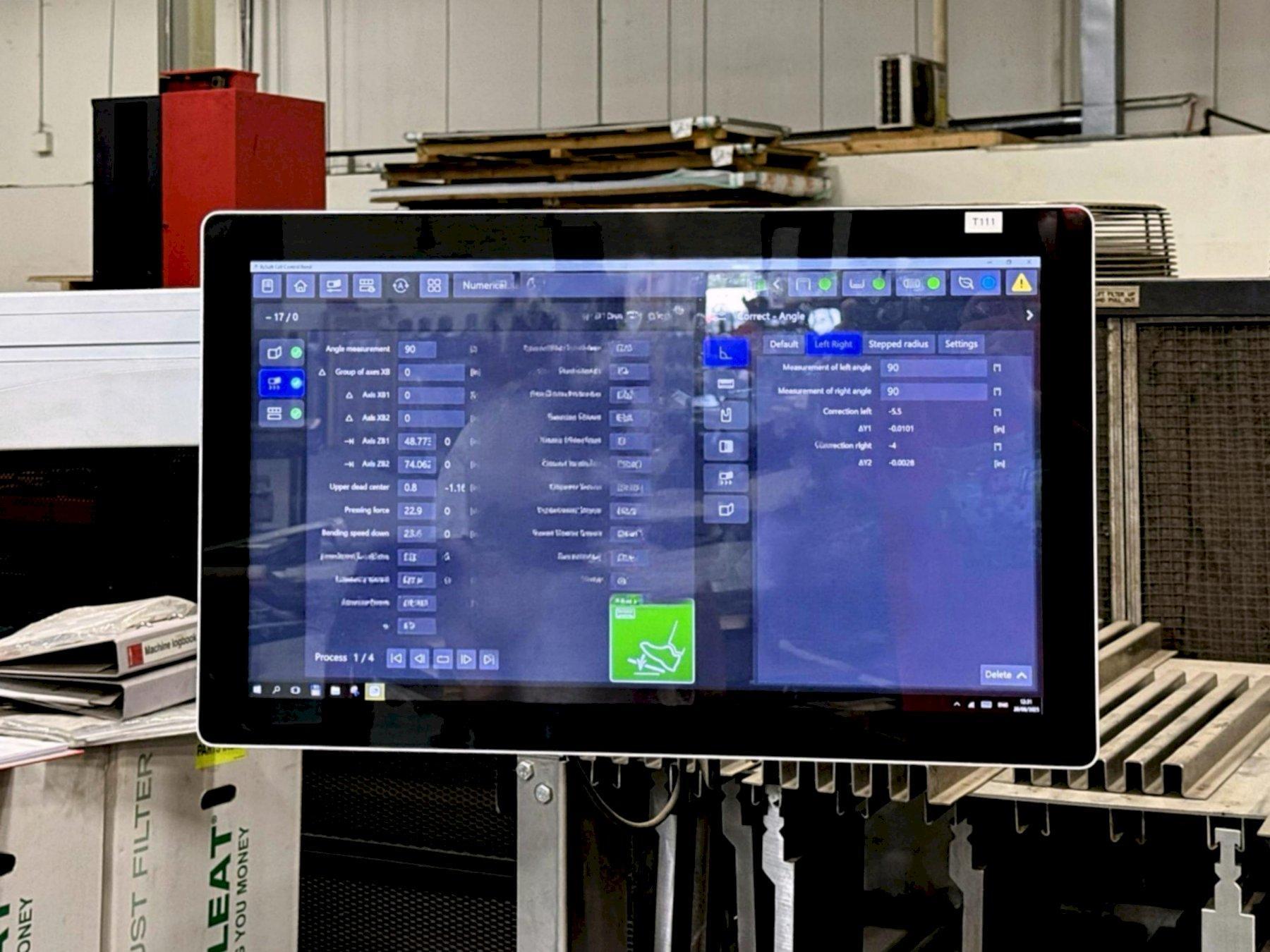

ByVision CNC Bending Control

22” Full HD Display & Touch Technology

Control Console With Foot Switch

6-Axes CNC Back Gauge
(2) Power Fingers (Z1-Z2)

Dynamic Crowning

Pressure Reference Technology

Dual Sheet Supports

Fast Bend G2 Safety System

Electrically Monitored Side Fences

Rear Protection Devices

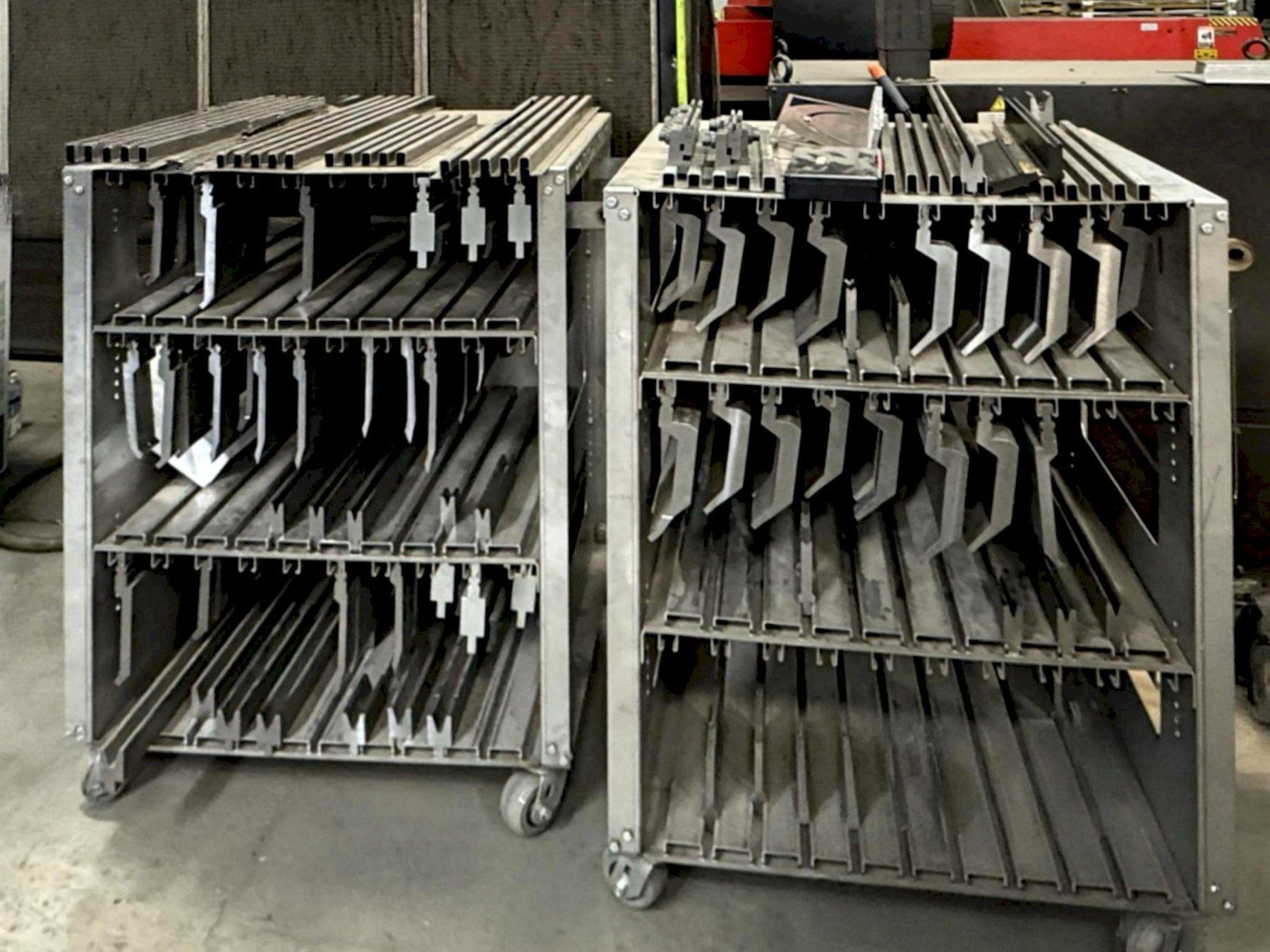

All Tooling Pictures
