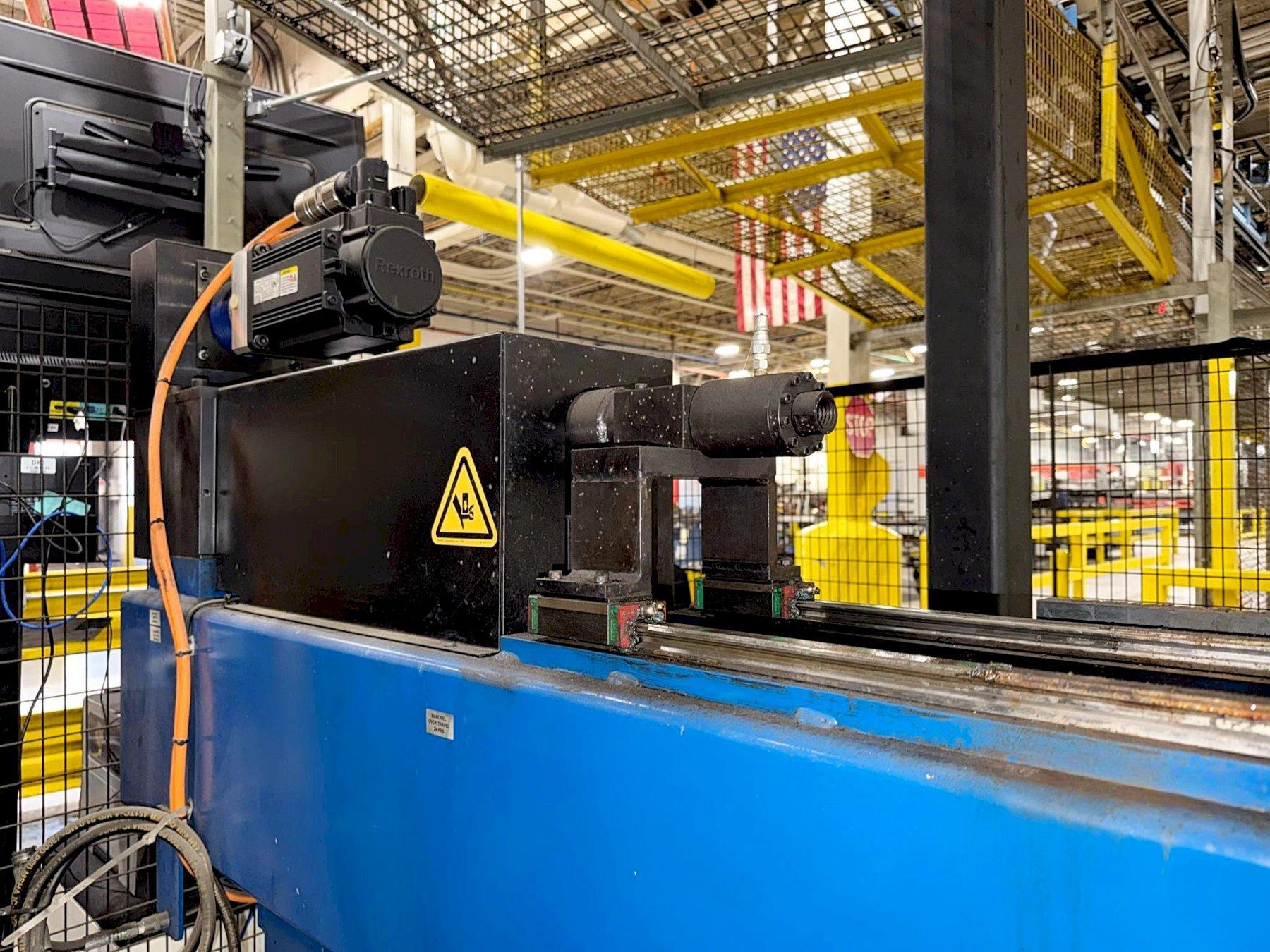

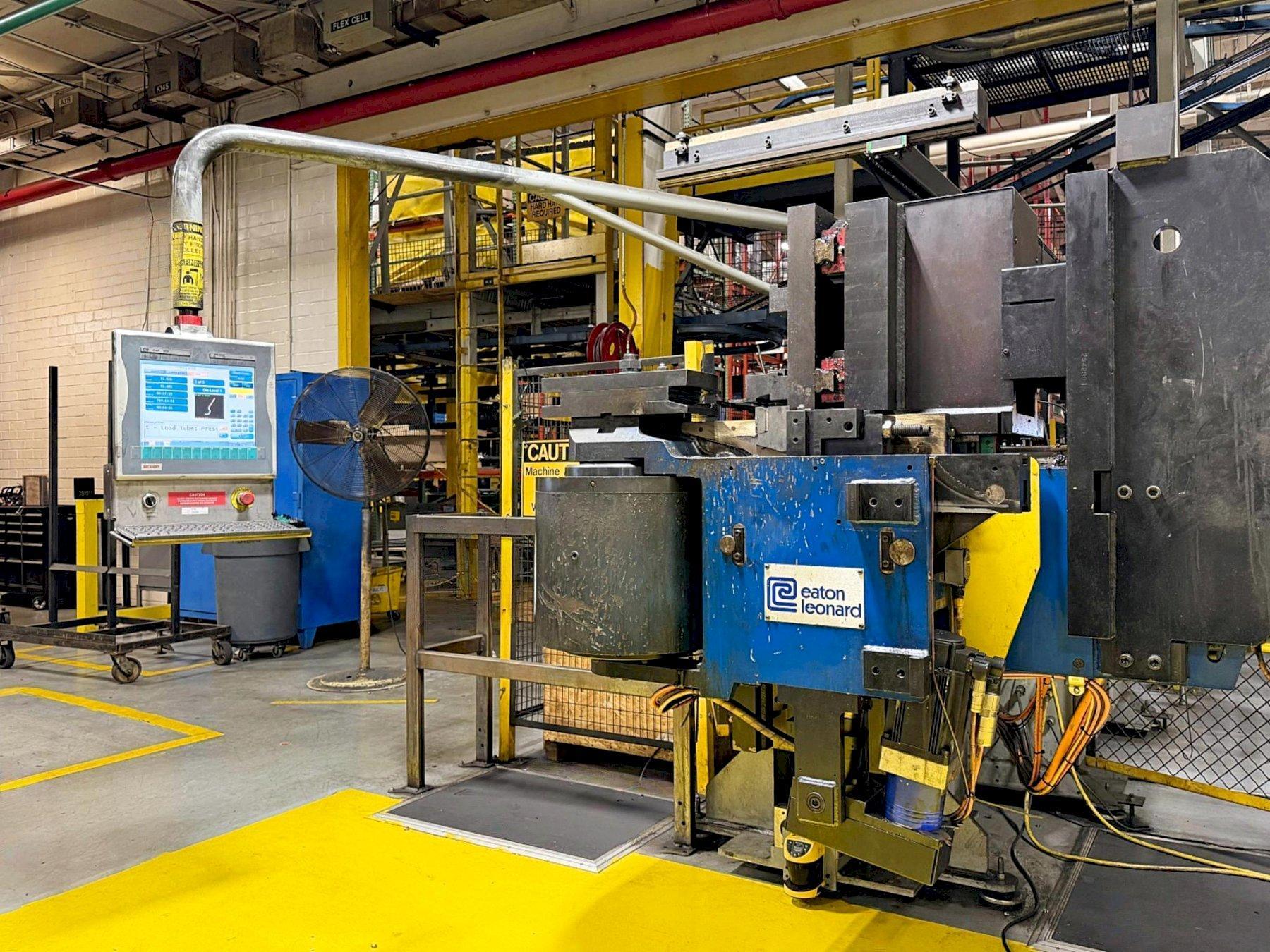

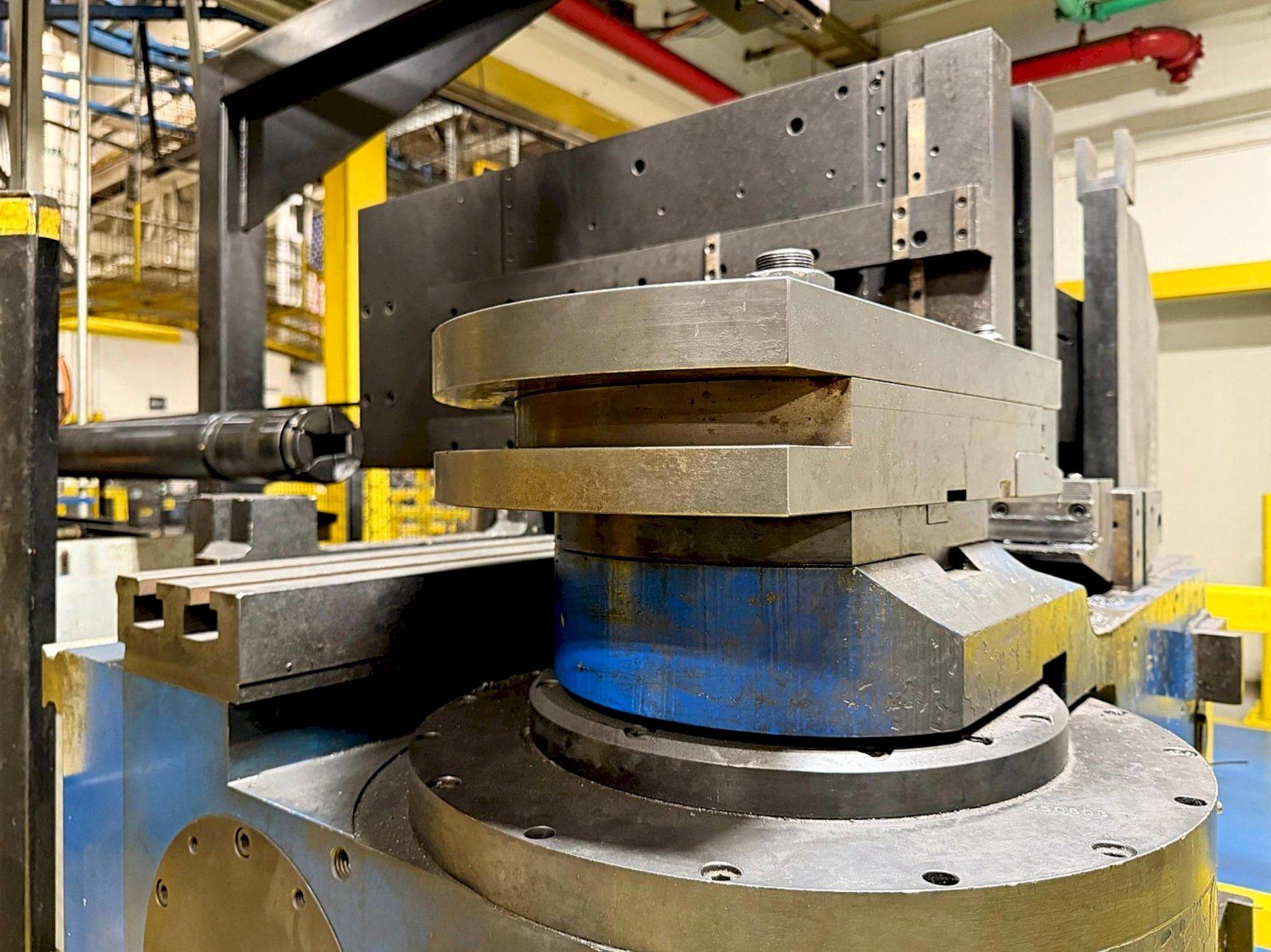

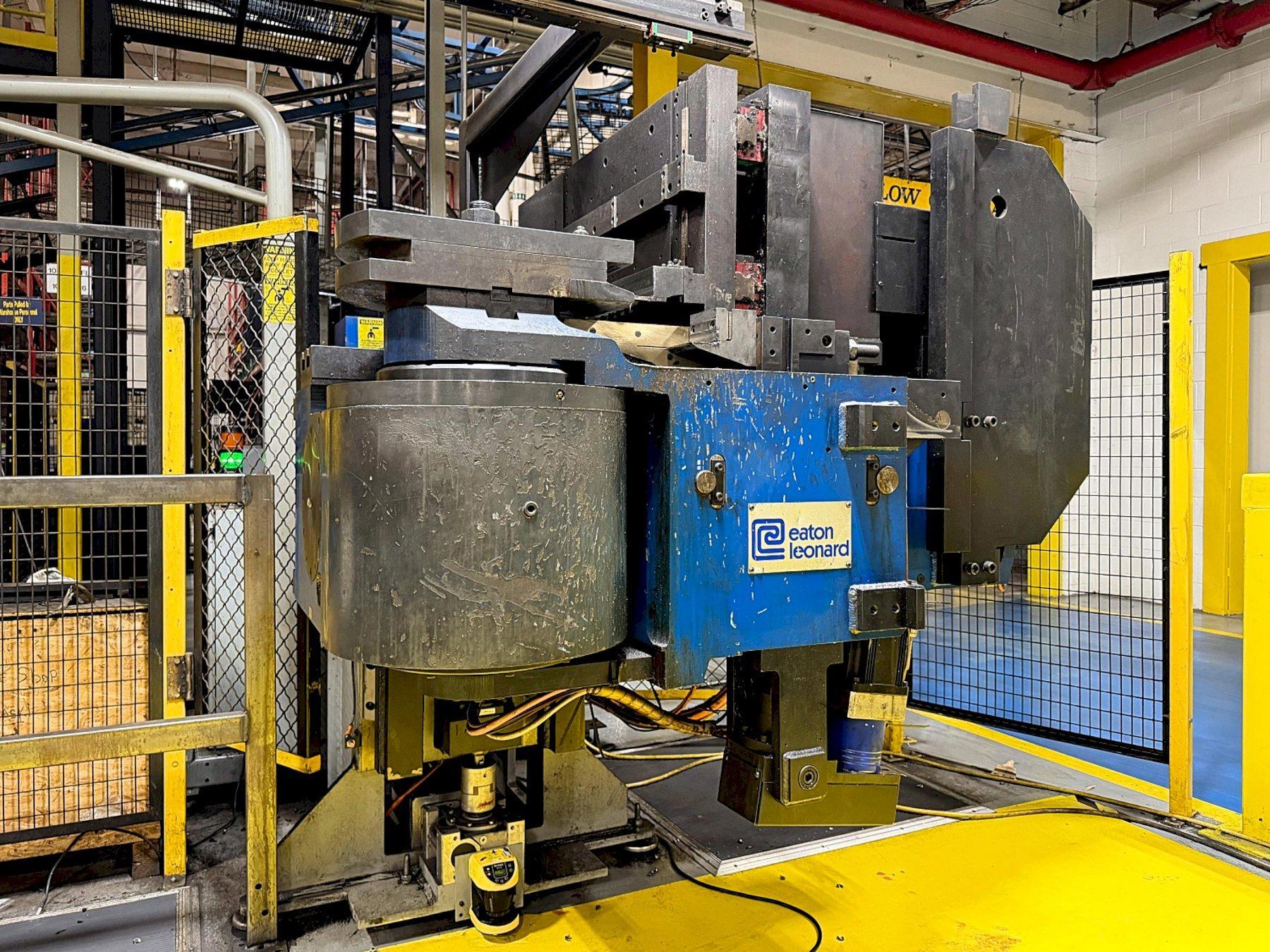

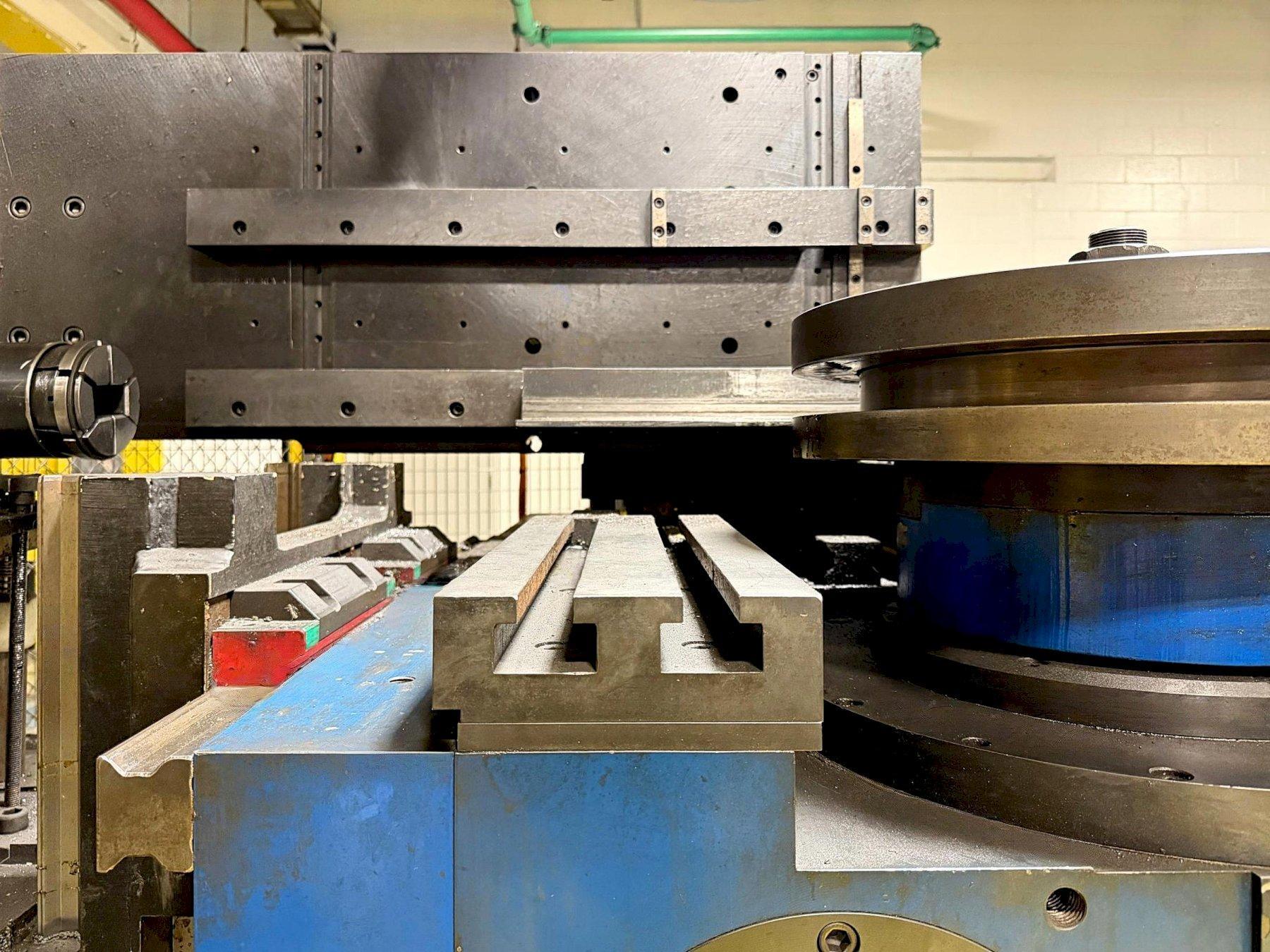

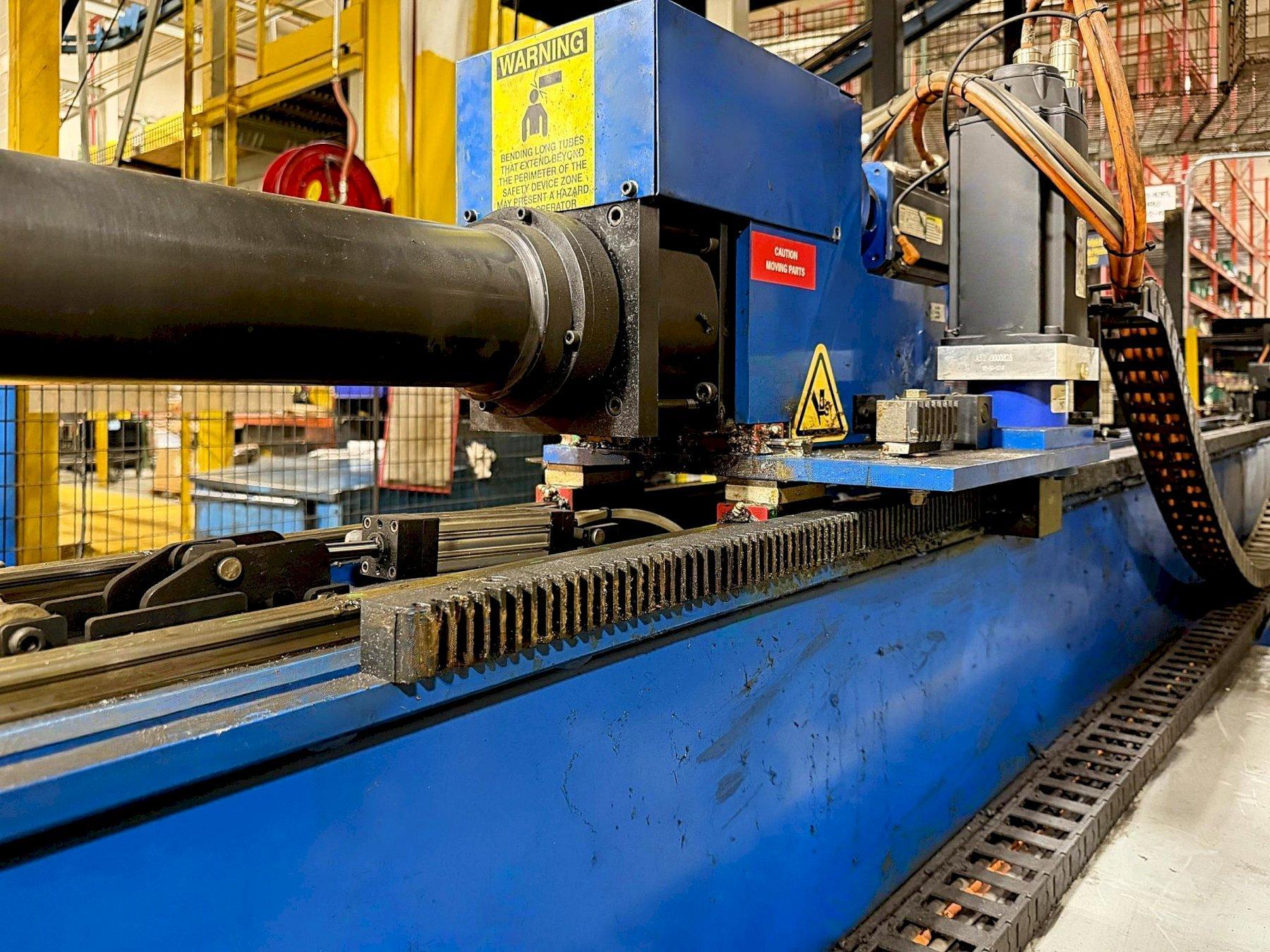

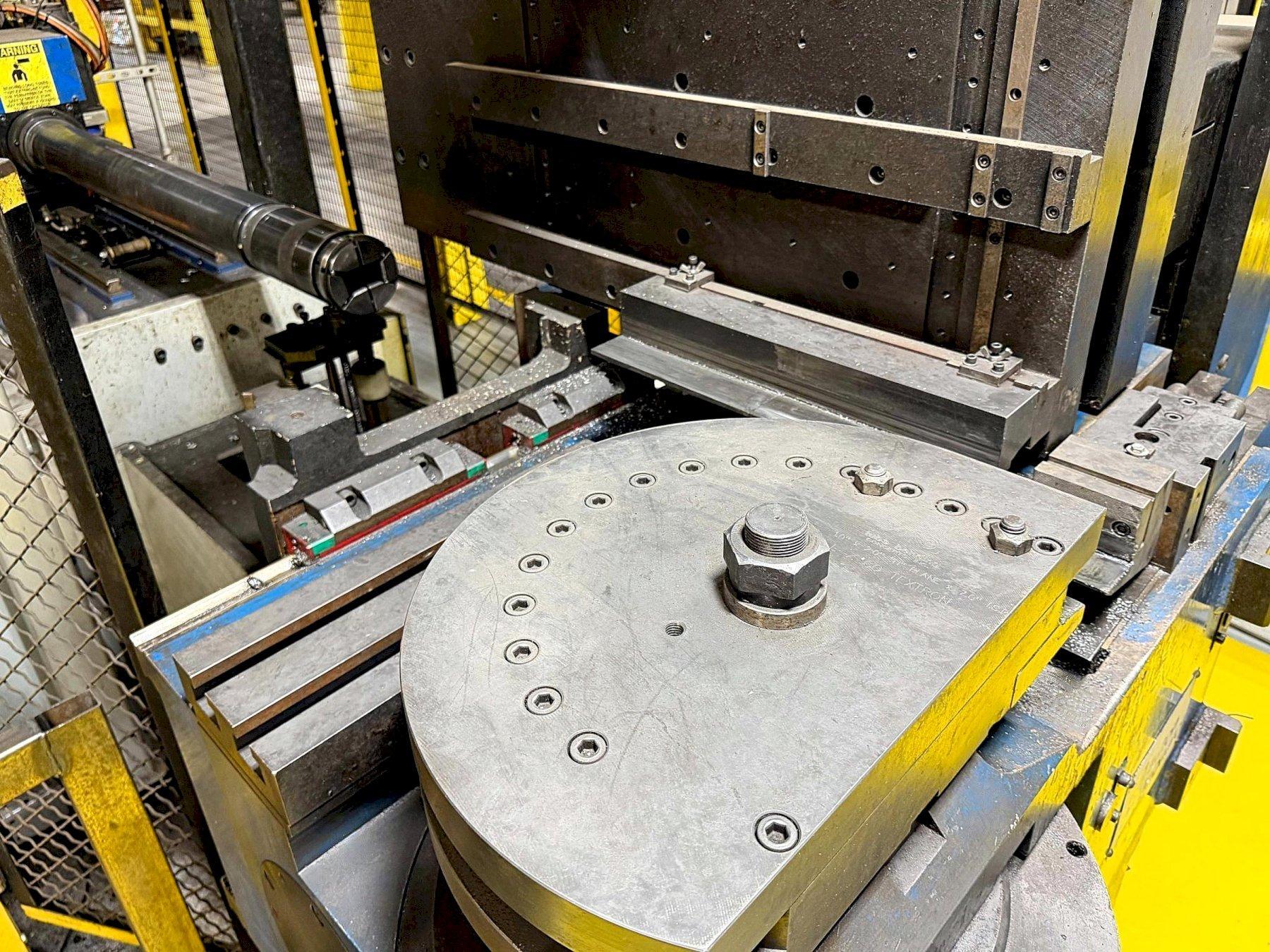

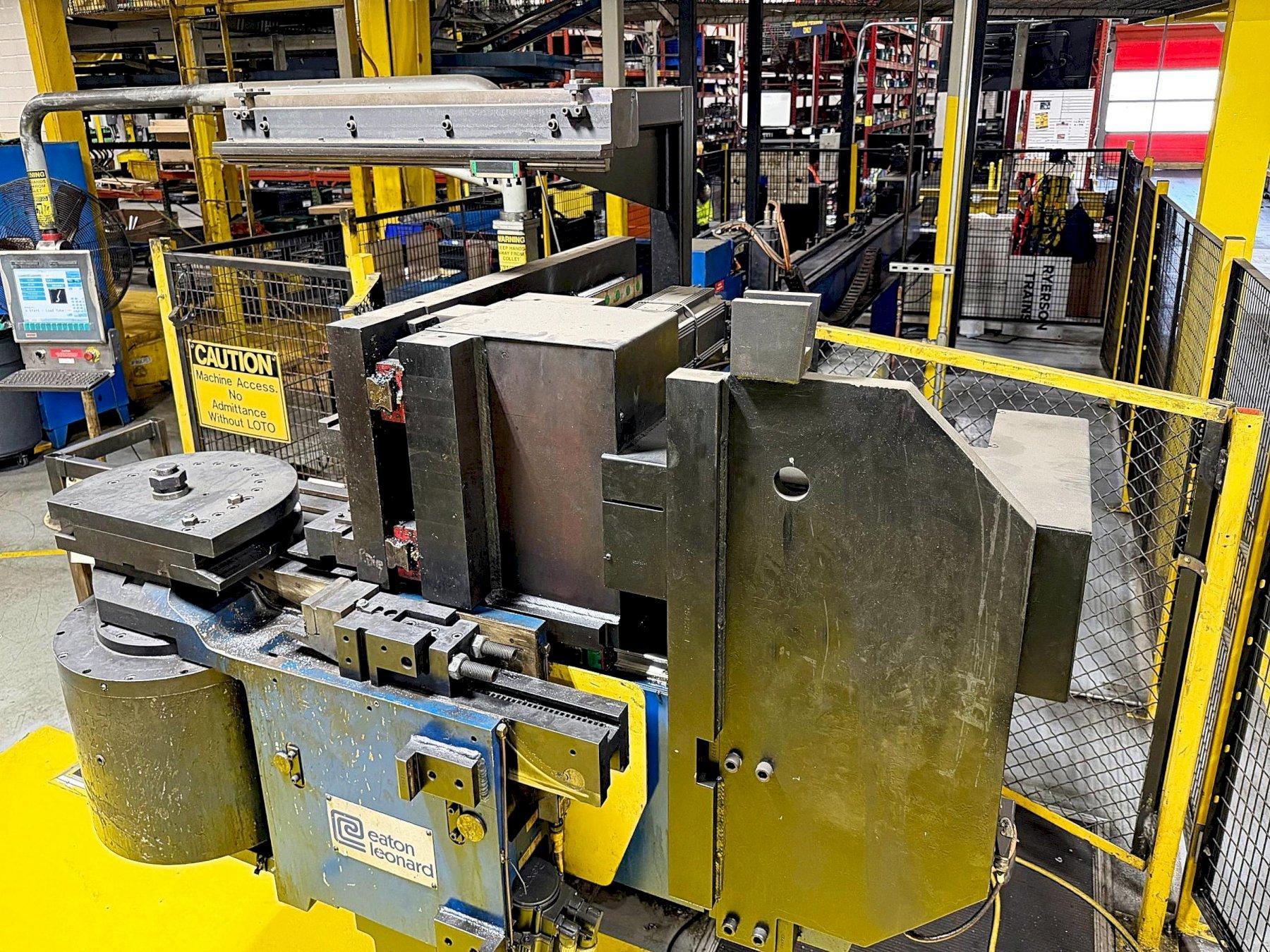

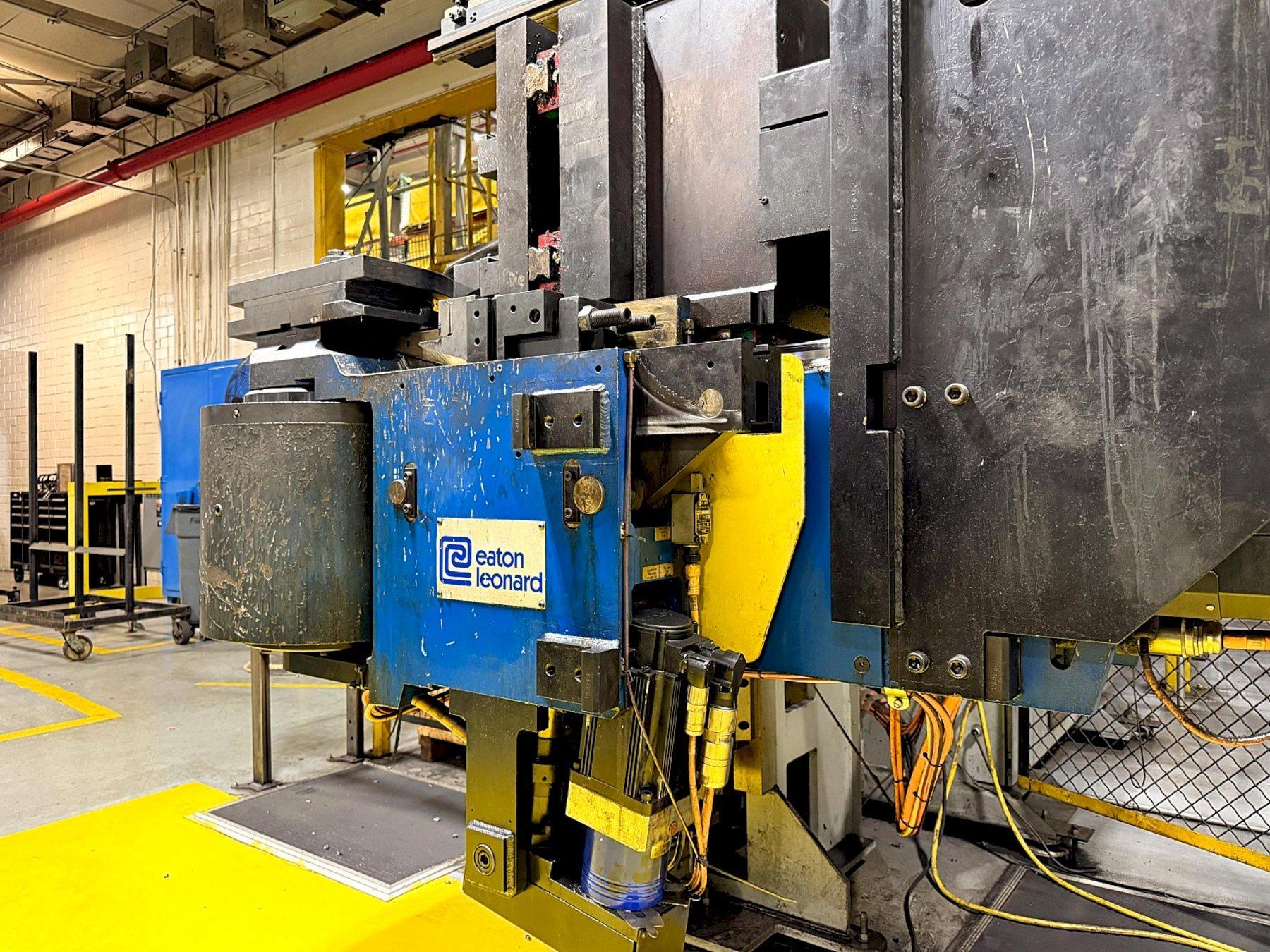

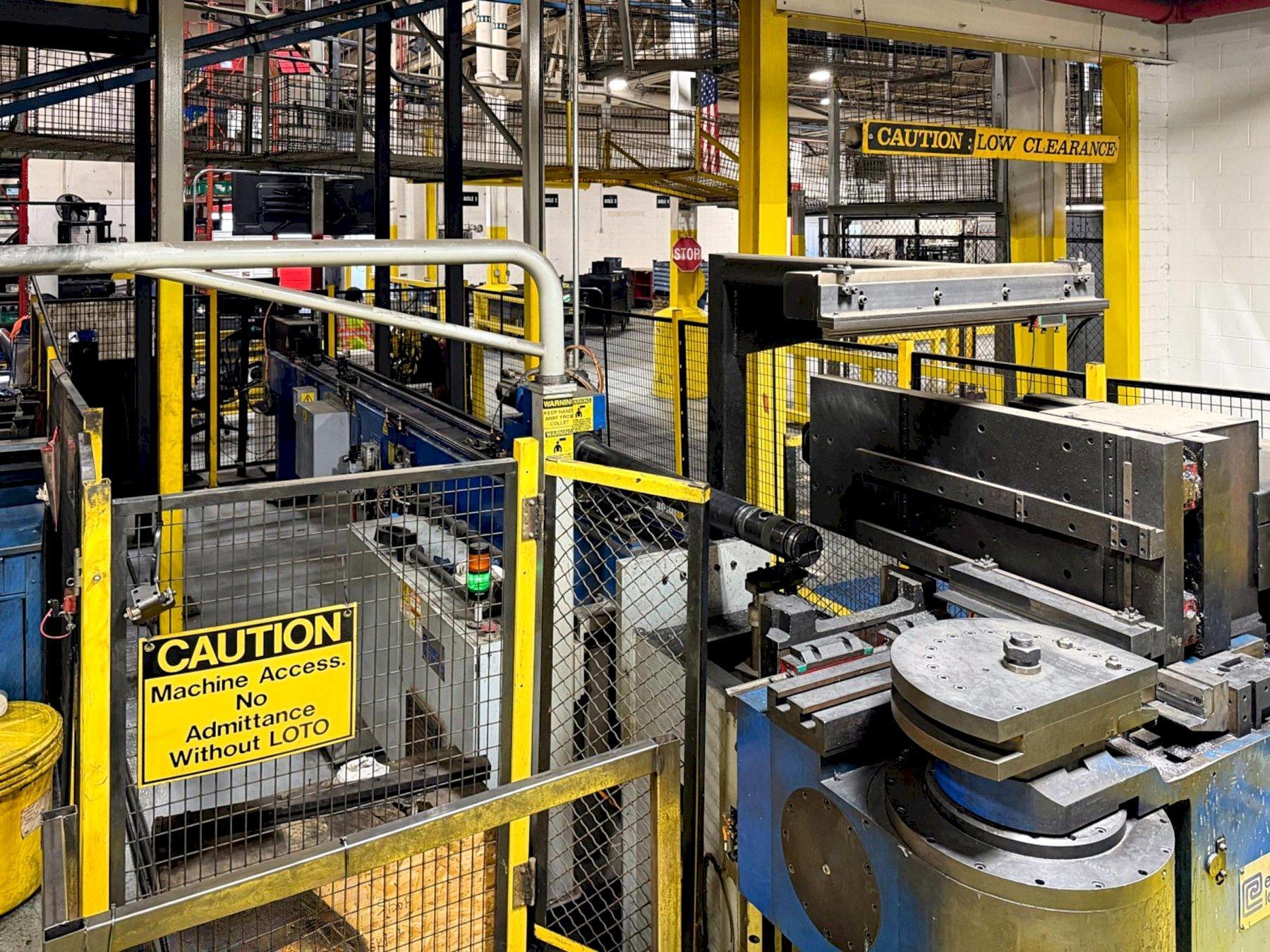

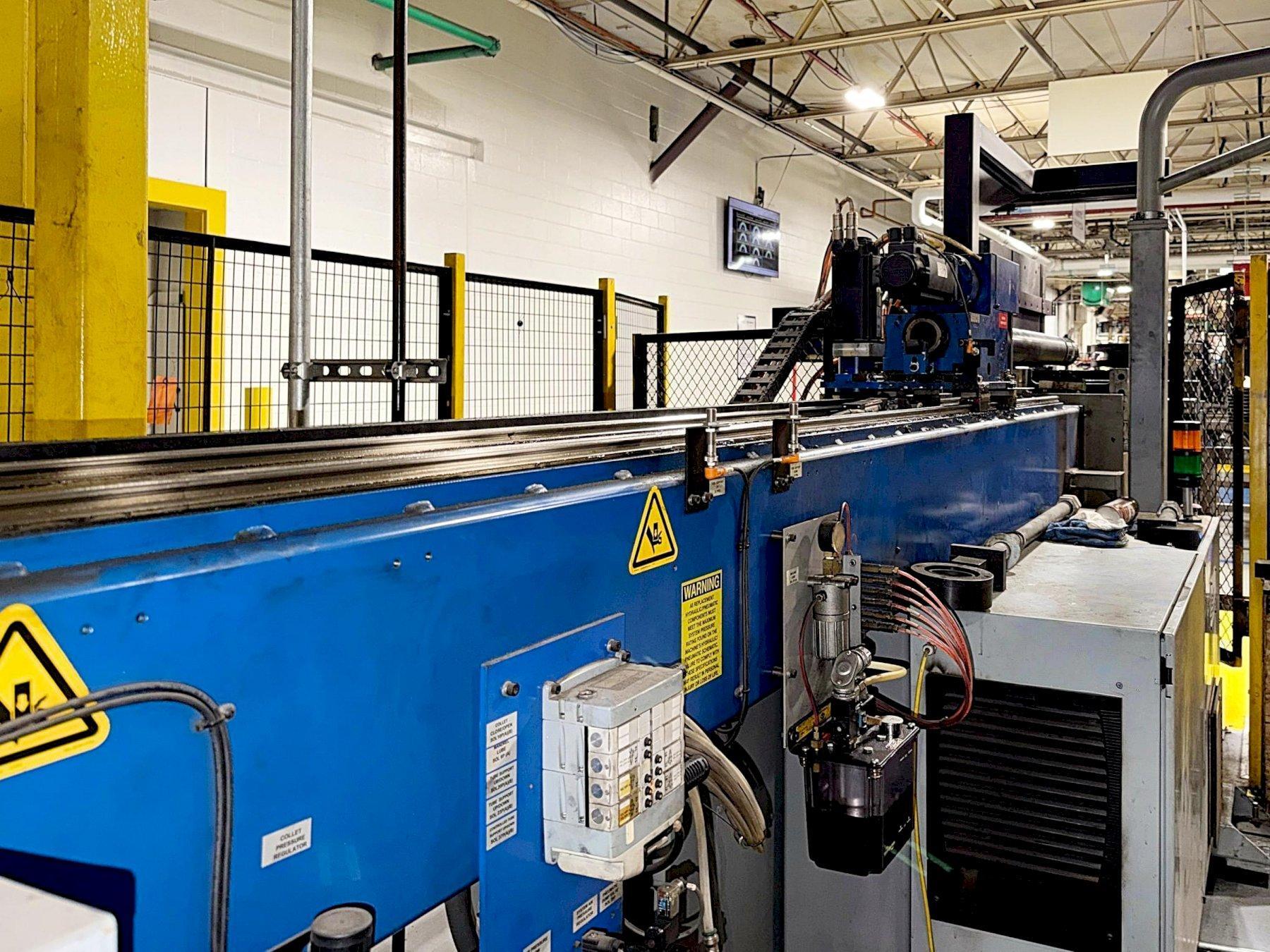

Eaton Leonard VB90 ELEC CNC Tube Bender

Make : EATON LEONARD

Model: VB90 ELEC

Year: 2014

Reference #: 100605

Highlights:
Well-maintained with regular OEM PM service.

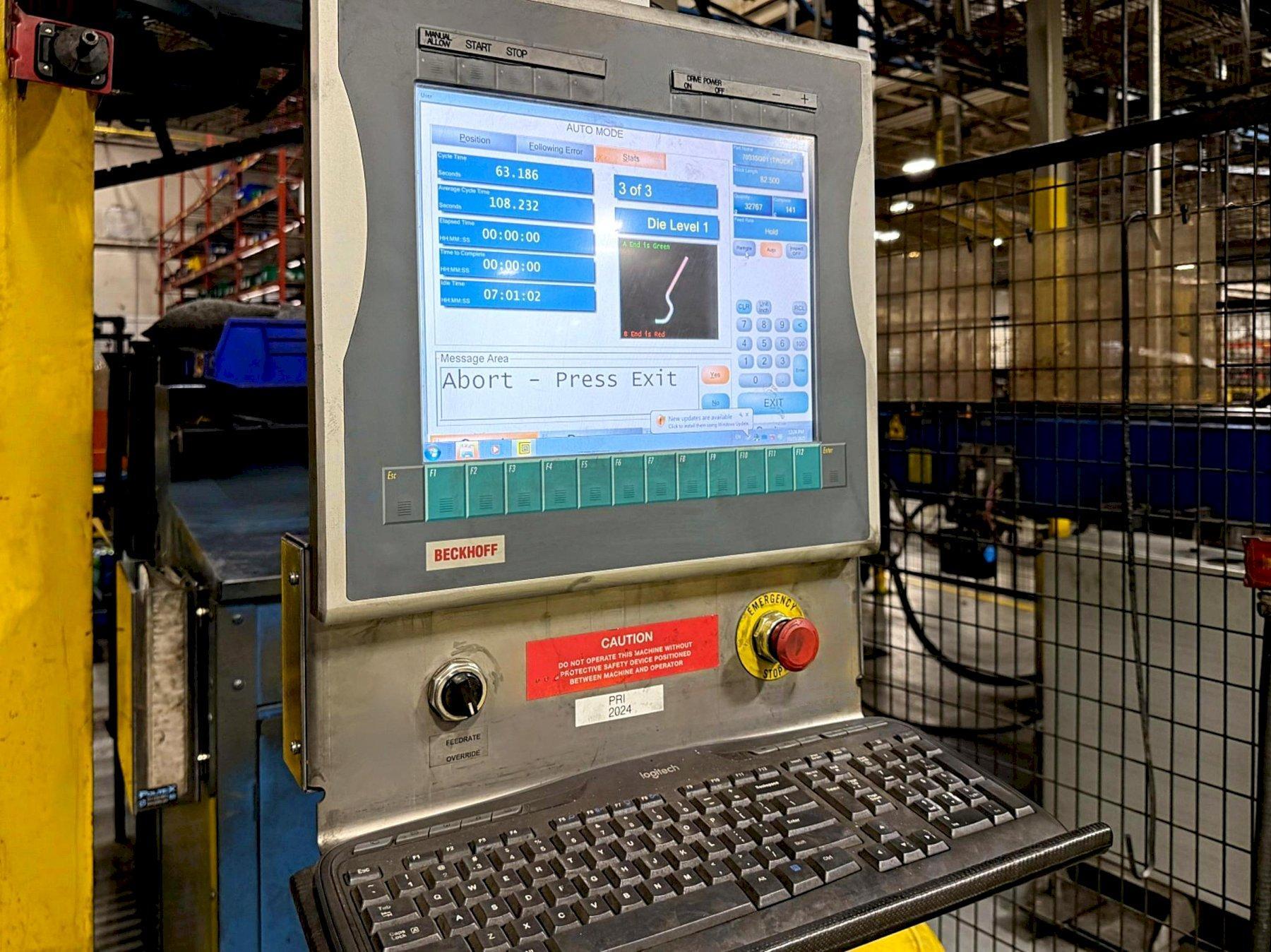

Control: Lightspeed CNC Control
Bend Head Rotation: Right Hand
Max Tube OD: 3.5”
Tube Length: 156”
Max Bending Radius: 12”
Max. Tube O.D. Mild Steel: 3.50"/.109" (Wall)
Max. Tube O.D. Stainless Steel: 3.50"/.083" (Wall)
Max. Centerline Radius: 12"
Centerline Height: 2.0"
Standard Tube Length Over Mandrel: 117"
Operating Speeds – Max. Bend Arm Rotation: 15 RPM
Operating Speeds – Max. Carriage Rotation: 45 RPM
Carriage Travel: 3500 IPM
Repeatability Bend Arm: ± 0.05°
Repeatability Carriage Travel: ± .004"
Electrical: 460 V / 60 Hz. / 3 Phase

Equipped With:
Right Hand Bending Head Rotation

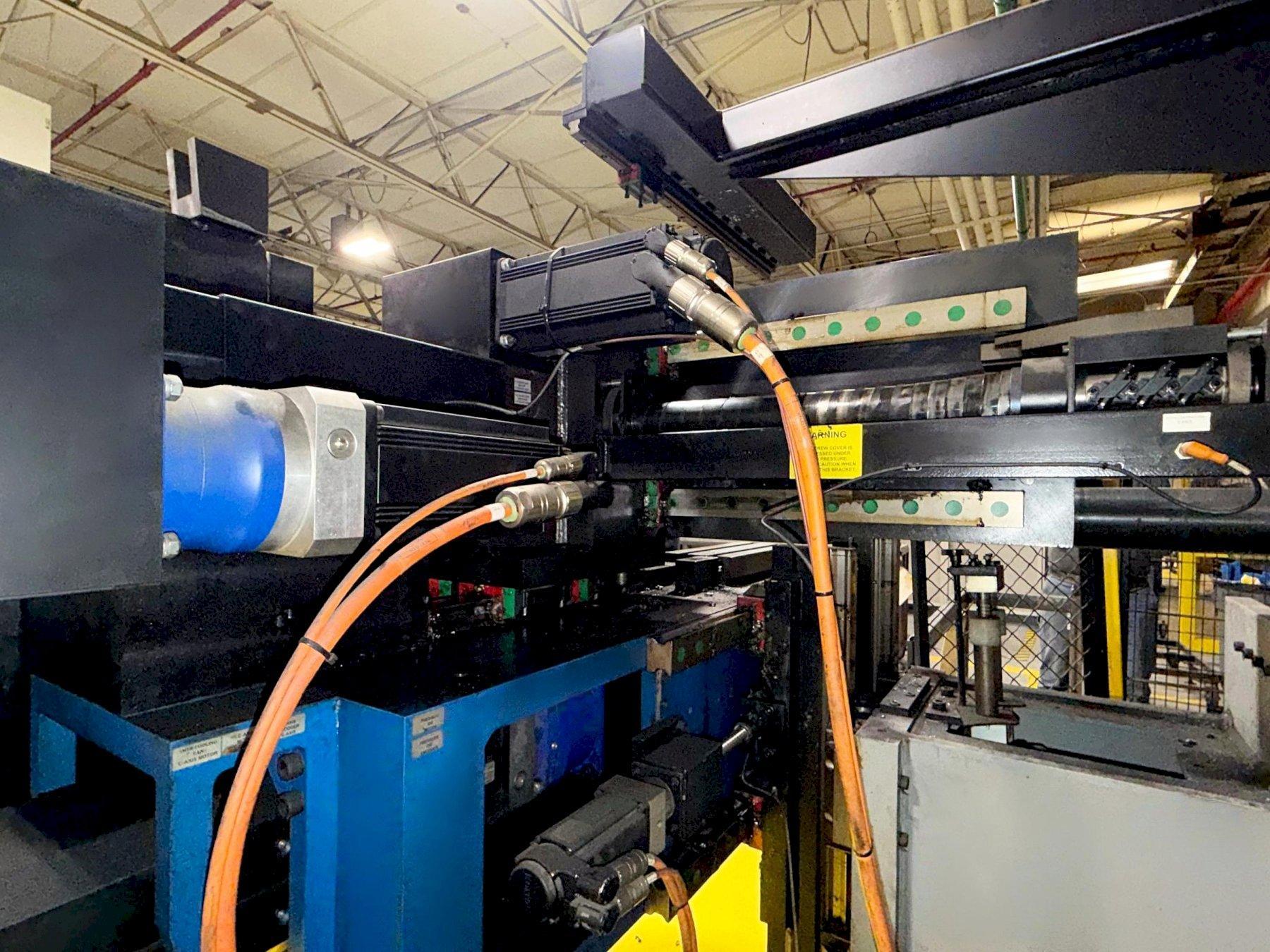

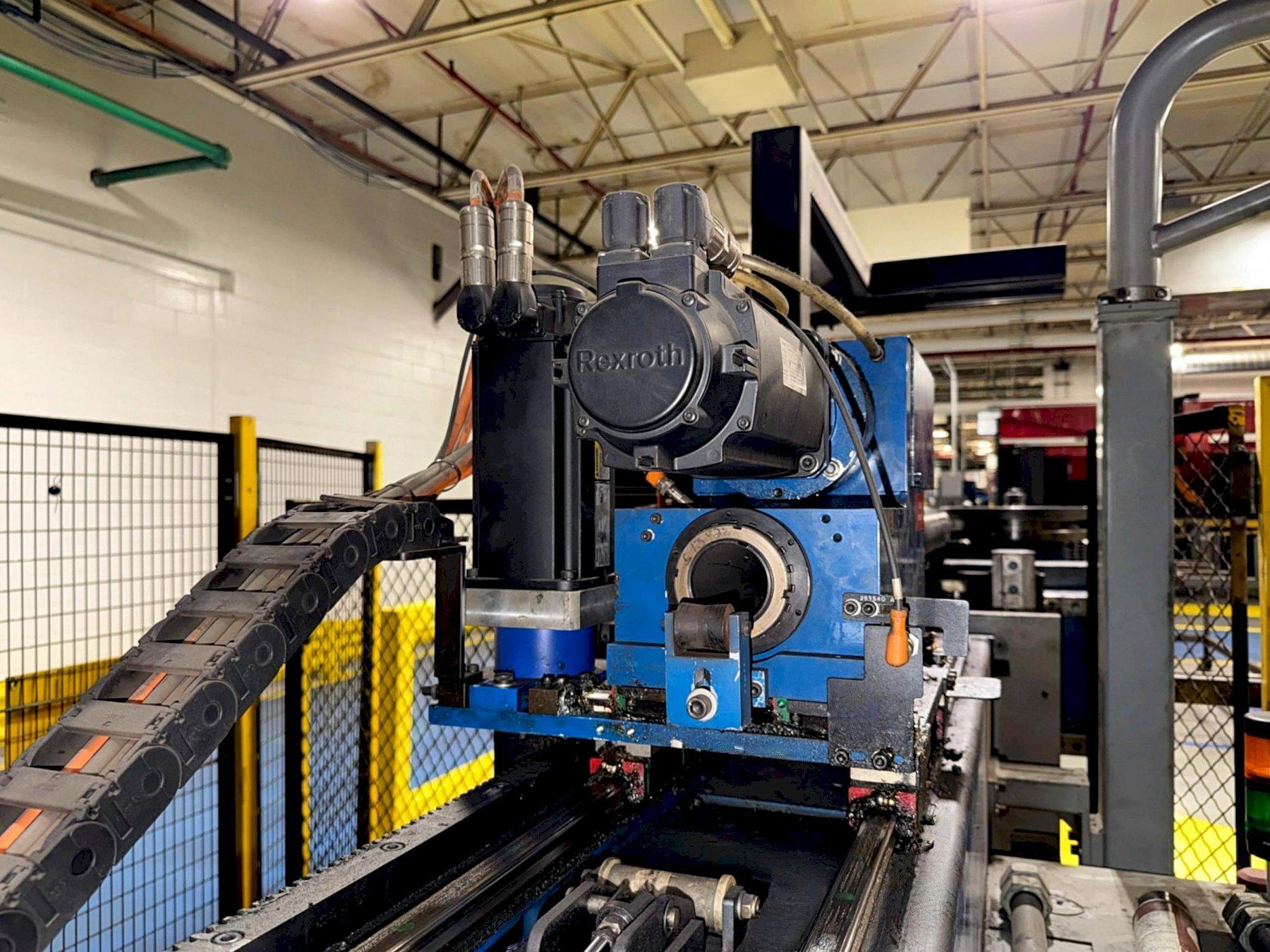

All Electric Axis Control

Lightspeed CNC Control System

Programmable Head Shifter

Remote Start Footswitch

Collet Control Footswitch

Mandrel Bending Package

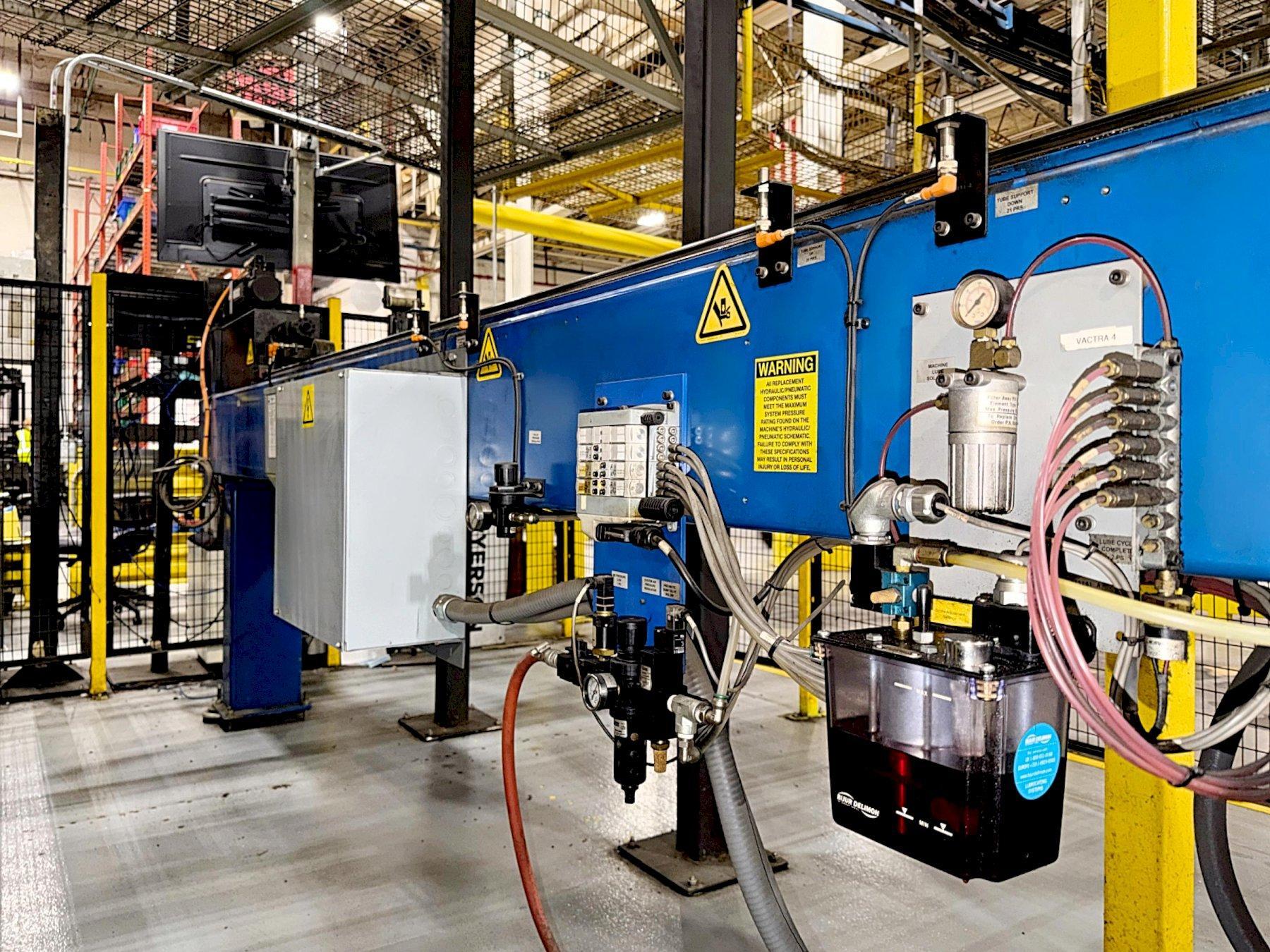

Automatic Lubrication System

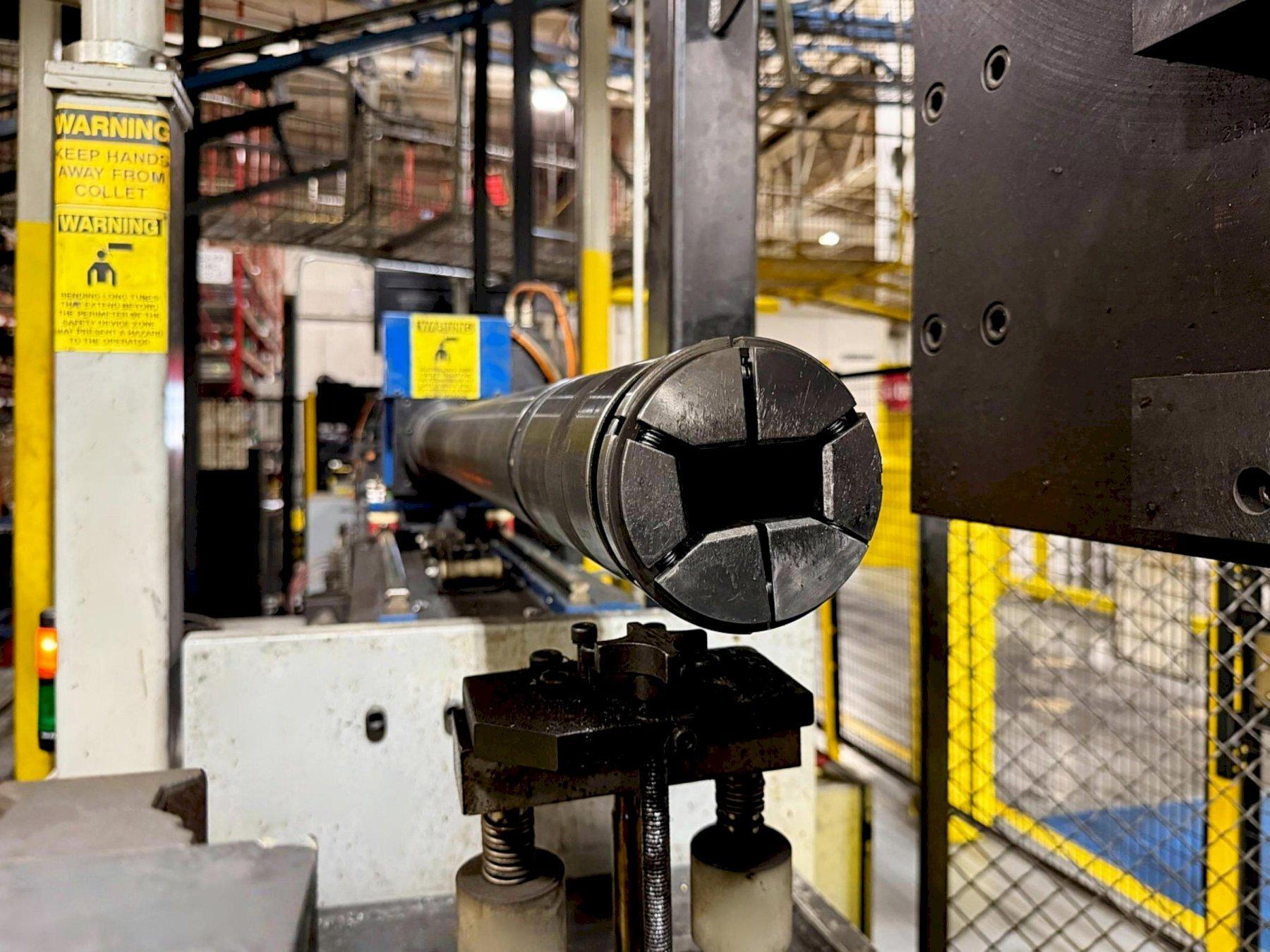

Quick Change Steel Collet & Tube Stop

Square/Rectangular Bend Package

Uninterruptible Power Supply
