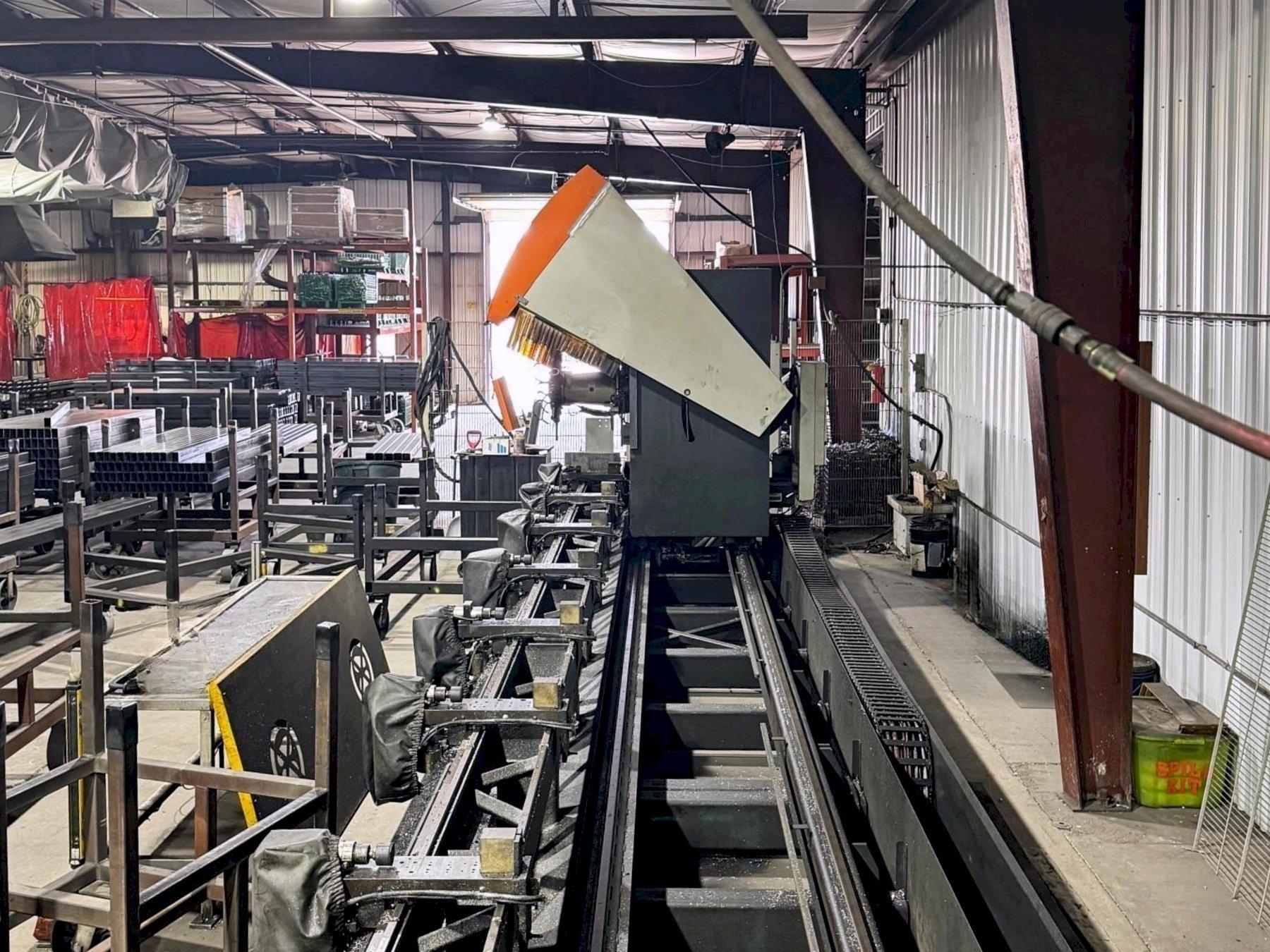

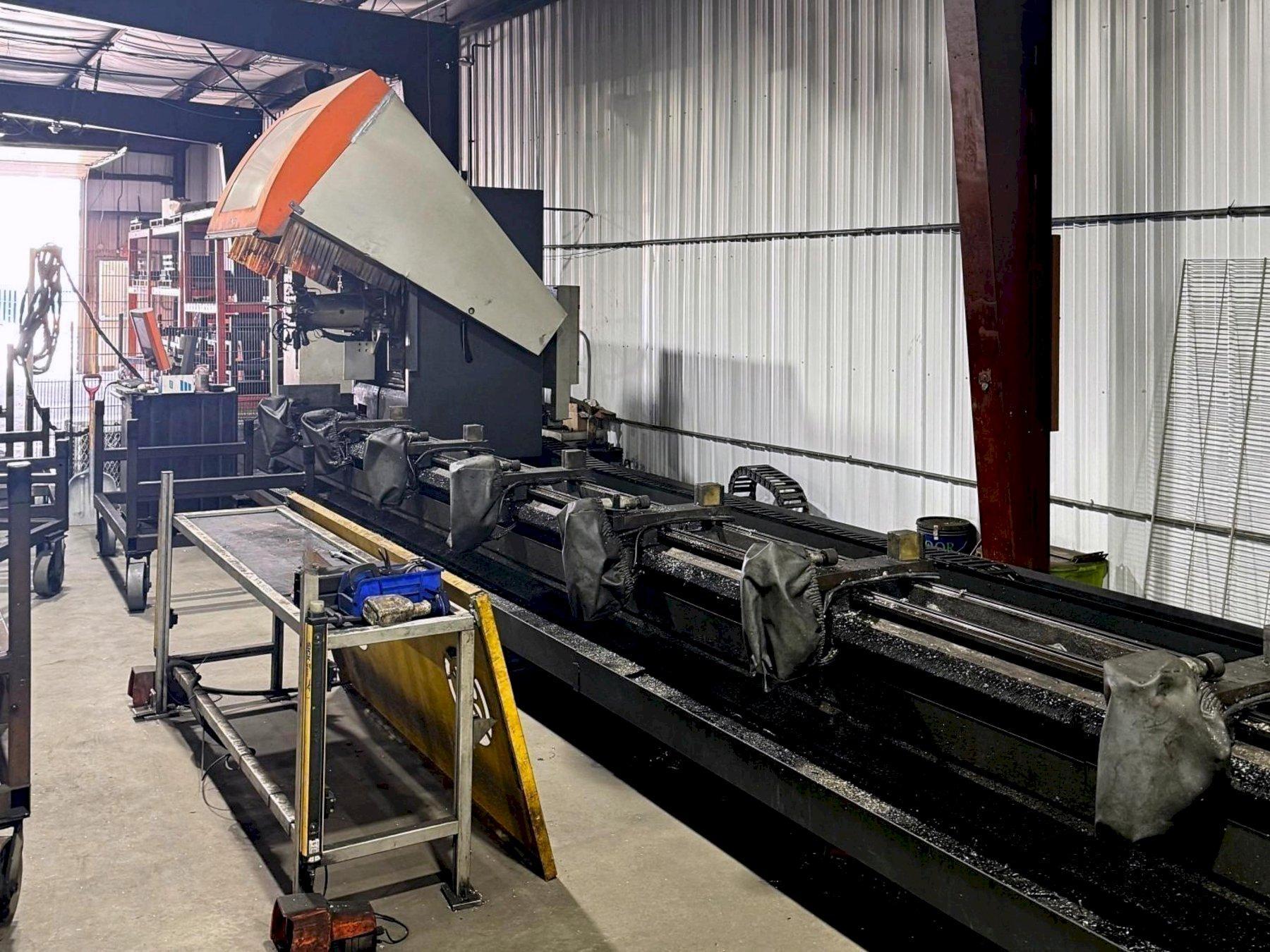

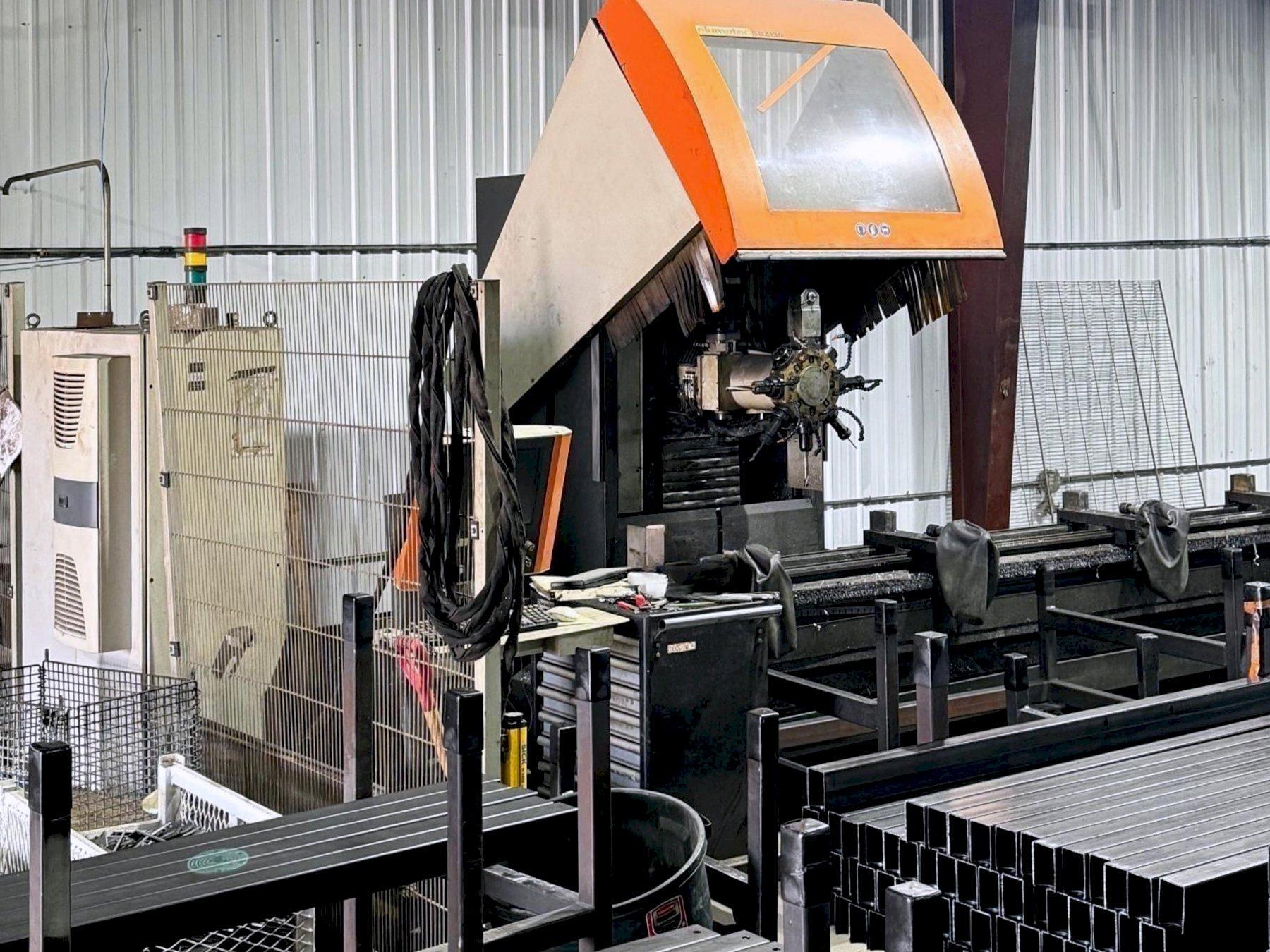

Elumatec SBZ130 (8.5m) Profile Machining Center

Make : ELUMATEC

Model: SBZ130

Year: 2011

Type: Machining Centers, Profile

Reference #: 100534

Highlights:
Machining of Aluminum, Steel & Stainless Steel Profiles

Request a Quote Sell Your Machine

Specifications Equipped With

Standard Working Area: 334.645”

Routing Capacity, X-Axis: 334.645”

Routing Capacity, X-Axis w/ Ends of Profile: 329.921”

Routing Capacity, Y-Axis: 18.898”

Routing Capacity, Z-Axis: 12.795”

Foot Print Area: 473.622” x 153.543”

Overall Weight of Machine: 9,900 Lbs.

Spindle Speed: 1 - 6,000 RMP

Angle Head Speed / Gear Ratio - 1; 2.8:1: 16,800 RPM

Angle Head Speed / Gear Ratio - 1: 4:1: 24,000 RPM

Power Output / Router Spindle: 7.5 HP

Length of Tooling: 5.905" Max.

Diameter of Tooling In ER32 Collet: 3.149” Max.

Diameter of Tooling In Disk Cutter Collet: 7.875” Max.

Diameter of Tooling w/ Attached Transmission: 7.875” Max.

Number of Turret Positions: 8

Spindle Type: Controlled Axis

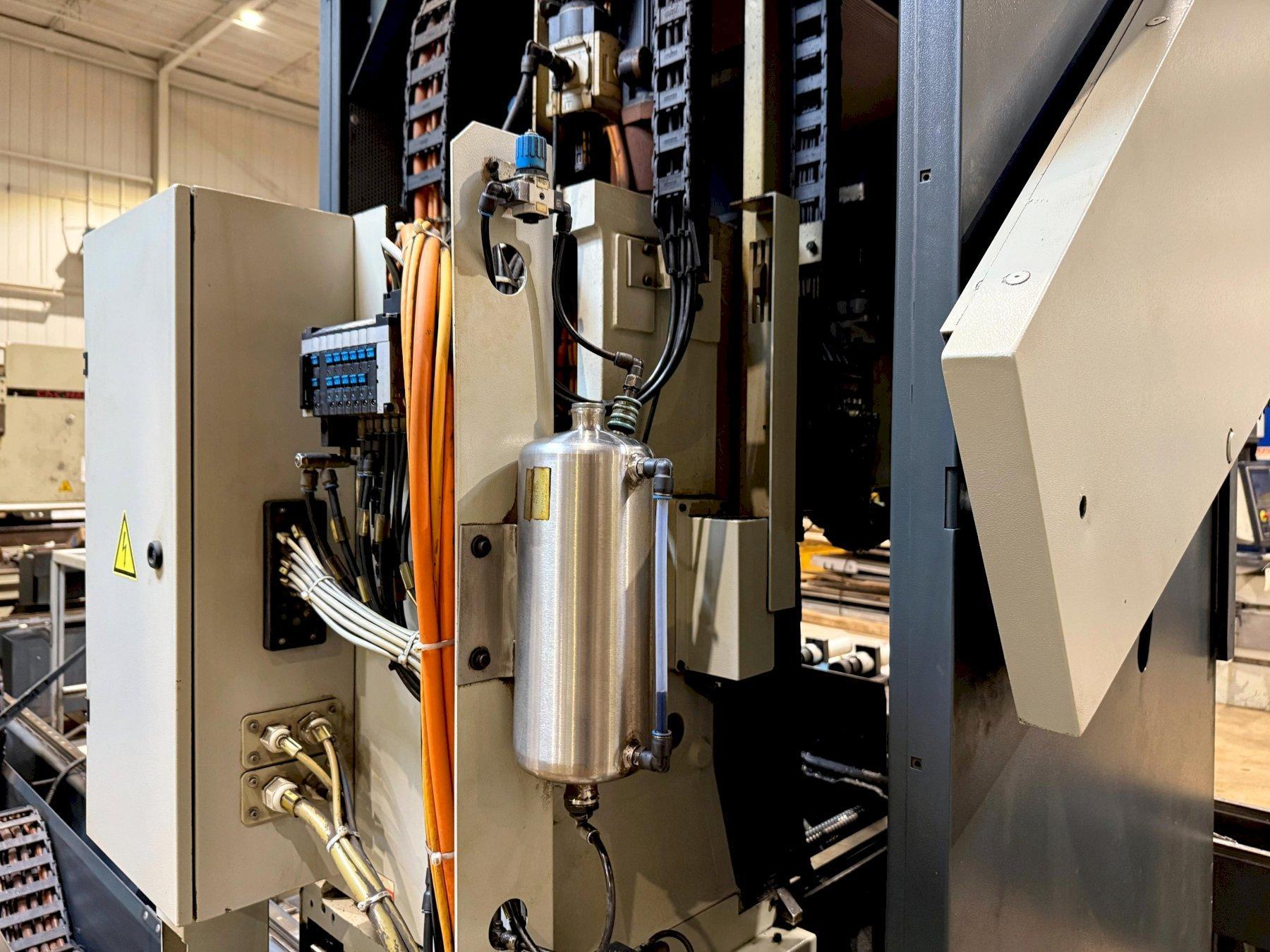

Air Consumption Per Minute w/ Spray Mist On: 75 Liters Per Min.

Hood Window Insert Size: 36" X 22"

Equipped With:

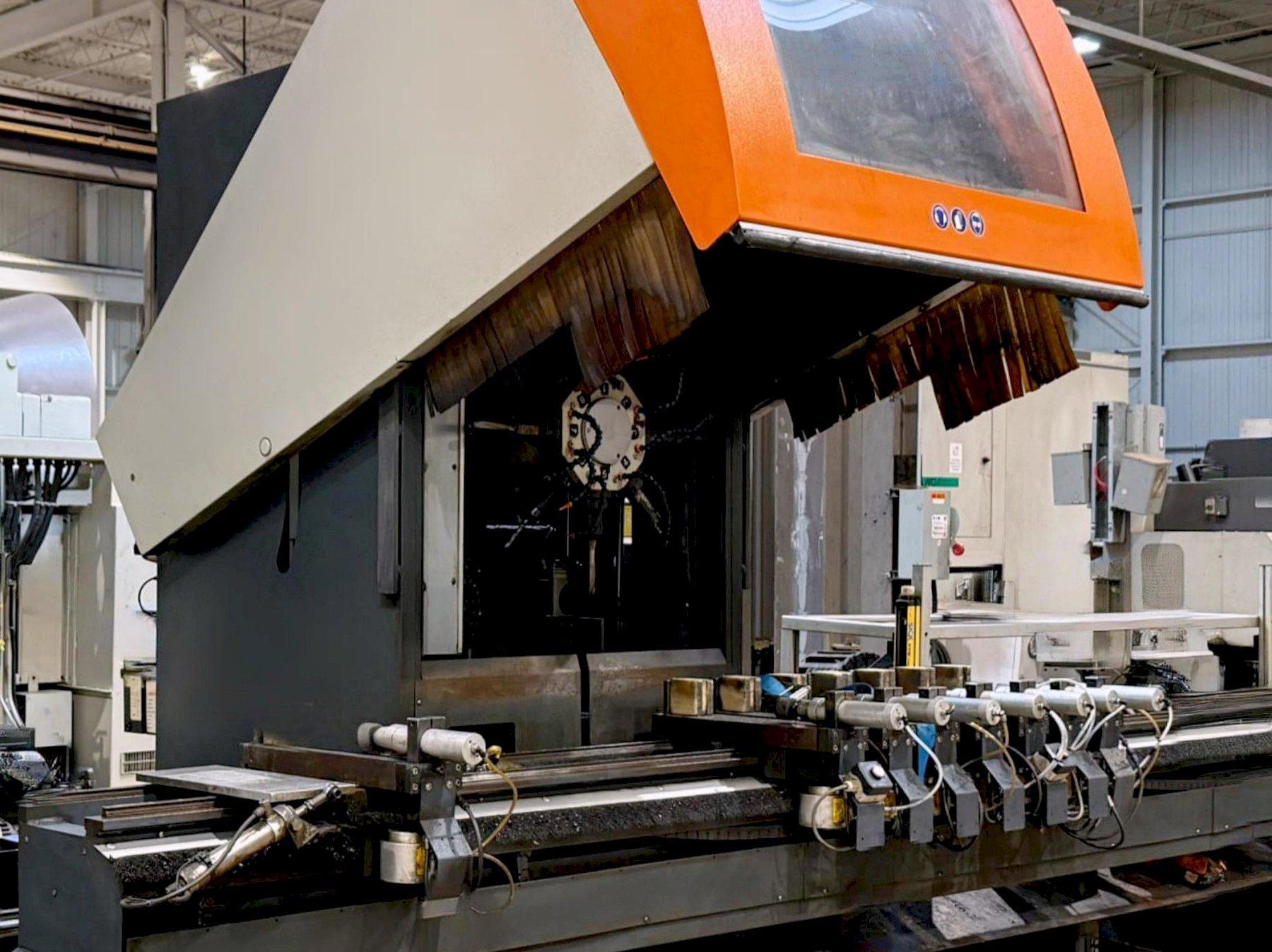

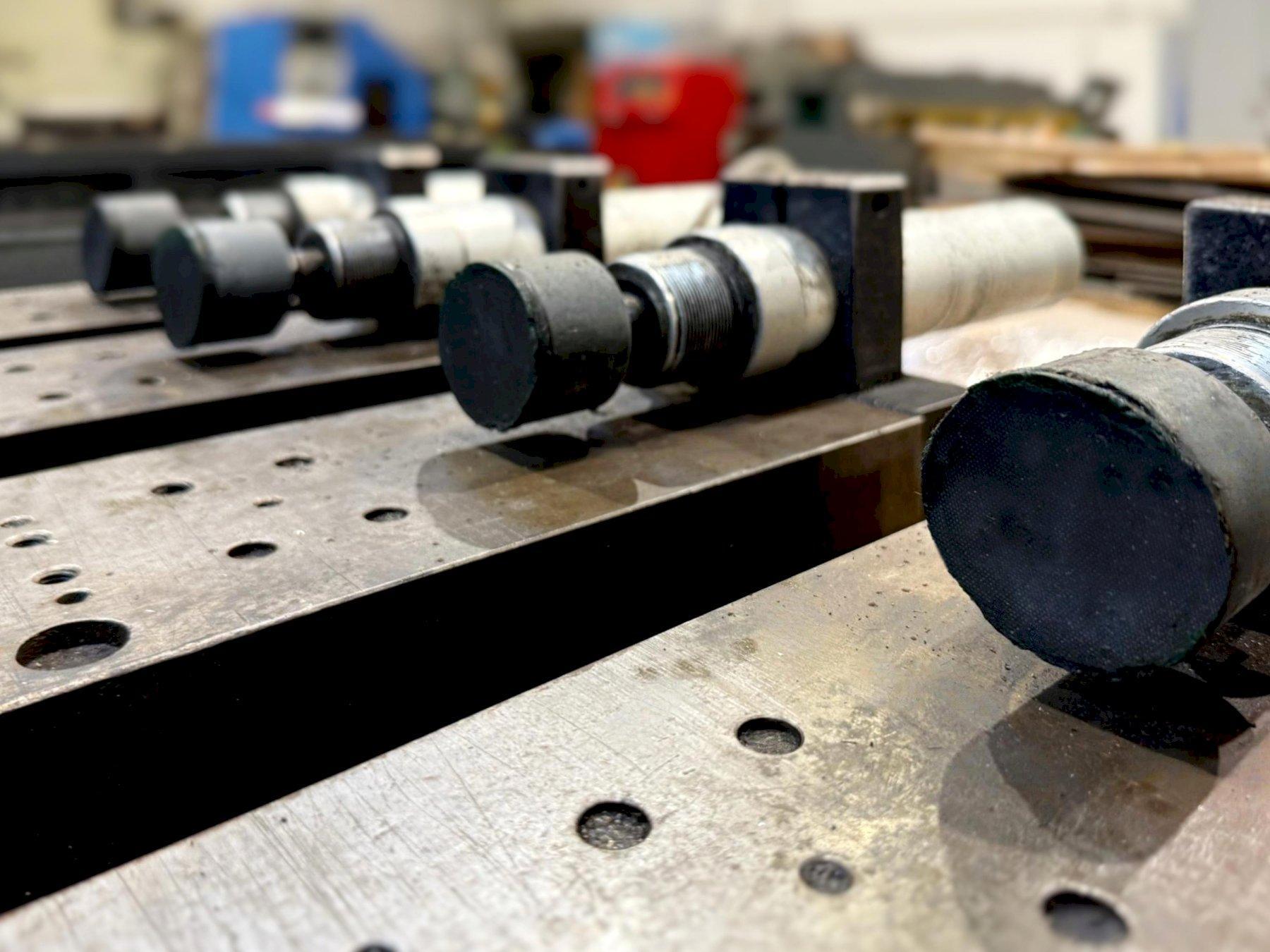

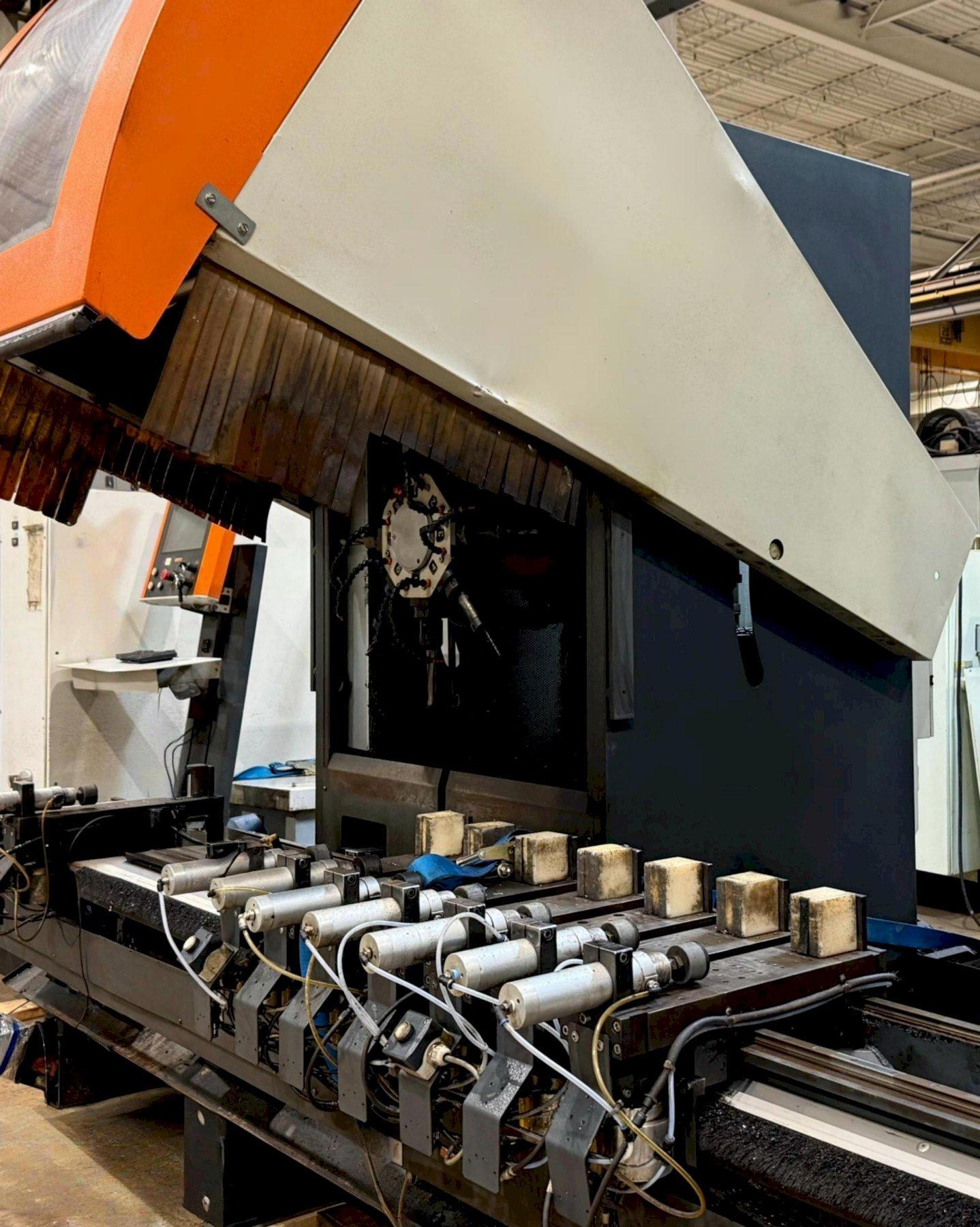

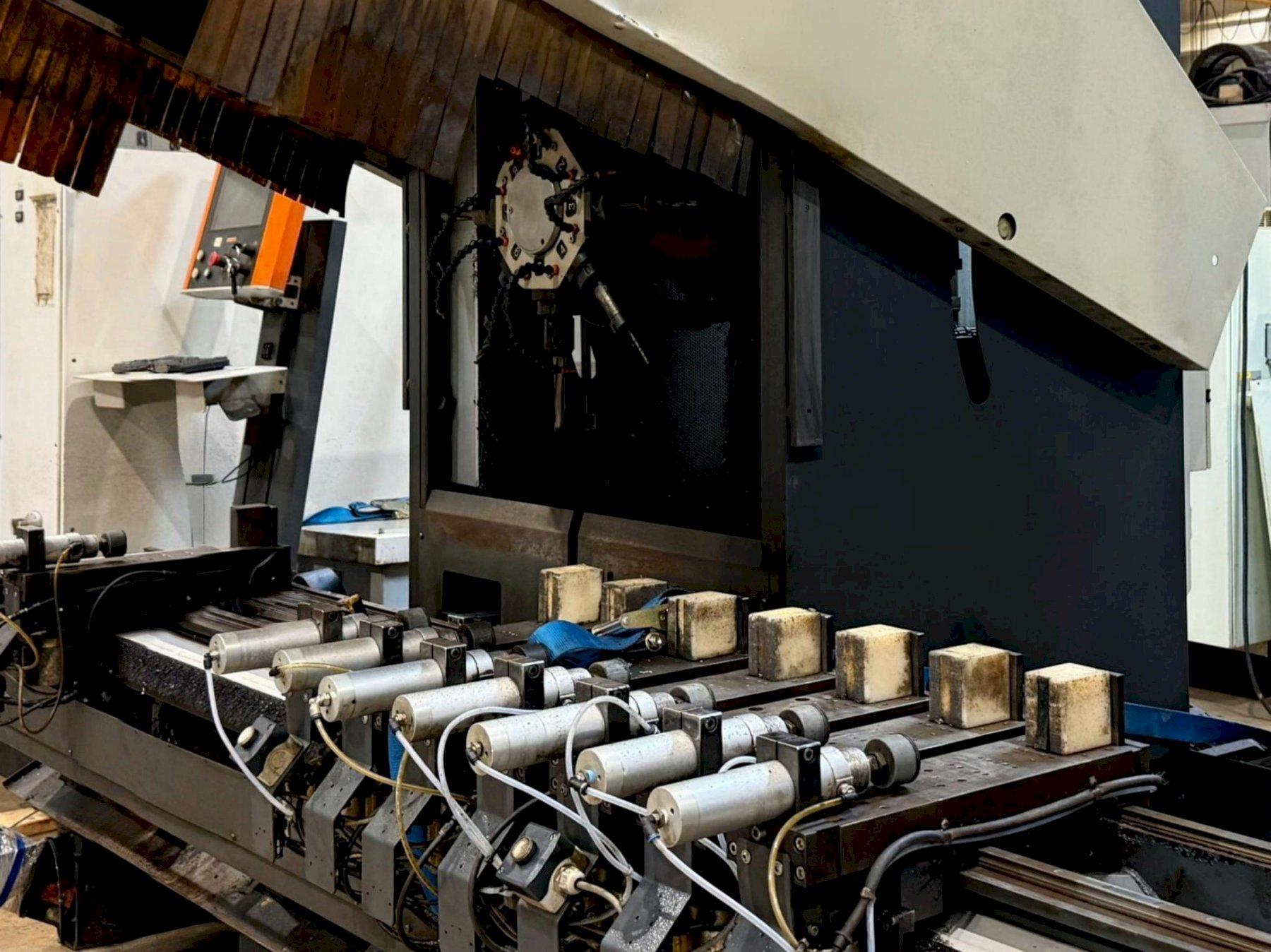

8 Pneumatic Clamps

Windows Platform (XP Version)

Network Connection

Angle Router Head (Processing Front and Back of the Profile)

Reduced Speed Spindle-Reduction 5:1 (4,000 rpm-max.)

Two-Sectional Clamping System

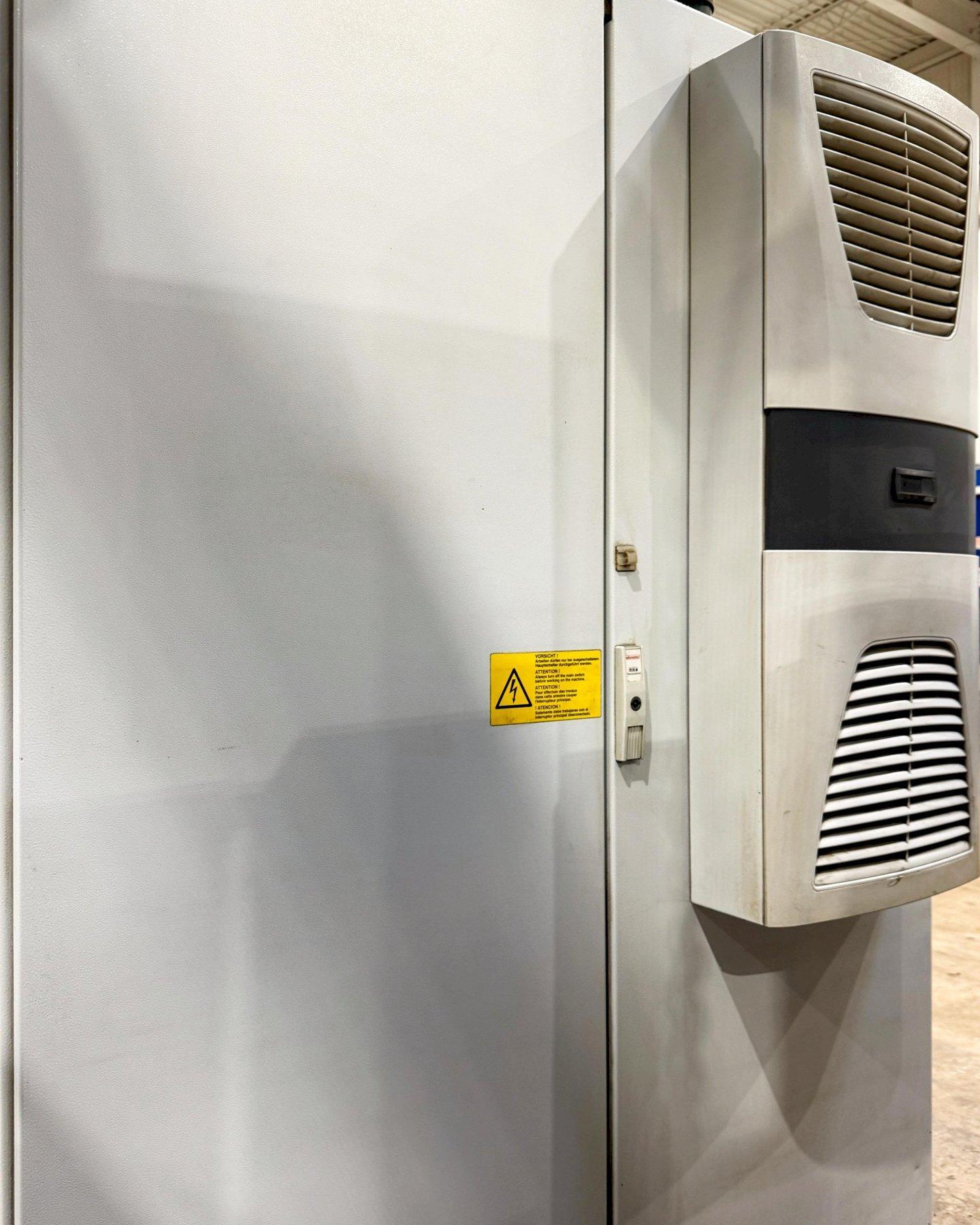

Air Conditioning Unit

Photo Electric Barrier (Front of Machine)

Safety Fence (Left and Right Side of the Machine)

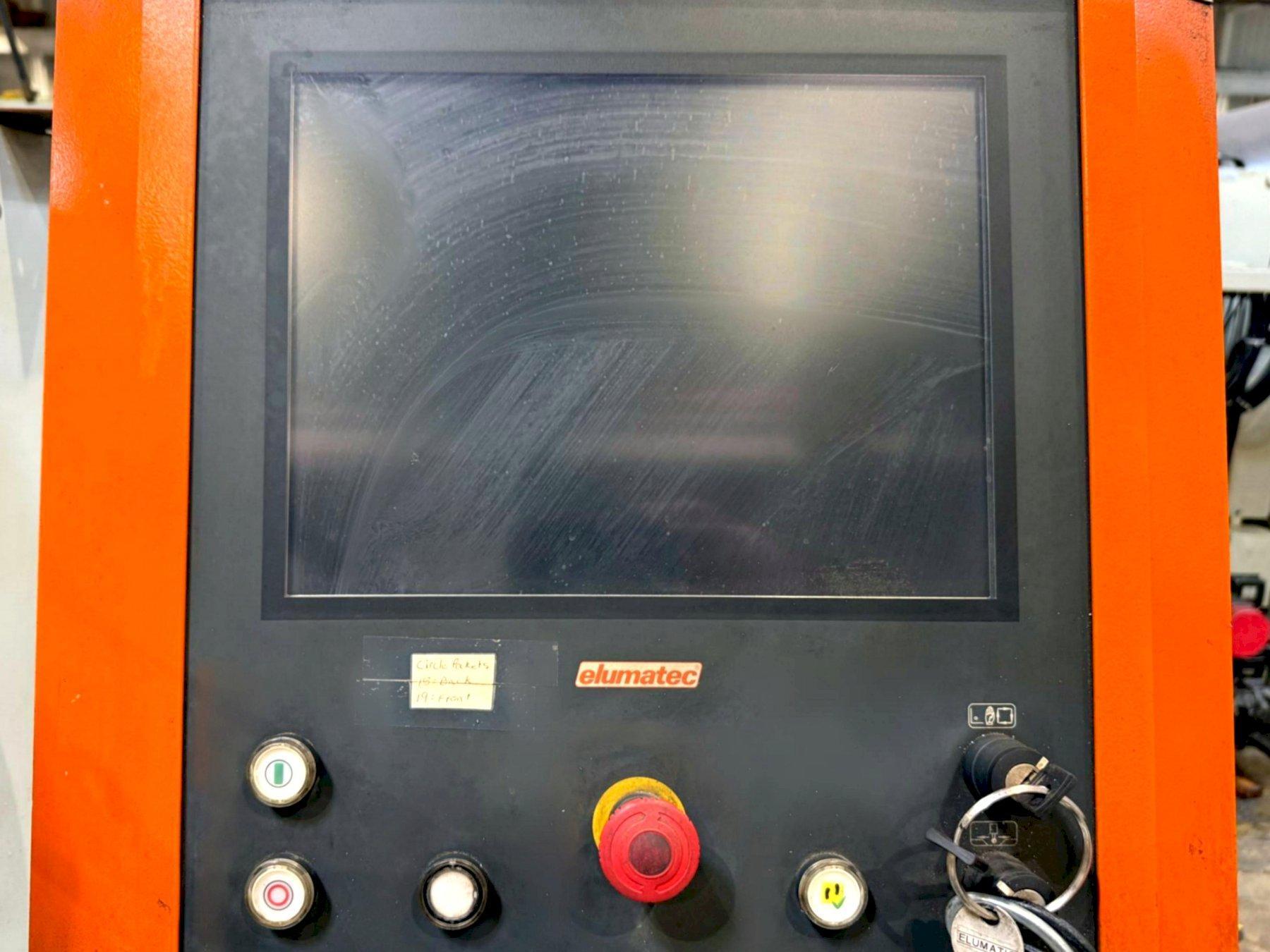

Hand-Held Mobile Control w/ Start/Stop Switch & Feed Control

Recognition of Clamp Positions

Automatic Clamping Positions

Automatic Protection/Safety Cover

Chip Collection Tray
