Product Details

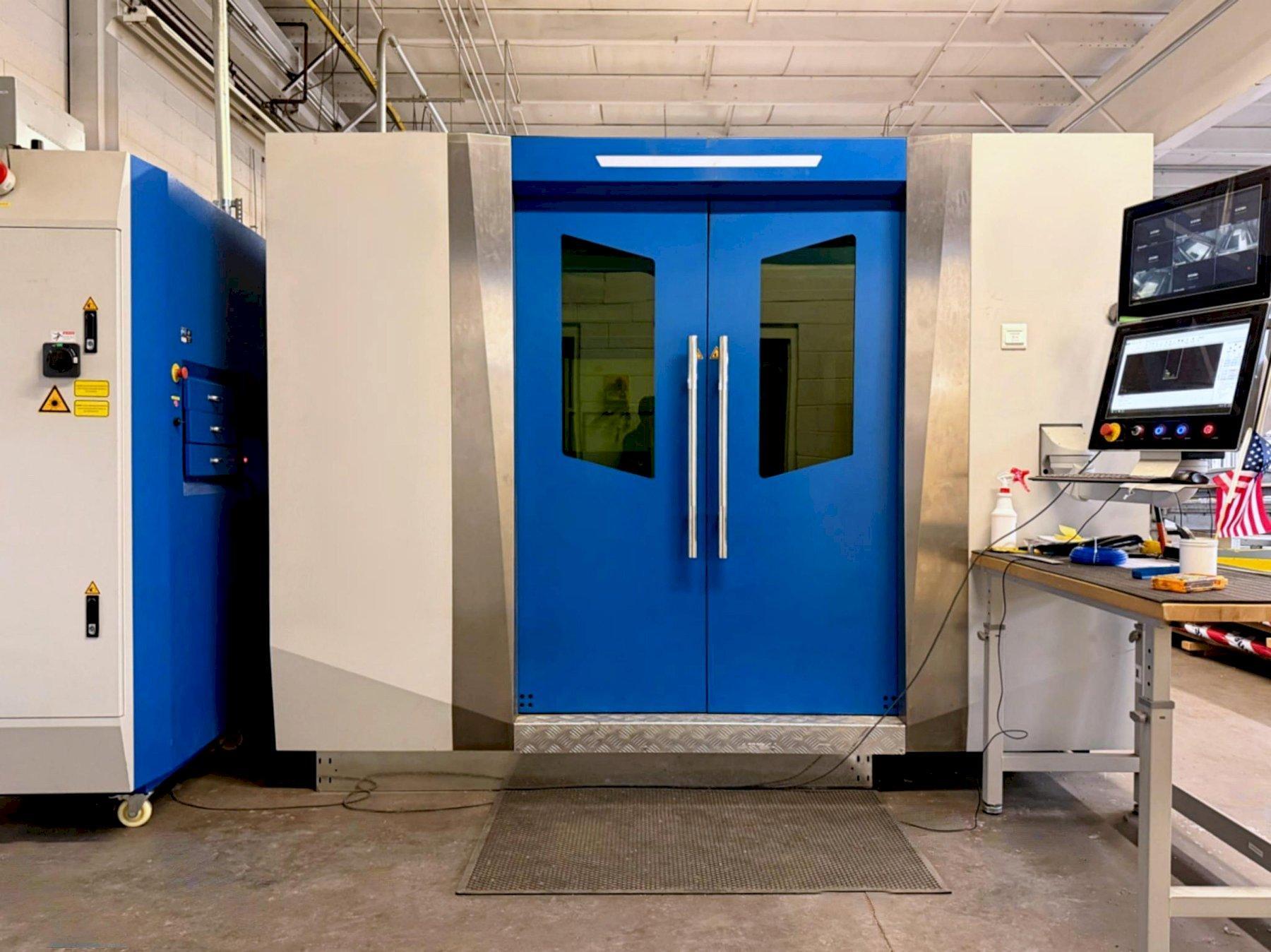

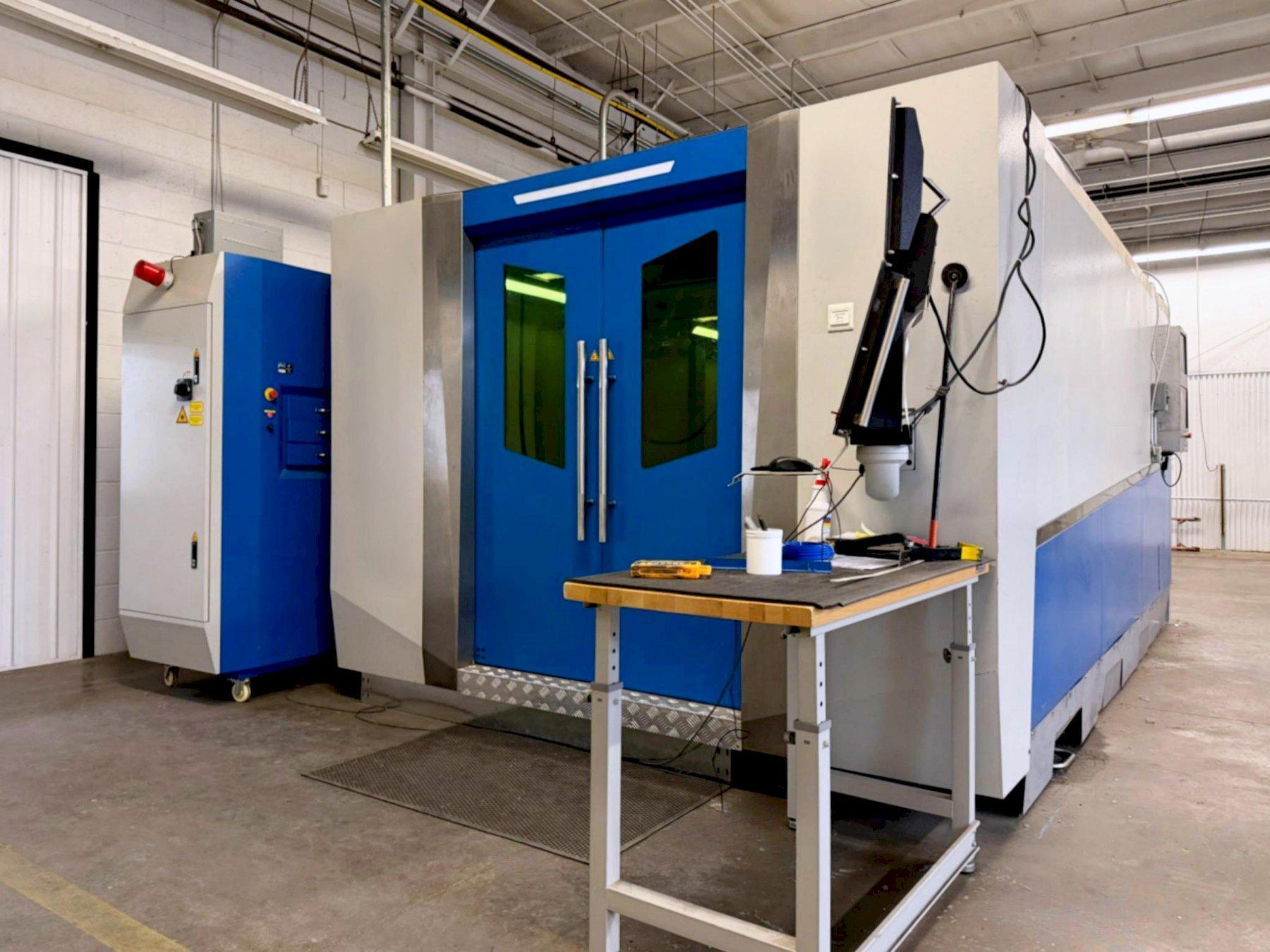

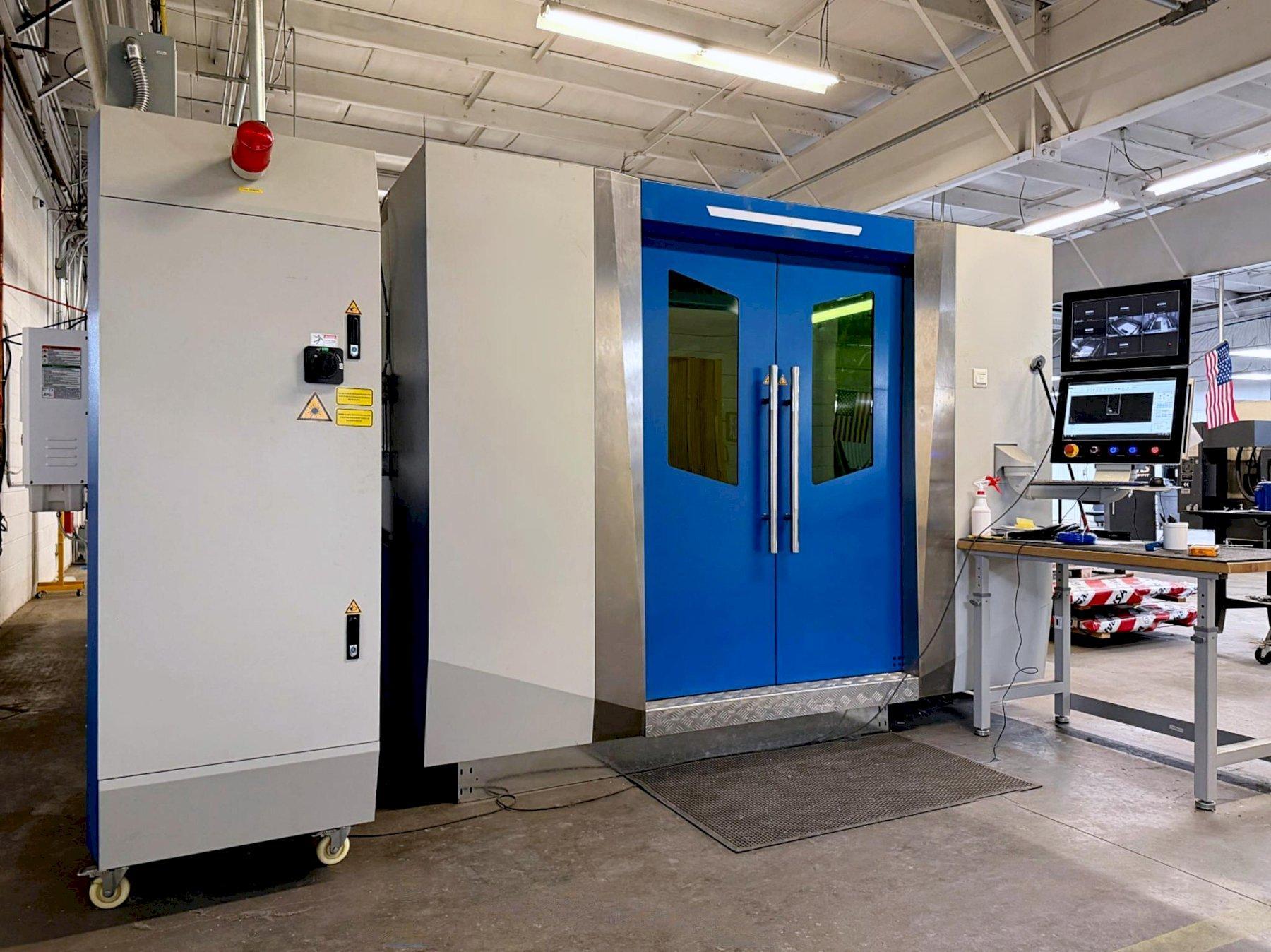

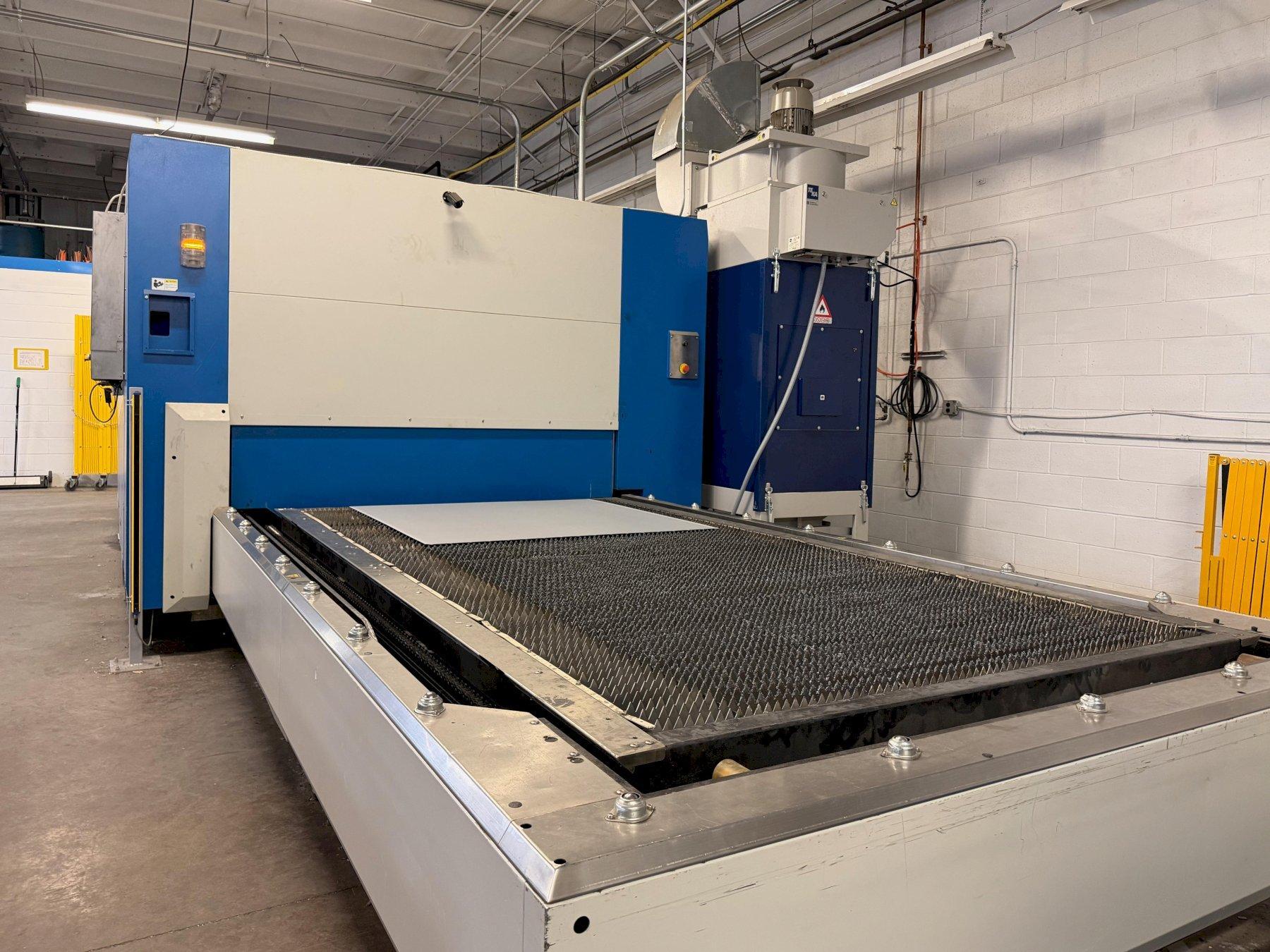

Knuth ACE Laser 3015 2.0 IPG Fiber

Make : KNUTH

Model: ACE Laser 3015 2.0 IPG

Year: 2020

Reference #: 100649

Highlights:

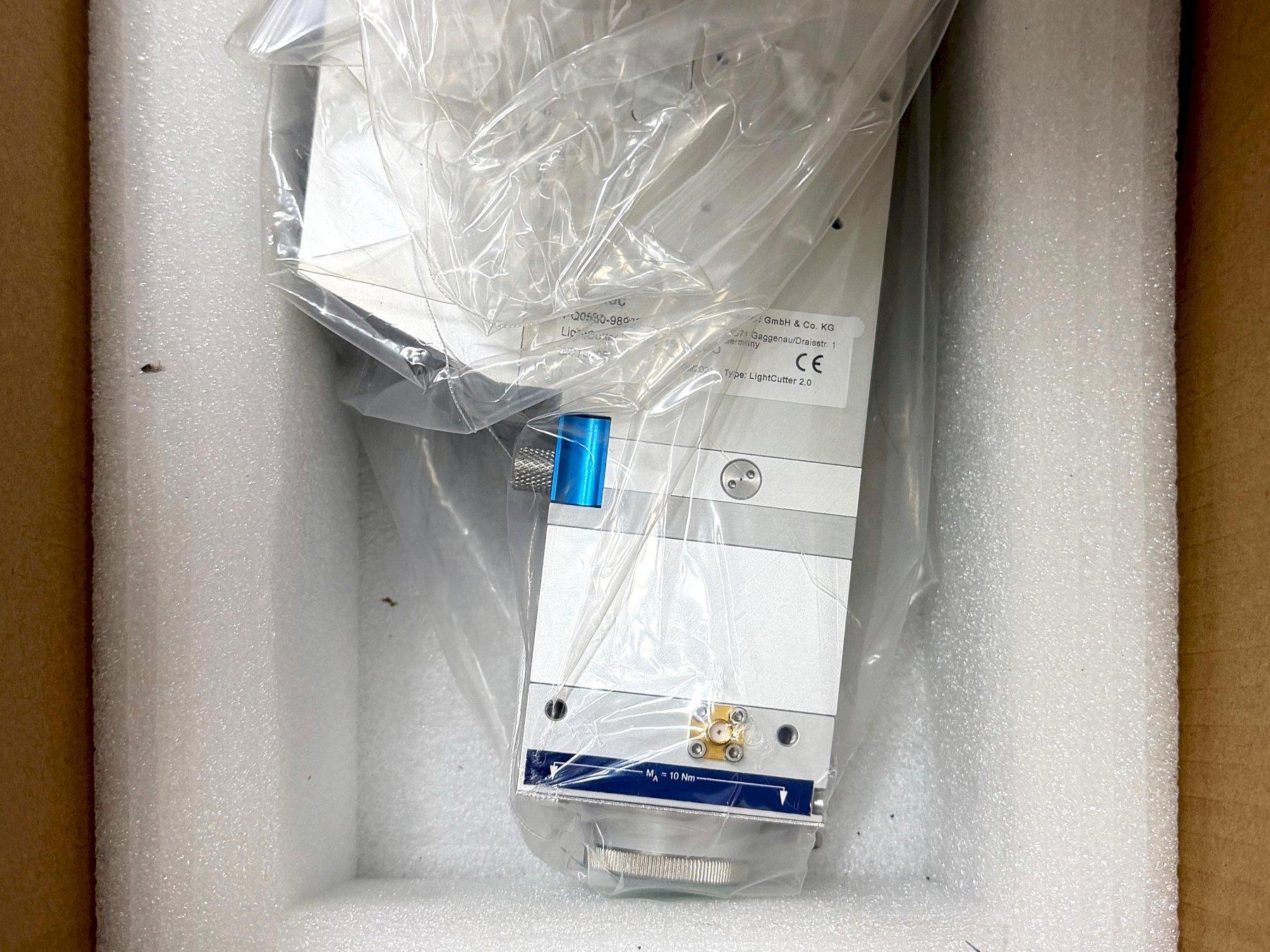

Excellent condition with low hours. Includes new spare Precitec cutting head.

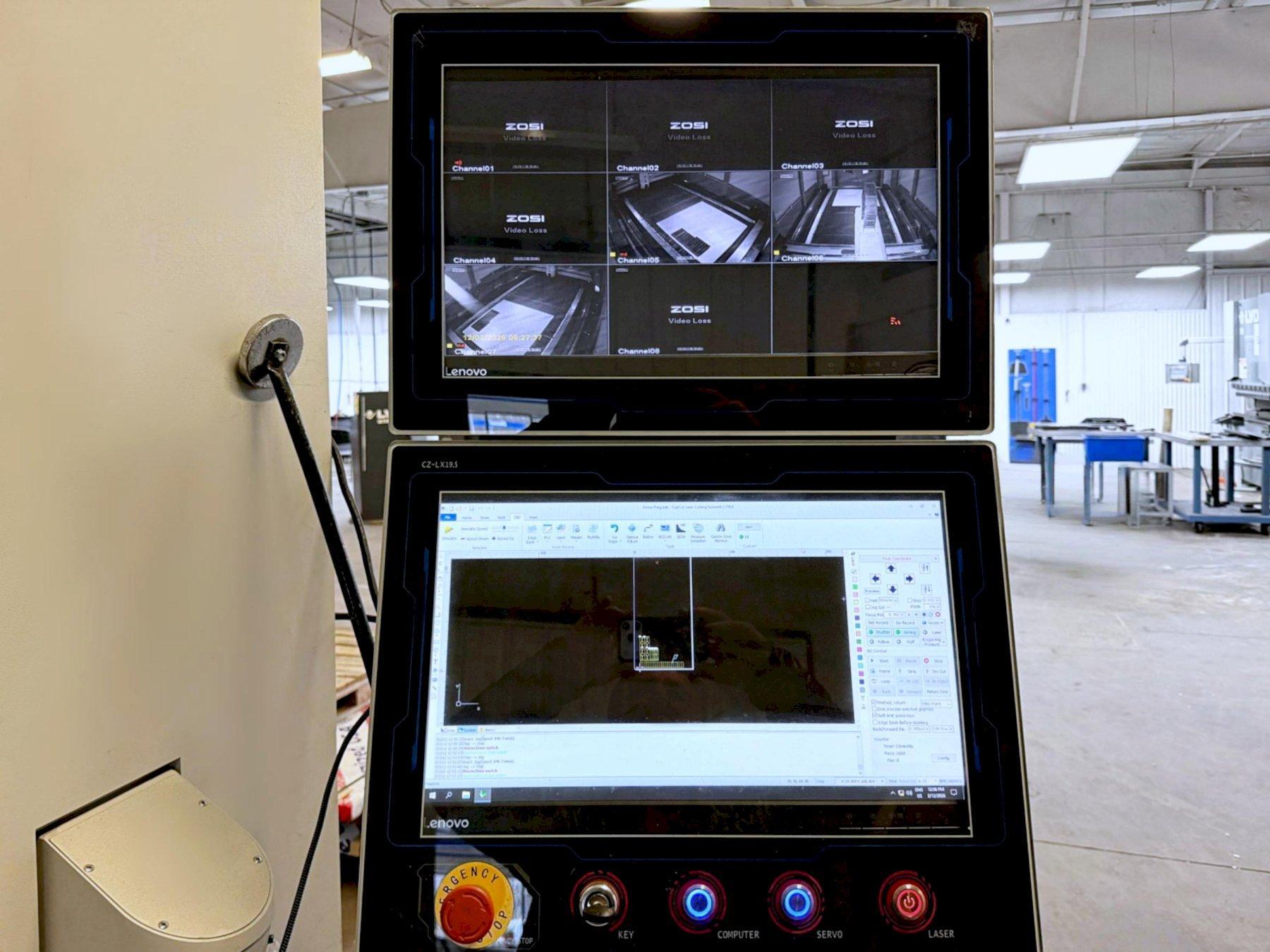

Control: FSCUT2000 CNC Control

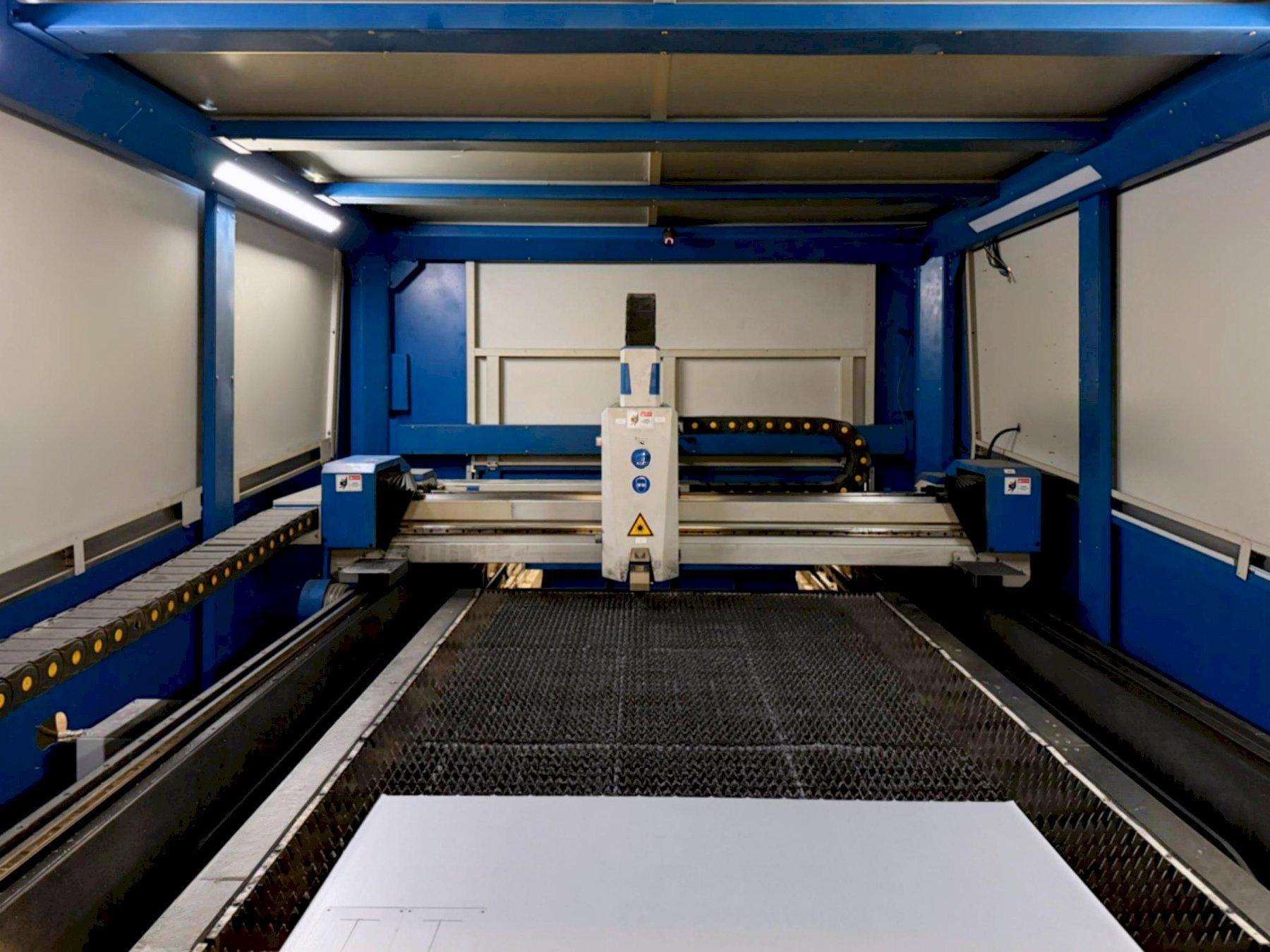

Table Dimensions: 118” x 59”
Workpiece Weight (Max.): 2,200 Lbs.
Travel X-Axis: 59.8”
Travel Y-Axis: 120”
Travel Z-Axis: 4”
X-Axis Rapid Feed: 327 fpm
Y-Axis Rapid Feed: 327 fpm
Cutting Table Change Time: 10 - 15 Sec.
Fiber Laser Source: IPG
Fiber Laser Power: 2.0 kW
Shaft Length: 108 ± 10% µm
Pulse Frequency: 50~5k Hz
Power Consumption: 26.82 Hp
Cutting Capacity - Mild Steel: 0.47"
Cutting Capacity - Stainless Steel: 0.24"
Cutting Capacity - Aluminum: 0.197"
Machine Drive Capacity X-Axis: 1.3 Hp
Machine Drive Capacity Y-Axis: 2.0 Hp
Machine Drive Capacity Z-Axis: 0.5 Hp
Dimensions: L 386” x W 146” x H 85”
Weight: 17,600 Lbs.

Equipped With:

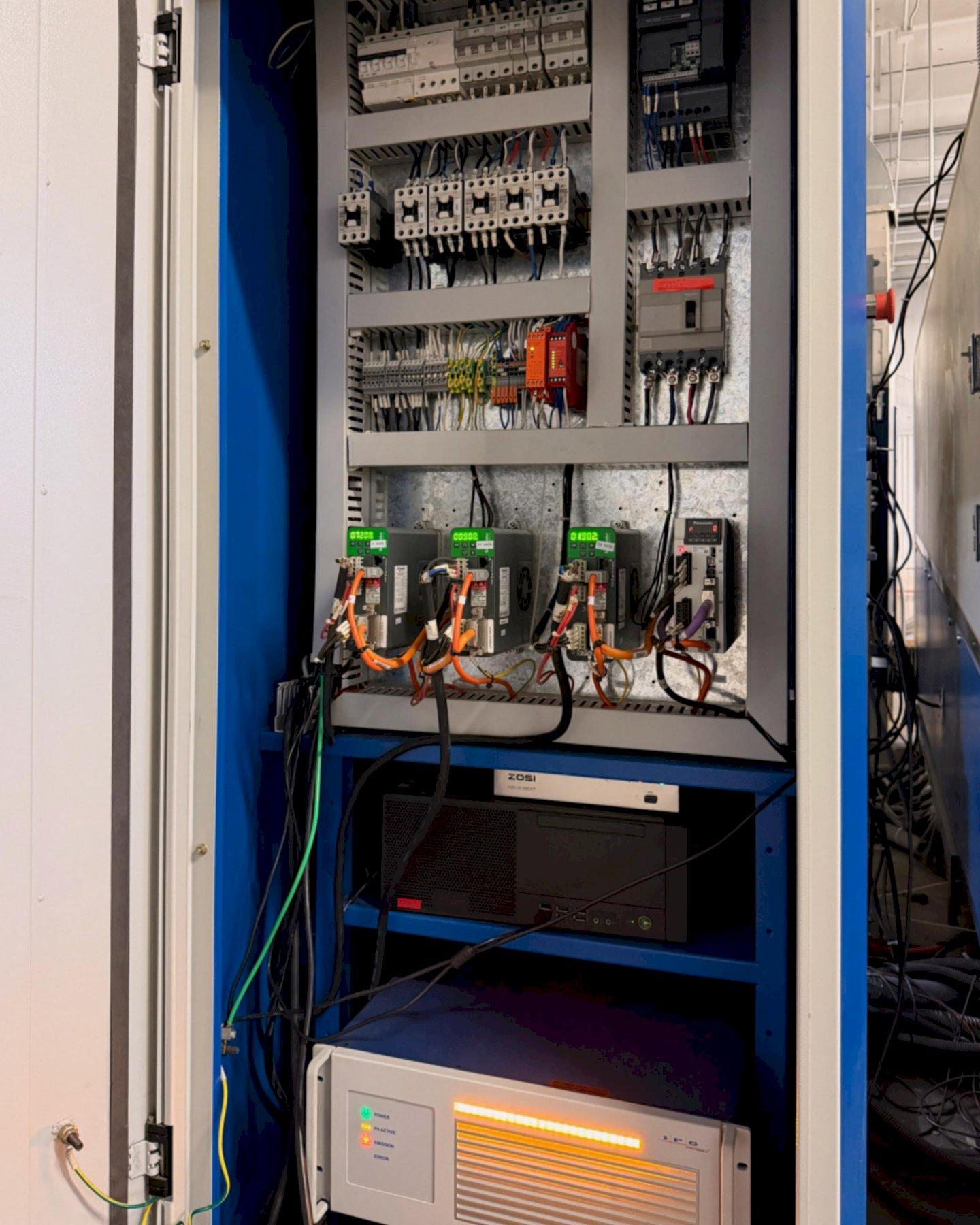

FSCUT2000 CNC Control

IPG Fiber Laser

Fiberoptic Cable

Precitec High-Pressure Cutter Head

Automatic Focus Position Adjustment

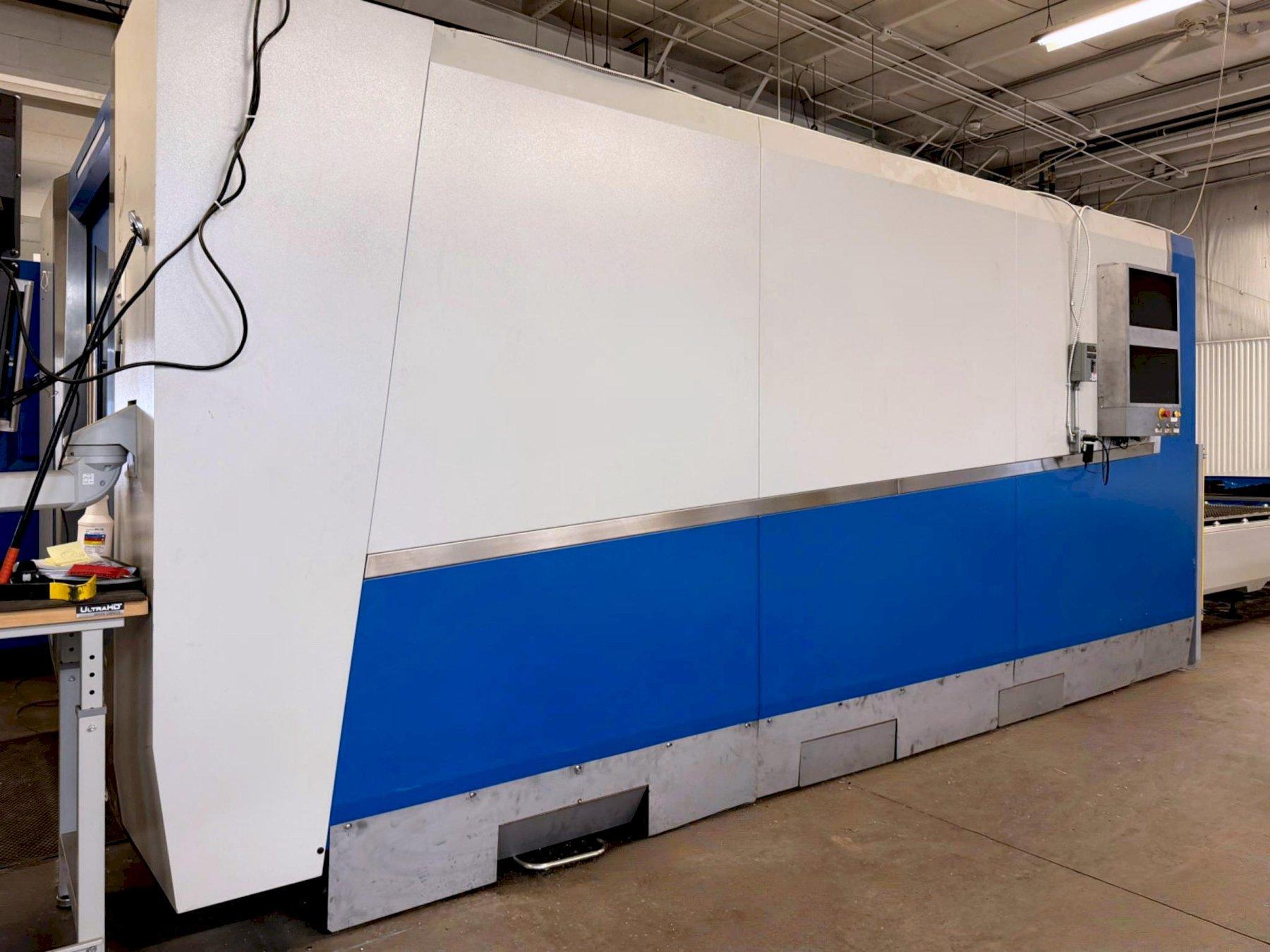

Full Protective Housing

Automatic Pallet Table System

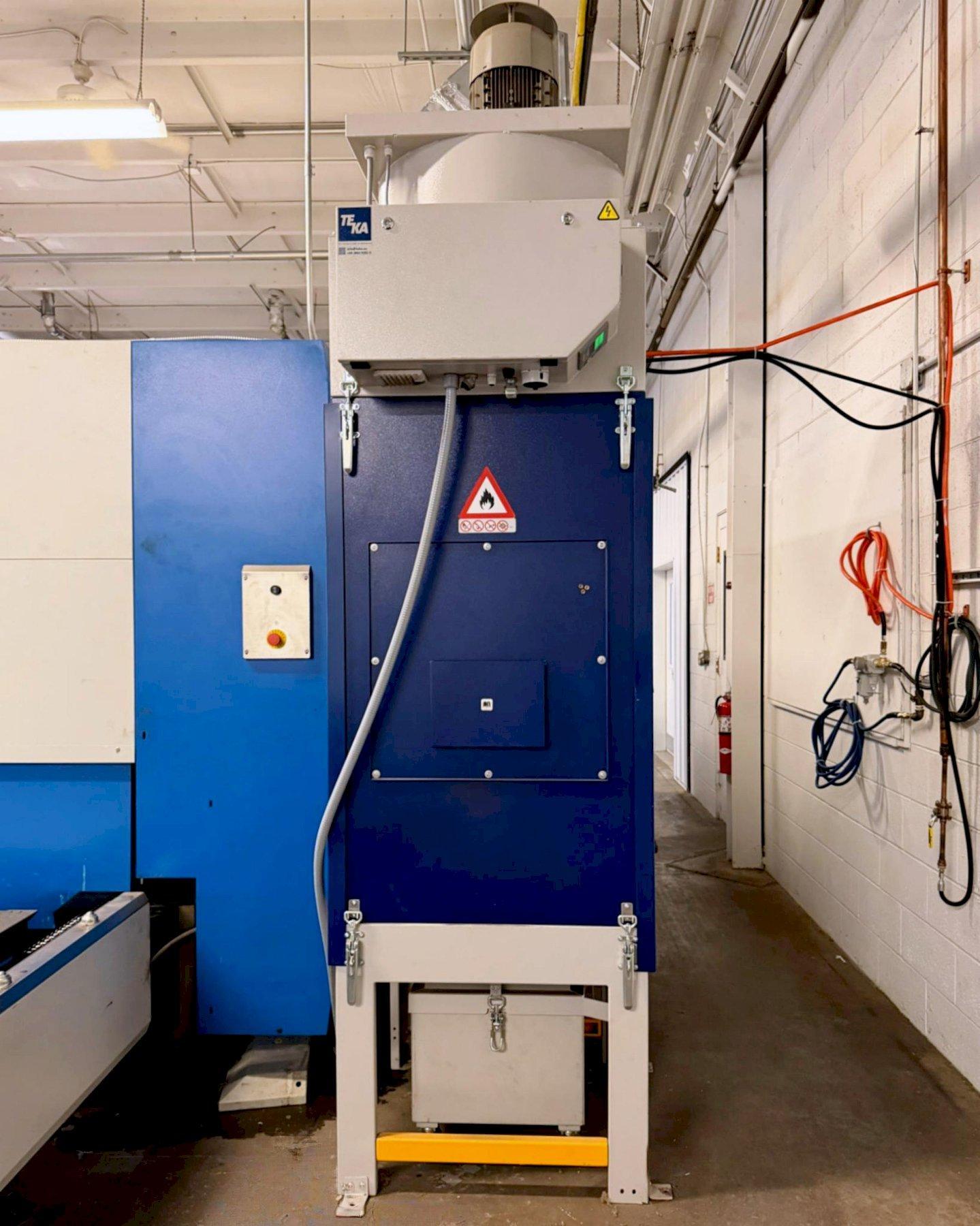

Dust Collector & Filtration Unit

Automatic Gas Console w/ Electrovalves for Oxygen & Nitrogen

Central Lubrication

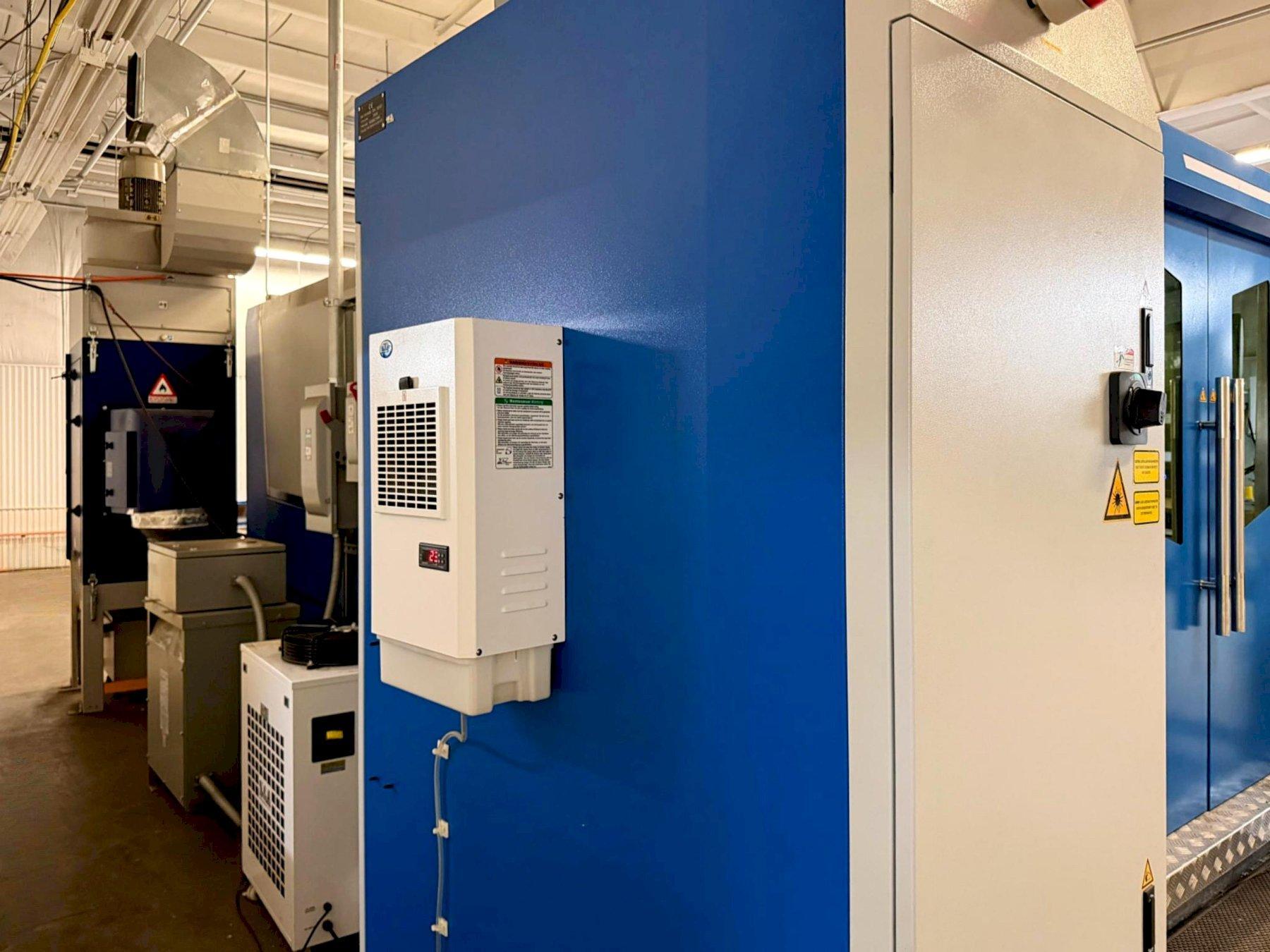

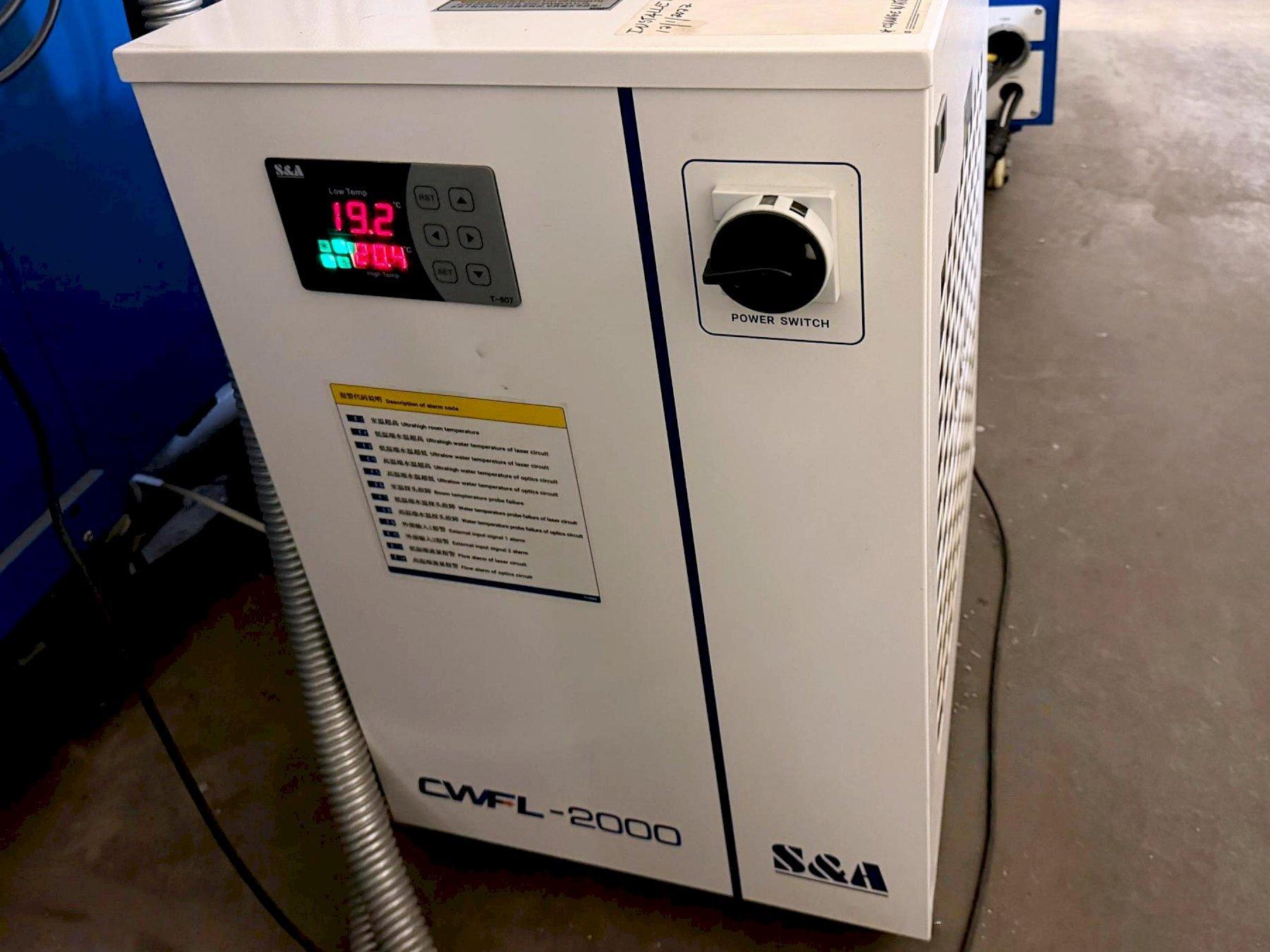

Chiller Unit

All Available Manuals
