Make : LIBERTY SYSTEMS

Model: M5-F750A

Year: Not Available

Type: Chemical & Process Equipment

Reference #: 100432

Highlights:
Recent PM service performed including replacement of motor.

Request a Quote Sell Your Machine

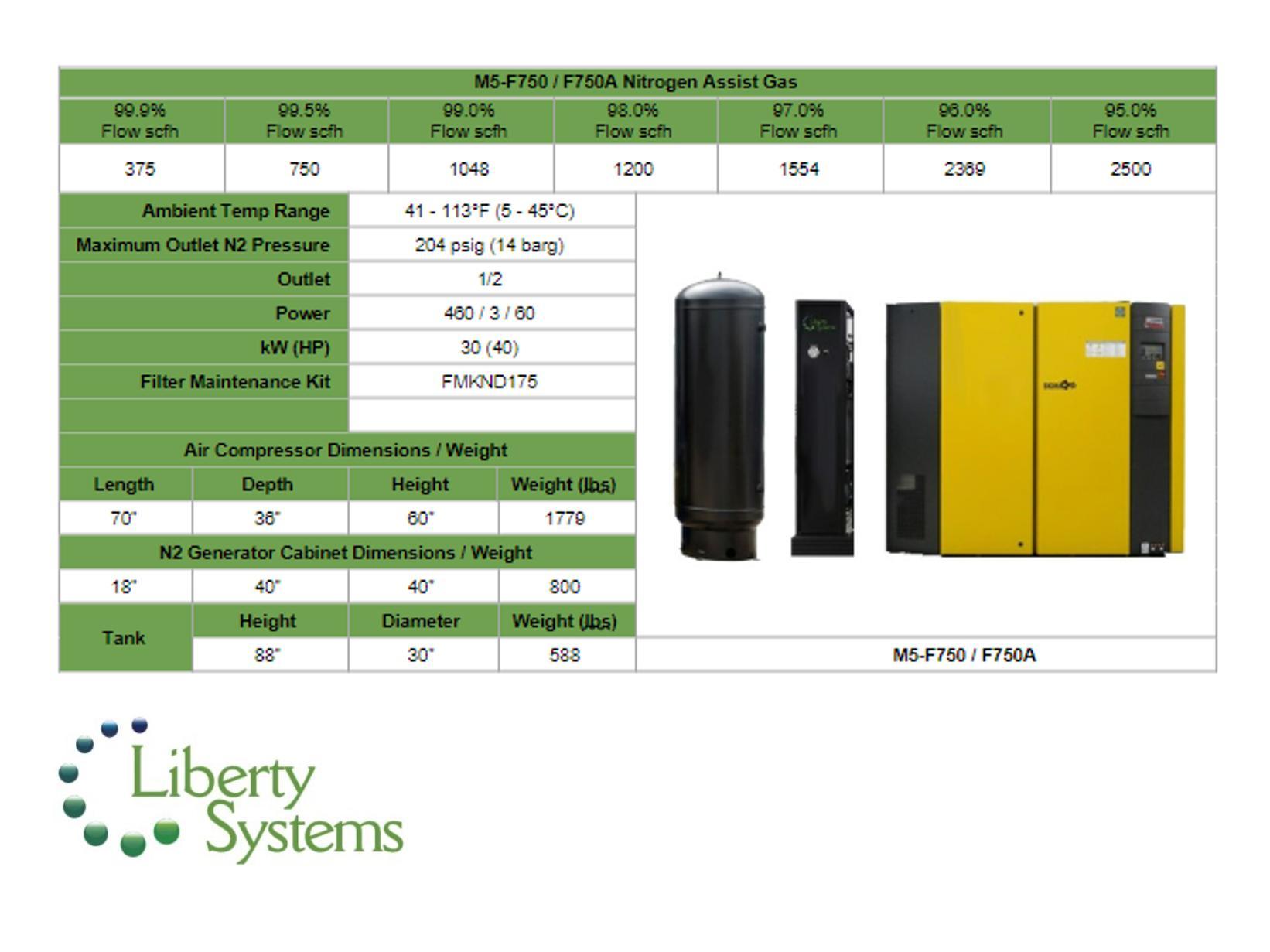

Specifications Equipped With

Ambient Temp Range: 41-113F (5-45C)

Nitrogen: 750 scfh @ 5000 ppm O2 (99.5%)

Delivery Pressure: 204 PSIG (14 Barg)

Dry Air: 18 scfm @ 128ppm w/v H20

Delivery Pressure: 204 PSI

Outlet: ½

Power: 460 / 3 / 60

Compressor kW (HP): 30(40)

Filter Maintenance Kit: FMKND175

Equipped With:

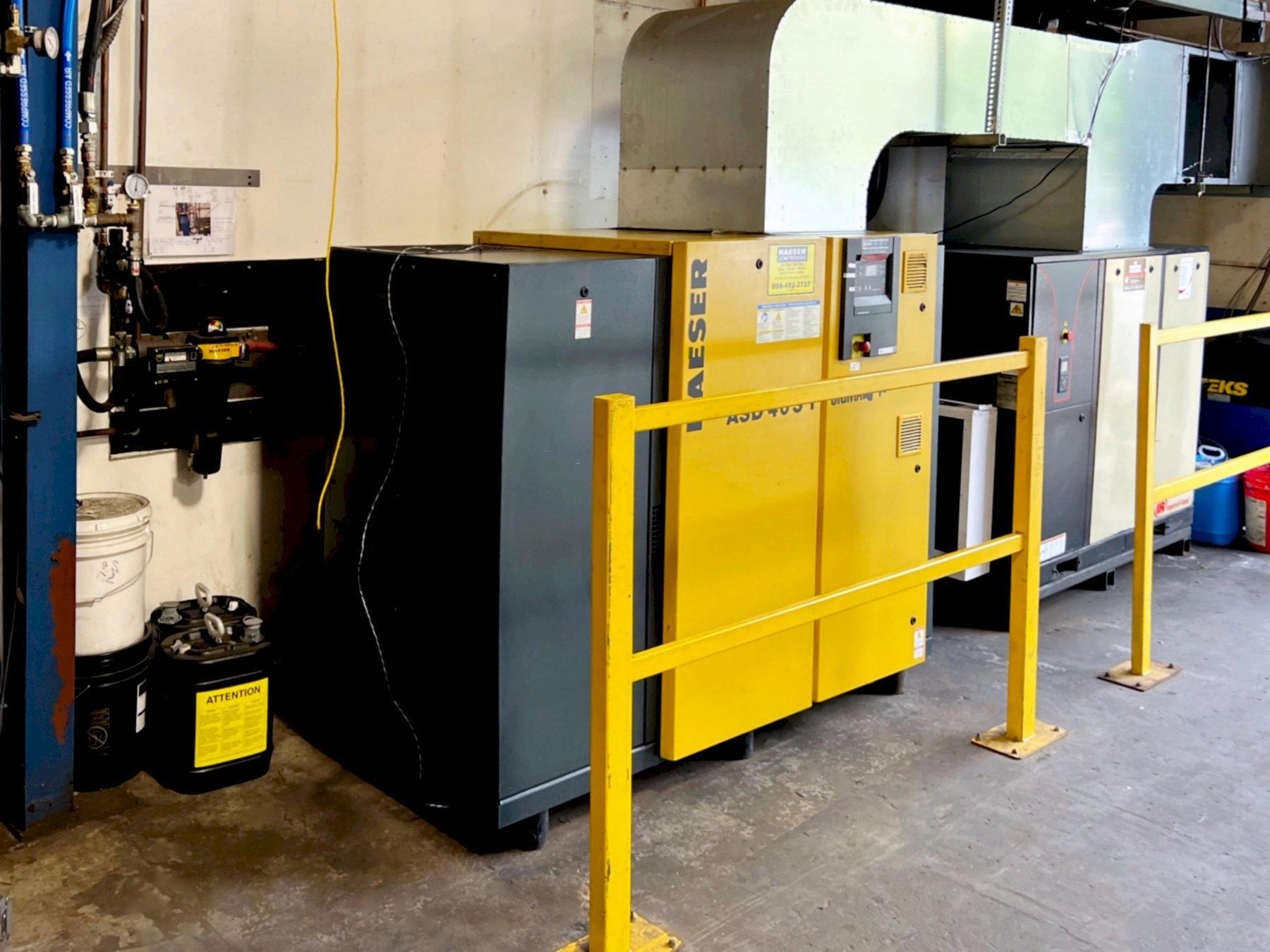

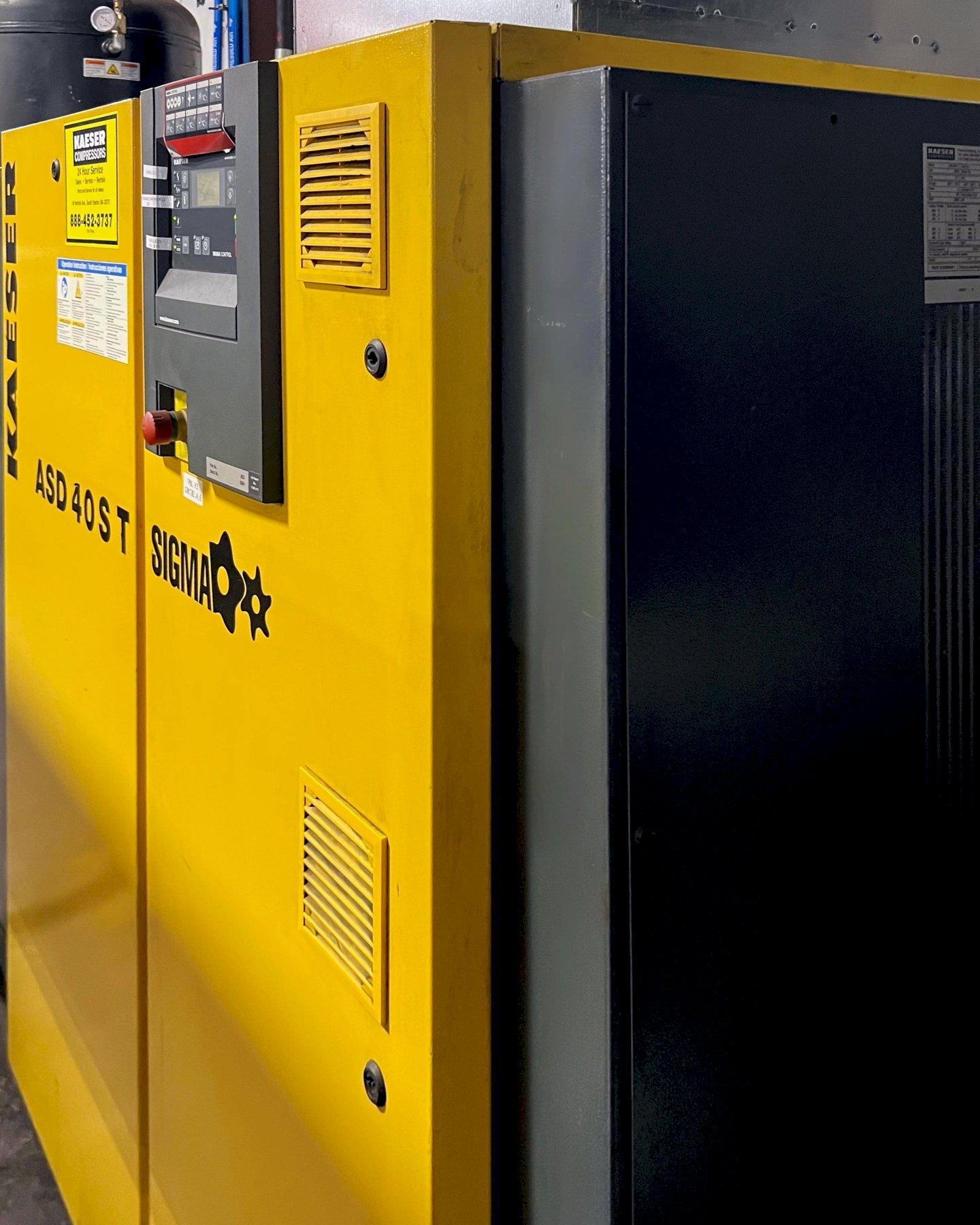

Kaeser 30 kW (40 HP) Fixed Speed Rotary Screw Compressor

TEFC Motor
Efficiency = 90.2%
Compressor Carries a NEMA 1 Classification

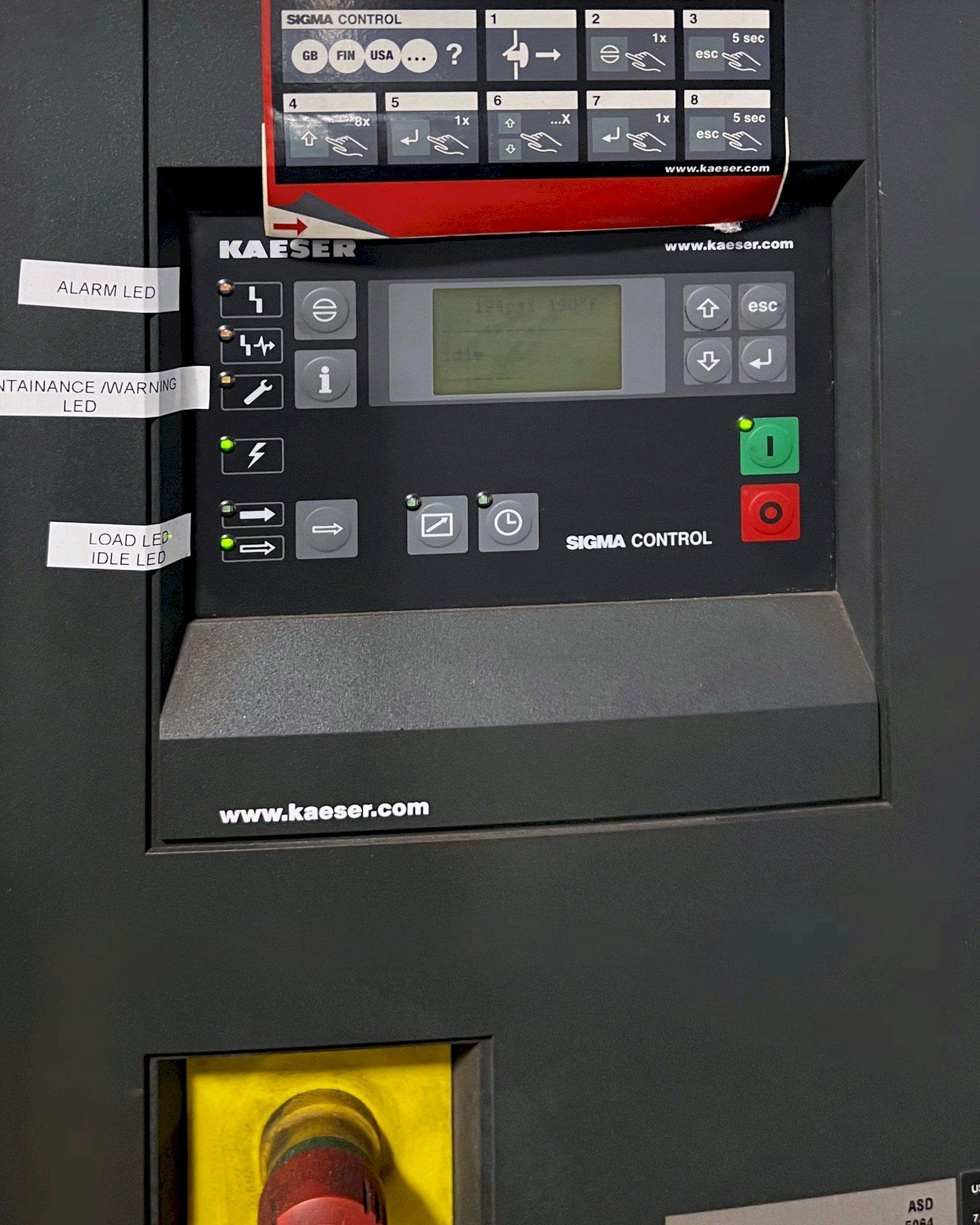

Integrated Compressor Electrical Cabinet Carries a NEMA 12 Classification

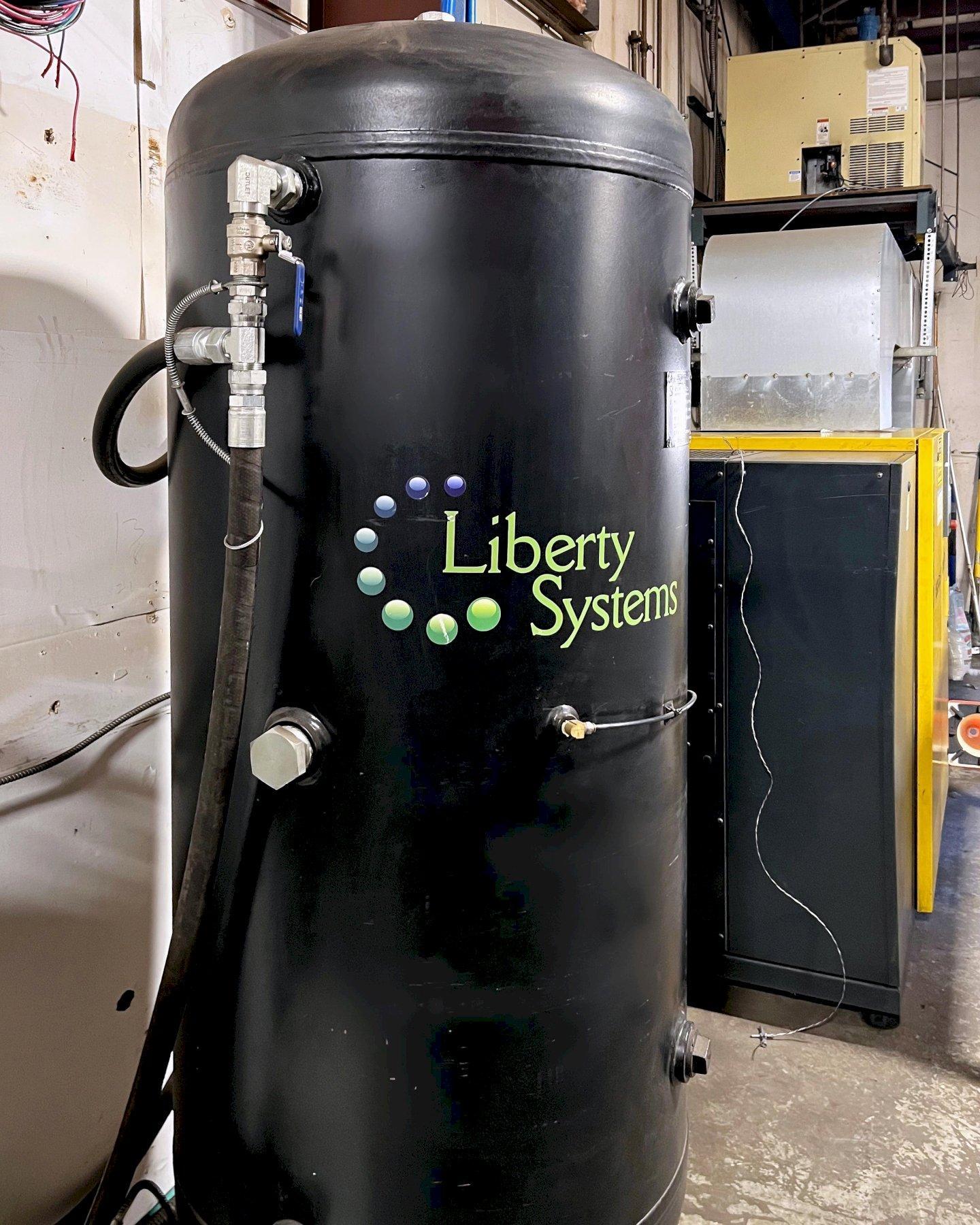

Compressed Air Tank

ASME / CRN
Pressure relief valve (certified)

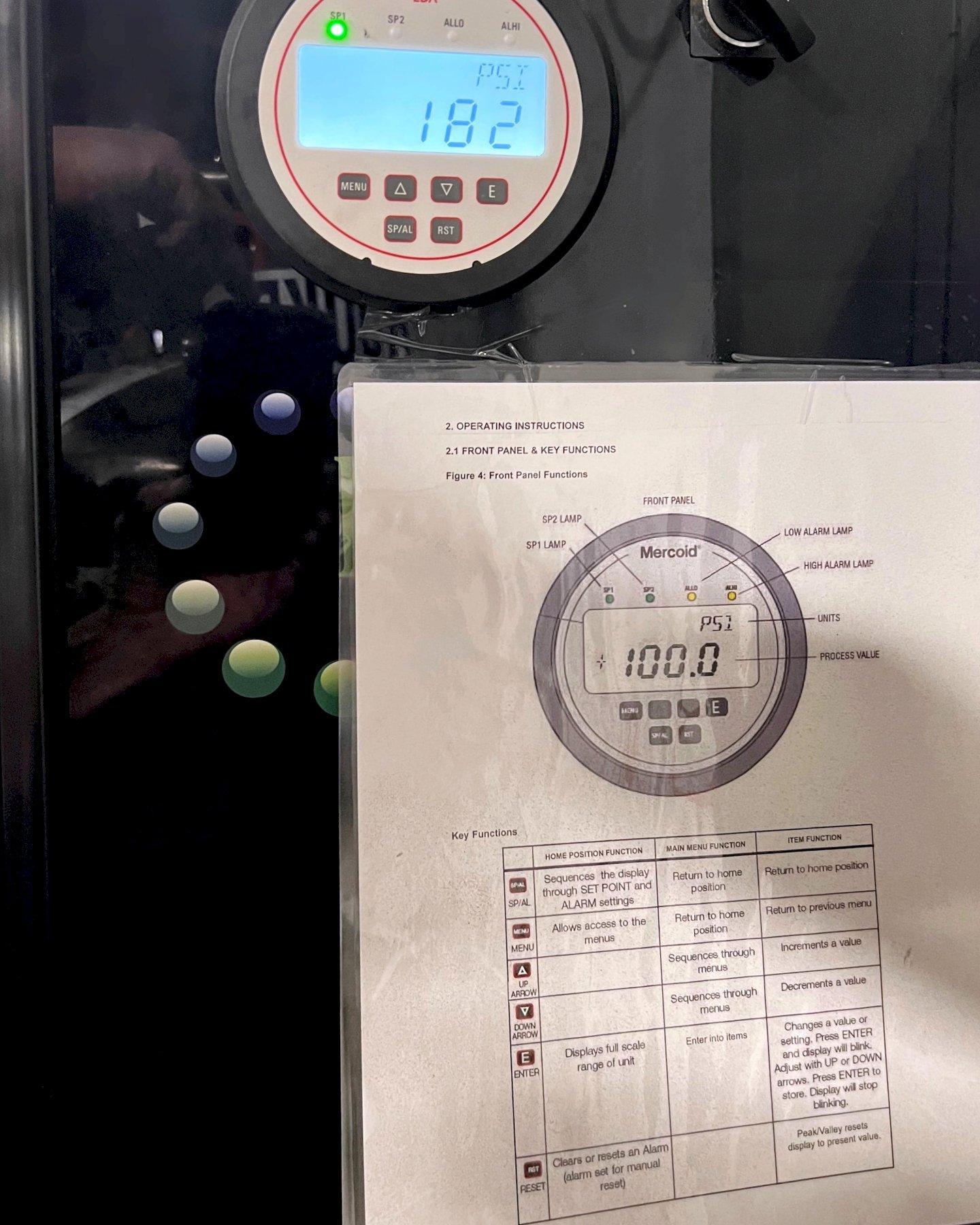

2” dial pressure gauge
Inlet and outlet isolation valves
Manual blow down valve

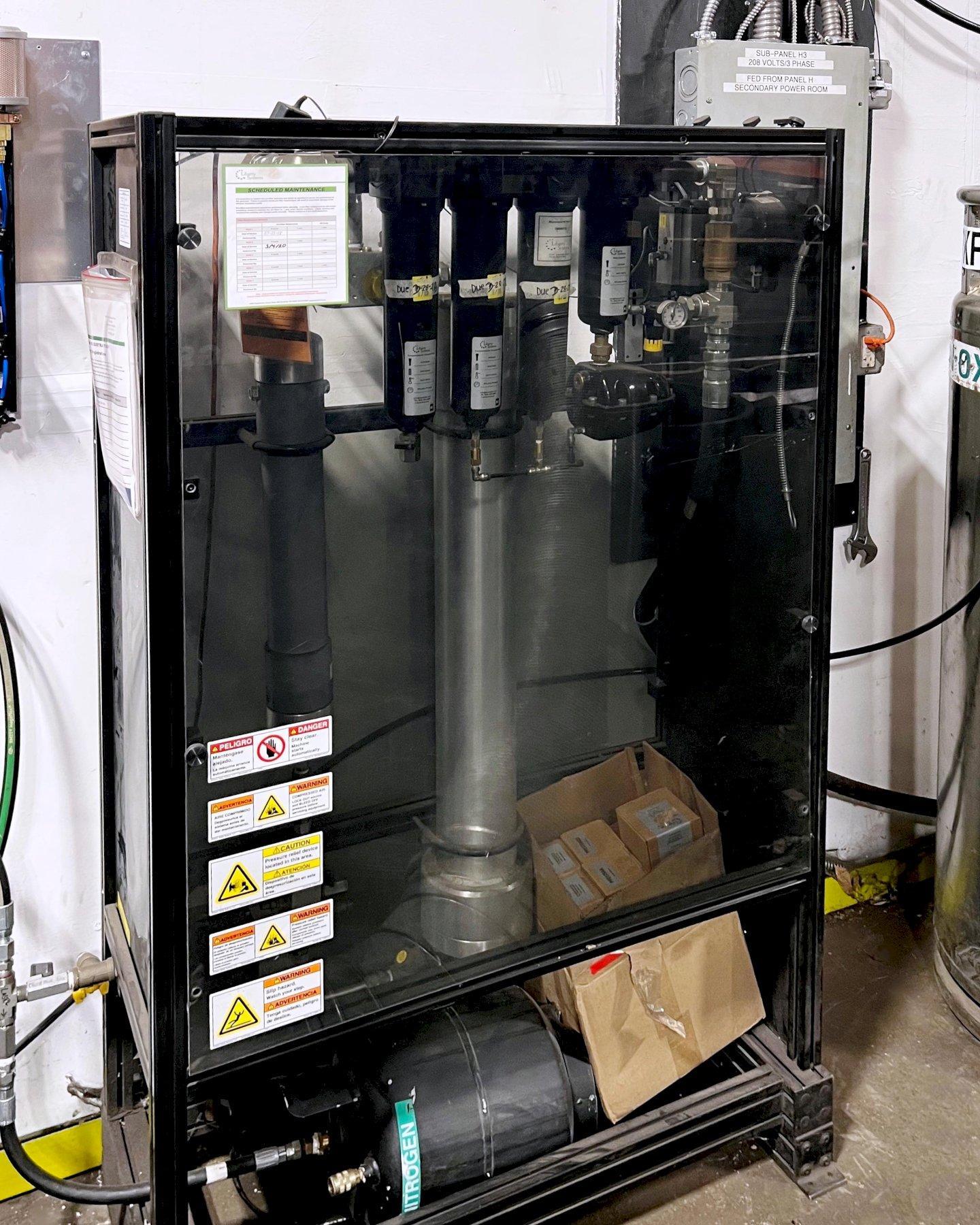

Compressed Air Filtration Assembly

Water separator
1.0-micron coalescing
0.01-micron particulate
0.003-micron vapor removal

Nitrogen Flow Rate and Purity*

375 scfh @ 1000 ppm O2 (99.9%)
750 scfh @ 5000 ppm O2 (99.5%)
1058 scfh @ 1% O2 (99.0%)
1200 scfh @ 2% O2 (98.0%)
1554 scfh @ 3% O2 (97.0%)
2369 scfh @ 4% O2 (96.0%)
2500 scfh @ 5% O2 (95.0%)
