Product Details

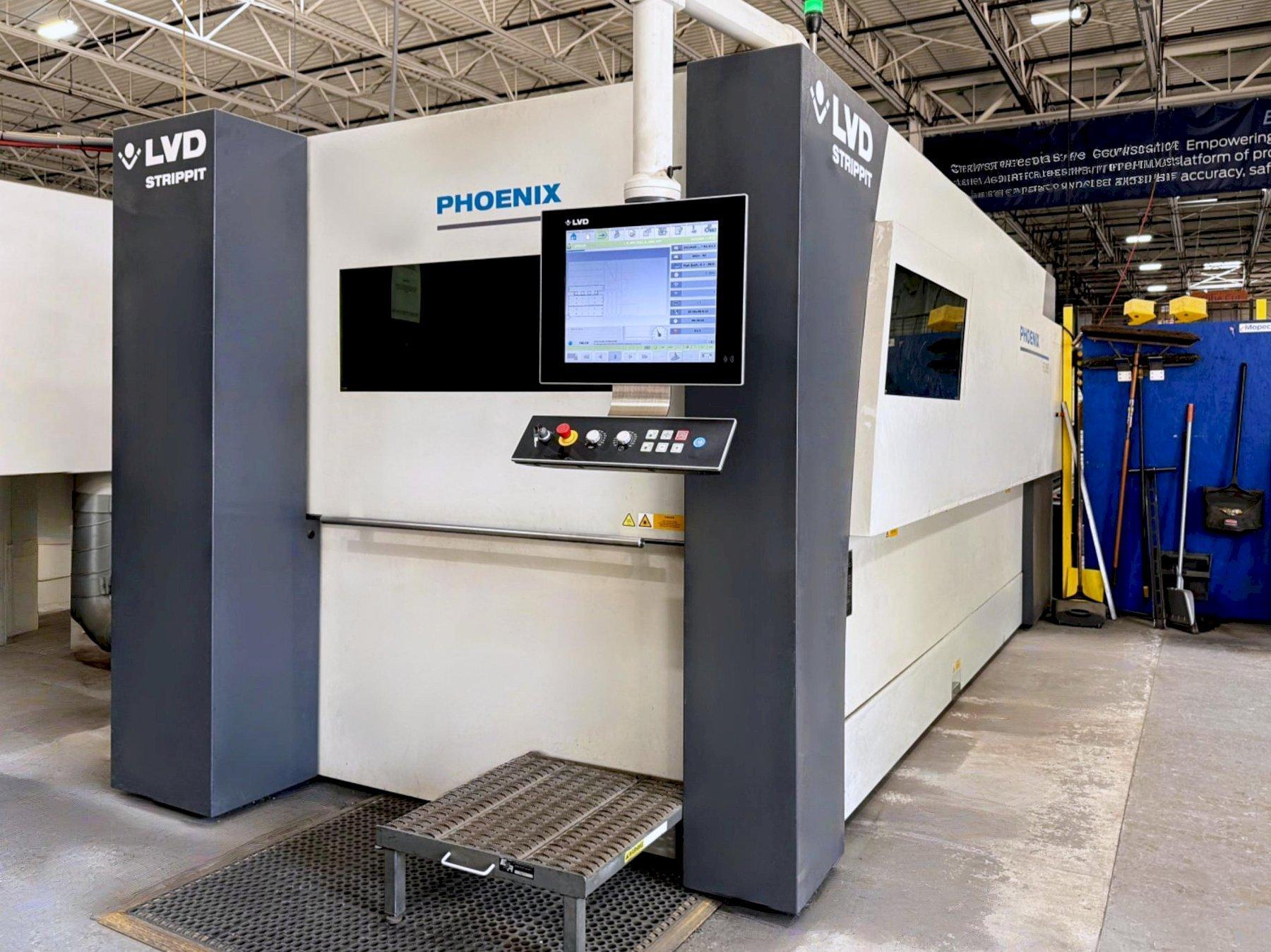

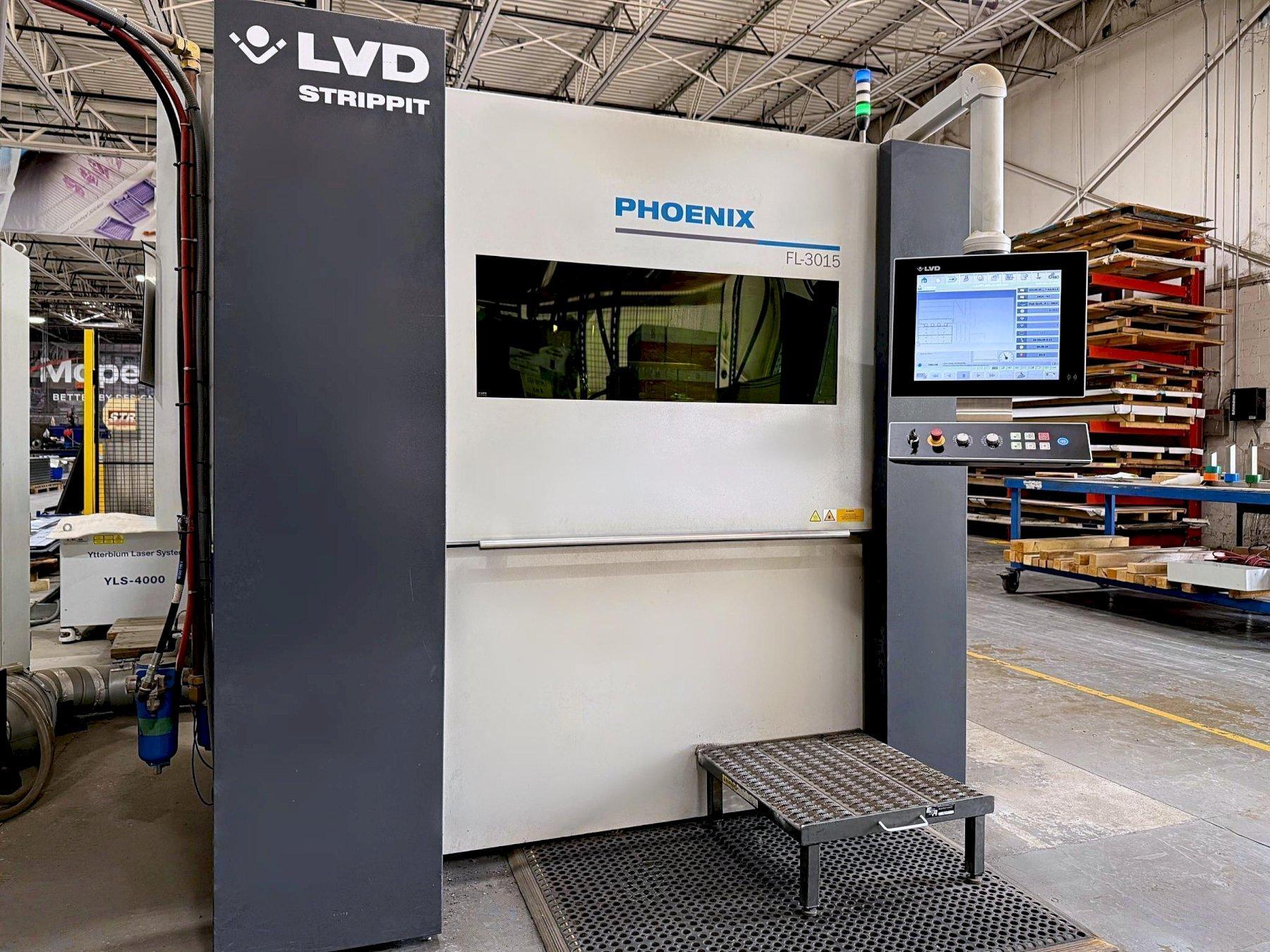

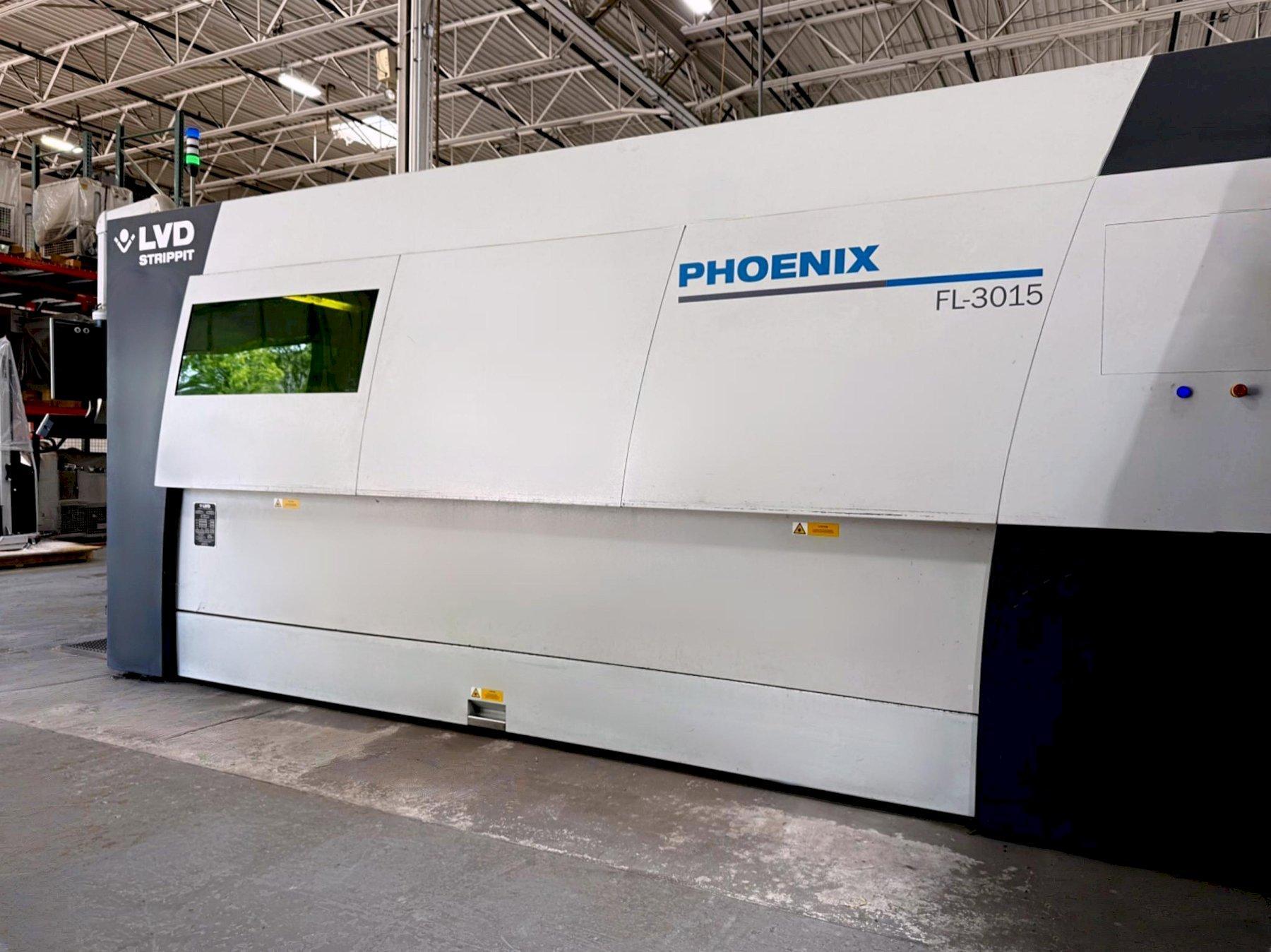

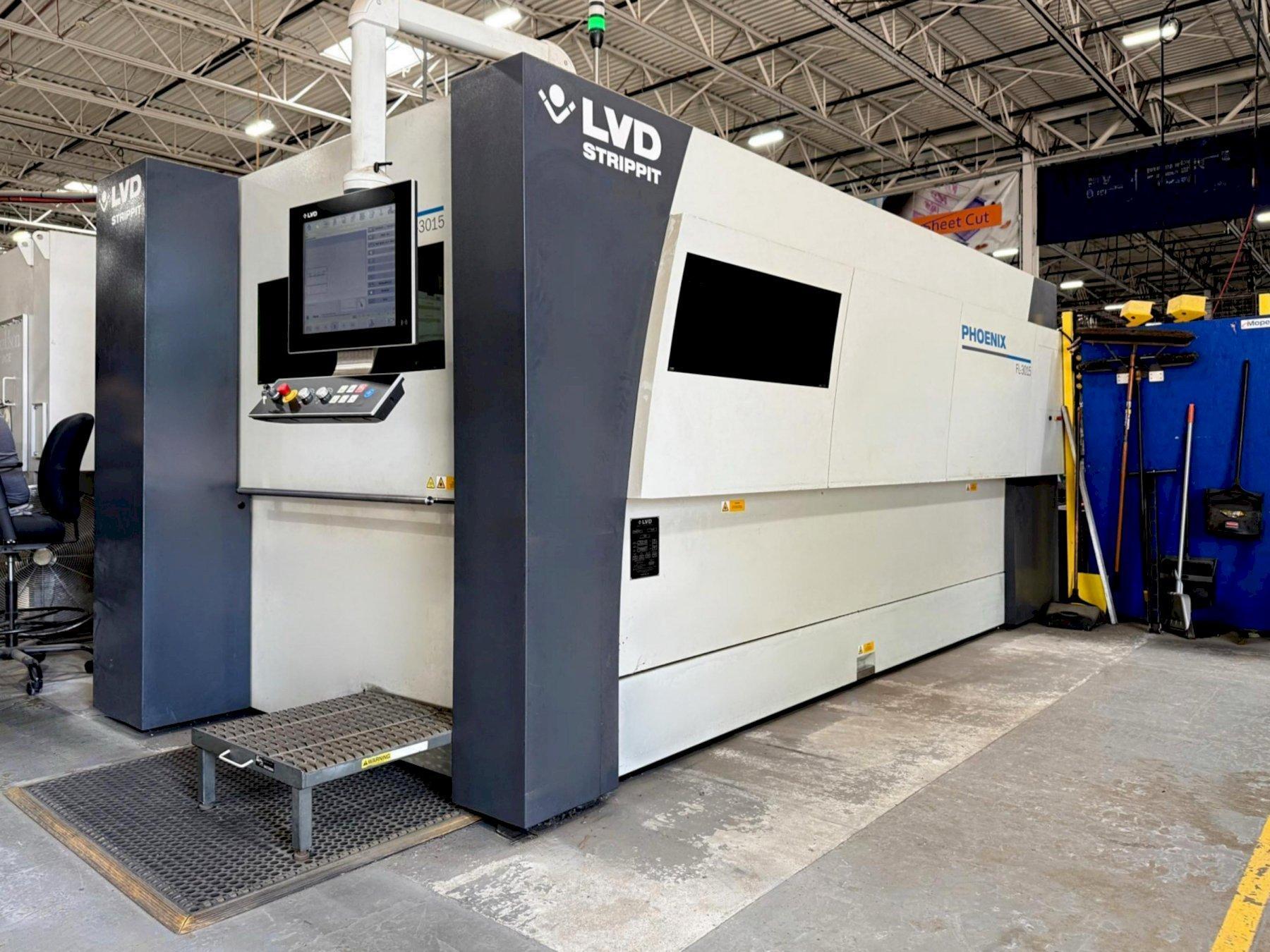

LVD Phoenix 3015 FL 4 kW Fiber

Make : LVD

Model: Phoenix 3015 FL

Year: 2020

Reference #: 100592

Highlights:

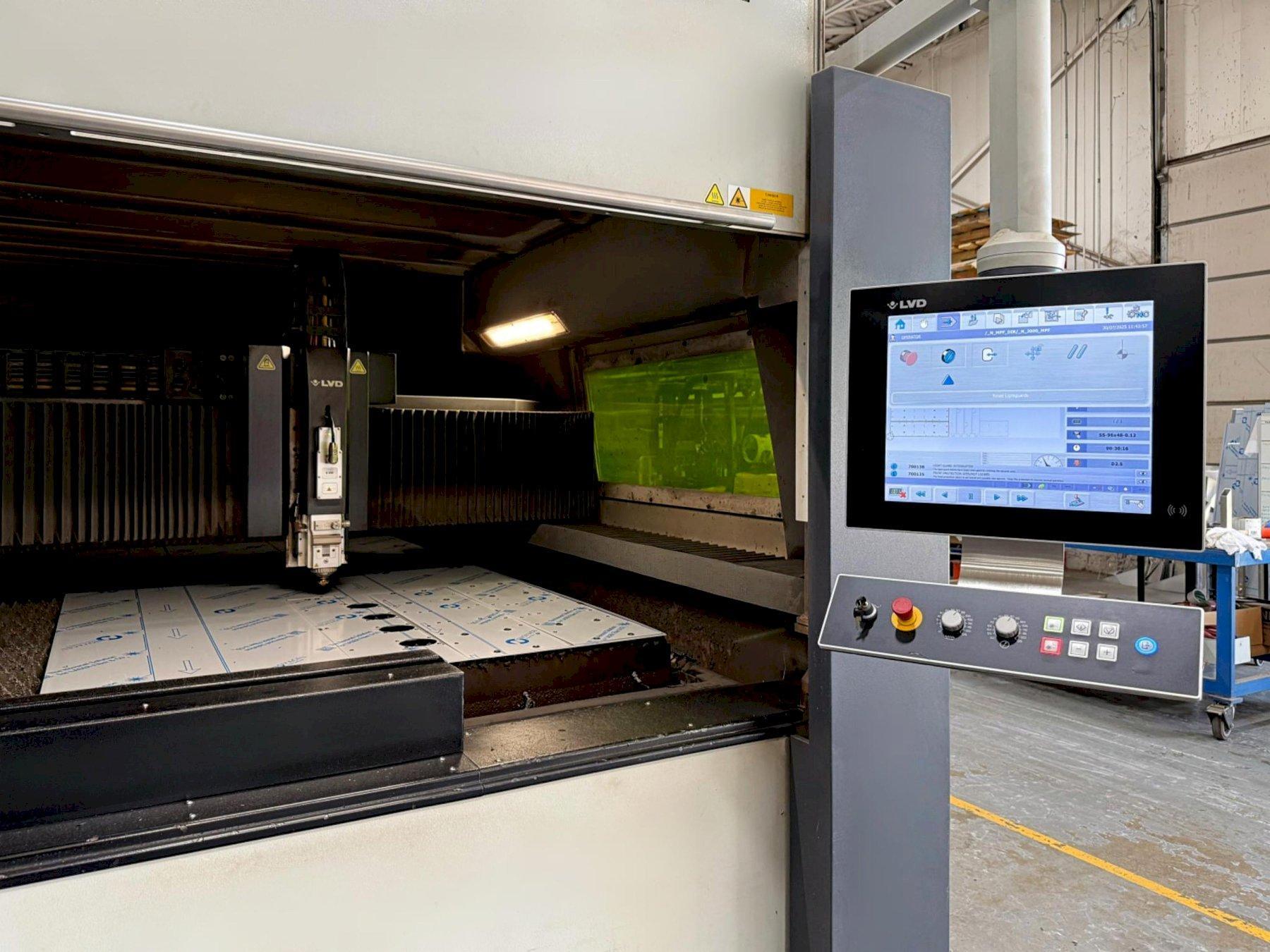

Dynamic, all-around fiber laser cutting machine in excellent condition.

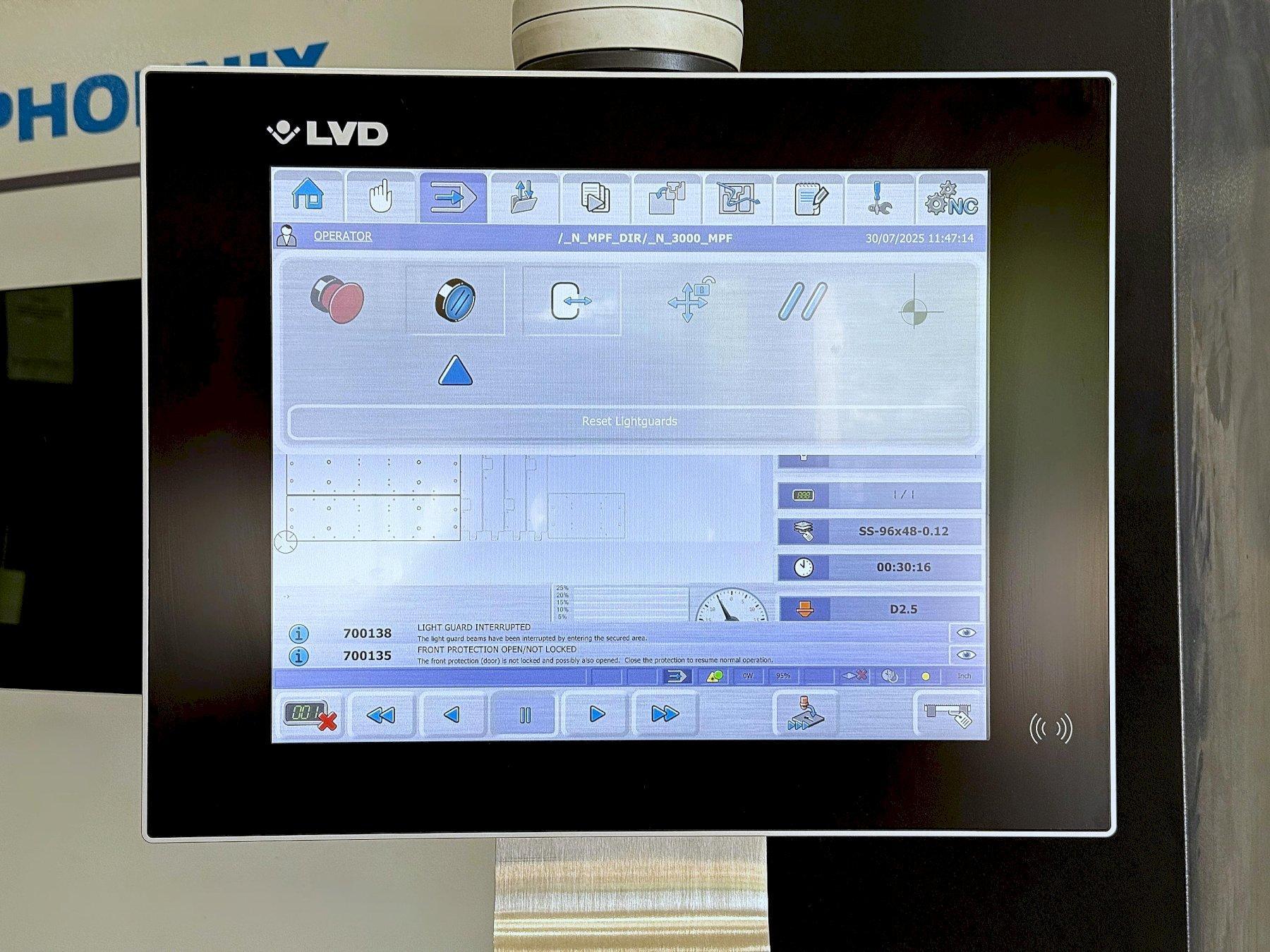

Control: LVD’s 19-inch Touch-L Control
Maximum Sheet Size: 120" x 60"
X-Axis Travel: 125"
Y-Axis Travel: 61"
Z-Axis Travel: 5.11"
Maximum Sheet Weight: 1,653 Lbs.
Table Changeover Time: 35 Sec.
Maximum Positioning Speed X-Y: 5,511 IPM
Maximum Positioning Speed Z: 1,181 IPM
Repetitive Accuracy: +/- 0.001"
Positioning Accuracy: +/- 0.002"

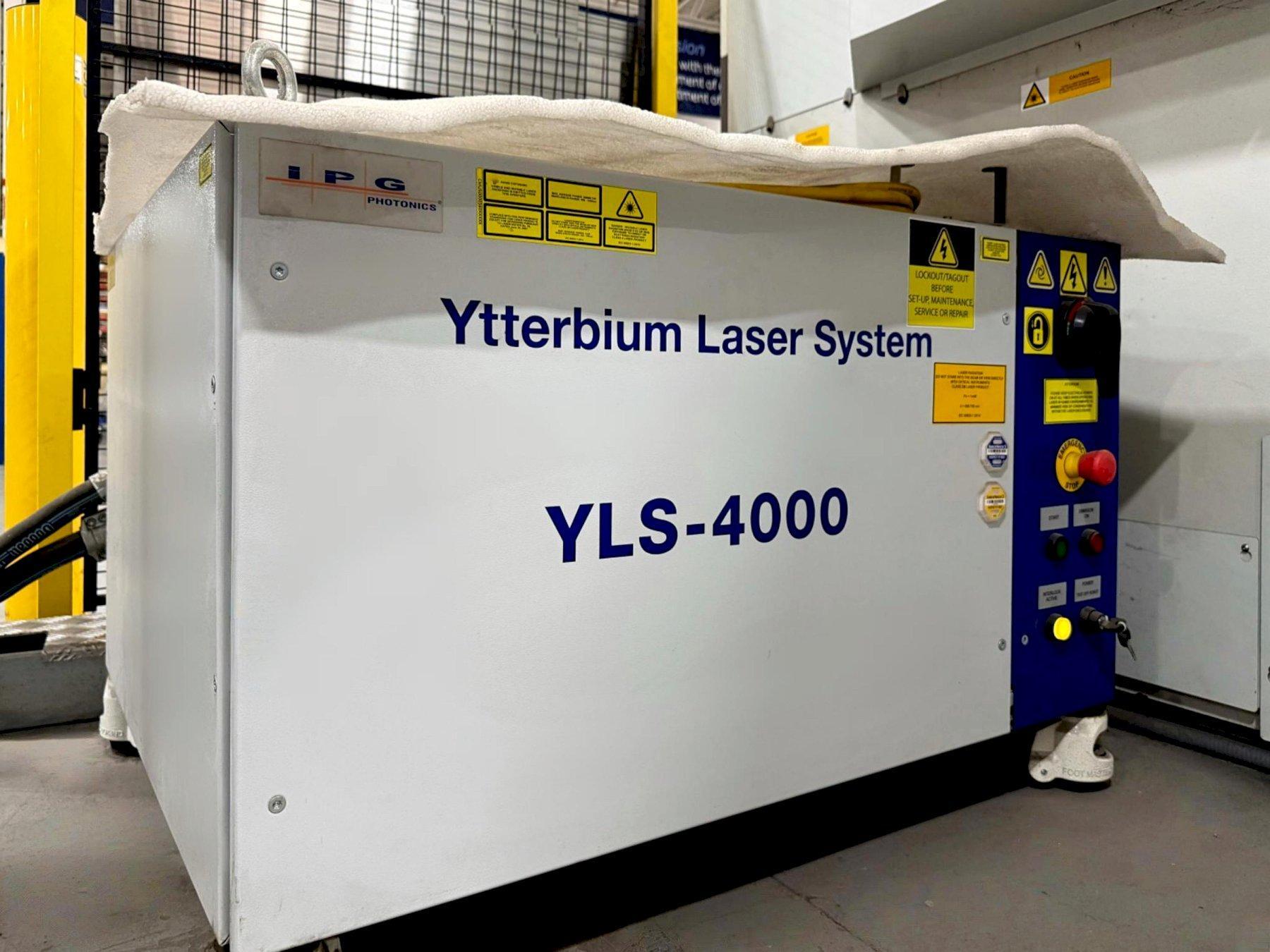

Power Source: IPG YLS 4000
Max Power Output: 4 kW (4,000 W)
Max Thickness Mild Steel: 3/4"
Max Thickness Stainless Steel: 5/8"
Max Thickness Aluminum: 5/8"
Machine Dimensions: L 29' x W 8.4' x H 11'
Machine Weight: 28,660 Lbs

Equipped With:
LVD’s 19-inch Touch-L Control

IPG YLS 4000 Power Source

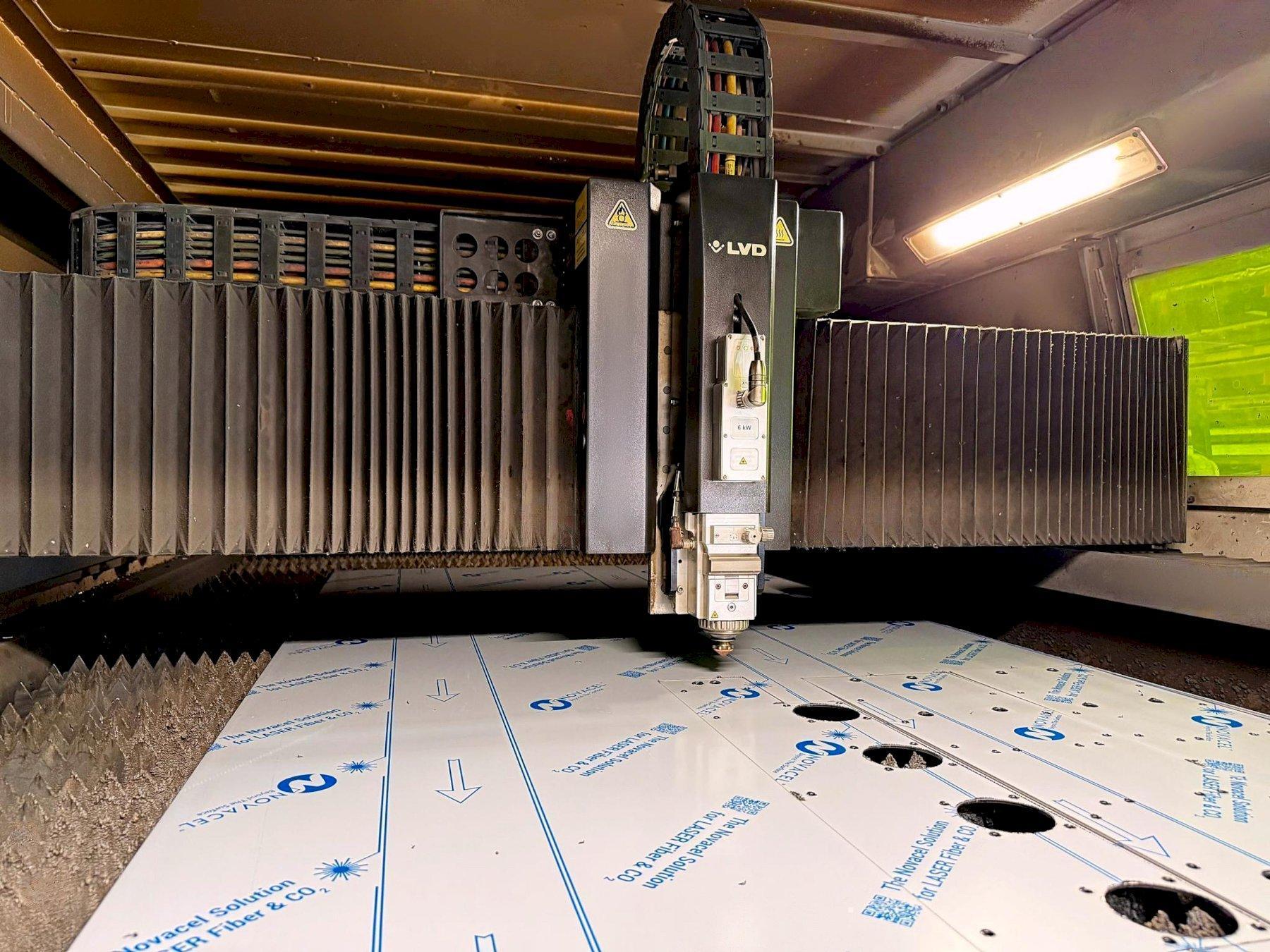

High-End Zoom Cutting Head

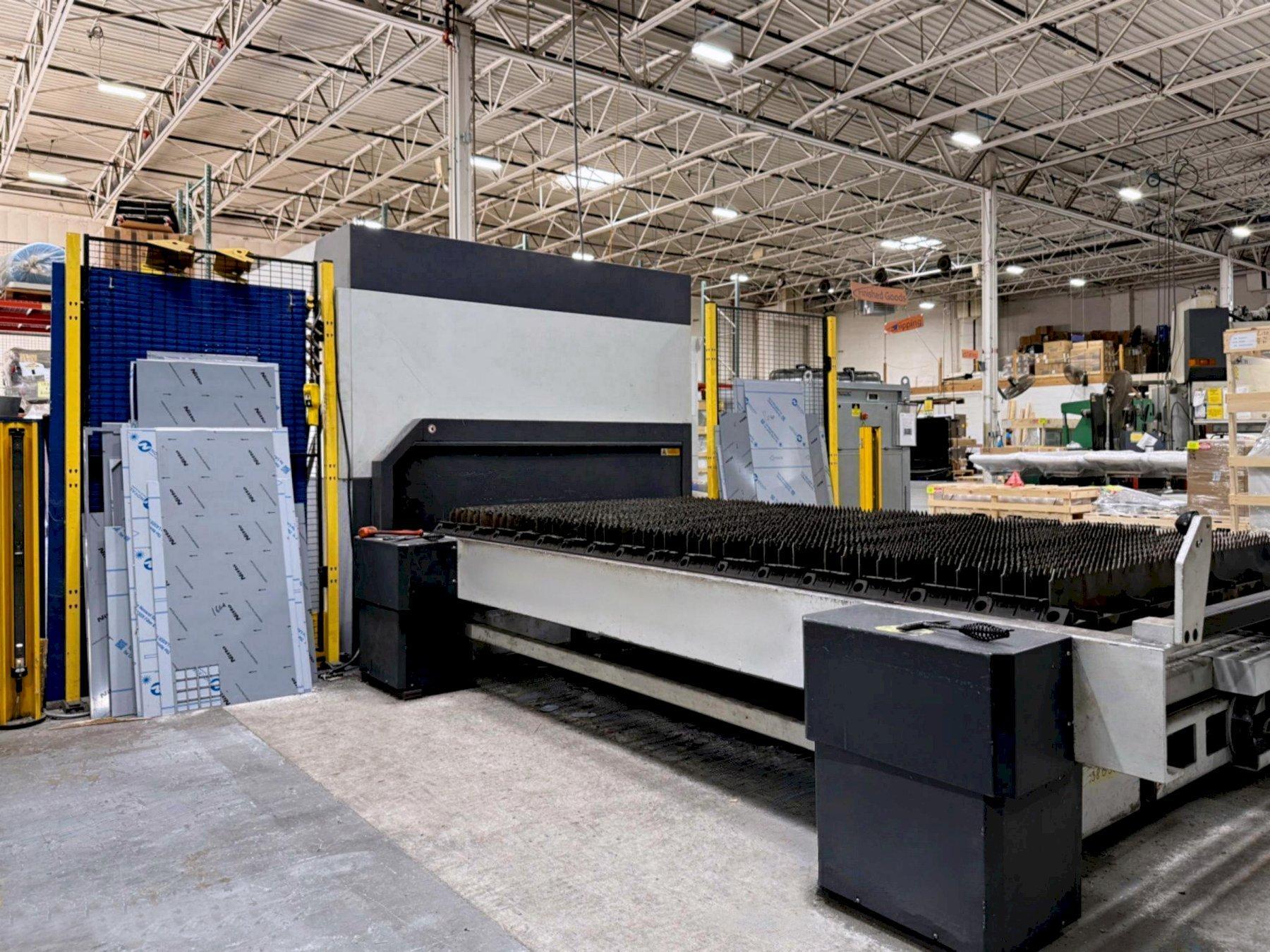

Dual Shuttel Tables

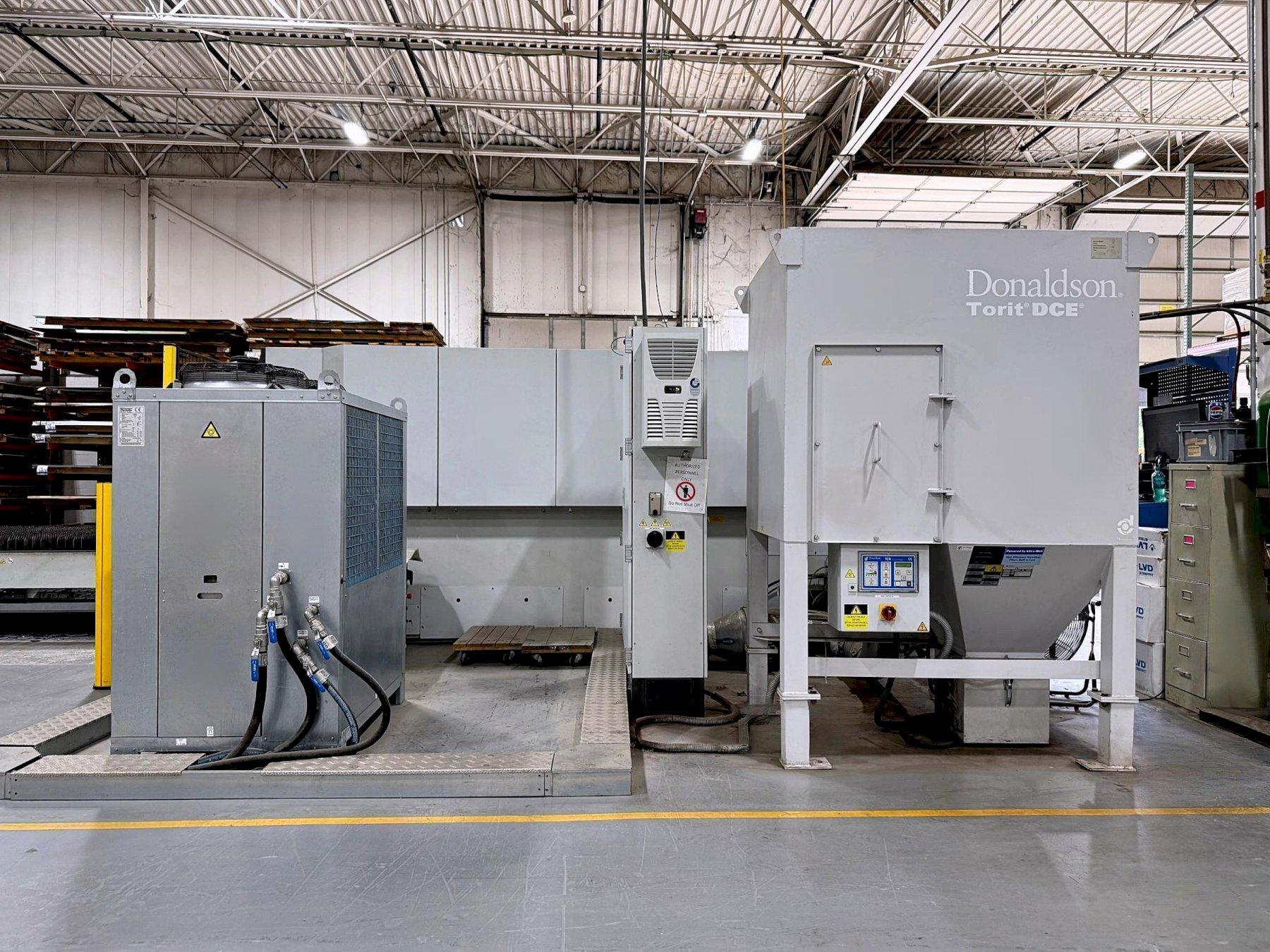

Donaldson Torit DCE Dust Collector

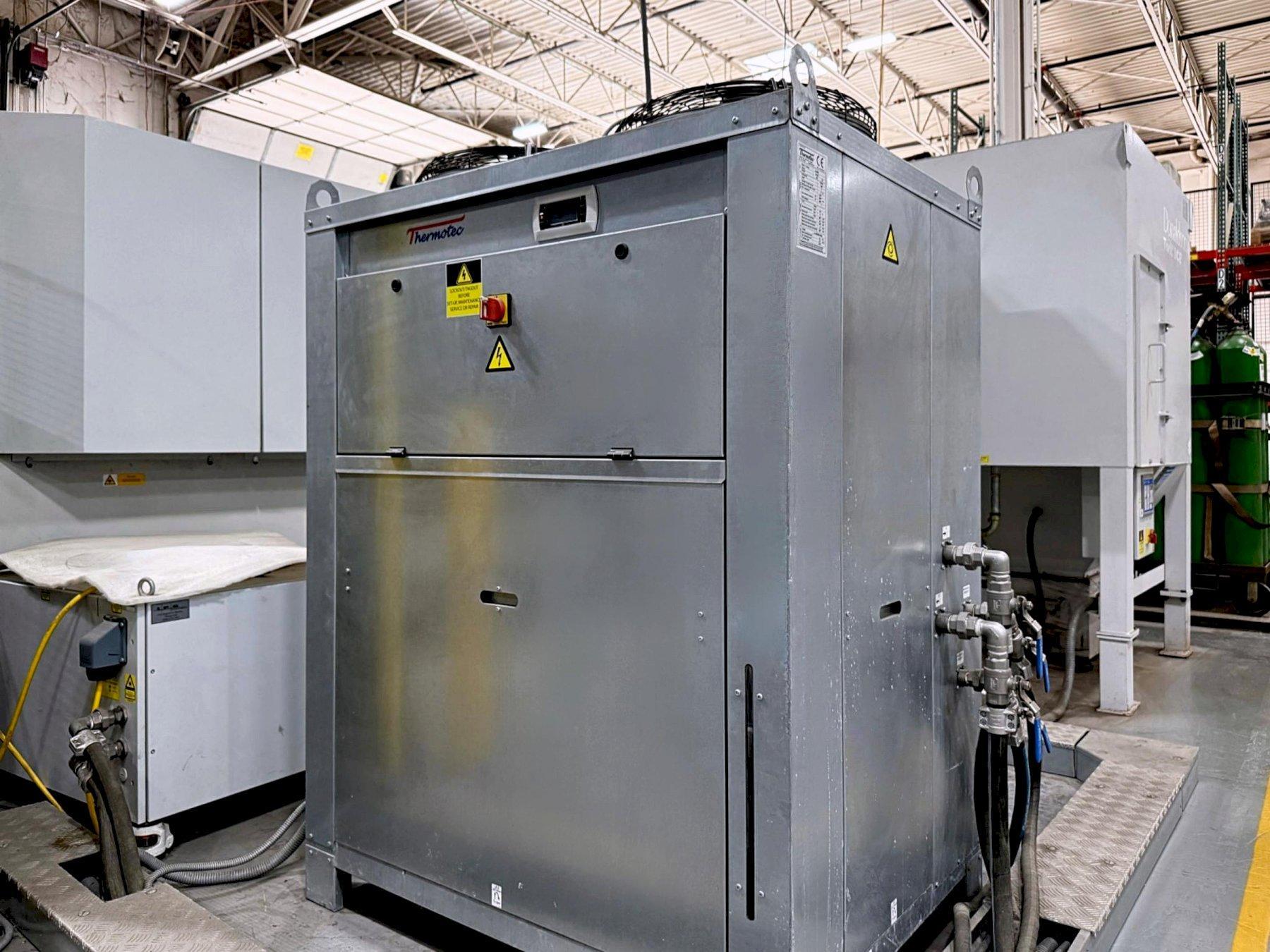

Chiller Unit
