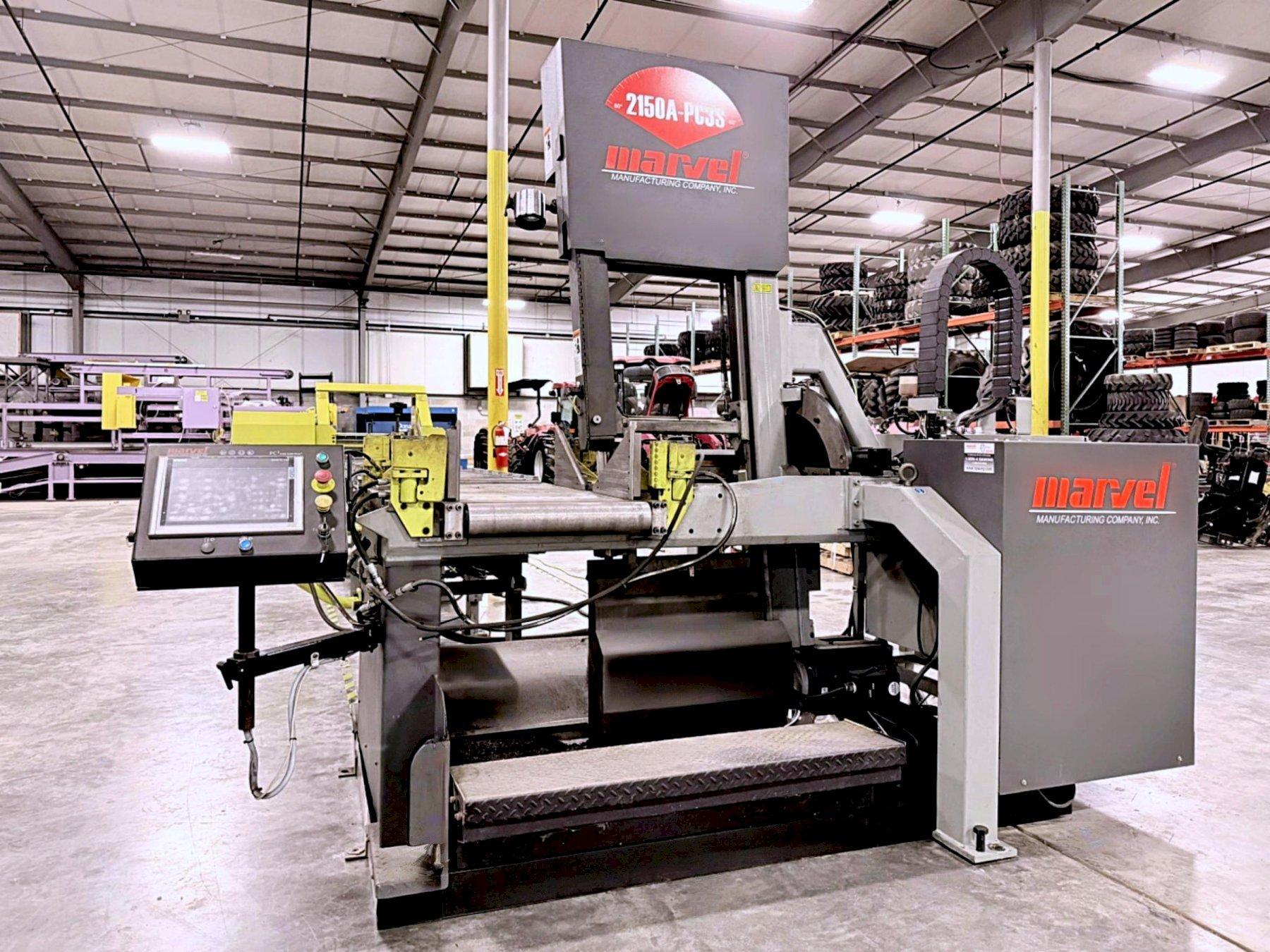

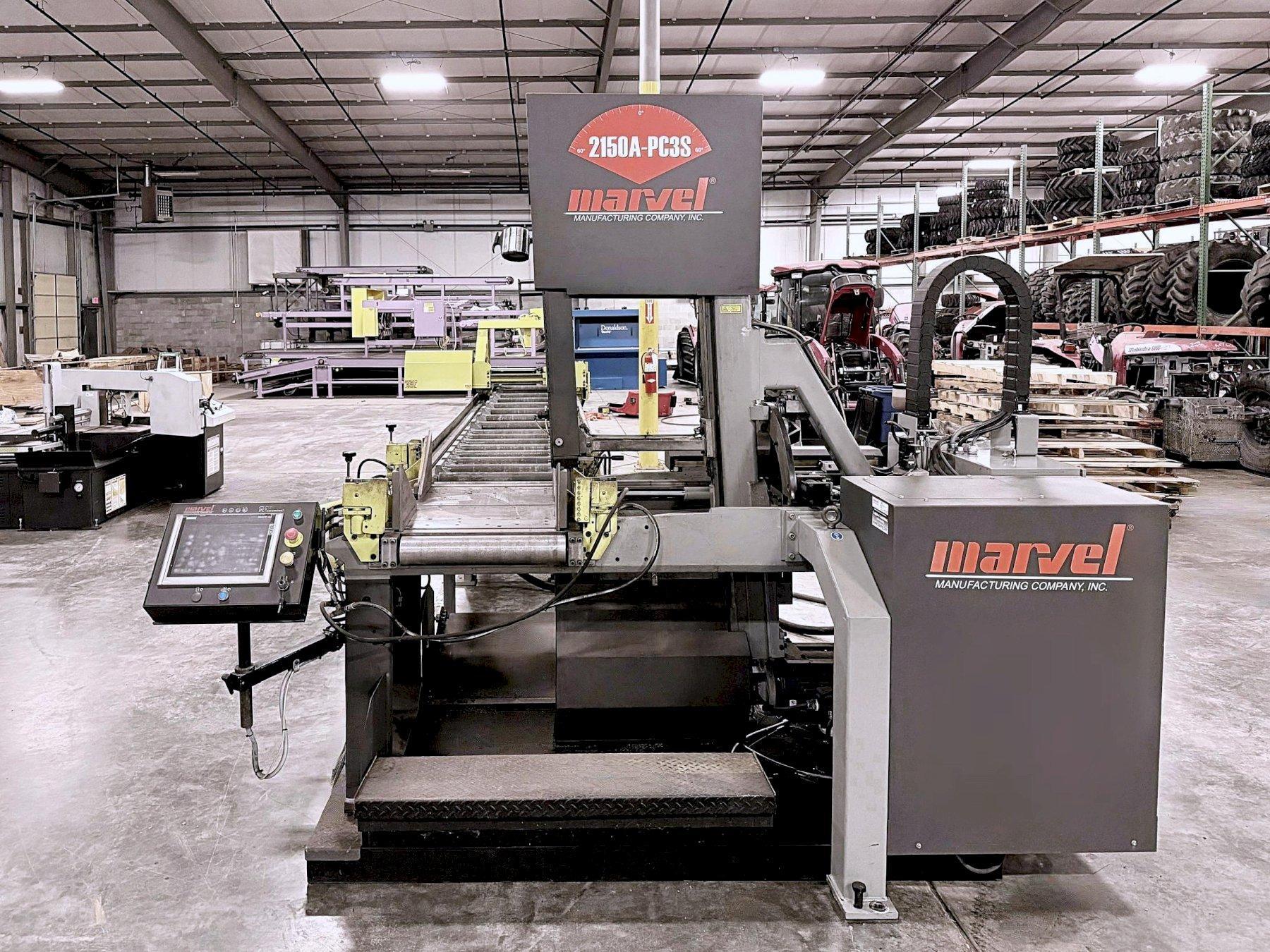

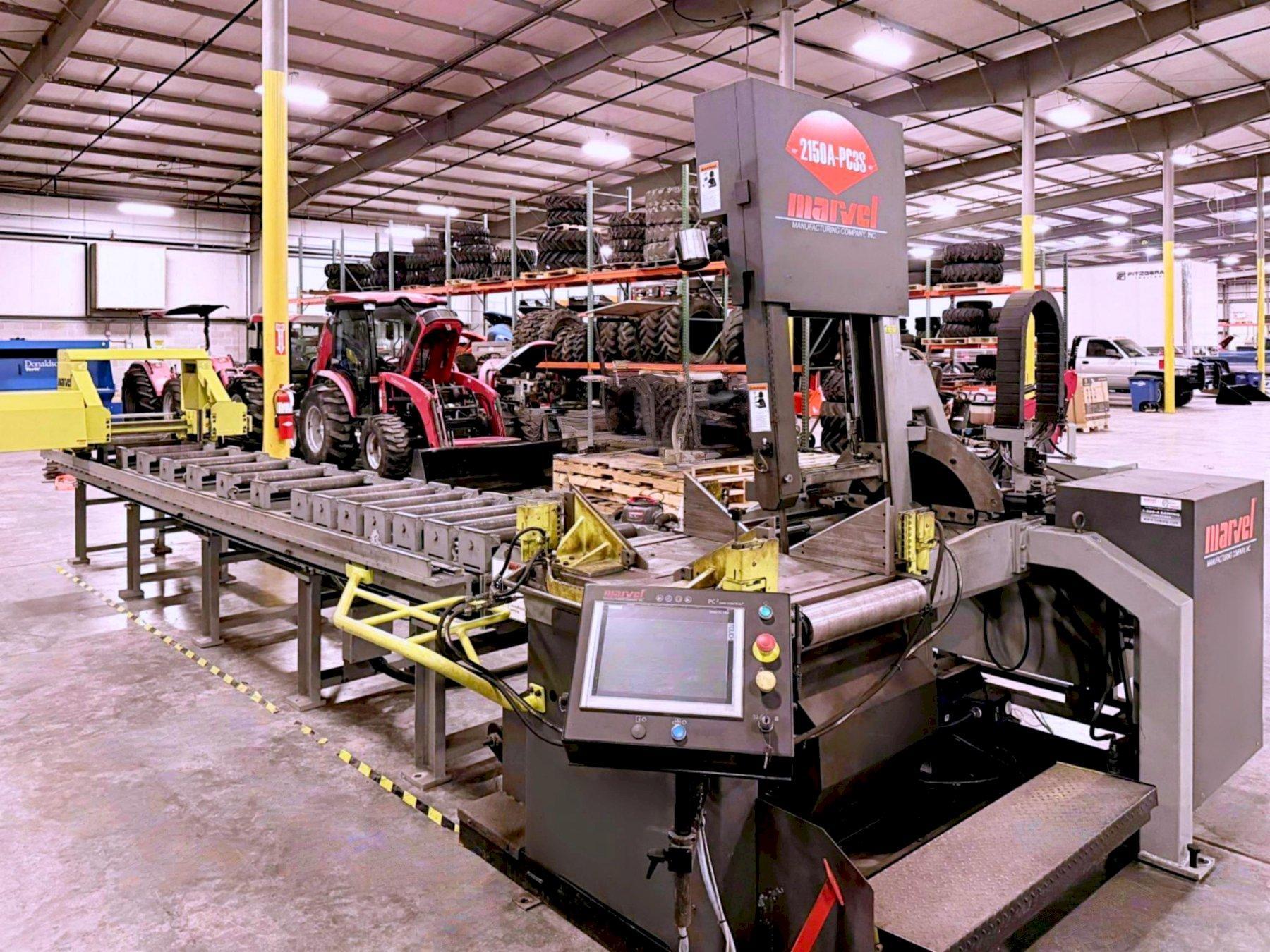

Marvel 2150A-PC3S Vertical Tilt-Frame Band Saw

Marvel 2150A-PC3S Vertical Tilt-Frame Band Saw

Marvel 2150A-PC3S Vertical Tilt-Frame Band Saw

Marvel 2150A-PC3S Vertical Tilt-Frame Band Saw

Marvel 2150A-PC3S Vertical Tilt-Frame Band Saw

Marvel 2150A-PC3S Vertical Tilt-Frame Band Saw

Marvel 2150A-PC3S Vertical Tilt-Frame Band Saw

Marvel 2150A-PC3S Vertical Tilt-Frame Band Saw

Marvel 2150A-PC3S Vertical Tilt-Frame Band Saw

Marvel 2150A-PC3S Vertical Tilt-Frame Band Saw

Marvel 2150A-PC3S Vertical Tilt-Frame Band Saw

Marvel 2150A-PC3S Vertical Tilt-Frame Band Saw

Marvel 2150A-PC3S Vertical Tilt-Frame Band Saw

Marvel 2150A-PC3S Vertical Tilt-Frame Band Saw

Marvel 2150A-PC3S Vertical Tilt-Frame Band Saw

Marvel 2150A-PC3S Vertical Tilt-Frame Band Saw

Marvel 2150A-PC3S Vertical Tilt-Frame Band Saw

Marvel 2150A-PC3S Vertical Tilt-Frame Band Saw

Marvel 2150A-PC3S Vertical Tilt-Frame Band Saw

Marvel 2150A-PC3S Vertical Tilt-Frame Band Saw

Make : MARVEL

Model: 2150A-PC3S

Year: 2017

Type: Saws, Band, Vertical

Reference #: 100635

Highlights:
Industries Most Popular Automatic Vertical Tilt-Frame Band Saw

Request a Quote Sell Your Machine

Specifications Equipped With

Control: Marvel PC3 CNC Control

Nominal Rectangles: 20″ X 25″

Nominal Rounds: 20″

Blade @ 45o Rectangles: 20″ X 17″

Blade @ 45o Rounds: 17″

Blade @ 60o Rectangles: 20″ X 11.25″

Blade @ 60o Rounds: 11.25″

Max. Material Feed: 18'

Speed Range (Infinitely Variable): 30 to 500 FPM

Motors Main Drive: 7.5 HP

Blade Drive: Electric w/ Sensorless Vector Control

Column: Tilting for Miter Cutting up to 60° L/R of Vertical

Feed: Direct Force Sensing Electric Ball Screw Feed

Blade: (L) 17′ 6″ x (W) 1.25″

Blade Guides: Carbide & Ball Bearing Roller Guides

Blade Tension: Hydraulically Controlled - 45,000 PSI. Max.

Upper Blade Guide Arm: Hydraulically Positioned & Locking

Material Index Mechanism: Shuttle Vise

Vises: Hydraulic, Full Stroking w/ 9-1/2” High x 15” Wide 60o Faceplates

Coolant System: Built-In w/ Flood System (60 Gallon Capacity)

Work Load Capacity: 8,000 Lbs.

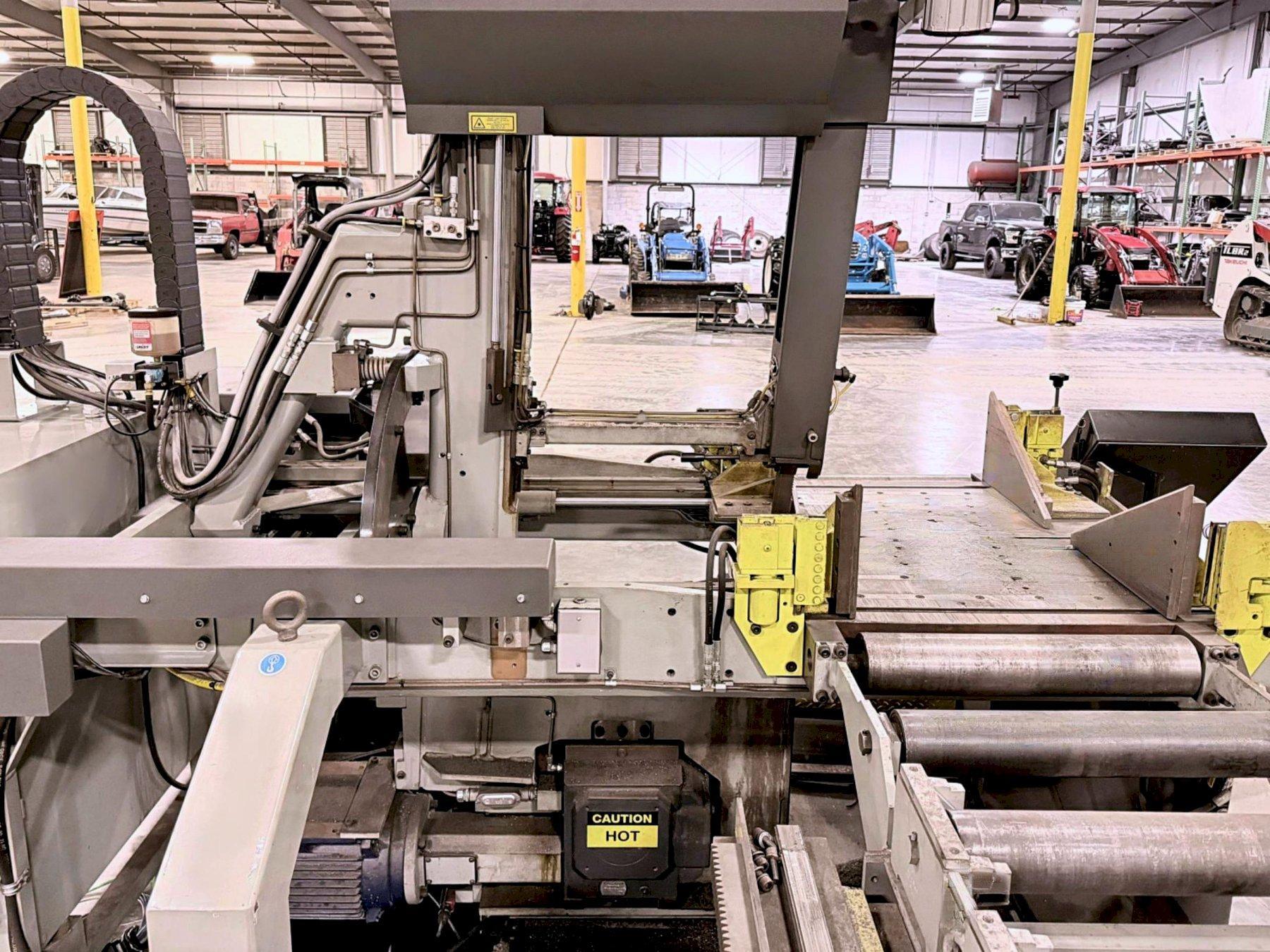

Work-Rest Rollers: (2) Turned Ball Bearing Rollers, Entry/Discharge Side

Auto Bar Feed Stroke Length: 48”

Auto Bar Feed Indexing Speeds: Up To 60 Ft./Min

Auto Bar Feed Creep Speeds: Up to 33 In./Min.

Work Entry: Left-To-Right

Cutting Fluid: Two (2) Gallons Soluble Oil

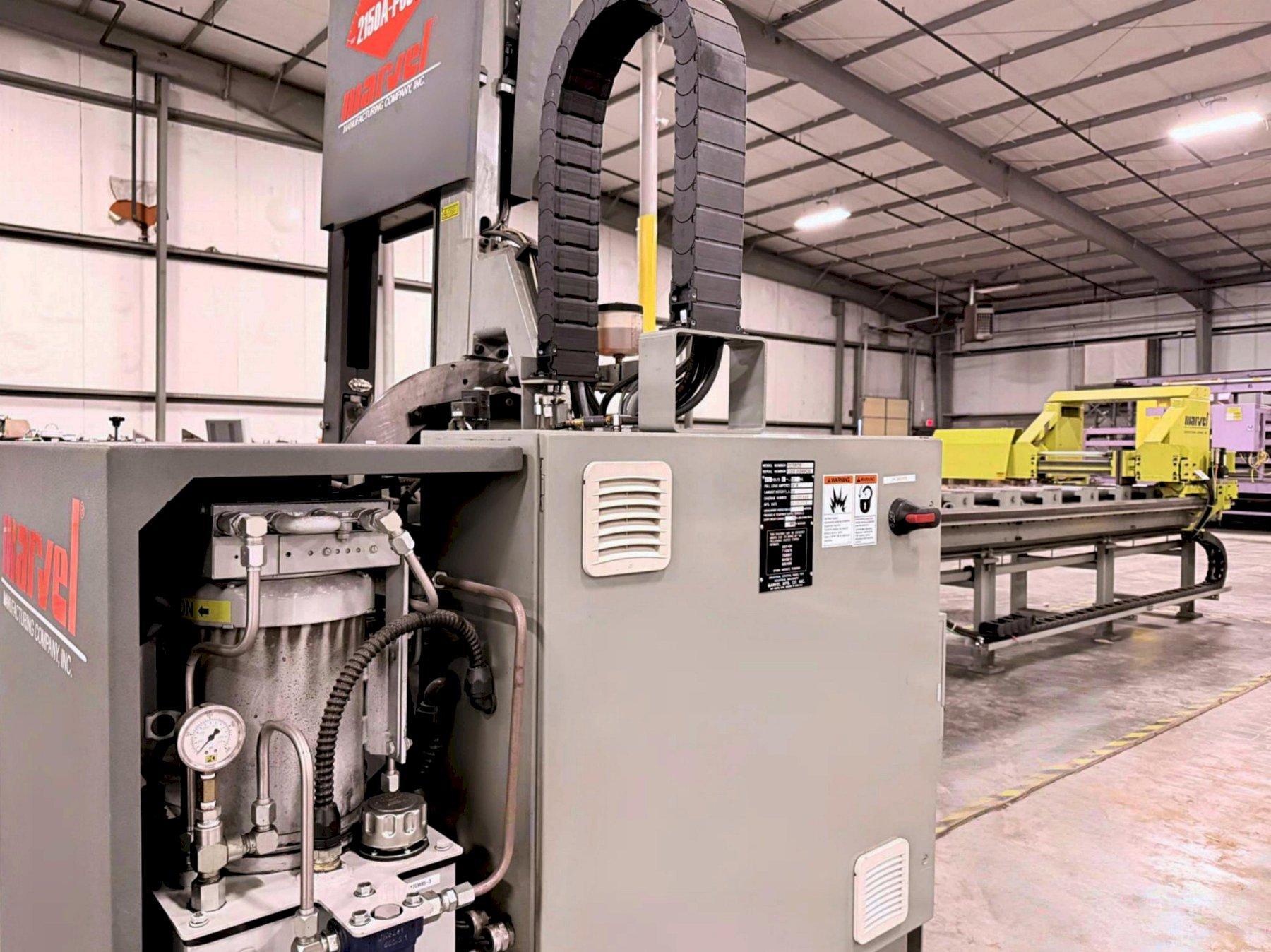

Hydraulic Oil: 10 Gallons

Bandsaw Blades: One (1) Welded-Edge Blade

Table Height (Above Floor): 40″

Power Requirements: 460V/3Ph/60Hz

Machine Dimensions: (W) 94.7″ x (L) 99.2″ x (H) 90.8″ (Feed Table Not Included)

Weight (Base Machine & Index Tablet): 7,800 Lbs.

Equipped With:

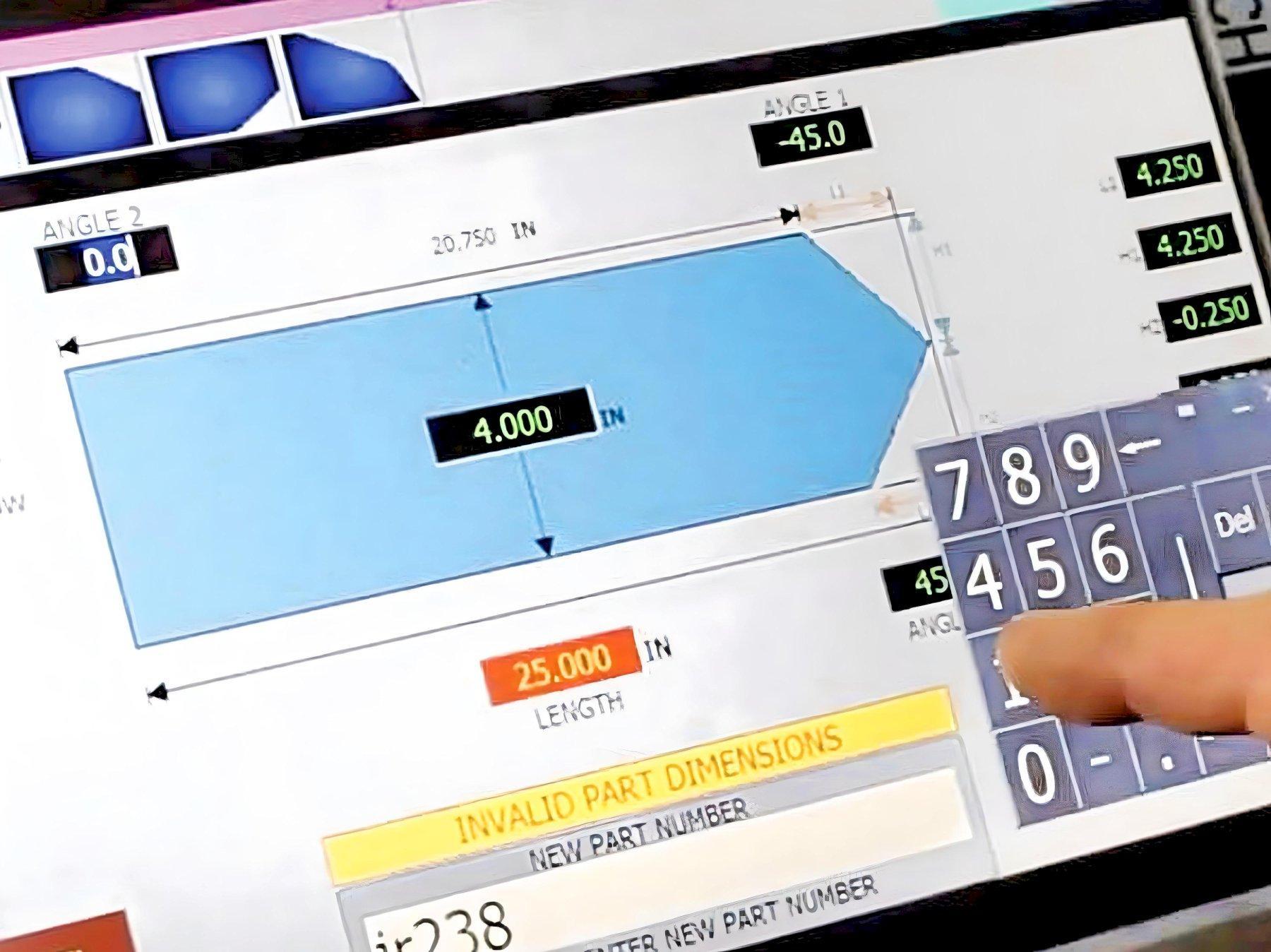

Marvel PC3 Programmable Control w/ Touch Screen

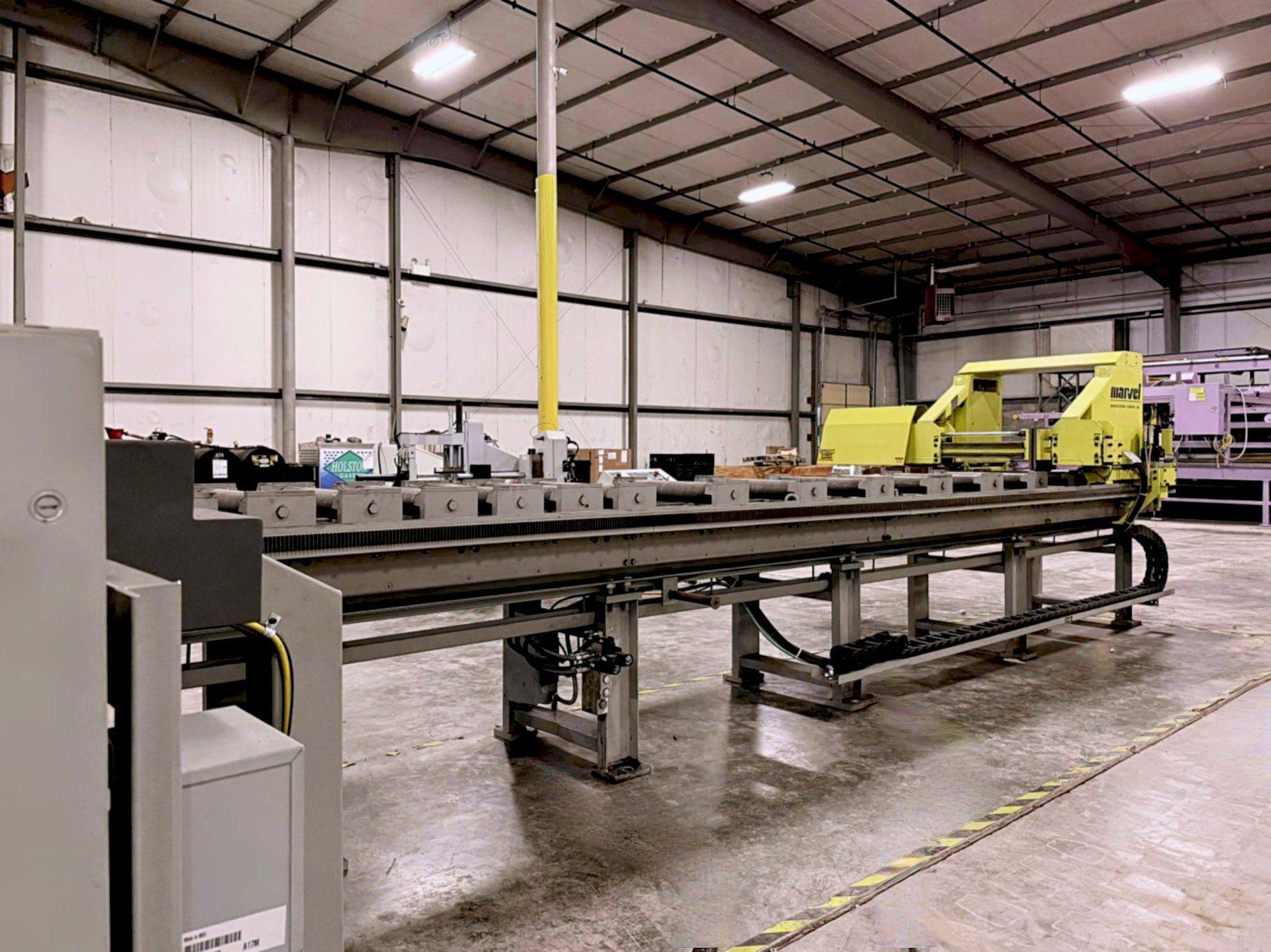

18’ Extended Feed Systems

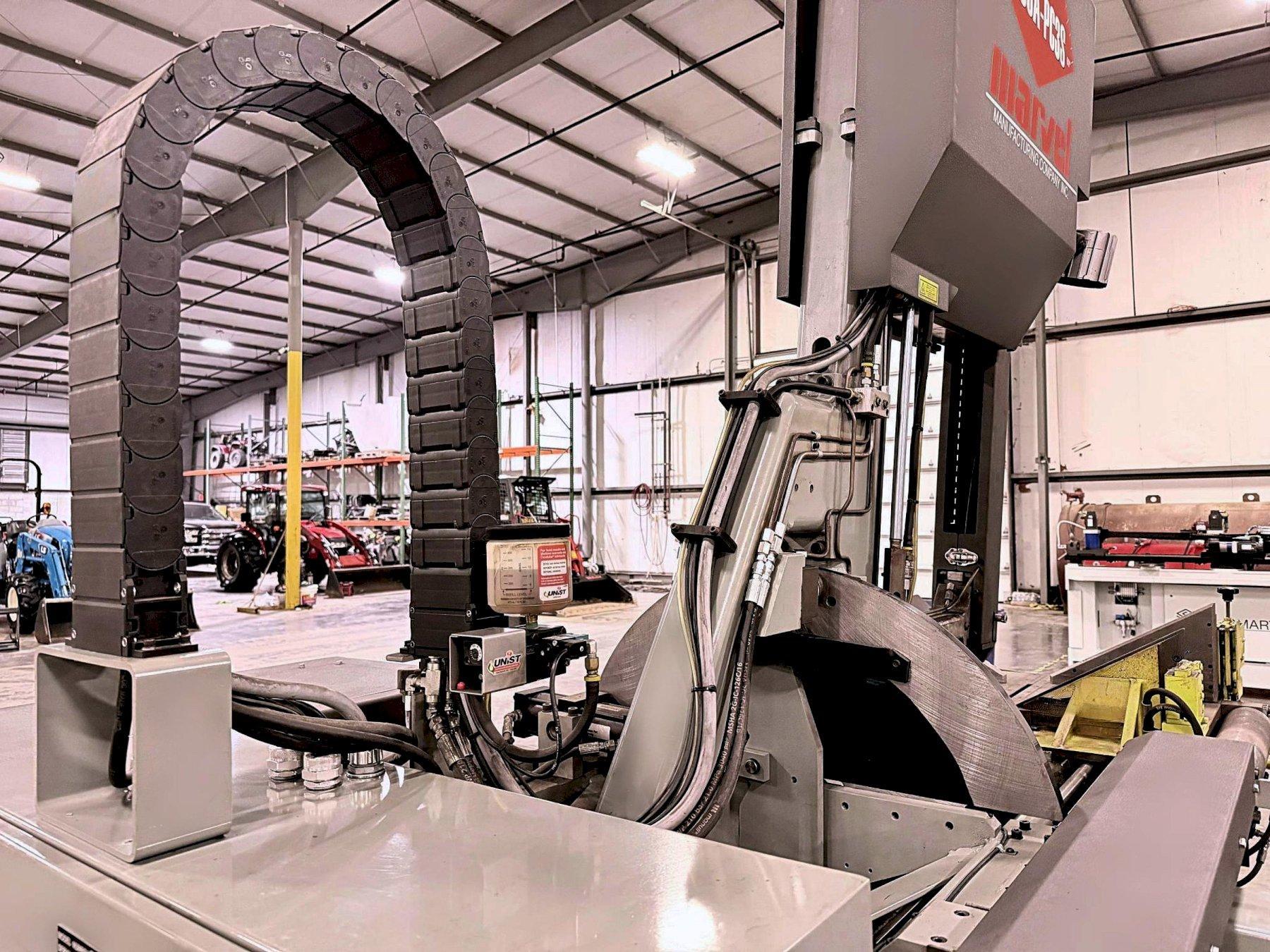

Tilting Column for Miter Cutting up to 60° L & R of Vertical

0° to 3° Canted Column Blade and Direct Blade Drive

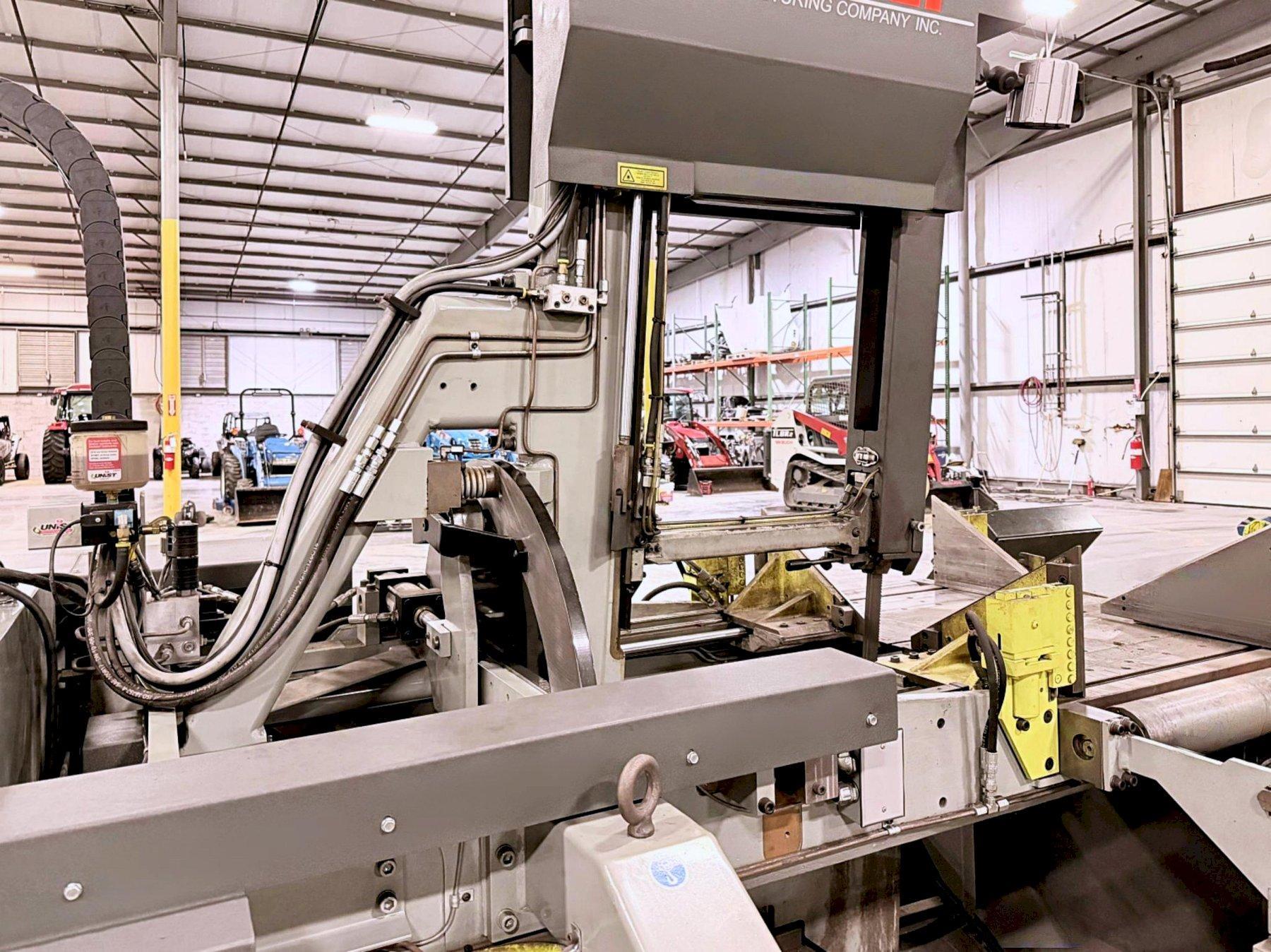

Hydraulic Upper Blade Guide Arm

Blade Guide with Self-Tensioning Design

Hydraulic Vises

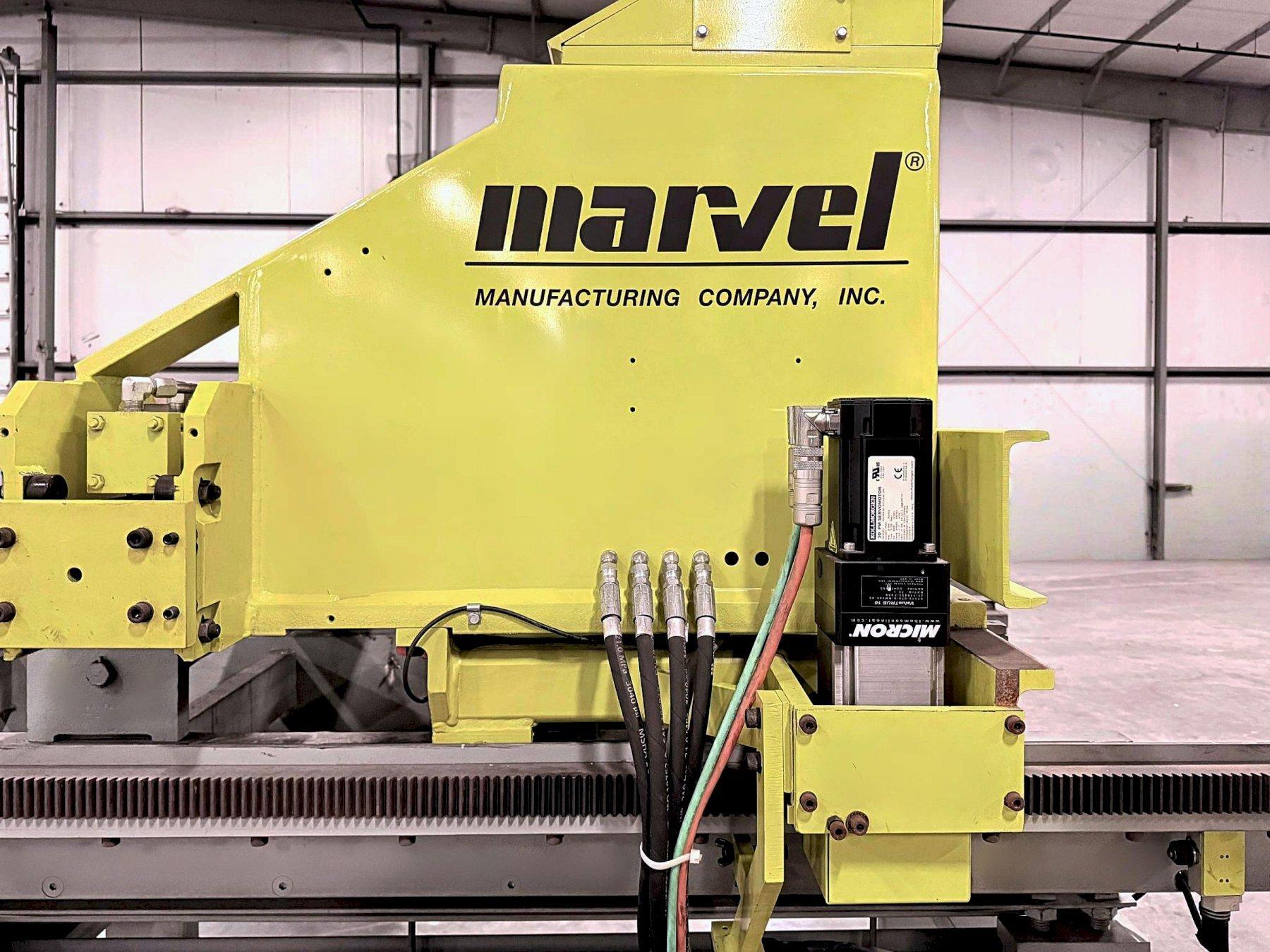

Automatic Bar Feed with indexing

Built-In Coolant Flood System

(2) Work-Rest Rollers

7.5 HP Main Drive Motor

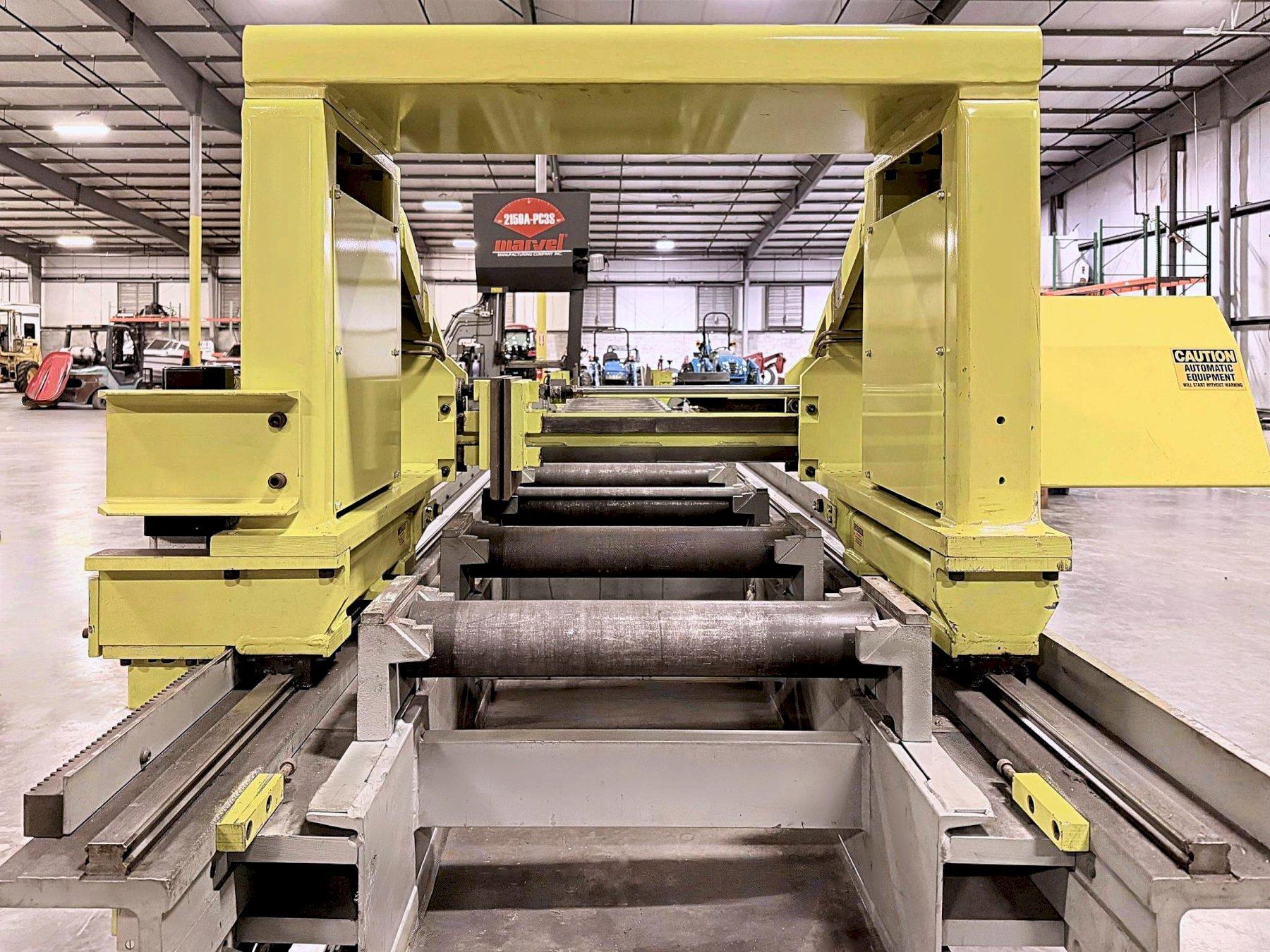

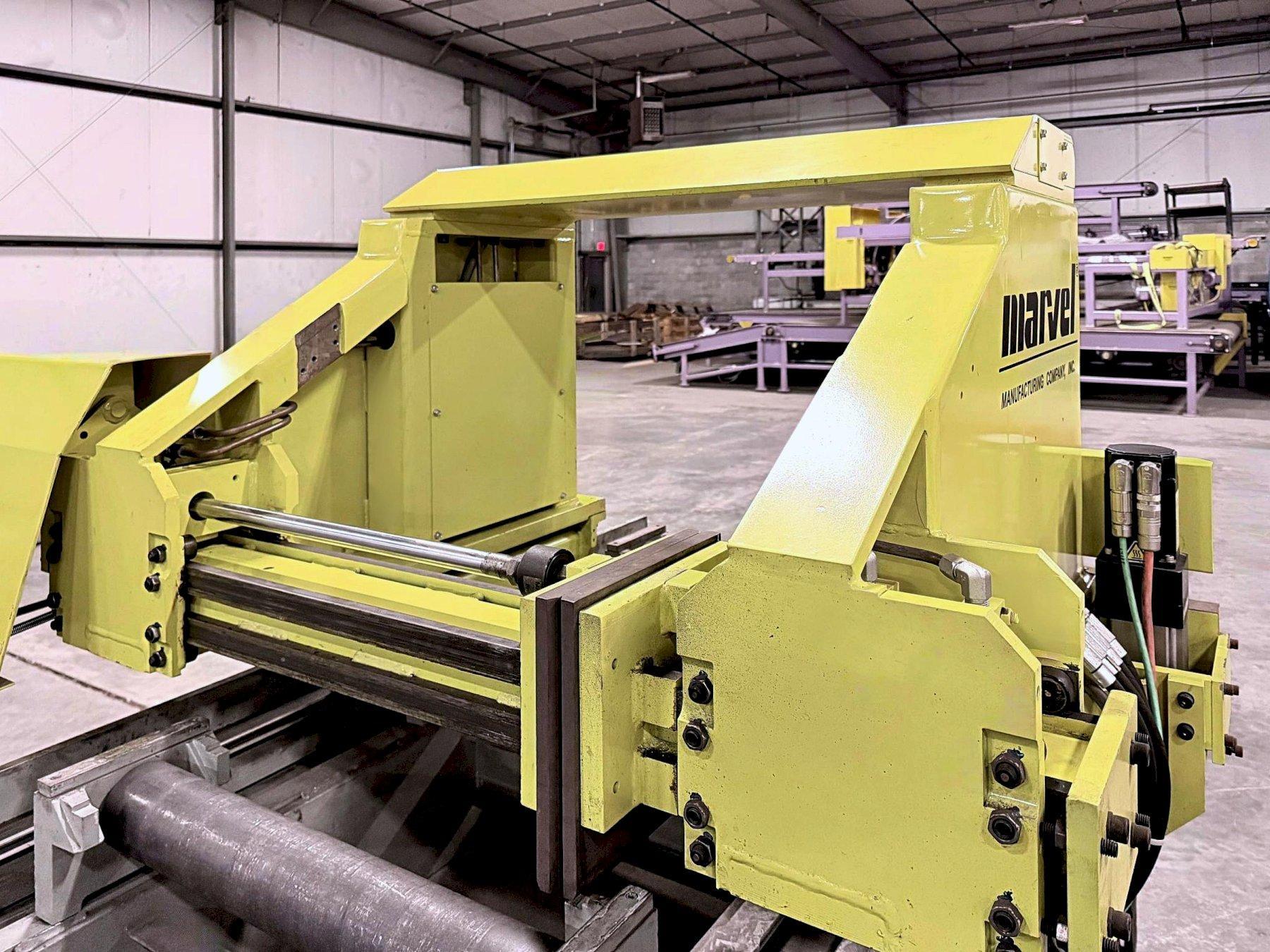

Heavy-Duty Shuttle Conveyor

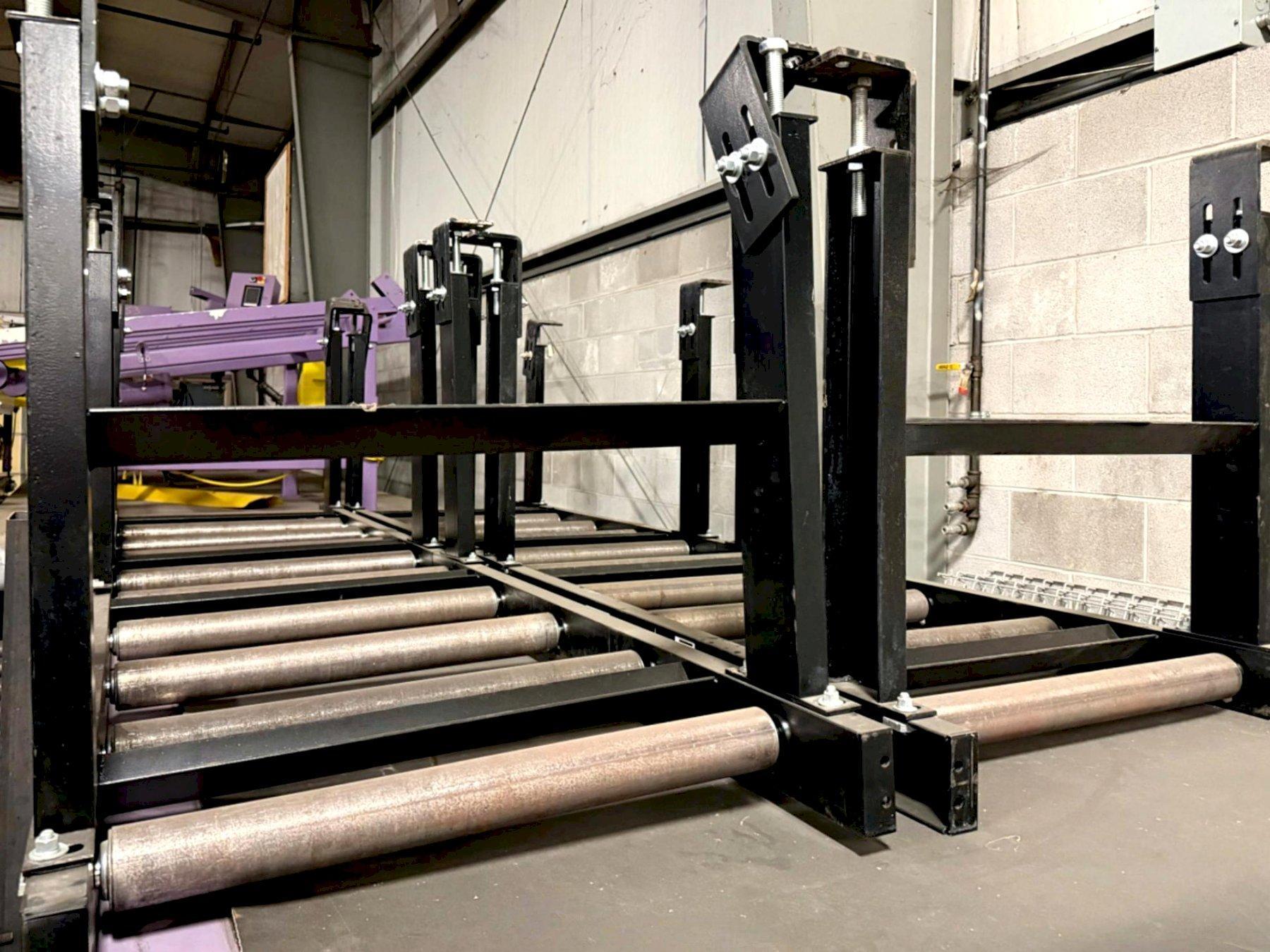

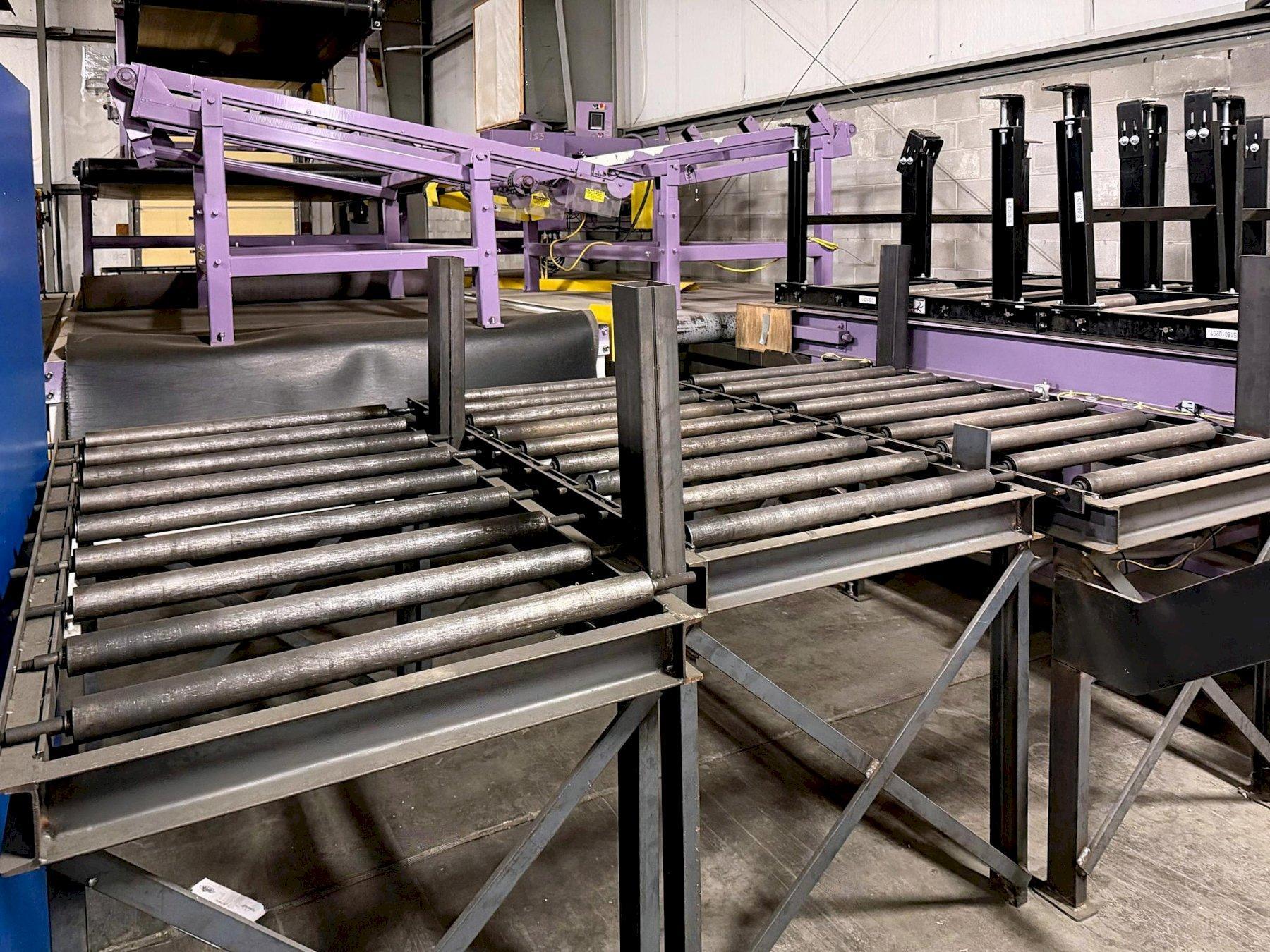

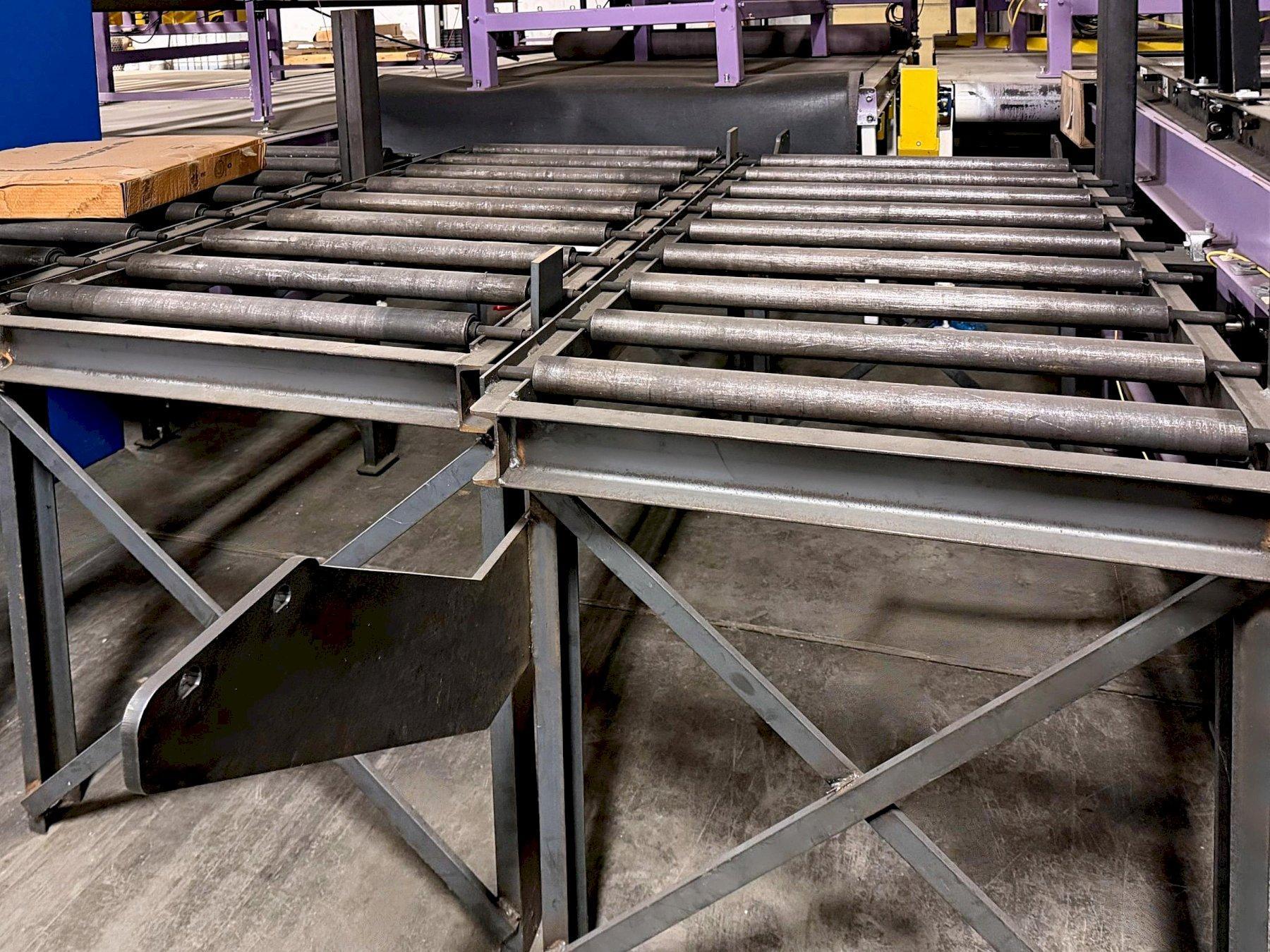

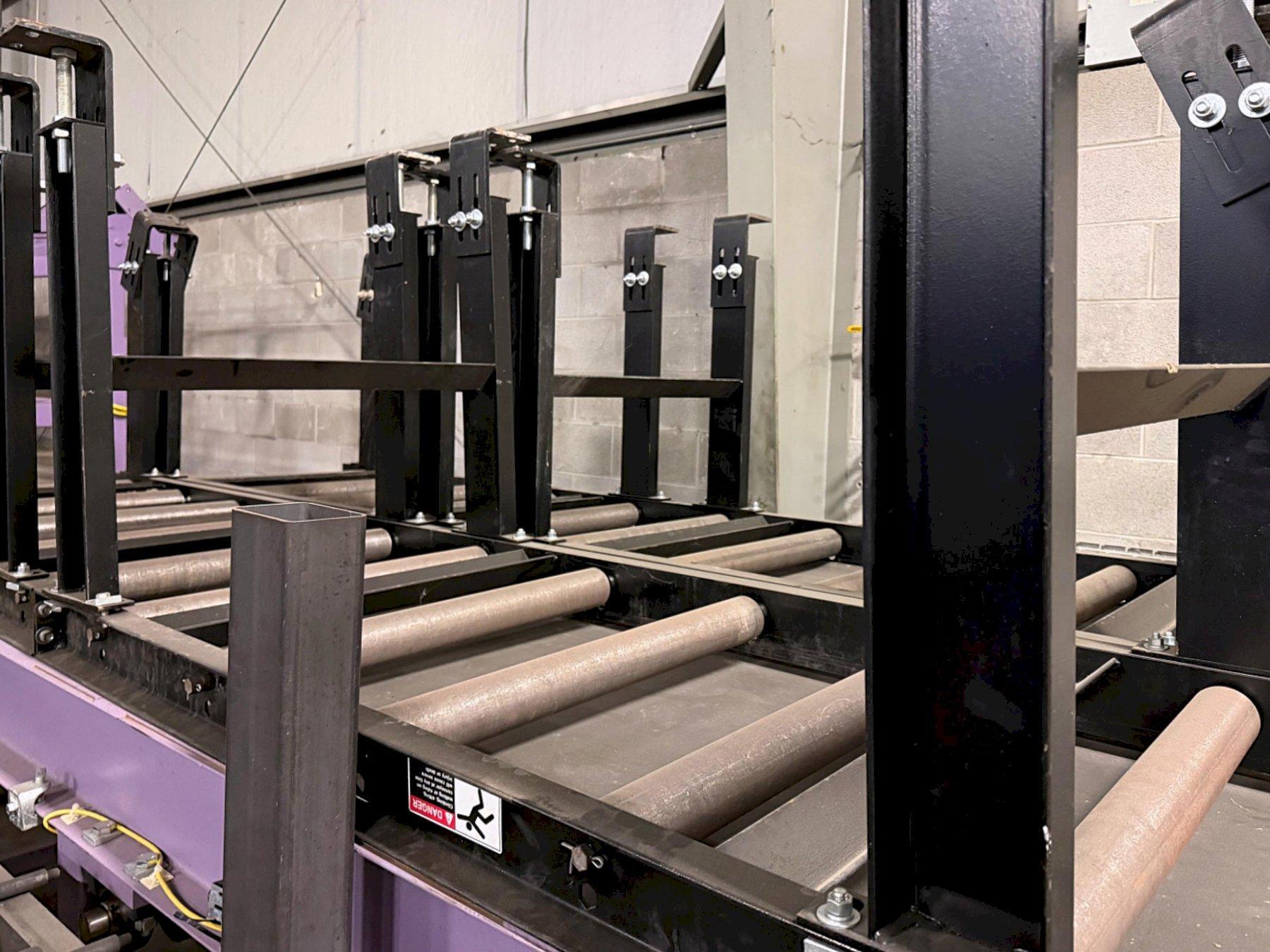

Finished Part Roller Tables (Pictured But Not Setup)
