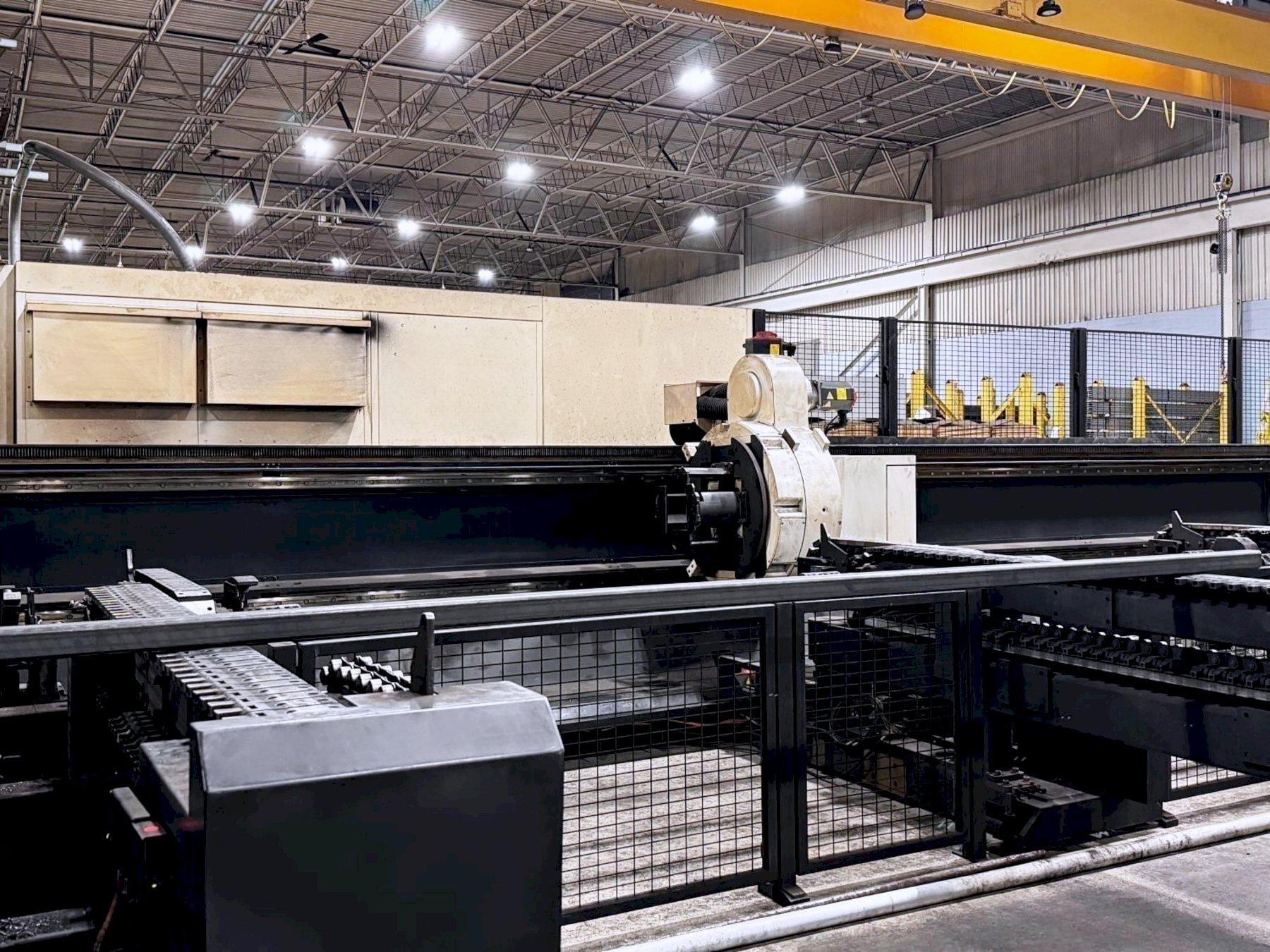

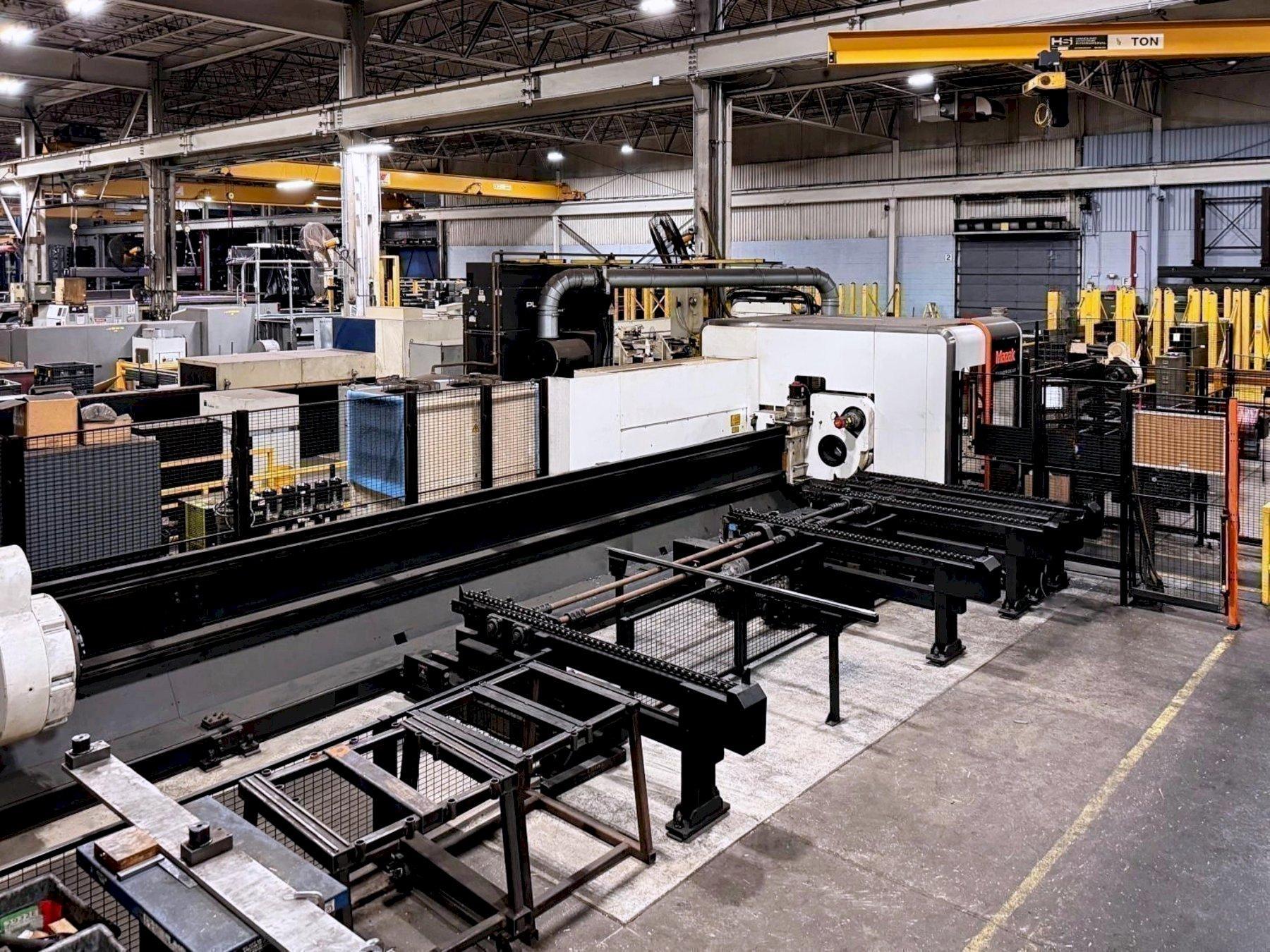

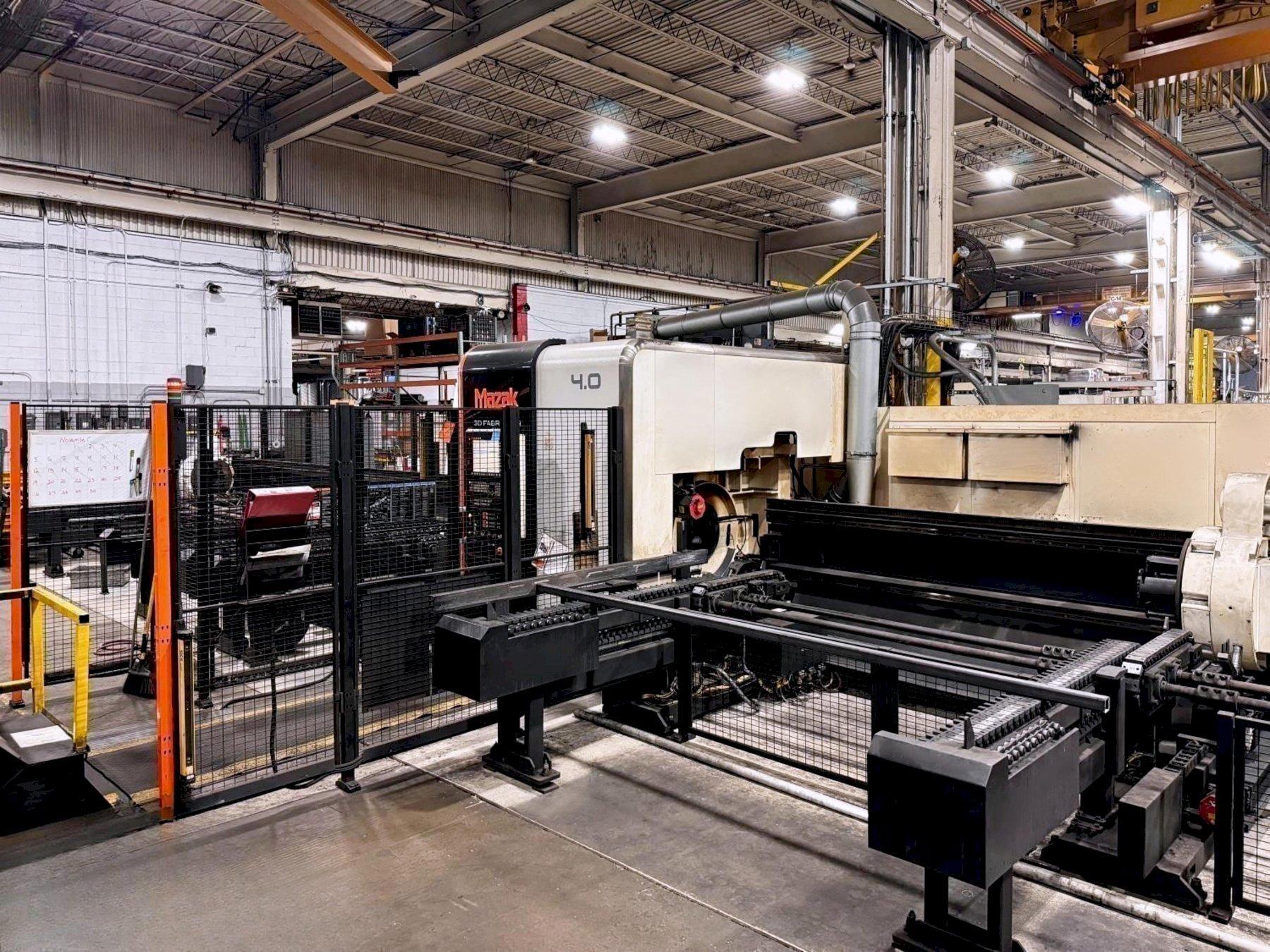

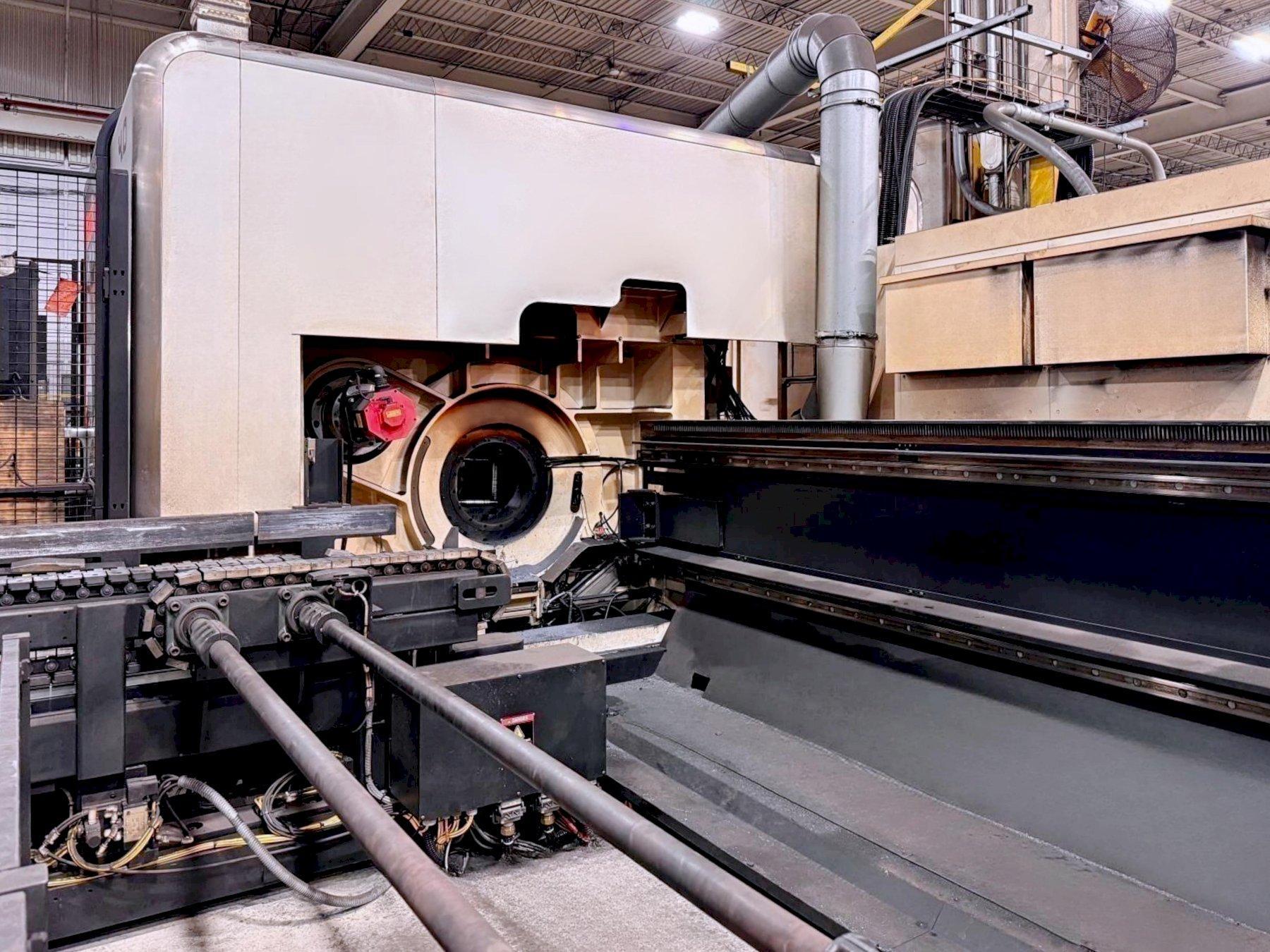

Mazak Fabri Gear 220 III Tube Laser

Make : MAZAK

Model: Fabri Gear 220 III

Year: 2018

Reference #: 100486

Highlights:
Low Hours - Includes tapping unit and touch probe.

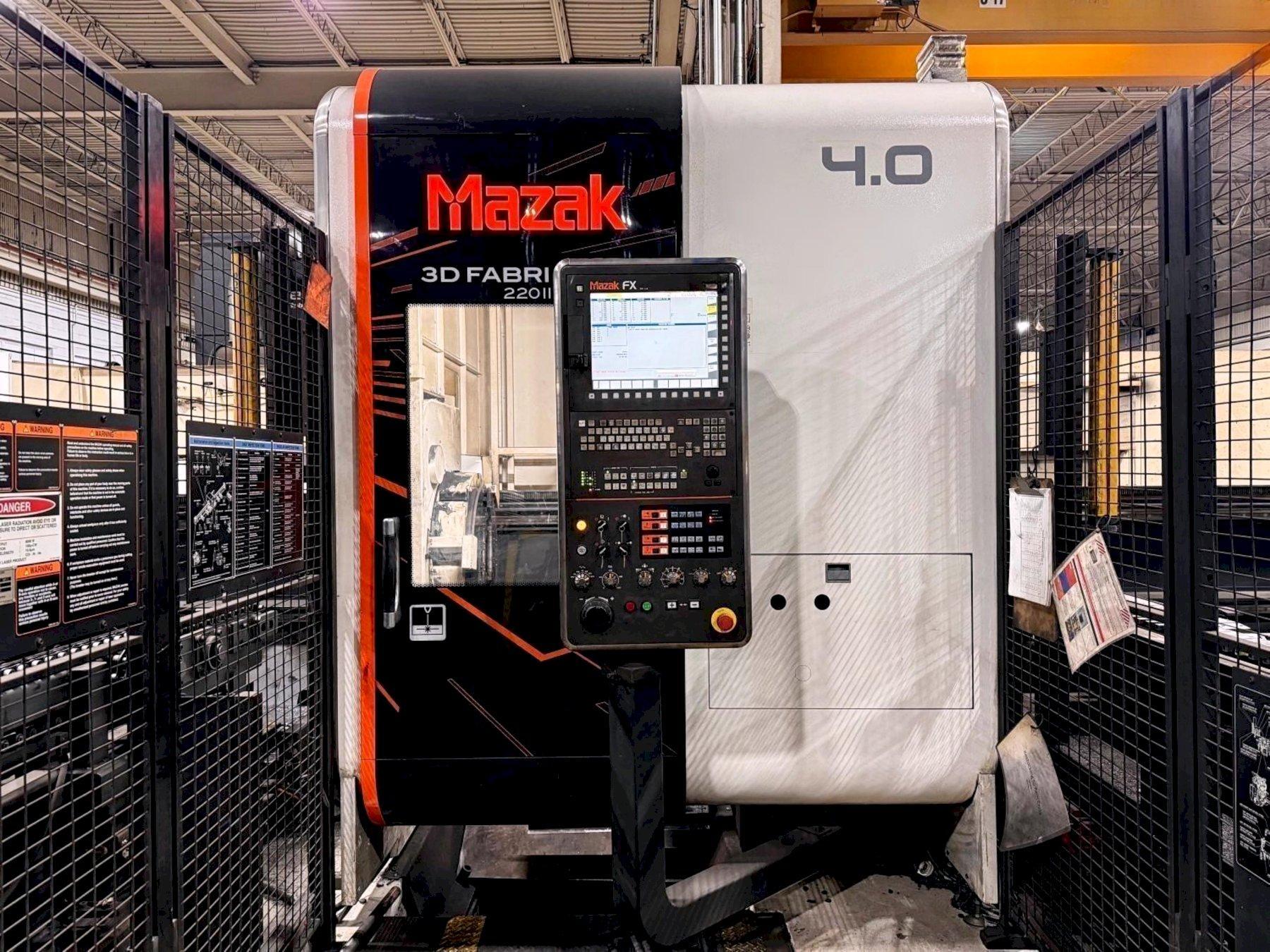

Control: Mazak FX Control Unit
Resonator Type: CO2
Resonator Make: Panasonic Type 10
Laser Output: 4.0 KW
Laser Gas: He, N2, Co2
Max Material Thickness (Mild Steel): 0.866”
Max Material Thickness (Stainless): 0.393”
Max Material Thickness (Aluminum): 0.314”
Max. Workpiece Length Load/Unload: 315”
Max. Material Diameter Round: 8.66”
Max. Material Diameter Square: 6.00”
Max. Workpiece Weight/Piece: 787 Lbs.
Stroke X Chuck Left/Right: 356.5”
Stroke U Chuck Left/Right: 353.90”
Stroke V Chuck Left/Right: 91.14”
Stroke Y Head Back/Forth: 38.78”
Stroke Z Head Up/Down: 14.57”
Stroke A Head Rotation: ±99,999.999 Deg.
Stroke B Head Swing: ±135 Deg.

Equipped With:

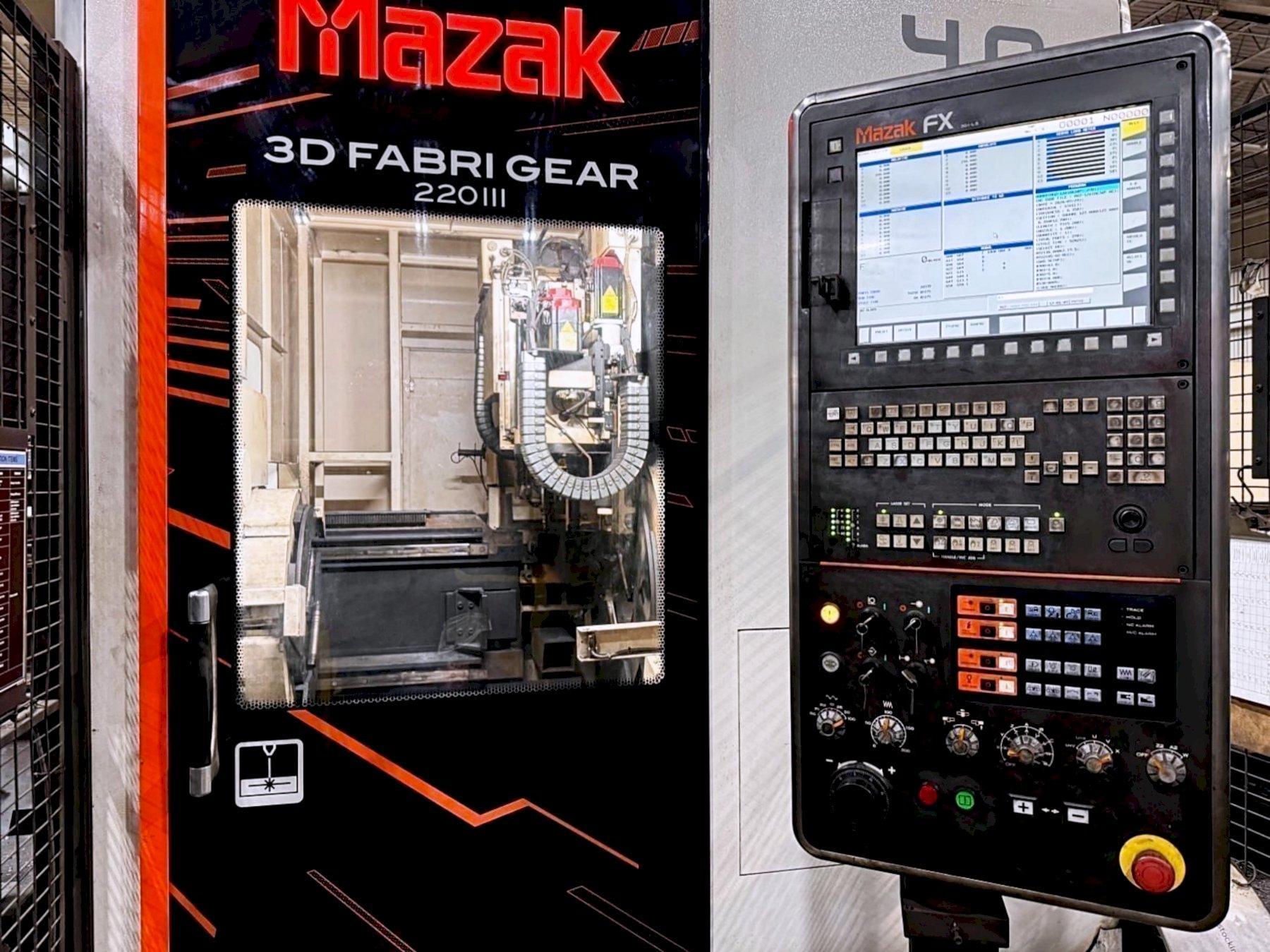

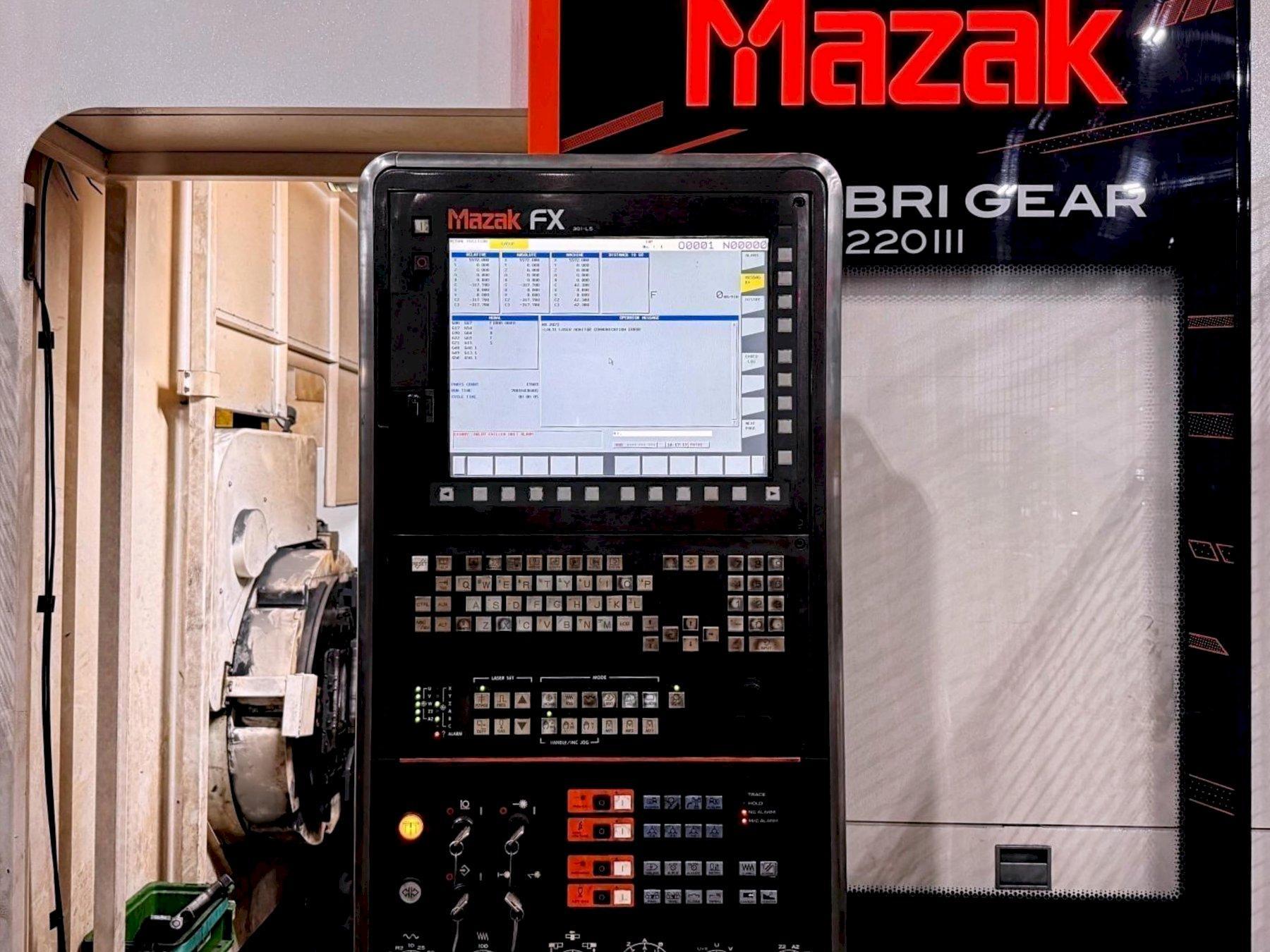

Mazak FX Control Unit

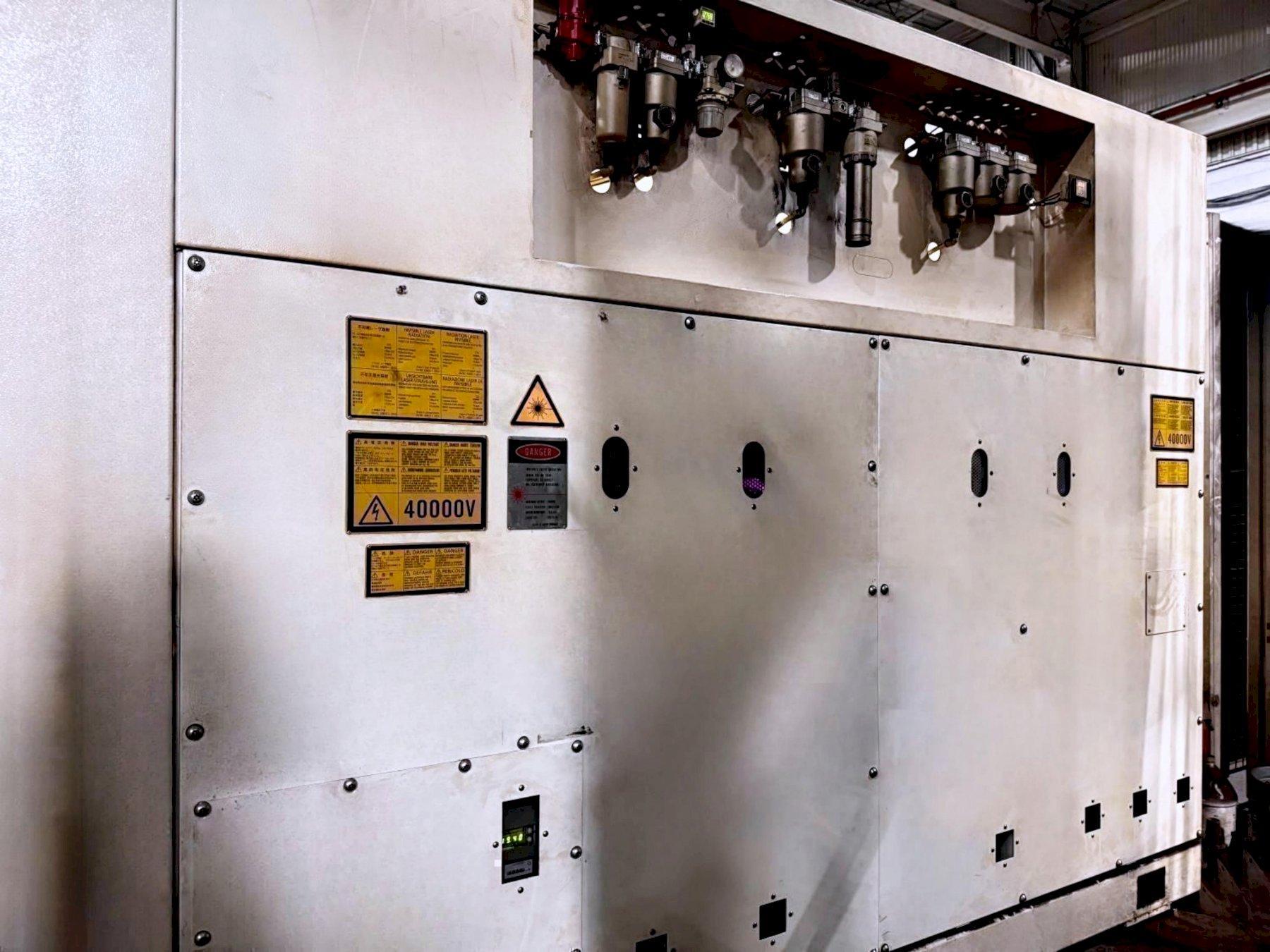

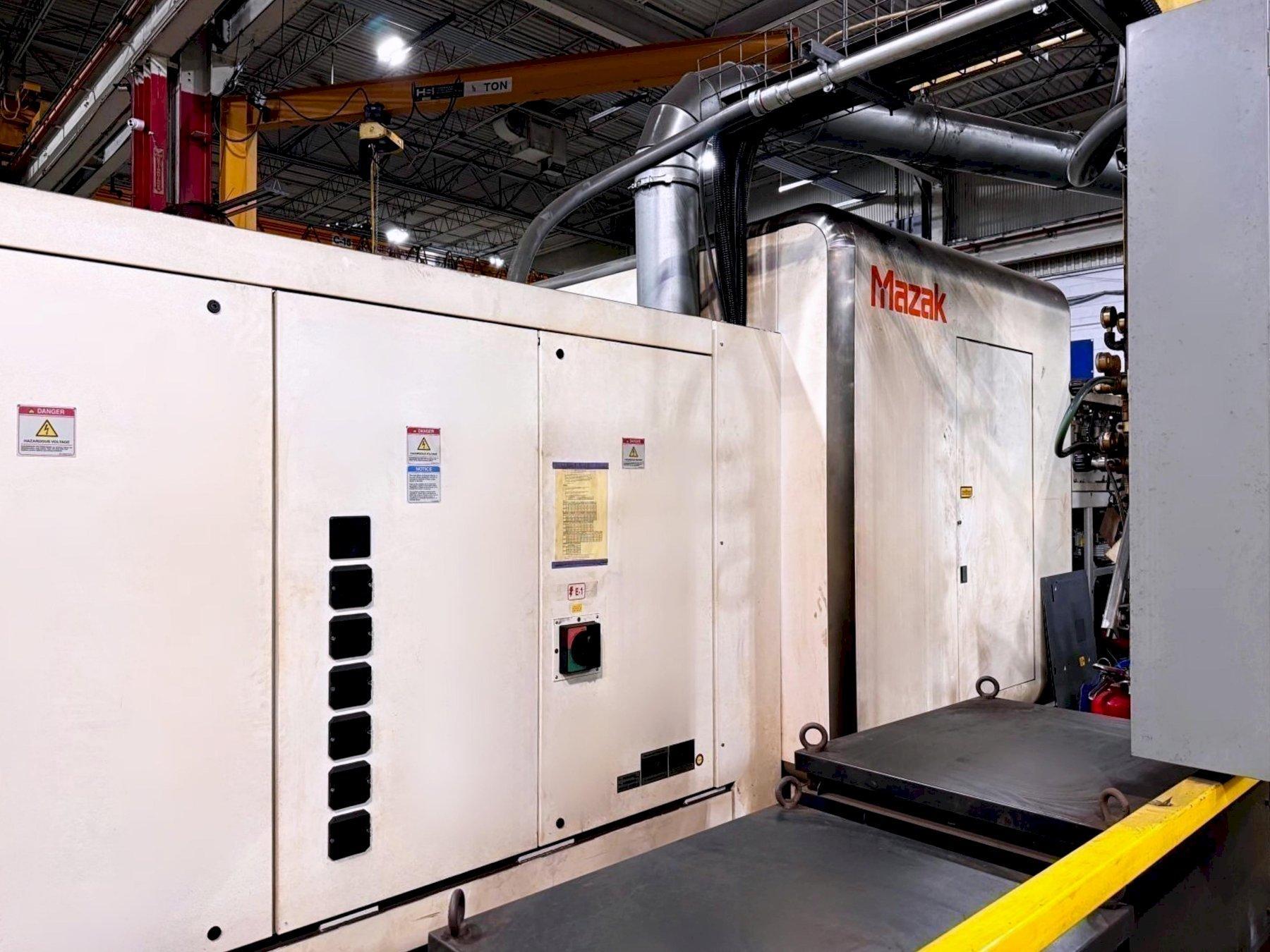

Type 10 Panasonic Resonator
Tapping Unit

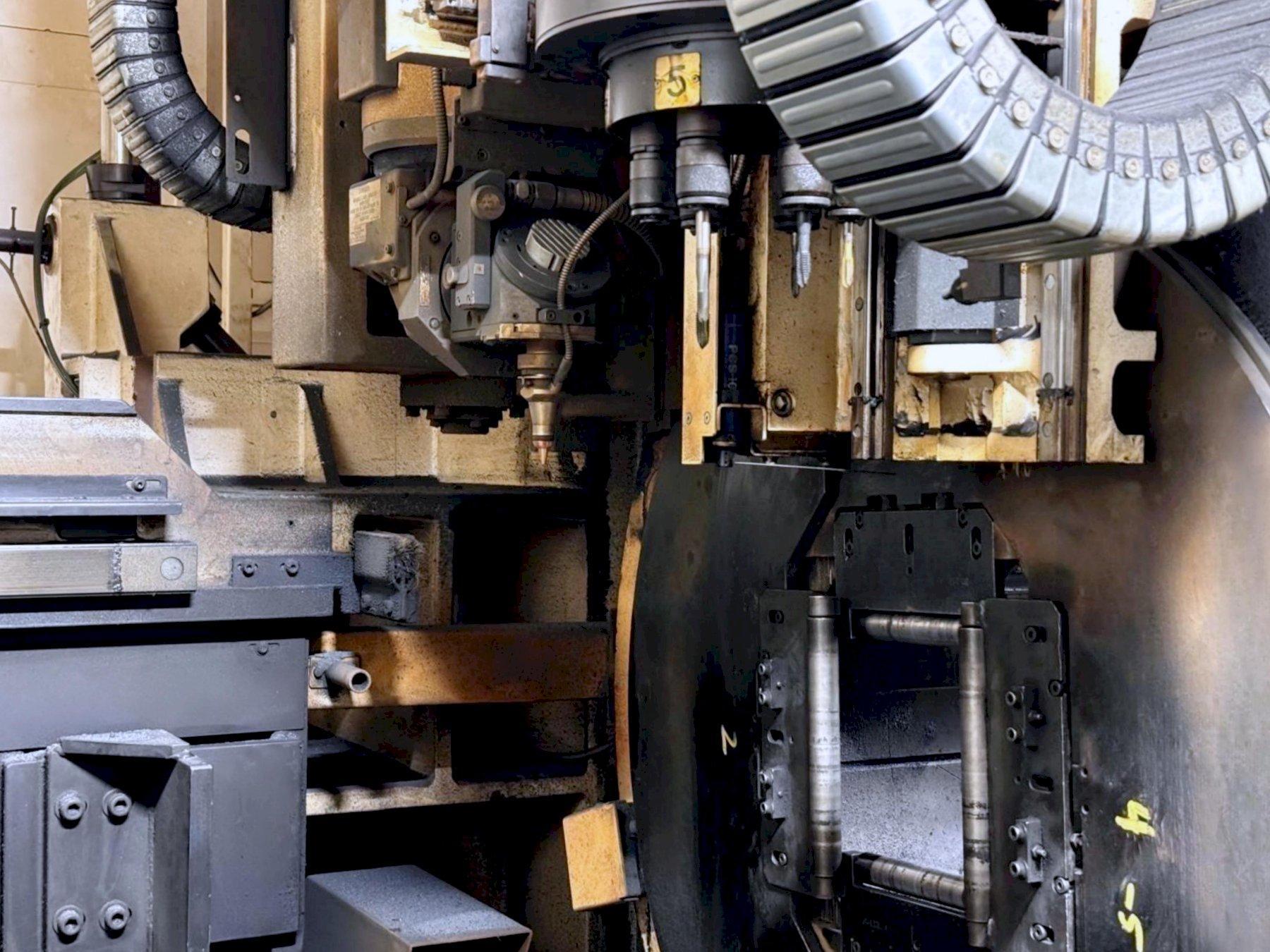

3D Laser Rotary Head

Auto Focus Positioning

M10 Type Non-Contact Profiling Torch

7.5’ Lens

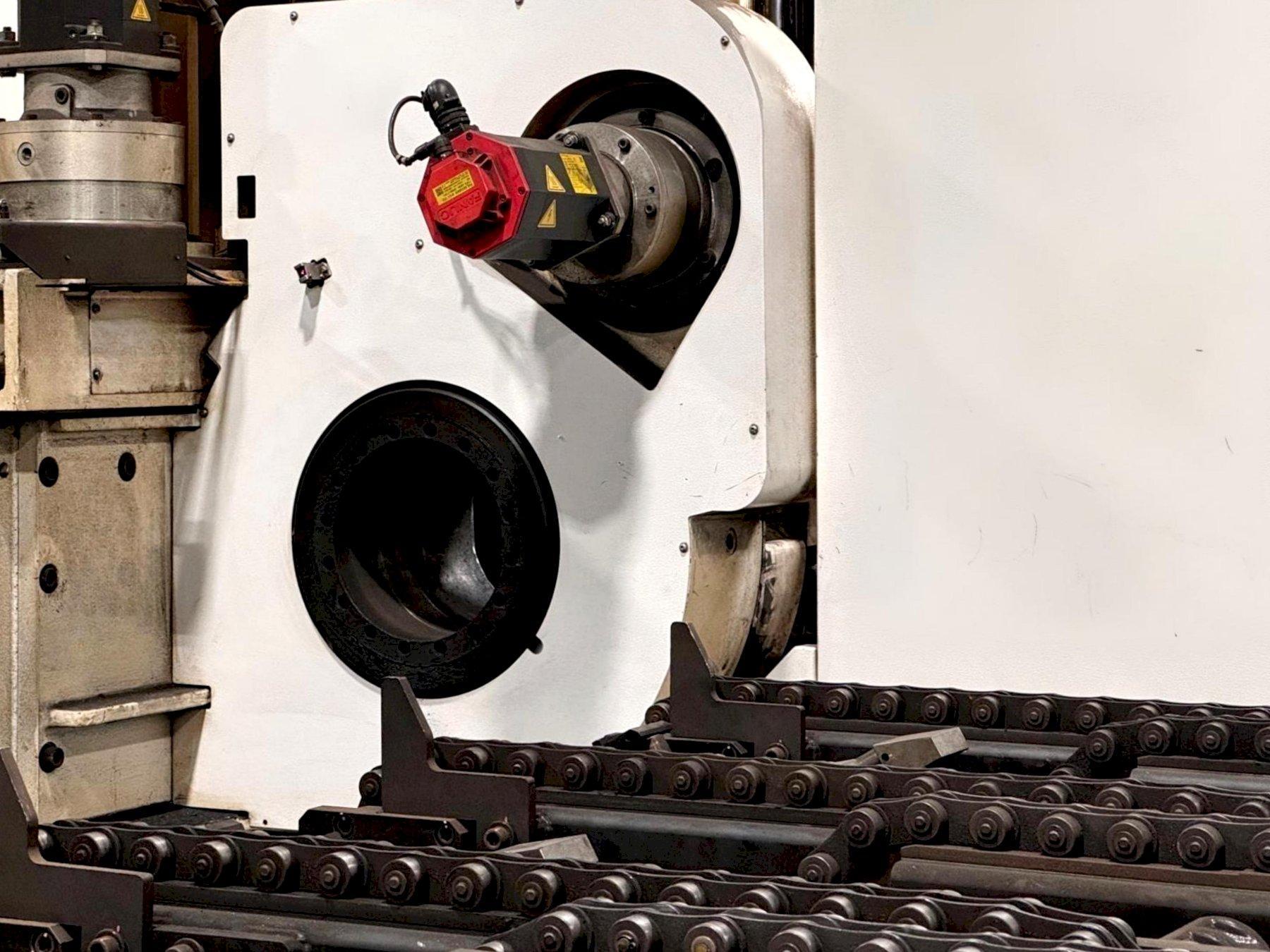

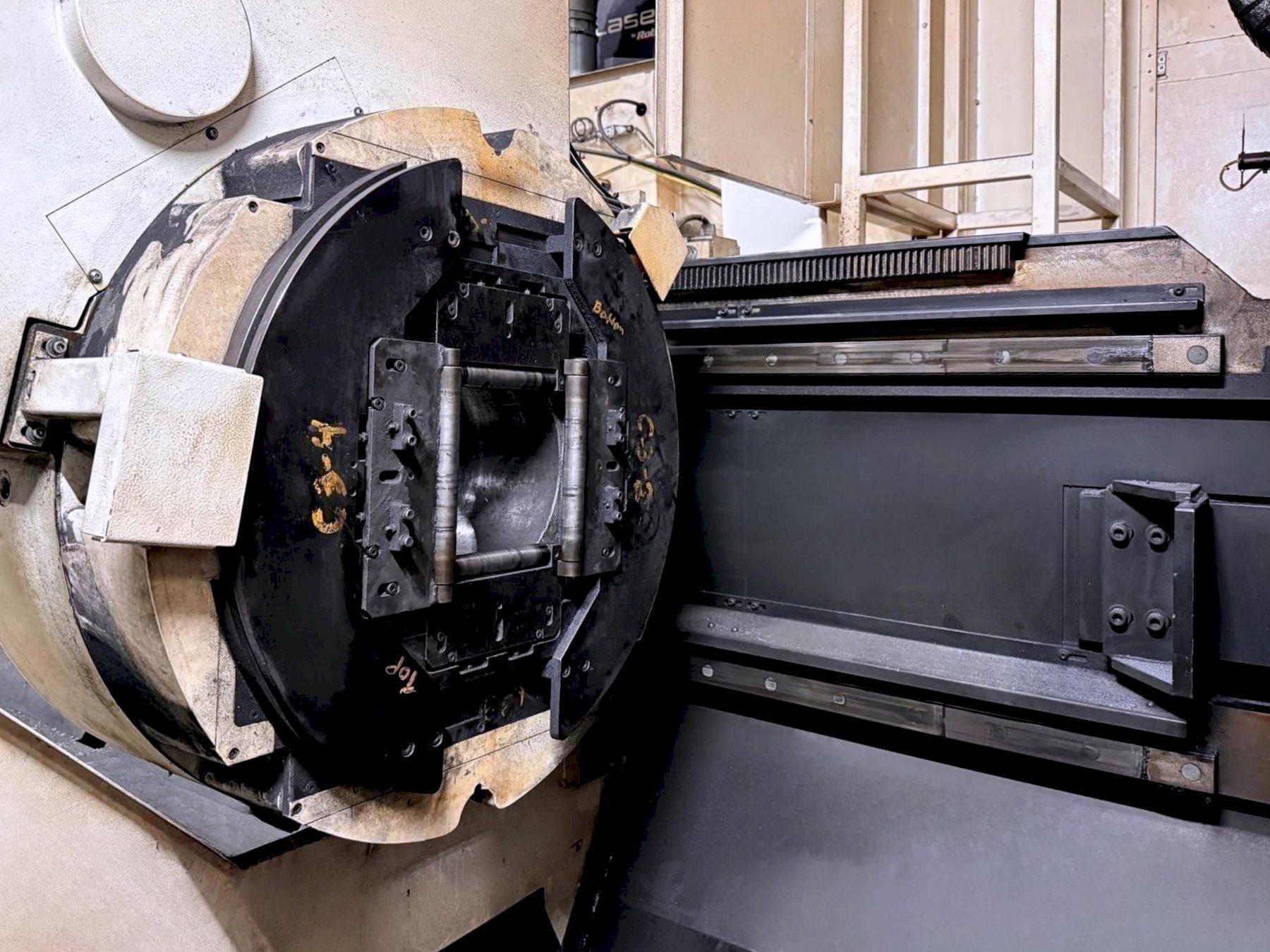

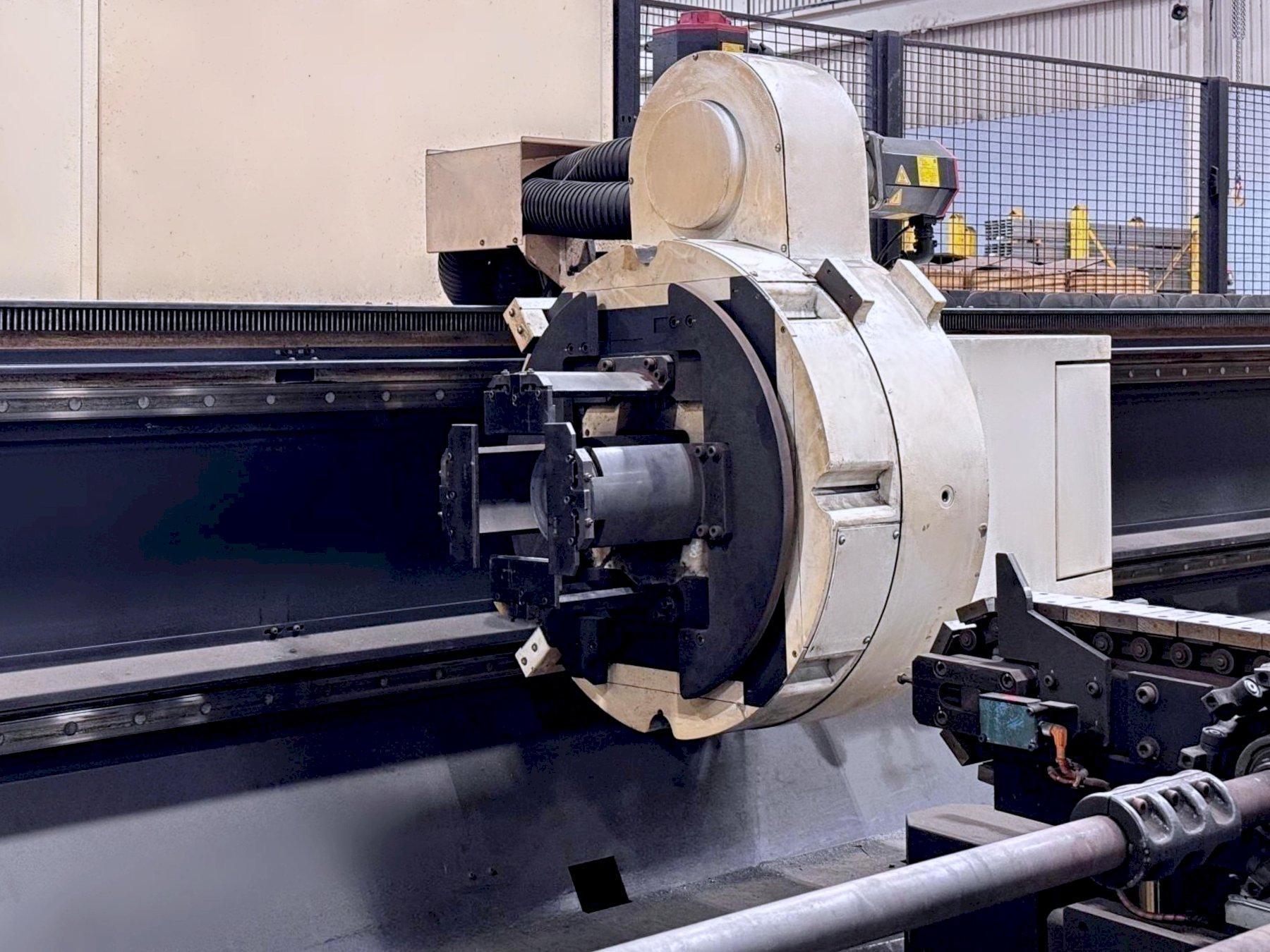

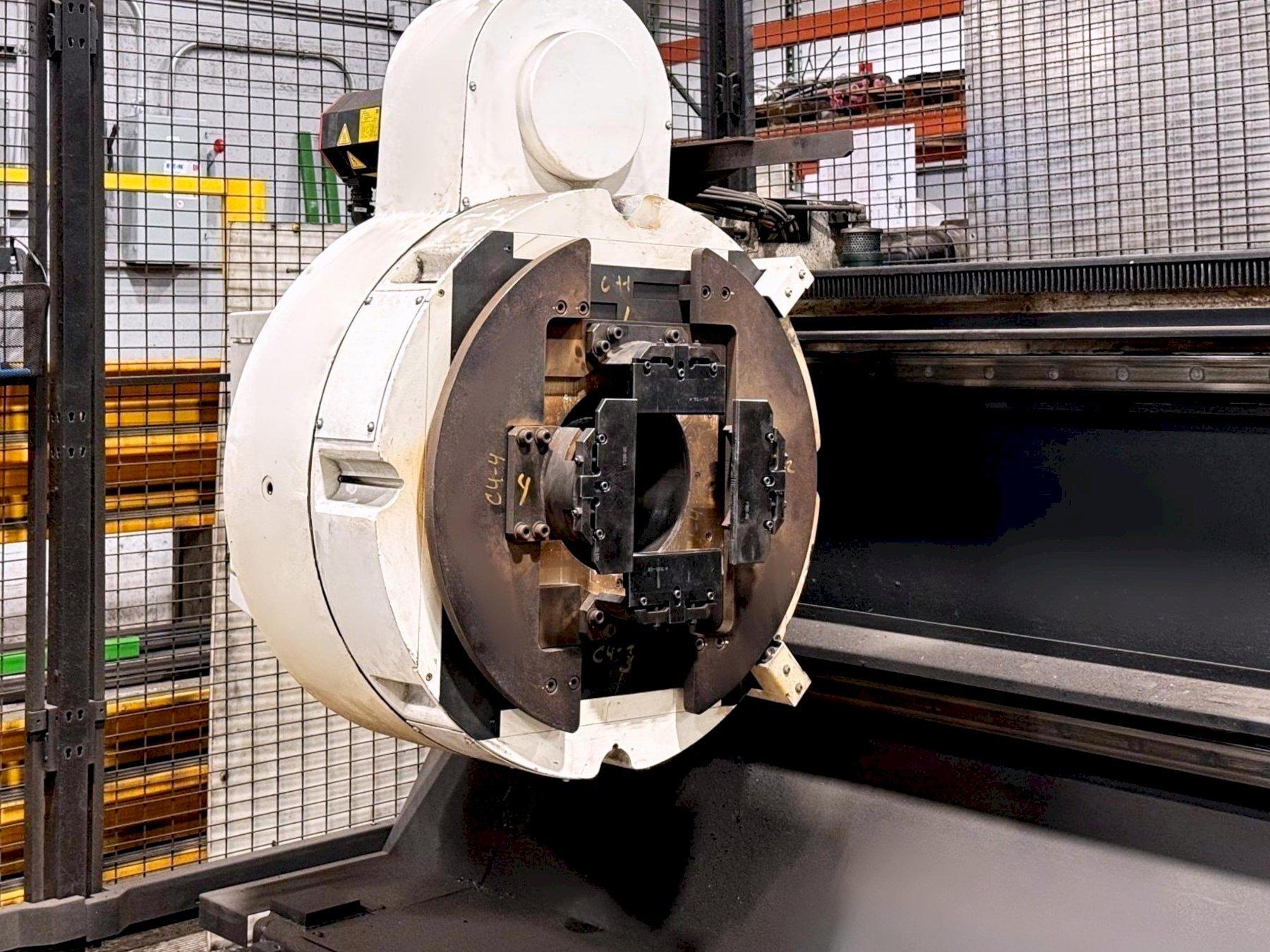

Four Clamping Chuck System

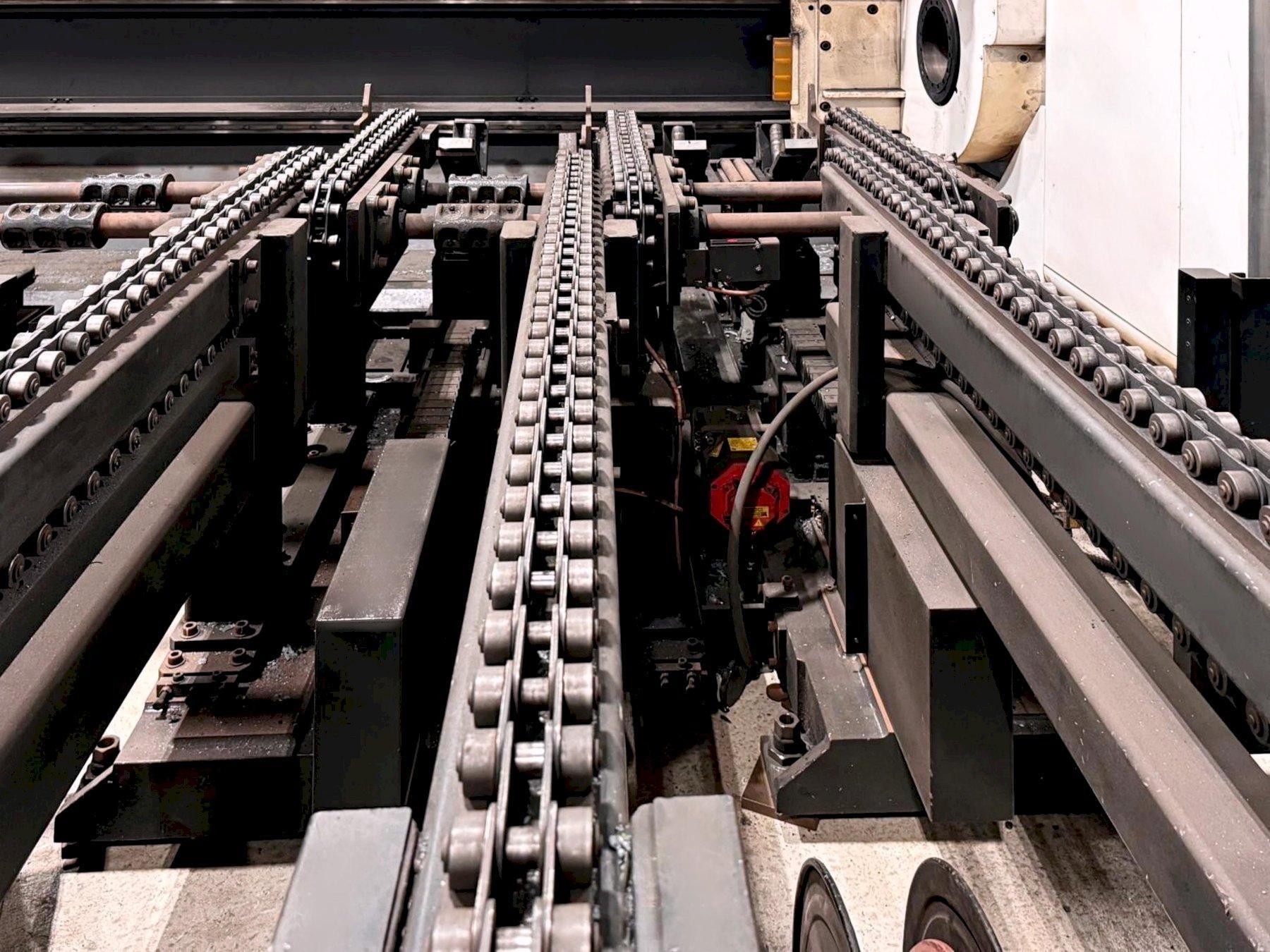

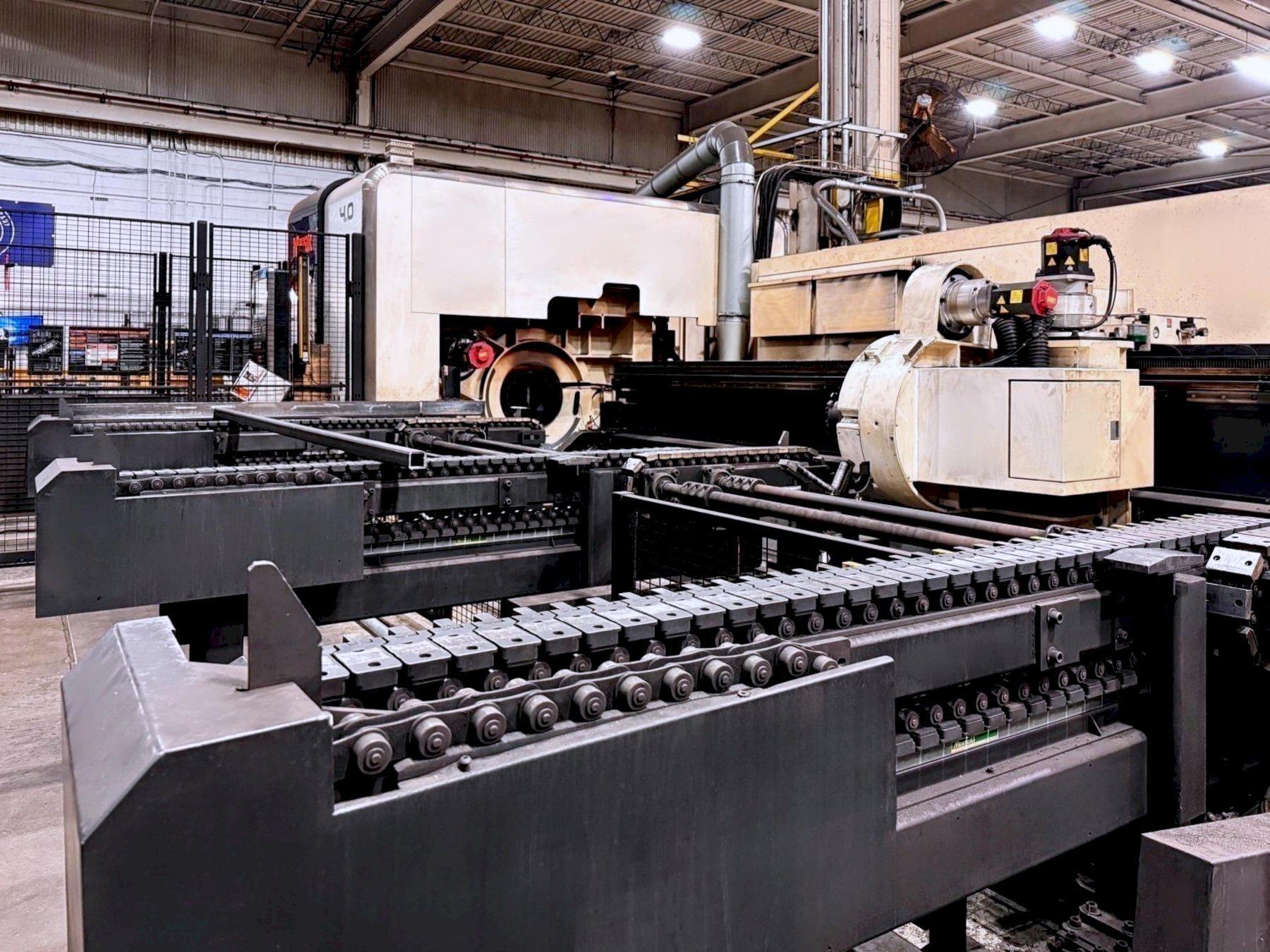

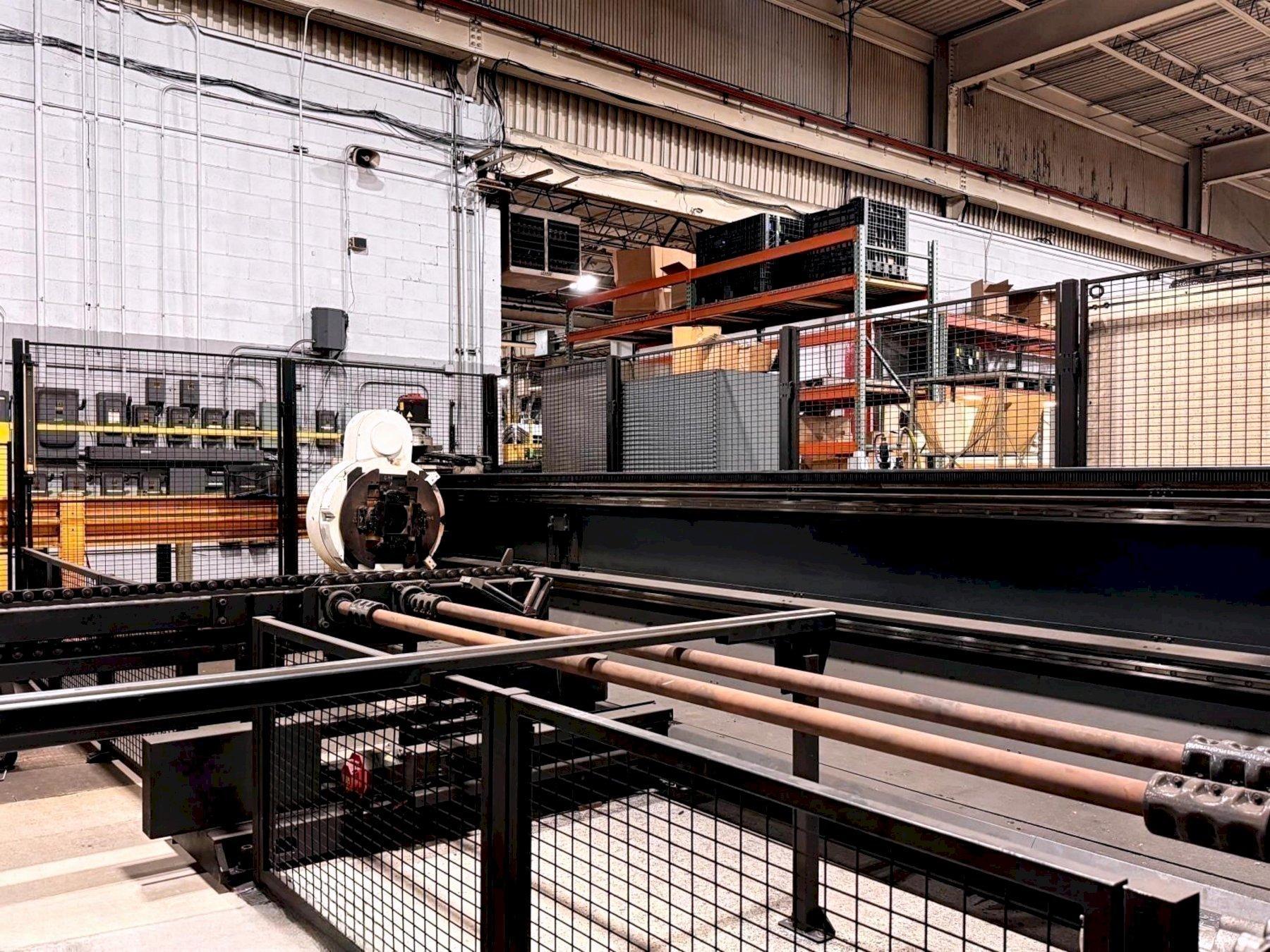

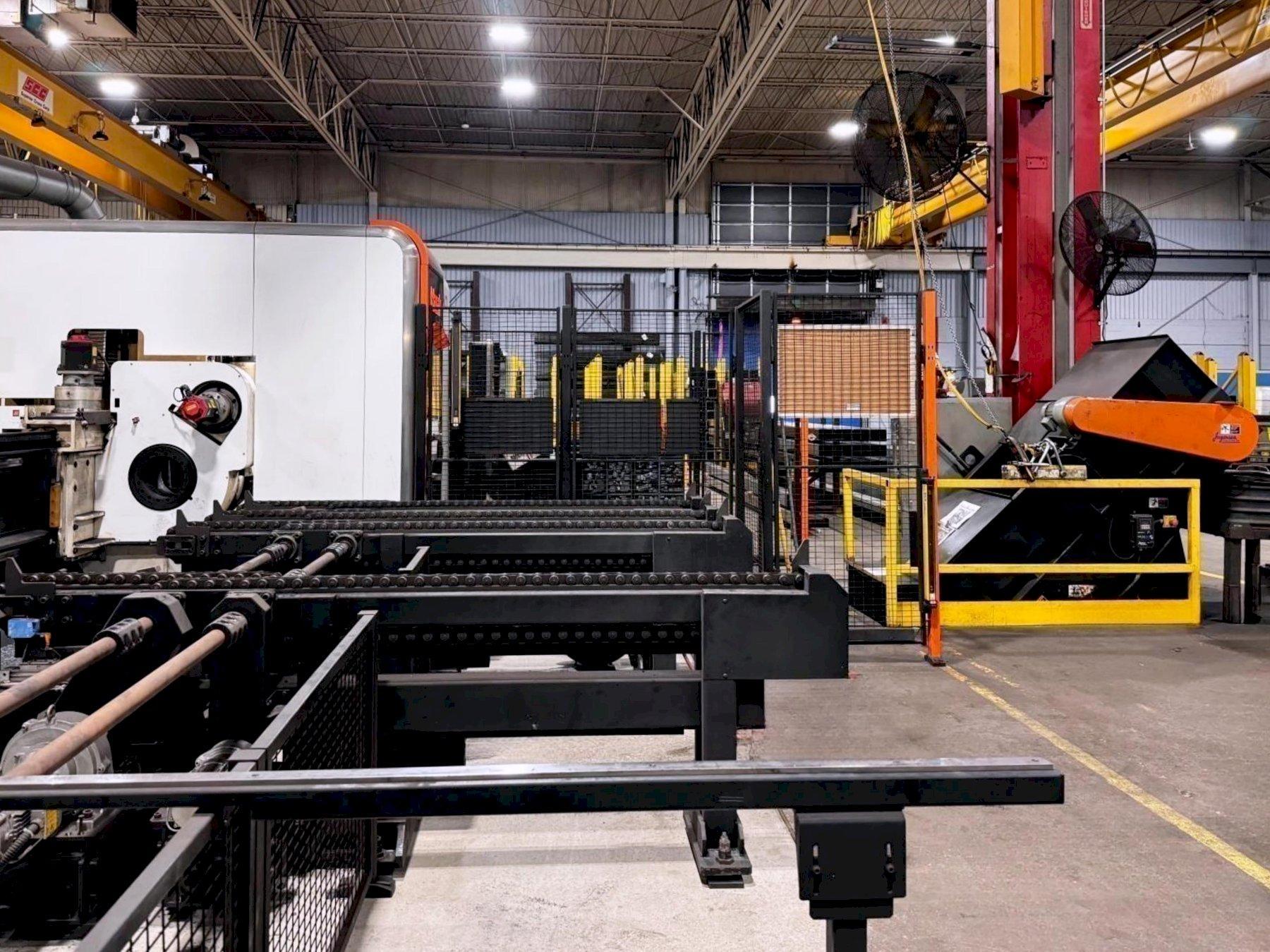

Loading/Unloading System

Parts Catcher

Programmable Assist Gas Pressure

USB Port For Personal Computer

Lan Connection Function

Automatic Power Cutoff

AC Digital Servo Motor Drive System

Ball Screws For Y,Z-Axis

Rack And Pinion For X-Axis

Multi-Tap Transformer (208v To 480v)

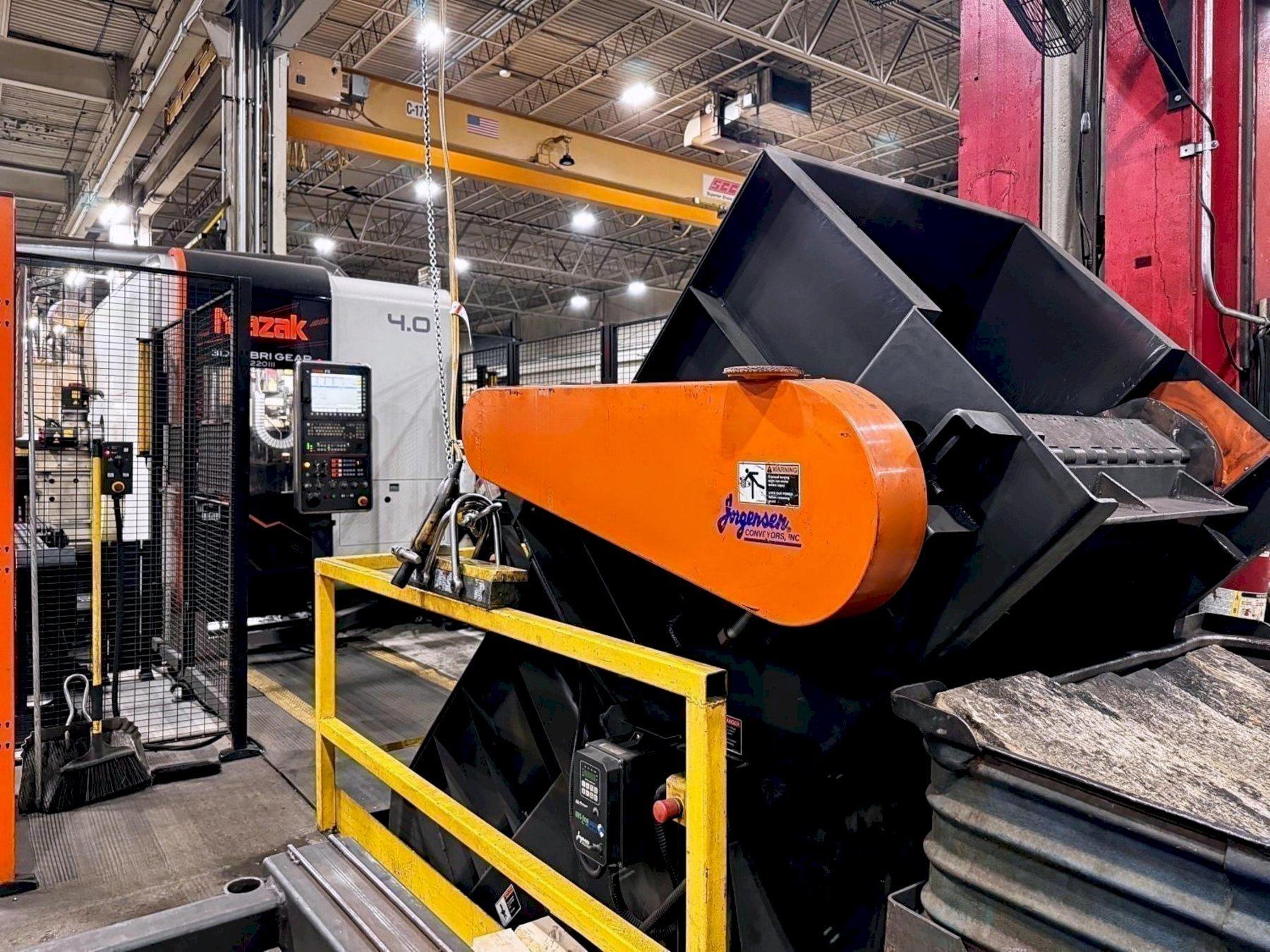

Jorgensen Scrap Conveyor
Chiller Unit

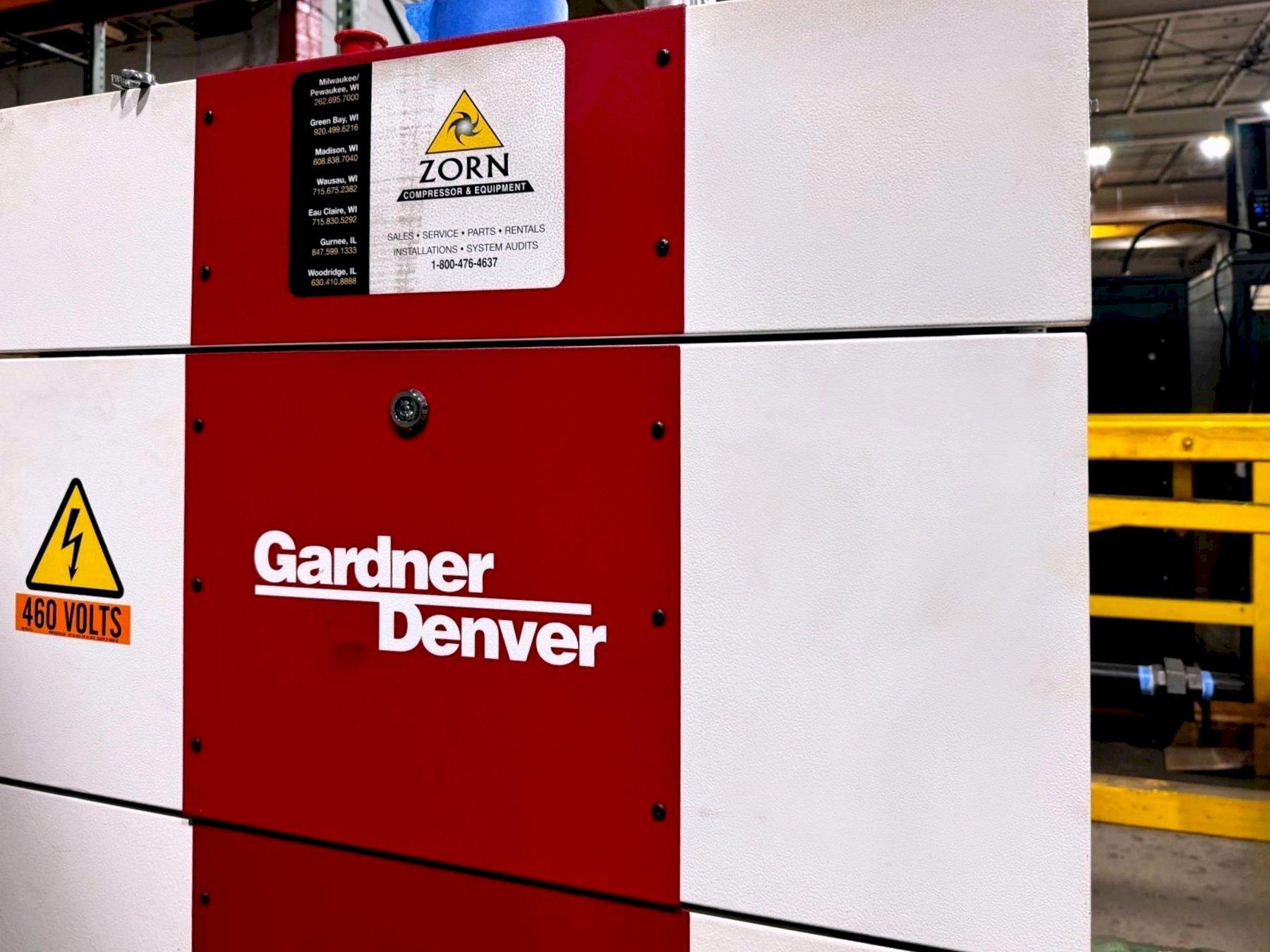

Gardner Denver Air Compressor

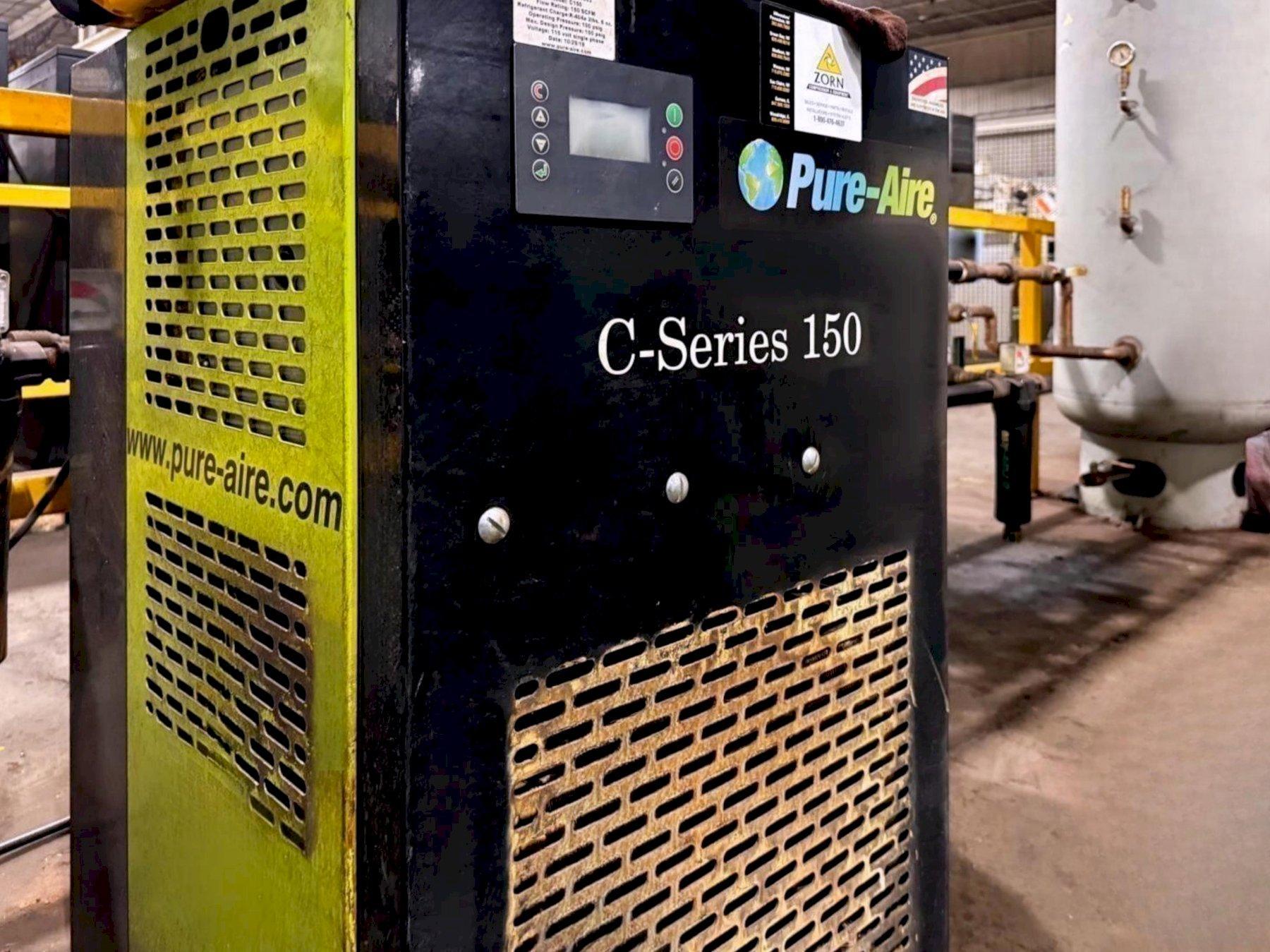

Pure Aire C-Series 150 Refrigerated Air Dryer System
