Product Details

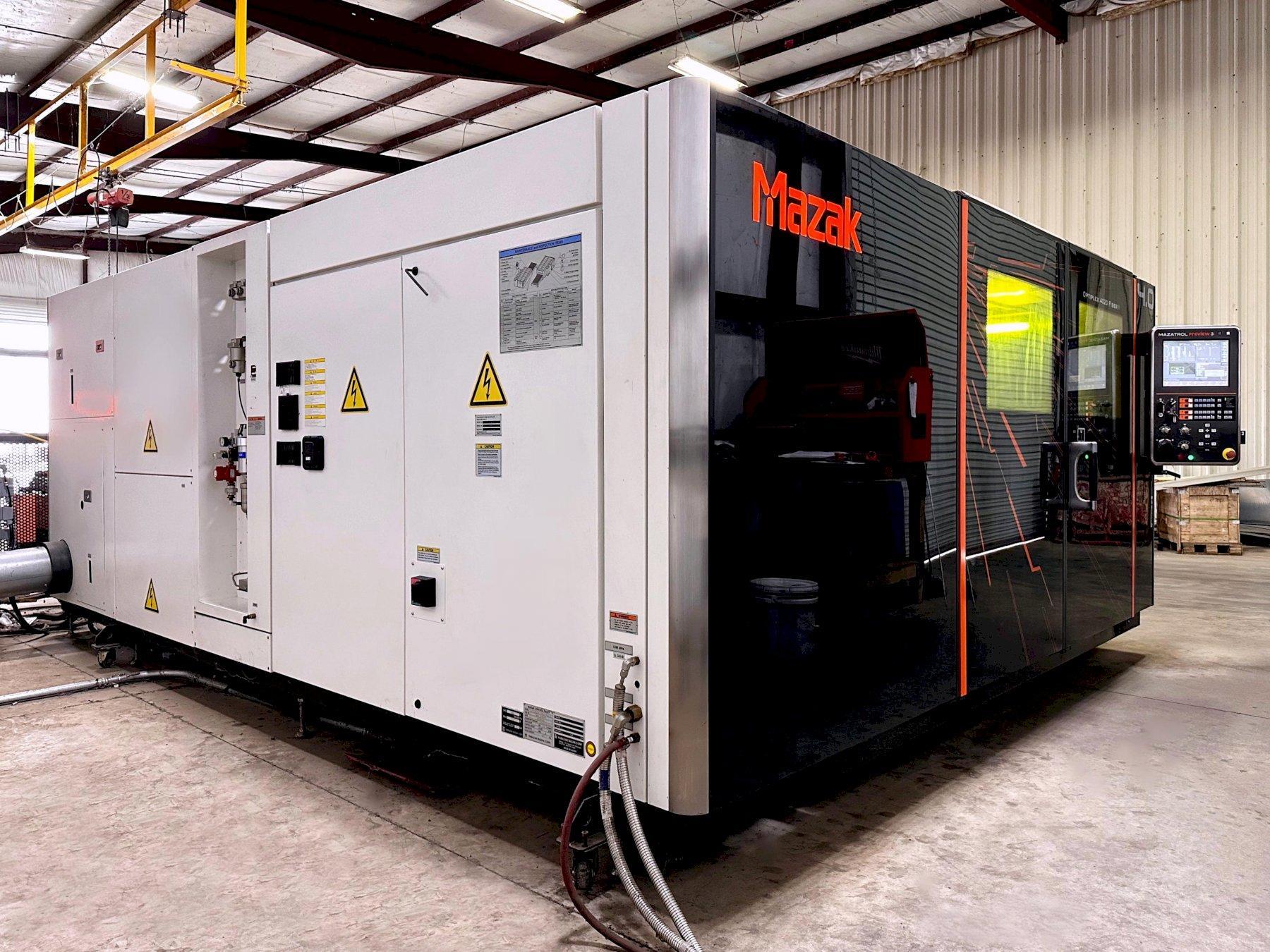

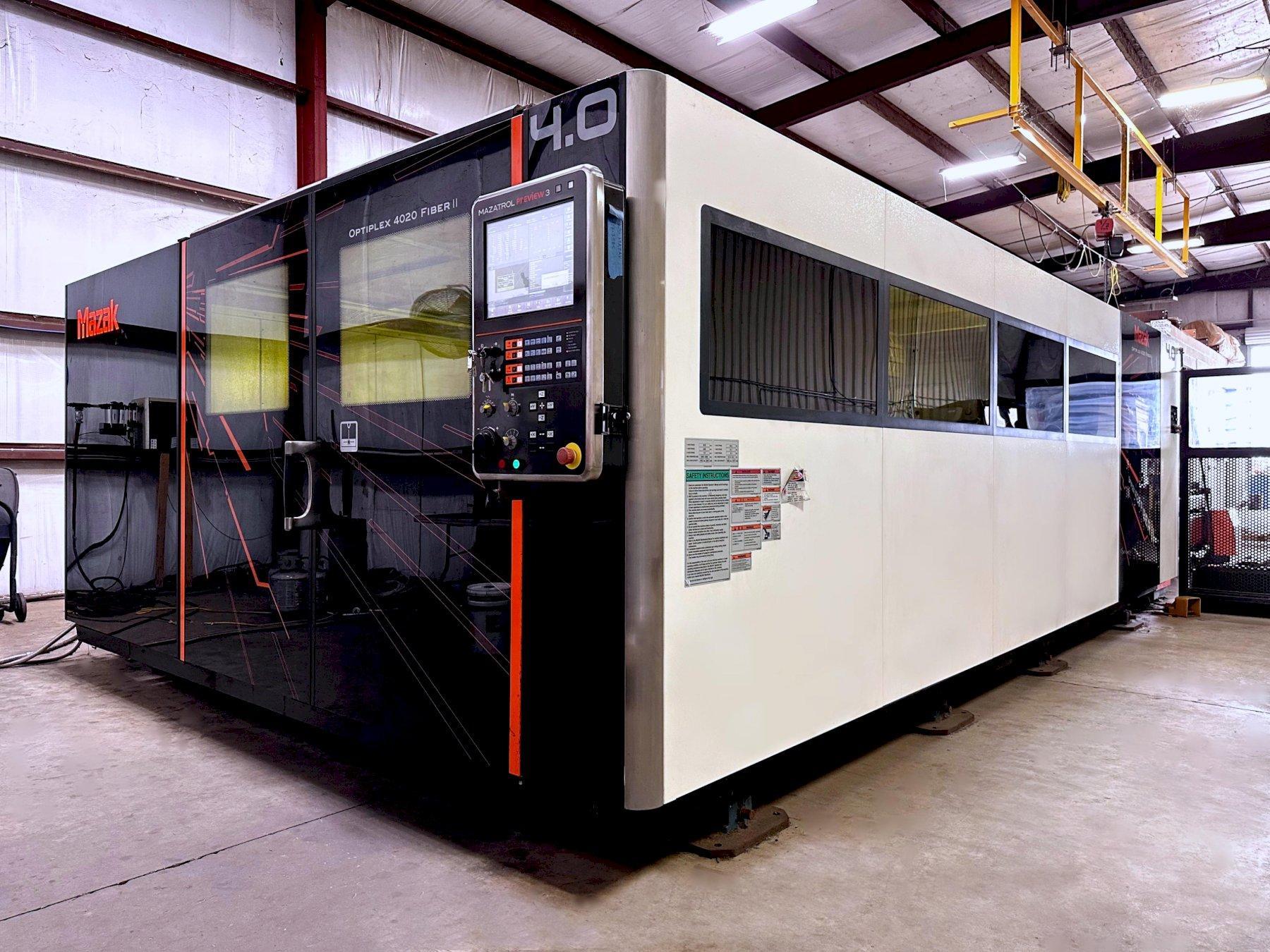

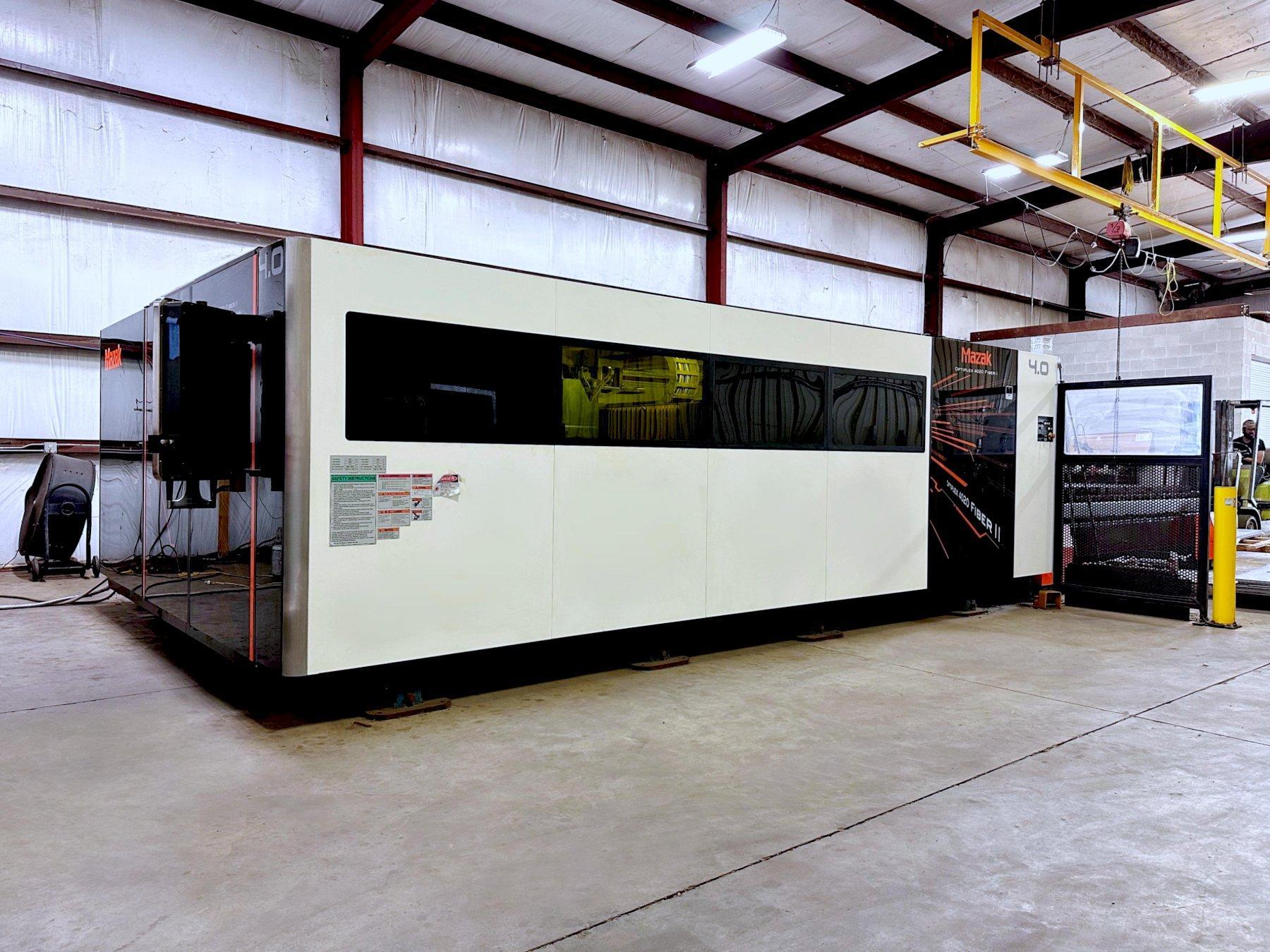

Mazak Optiplex 4020 Fiber II

Make : MAZAK

Model: Optiplex 4020 Fiber II

Year: 2016

Reference #: 100383

Highlights:
Excellent condition with only 2,303 cutting hours.


Control: Preview III
Display Screen: 15” Color LCD
Position Detection System: Encoder
Program Input System: EIA/ISO

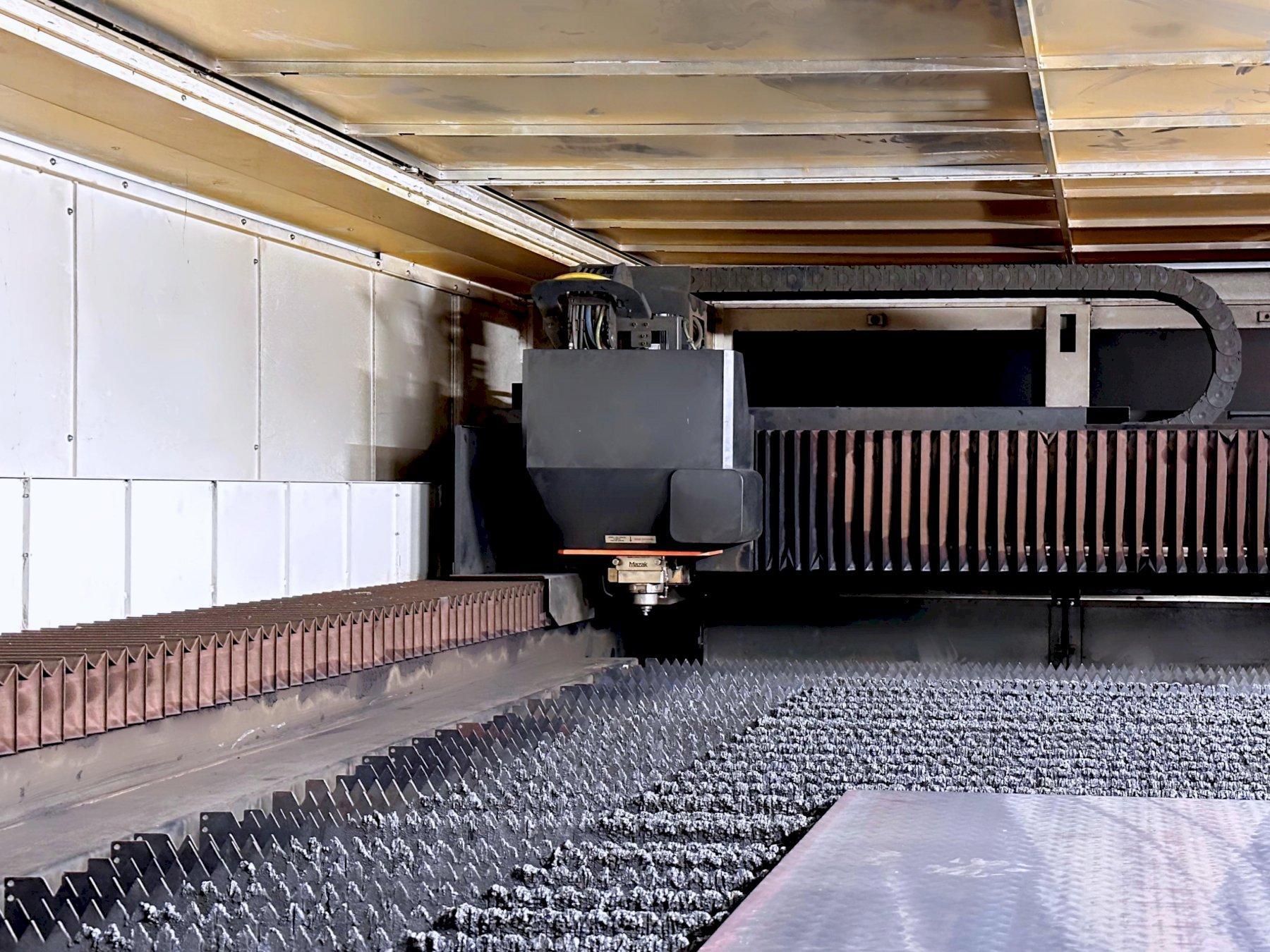

Machine Structure: Flying Optics
Laser Type: Fiber
Power Source: IPG YDS 4000 Generator
Max Power Output: 4,000 Watts
Min. Command Unit: 0.0001”
Max Workpiece Dimensions: 78.74" x 157.48"
Max Workpiece Weight: 3,527 Lbs
Travels X Axis: 160.43"
Travels Y Axis: 81.10"
Travels Z Axis: 4.33"
Motion Drive System X, Y: Rack & Pinion Drive
Motion Drive System Z: Ball Screw Drive
Number of Control Axes: 3
Rapid Travel Speed X, Y Axis: 4,724 IPM
Pos. Accuracy X, Y Axis: 0.002"/19.68"
Pos. Accuracy Z Axis: 0.0004"/3.94"
Repeatable Accuracy X, Y Axis: 0.0012"
Max Material Thickness Mild Steel: 1.00”
Max Material Thickness Stainless Steel: 0.75”
Max Material Thickness Aluminum: 0,63”
Total Electrical Requirement: 105 kVA
Machine Unit Weight: 46,958 Lbs.

Equipped With:

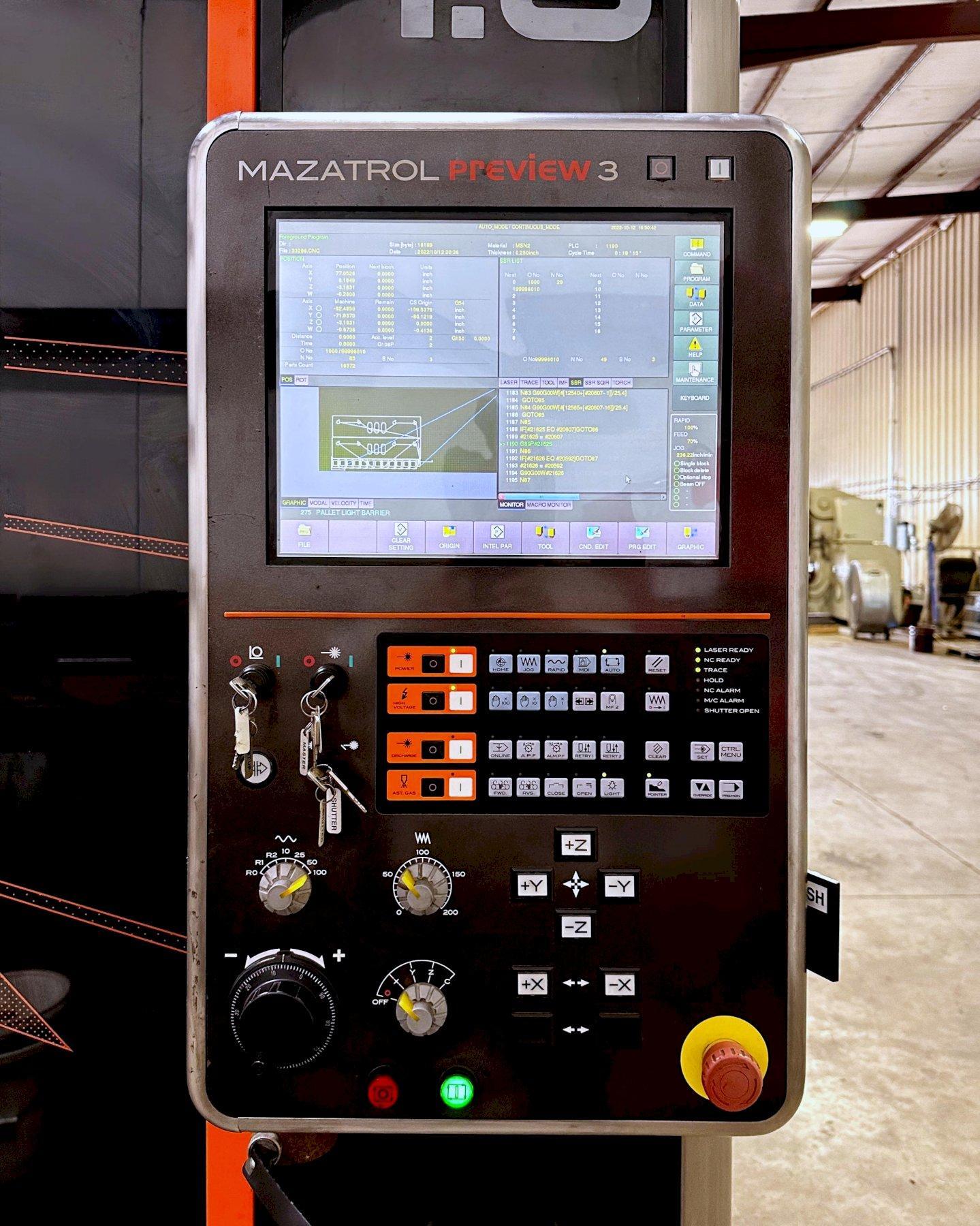

Mazatrol PREVIEW III CNC Control

15” LCD Color Touch Screen

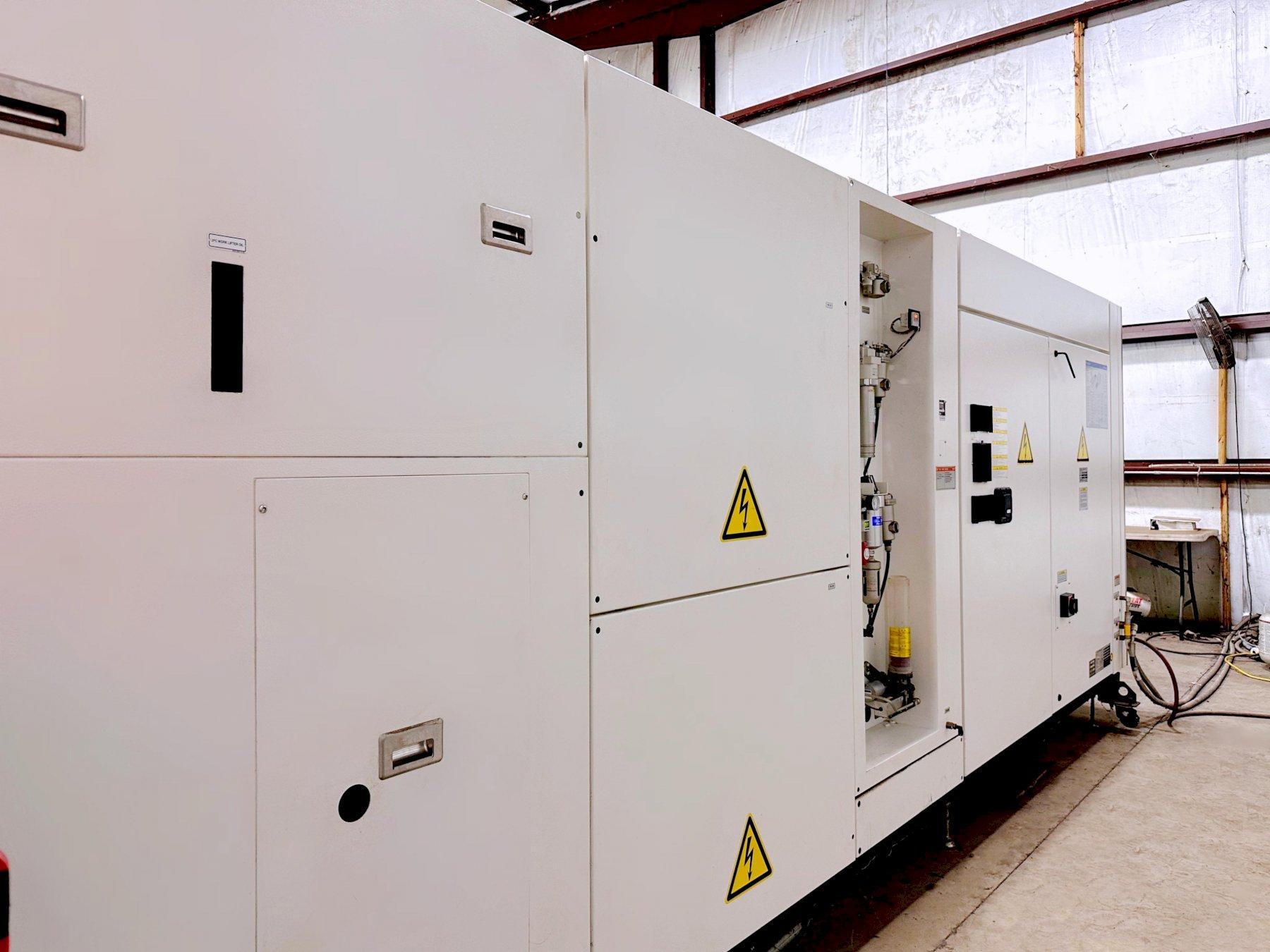

IPG YDS 4000 Generator & Fiber Optic Delivery System

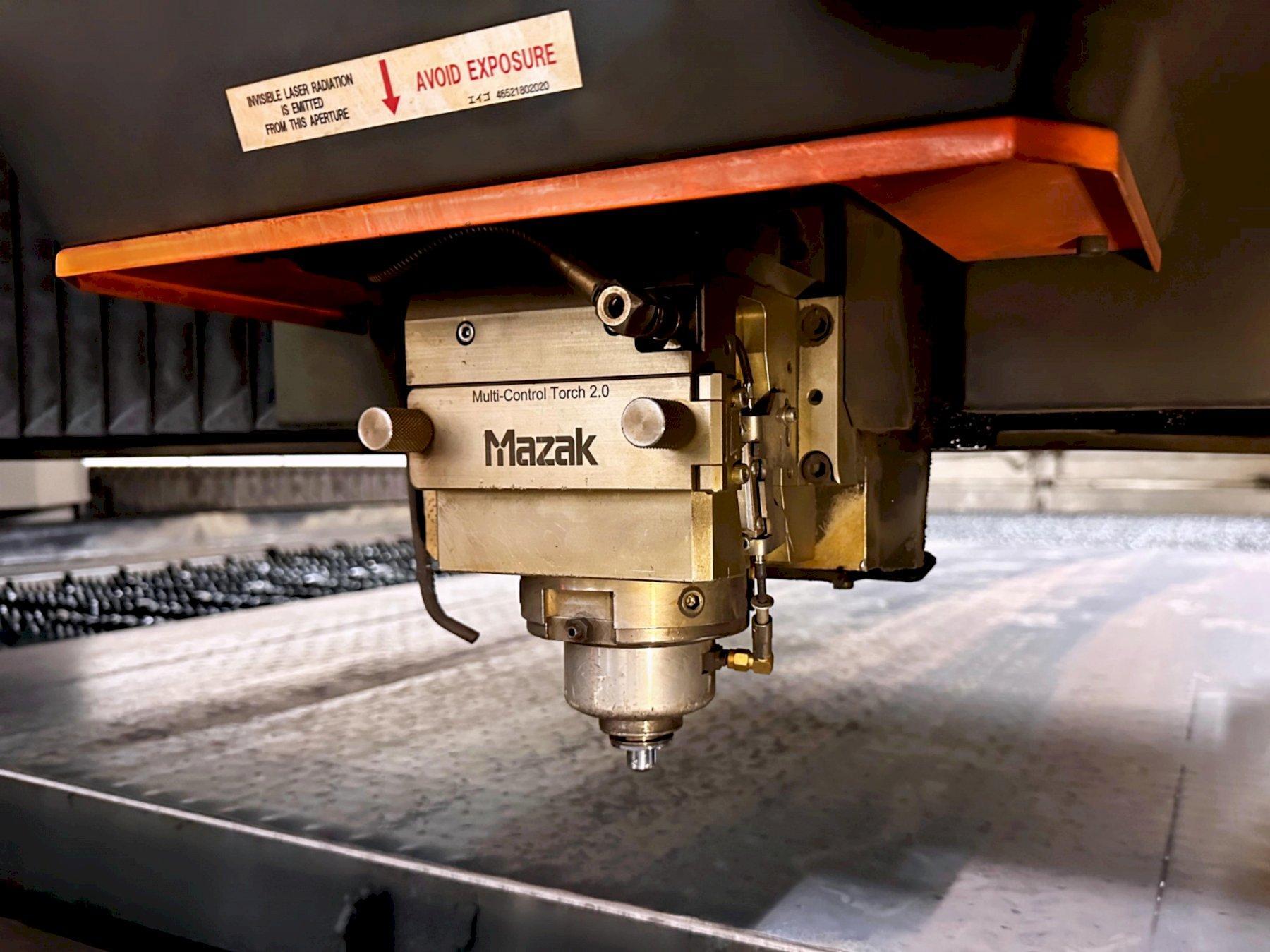

HIGHYAG Cutting Torch (Upgraded)

Auto Nozzle Changer

Auto Nozzle Cleaning

Auto Focus Positioning

Intelligent Monitoring Functions

High Speed Automatic 2 Pallet Changer

Work Piece Lifters 4020 (Ball transfers)

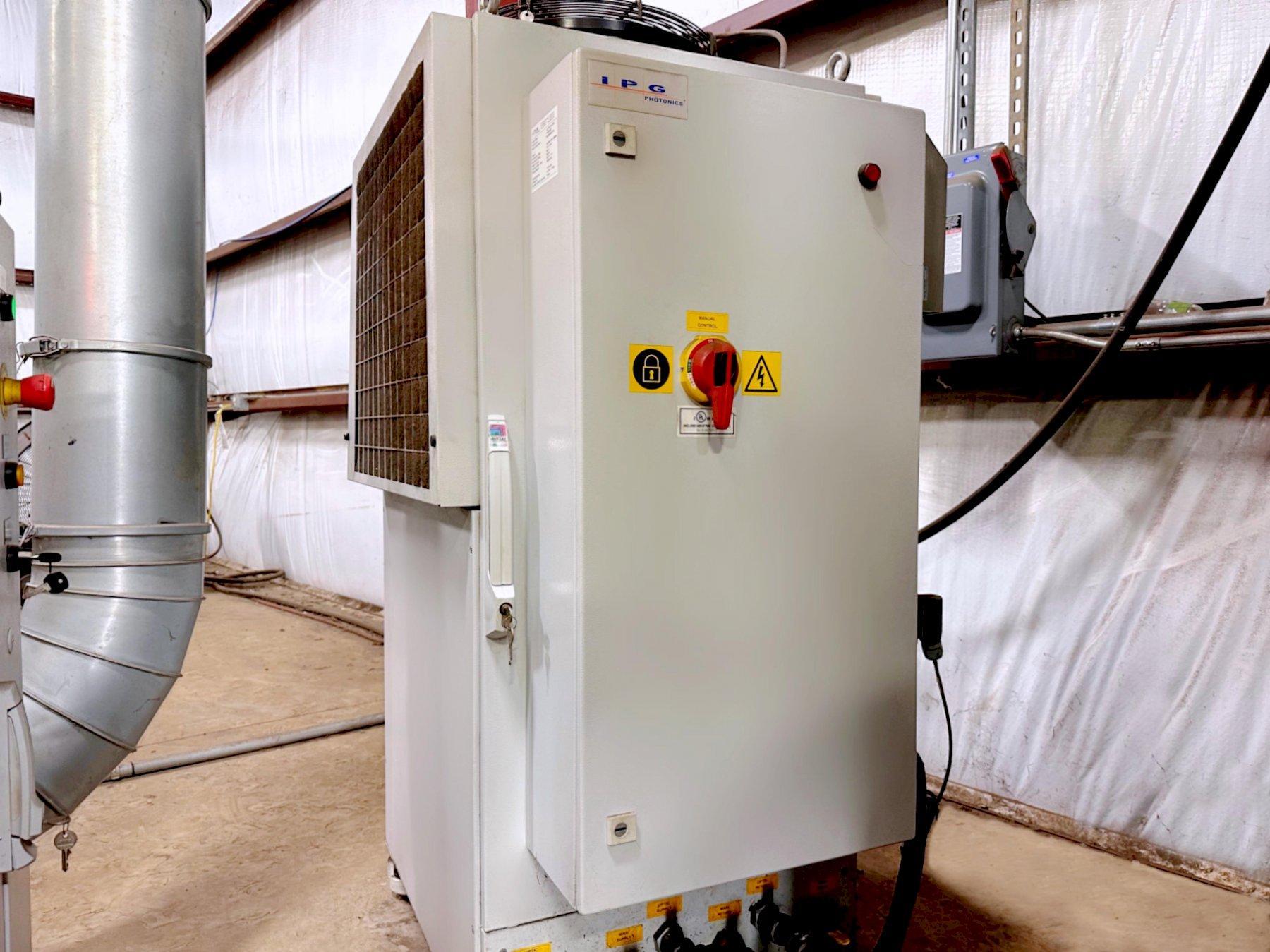

IPG Chiller Unit

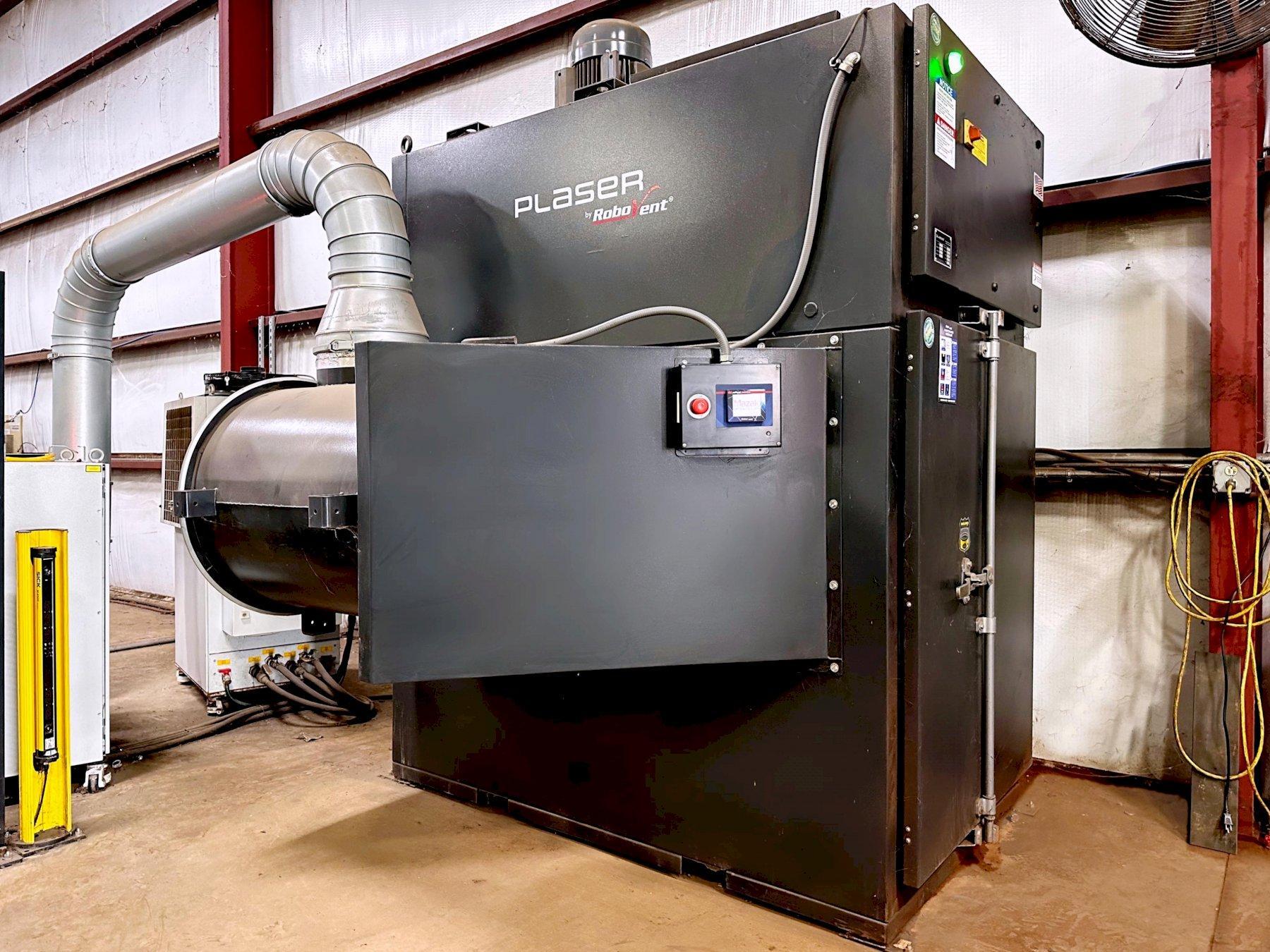

Plaser 3 RoboVent Dust Collector
