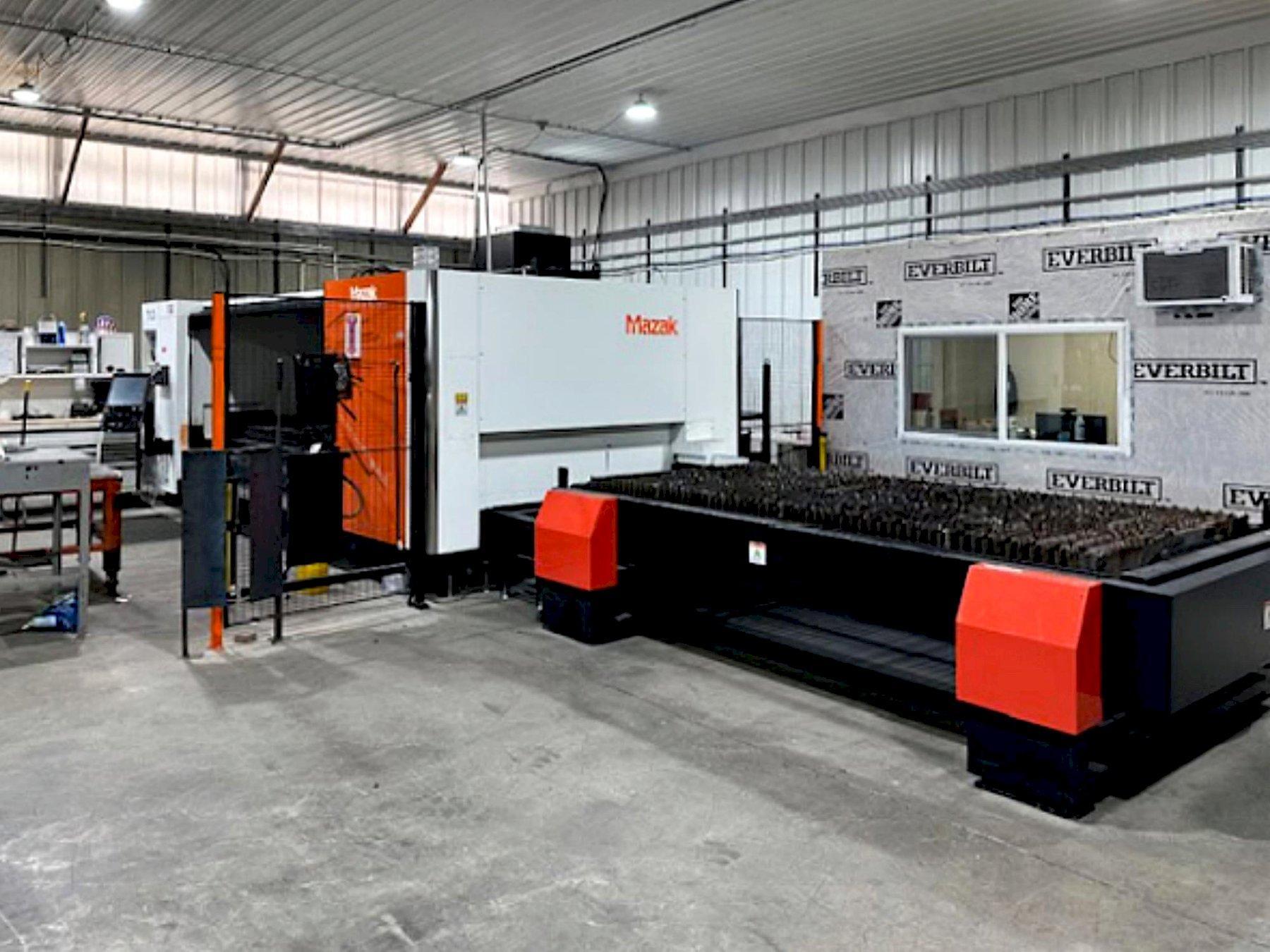

Mazak Optiplex Nexus 3015 Fiber S7

Make : MAZAK

Model: Optiplex Nexus 3015 Fiber S7

Year: 2022

Type: Laser Cutters

Reference #: 100590

Highlights:
In excellent condition, with all necessary preventive maintenance performed.

Request a Quote Sell Your Machine

Specifications Equipped With

Machine Structure: Flying Optics

Max. Workpiece Dimensions: 60.039" x 120.078"

Max. Workpiece Weight: 2,050 Lbs.

X-Axis Travels: 122.046"

Y-Axis Travels: 62.20"

Z-Axis Travels: 5.91"

Work Table Height: 35.43"

Laser Type: Fiber

Power Source: nLight Corona CFX 7000

Laser Output: 7 kW (7,000 W)

Max. Thickness Mild Steel: 1.000"

Max. Thickness Stainless Steel: 1.000"

Max. Thickness Aluminum: 0.750"

Motion Drive System X, Y Axis: Rack & Pinion Drive

Motion Drive System Z Axis: Belt Drive

Number of Control Axis: 4

Rapid Travel Speed X, Y, Z Axis: 2,362 IPM (3,340 IPM 45o Vector)

Control: MAZATROL PreviewG

Positioning Accuracy X, Y Axis: 0.002"/19.68"

Positioning Accuracy Z Axis: 0.0004"/3.94"

Repeatable Accuracy X, Y, Z Axis: 0.0012"

Total Electrical Requirement: 54 kVA

Machine Dimensions: W 119.5" x D 392.1" x H 95.3"

CPU: 64 Bit

Display Screen: 19" SXGA Color (TFT)

Position Detection System: Encoder

Min. Command Unit: 0.0001"

Program Input System: EIA/ISO

Equipped With:

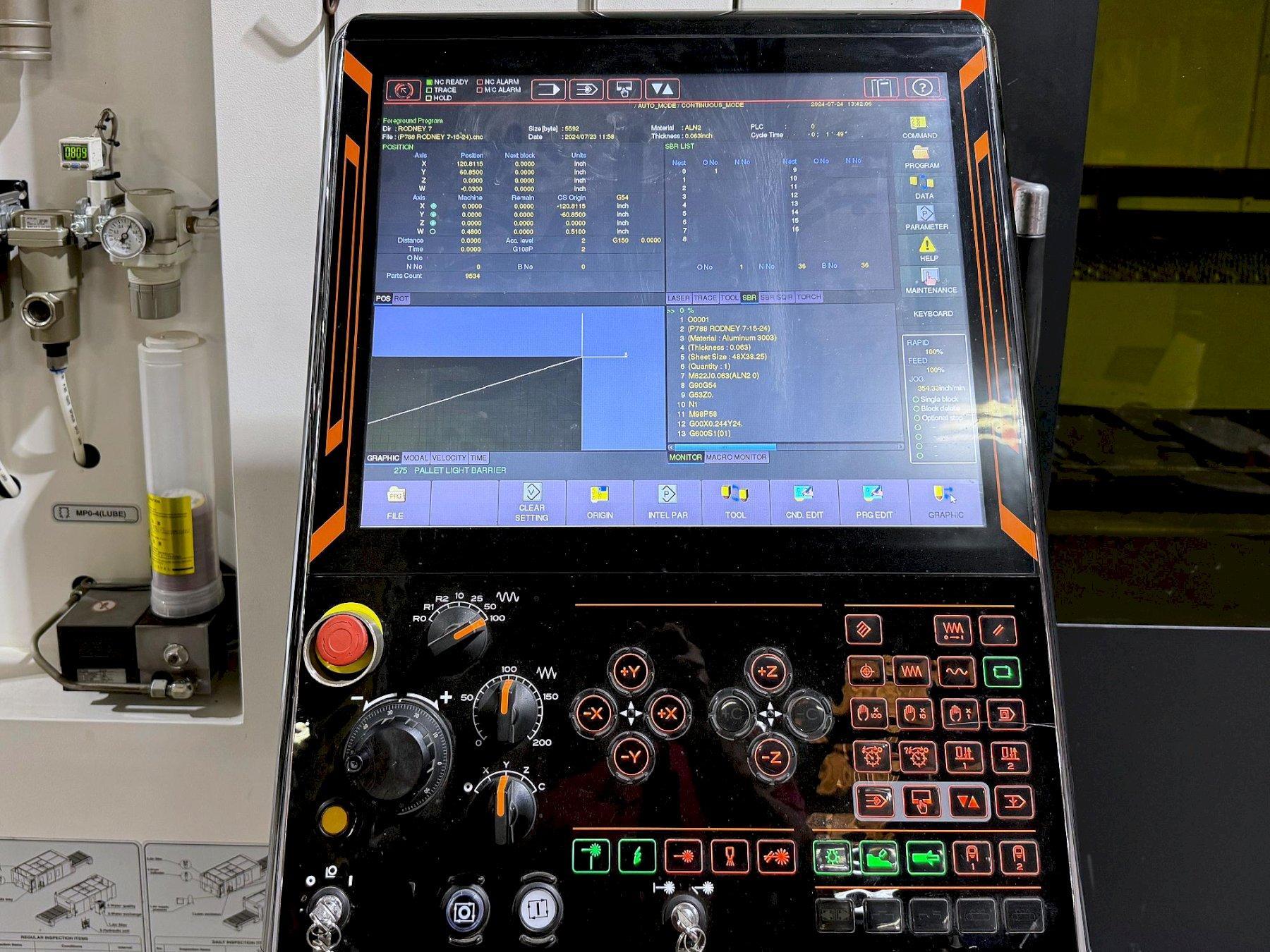

Mazatrol PreviewG CNC Control

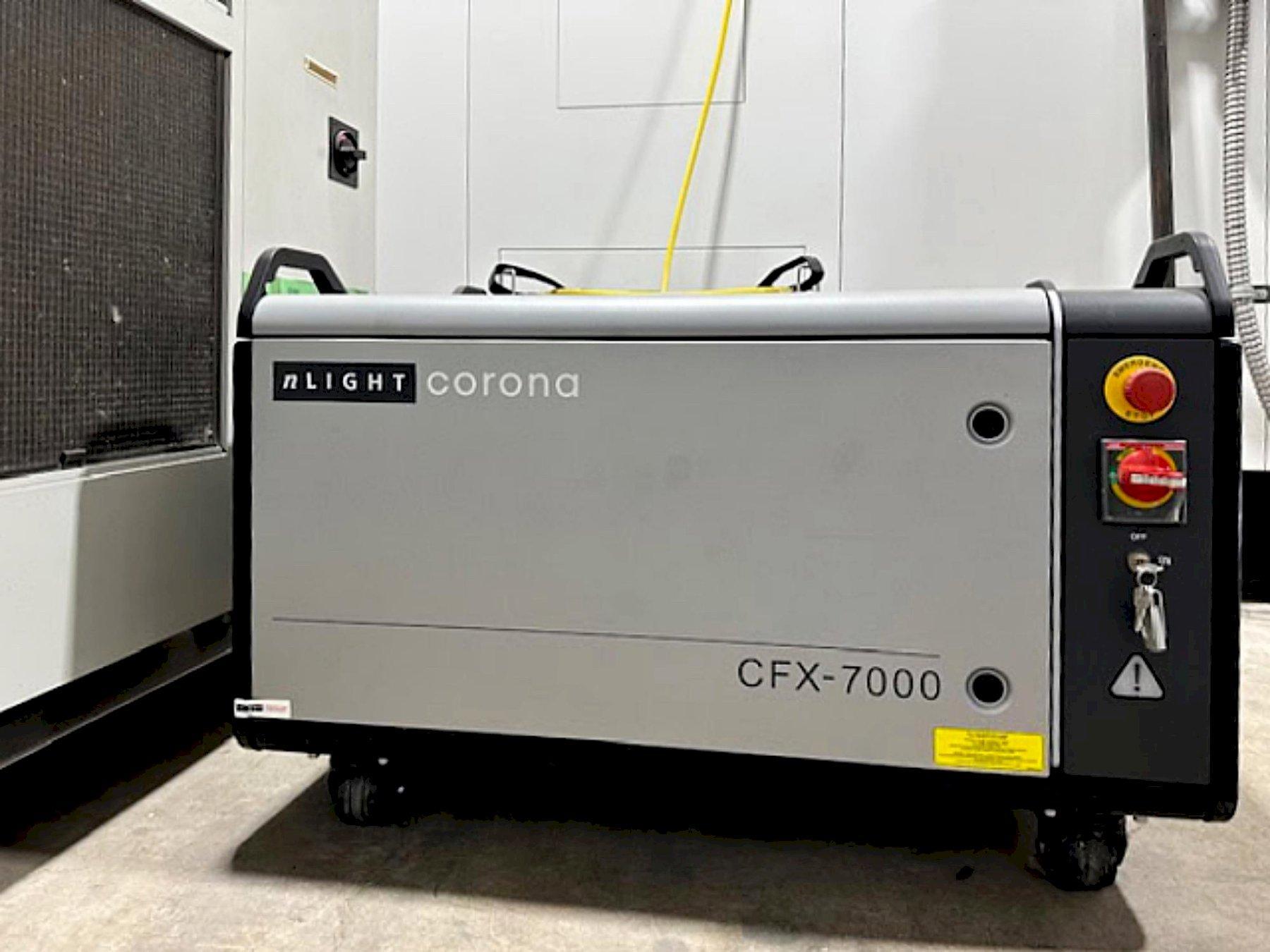

nLight Corona CFX 7000 Power Source
Variable Beam Parameter Product (V-BPP)

Beam Shaping Technology

Large Side-Access Door

Automated Two-Pallet Cutting Table

Chiller Unit

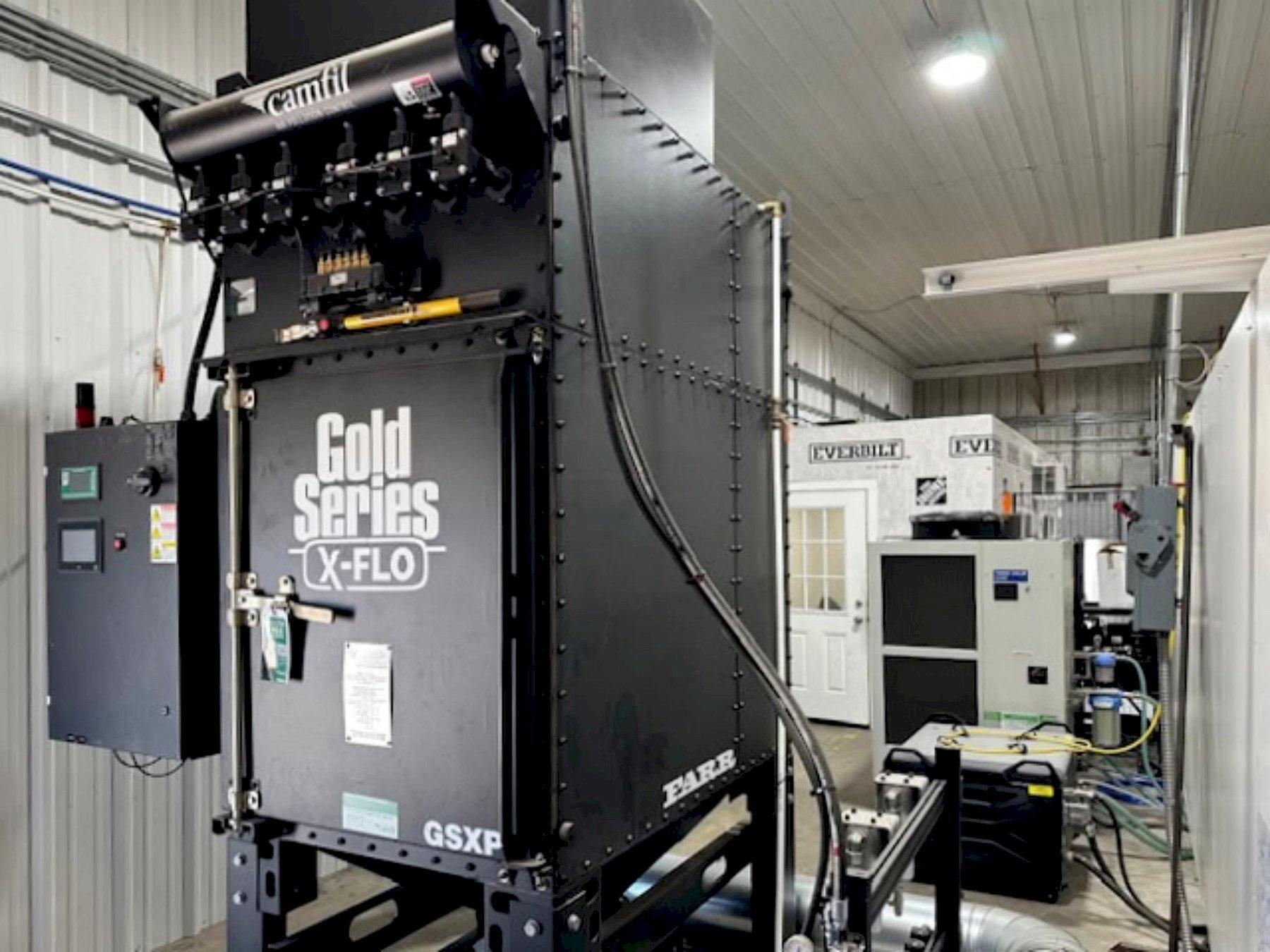

Camfil Dust Collector
