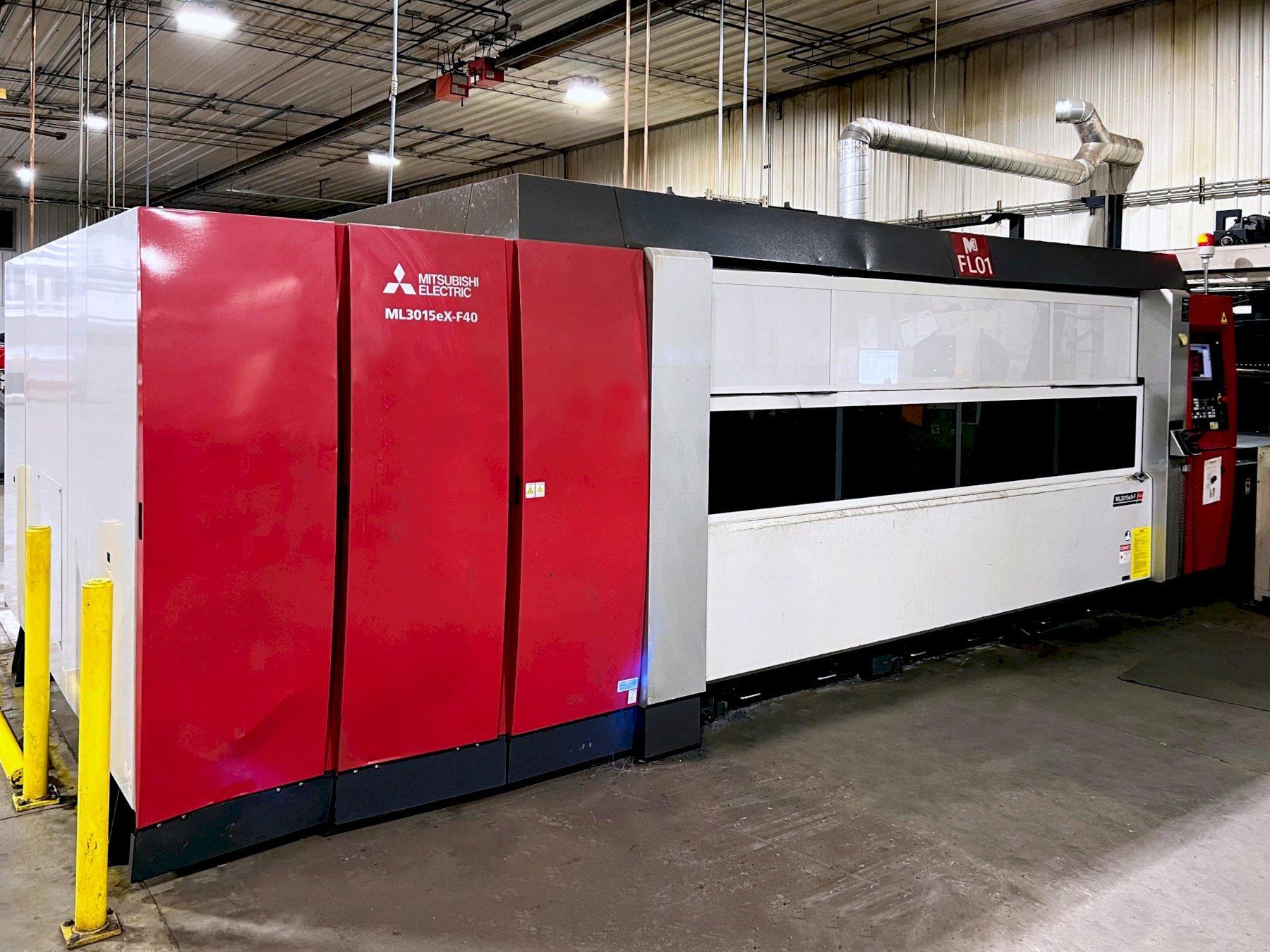

Mitsubishi ML3015eX-F40 (S) Fiber Laser

Make : MITSUBISHI

Model: ML3015eX-F40 (S)

Year: 2016

Type: Laser Cutters

Reference #: 100424

Highlights:
Laser has been maintained by OEM with 13,978 Discharge Hrs.

Request a Quote Sell Your Machine

Specifications Equipped With

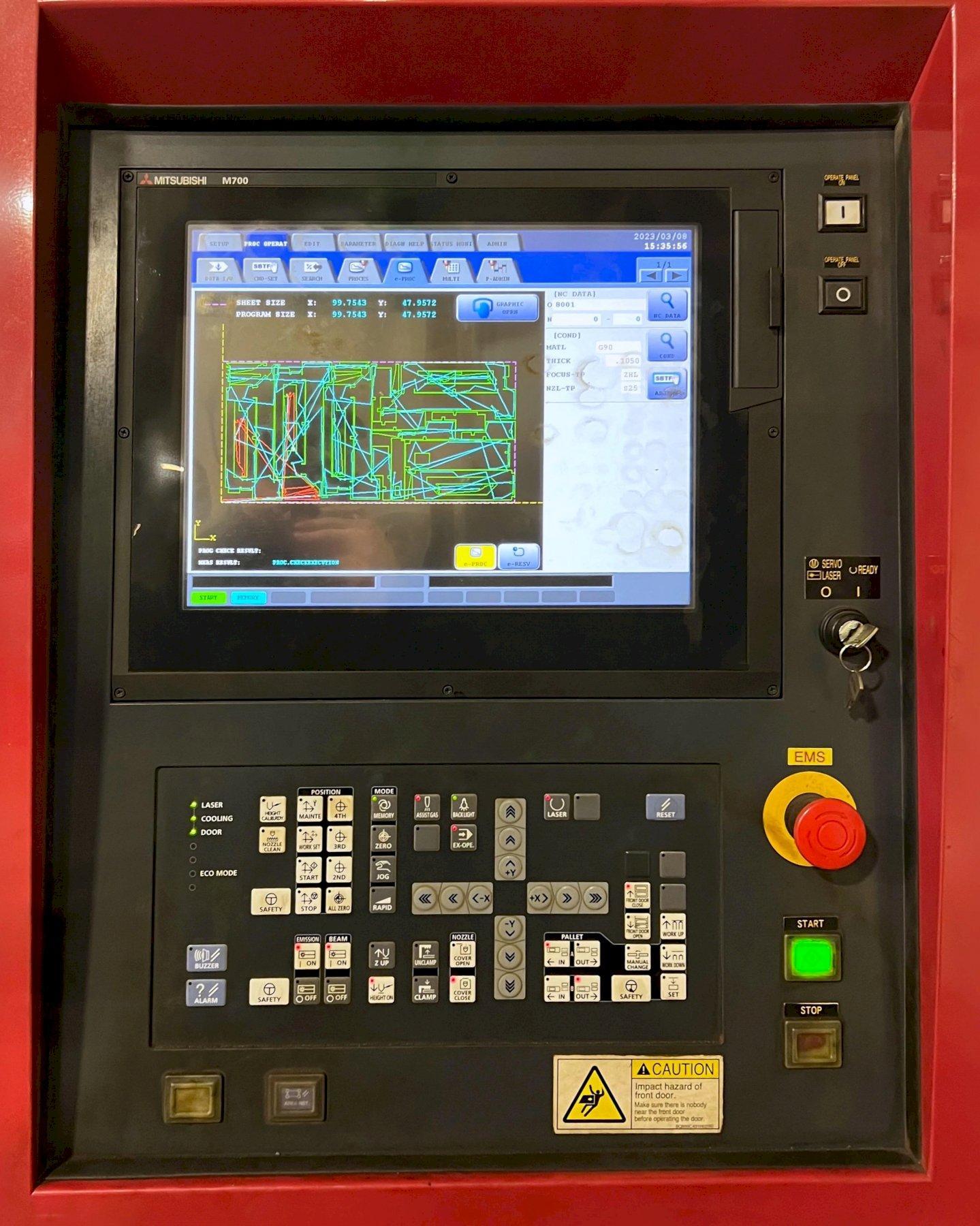

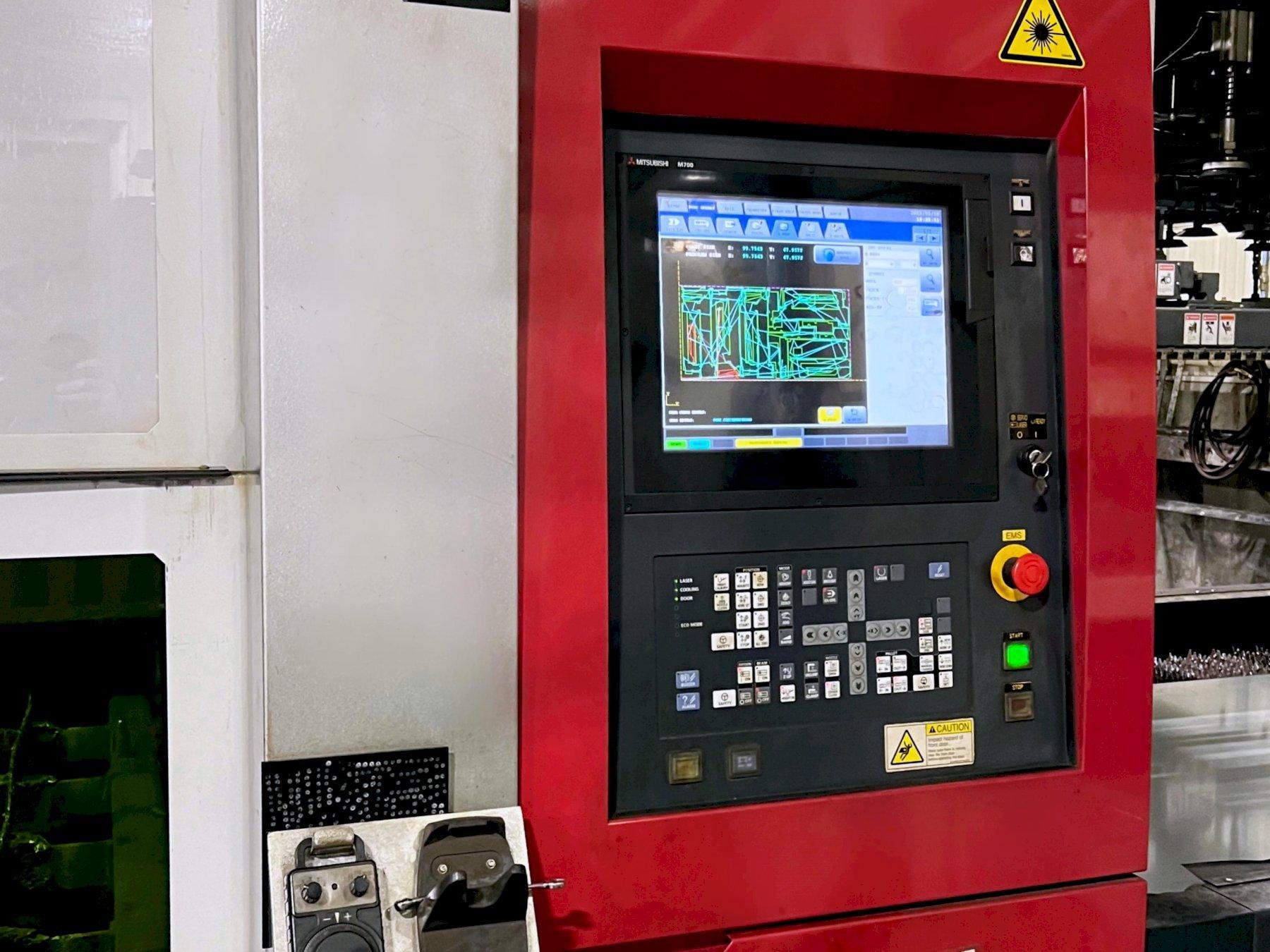

Control: Mitsubishi M700 CNC

Display: 19” Mitsubishi-Electric Touch Screen

Machine Design: Flying Optics

Machine Structure X/Y: Precision Rack & Pinion

Machine Structure Z: Precision Ball Screw

Max. Workpiece Size: 120.1” x 60”

Table Pass Height: 34.6”

X-axis Stroke: 122”

Y-axis Stroke: 61”

Z-axis Stroke: 5.9”

Rapid travel speed (X,Y): 3,940 Single Axis

Rapid Travel Speed (X,Y): 5,550 Simultaneous

Max. Processing Federate: 3,937 IPM

Repeat Accuracy: ± .00039"

Drive Motor Type: Intelligent AC Servo

Max. Workpiece Weight: 2,094 lbs.

Processing Head: Zoom-Head

Laser Type: Fiber Optic

Rated Power Output: 4 KW

Power Source: IPG Fiber

Machine Dimensions: L 402” x W 123” x H 90"

Machine Weight: 26,502 lbs.

Equipped With:

IPG 4000 Watt Fiber Resonator/Engine

Mitsubishi M700 19” Control

All In One Zoom Head Design

Autofocus (Focal Range From 3.75” - 10”)
Magnetic Breakaway Head

One Button Press Automatic Safety Door

Two High Pressure Assist Gas Ports

HPP Pierce Technology

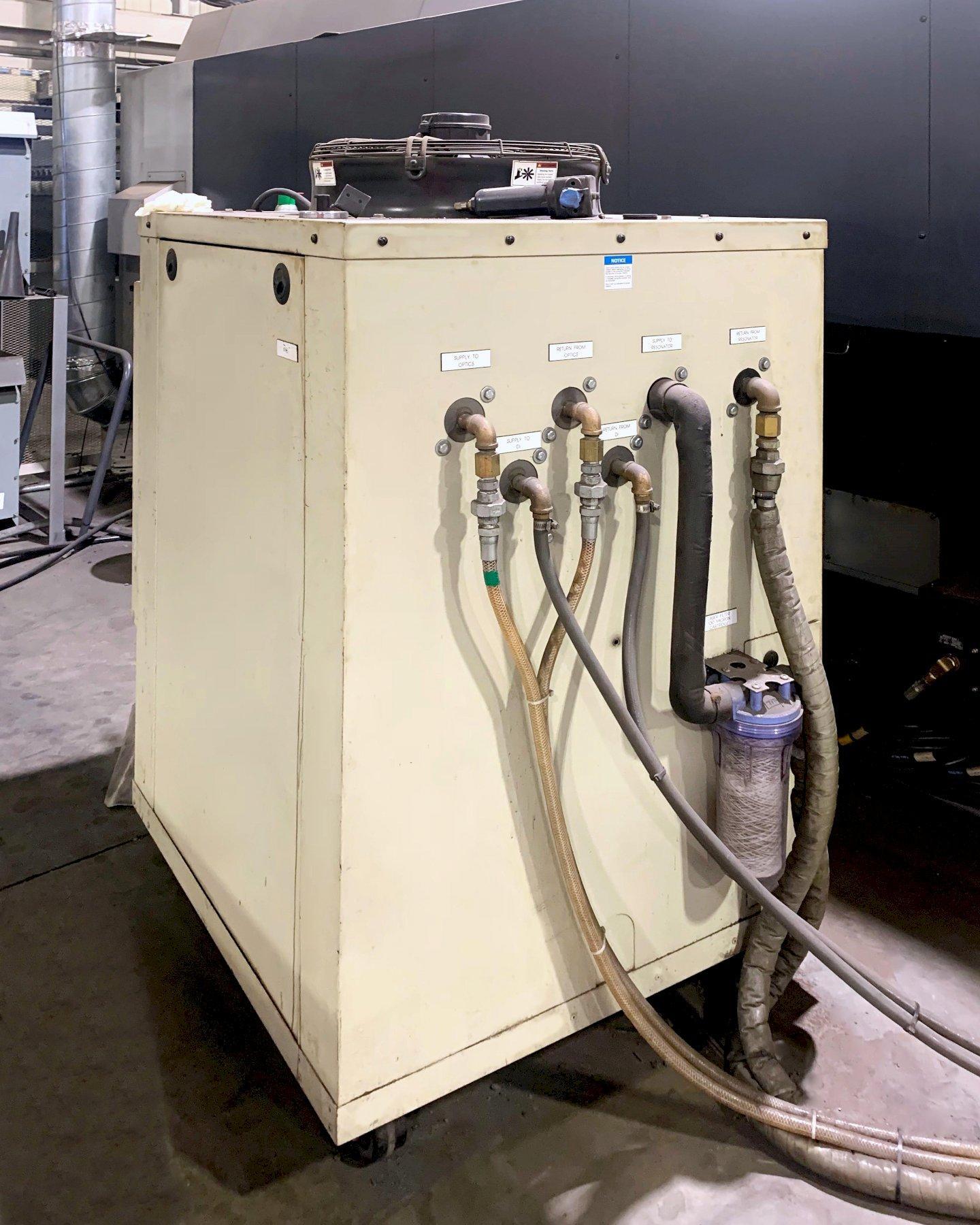

Chiller Unit
