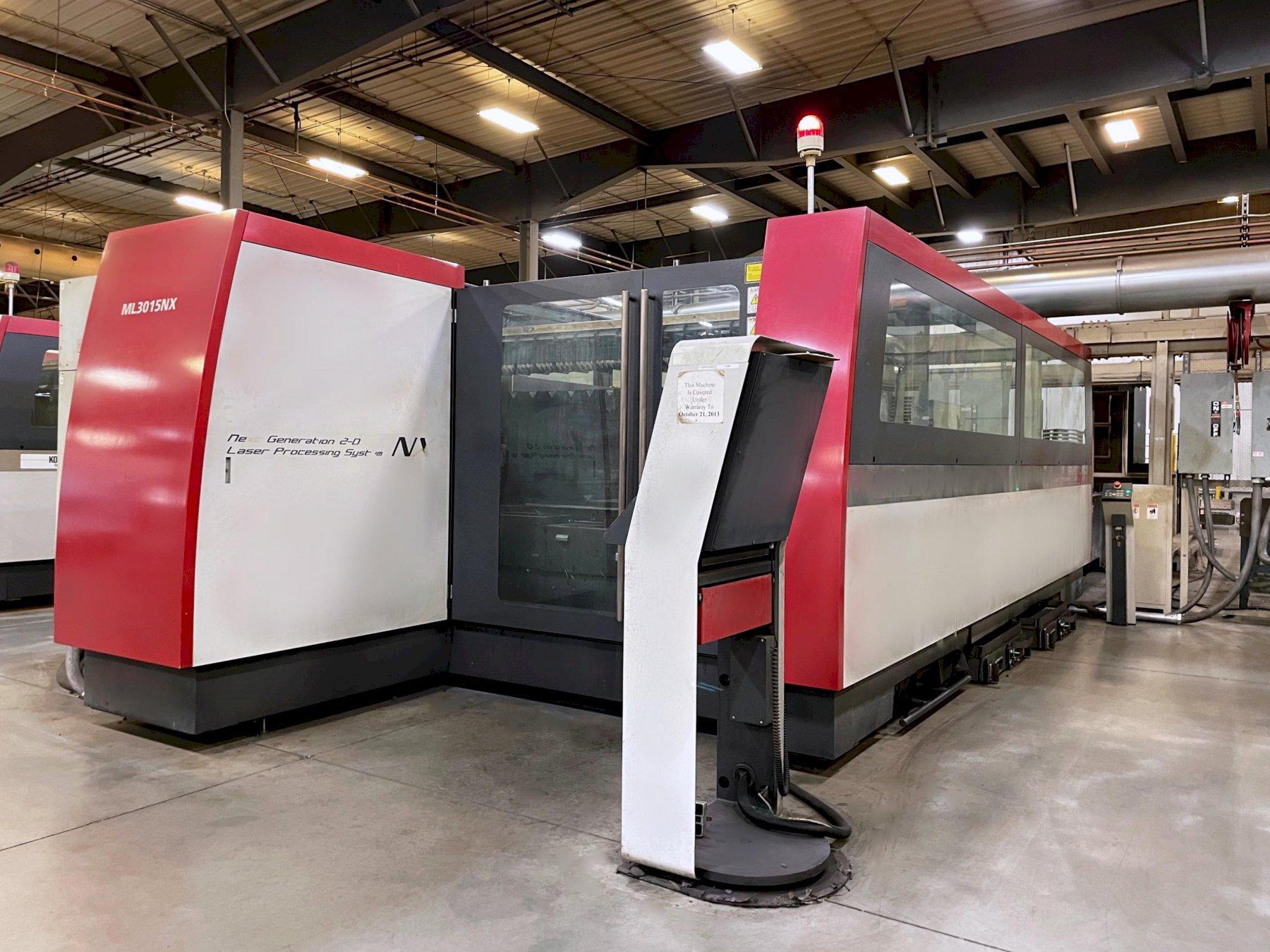

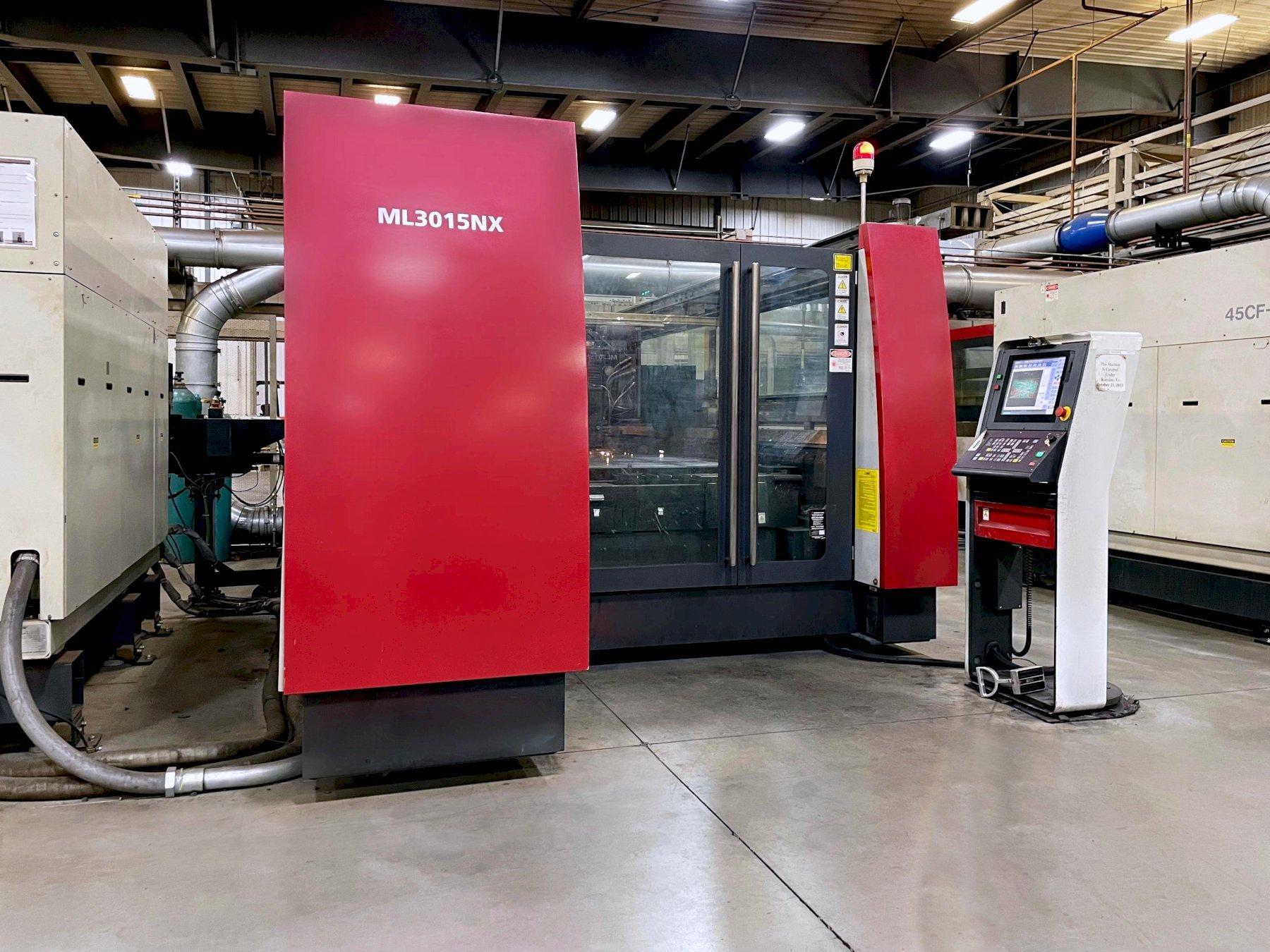

Mitsubishi ML3015NX-45CF-R (2011) 4,500 Watt CO2 Laser

Make : MITSUBISHI

Model: ML3015NX-45CF-R

Year: 2011

Type: Laser Cutters

Reference #: 100347

Highlights:
Mitsubishis’ fastest, most powerful CO2 laser. Includes 4.5 KW cost-reducing Cross-Flow resonator.

Request a Quote Sell Your Machine

Specifications Equipped With

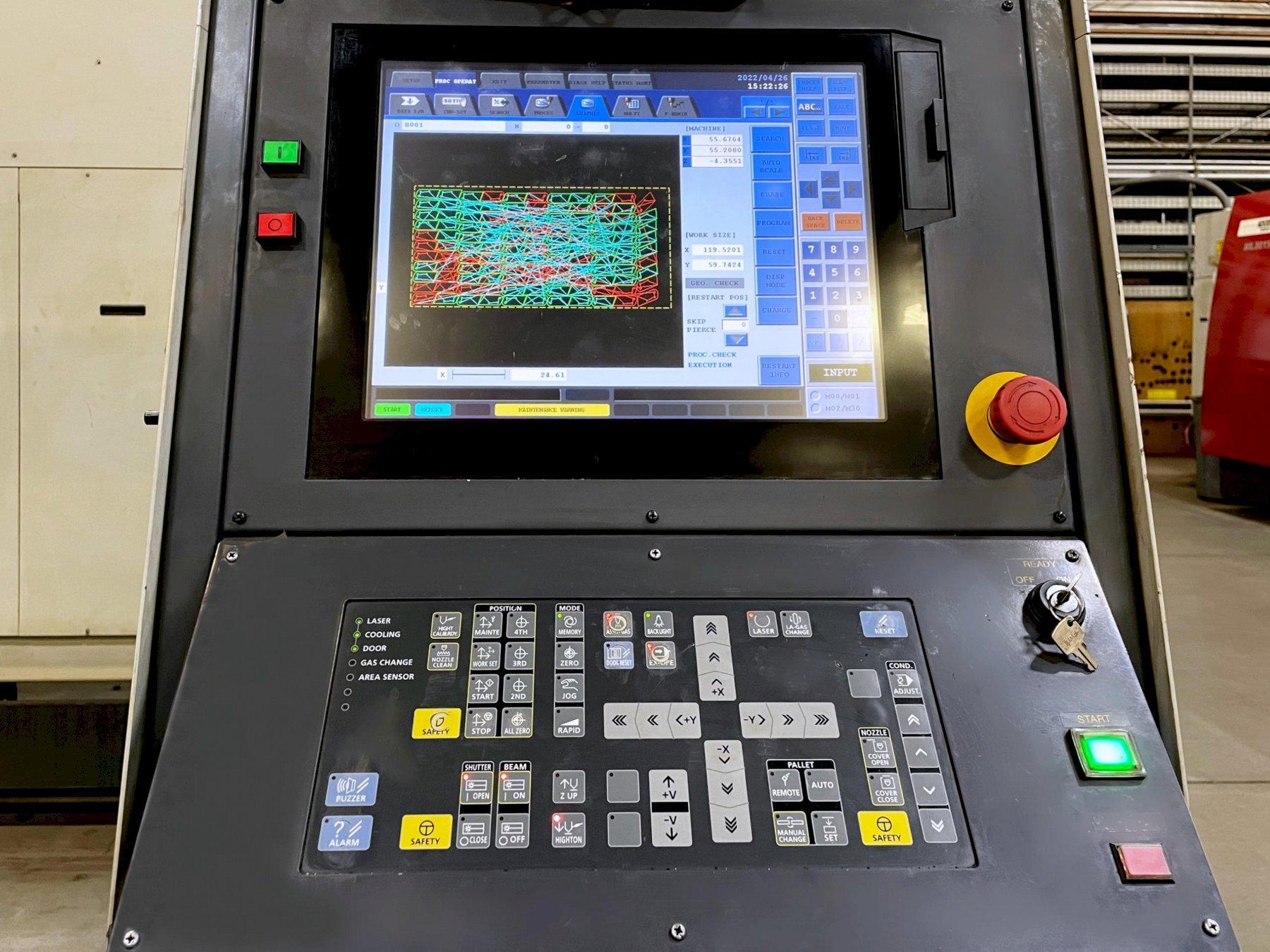

Control: Mitsubishi 700 Series CNC

Display Unit: 15” TFT Color LCD Touch Screen

Laser Type: CO2

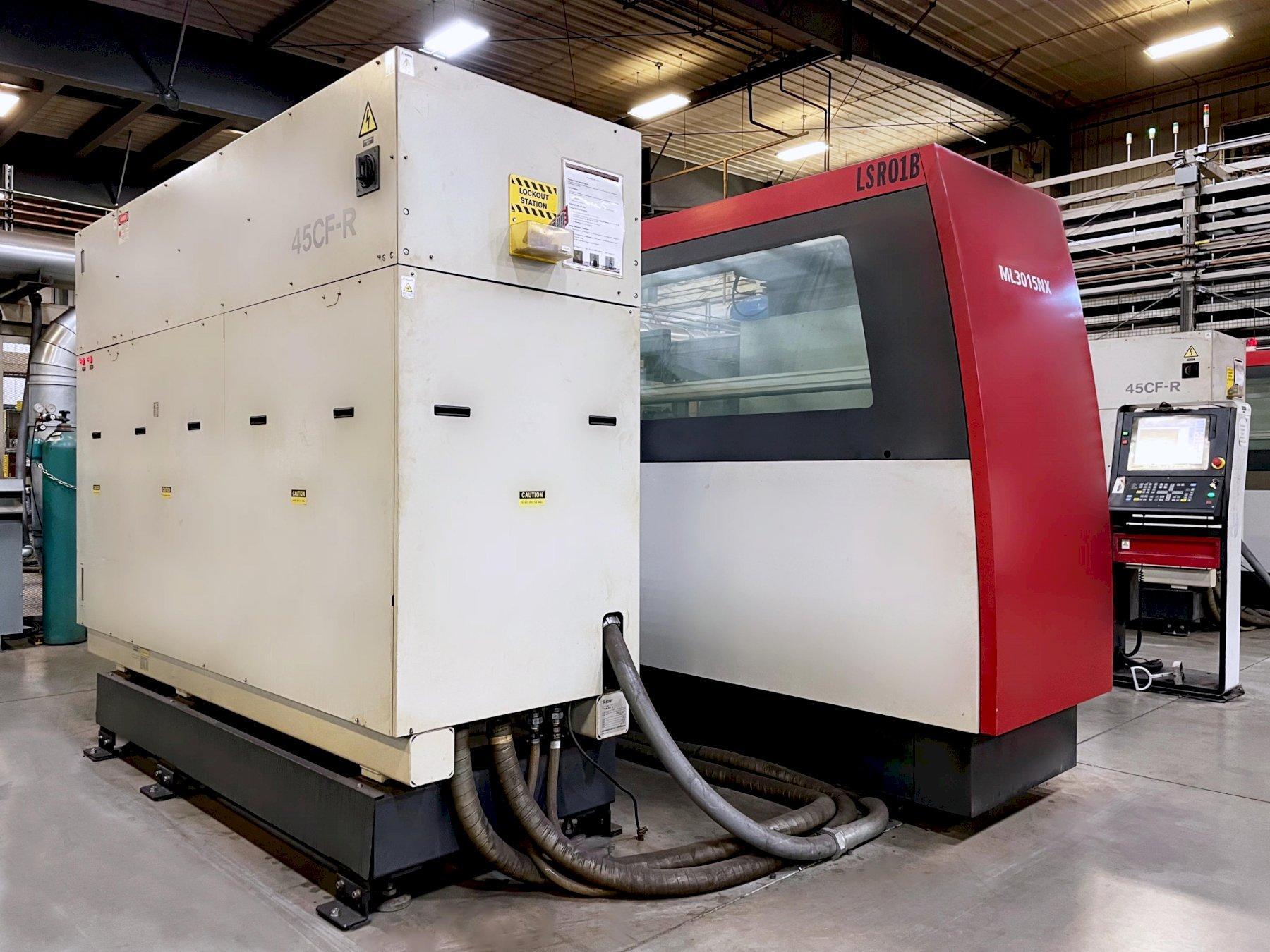

Resonator Model: ML45CF-R

Laser Output Power: 4500 Watts

Travel Drive Method: X,Y,Z Sim. 3 Axes

Control Method: X,Y, & Z Sim.3 Axis Control

X-Axis Stroke: 125.98”

Y-Axis Stroke: 62.99”

Z-Axis Stroke: 4.7”

Max. Work Piece Size: 120” X 60”

Table Pass Height: 33.5”

Max. Processing Feed Rate: 2360 IPM

Sim. Processing Feed Rate: 6680 IPM

Max. Work Piece Weight: 2050 Lbs.

Min. Command Input: .0001”

Drive Motor Type: Intelligent AC Servo

Pallet Change Time: Approx. 35 Seconds

Position Detection Method: Encoder

Machine Structure X,Y Axis: Precision Rack & Pinion

Machine Structure Z Axis: Linear

Pallet Drive Mechanism: Chain

Program Input Method: USB, Computer Link, Ethernet LAN

Electrical Requirements: 208 Vac +/- 5%, 3 Phase, 60 Hz

Power Requirements: 71 KVA/202 Full Load Amps

Installation Dimensions: 489” X 346”

Machine Unit Dimensions: L 444” x W 194 x H 94.5”

Total System Weight: 34,836 Lbs.

Equipped With:

Mitsubishi 700 Series CNC Control

15.0” TFT Color LCD Touch Screen

Mitsubishi ML45CF-R 4500 Watt Resonator

Duel Pallet Table System

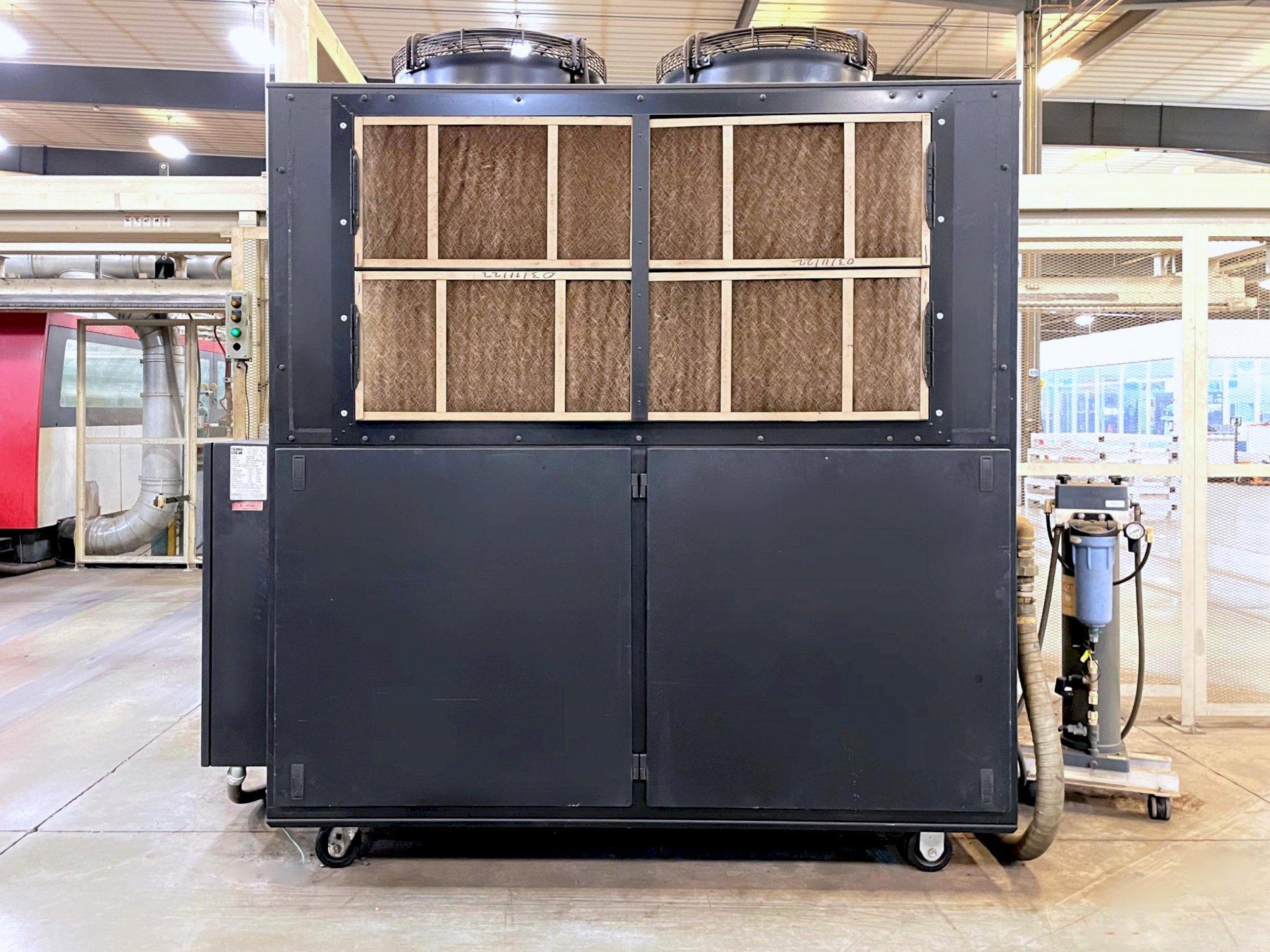

Chiller Unit
