Product Details

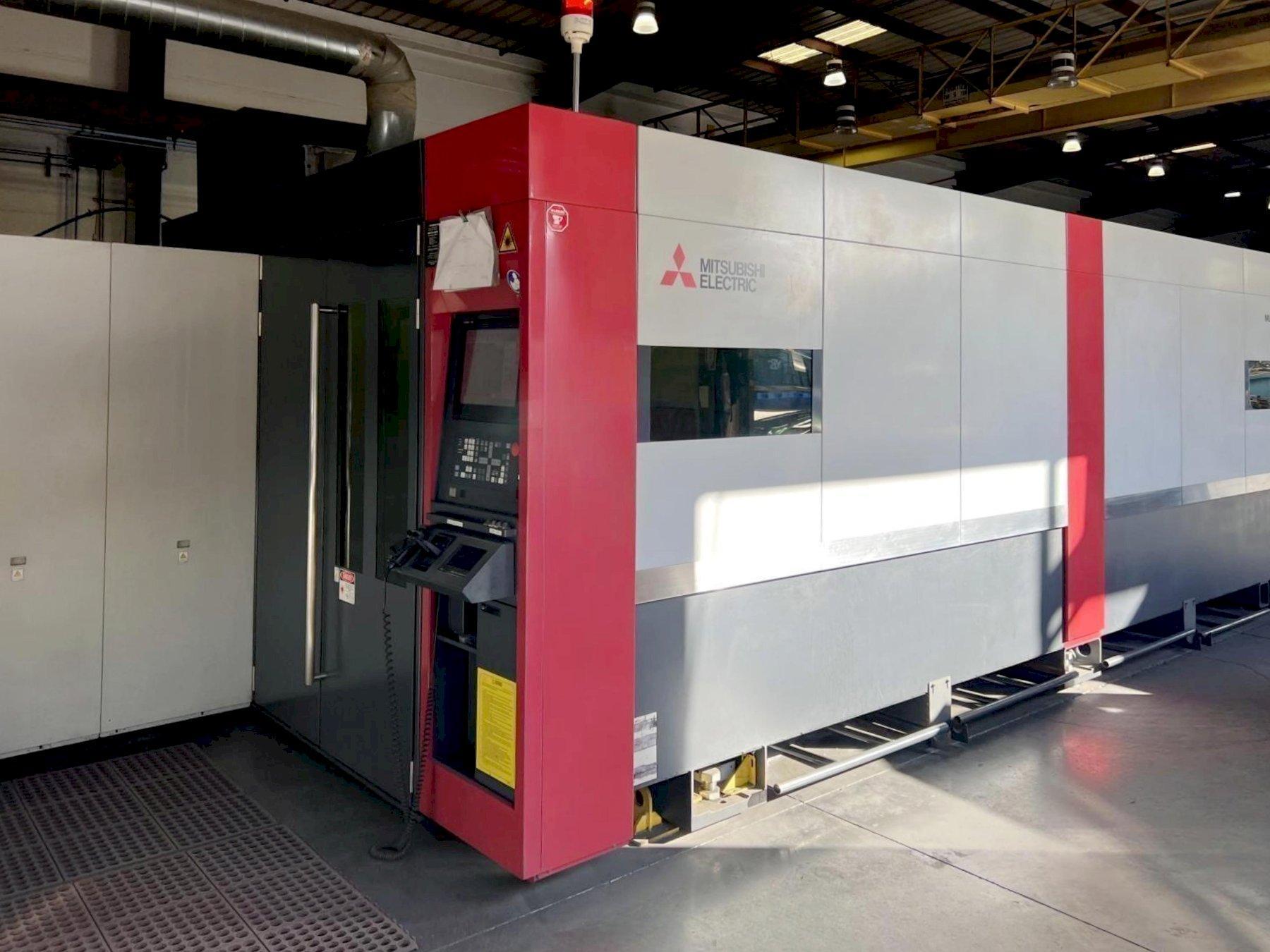

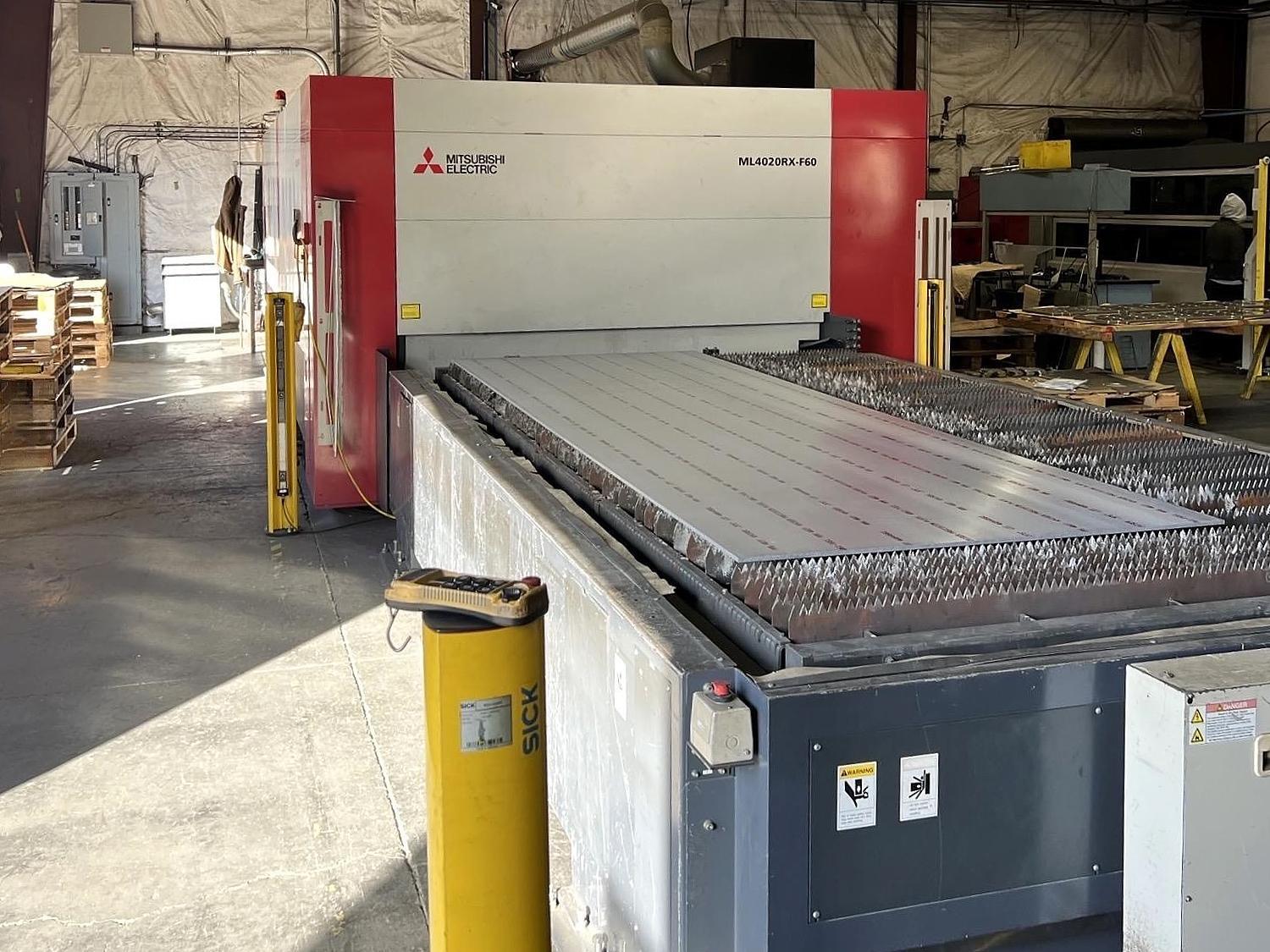

Mitsubishi ML4020RX-F60 Fiber Laser

Make : MITSUBISHI

Model: ML4020RX-F60

Year: 2016

Reference #: 100517

Highlights:
Low Hours – Maintained by OEM with regular PM Service


Control: Mitsubishi M700 Series Control
Resonator Type: Fiber
Rated Power (Output): 6 kW
Processing Head: Zoom Head
Max. Working Area: 81.10” X 159.44”
Cutting Range (X,Y,Z): 82.67”/161.41”/5.90”
Table Pass Height: 34.6"
Max. Table Load: 3,637 Lbs.
Machine Design: Mobile Optical System
Sheet Processing: 2 Exchangeable Tables
Simul. Speed X&Y Axis: 5,511 IPM
Max Processing Feed Rate: 1,970 IPM
Pos. Accuracy (X/Y Axis): .00196”/19.685”
Pos. Repeatability (X&Y Axis): .000393”
Max. Material Thickness Mild Steel: 1.10"
Max. Material Thickness Stainless: .98”
Max. Material Thickness Aluminum: .98”
Max. Material Thickness Brass: .47”
Max. Material Thickness Copper: .24”
Startup Time: 3 Min.
Voltage: 208V/3 Phase 60 Hz
Machine Weight: 33,069 Lbs.
Dimensions: 516" X 138” X 91”

Equipped With:

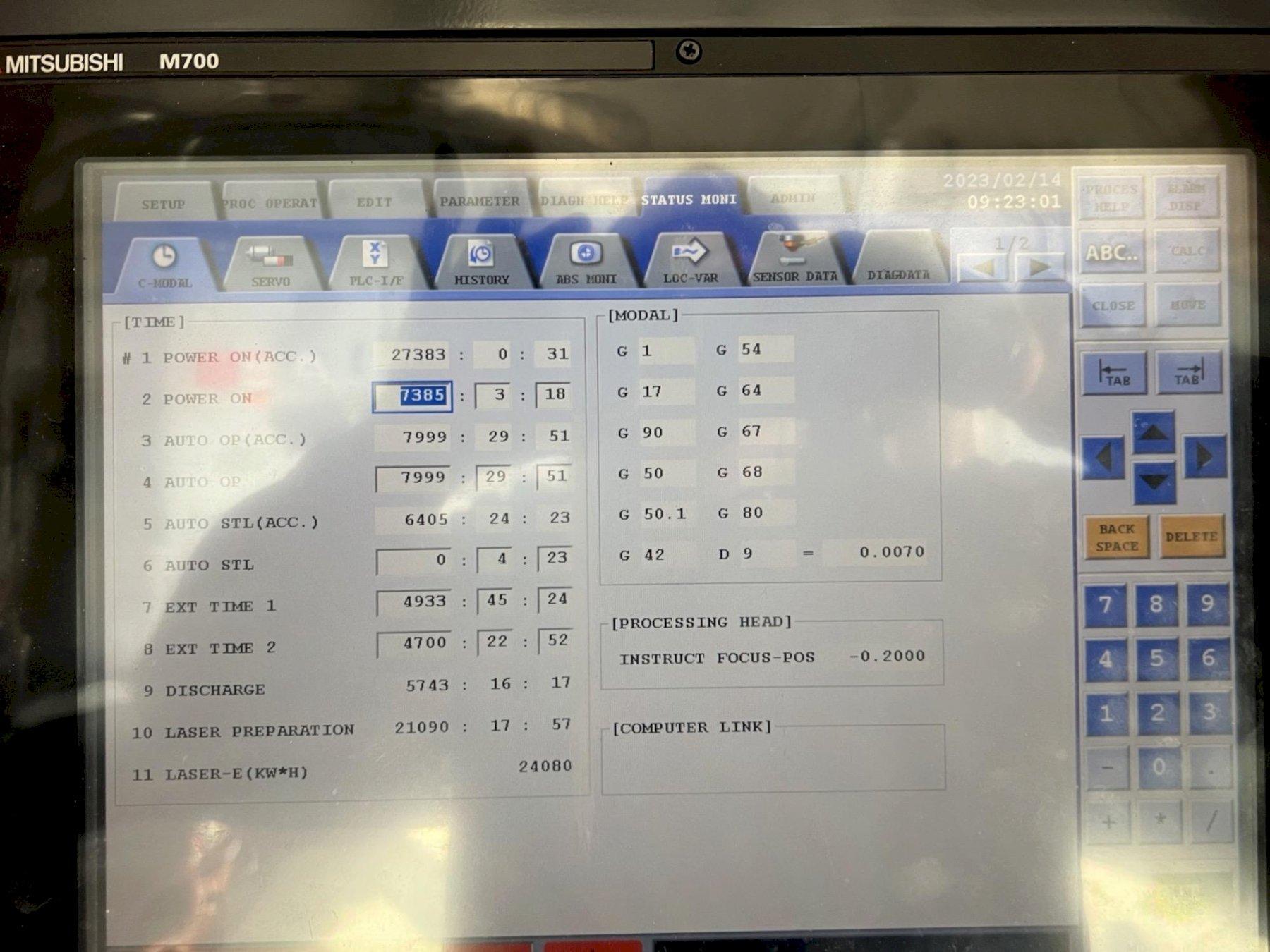

Mitsubishi M700 Series Control

15” Touch Screen

64-Bit Windows XP Operating System

IPG 6,000 Watt Laser Source

Zoom Head

Dual Pallet Shuttle Tables
Lift Tables

USB/Ethernet LAN/Computer Link

ECO Mode / ECO Cut

Automation Ready

Automatic Oiler

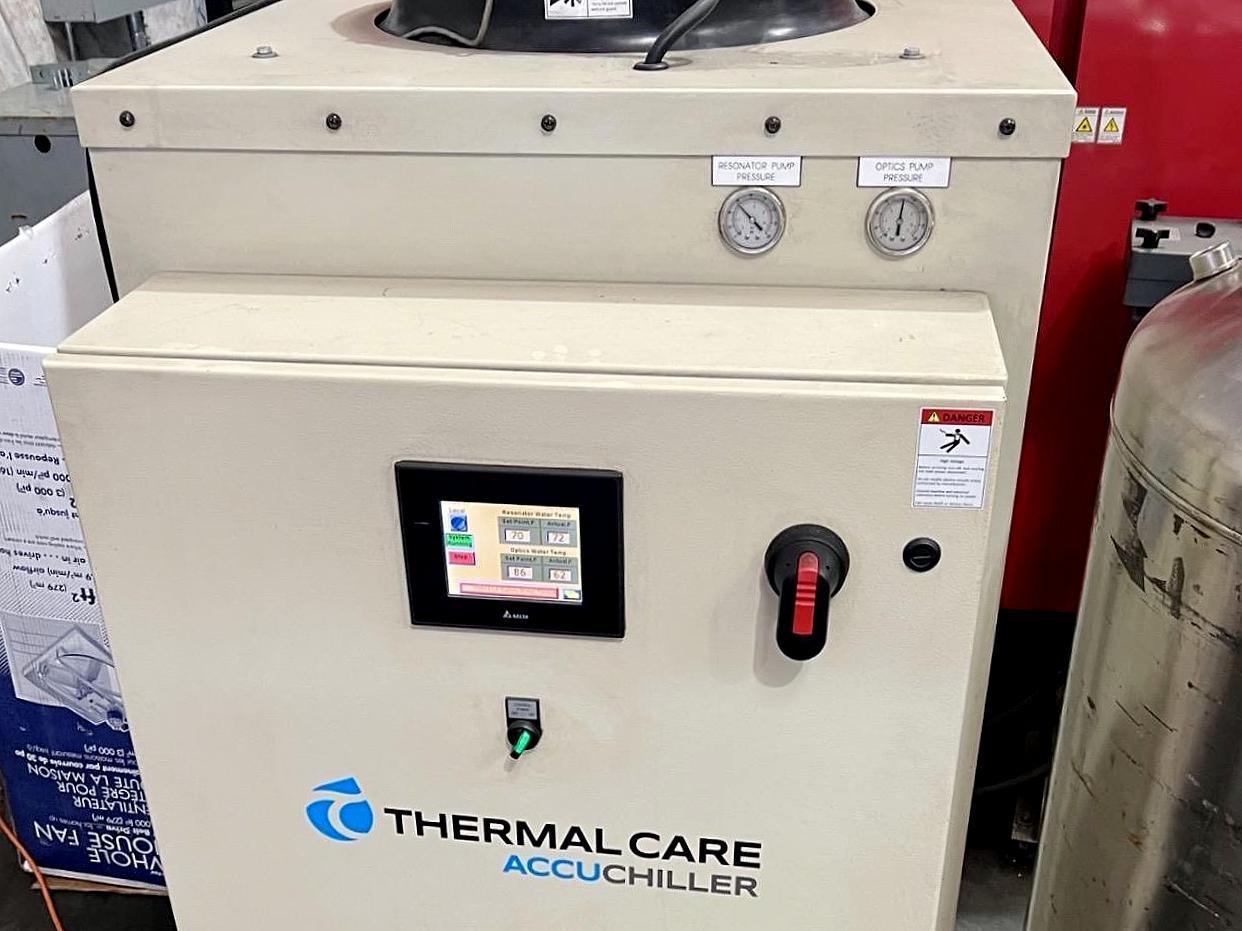

Chiller Unit
