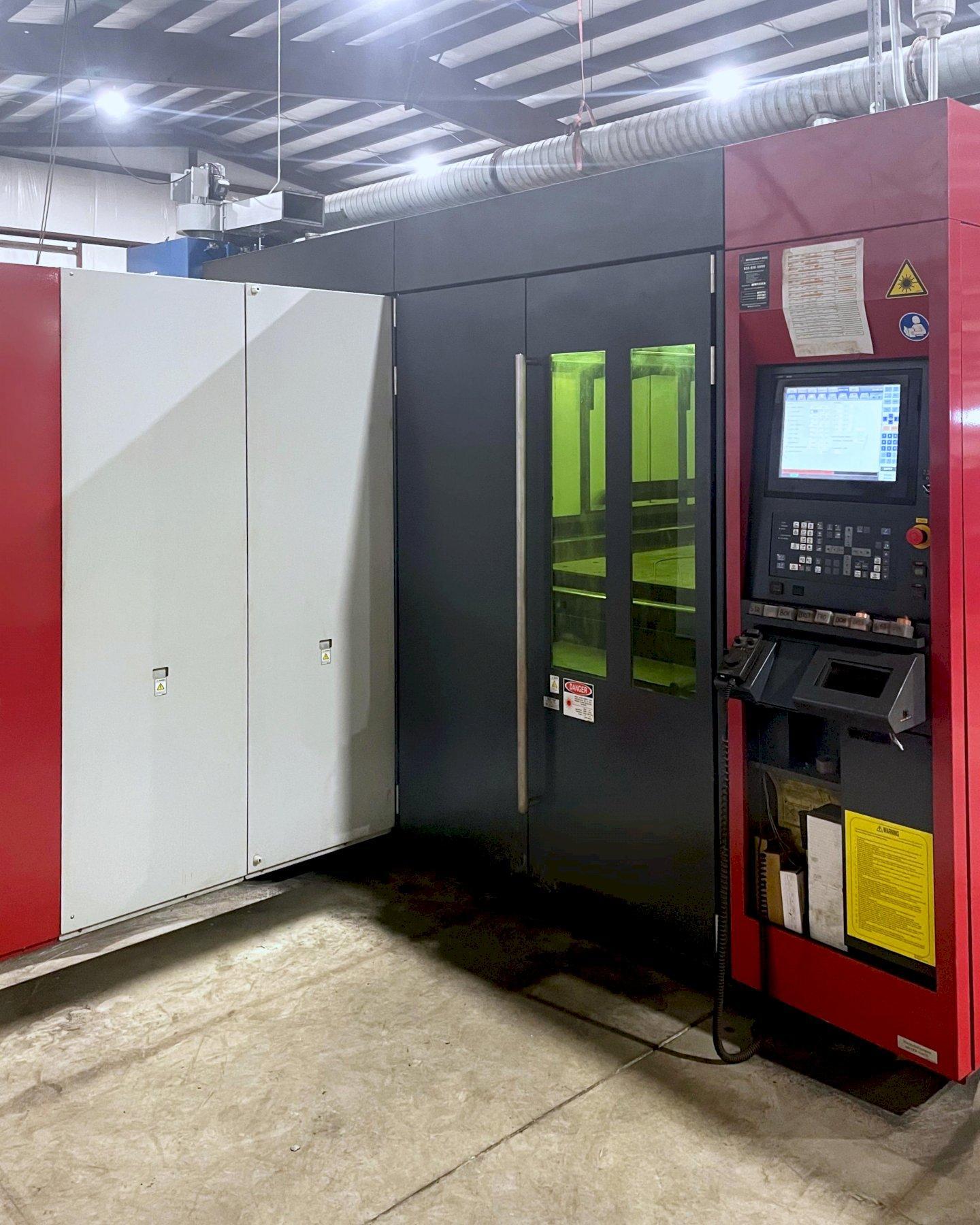

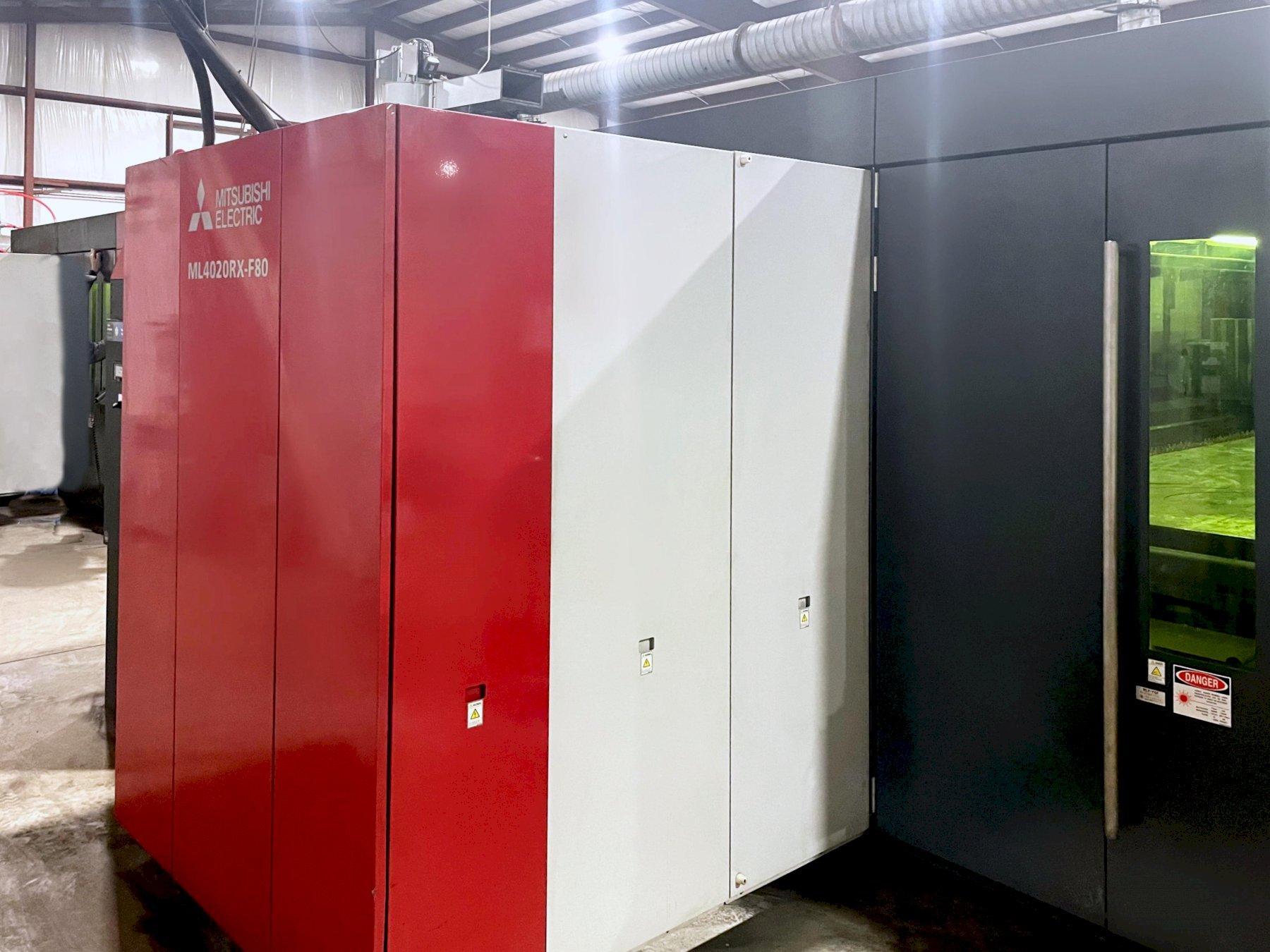

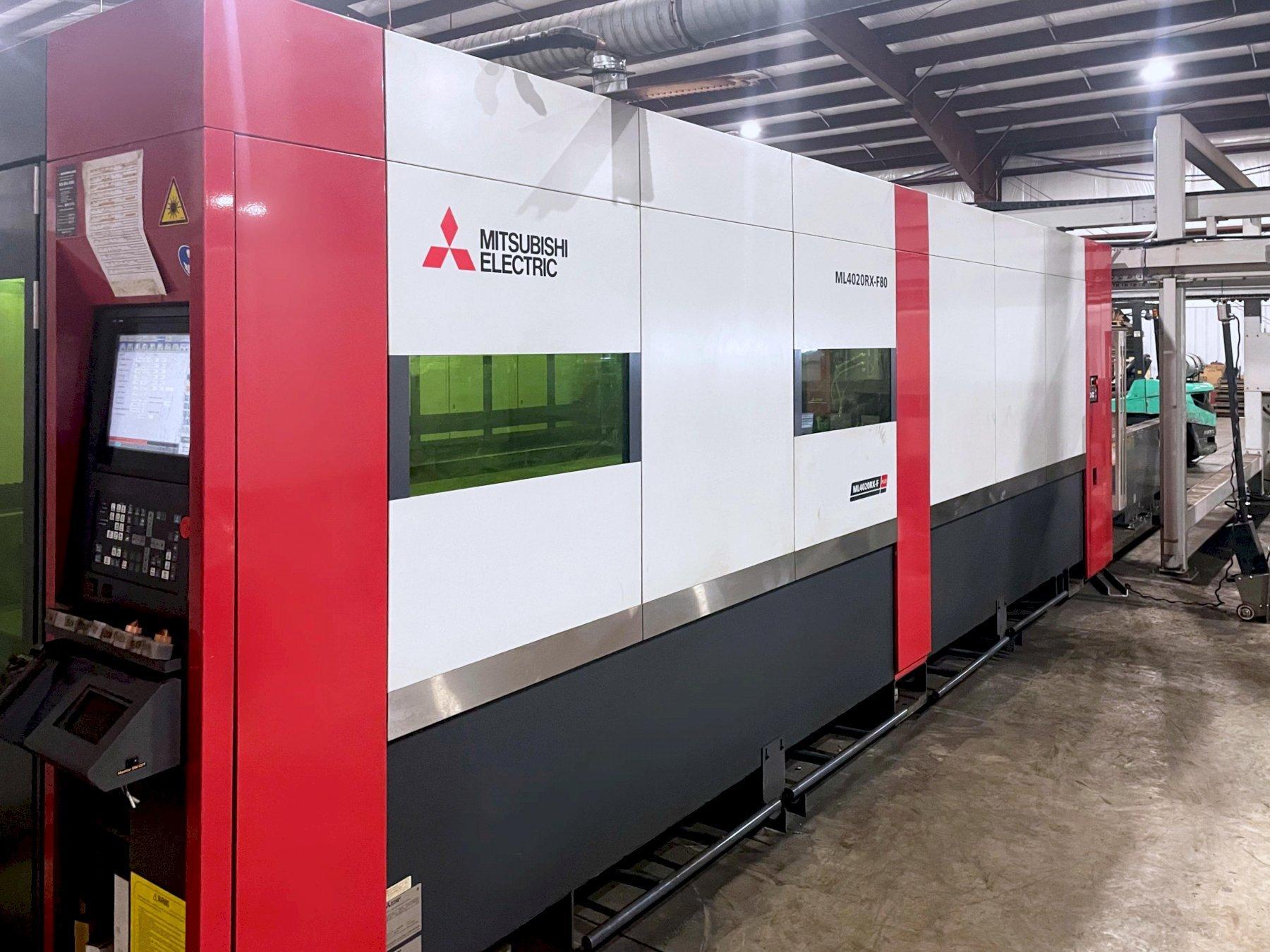

Mitsubishi ML4020RX-F80 Fiber Laser

Make : MITSUBISHI

Model: ML4020RX-F80

Year: 2019

Type: Laser Cutters

Reference #: 100379

Highlights:
Low Hours – Maintained by OEM with regular PM Service

Request a Quote Sell Your Machine

Specifications Equipped With

Dimensions: 516" X 138” X 91”

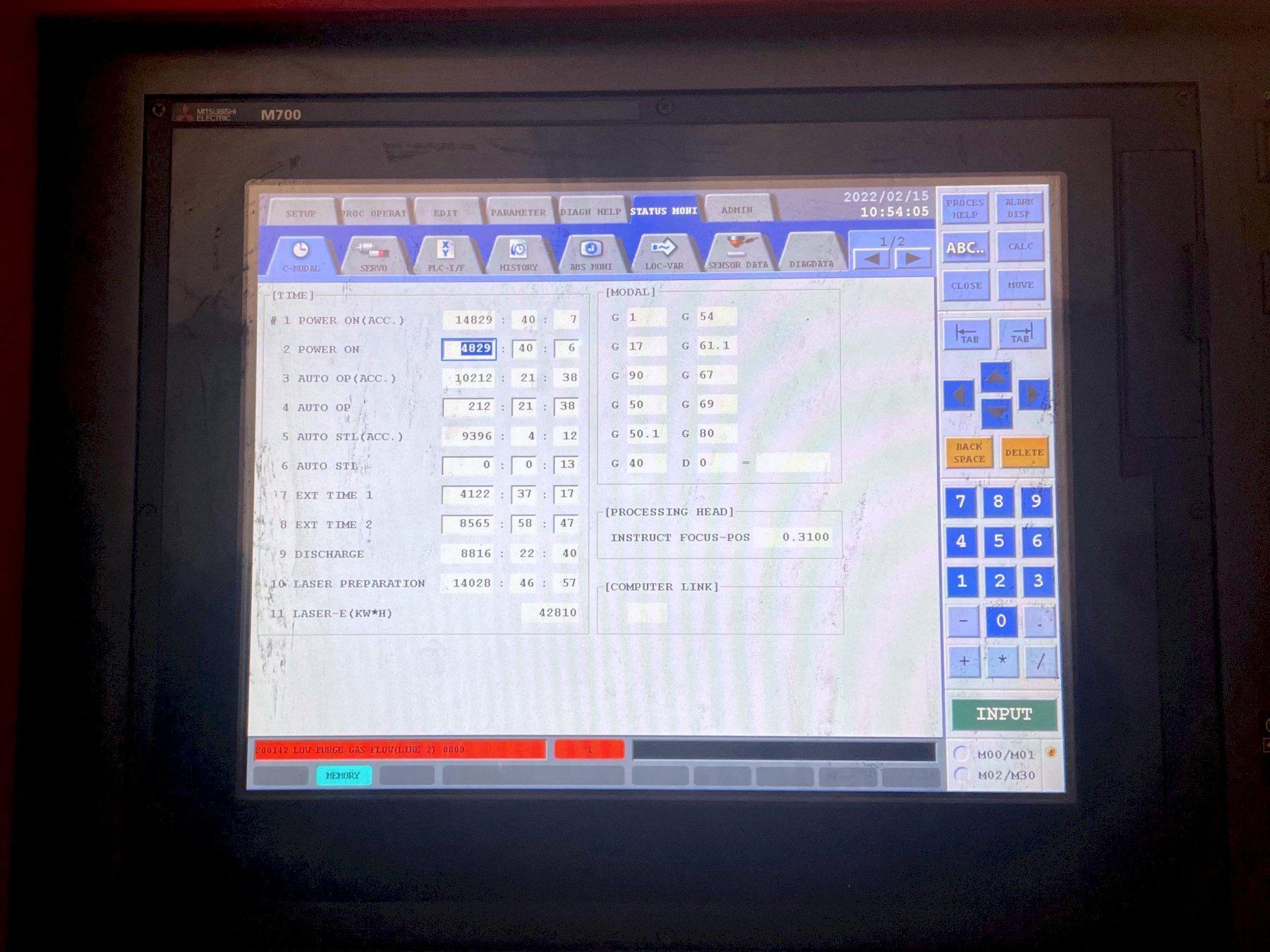

Control: Mitsubishi M700 Series Control

Resonator Type: Fiber

Rated Power (Output): 8 kW

Processing Head: Zoom Head

Max. Working Area: 81.10” X 159.44”

Cutting Range (X,Y,Z): 82.67”/161.41”/5.90”

Table Pass Height: 34.6"

Max. Table Load: 3,637 Lbs.

Machine Design: Mobile Optical System

Sheet Processing: 2 Exchangeable Tables

Simul. Speed X&Y Axis: 5,511 IPM

Max Processing Feed Rate: 1,970 IPM

Pos. Accuracy (X/Y Axis): .00196”/19.685”

Pos. Repeatability (X&Y Axis): .000393”

Max. Material Thickness Mild Steel: 1.10"

Max. Material Thickness Stainless: .98”

Max. Material Thickness Aluminum: .98”

Max. Material Thickness Brass: .47”

Max. Material Thickness Copper: .24”

Startup Time: 3 Min.

Voltage: 208V/3 Phase 60 Hz

Machine Weight: 33,069 Lbs.

Equipped With:
Mitsubishi M700 Series Control

15” Touch Screen

64-Bit Windows XP Operating System

IPG 8,000 Watt Laser Source

Upgraded Zoom Head

Dual Pallet Shuttle Tables

USB/Ethernet LAN/Computer Link

ECO Mode / ECO Cut

Automation Ready

Automatic Oiler

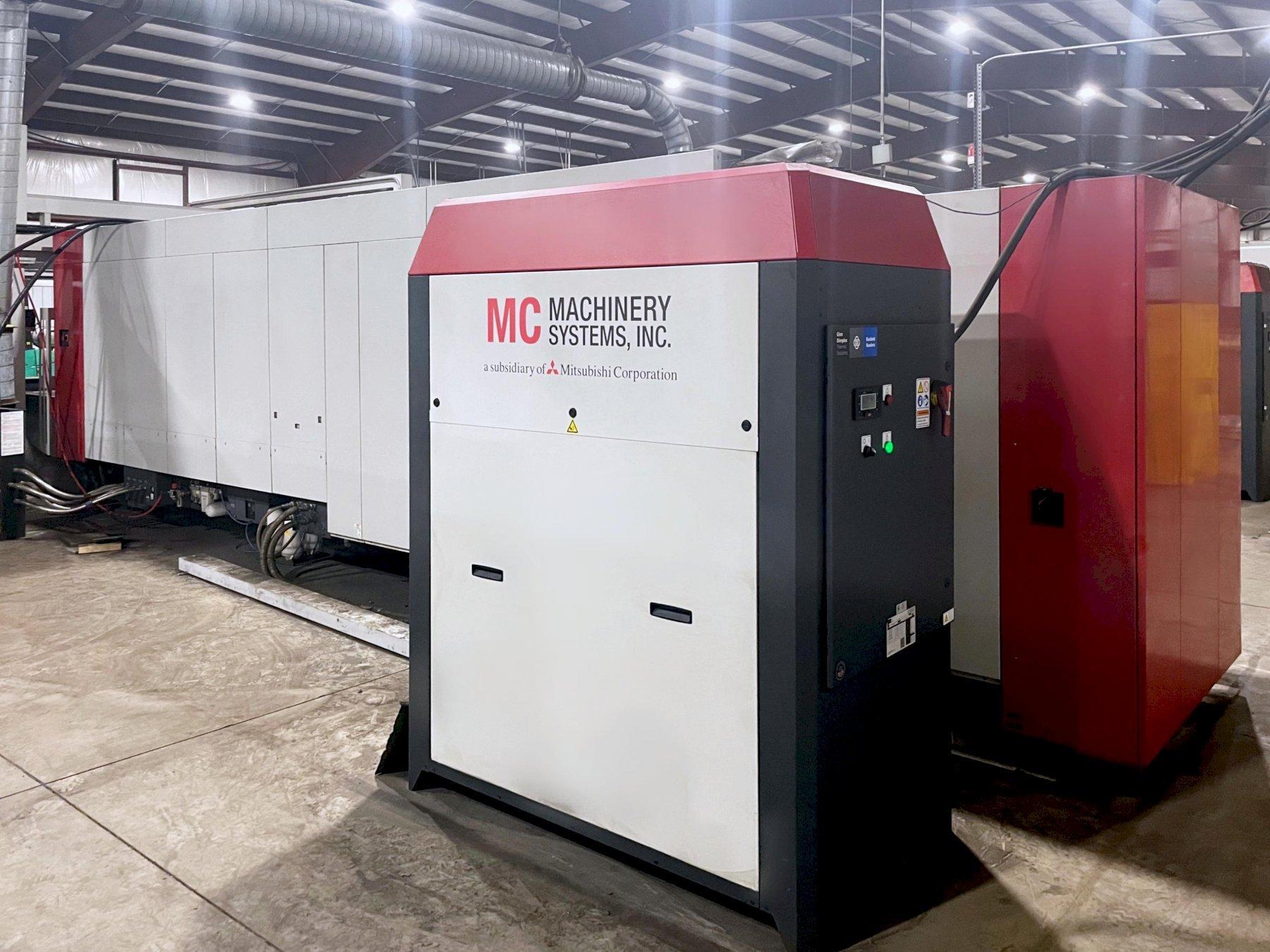

Chiller Unit
