Product Details

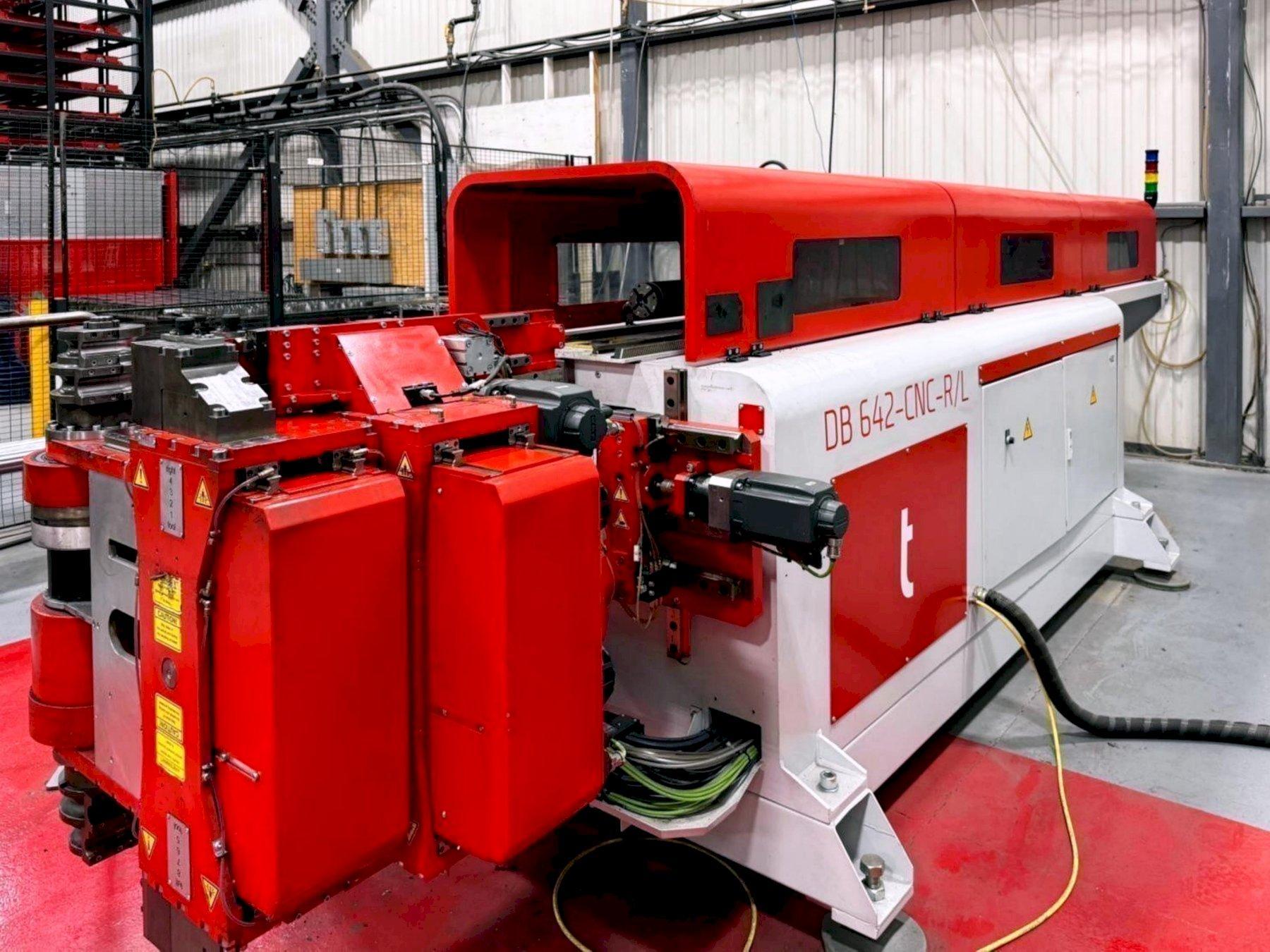

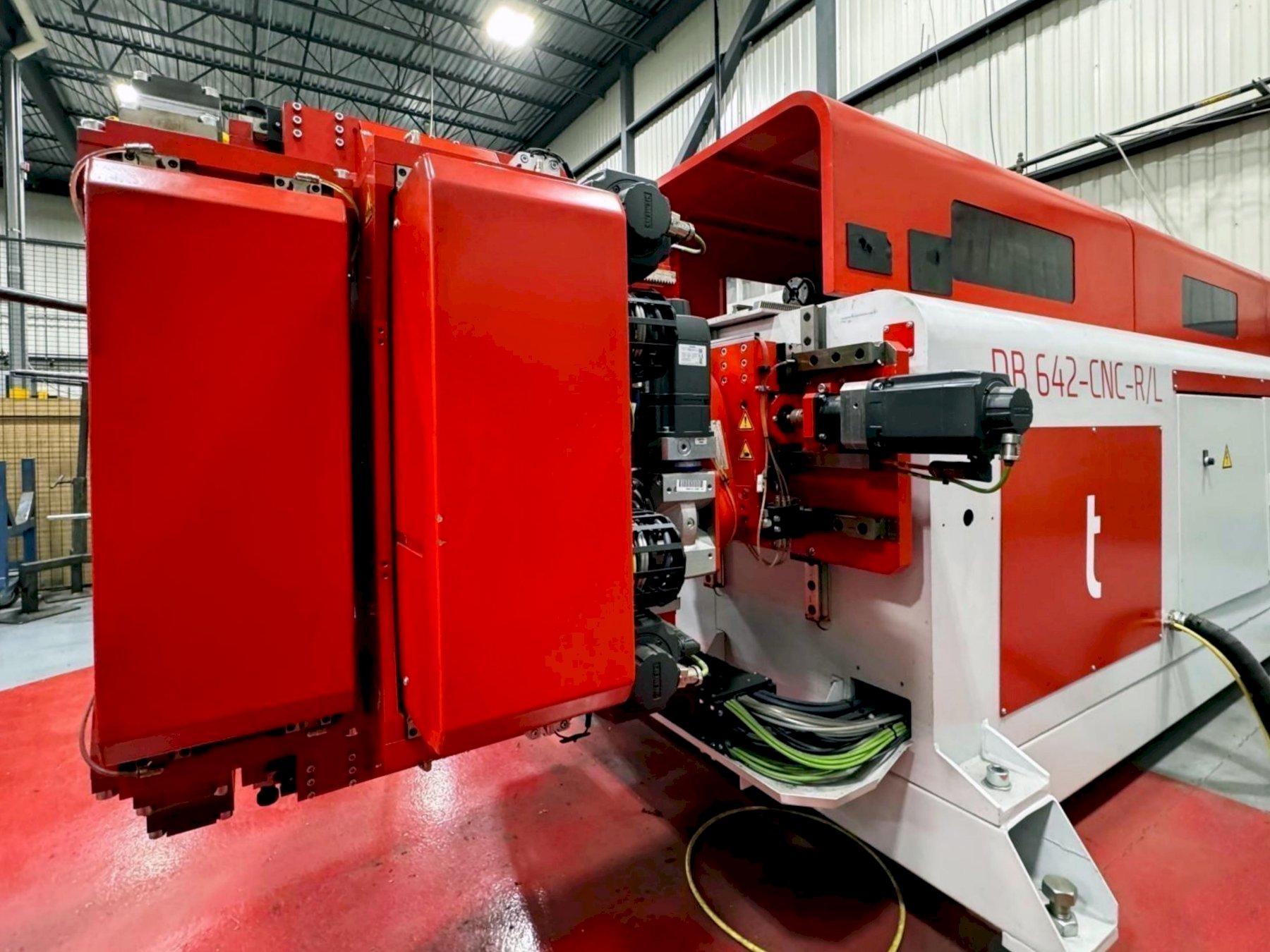

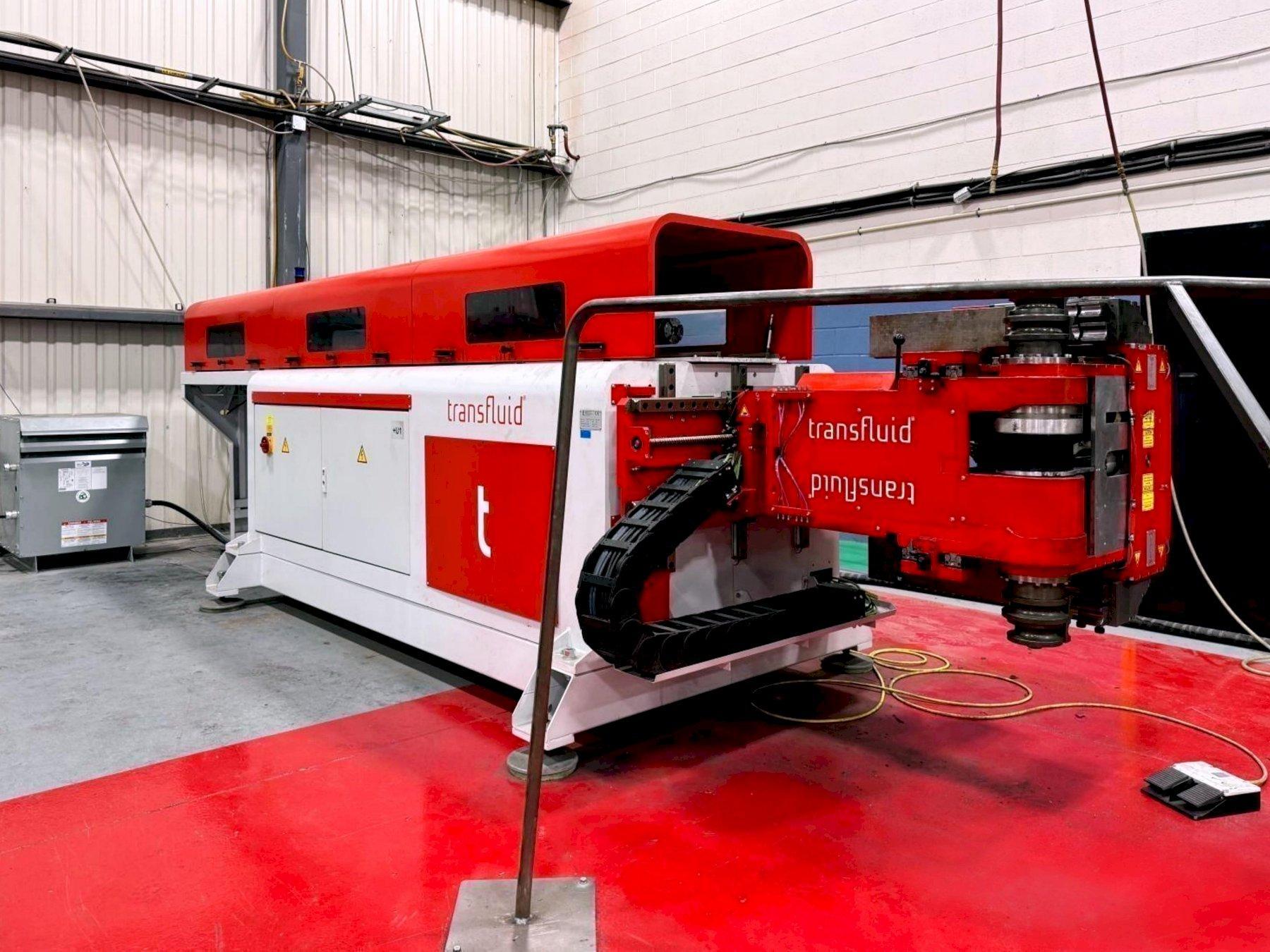

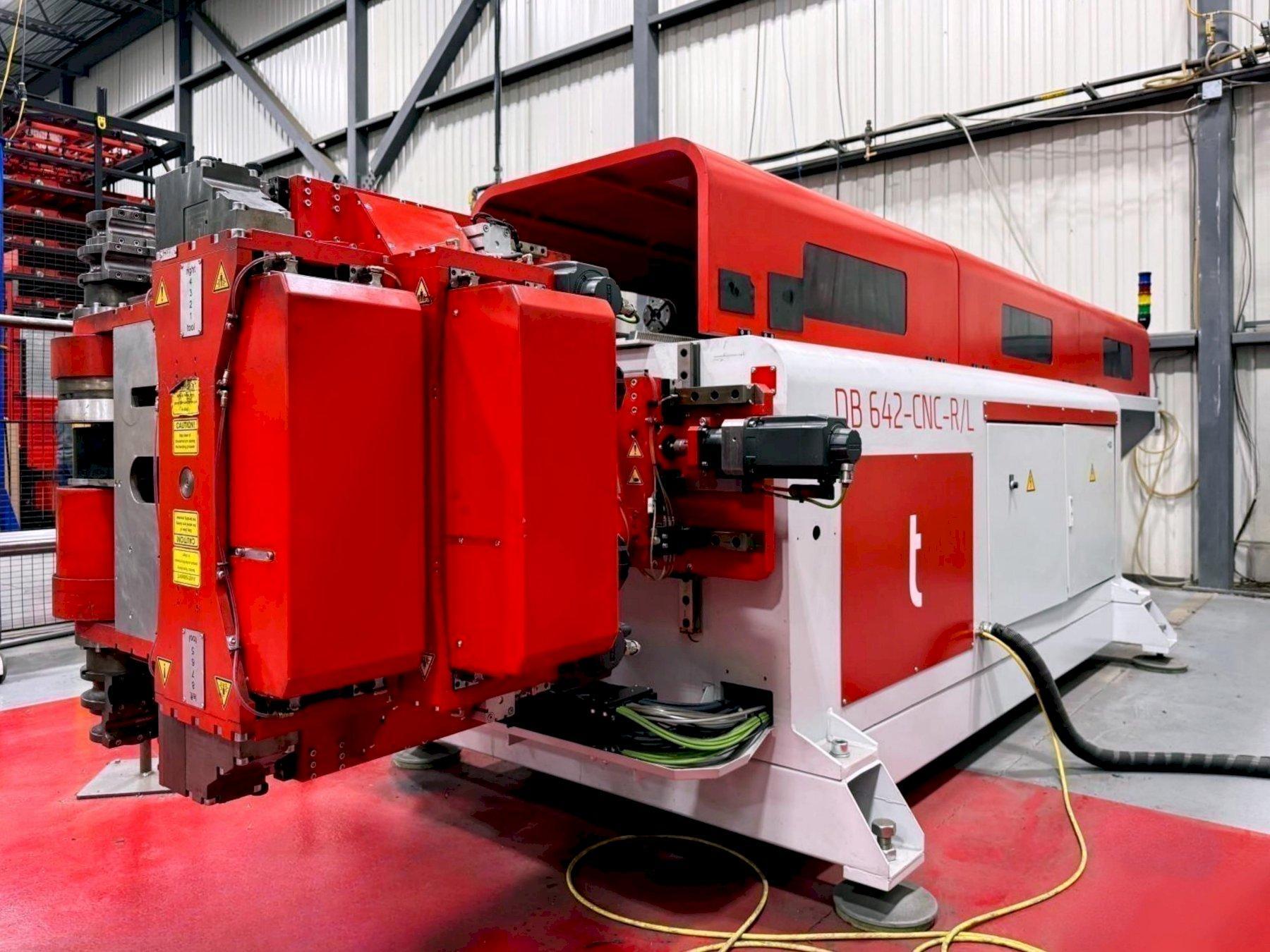

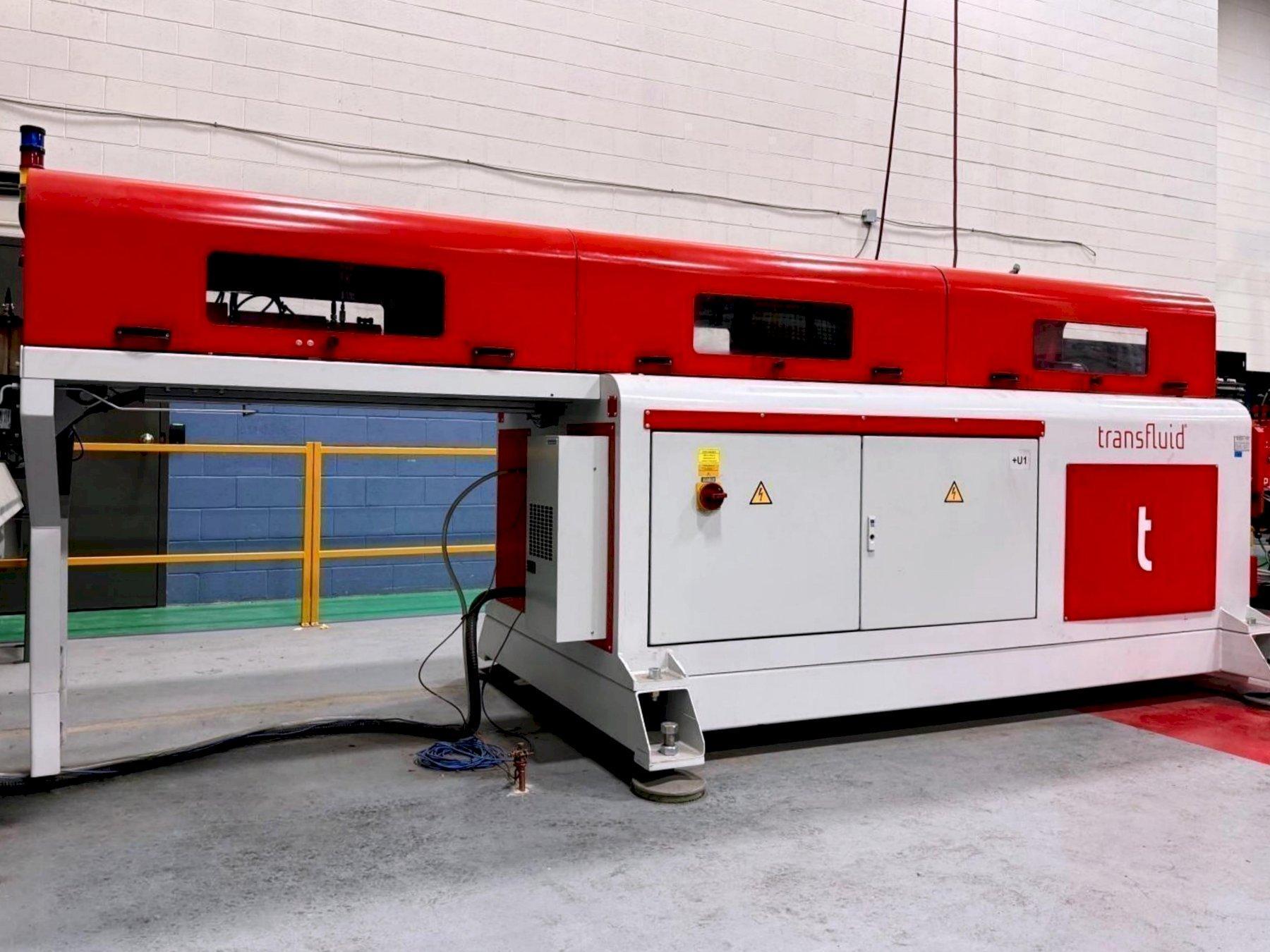

Transfluid DB 642CNC Tube Bender


Model: DB 642CNC

Year: 2019

Reference #: 100505

Bending Head For Right Hand/Left Hand with One Off-Set Bend Device

Round Tubing Mild Steel: 1.65" x 0.118"
Round Tubing Stainless Steel: 1.65" x 0.059"
Power Bending Axis: Servo / Electric
Number of CNC Axis: 11
Max Moment of Resistance: 3.4 cm3 (S235)
Bending Angle up To: 180° +10° Spring Back
Max Bending Time: 180°/Sec (Front Feed)
Speed of Front Feed: 62.99 IPS
Max Speed of Rotation: 450°/Second
Repetition Tolerance Bending: +/-0.05°
Repetition Tolerance Length: +/-0.0019"
Repetition Tolerance Rotation: +/-0.05°
Arbor Length/Usable Length: 120"
Max Radii: 6.6"
Bending Height: 45.27"
Boosting Force Length Positioning: 2.5 kN
Operating Voltage: 480 Volt / 60 Hz / 3 Ph / 30 KW 4
Approximate Dimensions: 296" x 63" x 63"
Approximate Weight: 12,100 Lbs.

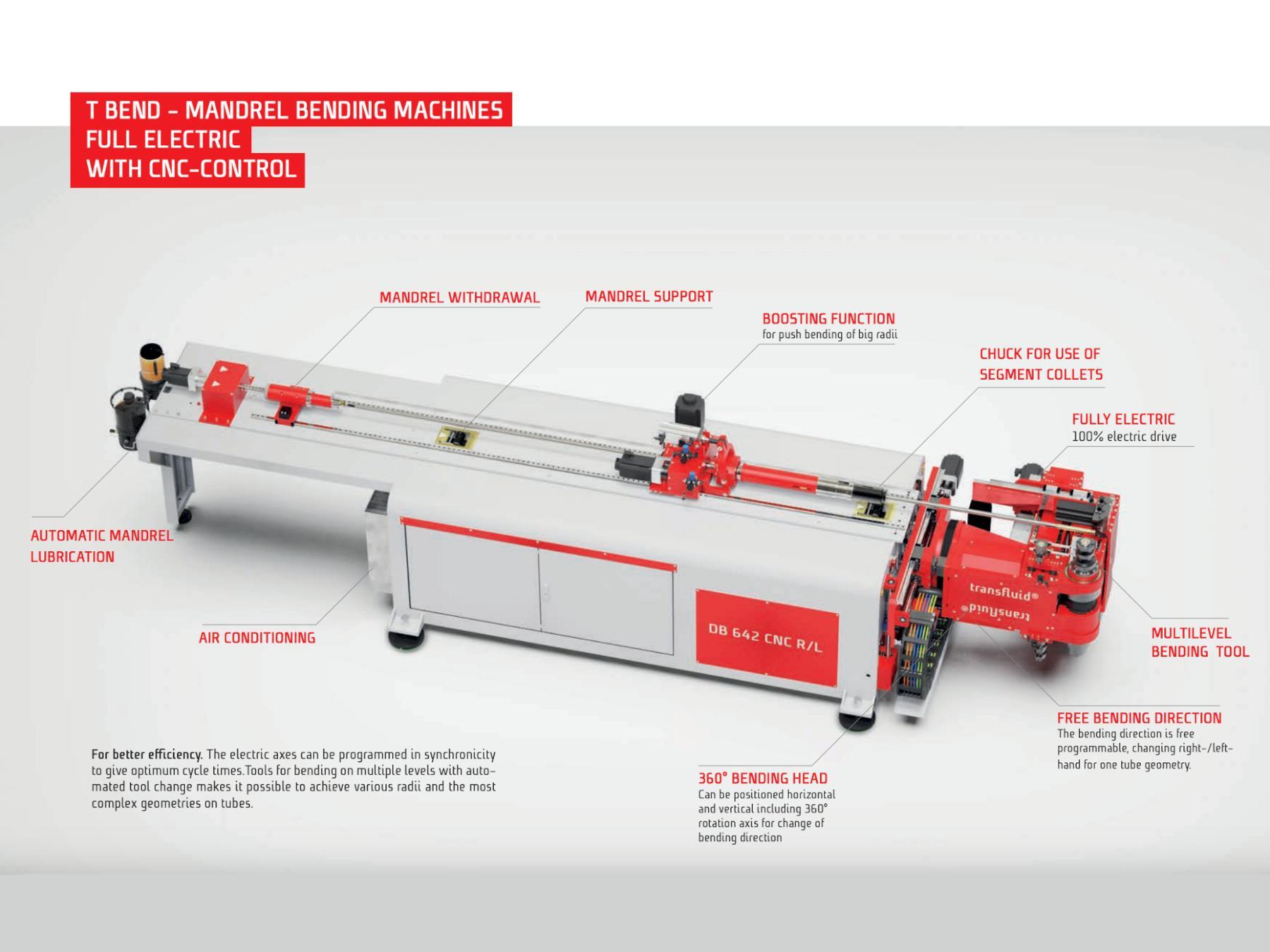

Equipped With:

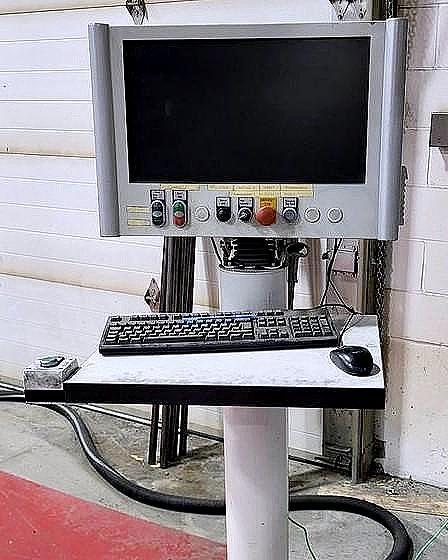

Transfluid CNC Control

Windows 10 Operating System

22" Widescreen Monitor

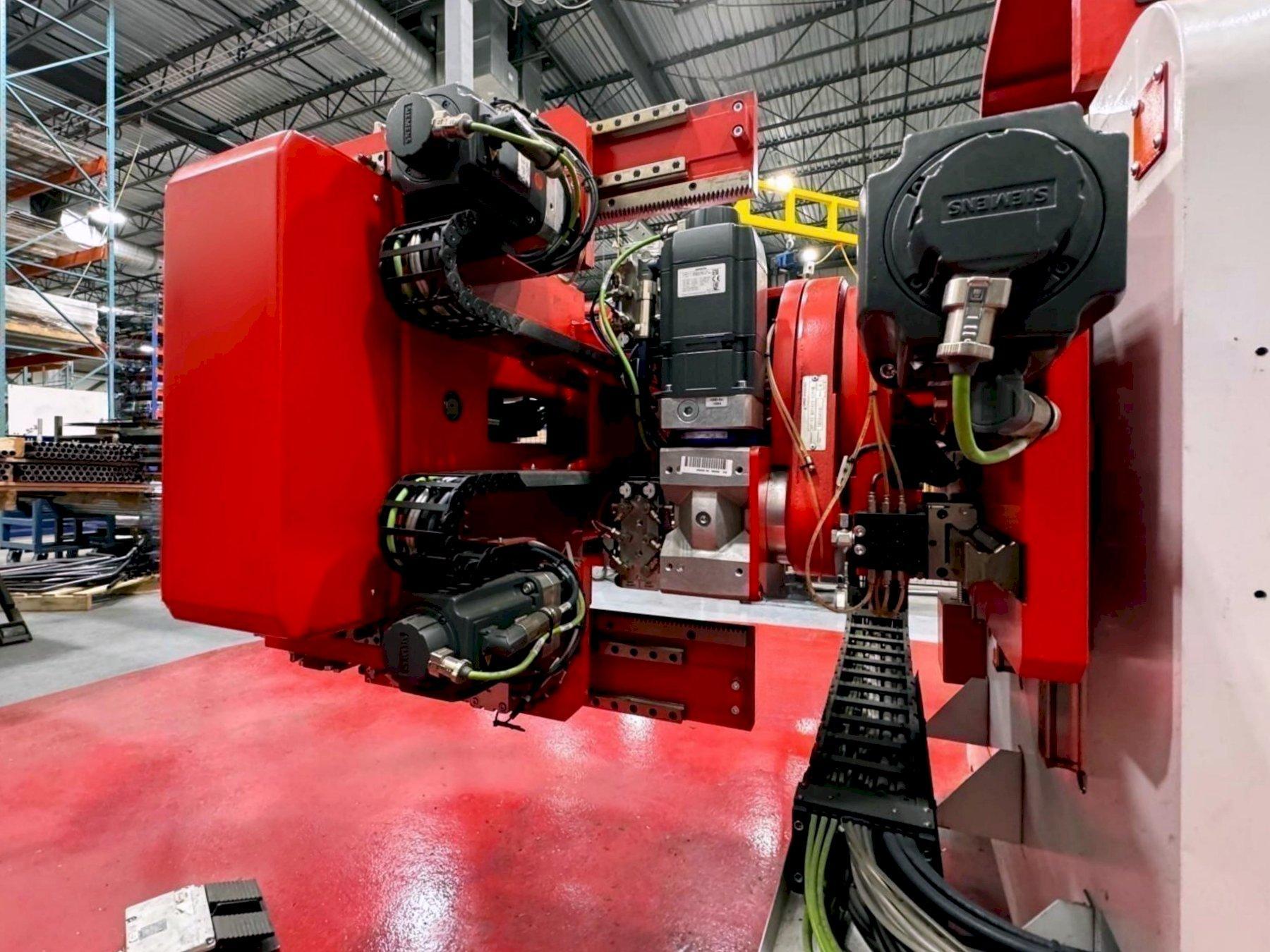

Servo Electric Power Bending Axis

Servo Electric Positioning of the Rotation Length

All Other Axis Servo Electric (Clamping/Mandrel/Pressure Die, Etc.)

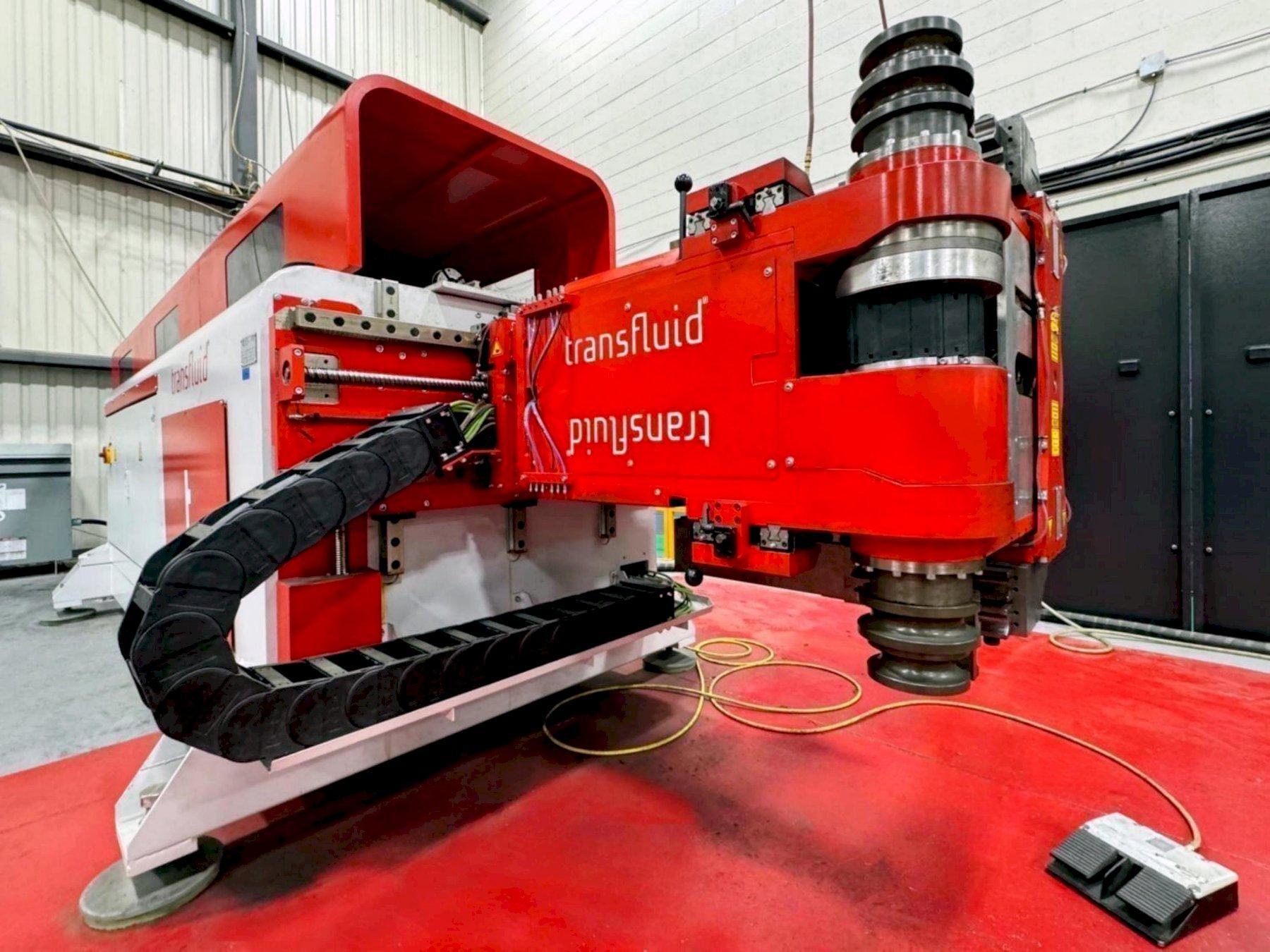

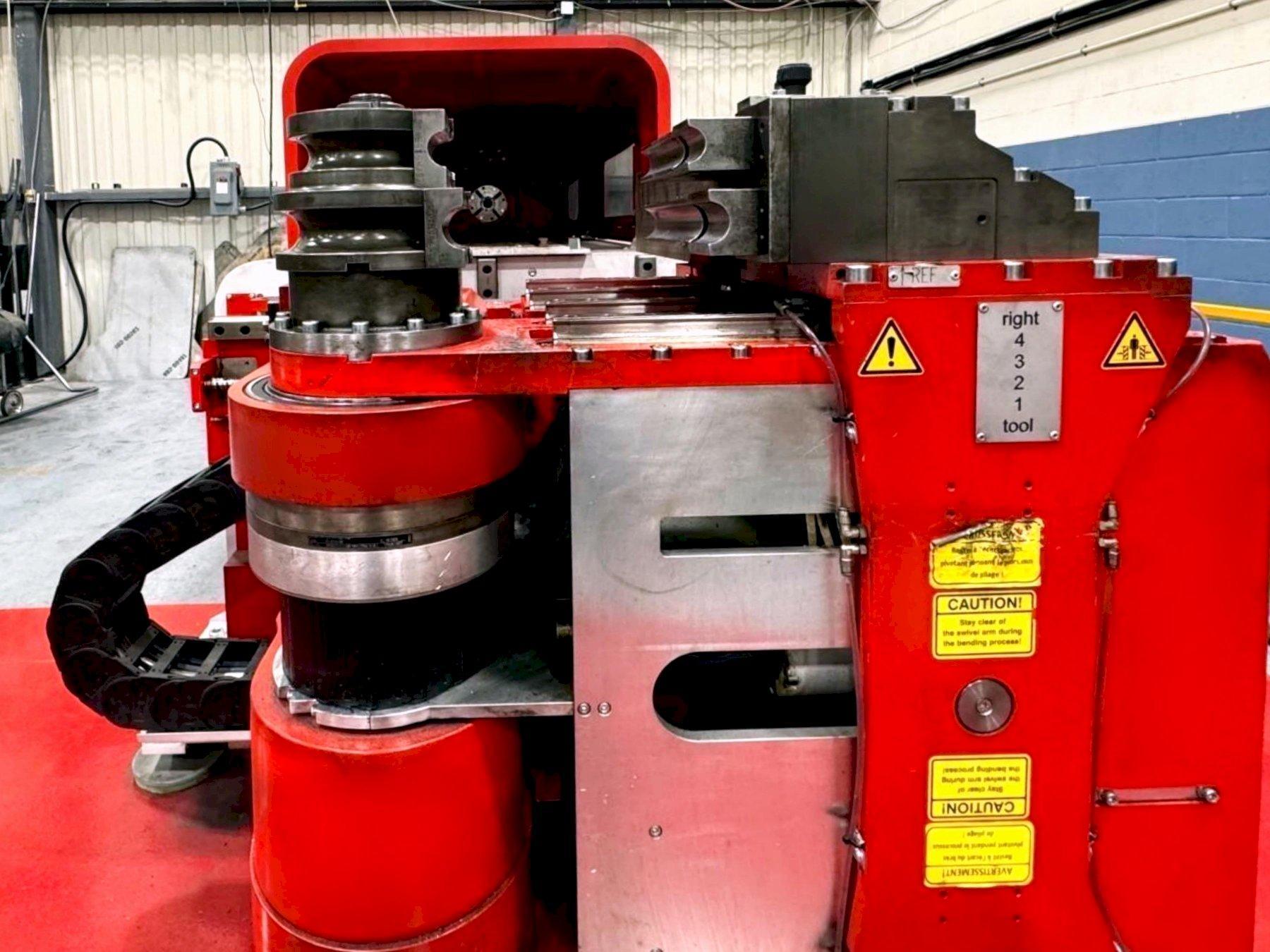

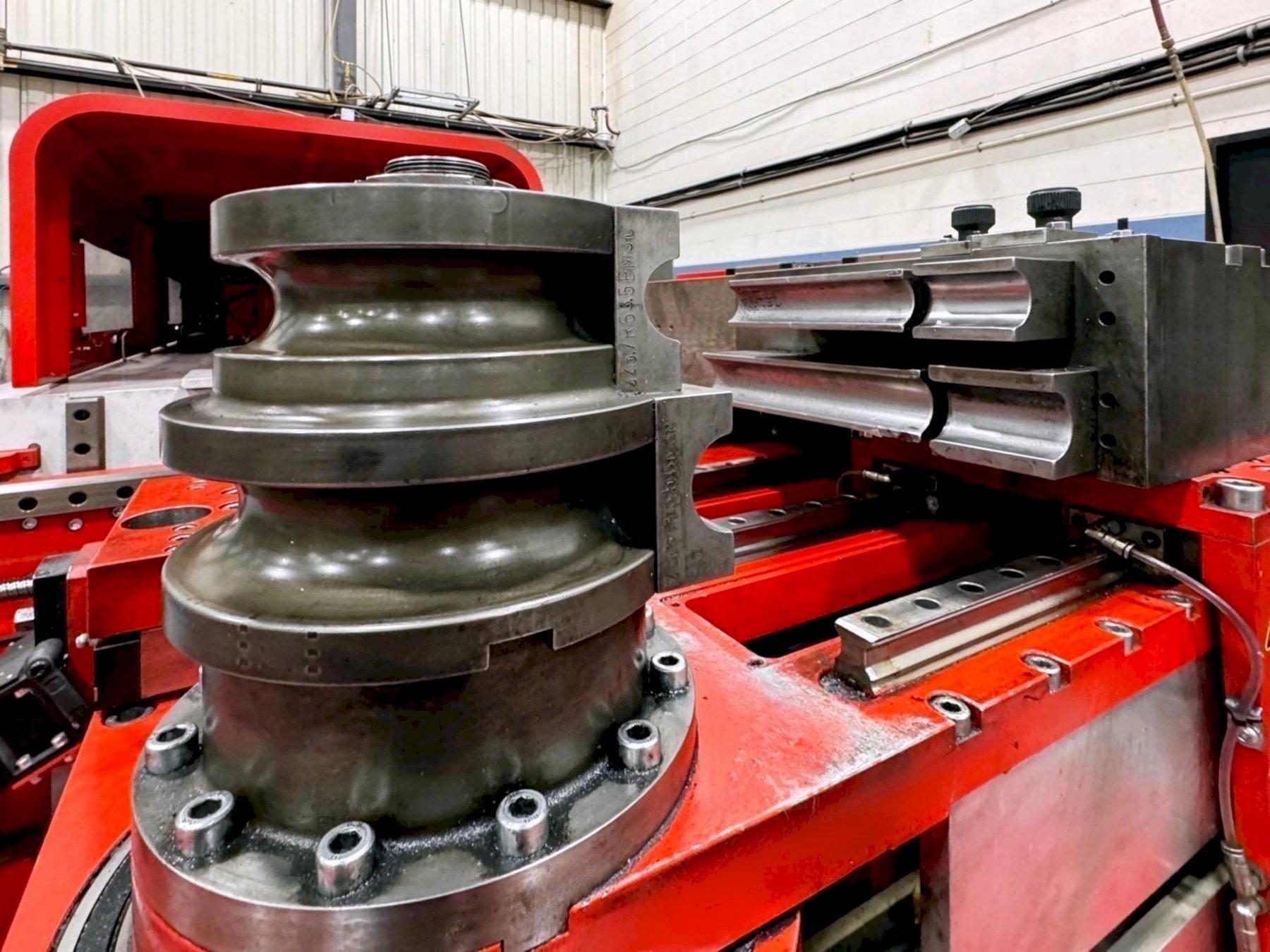

360° Bending Head For Right Hand/Left Hand - One Off-Set Bend Device

Horizontal And Vertical Bending Head

Automatic Programmable Mandrel Withdrawal

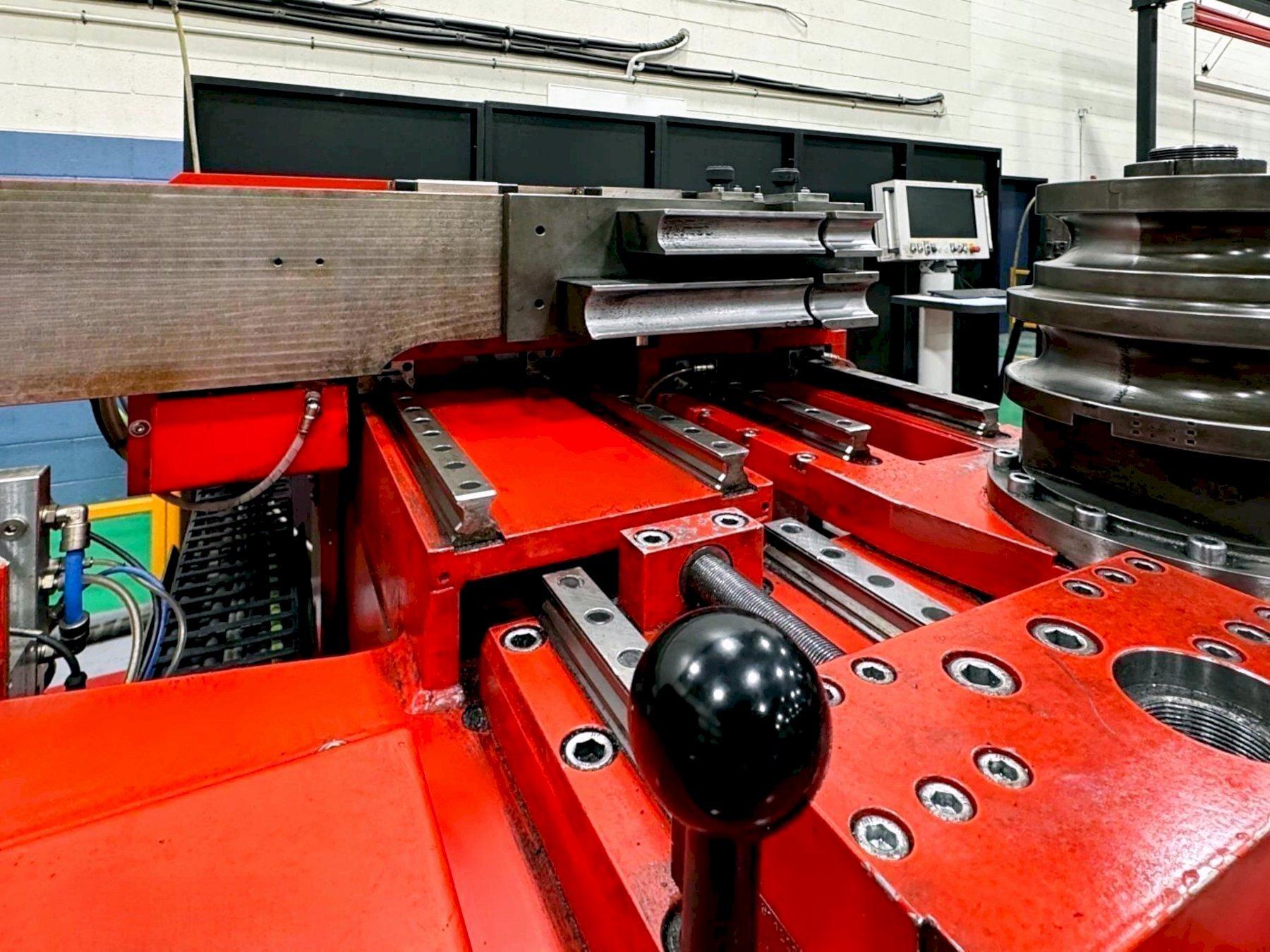

Carriage For Wiper Die

Boosting Function

Remote Diagnostics Option

Automatic Mandrel Lubrication

Air Conditioning for Electrical Cabinet

Operator Footswitch
