Product Details

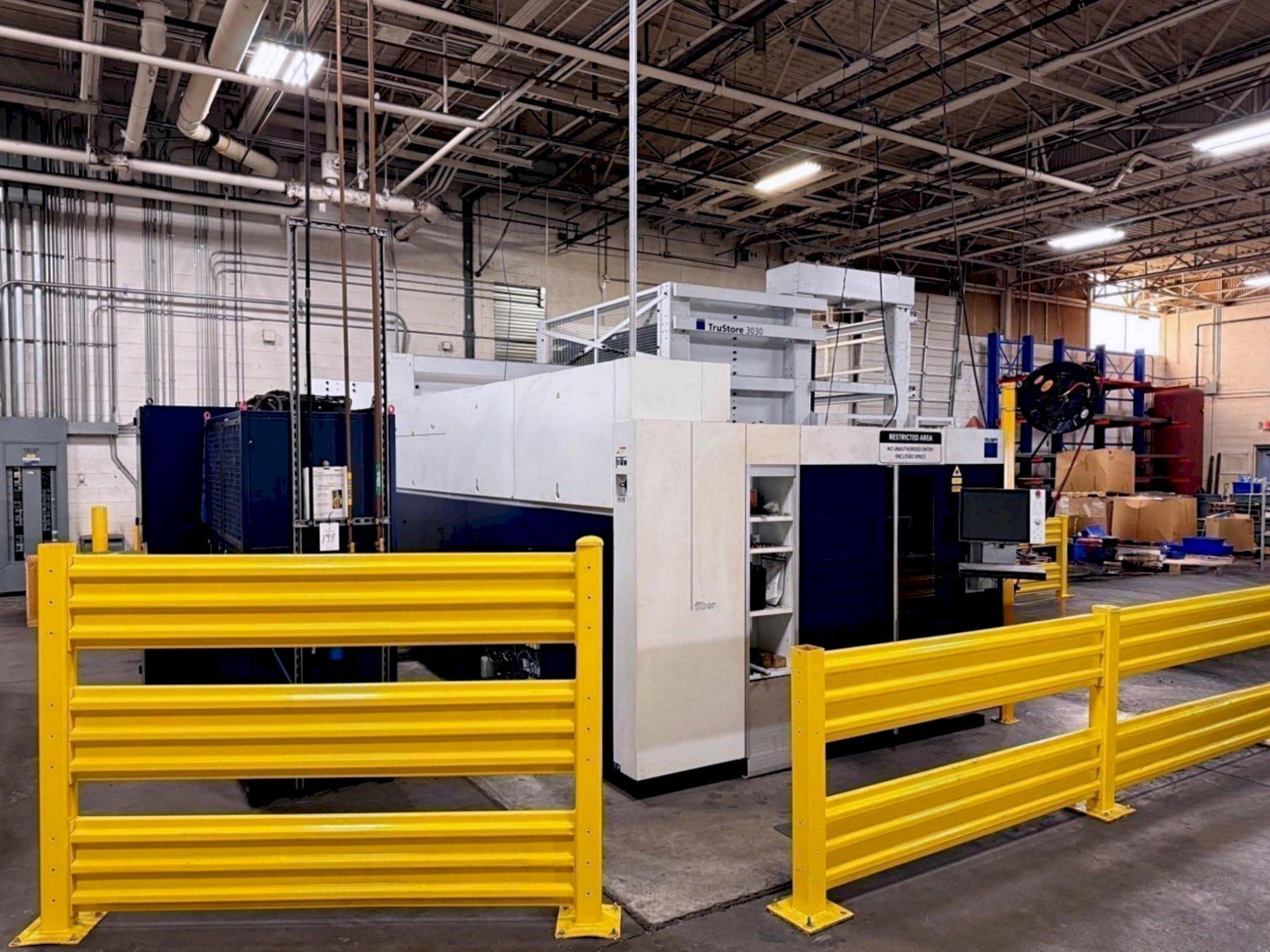

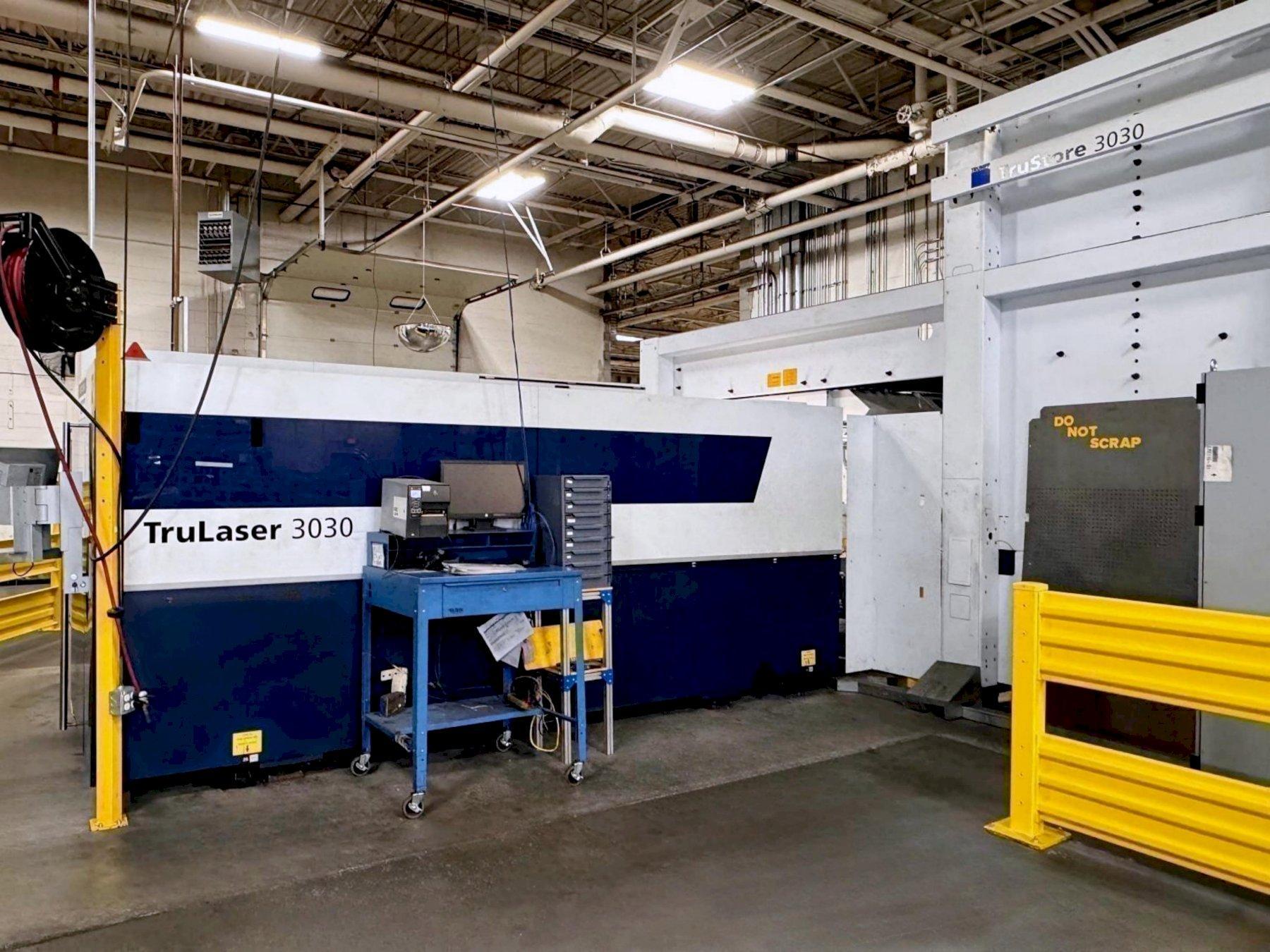

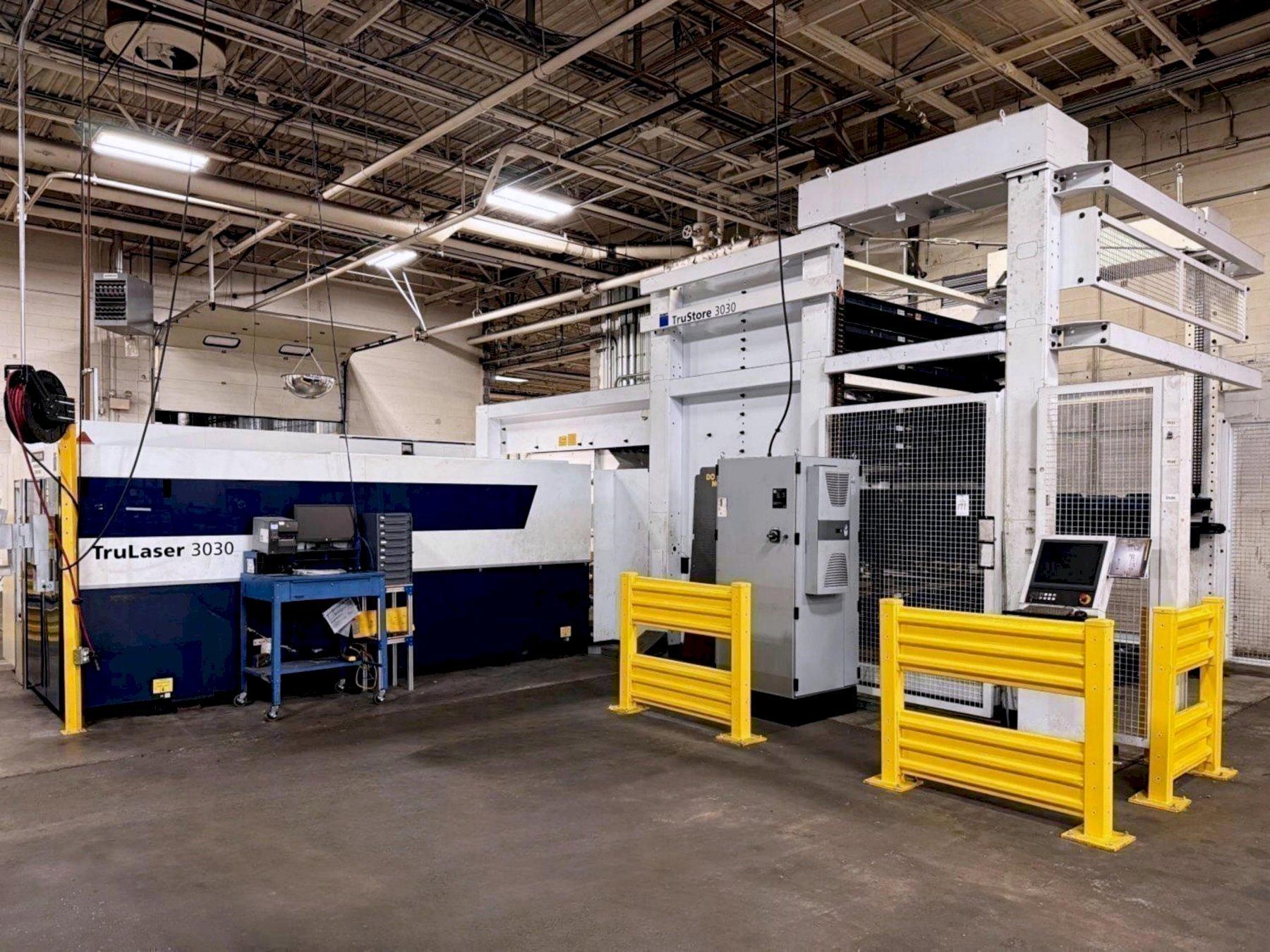

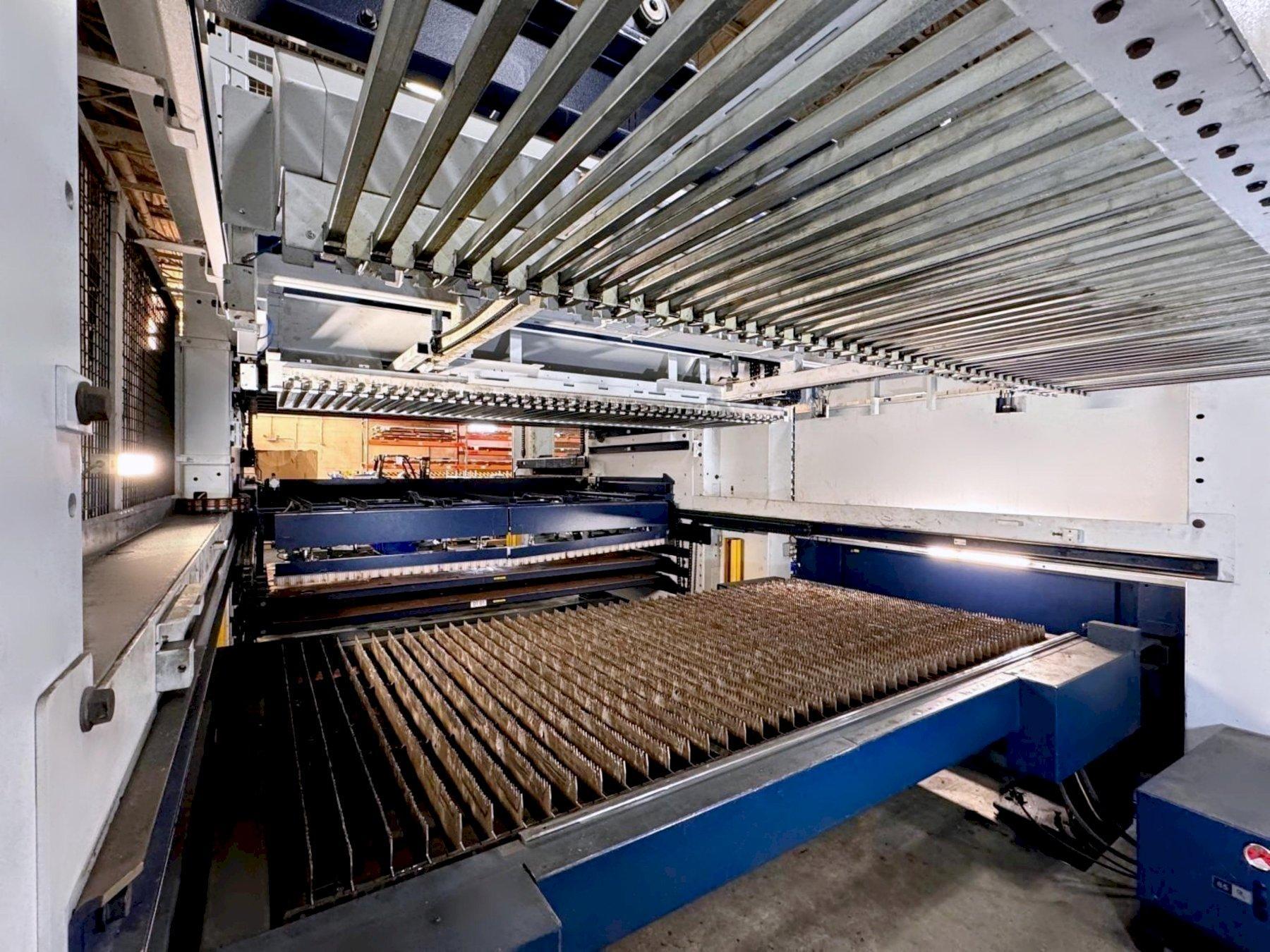

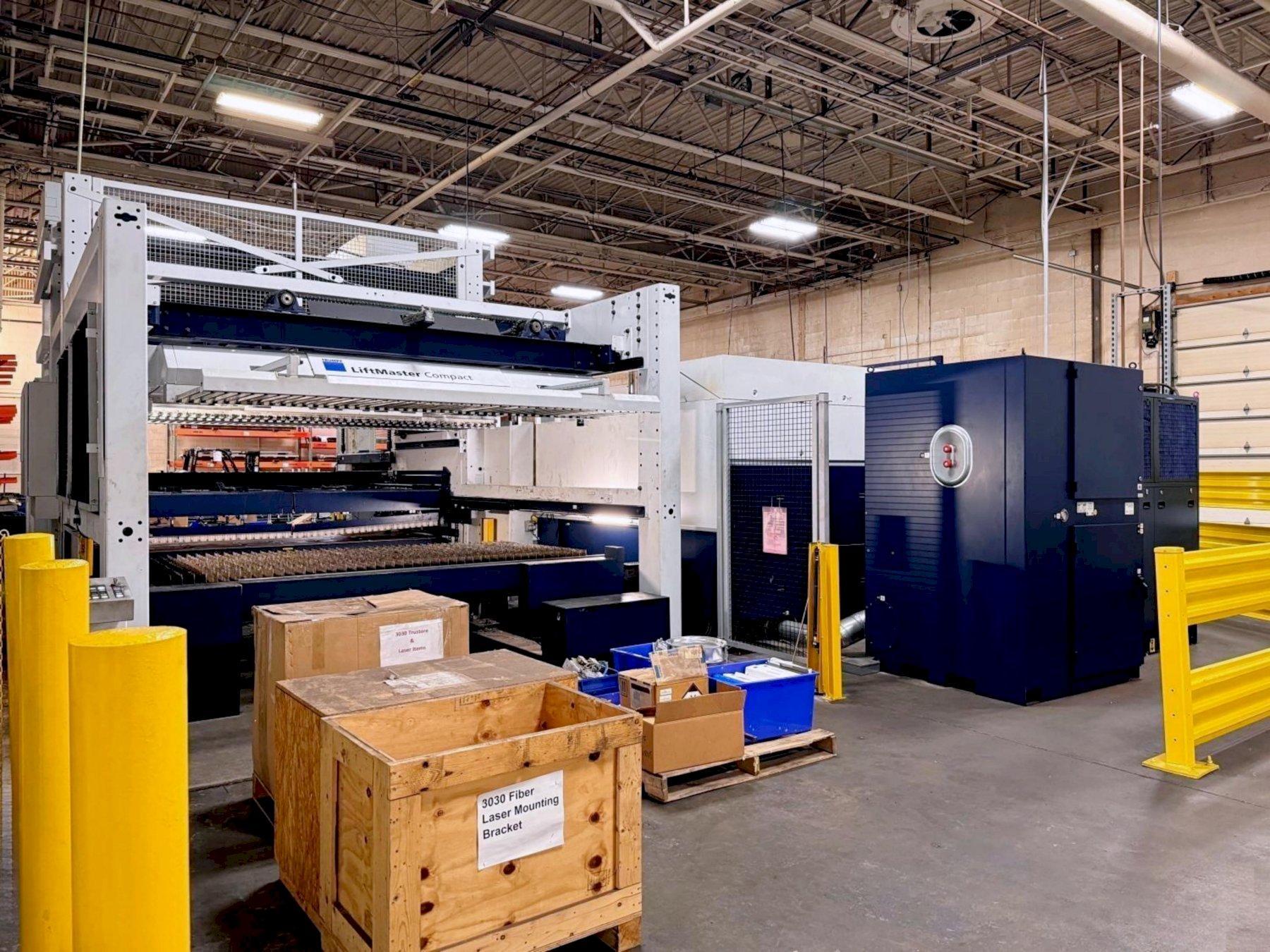

Trumpf TruLaser 3030 4kW Fiber Laser w/ TruStore 3030 A12 Automation

Make : TRUMPF

Model: TruLaser 3030 Fiber

Year: 2018

Reference #: 100475

Highlights:

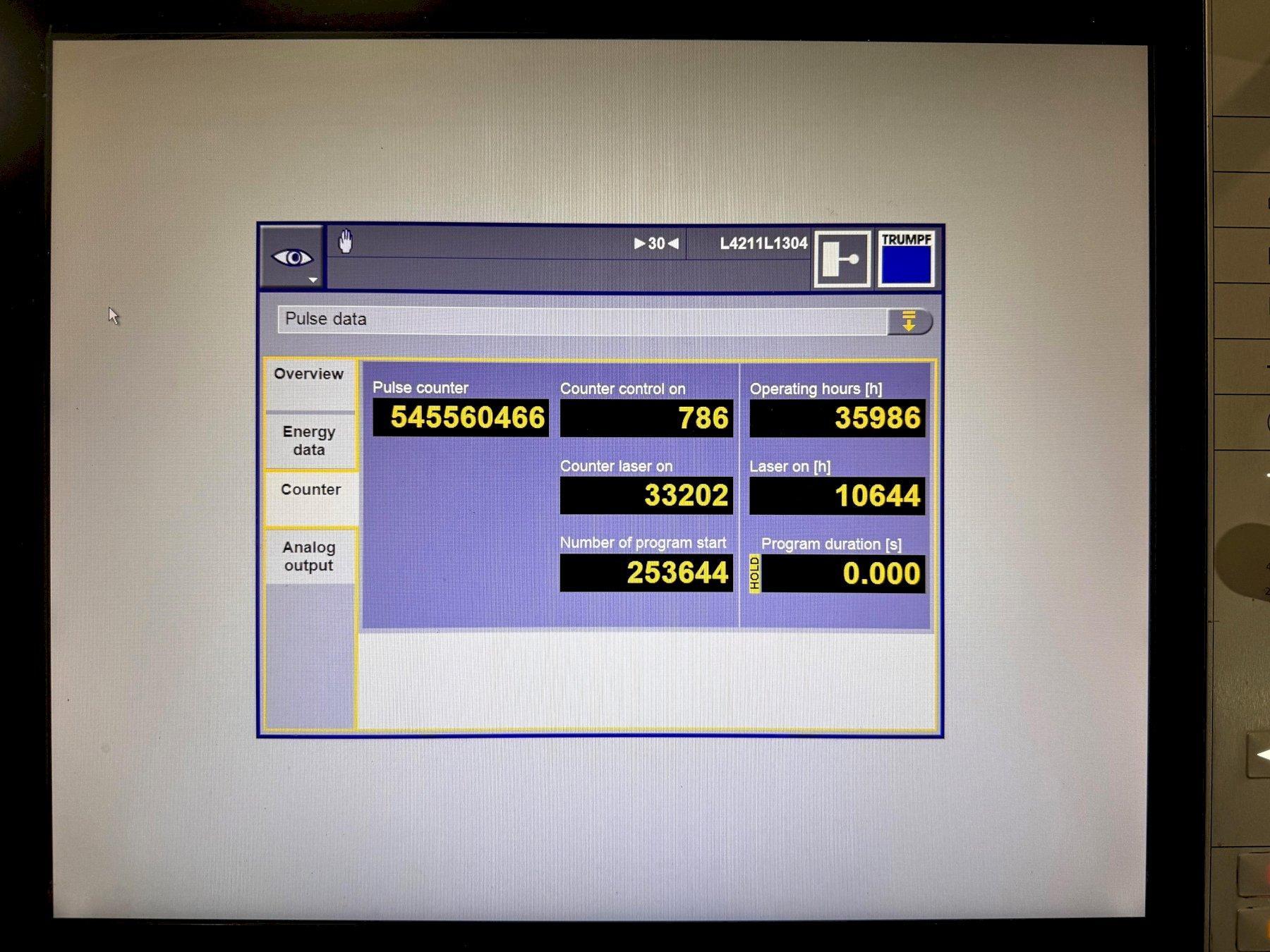

Excellent condition with only 10,644 Laser on hours.


Control: Sinumerik 840 D Si CNC
Laser Type: Fiber
Power Source: TruDisk 4001
Max Power Output: 4,000 Watts
Table Size: 60”x120”
X Axis Travels: 120"
Y Axis Travels: 60"
Z Axis Travels: 4.5"
Workpiece Max Weight (Lbs): 1,984 lbs.
Max Speed (Sim).: 5,512 IPM
Accuracy: .002"
Repeatability: .0012"
Max Thickness Mild Steel: 1.00"
Max Thickness Stainless Steel: 0.75"
Max Thickness Aluminum: 0.75"
Max Thickness Copper: 0.31"
Max Thickness Brass: 0.31"

Equipped With:

LASER

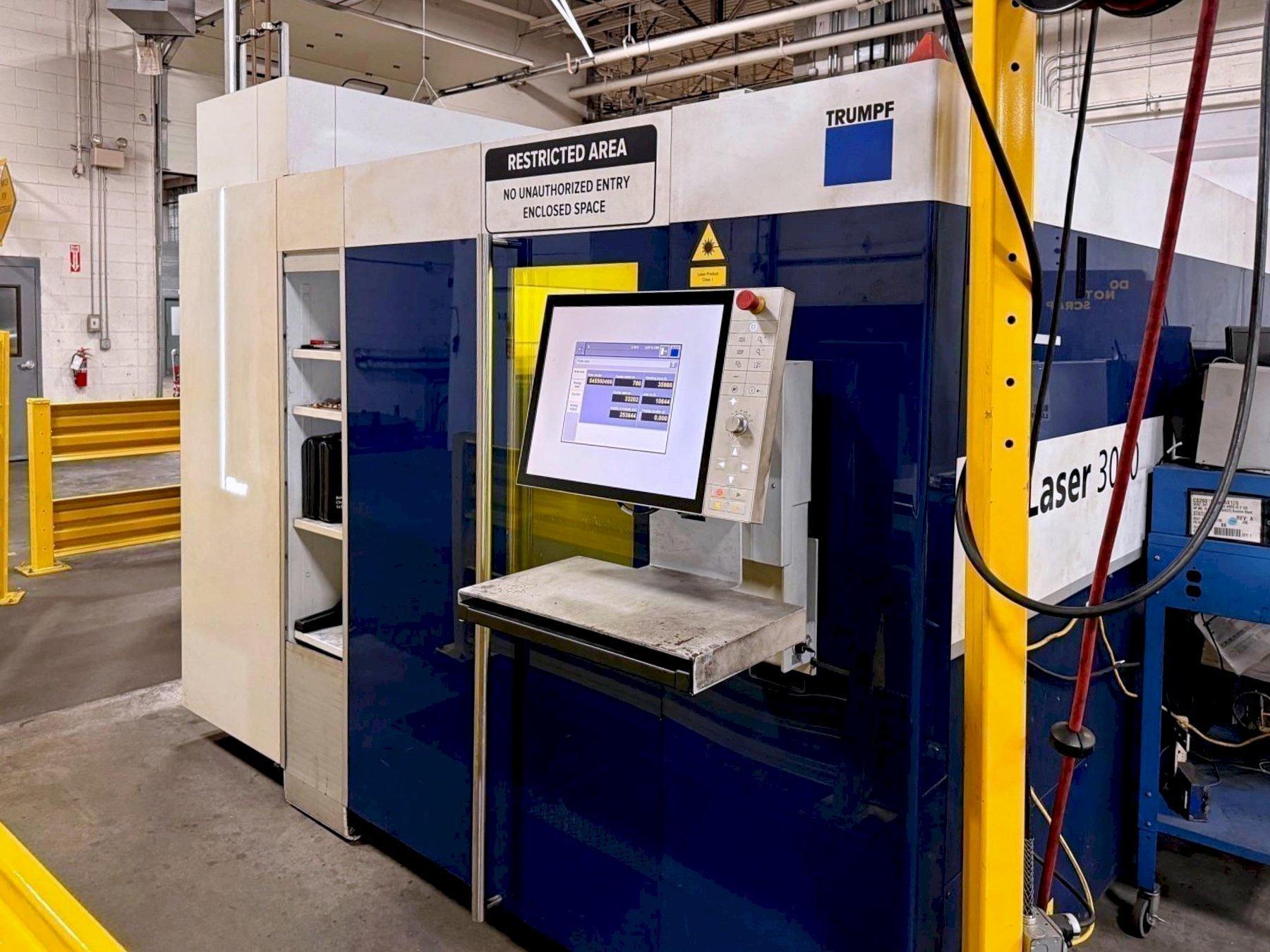

Sinumerik 840 D Sl CNC Control

TFL Color Screen

TruDisk 4001 With 1 Laser Output

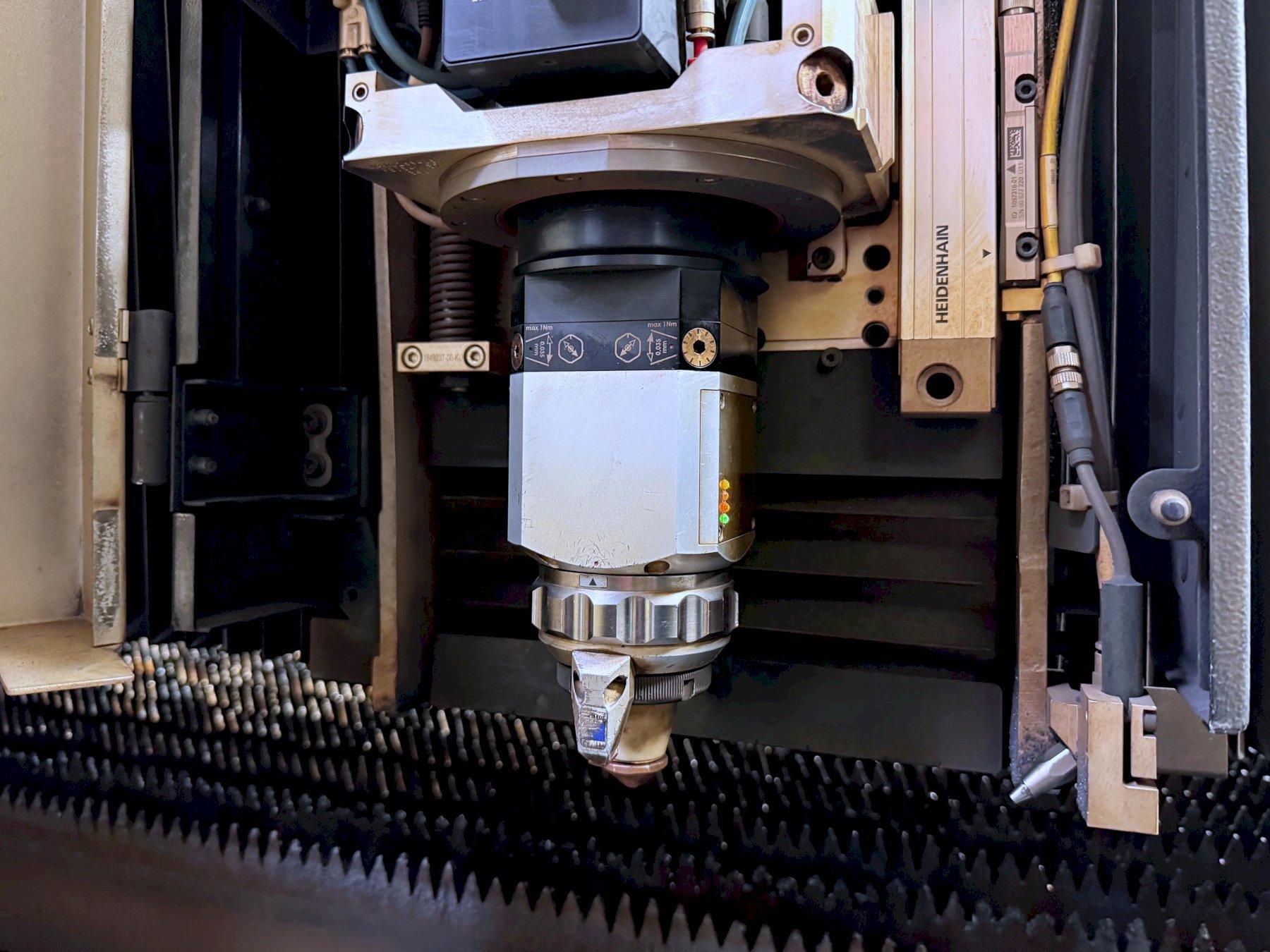

Universal Cutting Unit

Auto Height Control

Sheet Edge Detection

Auto Shut-Down Device

Collision Protection

Easy Shop Floor Programming

Programmable Cutting Gas Pressure

Integrated E-Shop

USB Interface

Light Barrier System

Automatic Pallet Shuttle

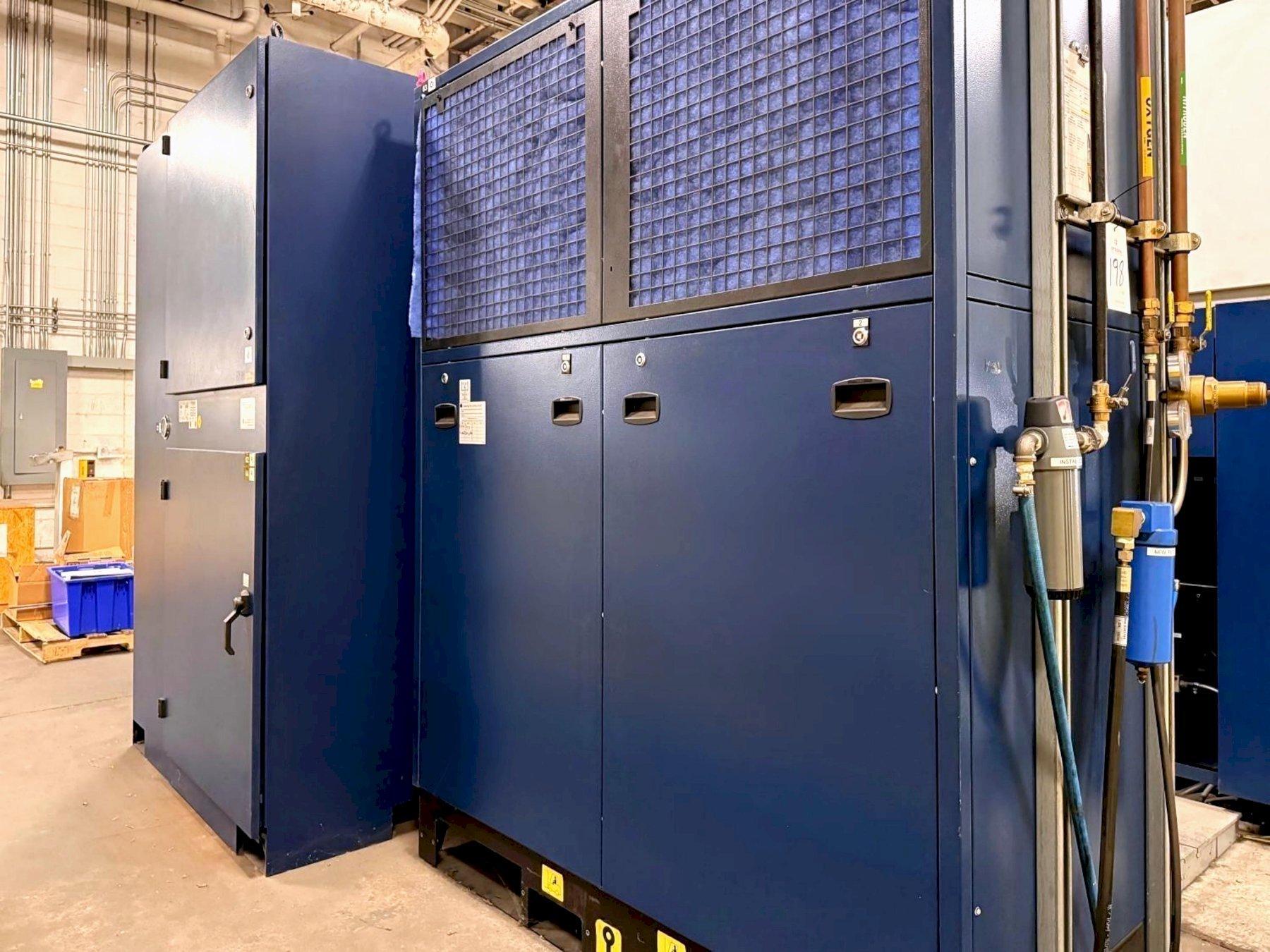

Chiller For Laser Cooling

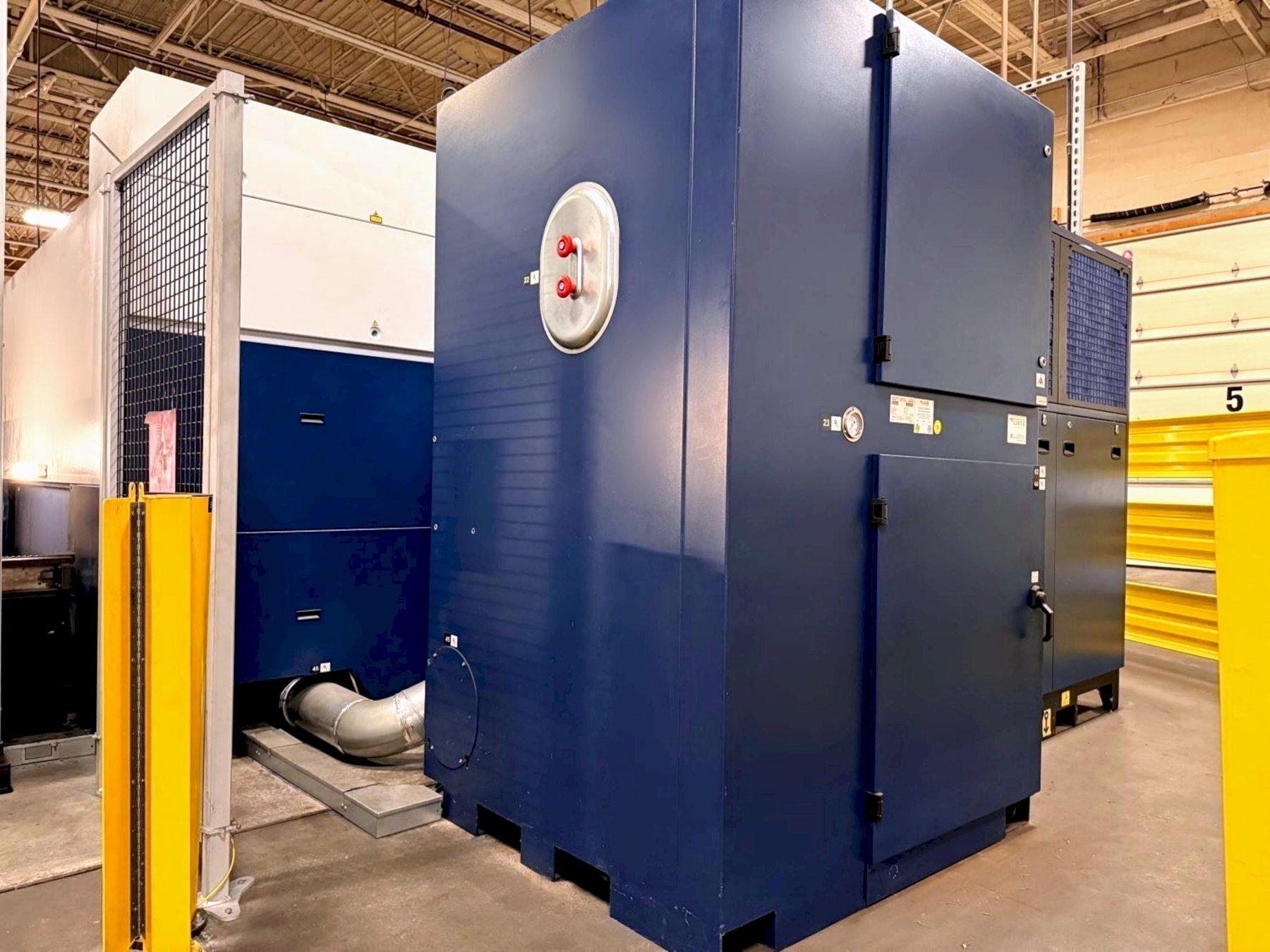

Compact Dust Extractor

AUTOMATION

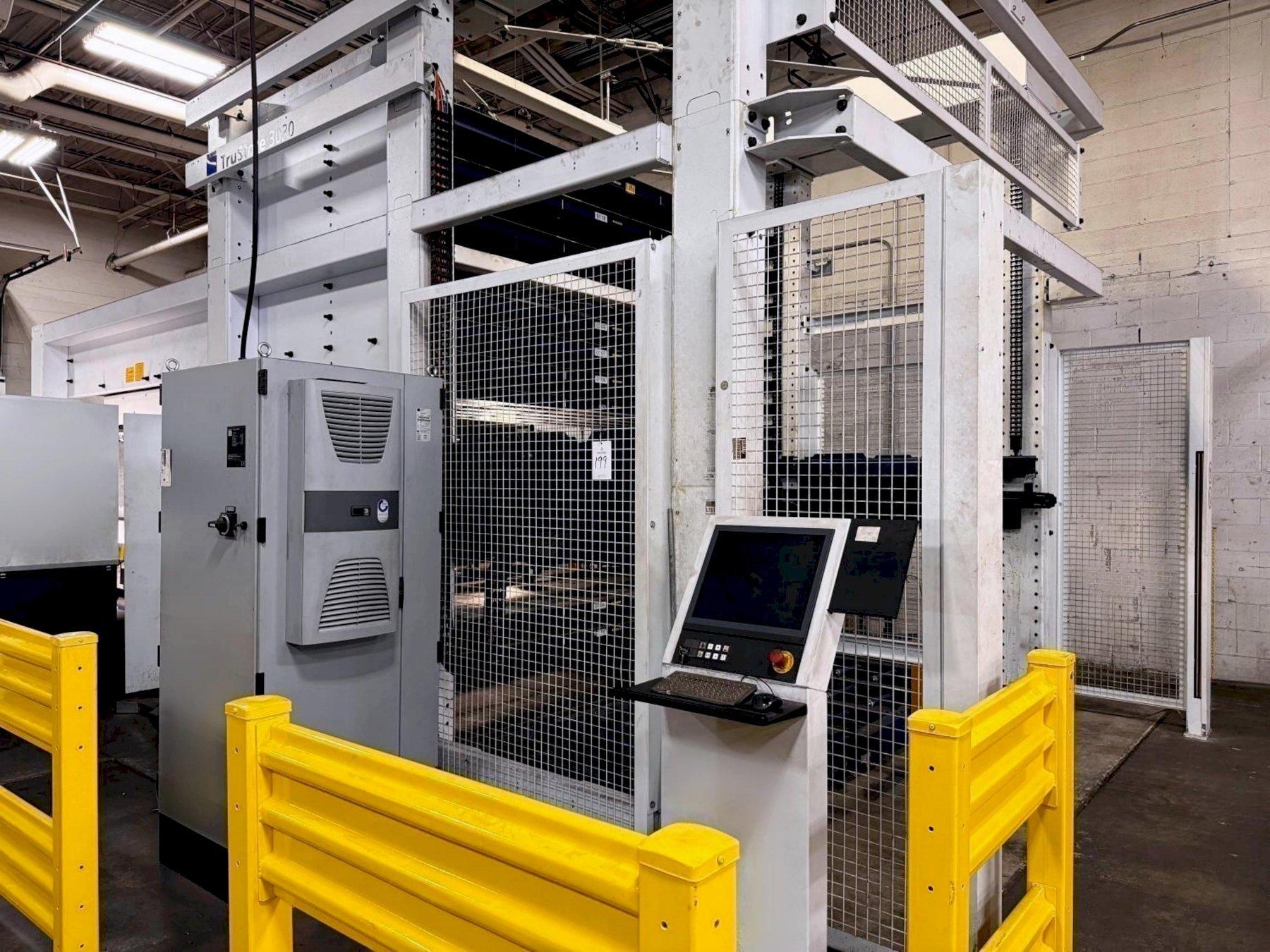

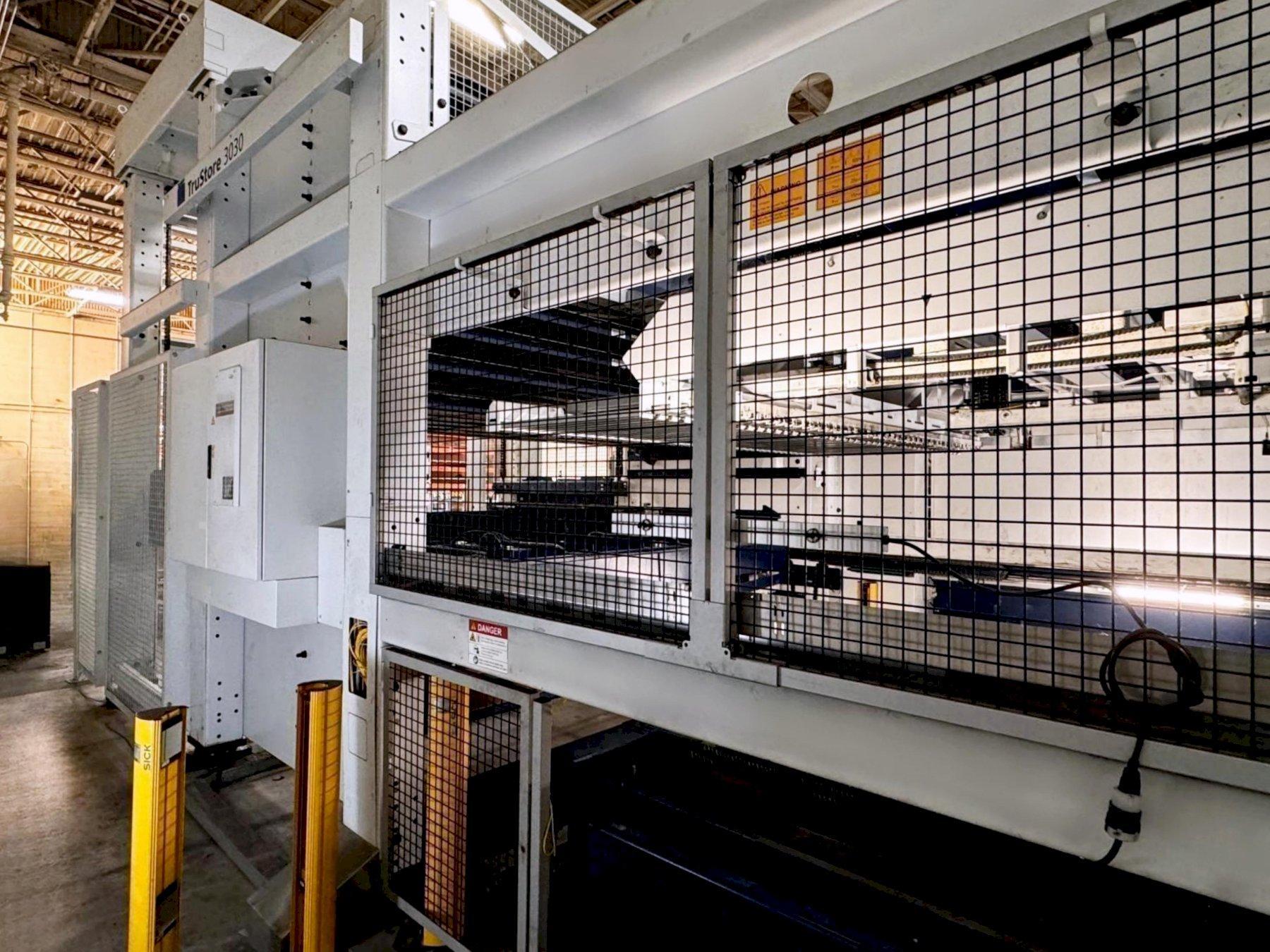

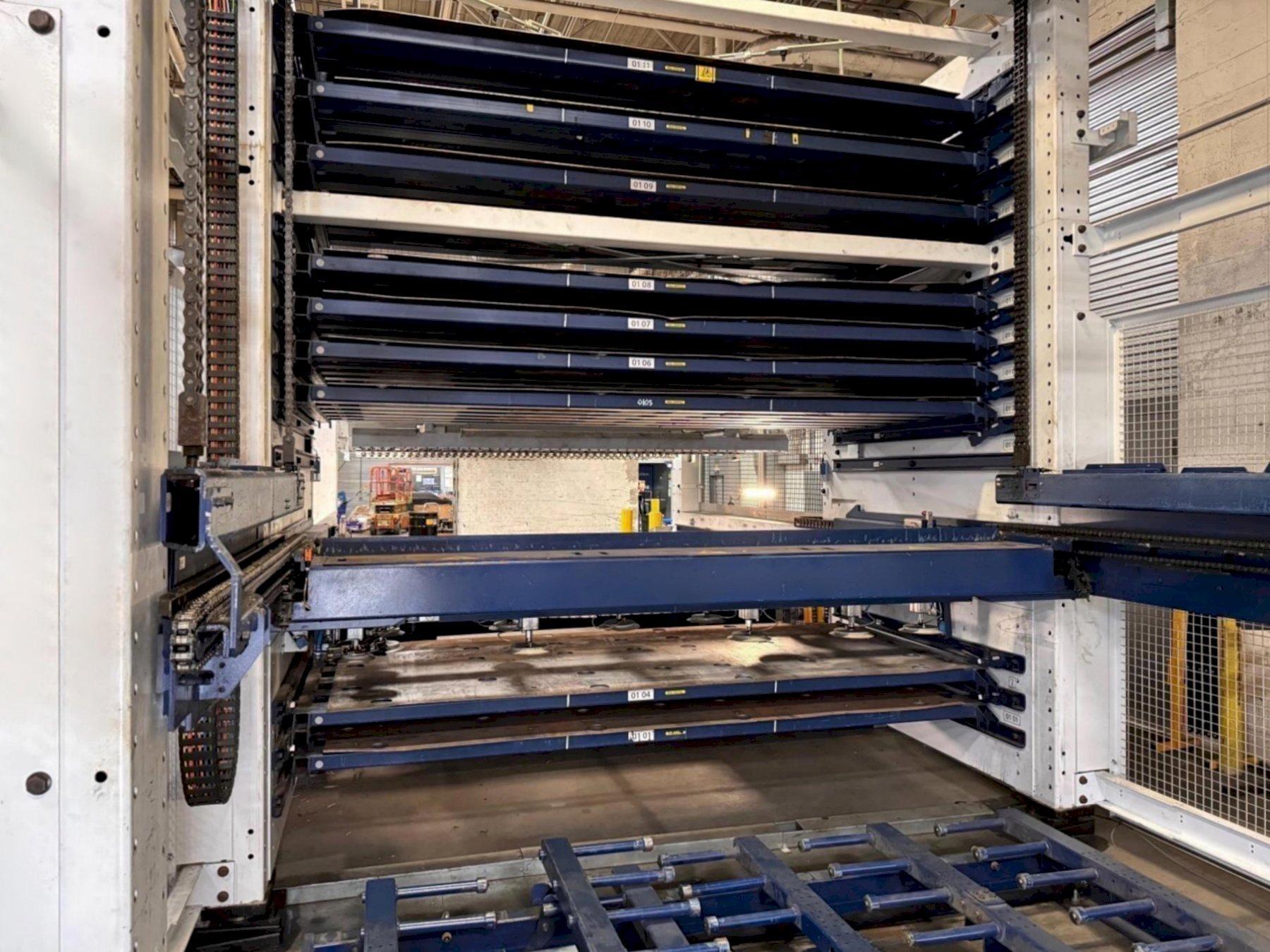

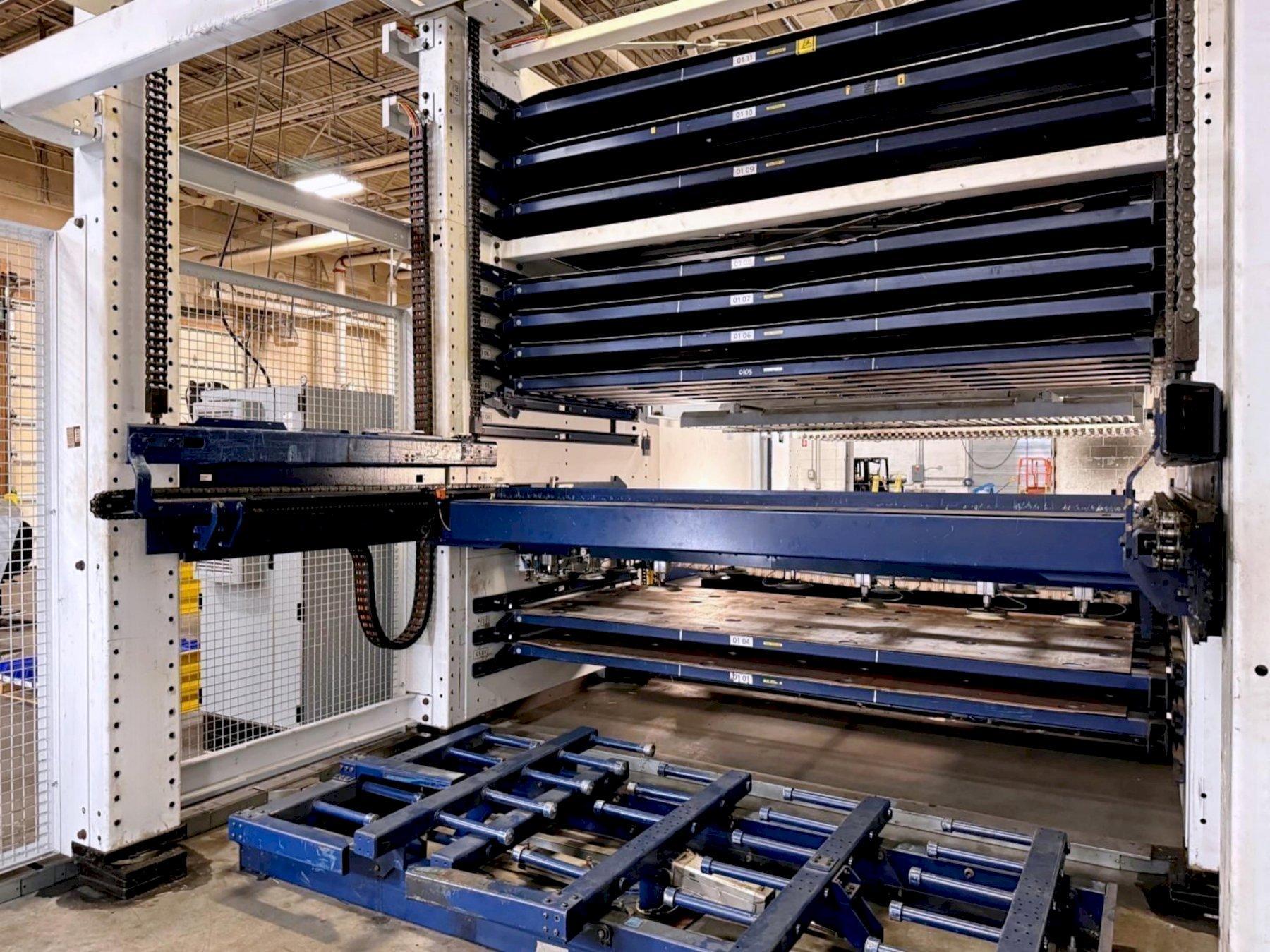

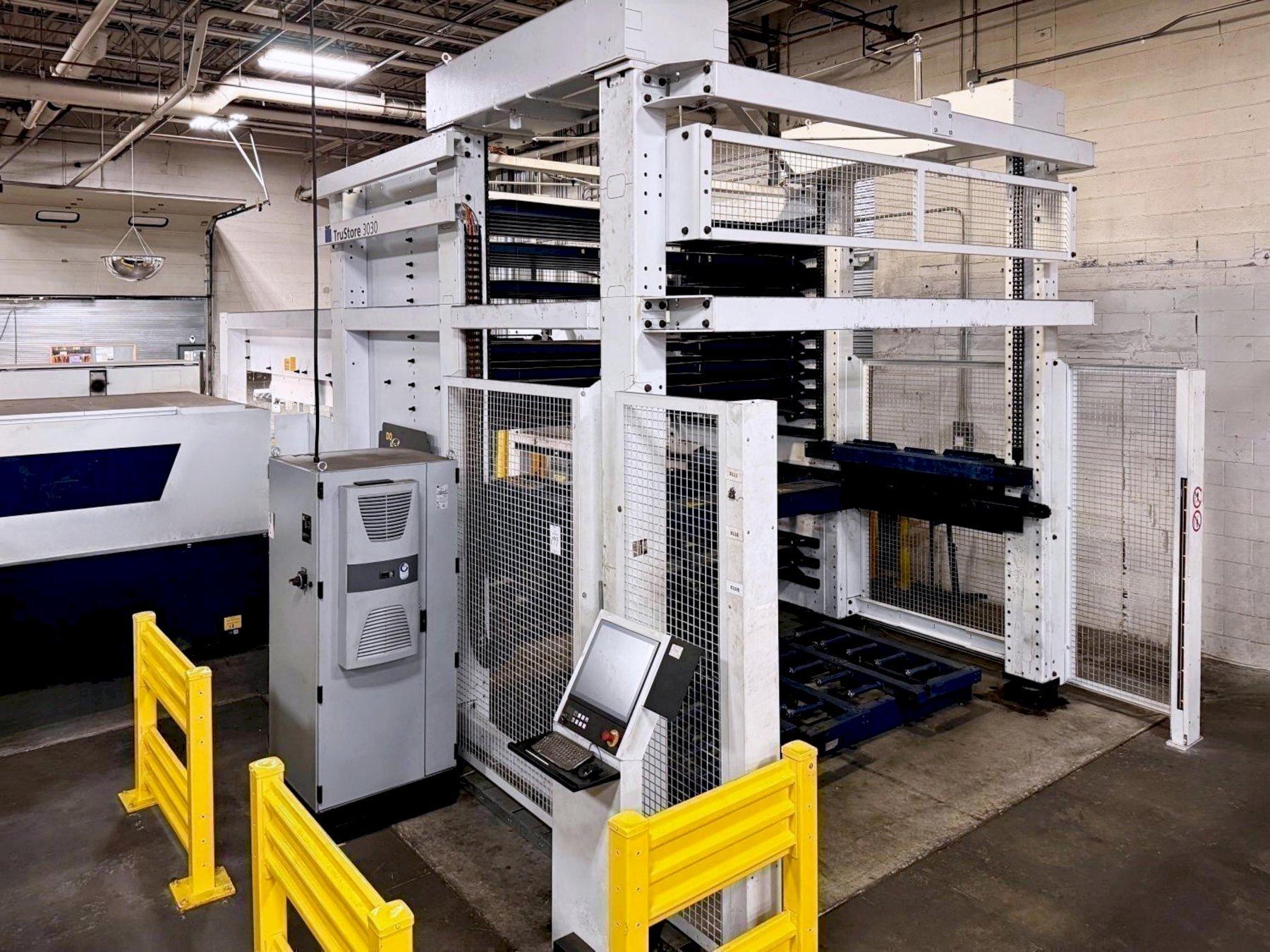

Trumpf Trustore 3030 A12
Fully Automated Sheet Storage & Loading System

Max Sheet Size - 5' x 10'
Max Load Capacity - 6,600-Lbs per Pallet
Electrical - 460-Volt
