Product Details

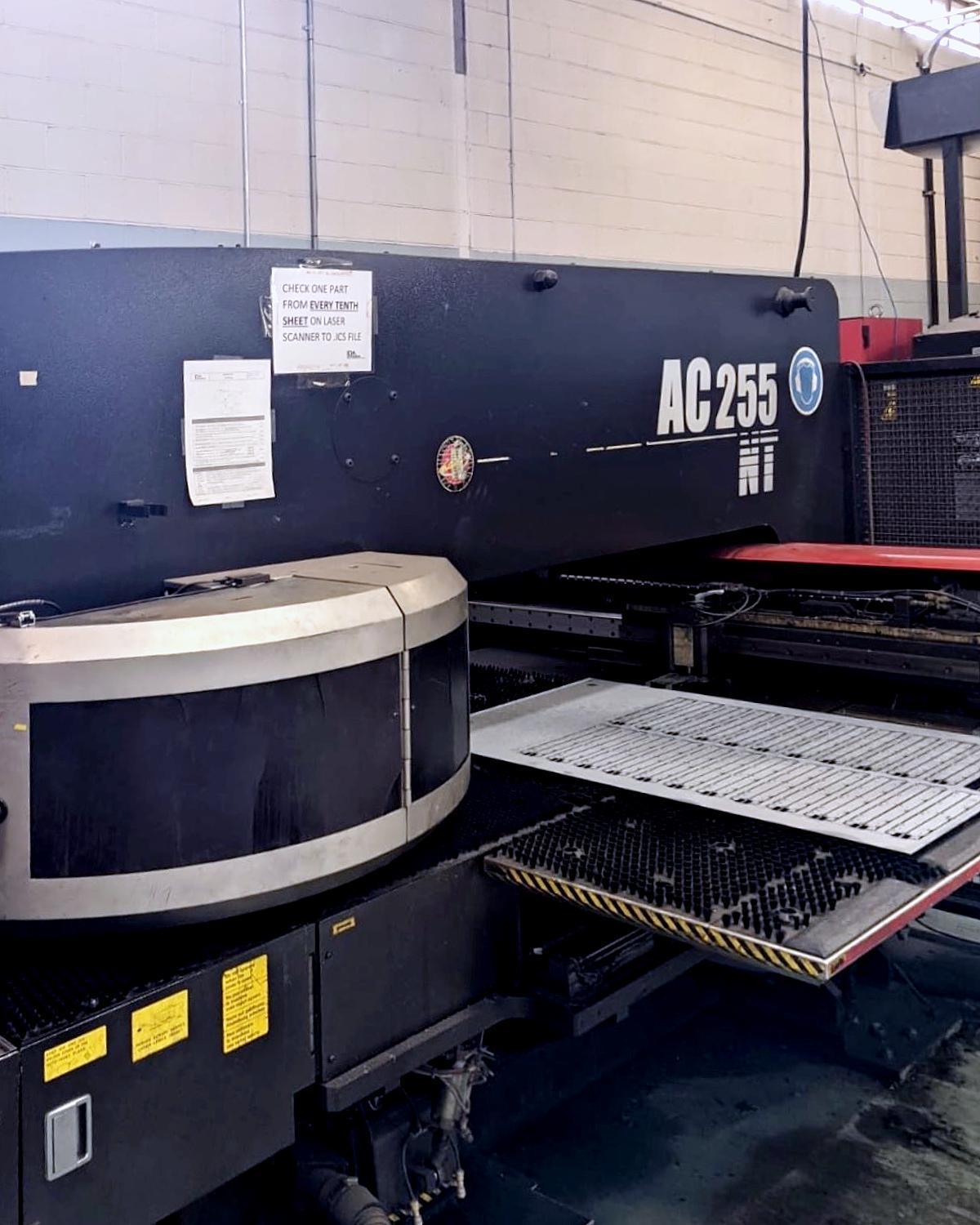

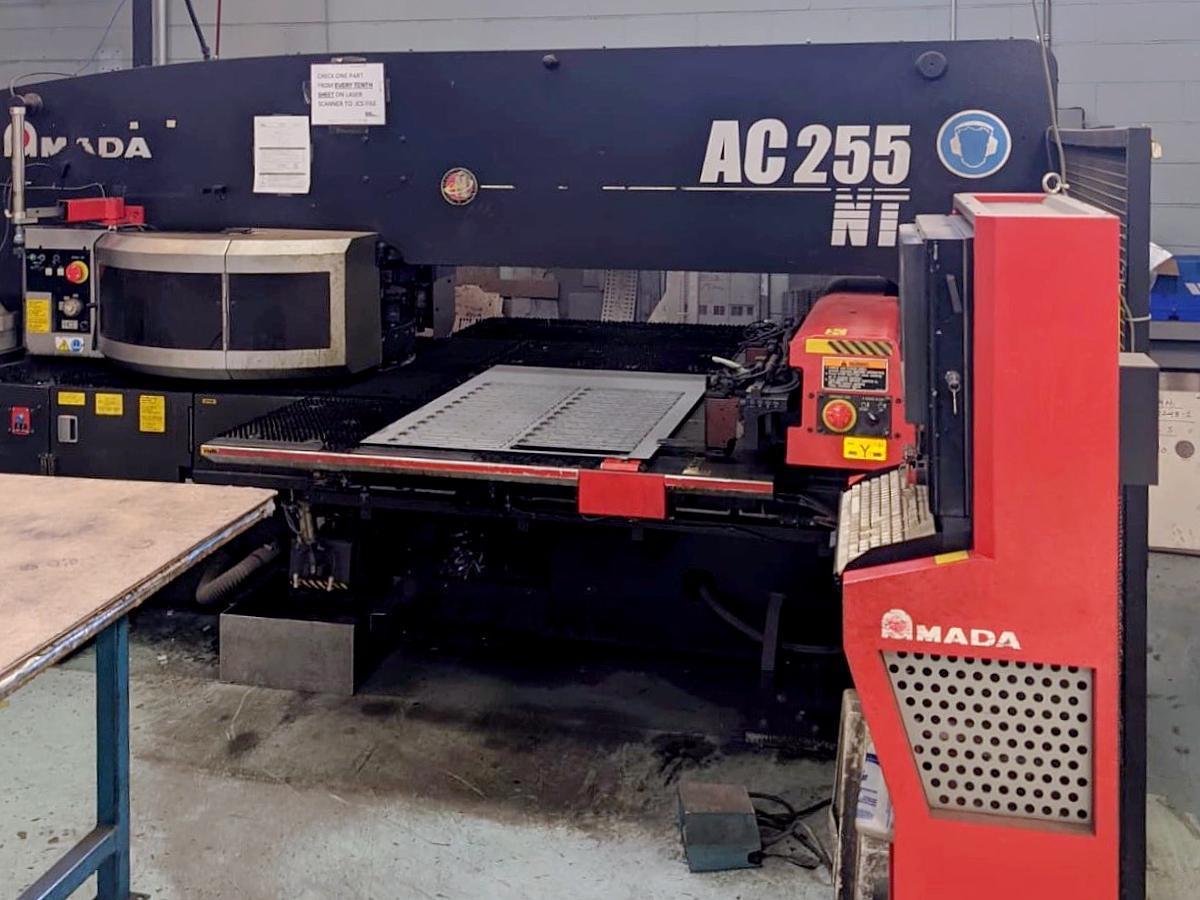

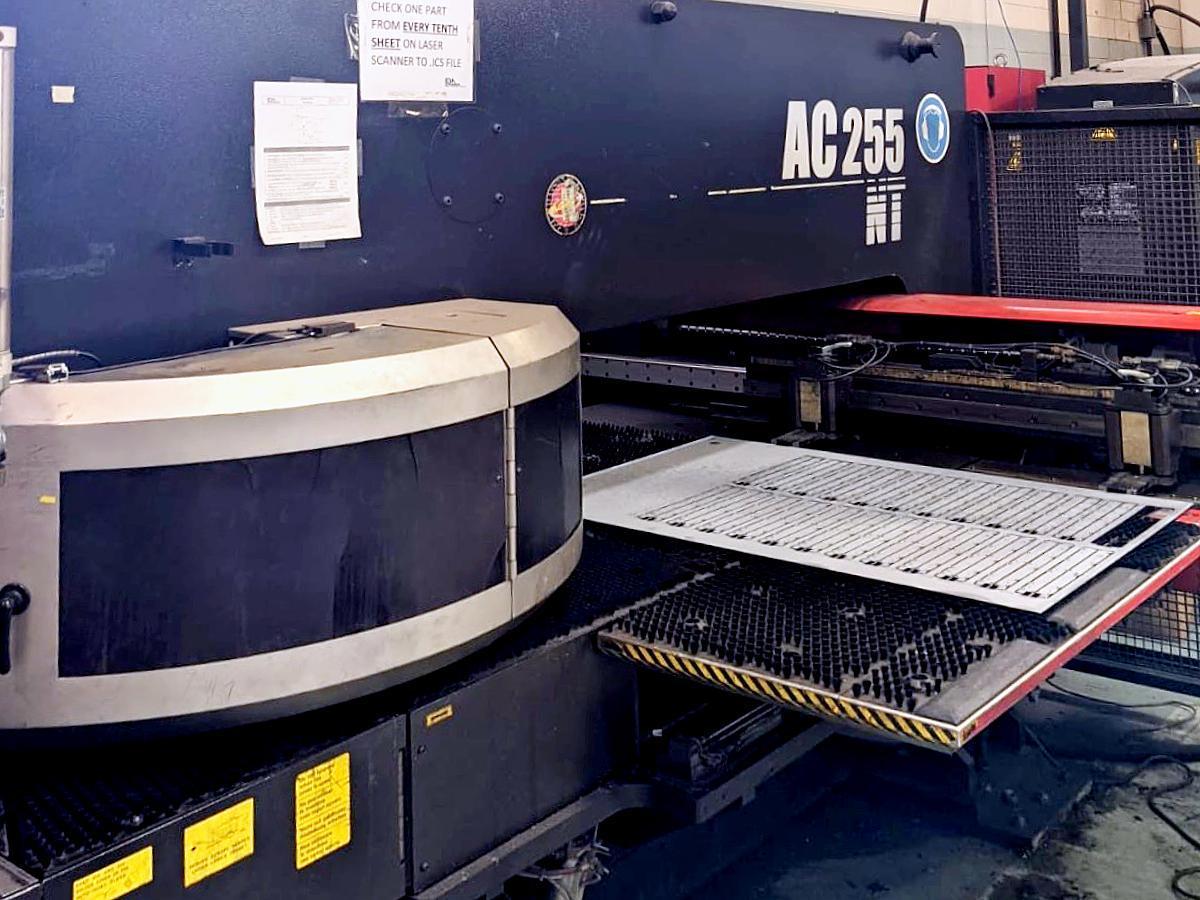

Amada AC255 NT (2009) AC Servo Turret

Make : AMADA

Model: AC255 NT

Year: 2009

Reference #: 100208

Highlights:
Not Available


Tonnage: 22 tons
# Turret Stations: 51
CNC Control: yes
Type of CNC Control: Fanuc AMNC NT CNC
Dimensions: L162” x W101”
Weight: 26400 pounds
Sheet Size Capacity: 4' x 8' w/ Repositioning
Travel Range: 50” x 50” w/o Repositioning
Throat Depth: 50"
Max Stroke Length: 1.65"
Type of Turret Tooling: Amada Thick
Type of Frame Design: Bridge Frame
Press Drive System: Single Motor AC Servo
Max Material Thickness: 0.126˝
Punching Accuracy: ± 0.004˝ and ± 0.002˝
Turret Rotation Speed: 30 RPM
Auto-Index Rotation Speed: 60 RMP
Max Feed Rate X axis: 3,150 IPM
Max Feed Rate Y axis: 2,362 IPM
Max Weight of Material F1 Speed: 110 lbs.
Max Weight of Material F4 Speed: 331 lbs.
Max Hit Rate X Axis: 370 HPM
Max Hit Rate Y Axis: 275 HPM
Power Requirement: 19 kVA
Max Air Consumption: 2.7 Cubic Feet

Equipped With:

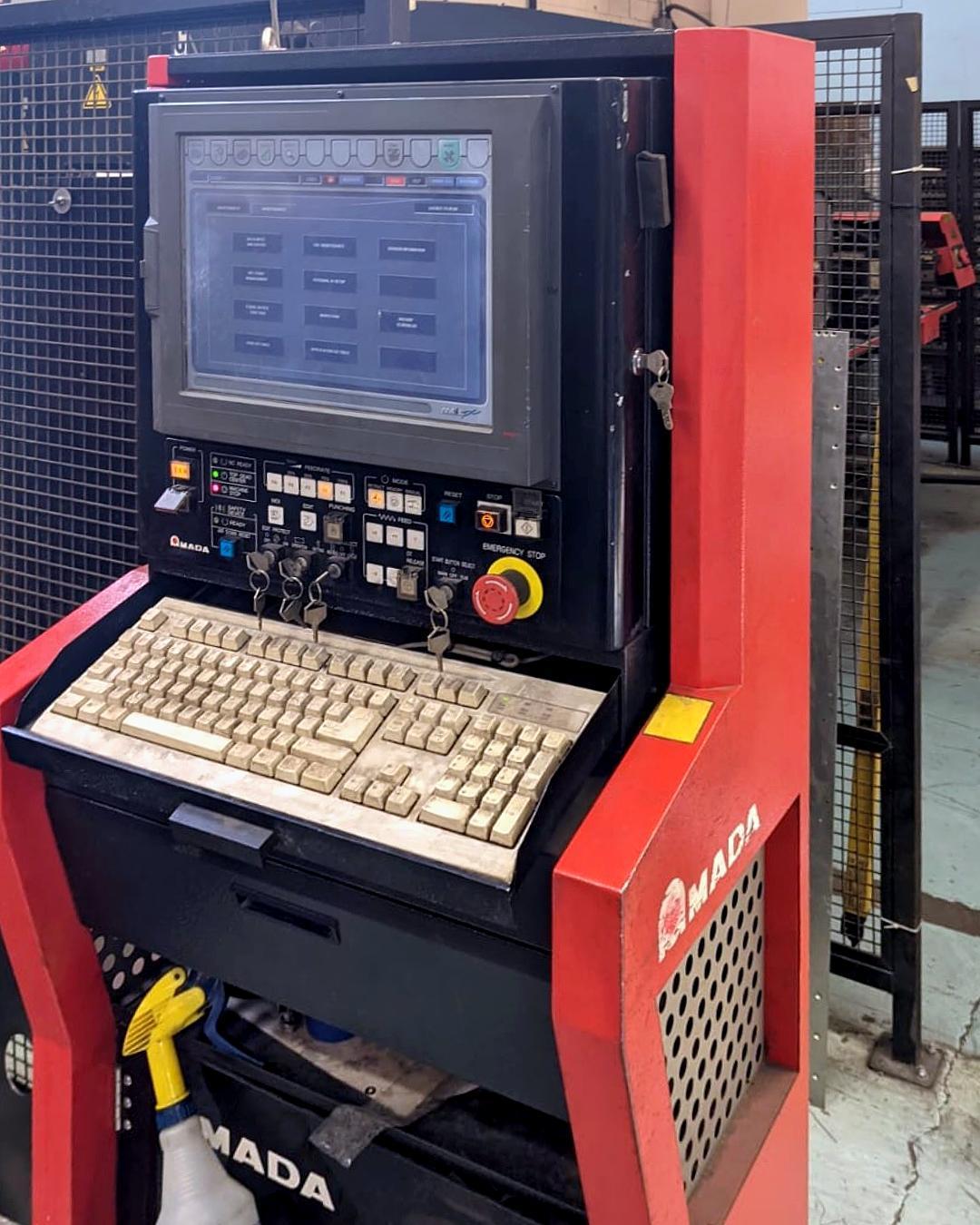

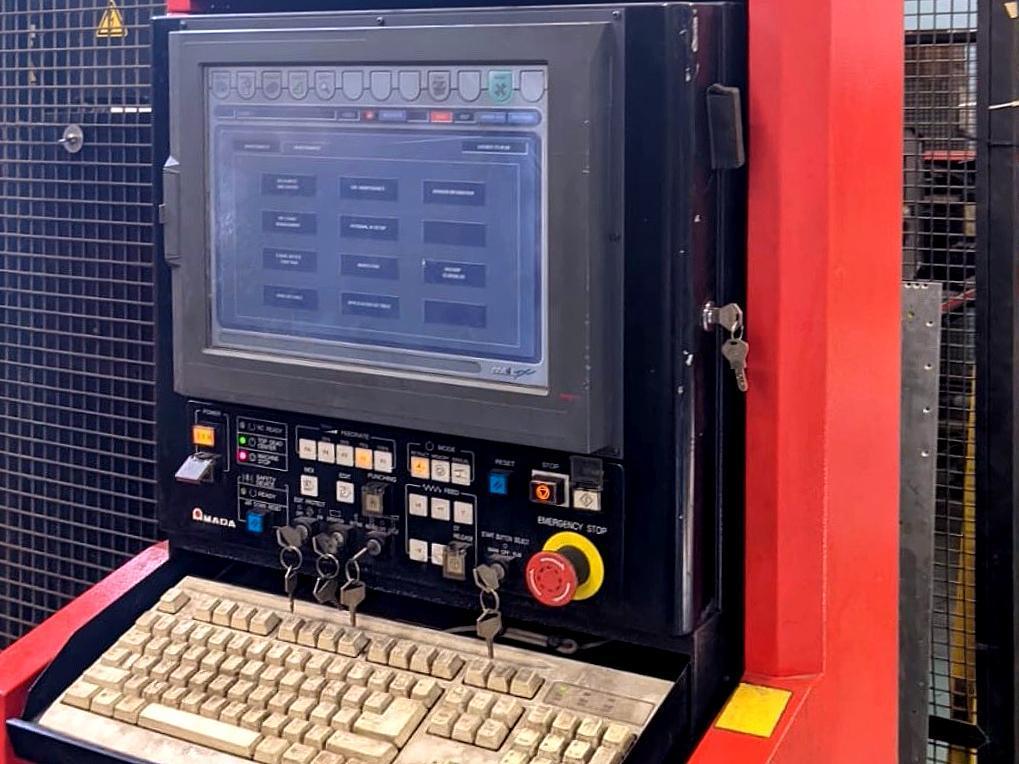

Fanuc AMNC NT CNC Control

58 Station Thick Turret

4 Auto Index Stations

AC Servo Electric Ram

Electric Foot Switch

Brush Table

Deformation Sheet Sensors

Slug Removal
