Product Details

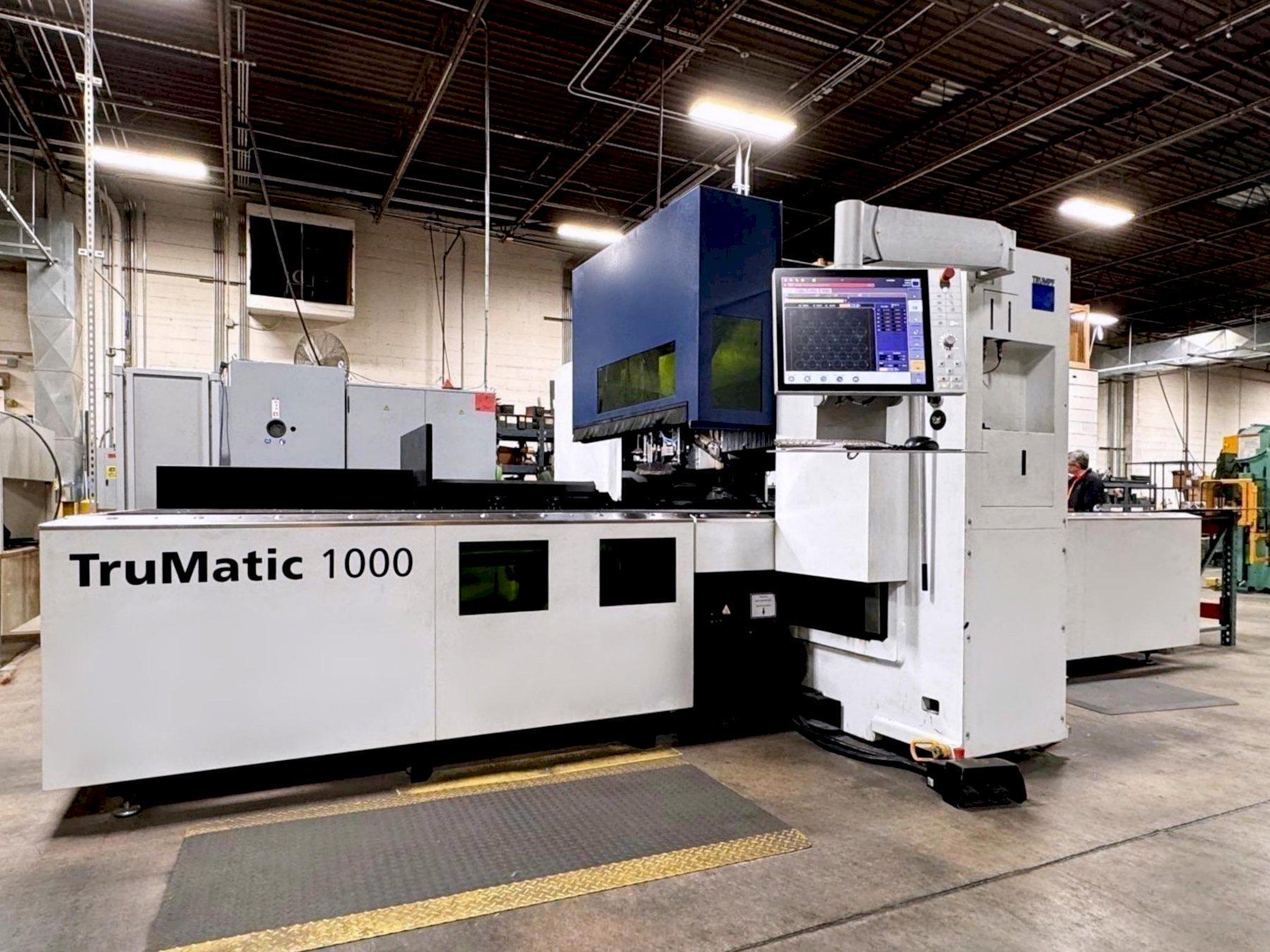

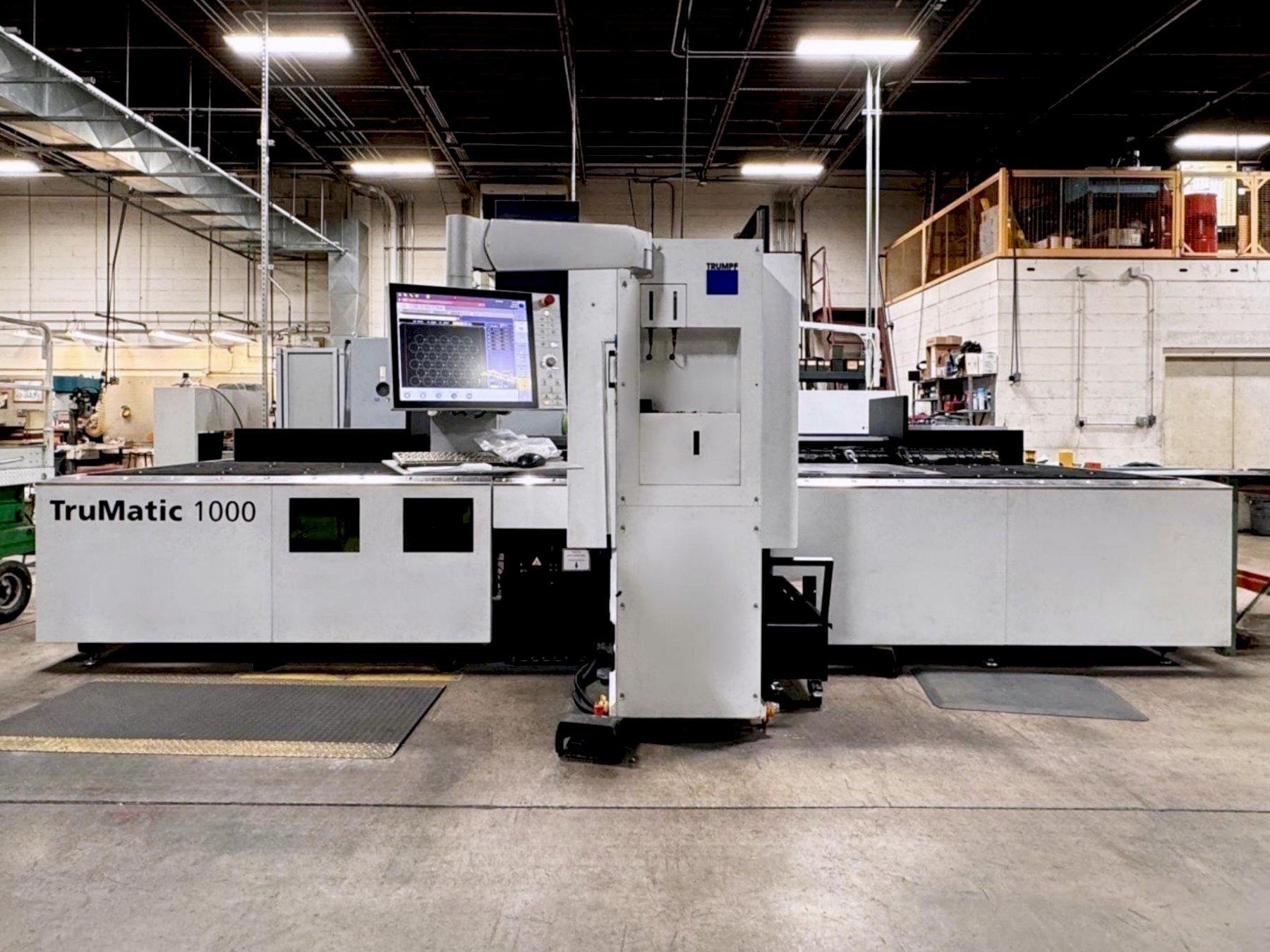

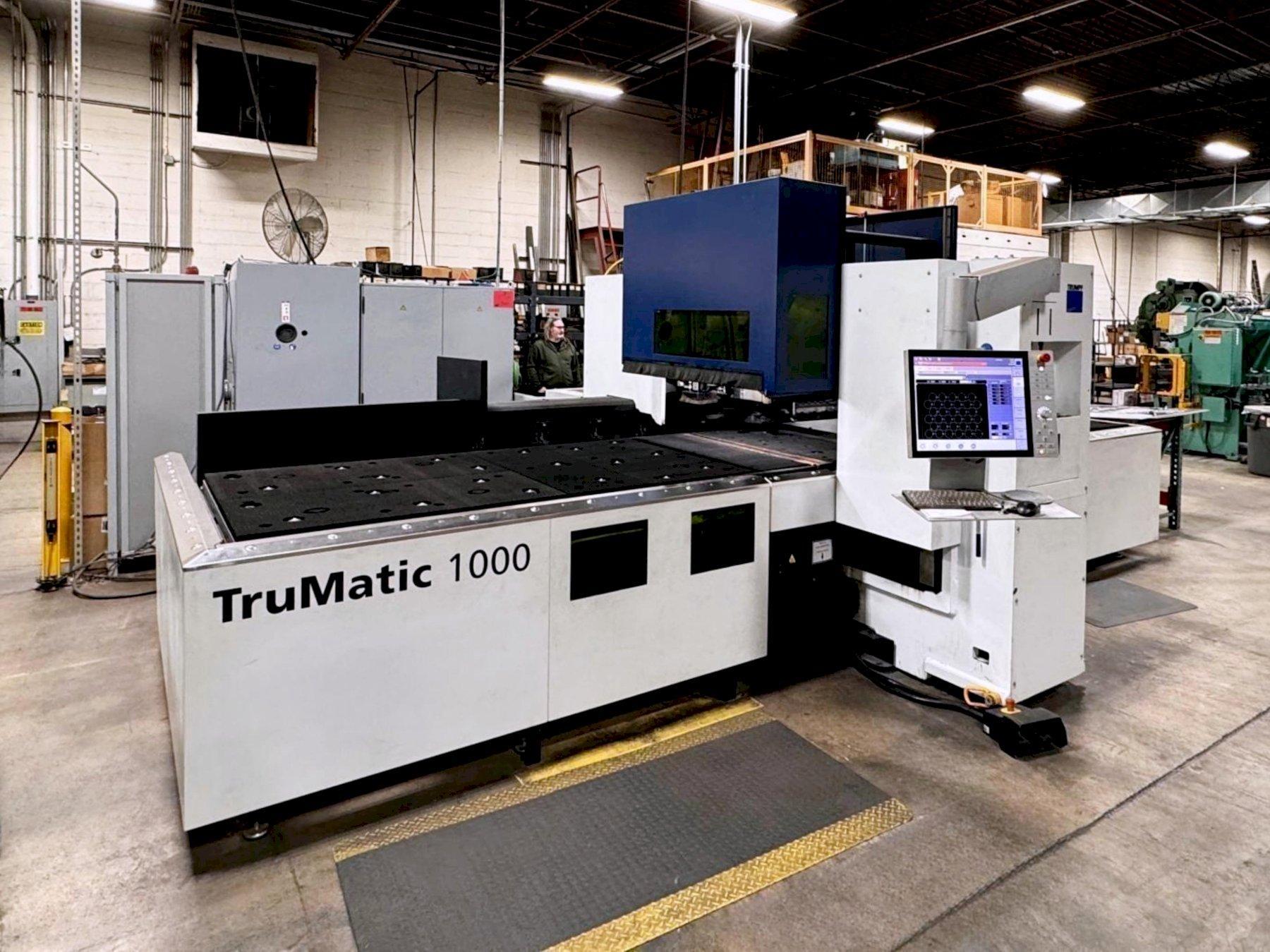

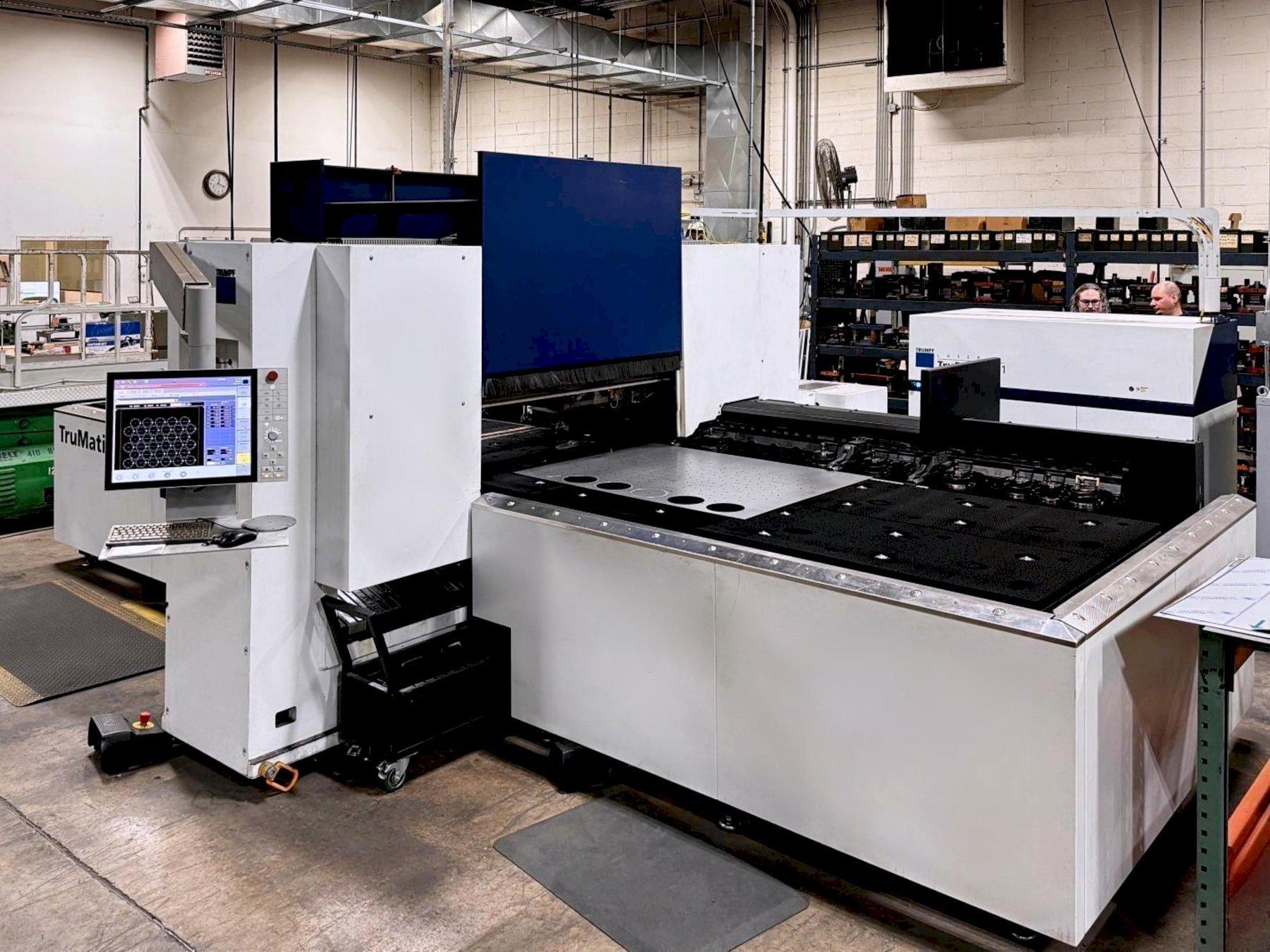

Trumpf TruMatic 1000 Fiber

Make : TRUMPF

Model: TruMatic 1000 Fiber

Year: 2017

Reference #: 100494

Highlights:
Trumpf Showroom Demo Machine - Put into service in 2019.


Working Area (Punch Operation): 50" X 100"
Working Area (Combined Operation): 50" X 80"
Travels X,Y: 100" x 49"
Max. Sheet Thickness: .250"
Max. Punching Force: 18 Tons
Number of Turret Stations: 17
Laser Output Power: 3000 Watts (3 KW)
Fiber Source: Trudisk 3001
Speed, Sim. (X And Y): 3,937 IPM
Max. Stroke Rate - Punching (E = .039"): 600 HPM
Max. Stroke Rate - Marking: 1000 HPM
Max. Part Size - Chute: 7" X 7"
Large Part Flap Size (X X Y): 16" X 48"
Multitool Tool Changing Time: 2.4 Sec.
Number Of Tools/Clamps: 17/3
Dimensions: W 273" / L 247" / H 86"

Equipped With:

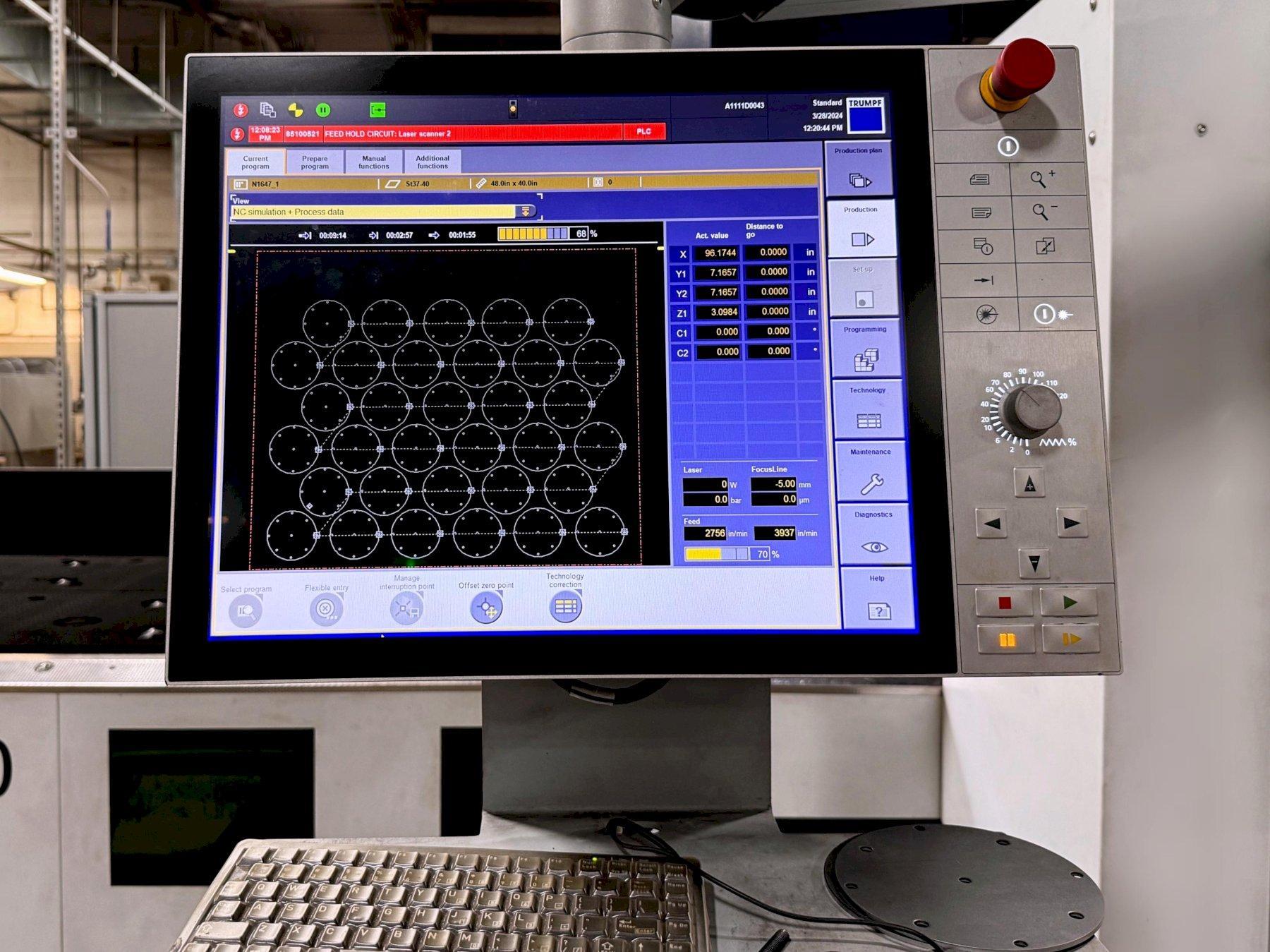

Touchpoint HMI

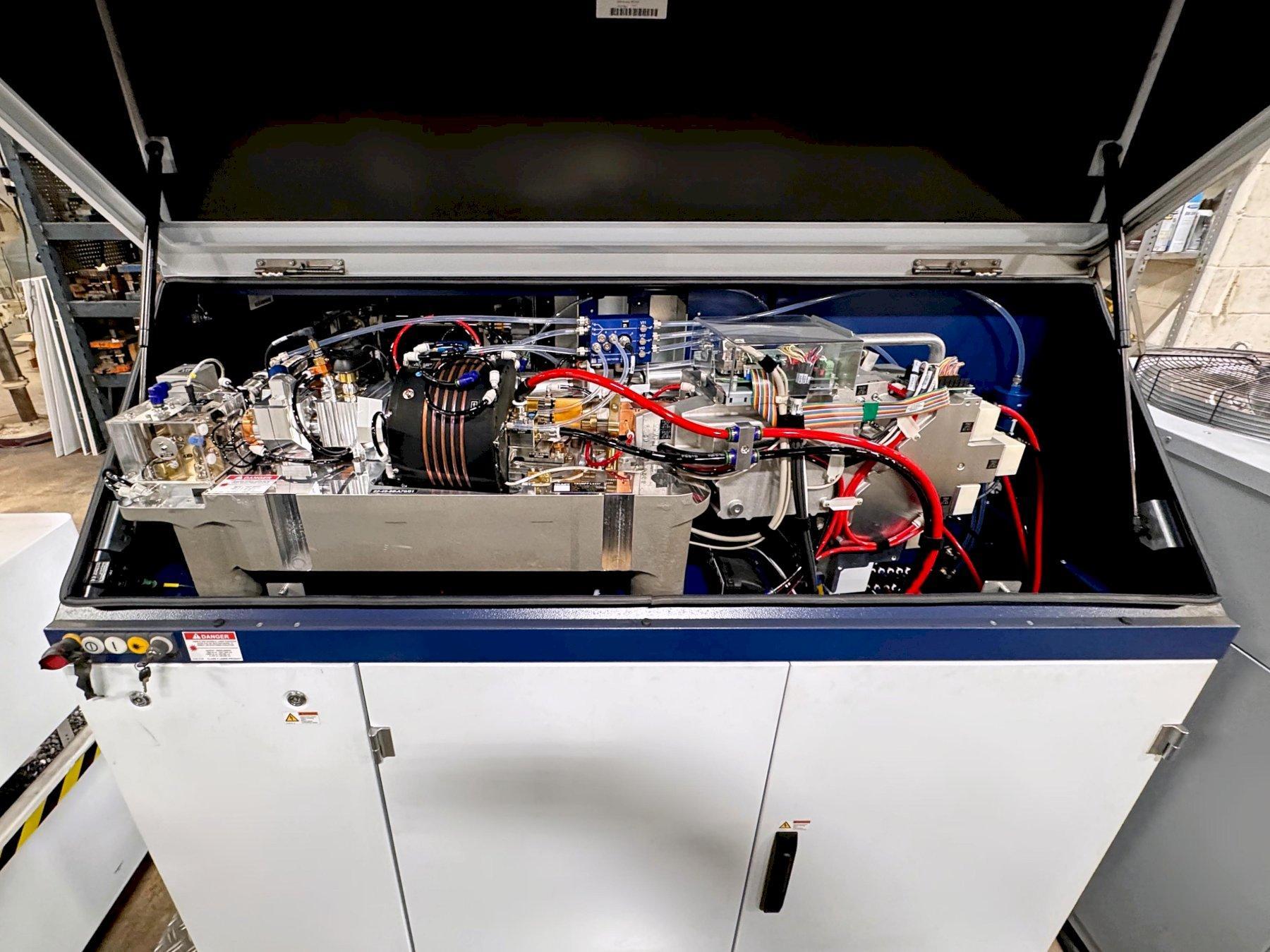

Trudisk 3001 3KW Fiber Source

Servo Electric Punch Drive

Universal Cutting Unit

360 Deg. Index - All Tools

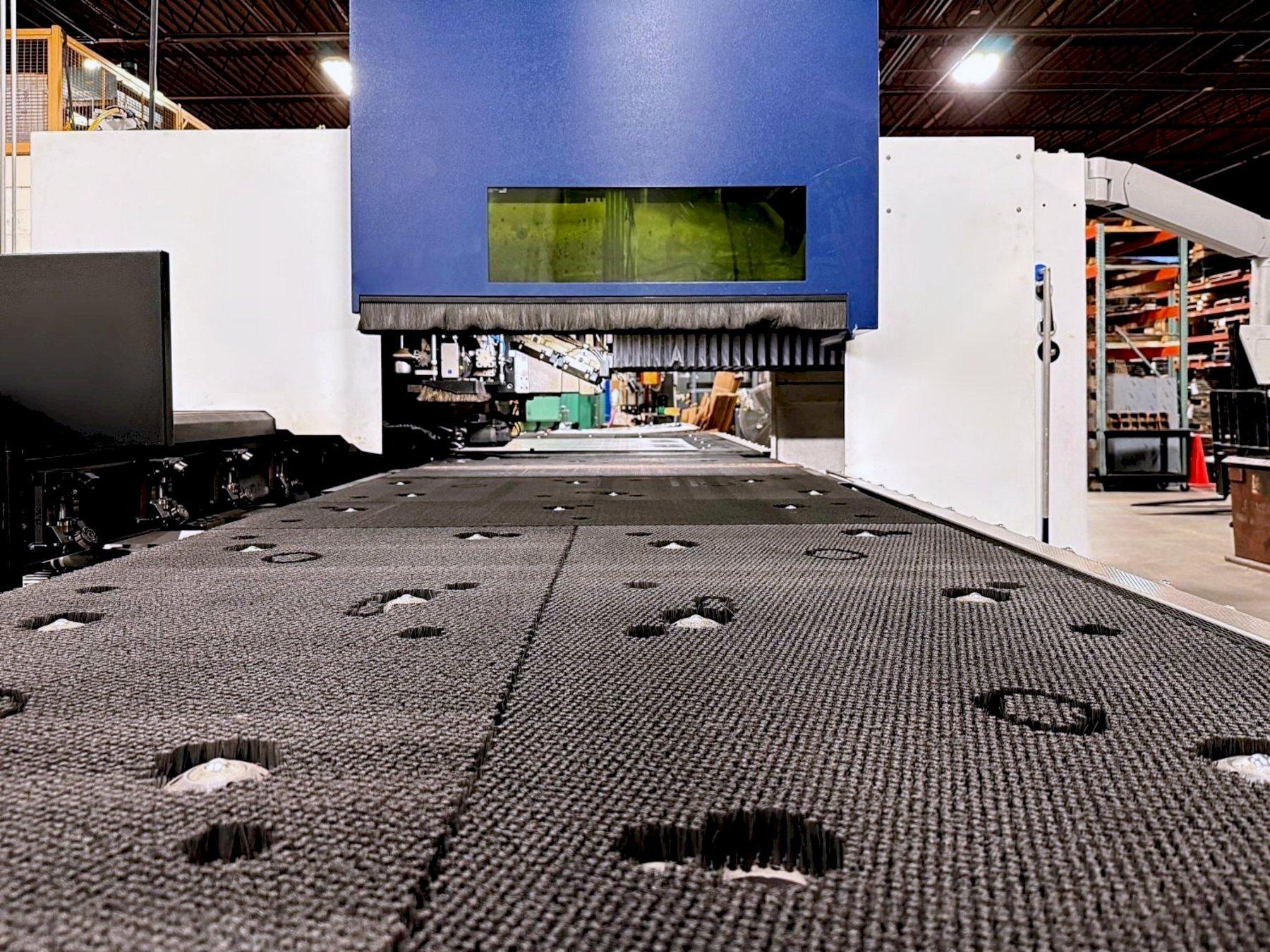

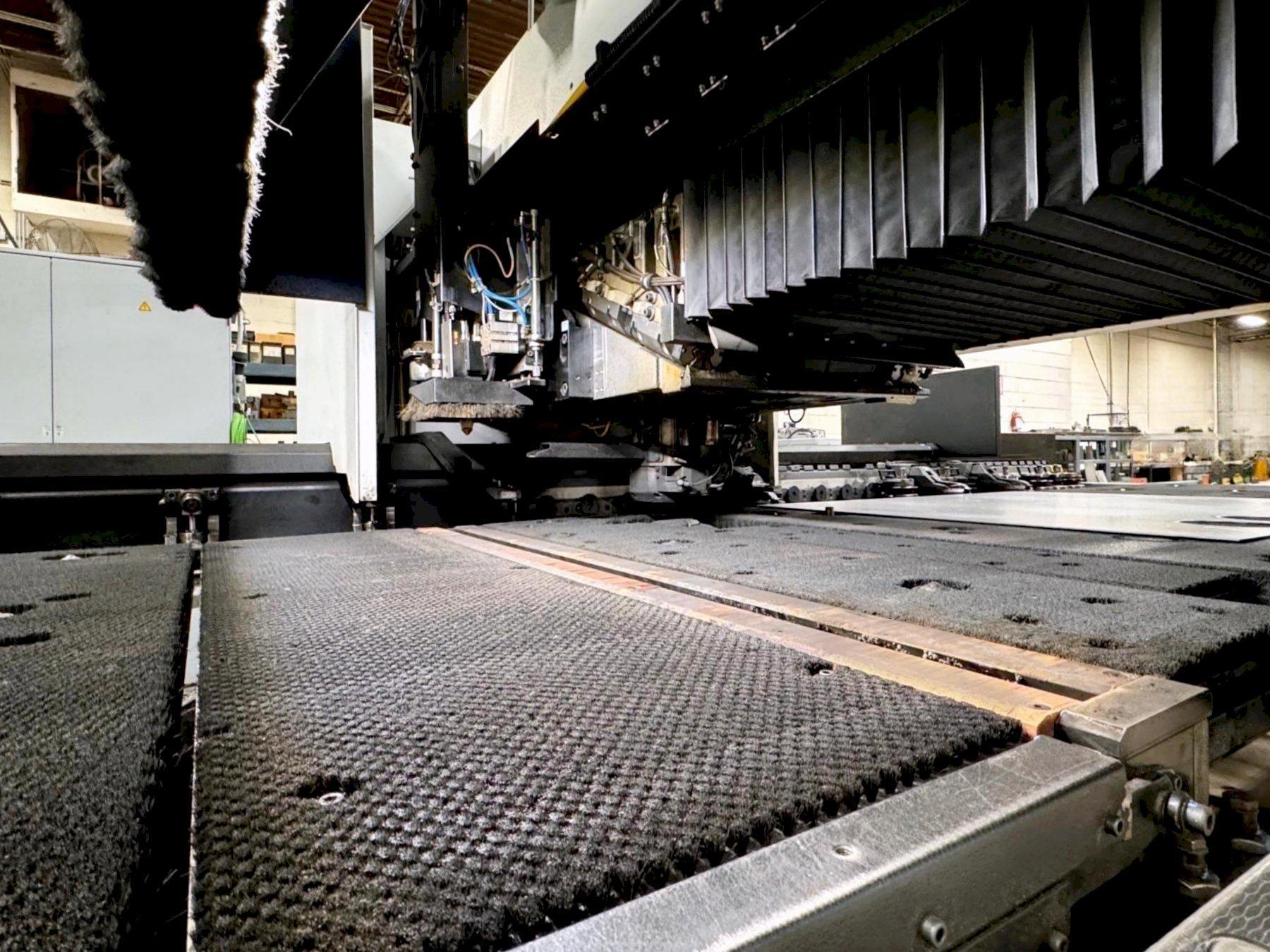

Brush Table

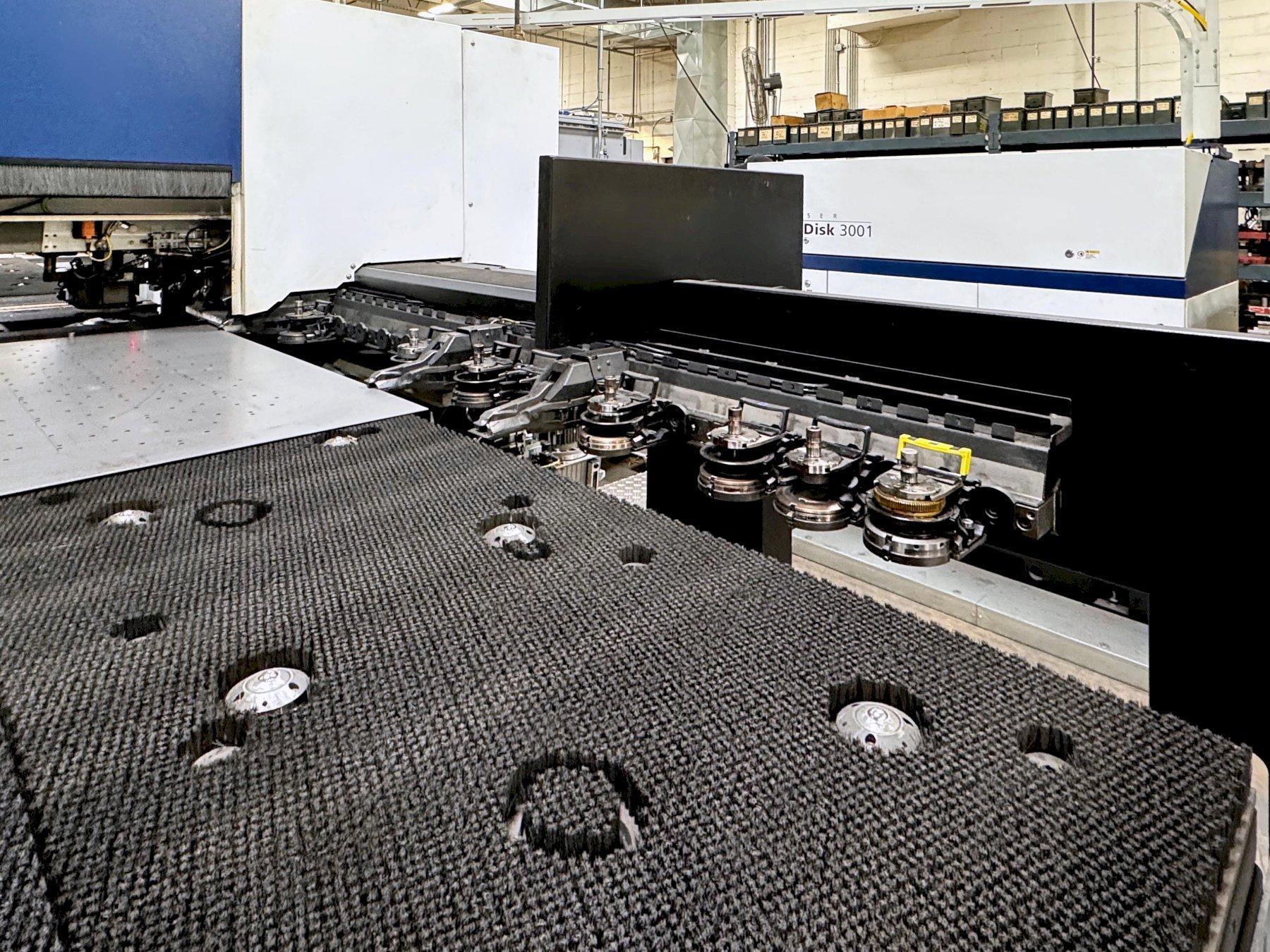

Multi Tool

Extrude & Tapping

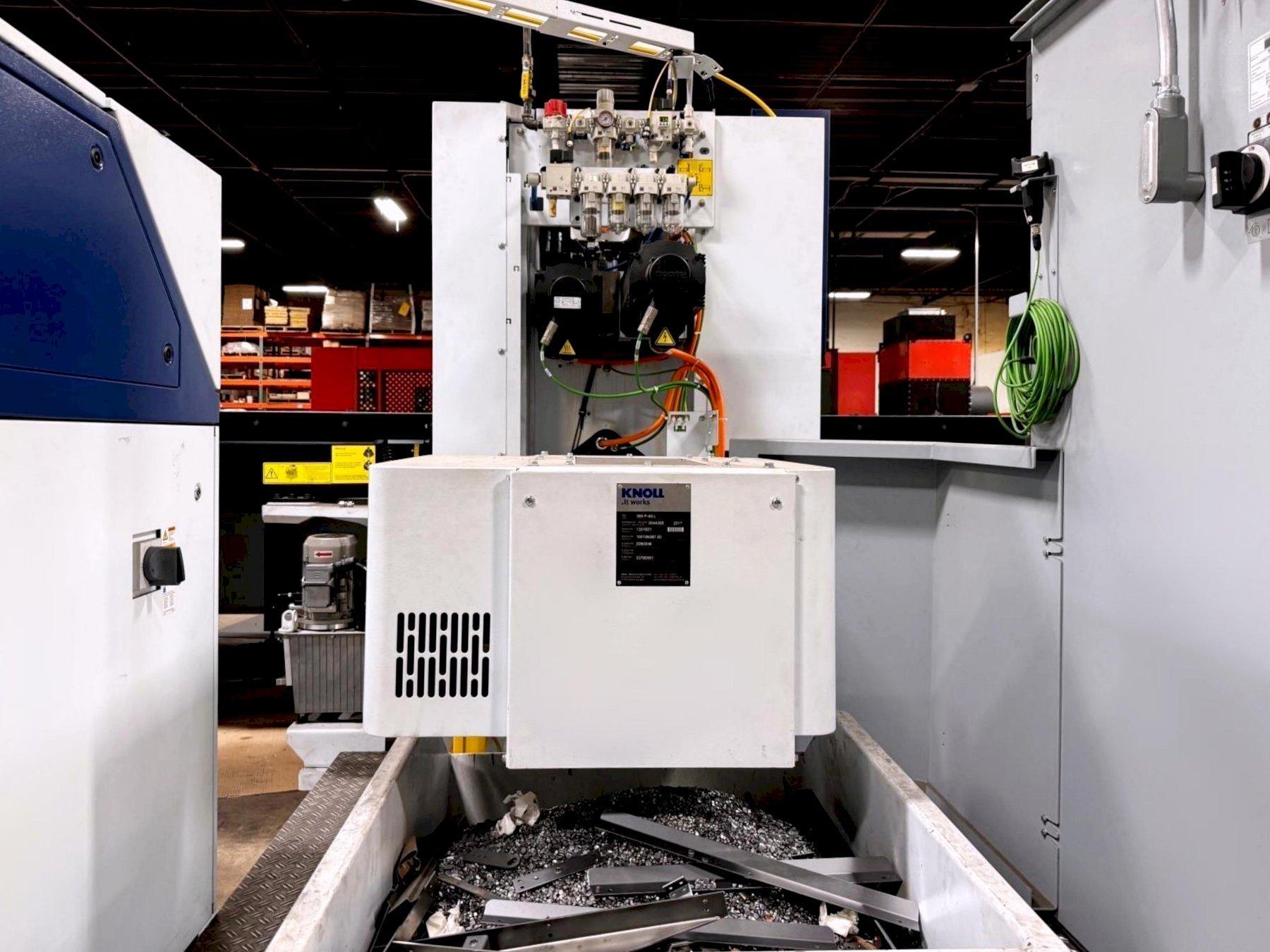

Chip Conveyor

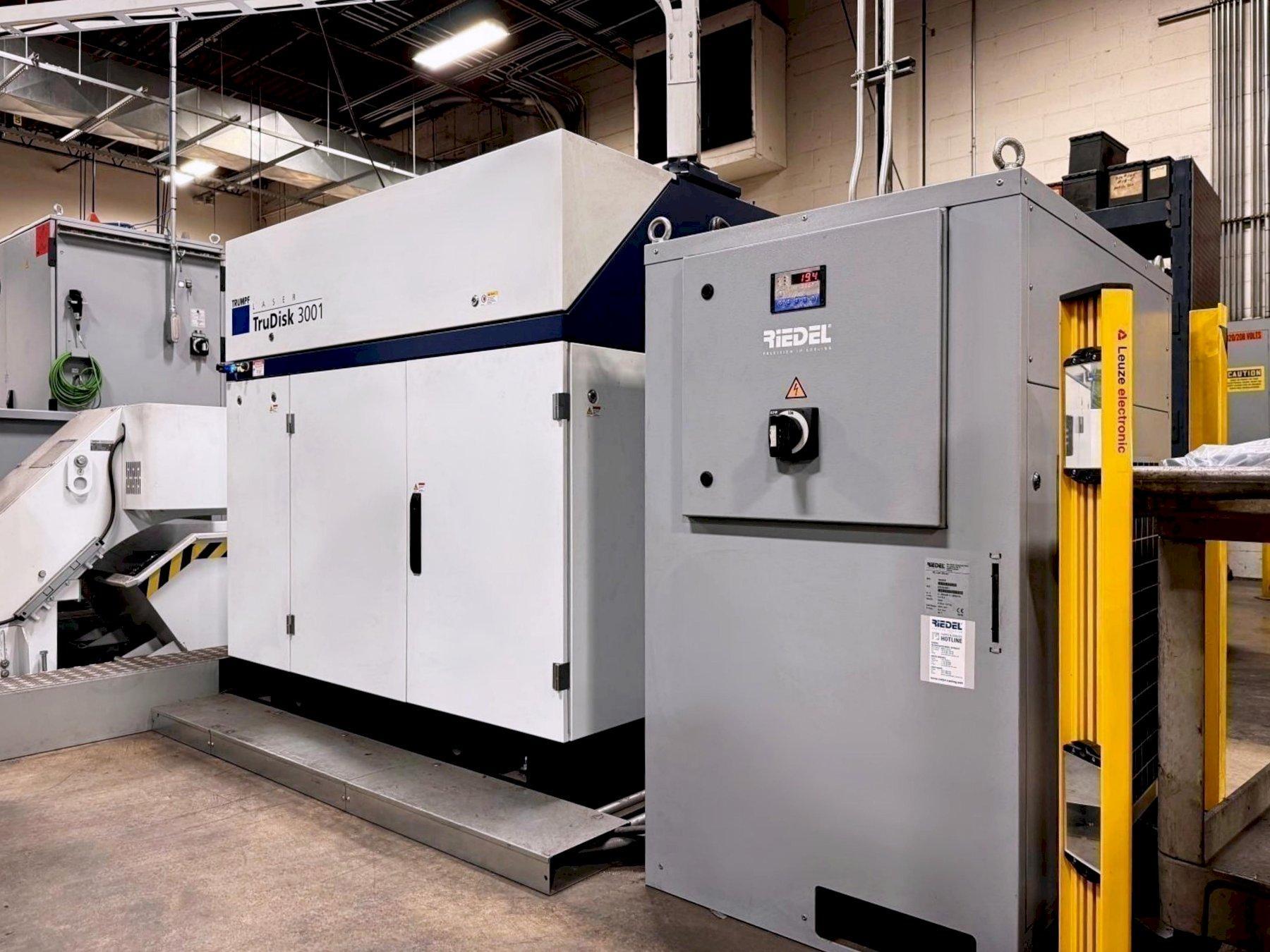

Riedel Laser Chiller

Dust Collector
