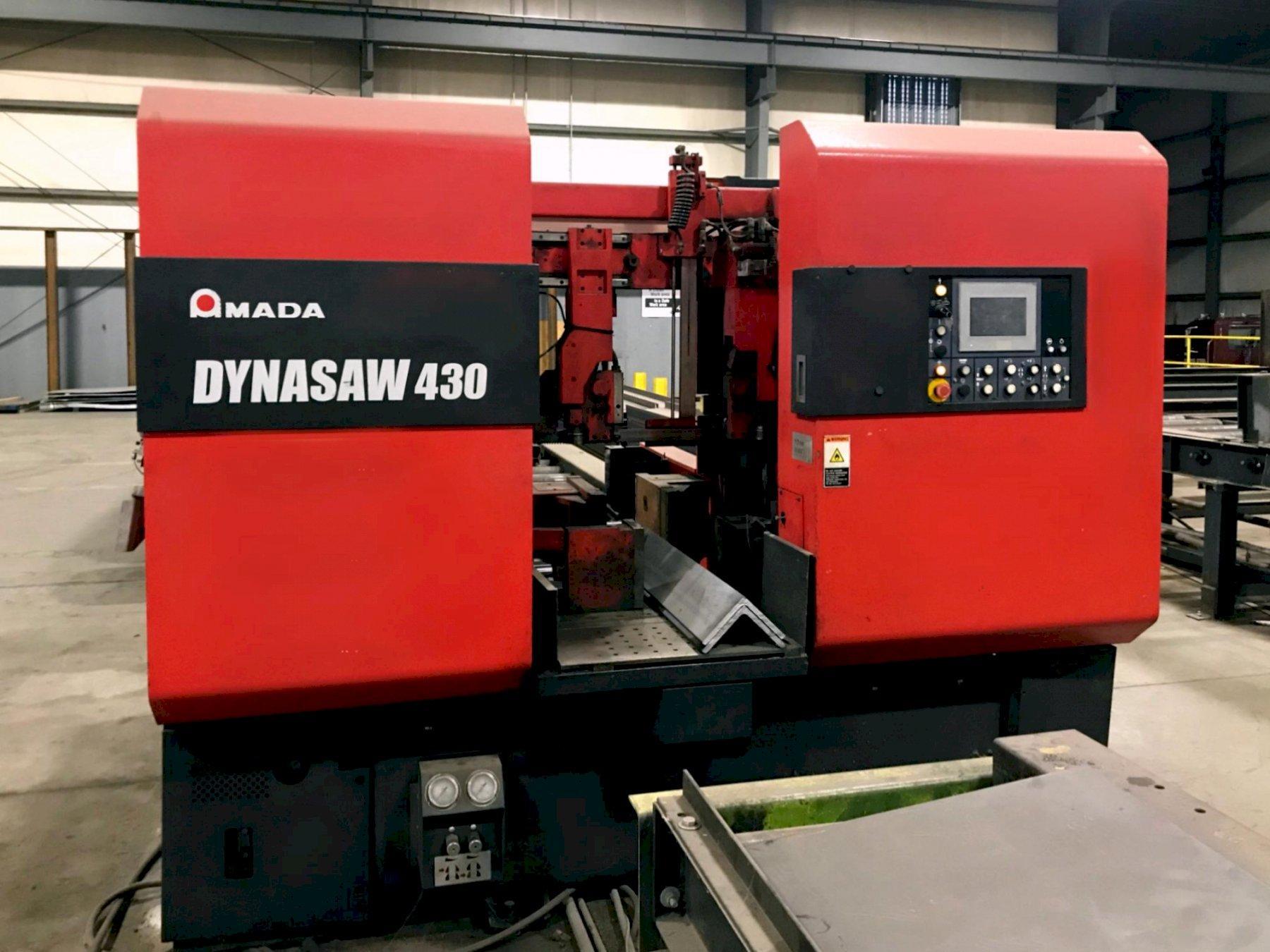

Amada Dynasaw 430 Horizontal Bandsaw

Make : AMADA

Model: Dynasaw 430

Year: 2014

Type: Saws, Band, Horizontal, Dual Column

Reference #: 100289

Highlights:
High-Performance CNC Horizontal Post Style Band Saw

Request a Quote Sell Your Machine

Specifications Equipped With

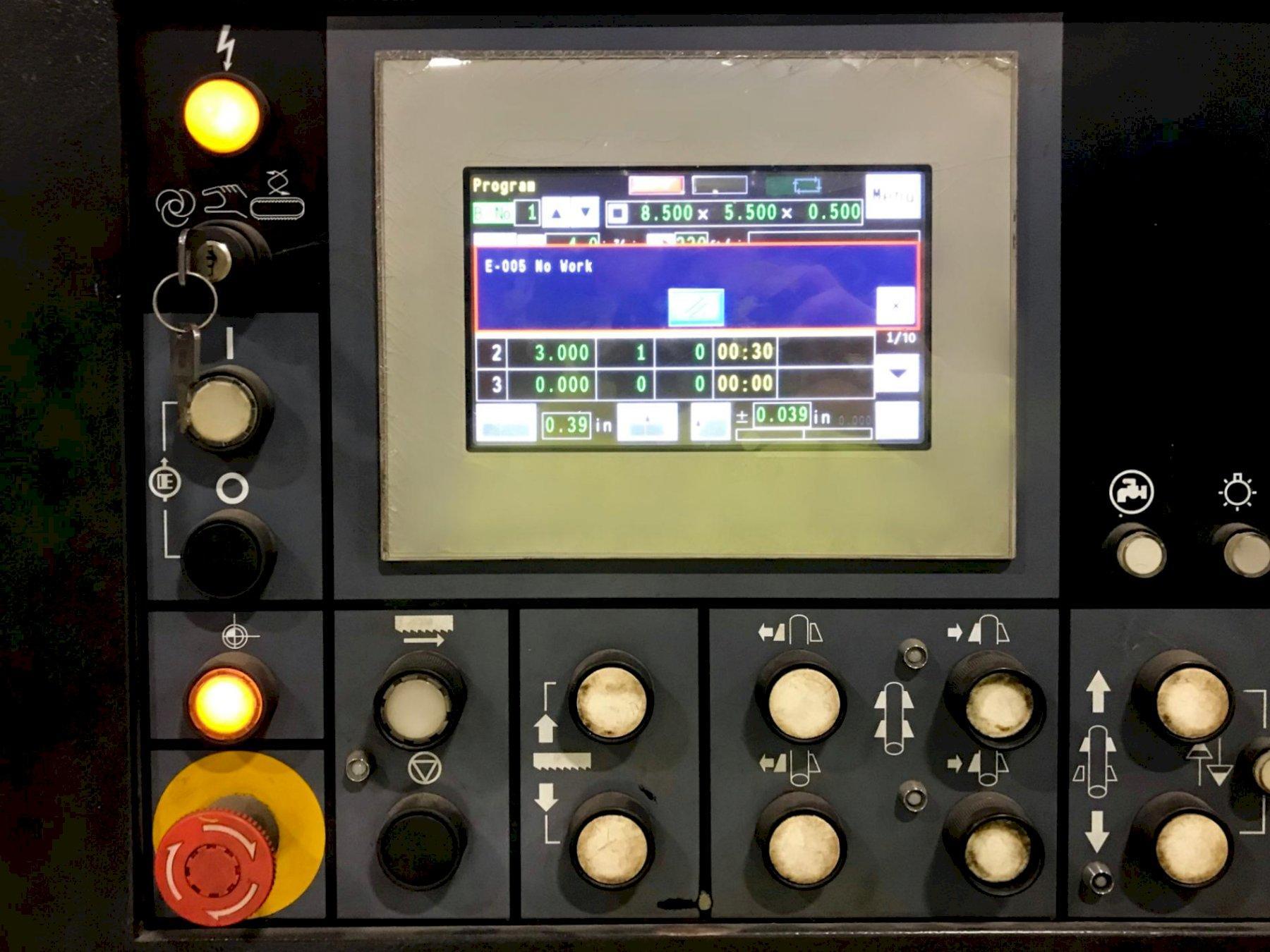

Control: CNC (Amada)

Round Capacity: 1.18” - 16.93”

Rectangle Capacity (W x H): 1.18” x 1.18” - 16.93” x 16.93”

Work Load Capacity: 6,613 lbs.

Material Index Stroke: 27.559”

Material Index Length: 0.394” - 99.999”

Min Remnant Length: 1.38” Plus Length of Parts

Number of Input Block/Station: 1-99 / 1-30

Material Index Mechanism: Shuttle Vise

Vice Opening: 17.75"

Vice Height: 9.0"

Bed To Blade: 18.0"

Blade Size (L x T x W): 17’5” x .050” x 1 1/2”

Blade Speed: 49~394 ft/min, By Inverter

Blade Motor: 7.5 HP

Hydraulic Pump Motor: 2 HP

Cutting Fluid Pump Motor: 1/4 HP

Wire Brush Motor: 1/8 HP

Chip Disposal: Screw-Type Chip Conveyor

Power Requirement: 13 kVA AC220V±10%, 3 PH, 60 Hz

Table Height: 27.6”

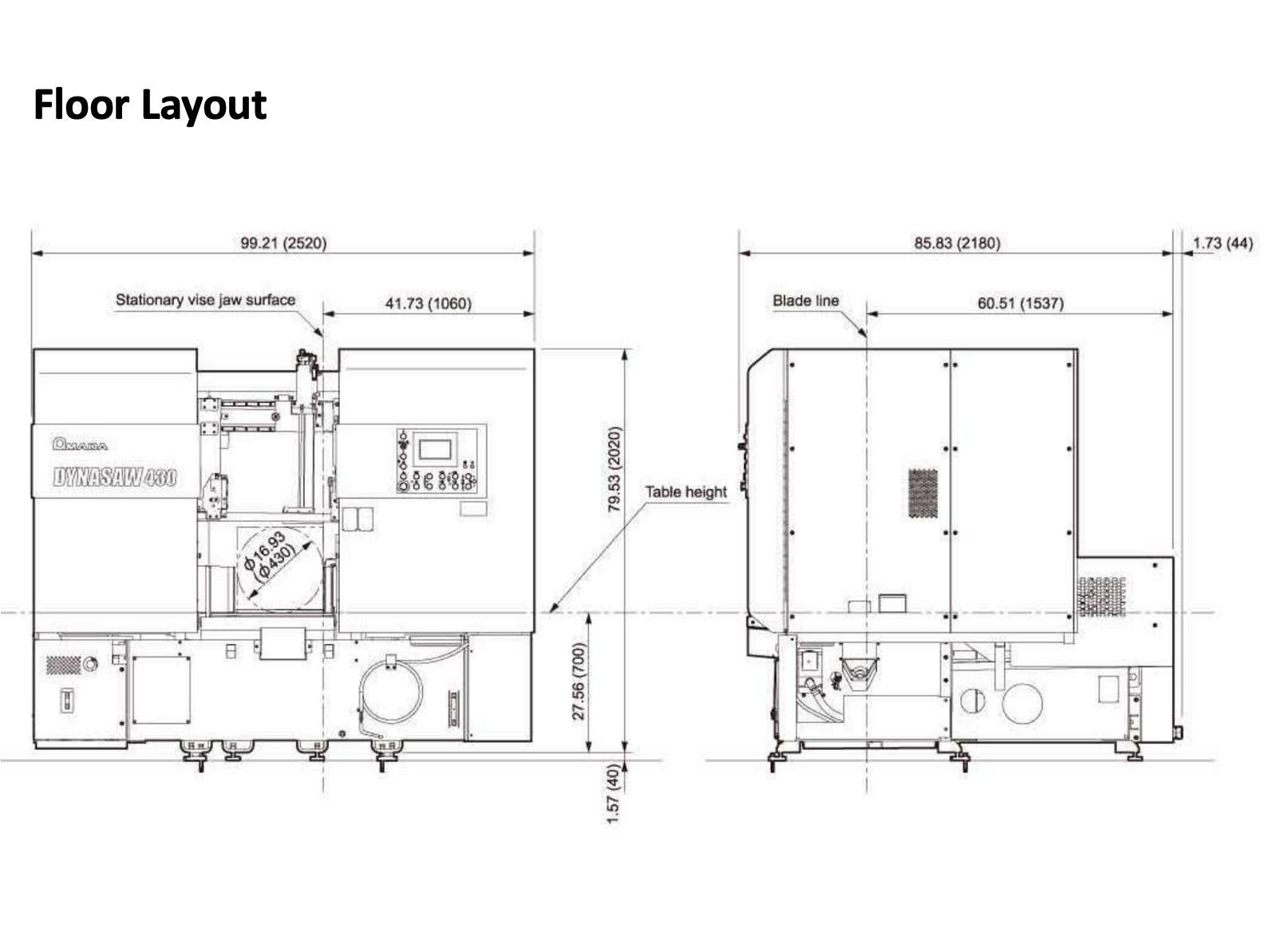

Dimensions (W x L x H): 99.2″ x 85.8″ x 79.5″

Machine Weight: 7,718 lbs

Equipped With:

CNC Cutting Control With Hydraulic Pressure

Column Guided Cutting Head

Auto Table Cleaning

Auto Blade Guide Adjustment

Self Adjusting Wire Brush

Blade Deviation Monitor

Blade Speed Controlled By Inverter

Auto Trim Cut Function

Chip Conveyor

Motion Detector

Back Gauge Stopper
