DCM Mini PDG (Punch & Die Grinder)

Make : DCM

Model: Mini PDG (Punch & Die Grinder)

Year: 2019

Type: Grinders, Tool & Cutter

Reference #: 100644

Highlights:
Excellent condition with light use.

Request a Quote Sell Your Machine

Specifications Equipped With

Rotary Table Diameter: 10”

Max. Grinding Wheel Diameter: 6”

Max. Vertical Spindle Travel: 5”

Head Rotational Position: 45°

Coolant System Capacity: 12 Gal.

Sound Level During Operation: 55 db

Speed Power Spindle (1 Phase): 3600 RPM/1.5 HP

Table (1 Phase): 30 RPM/1/8 HP

Coolant Pump: 100 W

Electrical Standard: 230V/60 Hz/1Ph

Dimensions: W 33” x L 17” x H 5’

Equipped With:

Cast Iron Base

Rigid Z-Axis Column w/ Dovetail Ways

Accepts 6" Diameter Grinding Wheel

Recirculating Coolant System w/ Paper Filter Media

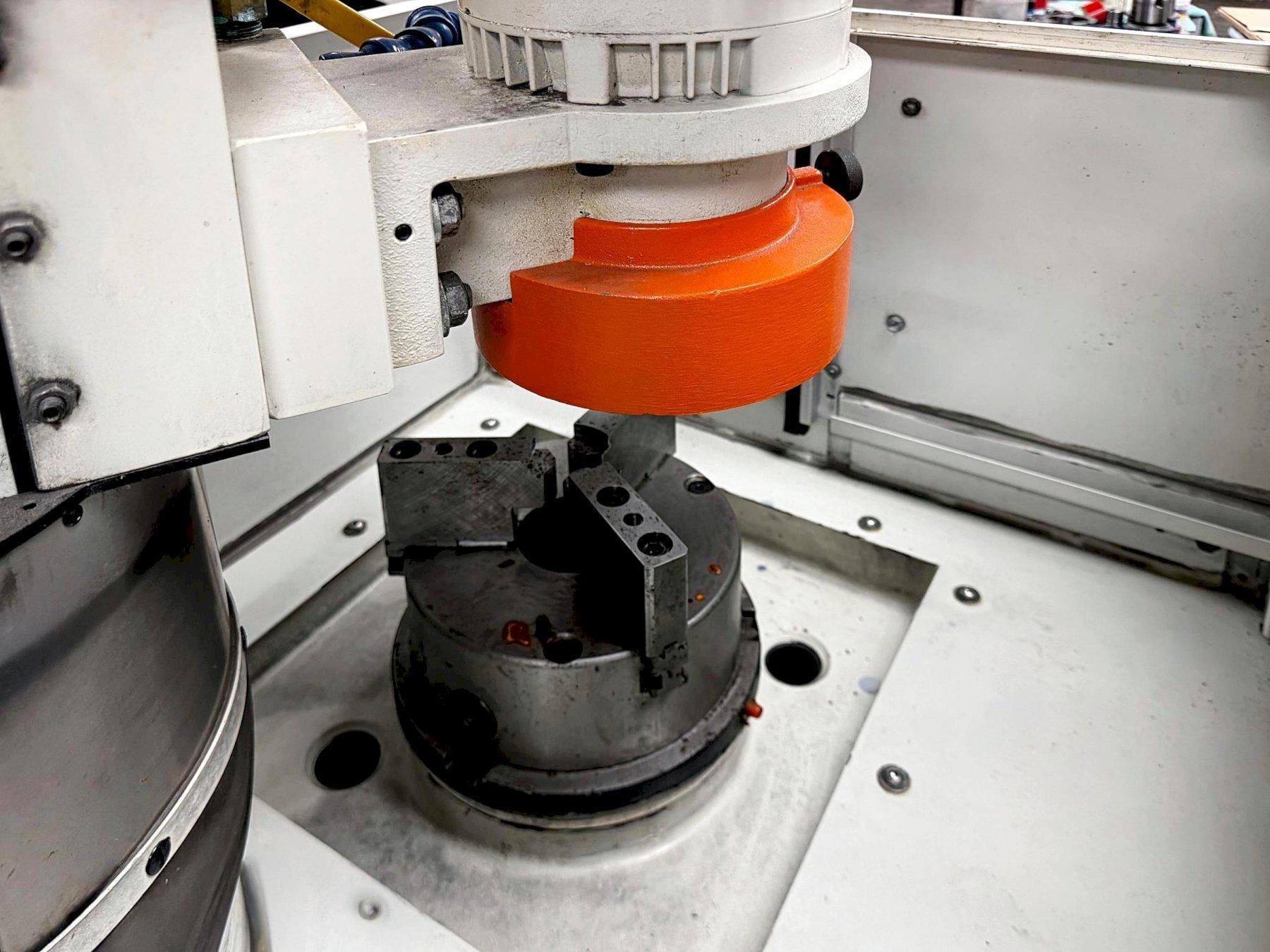

Standard 3 Jaw Chuck Work Holding Fixture

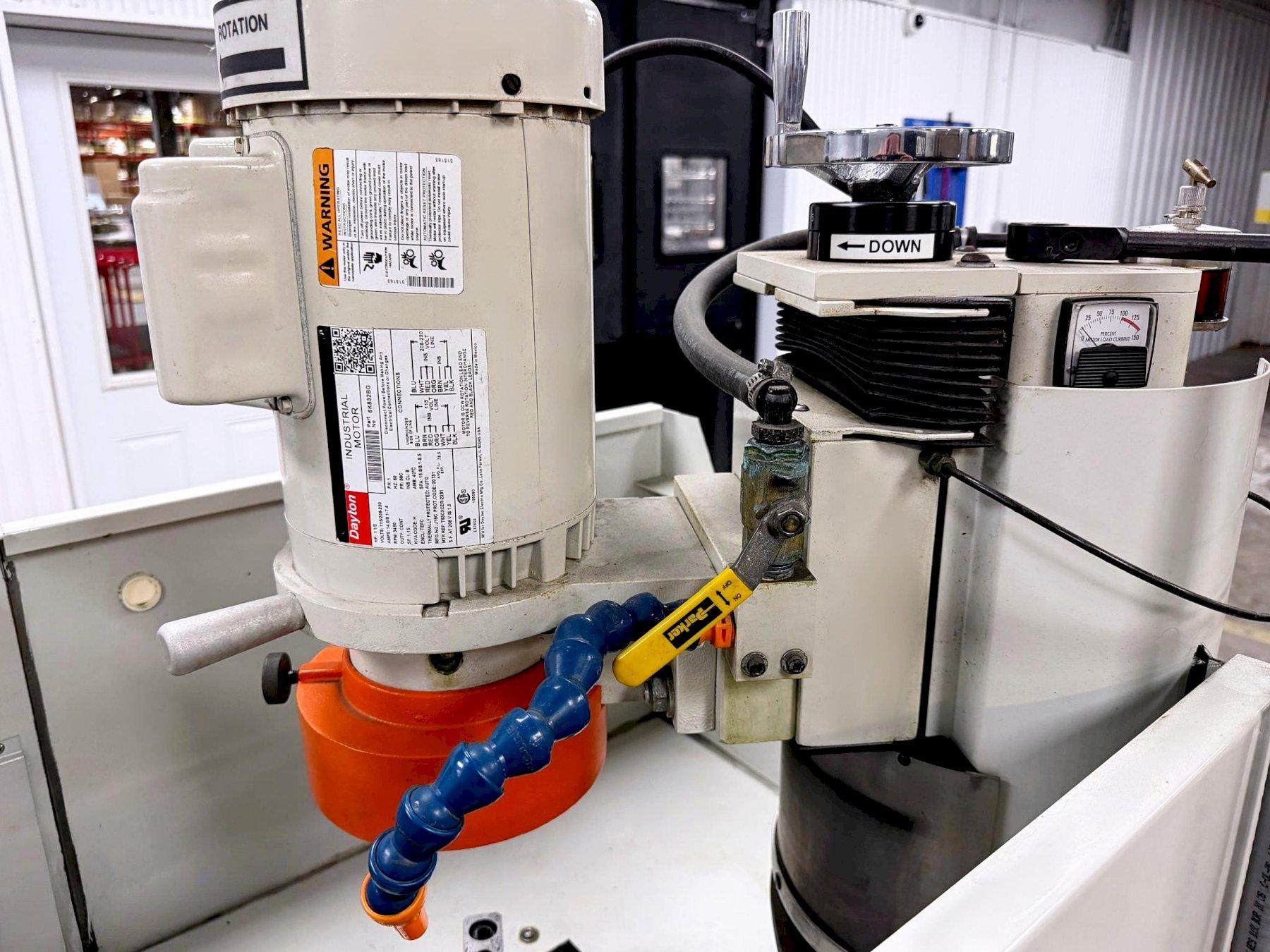

1.5 HP 3600 RPM Grinding Spindle Motor

Powered Rotary Table
