Product Details

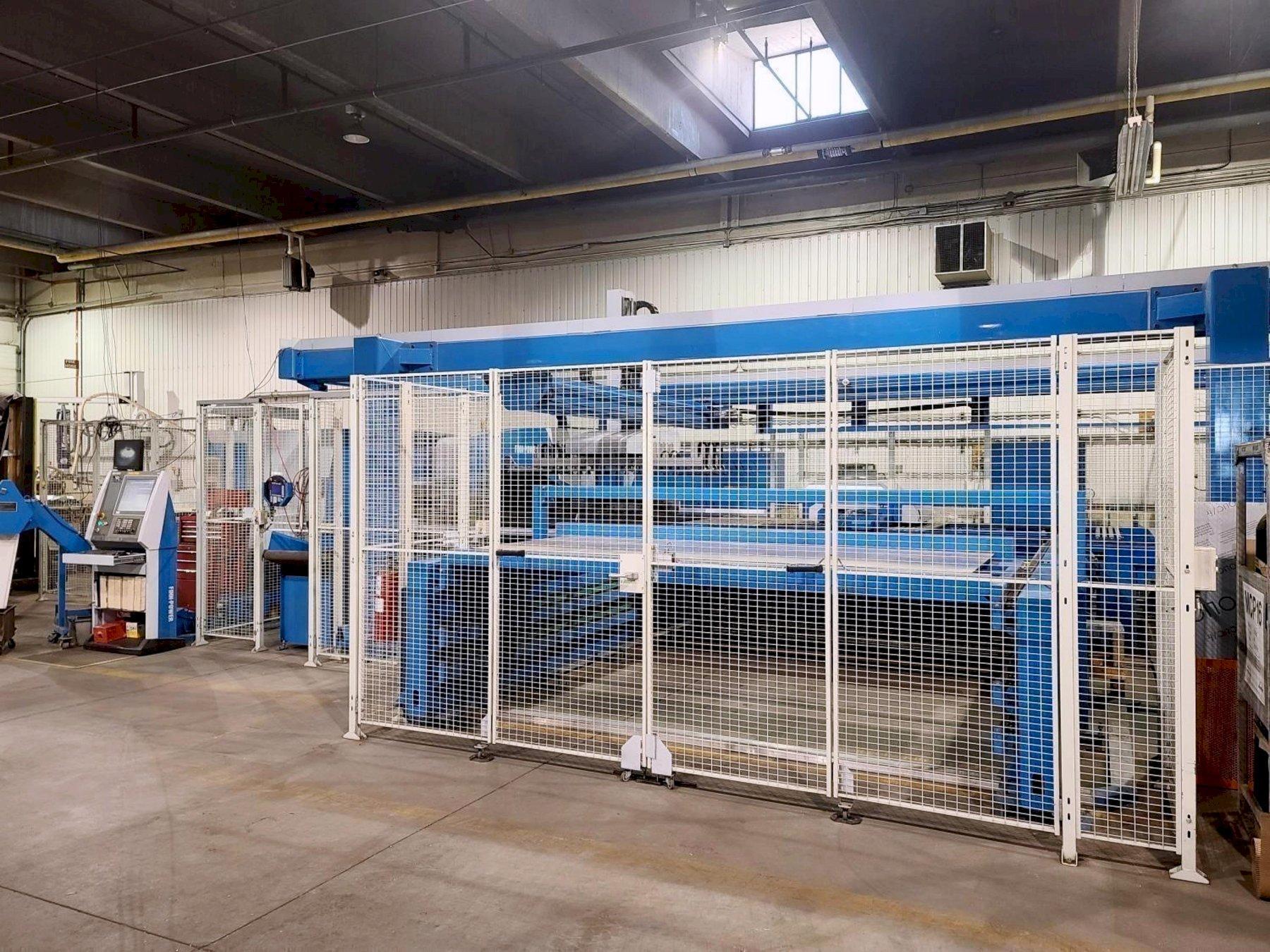

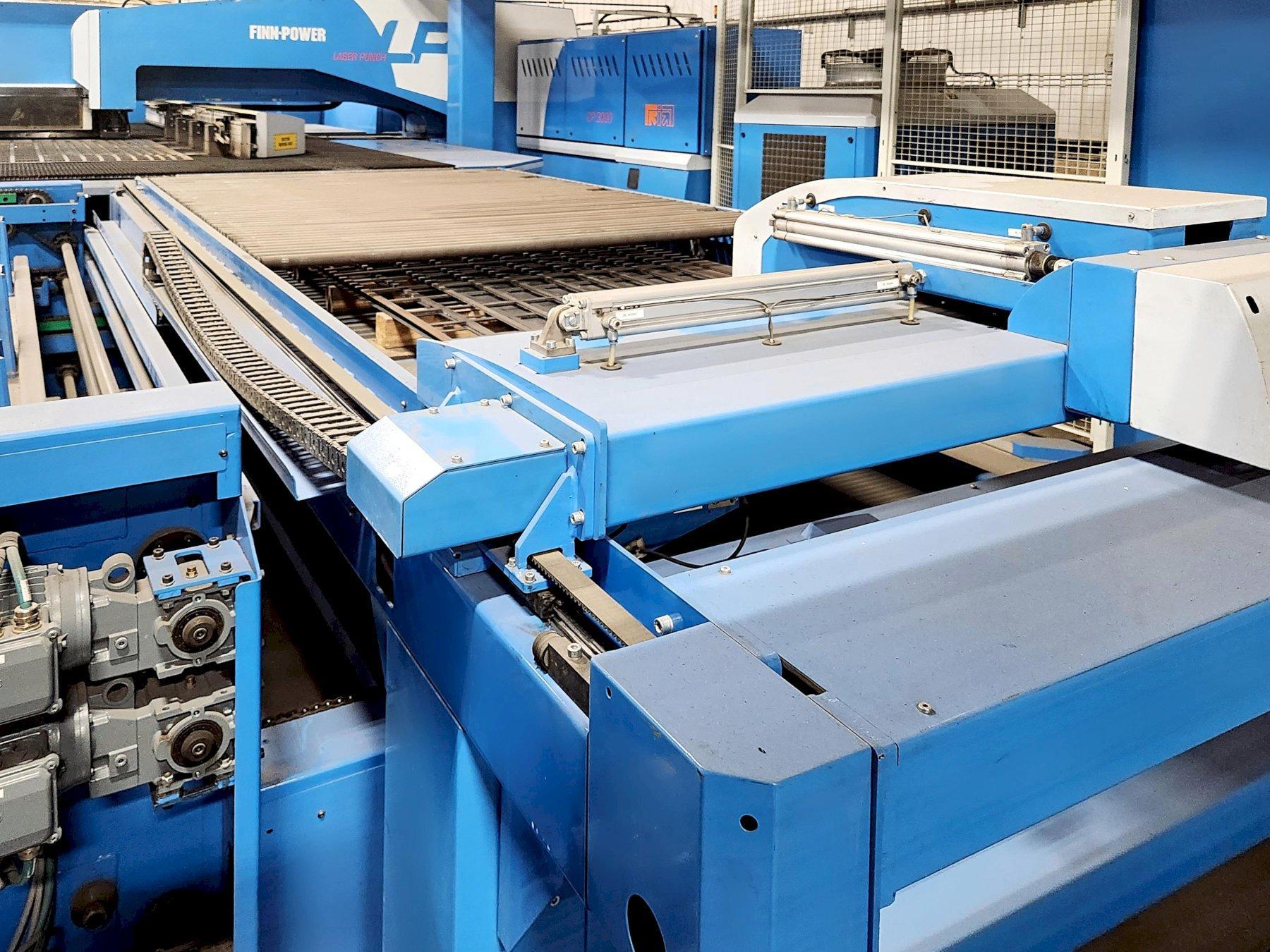

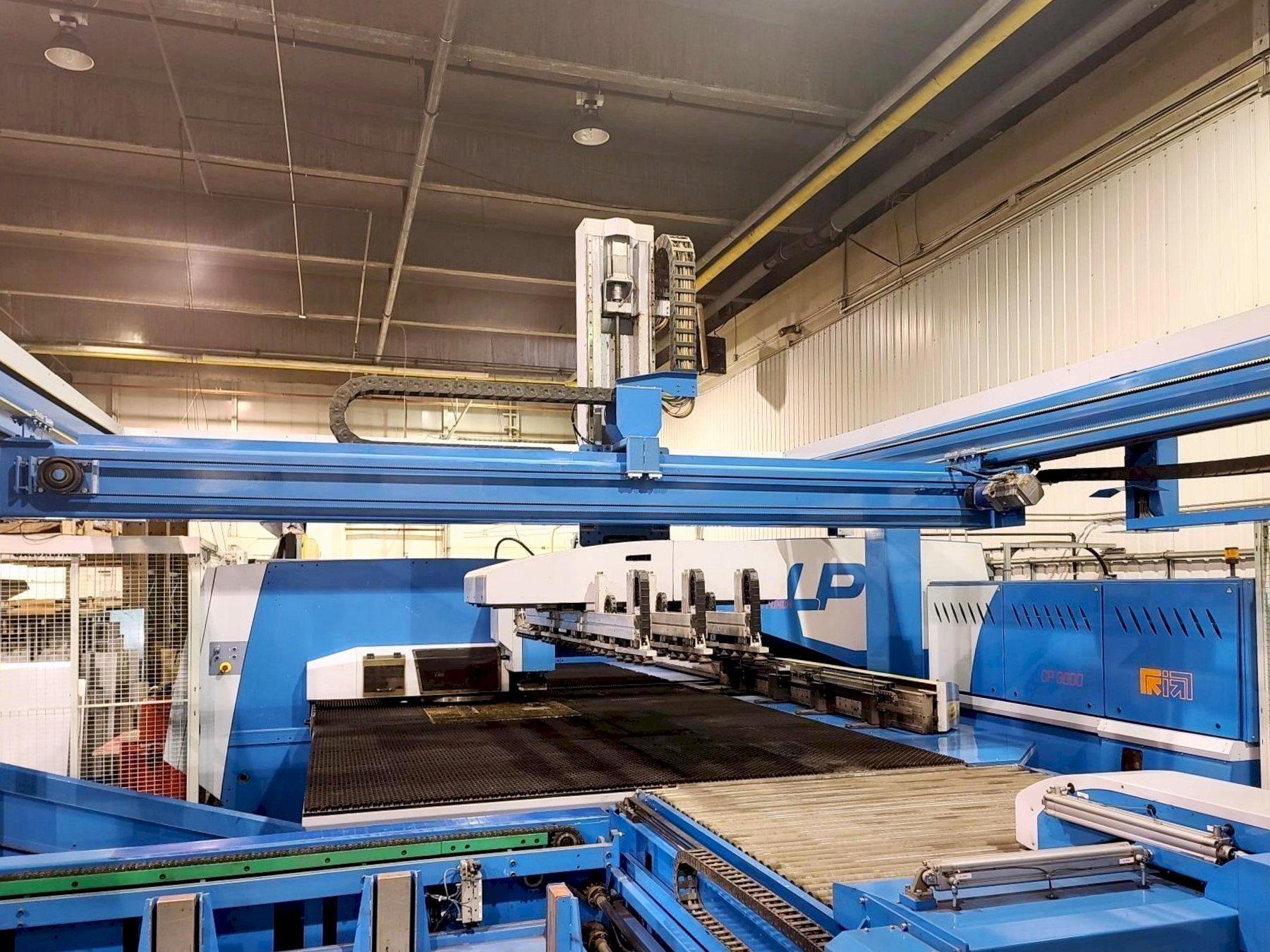

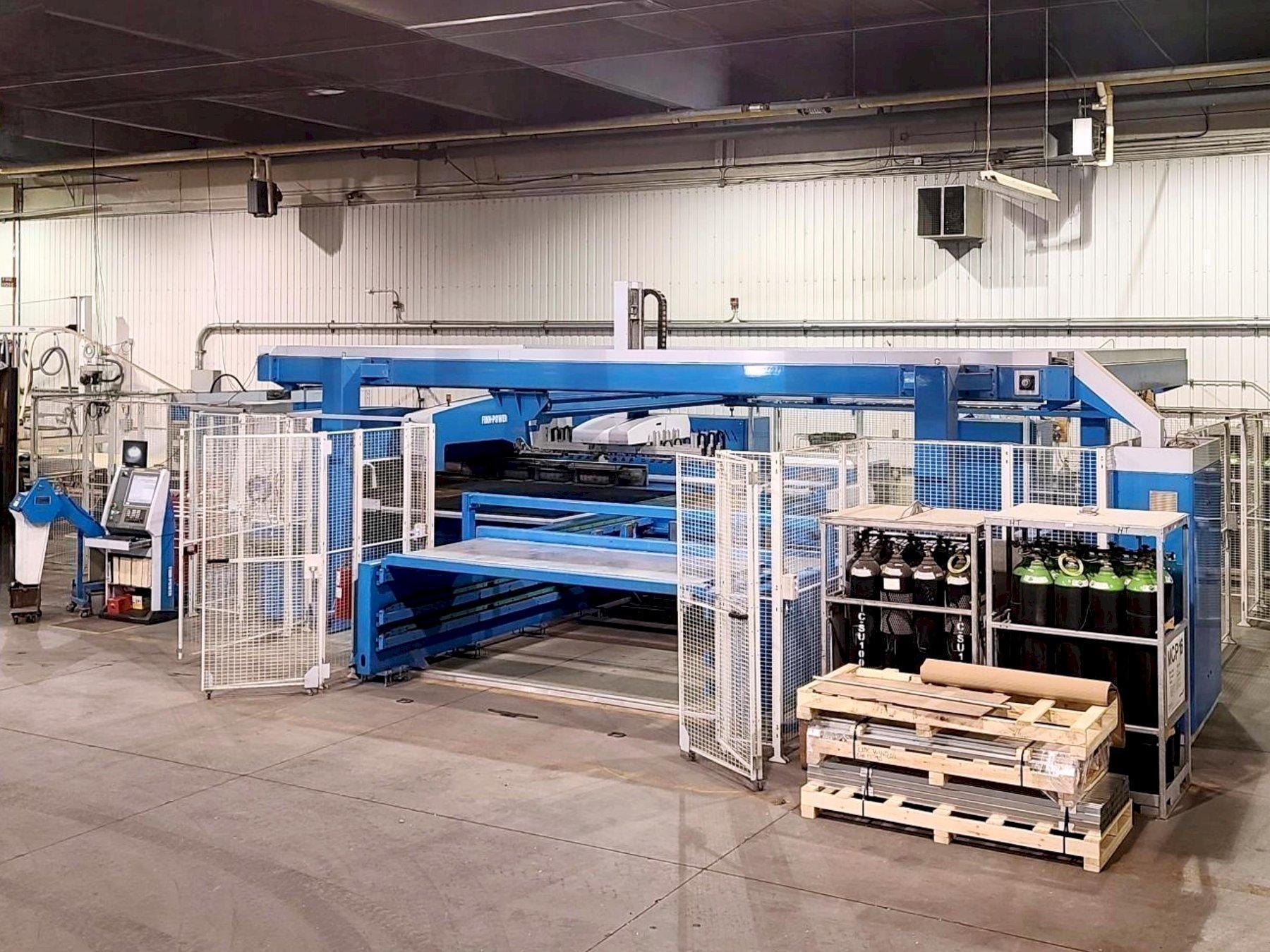

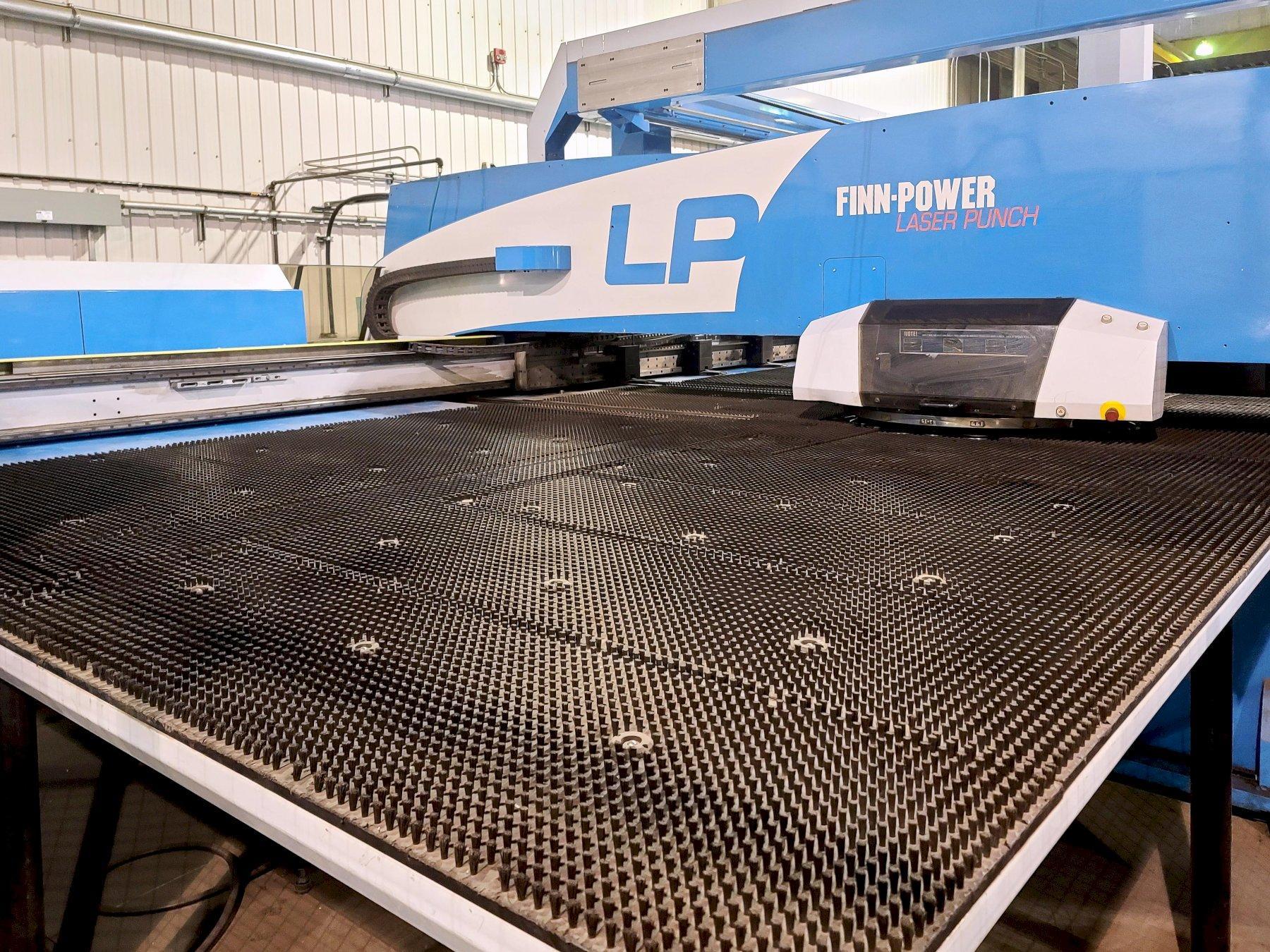

Finn-Power LP6 Punch Laser Combo w/FMS Cell


Model: LP6 Punch Laser Combo

Year: 2010

Reference #: 100468

Excellent Condition with only one owner. Only 15,000 production hours.

Control: Siemens 840D CNC
Laser Power Source: Convergent (Prima) CP 3000
Laser Power: 3kW (3,000 Watt)
Tonnage Capacity: 33 Tons
Y-Axis Travel: 61.42"
X-Axis Travel: 101.73"
Max. Sheet Size: 60" x 120"
Table Type: Brush Table Design
Max. Material Thickness (Punch/Laser): .31"
Max. Material (Stainless/Alu. Laser): .24"
Max. Punch Diameter: 3.5"
Max. Sheet Weight: 440 Lbs.
Hit Rate (Nibbling): 900
Hit Rate (1" Moves): 400
Max. Table Traverse Speed: 4252 IPM
Approx. Machine Weight: 25,740 Lbs.
Machine Footprint: Supplied Upon Request

Equipped With:

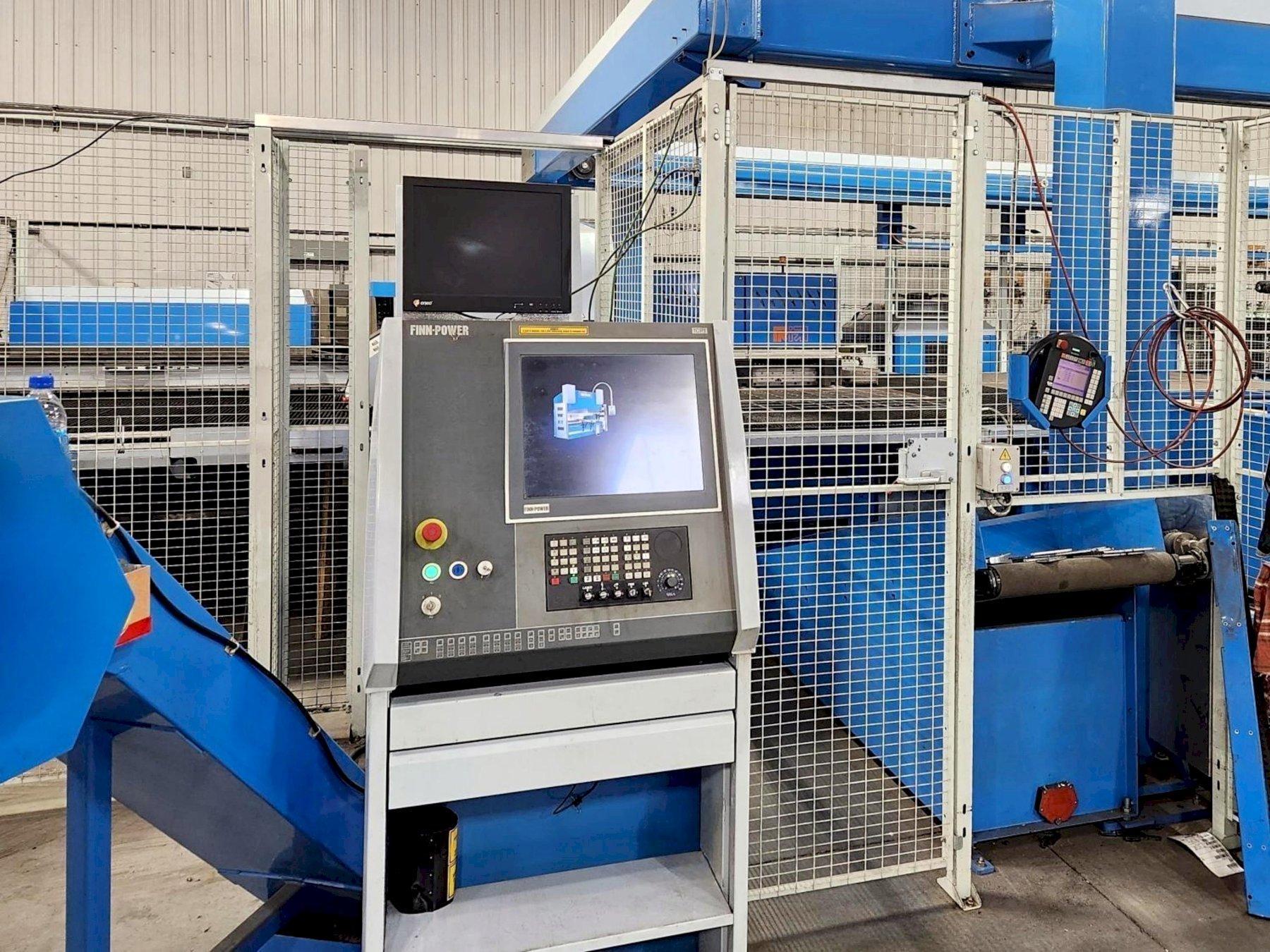

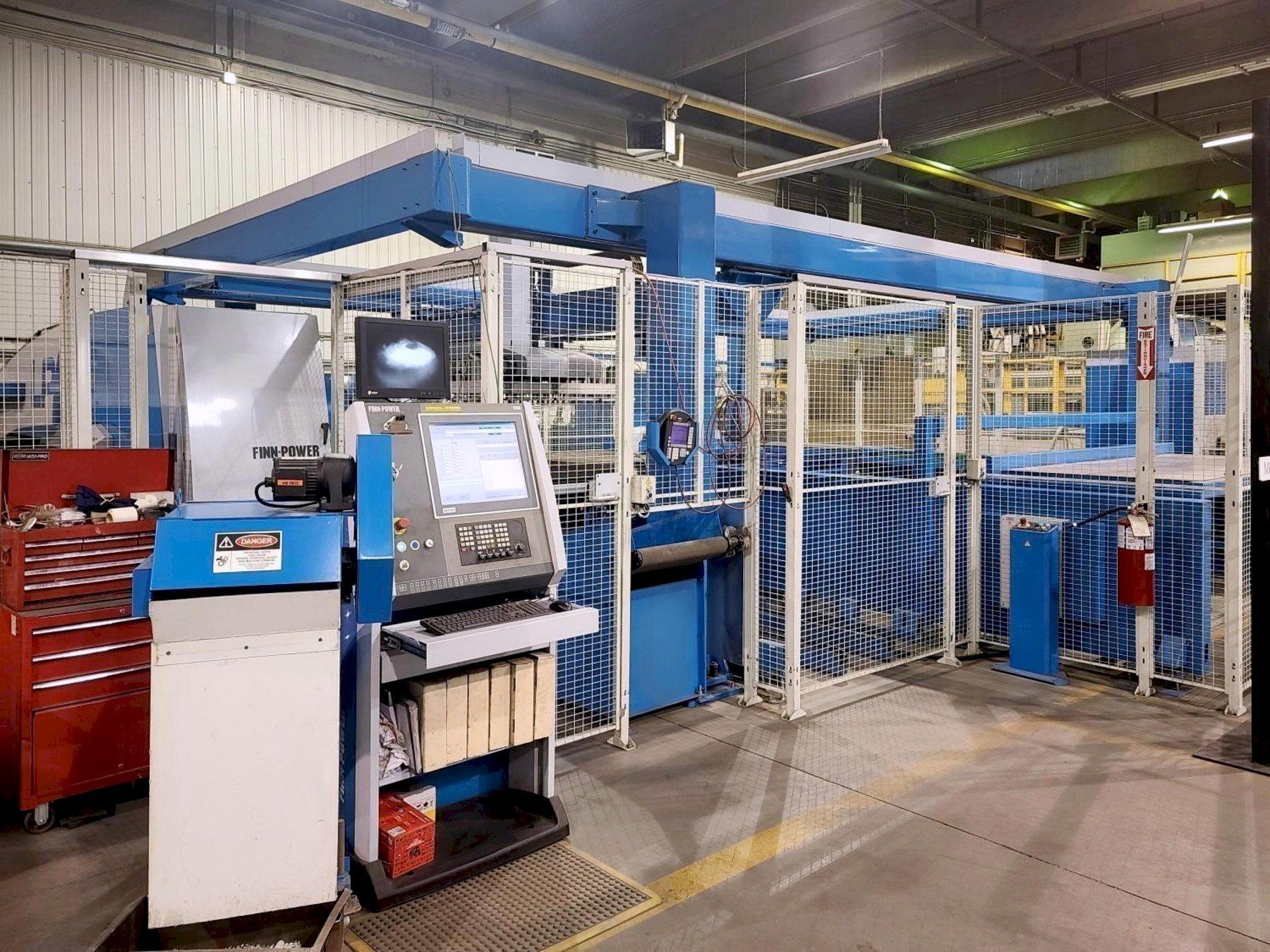

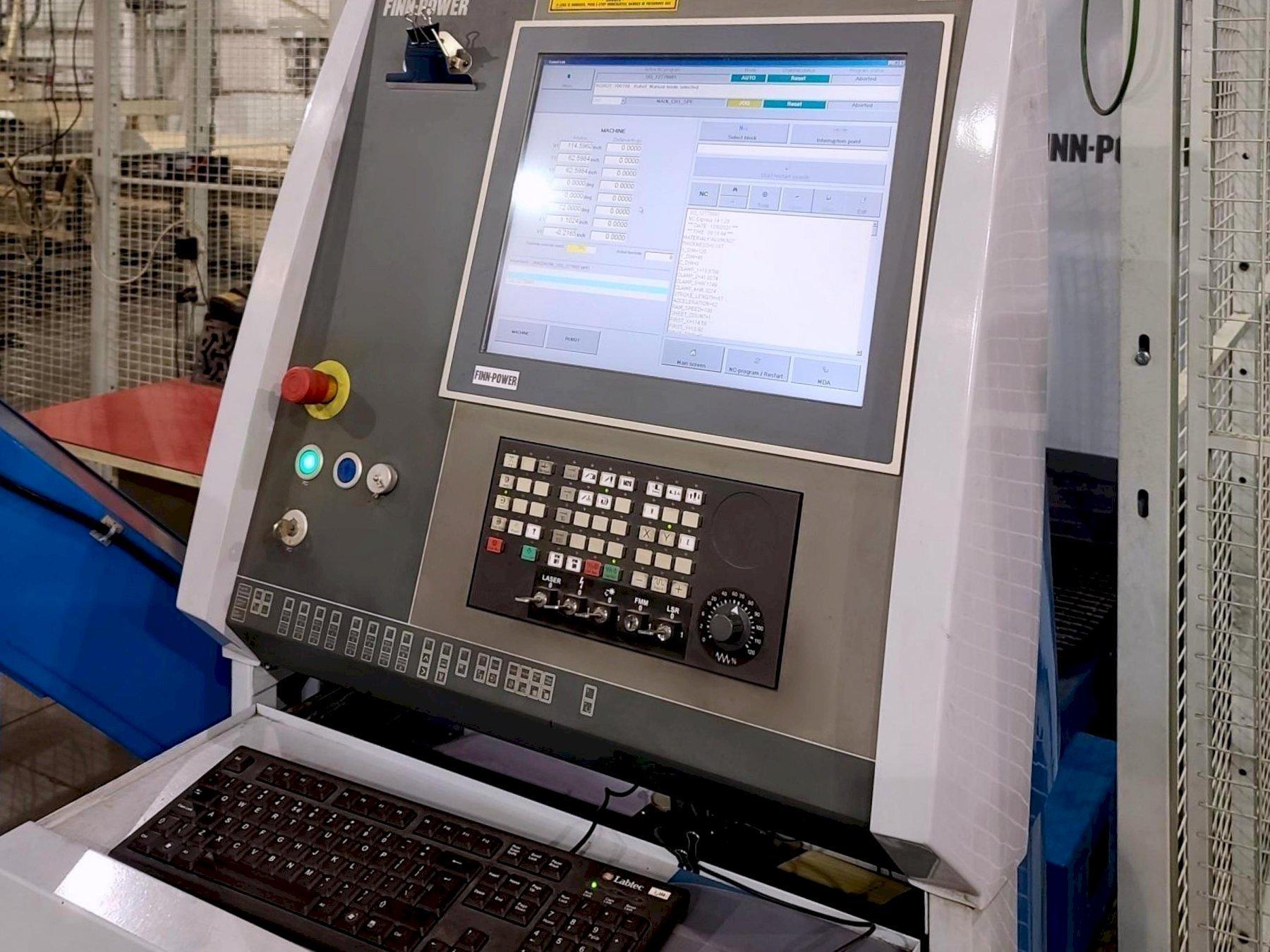

Siemens 840D CNC Control

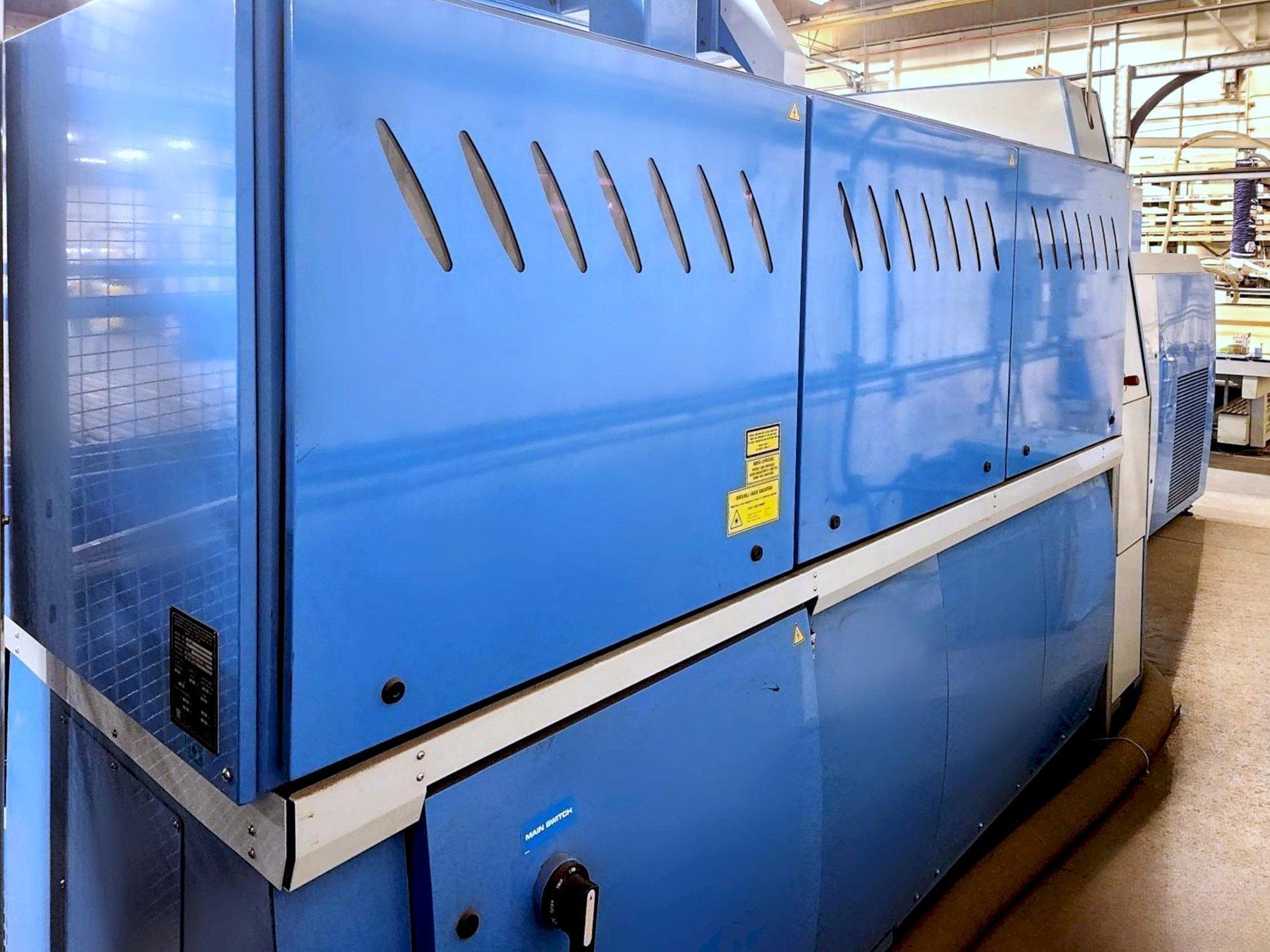

Convergent (Prima) CP 3000 Watt fast-axial-flow, DC-excited C02 Laser

Programmable Hydraulic Punch Stroke

Programmable Ram Speed

(3) Work Clamps with Programmable 3rd Clamp

20 Station Thick Turret

(2) Auto-Index Forming Stations

(2) Multi-Tool Stations

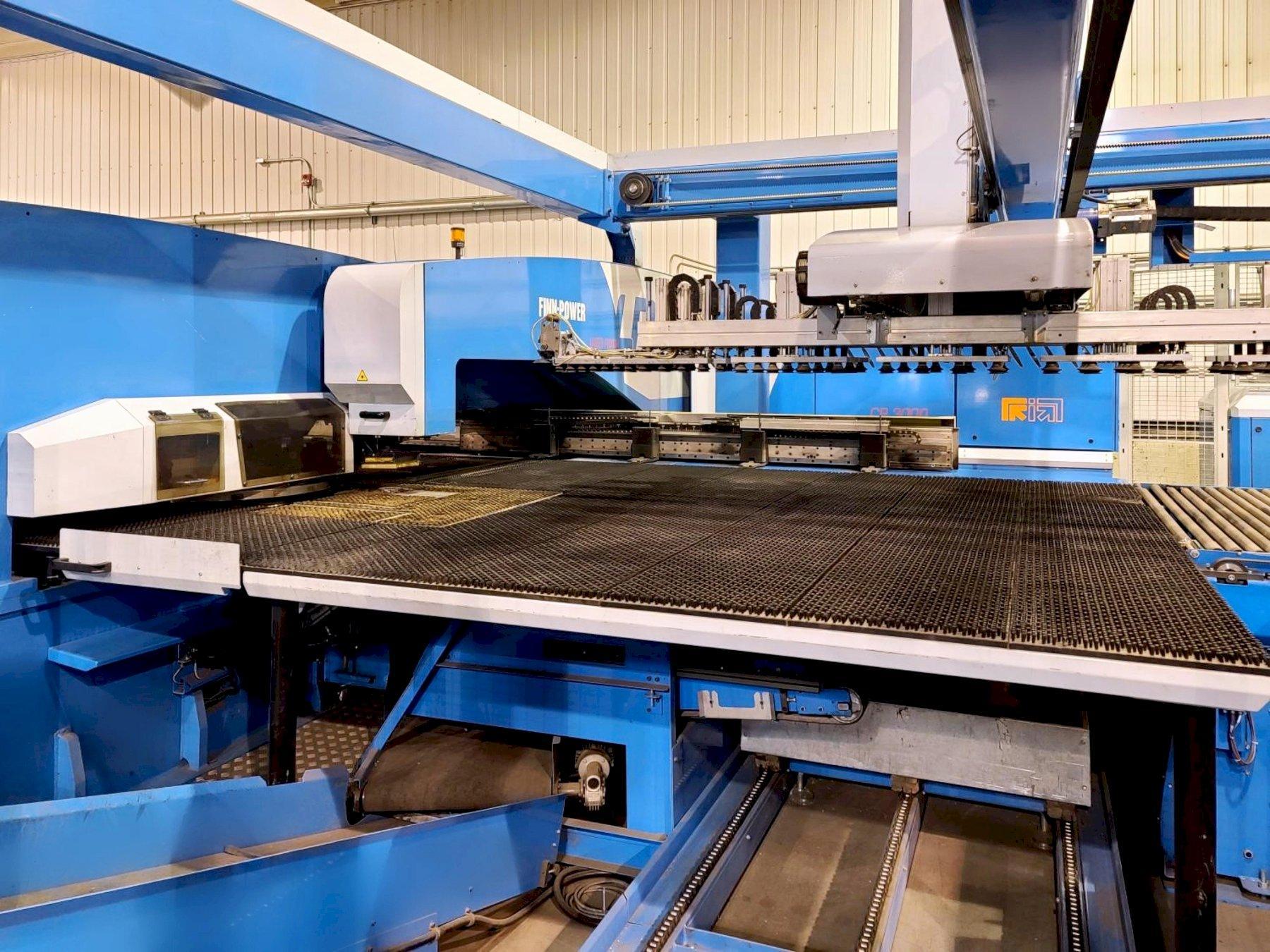

Brush Table Design

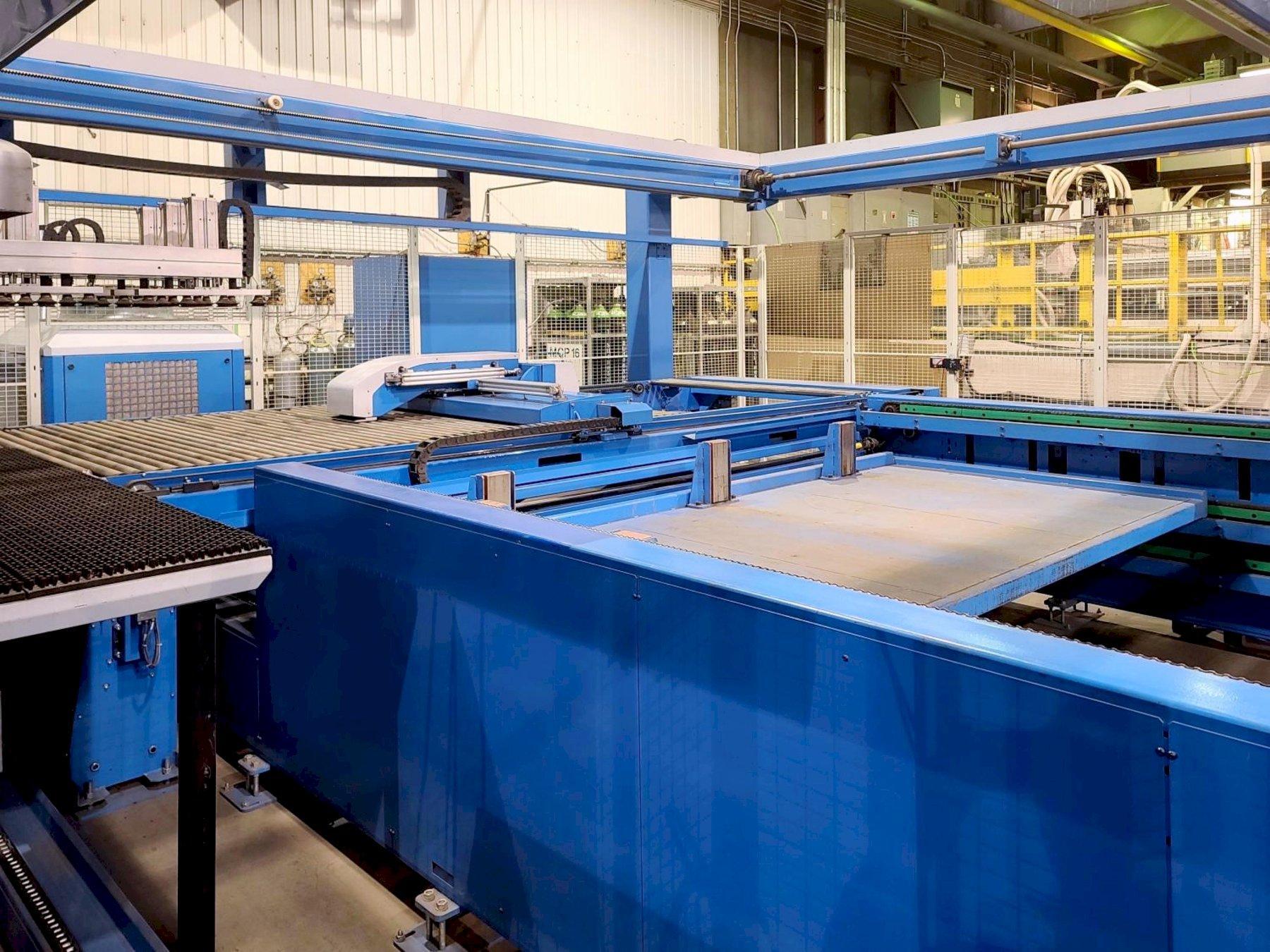

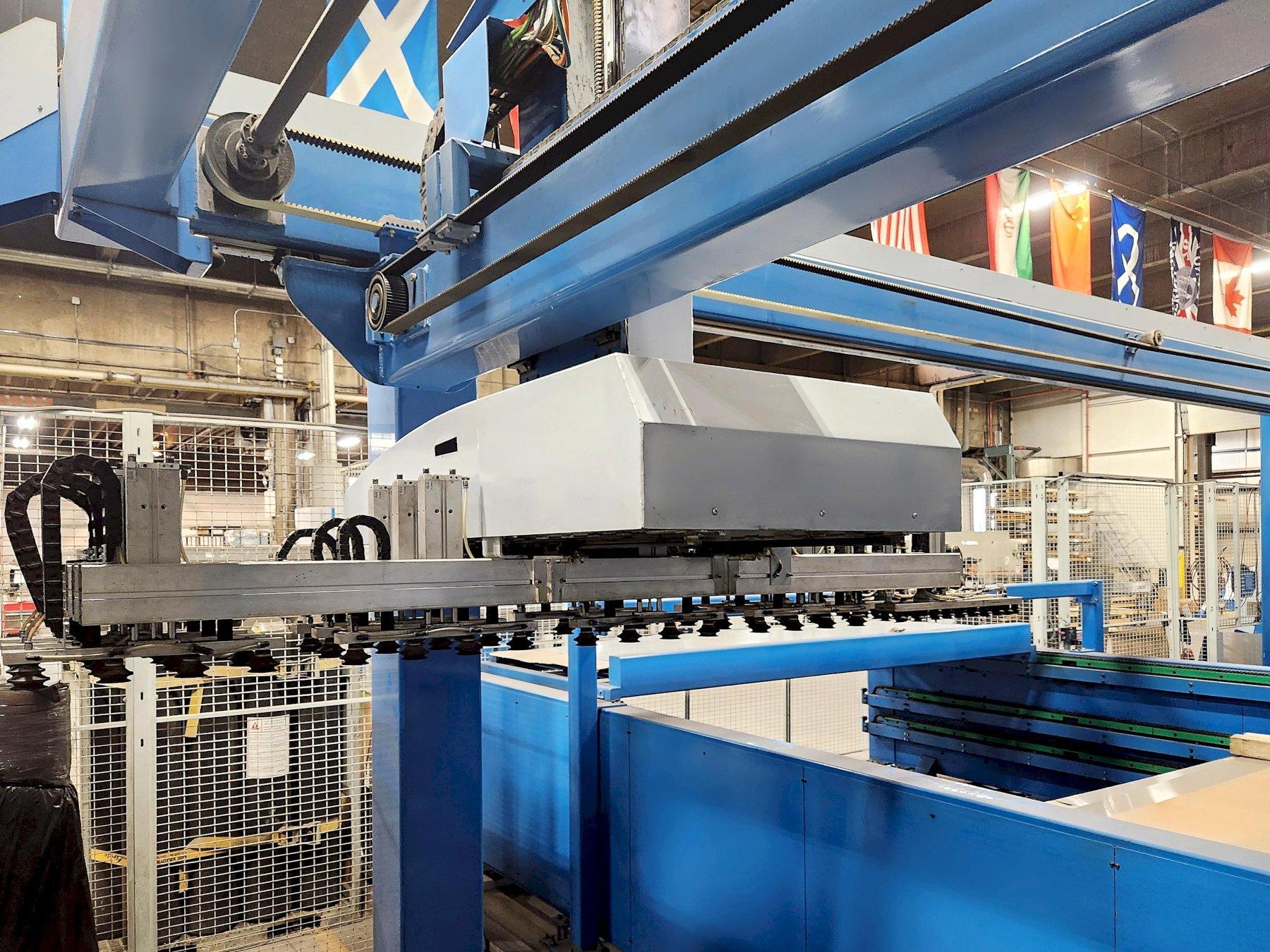

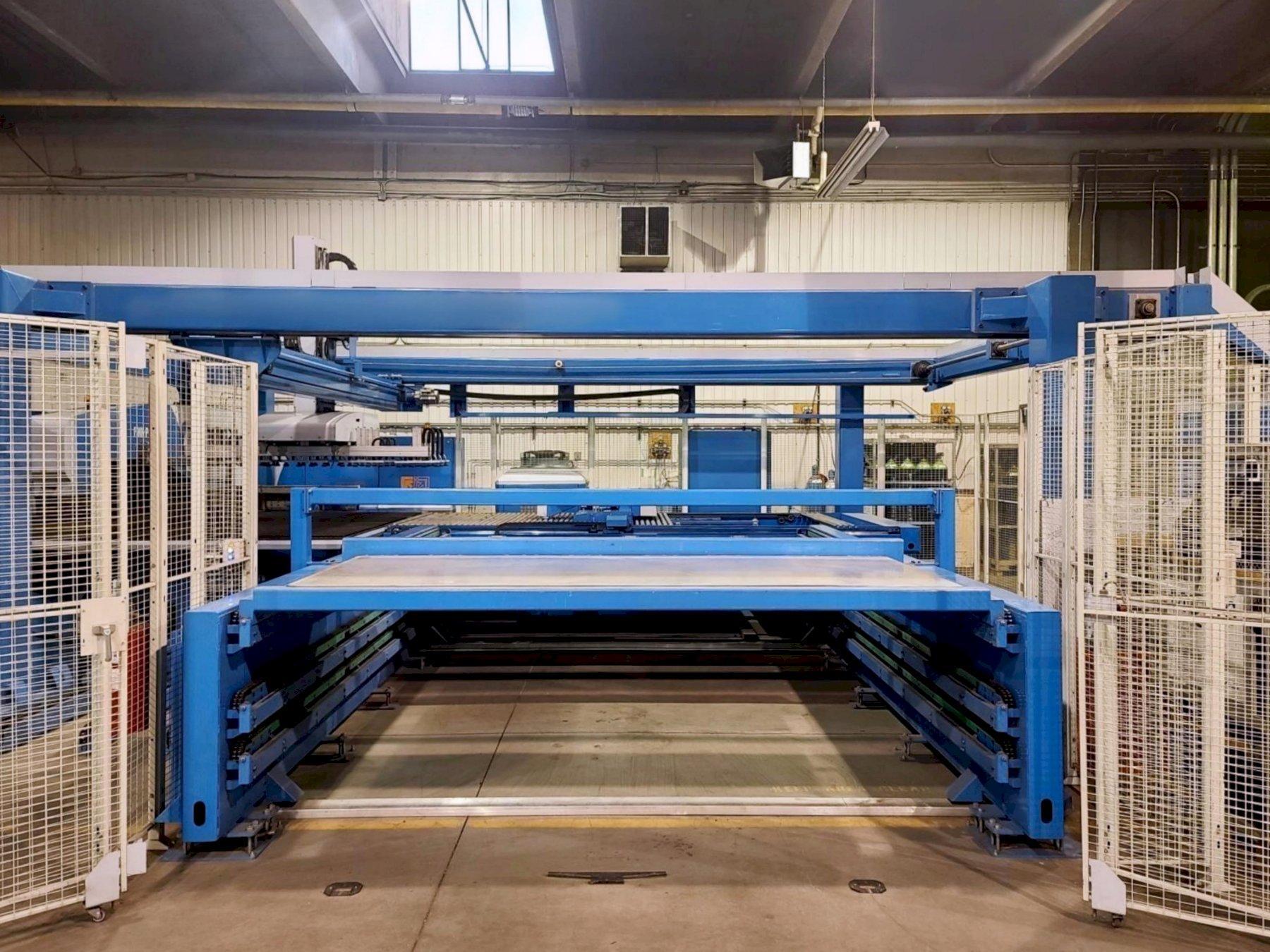

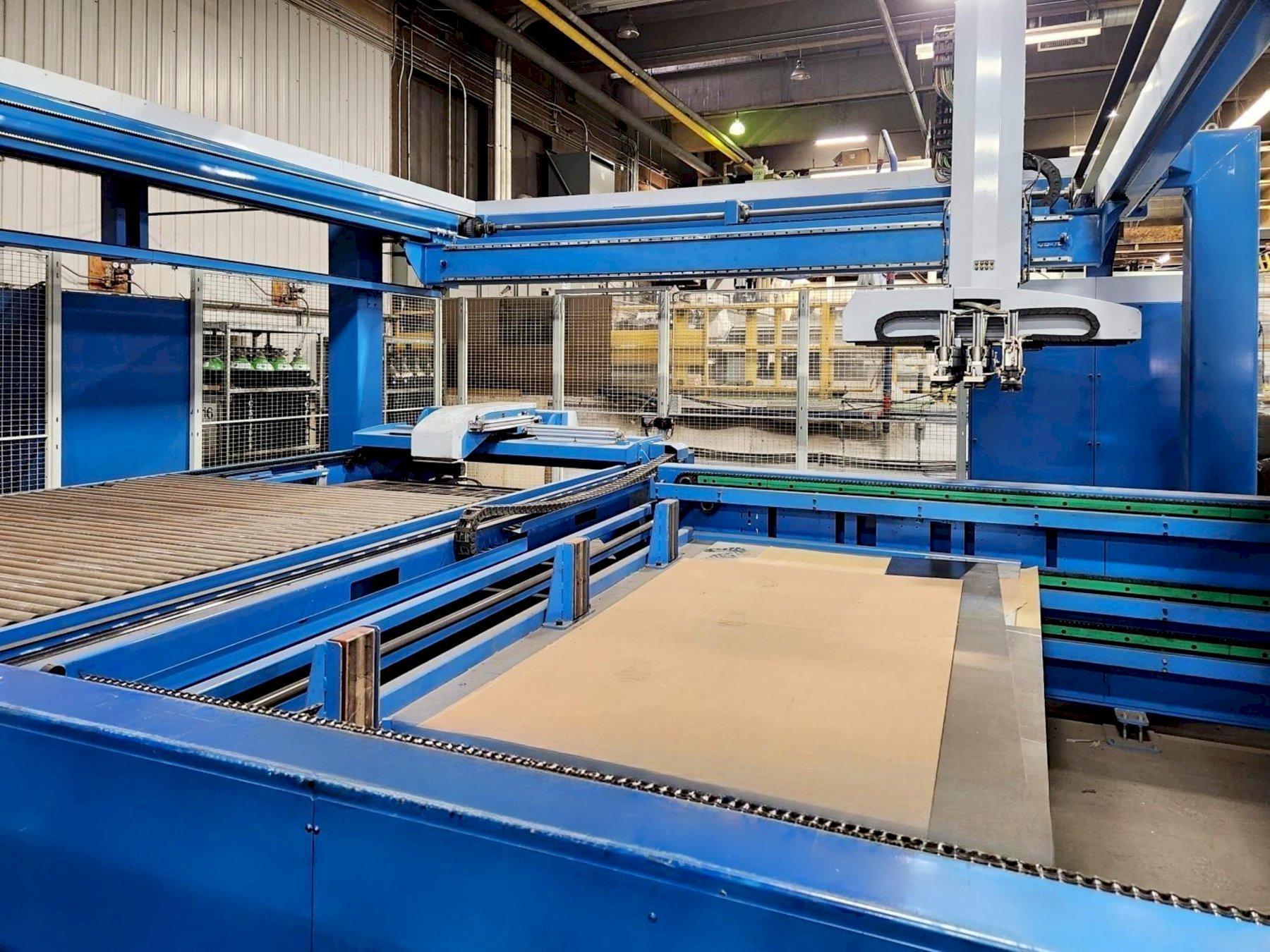

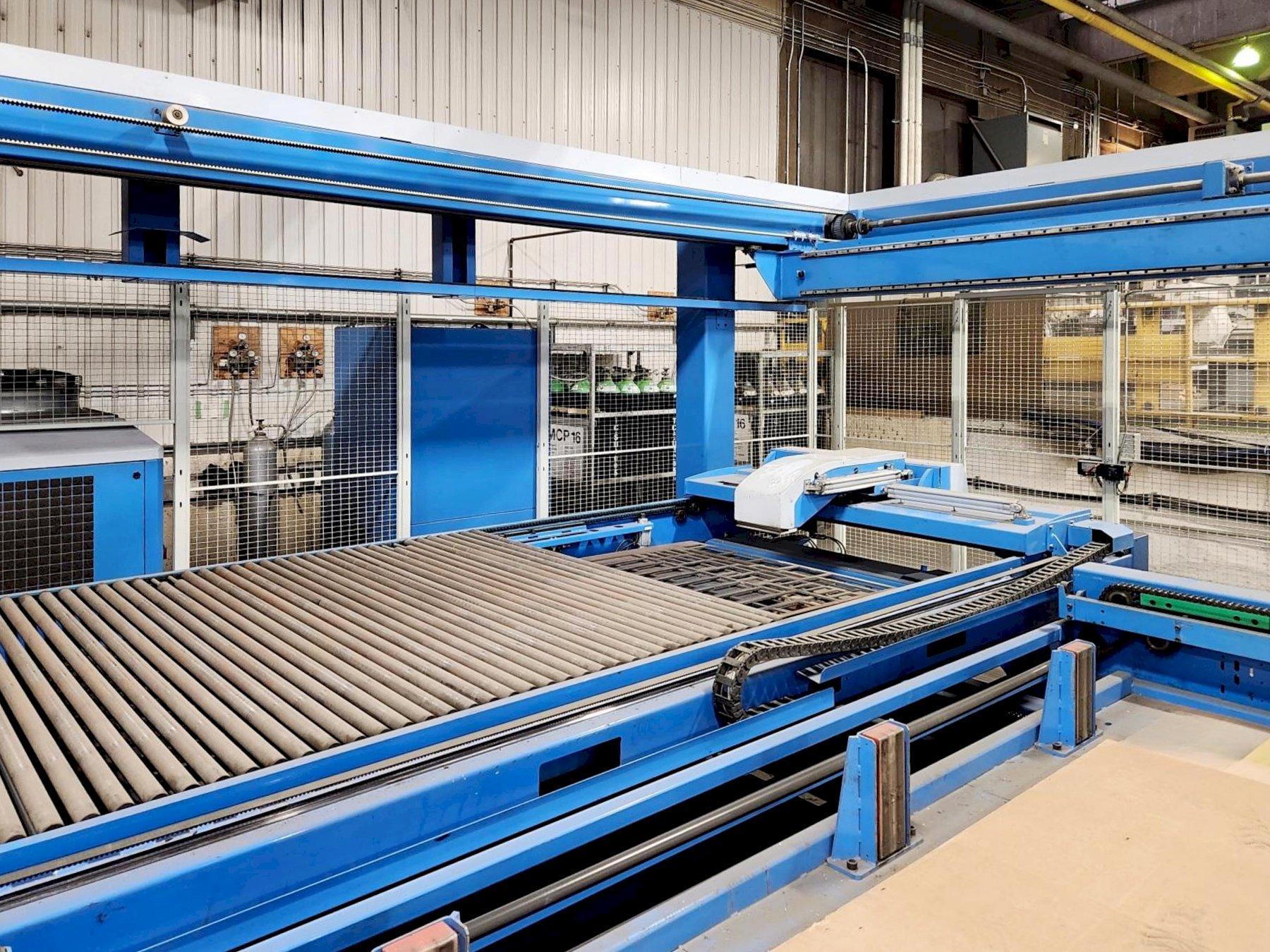

LSR6 Loading and Stacking Robot

SU9 Sorting Unit w/9 Sorting Addresses

(2) Part Work Chutes W/Conveyors (11.81" x 15.74", 31.49" x 31.49")

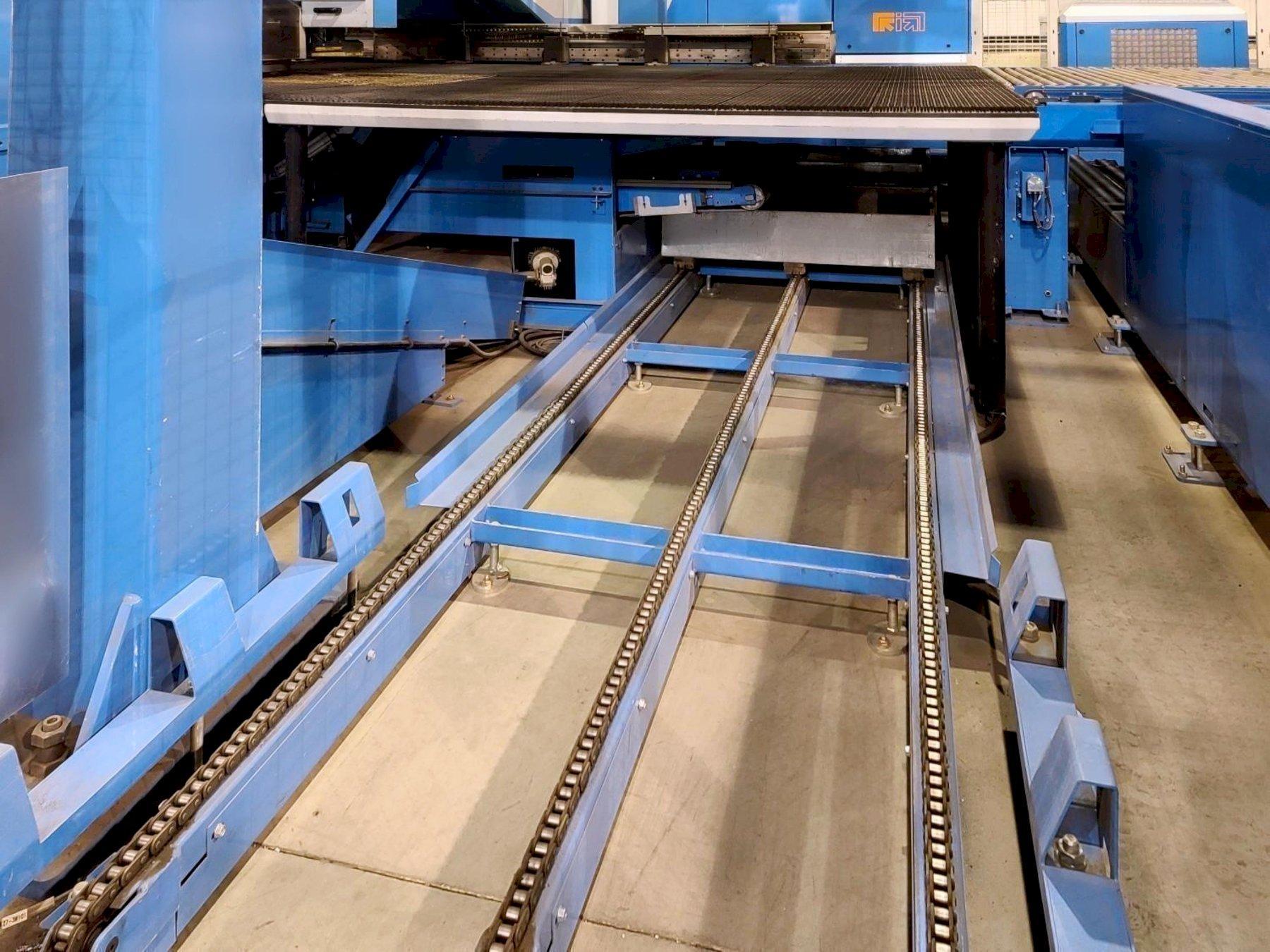

SC/1 Flat Scrap Conveyor

SC/2 Lifting Scrap Conveyor
