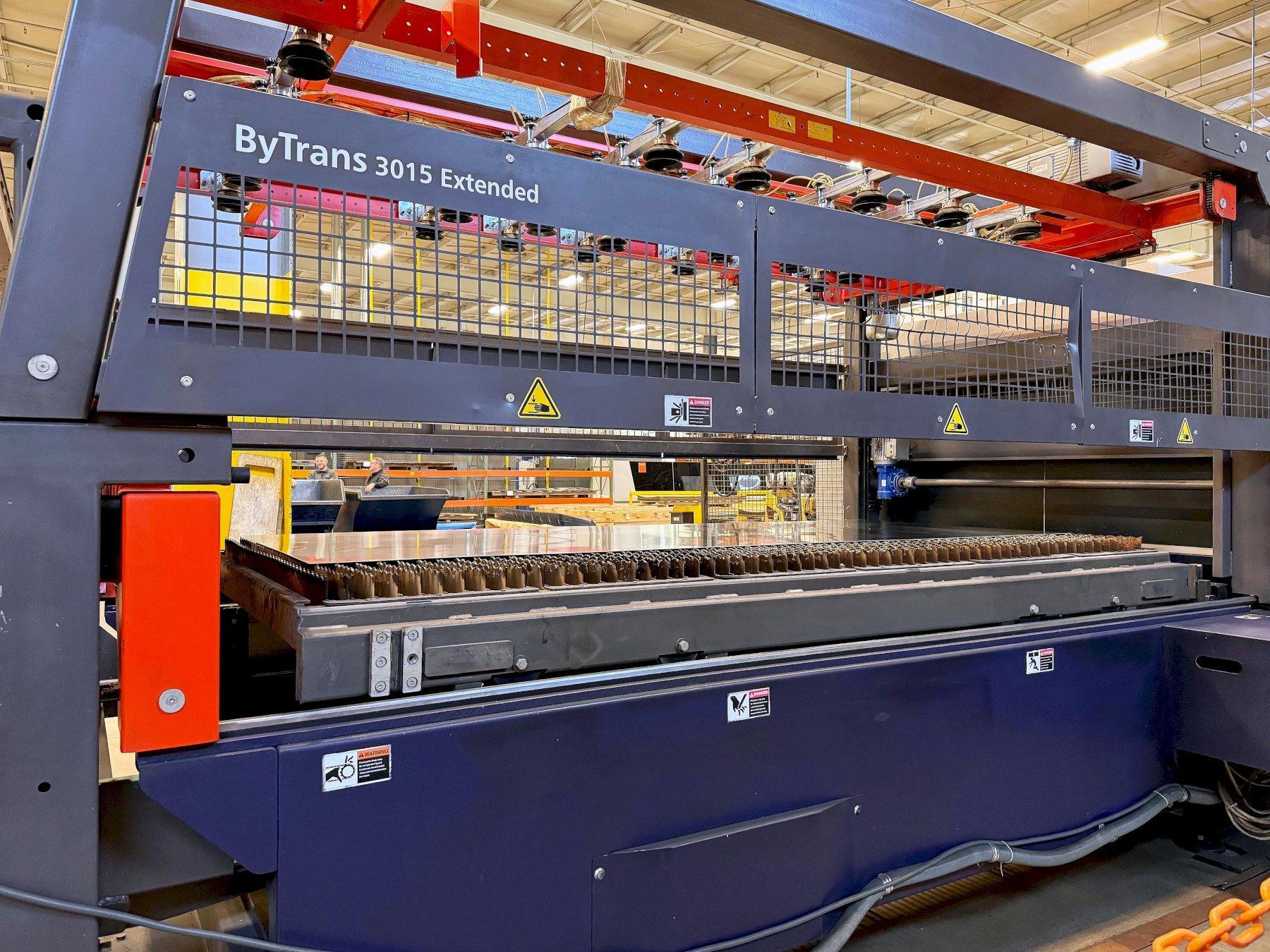

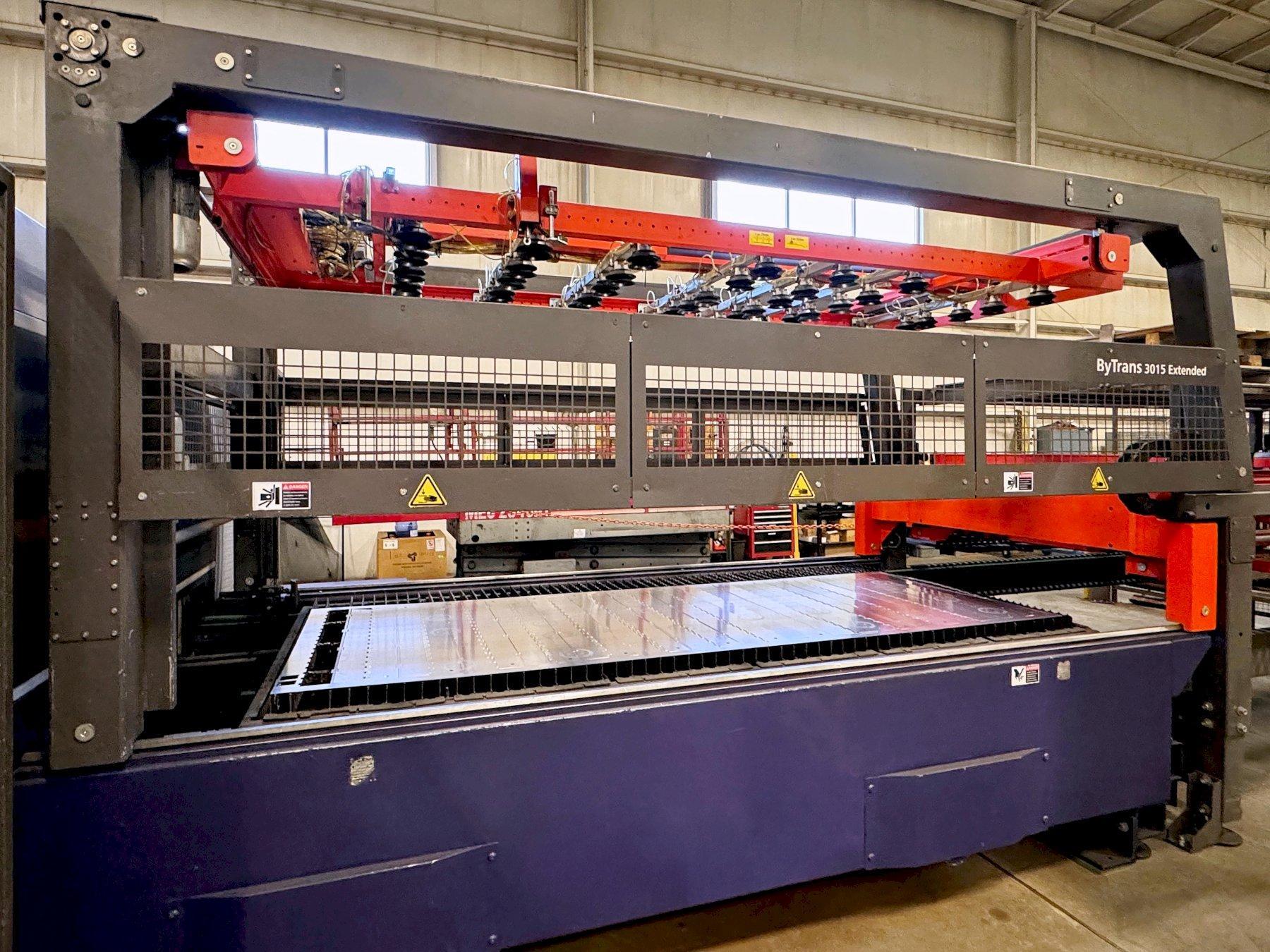

Bystronic ByTrans 3015 Extended


Model: ByTrans 3015 Extended

Year: 2013

Reference #: 100509

Intelligent solution for loading and unloading of laser cutting system

Nominal Sheet Size: 60” X 120”
Max. Sheet Metal Size: 60” X 120”
Sheet Metal Sizes: Variable

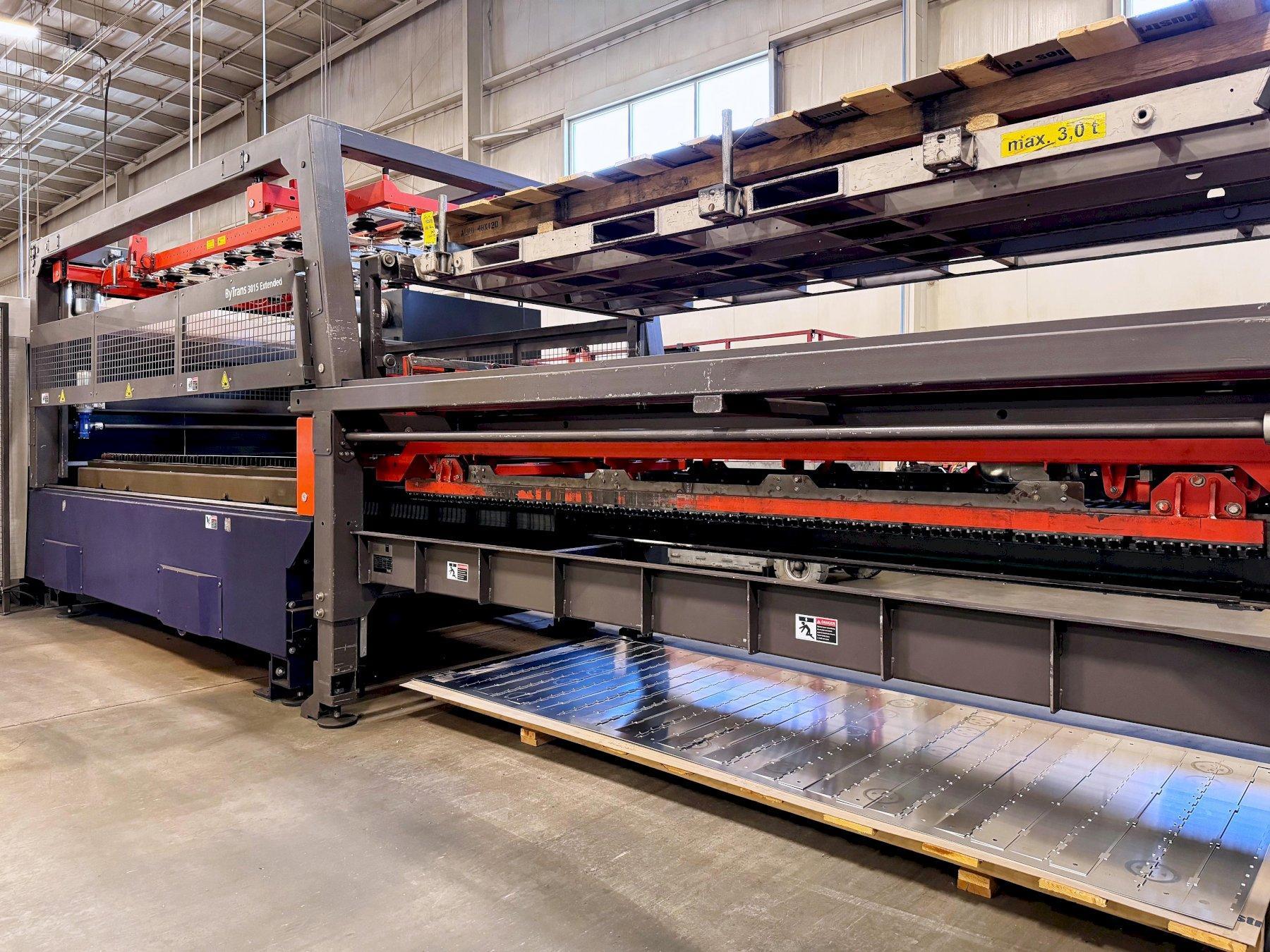

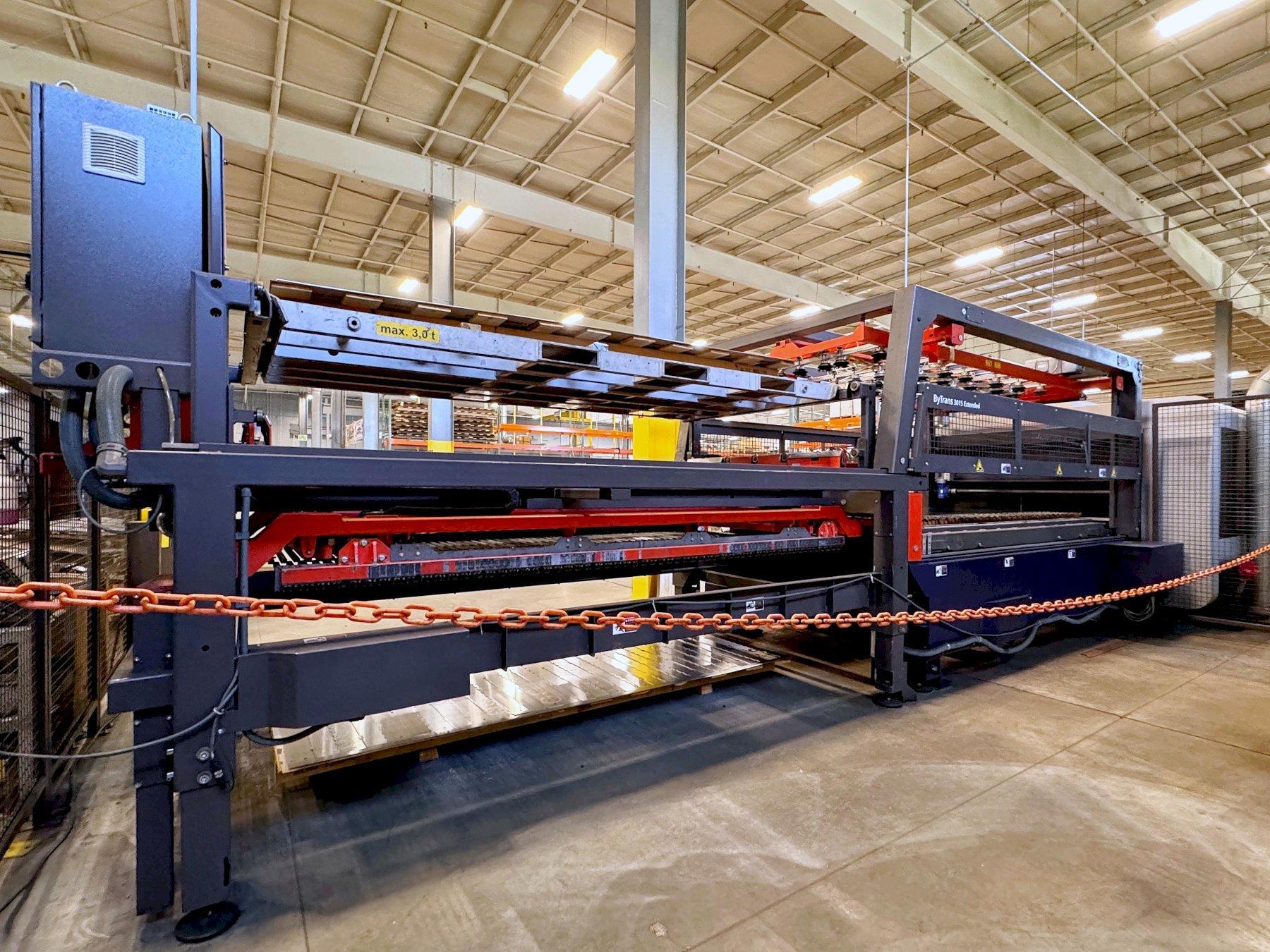

Number Of Cassettes: 2
Sheet Thickness (Loading/Unloading): 0.032” To 1.000”
Max. Sheet Weight: 1985 Lbs.
Max. Raw Material, Stacking Height (Incl. Pallet): 9.4”
Max. Raw Material, Stacking Weight: 6,613 Lbs.
Max. Cut Sheets, Stacking Height (Incl. Pallet): 14”
Standard Cycle Time: 60 Sec.
Cycle Time With Large Part Removal: 140 Sec.
Cycle Time With Insertion of Protective Material: 155 Sec.
Weight (Net): 11,023 Lbs.

Customer Benefits:
Fast job processing. A complete loading and unloading cycle takes only 60 seconds.

Much higher machine utilization for only a slightly higher investment.
The ByTrans Extended design has not just one but two cassettes, thereby making the machine system even more autonomous.
Flexible use. Not just for storage/return transfer but also for large parts removal.
Preparation of plastic protective separators, which are placed between the metal sheets by the system (ByTrans Extended).

Entry into lightly-manned parts production.
