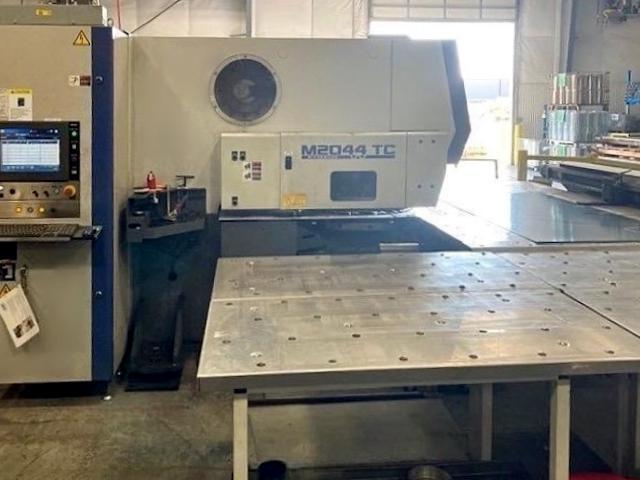

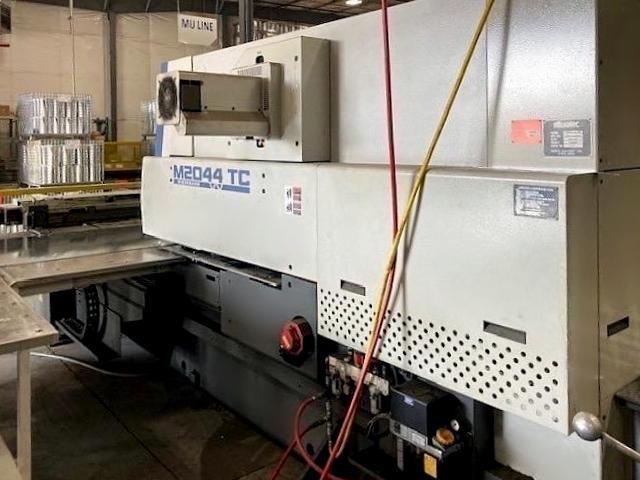

Muratec Motorum M2044TC

Make : MURATEC

Model: Motorum M2044TC

Year: 2014

Type: Punches, Turret

Reference #: 100492

Highlights:
Well maintained with only 5,073 hours.

Request a Quote Sell Your Machine

Specifications Equipped With

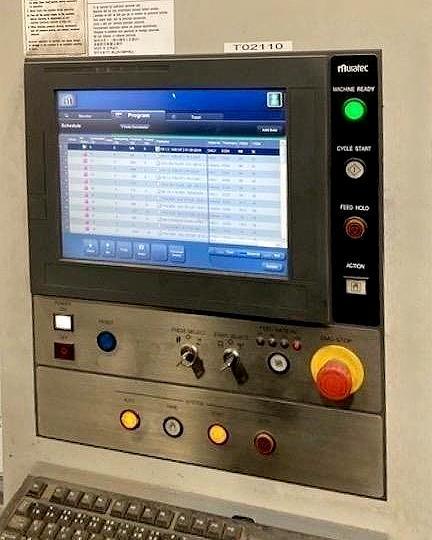

Control: Fanuc Model 0i-Pd

Display: 15” Color LCD (Panel I Computer)

Punching Capacity: 22.4 Tons

Press Drive: AC Servo Motor

Ram Stroke: 1.18"

Die Penetration Control: Variable Die Penetration

Punching Accuracy: ± 0.004"

Axis Repeatability: ± 0.001"

Hit Rates: Axis Move 0.984" / Hits/Min. 240

Max. Sheet Weight: 231 Lbs.

Max. Material Thickness: 0.250"

Max. Hole Diameter: 3.50" / Diameter Hole In .080”

Throat: 51.18”

Table Travel X: 51.18”

Table Travel Y: 52.56”

Sheet Size (No Reposition): 49.213” X 49.213”

Sheet Size (One Reposition): 49.213” X 98.425”

Tabletop Style: Urethane Ball Transfer

Max. Axis Speeds: X Axis - 2953 IPM

Max. Axis Speeds: Y Axis - 2953 IPM

Max. Diagonal Speed: 4173 IPM

Tooling Style: 114, 112, Mate Marathon, Wilson HP

Turret Rotation: 33 RPM

Upper Turret To Die Clearance: 0.838"

Upper Turret Thickness: 3.94”

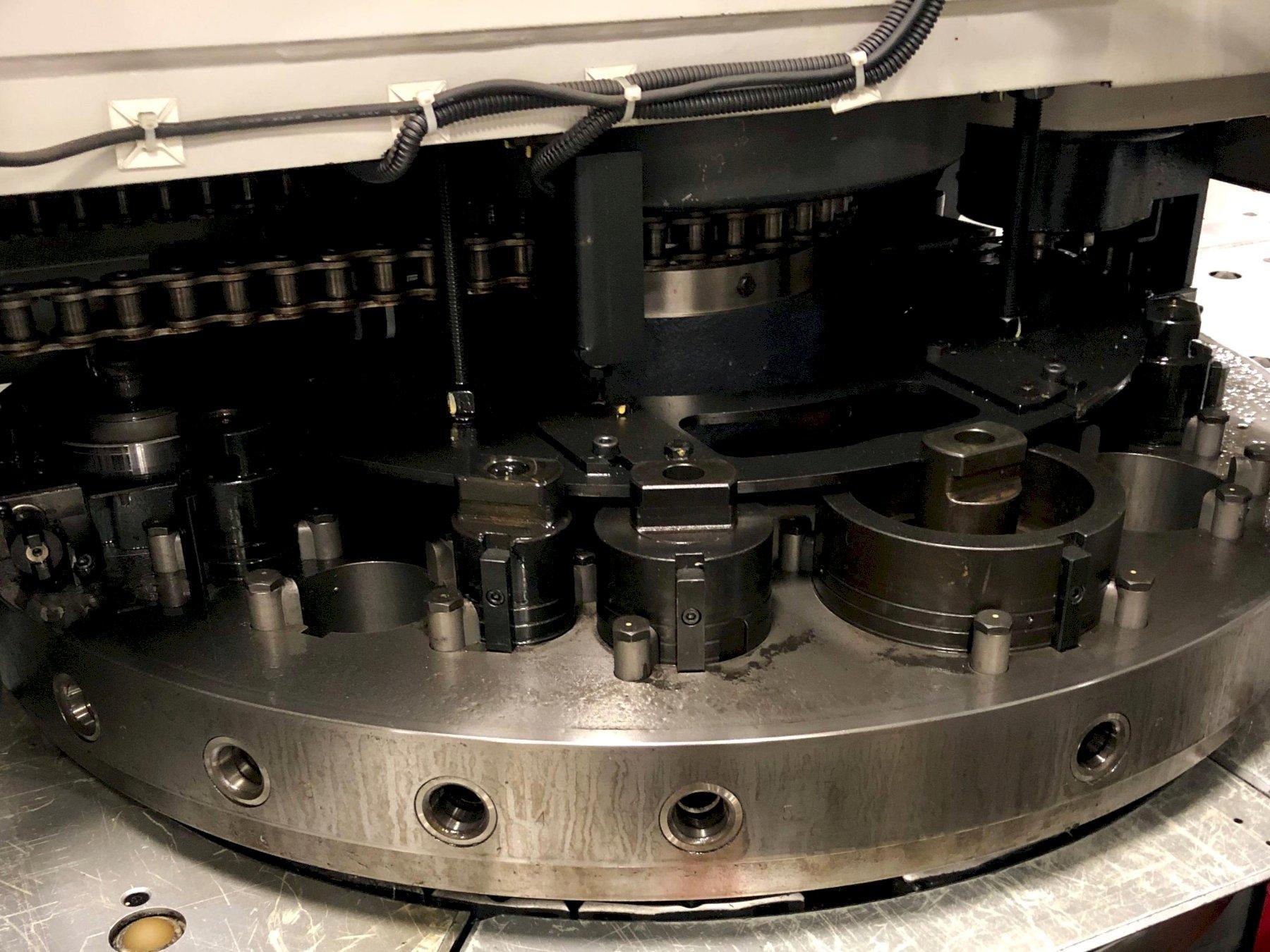

Standard Turret Capacity: 22

Max. Rotational Speed: 60 RPM

Rotational Accuracy: +/- 0.05 Deg.

Approx. Machine Dim.: W 106" / L 180” / H 87"

Table Height: 38.6”

Electrical Requirements: 14 KVA (Peak) / 17 A. @ 480V, 3 Ph. / 37 A. @ 220V, 3 Ph.

Equipped With:
Fanuc Model 0i-Pd CNC Control

15” Color LCD Display

Servo Electric Punch Drive System

Automatic Lubrication
114 Style Punch Holders

Side Tables

Front Guard Rails

Various Tooling
